Model Display Reading Rate Max Measurement Voltage Current Interface XDM6061 2200000 counts 10000 rdgs/s 1000V / 10A USB LAN RS232 XDM6061H 2200000 counts 10000 rdgs/s 3000V / 200A USB LAN RS232 -
Model Digits of Resolution Reading Rate Dispaly Power supply XDM1041 4 1/2 60 rdgs/s 3.5" LCD AC Power XDM1241 4 1/2 60 rdgs/s 3.5" LCD Lithium Battery -
Modle Infrared resolution visible resolution Temperature measurement Display TI332 320 x 240 px 640 x 480 px -20 °C to 450 °C 3.5" TFT LCD TI322 220 x 160 px 640 x 480 px -20 °C to 450 °C 3.5" TFT LCD -
Model Bandwidth Sample Rate Max. Memory Depth Max. Waveform Capture Rate ADS802A 70MHz 2CH 1.25GSa/s 50Mpts 700，000 wfms/s ADS804A 70MHz 4CH 1.25GSa/s 50Mpts 700，000 wfms/s ADS812A 100MHz 2CH 1.25GSa/s 50Mpts 700，000 wfms/s ADS814A 100MHz 4CH 1.25GSa/s 50Mpts 700，000 wfms/s ADS822A 200MHz 2CH 1.25GSa/s 50Mpts 700，000 wfms/s ADS824A 200MHz 4CH 1.25GSa/s 50Mpts 700，000 wfms/s -
Model Bandwidth Sample Rate Vertical Resolution Arb Waveform Generator (optional） ADS3102A 100MHz (2CH) 2.5GSa/s 12-bit 2CH 50MHz ADS3202A 200MHz (2CH) 2.5GSa/s 12-bit 2CH 50MHz ADS3302A 350MHz (2CH) 2.5GSa/s 12-bit 2CH 50MHz ADS3502A 500MHz (2CH) 2.5GSa/s 12-bit 2CH 50MHz ADS3104A 100MHz (4CH) 2.5GSa/s 12-bit 2CH 50MHz ADS3204A 200MHz (4CH) 2.5GSa/s 12-bit 2CH 50MHz ADS3304A 350MHz (4CH) 2.5GSa/s 12-bit 2CH 50MHz ADS3504A 500MHz (4CH) 2.5GSa/s 12-bit 2CH 50MHz -
Model Total Power Rang Current Slope Resolution OEL8511 200W 0-150V/20A 0.01A/ms 1mV/1mA OEL8511B 200W 0-300V/20A 0.01A/ms 1mV/1mA OEL8511C 200W 0-600V/20A 0.01A/ms 1mV/1mA OEL8512 400W 0-150V/40A 0.01A/ms 1mV/1mA OEL8512B 400W 0-300V/40A 0.01A/ms 1mV/1mA OEL8512C 400W 0-600V/40A 0.01A/ms 1mV/1mA OEL8513 500W 0-150V/40A 0.01A/ms 1mV/1mA -
Model Bandwidth Sample Rate Optional Signal Source Digital Channels ADS912A 125MHz 2CH 2GSa/s 30MHz 1CH 16(Probe opt.) ADS914A 125MHz 4CH 2GSa/s 30MHz 1CH 16(Probe opt.) ADS922A 250MHz 2CH 2GSa/s 30MHz 1CH 16(Probe opt.) ADS924A 250MHz 4CH 2GSa/s 30MHz 1CH 16(Probe opt.) -

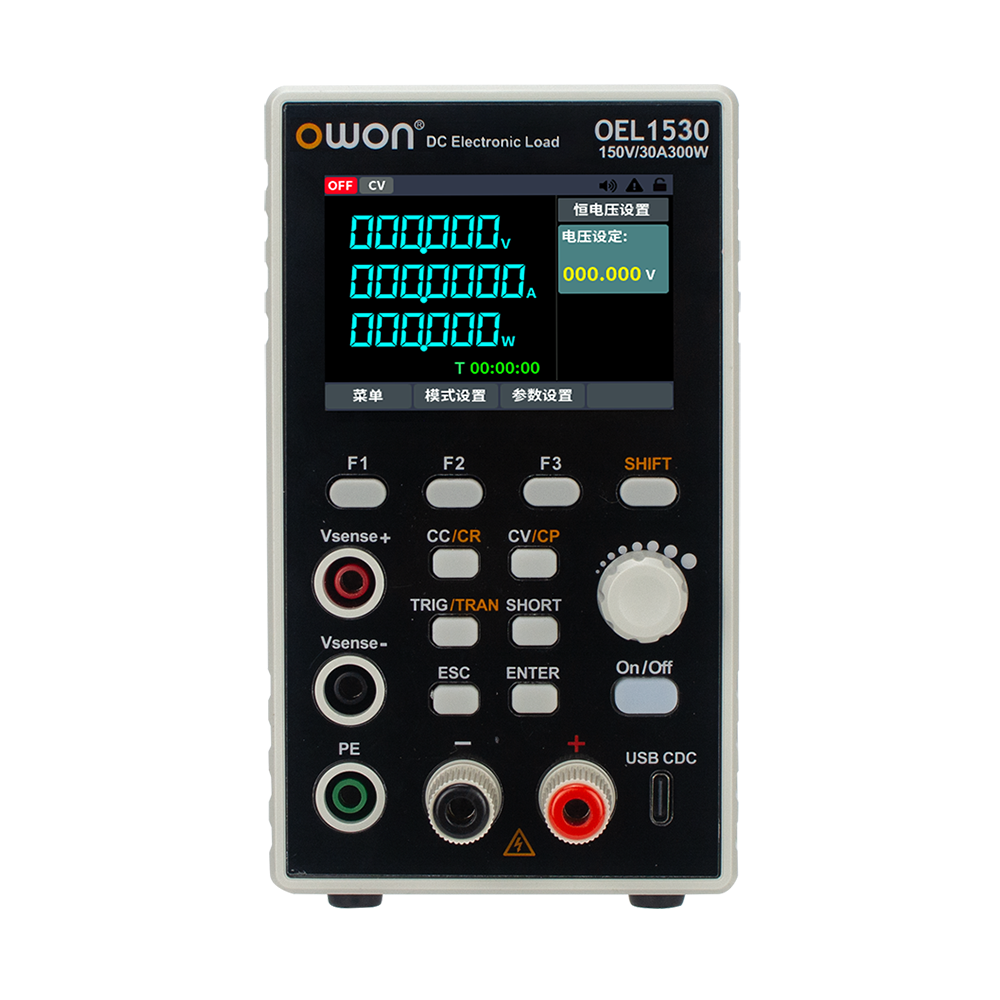

Model Total Power Rang Setting Resolution Readback Resolution OEL1515 150W 150V / 15A 1mV / 1mA 1mV / 0.1mA OEL1520 300W 150V / 20A 1mV / 1mA 1mV / 0.1mA OEL1530 300W 150V / 30A 1mV / 1mA 1mV / 0.1mA OEL3015 150W 300V / 15A 1mV / 1mA 1mV / 0.1mA OEL3020 300W 300V / 20A 1mV / 1mA 1mV / 0.1mA OEL3030 300W 300V / 30A 1mV / 1mA 1mV / 0.1mA OEL6015 150W 600V / 15A 1mV / 1mA 1mV / 0.1mA OEL6020 300W 600V / 20A 1mV / 1mA 1mV / 0.1mA OEL6030 300W 600V / 30A 1mV / 1mA 1mV / 0.1mA -
Model Bandwidth Sample Rate Channel Arb Waveform Generator（optional） ADS3102 100MHz 2.5GSa/s 2 2CH 50MHz ADS3202 200MHz 2.5GSa/s 2 2CH 50MHz ADS3352 350MHz 2.5GSa/s 2 2CH 50MHz ADS3502 500MHz 2.5GSa/s 2 2CH 50MHz ADS3104 100MHz 2.5GSa/s 4 2CH 50MHz ADS3204 200MHz 2.5GSa/s 4 2CH 50MHz ADS3354 350MHz 2.5GSa/s 4 2CH 50MHz ADS3504 500MHz 2.5GSa/s 4 2CH 50MHz -
Model Bandwidth Sample Rate Record Length Signal Generator SDS210 100MHz 1GS/s 20M SDS210S 100MHz 1GS/s 20M √ SDS215 150MHz 1GS/s 20M SDS215S 150MHz 1GS/s 20M √ SDS220 200MHz 1GS/s 20M SDS220S 200MHz 1GS/s 20M √ -
Model Bandwidth Sample Rate Vertical Resolution Record Length FDS1102A 100MHz 1GS/s Max 14 bits 10M FDS1102 100MHz 1GS/s 8 bits 10M FDS3102 100MHz 2.5GS/s 8 bits 10M FDS3202 200MHz 2.5GS/s 8 bits 10M FDS3302 300MHz 2.5GS/s 8 bits 10M -
Model No. Bandwidth Sample Rate Record Length Channel XDS4352 350MHz 5GSa/s 400M 2 XDS4354 350MHz 5GSa/s 400M 4 XDS4502 500MHz 5GSa/s 400M 2 XDS4504 500MHz 5GSa/s 400M 4 -
Model No. Bandwidth Sample Rate Vertical Resolution (A/D) Record Length XDS3202A 200MHz 1GS/s 14 bits 40M XDS3102A 100MHz 1GS/s 12 bits 40M XDS3062A 60MHz 1GS/s 12 bits 40M XDS3102 100MHz 1GS/s 8 bits 40M XDS3202E 200MHz 1GS/s 8 bits 40M XDS3202 200MHz 2GS/s 8 bits 40M XDS3302 300MHz 2.5GS/s 8 bits 40M -
Model Wind speed Humidity Temperature Air volume OWM5500 0.6 - 40 m/s 5 - 95 %RH -10 - 50 ℃ √ -
Modle Infrared resolution visible resolution Temperature measurement Display TI219 120*90 640*480 -20°C ~400°C 2.8”TFT LCD（320*240） -
Model Spectrum Analyzer Frequency Range Vector Network Analyzer Frequency Range Real Time Analysis Bandwidth Tracking Generator XSA3036-R 9kHz - 3.6GHz 100kHz - 3.6GHz 100MHz √ XSA3060-R 9kHz - 6GHz 100kHz - 6GHz 100MHz √ XSA3080-R 9kHz - 8GHz 100kHz - 8GHz 100MHz √ -
Model Frequency Range RBW Phase Noise (Typical) TG XSA1015P 9kHz-1.5GHz 1Hz - 1MHz -106 dBc/Hz @1GHz √ XSA1032P 9kHz-3.2GHz 1Hz - 1MHz -106 dBc/Hz @1GHz √ XSA1036P 9kHz-3.6GHz 1Hz - 1MHz -106 dBc/Hz @1GHz √ XSA1075P 9kHz-7.5 GHz 1Hz - 1MHz -106 dBc/Hz @1GHz optional -
Model Frequency Range RBW Phase Noise (Typical) TG Model XSA805 9kHz - 500MHz 1Hz - 1MHz -80 dBc/Hz @1GHz and offset at 10 kHz optional XSA810 9kHz - 1GHz 1Hz - 1MHz -80 dBc/Hz @1GHz and offset at 10 kHz optional XSA815 9kHz - 1.5GHz 1Hz - 1MHz -80 dBc/Hz @1GHz and offset at 10 kHz optional -
Model Digits of Resolution Reading Rate Dispaly IO Interface XDM1141 4 1/2 65 rdgs/s 3.5" LCD USB Device -
Model Frequency Range RBW TG Model GPS HSA1016 9kHz - 1.6GHz 10Hz - 3MHz × √ HSA1016TG 9kHz - 1.6GHz 10Hz - 3MHz √ √ HSA1036 9kHz - 3.6GHz 10Hz - 3MHz × √ HSA1036TG 9kHz - 3.6GHz 10Hz - 3MHz √ √ HSA1075 9kHz - 7.5GHz 10Hz - 3MHz × √ HSA1075TG 9kHz - 7.5GHz 10Hz - 3MHz √ √ -

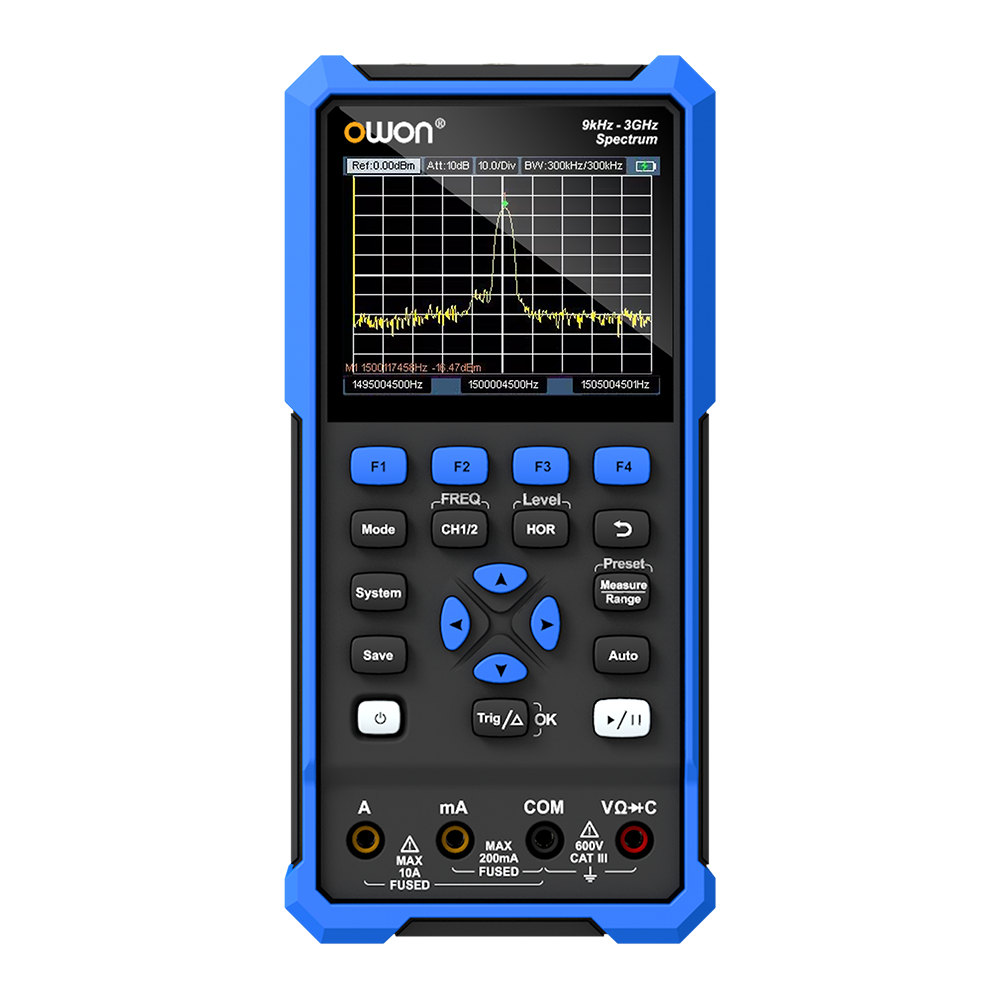

Model Frequency Range Bandwidth Sample Rate Multimeter HSA2105 9kHz-1.5GHz 50MHz 250MSa/s 4 1/2 digits HSA2307 9kHz-3GHz 70MHz 250MSa/s 4 1/2 digits HSA2310 9kHz-3GHz 100MHz 500MSa/s 4 1/2 digits HSA2320 9kHz-3GHz 200MHz 1GSa/s 4 1/2 digits -
Model Output Power Output Voltage Output Current Settings Resolution OWH67012 1.2KW 0 -80V/150V/300V 0-30A/20A/10A 10mV/1mA OWH67018 1.8KW 0 -150V 0-30A 10mV/1mA OWH67020 2KW 0 -150V/300V/600V 0-20A/10A/10A 10mV/1mA OWH67030 3KW 0 -150V/300V/600V 0-30A/15A/10A 10mV/1mA -
Model No. Output Power Output Ranges Output Resolution Channel SPS3051 150W 0 - 30V/0 - 5A 10mV/1mA 1 SPS6051 150W 0 - 60V/0 - 5A 10mV/1mA 1 SPS3081 120W 0 - 30V/0 - 8A 10mV/1mA 1 SPS6081 120W 0 - 60V/0 - 8A 10mV/1mA 1 SPS8081 120W 0 - 80V/0 - 8A 10mV/1mA 1 -
Model Output Power Output Ranges Channel Resolution SPE15054 400W 0 - 150V/0 - 5A 1 10mV/1mA SPE15105 500W 0 - 150V/0 - 10A 1 10mV/1mA SPE30054 400W 0 - 300V/0 - 5A 1 10mV/1mA SPE30055 500W 0 - 300V/0 - 5A 1 10mV/1mA SPE50024 400W 0 - 500V/0 - 2A 1 10mV/1mA SPE50025 500W 0 - 500V/0 - 2A 1 10mV/1mA -
Model Output Range Out put Power Multimeter Power resolution SPM3051 30V/5A 150W 4 1/2 digits 10mV/1mA SPM6053 60V/5A 300W 4 1/2 digits 10mV/1mA SPM3103 30V/10A 300W 4 1/2 digits 10mV/1mA SPM6103 60V/10A 300W 4 1/2 digits 10mV/1mA SPM8104 80V/10A 400W 4 1/2 digits 10mV/1mA SPM8205 80V/20A 500W 4 1/2 digits 10mV/1mA -
Model No. Max Output Power Output Ranges Channel Resolution ODP8353 204W 30V / 5A*2 | 24V / 3A*1 3+Sense 1mV / 1mA ODP8354 228W 30V / 5A*2 | 24V / 3A*2 4+Sense 1mV / 1mA -
Model No. Output Power Output Ranges Channel Output Resolution SPE3051 150W 0-30V / 0-5A 1 10mV/1mA SPE3102 200W 0-30V / 0-10A 1 10mV/1mA SPE6102 200W 0-60V / 0-10A 1 10mV/1mA SPE6053 300W 0-60V / 0-5A 1 10mV/1mA SPE3103 300W 0-30V / 0-10A 1 10mV/1mA SPE6103 300W 0-60V / 0-10A 1 10mV/1mA -
Model No. Output Power Output Ranges Channel Resolution SPE6205 500W 0-60V / 0-20A 1 10mV/1mA SPE8105 500W 0-80V / 0-10A 1 10mV/1mA SPE8205 500W 0-80V / 0-20A 1 10mV/1mA -
Model Output Power Voltage / Current Range Channel Settings Resolution OWH67010D-80 1000W 80V / 20A 2 10mV/1mA OWH67060D-150 6000W 150V / 30A 2 10mV/1mA OWH67060D-300 6000W 300V / 15A 2 10mV/1mA OWH67060D-600 6000W 600V / 10A 2 10mV/1mA -
Model No. Output Power Output Ranges Channel Output Resolution SP3051 150W 0-30V / 0-5A 1 10mV/1mA SP3101 150W 0-30V / 0-10A 1 10mV/1mA SP6101 150W 0-60V / 0-10A 1 10mV/1mA SP6053 300W 0-60V / 0-5A 1 10mV/1mA SP3103 300W 0-30V / 0-10A 1 10mV/1mA SP6103 300W 0-60V / 0-10A 1 10mV/1mA -
Model No. Output Power Output Ranges Channel Output Resolution P4305 150W 0 - 30V / 0 - 5A 1 1mV / 1mA P4603 180W 0 - 60V / 0 - 3A 1 1mV / 1mA -
Model No. Output Power Output Ranges Channel Output Resolution ODP3122 378W 0 - 30V / 12A-CH | 0 - 6V / 3A 2+Sense 1mV / 1mA ODP6062 378W 0 - 60V / 6A-CH | 0 - 6V / 3A 2+Sense 1mV / 1mA -
Model No. Output Power Output Ranges Channel Output Resolution ODP3033 198W 0 - 30V / 3A x 2-CH | 0 - 6V / 3A 3 1mV / 1mA ODP3063 378W 0 - 30V / 6A x 2-CH | 0 - 6V / 3A 3 1mV / 1mA ODP6033 378W 0 - 60V / 3A x 2-CH | 0 - 6V / 3A 3 1mV / 1mA -
Model No. Output Power Output Voltage Output Current Channel ODP3032 195W 0 - 30V | fixed 5V 0 - 3A | fixed 3A 2+1 -
Model No. AC/DC Voltage AC/DC Current Display Count Bluetooth CM2100B 600V 100A 20000 √ CM2100 600V 100A 20000 -
Modle Display Count AC/DC Current Oscilloscope Bandwidth Bluetooth CMS061 20000 20A-600A 1MHz(voltage);1KHz(current) √ CMS101 20000 20A-1000A 1MHz(voltage);1KHz(current) √ -
Model No. AC Voltage DC Voltage AC Current Display Count CM240(discontinued) 0 - 600V 0 - 600V 0 - 400A 2000 -
Model Display Oscillsocope Bandwidth Battry Safety Compliance HDS120 20000(4 1/2 Digits) 1MHz (only ACV scale) 18650 Lithium batteries CATⅢ1000V HDS160 60000(4 1/2 Digits) 1MHz (only ACV scale) 18650 Lithium batteries CATⅢ1000V -
Model Display Output Measure 24V loop power supply HPC79A+ 55000 DC Voltage/DC Current/Frequency/Resistance/Thermocouple/Thermal resistor DAC Voltage/DAC Current/Resistance/Frequency/Thermocouple/Thermal resistor √ -
Model Source Measure Manual Step Output Automatic Waveform Output HPC71A DC voltage/DC current/Sink current DC voltage/DC current/Loop Power √ √ HPC71B DC voltage/DC current/Sink current/Thermocouple DC voltage/DC current/Loop Power/Thermocouple √ √ -
Model Display Output Measure 24V loop power supply HPC77+ 5000 Counts DC Voltage & Current DAC Voltage/DAC Current/Resistance √ HPC78+ 6000 Counts DC Voltage & Current/Frequency DAC Voltage/DAC Current/Resistance/Frequency √ HPC79+ 6000 Counts DC Voltage & Current/Resistance/Frequency/Thermocouple/Thermal resistor DAC Voltage/DAC Current/Resistance/Frequency/Thermocouple/Thermal resistor √ -
Model Bluetooth True RMS Auto Ranging NCV OW18D × √ √ √ OW18E √ √ √ √ -
Model. Bluetooth True RMS Audion NCV OW16A × √ × √ OW16B √ √ × √ -
Model. Bluetooth True RMS Audion NCV OW18A × √ × √ OW18B √ √ × √ -
Model No. Bluetooth Module True RMS Offline Recording Function PC support D35 × × × × D35T × √ × × B35 √ × × × B35T √ √ × × B35+ √ × √ √ B35T+ √ √ √ √ -
Model No. Bluetooth Module Offline Recording Function D33 × × B33 √ × B33+ √ √ -
Model Digits of Resolution Reading Rate Dispaly IO Interface XDM2041 4 1/2 60 rdgs/s 4" LCD RS232 -
Model Digits of Resolution Reading Rate Dispaly IO Interface XDM3051 5 1/2 150 rdgs/s 4" LCD USB / RS232 / LAN / WiFi -
Model Digits of Resolution Reading Rate Dispaly IO Interface XDM3041 4 1/2 150 rdgs/s 4" LCD USB / RS232 / LAN / WiFi -
Model NO. Frequency Output Sample Rate Arb Wave Length Vertial rate DGE2035 35MHz 125MSa/s 8k 14bits DGE2070 70MHz 300MS/s 8k 14bits -
Model NO. Frequency Output Sample Rate Arb Wave Length Vertial rate DGE3032 30MHz (2CH) 125MSa/s 100k 14bits DGE3062 60MHz (2CH) 300MSa/s 100k 14bits DGE3031 30MHz (1CH) 125MSa/s 100k 14bits DGE3061 60MHz (1CH) 300MSa/s 100k 14bits -
Model No. Frequency Output Sample Rate Arb Wave Length extra feature XDG3252 250MHz 1.25GSa/s 1M pts frequency counter; touch screen LCD XDG3202 200MHz 1.25GSa/s 1M pts frequency counter; touch screen LCD XDG3162 160MHz 1.25GSa/s 1M pts frequency counter; touch screen LCD XDG3102 100MHz 1.25GSa/s 1M pts frequency counter; touch screen LCD XDG3082 80MHz 1.25GSa/s 1M pts frequency counter; touch screen LCD -
Model No. Frequency Output Sample Rate Arb Wave Length XDG2030 30MHz 500MS/s 10M XDG2035 35MHz 500MS/s 10M XDG2060 60MHz 500MS/s 10M XDG2080 80MHz 500MS/s 10M XDG2100 100MHz 500MS/s 10M -
Model No. Bandwidth Sample Rate Arb Wave Length AG1012 10MHz 125MS/s 8K pts AG1022 25MHz 125MS/s 8K pts -
Model No. Bandwidth Sample Rate Arb Wave Length extra feature AG1012F 10MHz 125MS/s 8k pts frequency counter [range : 100mHz - 200MHz] AG1022F 25MHz 125MS/s 8k pts frequency counter [range : 100mHz - 200MHz] AG2052F 50MHz 300MS/s 10k pts frequency counter [range : 100mHz - 200MHz] AG2062F 60MHz 300MS/s 10k pts frequency counter [range : 100mHz - 200MHz] -
Model NO. Frequency Output Sample Rate Arb Wave Length modulation functions DGE3031 30MHz 125MSa/s 8K support DGE3061 60MHz 300MSa/s 8k support -
Model NO. Frequency Output Sample Rate Arb Wave Length Vertial rate DGE1030 30MHz 125MSa/s 8k 14bits DGE1060 60MHz 300MS/s 8k 14bits -
Model No. Bandwidth Sample Rate Arb Wave Length AG051 5MHz 125MS/s 2 pts to 8K pts AG051F 5MHz 125MS/s 2 pts to 8K pts AG1011 10MHz 125MS/s 2 pts to 8K pts AG1011F 10MHz 125MS/s 2 pts to 8K pts -
Model Output Power Voltage / Current Range Channel Input Power OWH8080Q-2000 4*500W 80V / 20A 4 100V-240Vac OWH8040Q-600F 4*150W 80V / 10A 4 100V-240Vac OWH8020Q-1000F 4*250W 80V / 5A 4 100V-240Vac -
Model Output Power Output Voltage Output Current Settings Resolution OWH80120-1800 1800W 0 - 80V 0- 120A 10mV/1mA OWH8080-2000 2000W 0 - 80V 0- 80A 10mV/1mA OWH50120-1800 1800W 0 - 50V 0- 120A 10mV/1mA -
Model Voltage Current Output Power Weigh P50320 30V 20A 600W 12.5kg P50330 30V 30A 900W 25kg P50610 60V 10A 600W 12kg P50620 60V 20A 1200W 25kg P51002 100V 2A 200W 10.5kg P51003 100V 3A 300W 10.5kg P51005 100V 5A 500W 12.3kg P52002 200V 2A 400W 12.5kg P52003 200V 3A 600W 12.5kg P52005 200V 5A 1000W 23.3kg -

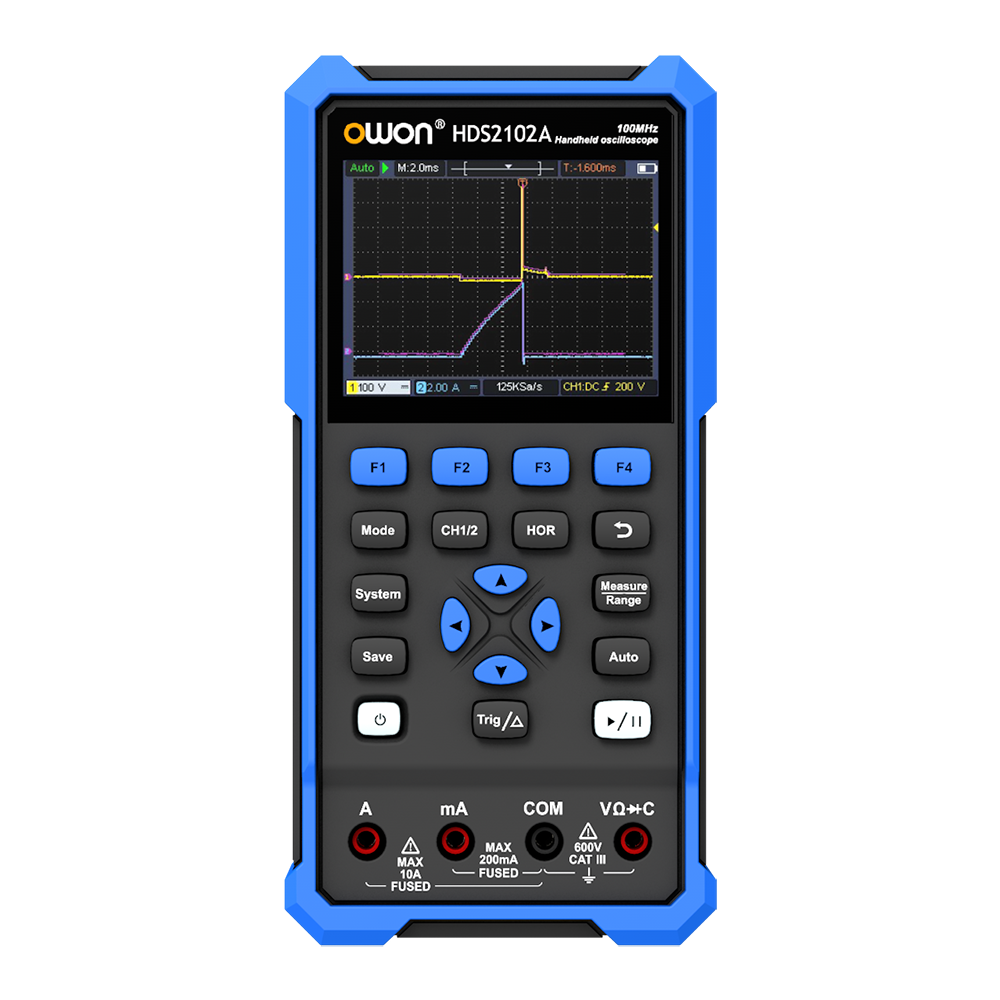

Model DSO DMM Vehicle Diagnosis Application Scenarios HDS2102A-1 100MHz， 1GSa/s 4 1/2 digits 60+ reference waveform Single-Channel Testing HDS2102A-2 100MHz， 1GSa/s 4 1/2 digits 60+ reference waveform Multi-Channel Testing HDS2102A-3 100MHz， 1GSa/s 4 1/2 digits 60+ reference waveform Multi-Channel +Current Testing -

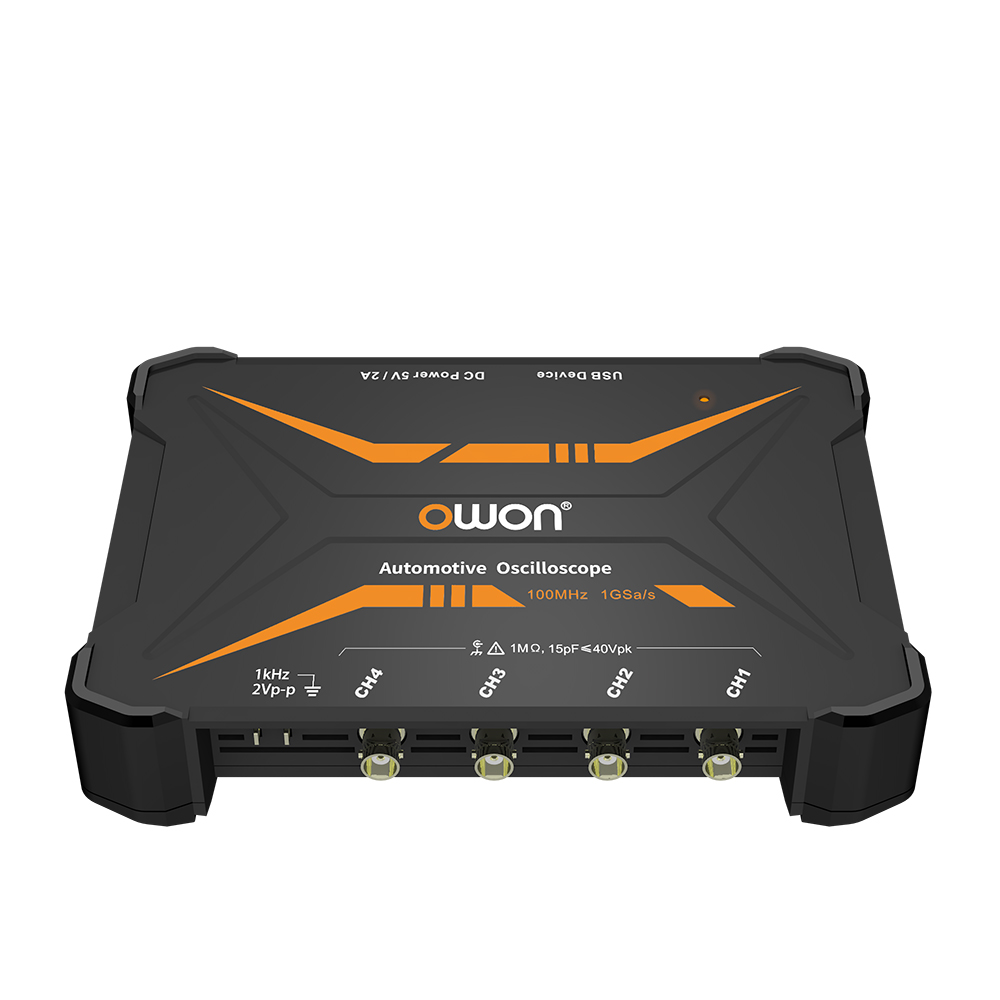

Model Bandwidth Sample Rate Channel Standard Automotive Waveforms VDS8104 100MHz 1GSa/s 4 78 types -

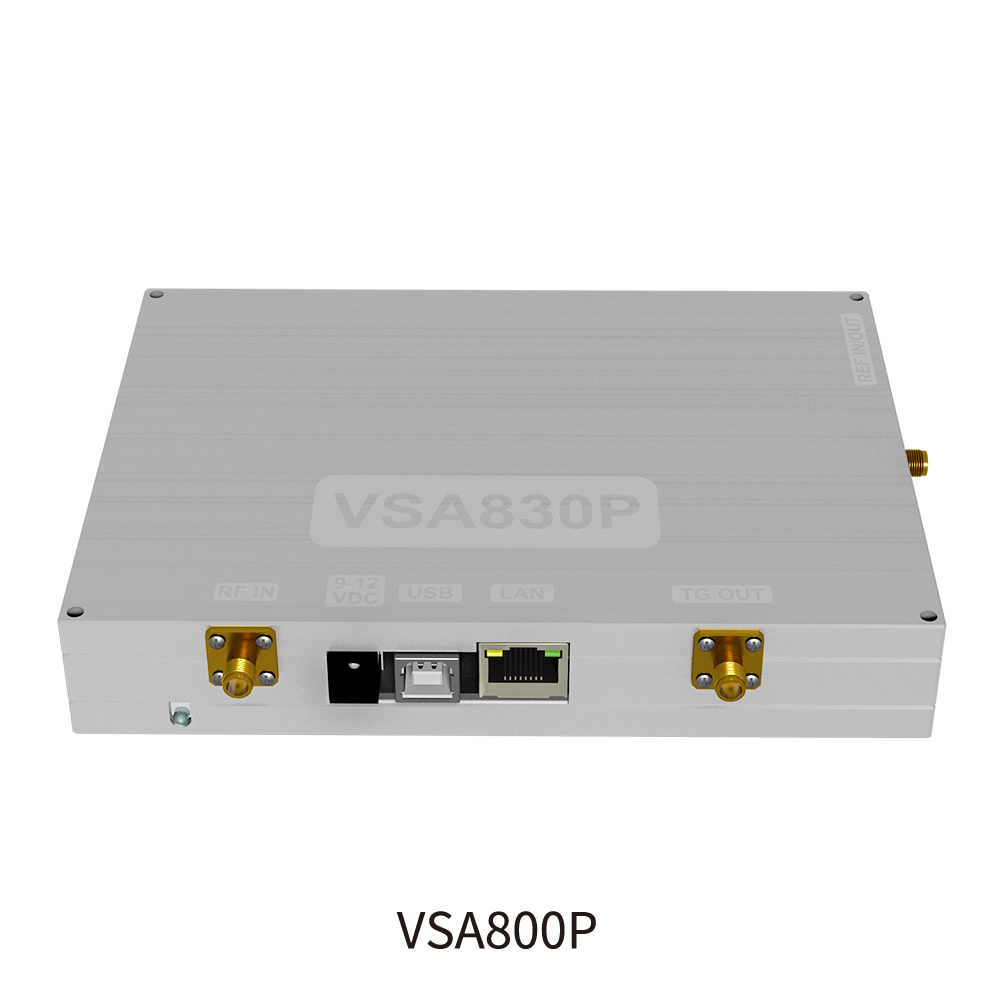

Model Frequency Range RBW SSB Phase Noise Support VSA815P 9kHz - 1.5GHz 1Hz-1MHz -106 dBc/Hz @1GHz Linux/Android/Windows VSA836P 9kHz - 3.6GHz 1Hz-1MHz -106 dBc/Hz @1GHz Linux/Android/Windows VSA1036P 9kHz - 3.6GHz 1Hz-1MHz -98 dBc/Hz @1GHz Linux/Android/Windows VSA880P 9kHz - 8GHz 1Hz-1MHz -106 dBc/Hz @1GHz Linux/Android/Windows -
Model CH1 Output range CH2 Output range CH3 Output range Output resolution P3033 0-30V / 0-3A 0-30V / 0-3A 5V / 3A 10mV/1mA P3053 0-30V / 0-5A 0-30V / 0-5A 5V / 3A 10mV/1mA -
Model Output Power Output Voltage Output Current Channel OWP1000-H series 1KW 60V-300V 5A-30A 1 OWP2000-H series 2KW 45V-600V 8A-100A 1 OWP3000-H series 3KW 45V-600V 8A-100A 1 OWP6000-H series 6KW 100V-1500V 4A-100A 1 OWP8000-H series 8KW 100V-1000V 10A-100A 1 -
Model Bandwidth Sample Rate Vertical Resolution (A/D) Record Length TAO3072 70MHz 1GS/s 8bits 40M TAO3102 100MHz 1GS/s 8bits 40M TAO3122 120MHz 1GS/s 8bits 40M TAO3072A 70MHz 1GS/s 8bits/12bits/14bits 40M TAO3102A 100MHz 1GS/s 8bits/12bits/14bits 40M TAO3122A 120MHz 1GS/s 8bits/12bits/14bits 40M -
Moedl Bandwidth Sample rate Interface secondary development VDS2252 2CH 25MHz 100 MSa/s USB type-C windows / Linux / Android / Ios VDS2254 4CH 25MHz 100 MSa/s USB type-C windows / Linux / Android / Ios VDS2252I 2CH 25MHz 100 MSa/s USB type-C（USB Isolation）， LAN windows / Linux / Android / Ios VDS2254I 4CH 25MHz 100 MSa/s USB type-C（USB Isolation）， LAN windows / Linux / Android / Ios -
Model Bandwidth Sample rate record length secondary development VDS6102 100MHz 1GS/s 10M windows / Linux / Android / Ios VDS6102A 100MHz 1GS/s 10M windows / Linux / Android / Ios -
Model Bandwidth Sample rate Vertical accurate secondary development VDS6074 70MHz 1GS/s 8 bits windows / Linux / Android / Ios VDS6104 100MHz 1GS/s 8 bits windows / Linux / Android / Ios VDS6074A 70MHz 1GS/s 8bits/12bits/14bits windows / Linux / Android / Ios VDS6104A 100MHz 1GS/s 8bits/12bits/14bits windows / Linux / Android / Ios -
-
Model No. Channel Bandwidth Sample Rate extra feature VDS1022I 2 25MHz 100MS/s USB isolation VDS1022 2 25MHz 100MS/s / VDS2062 2 60MHz 1GS/s / VDS2064 4 60MHz 1GS/s / VDS3102 2 100MHz 1GS/s / VDS3104 4 100MHz 1GS/s / -
Model No. Channel Bandwidth Sample Rate extra feature RDS1021(discontinued) 1 25MHz 100MS/s / RDS1021I(discontinued) 1 25MHz 100MS/s USB isolation -
Model Bandwidth Sample Rate Multimeter Signal Generator HDS307S 70MHz 250MSa/s 4 1/2 digits Max 30MHz HDS310S 100MHz 500MSa/s 4 1/2 digits Max 30MHz HDS320S 200MHz 1GSa/s 4 1/2 digits Max 30MHz -
Model Bandwidth Sample Rate Multimeter Signal Generator HDS25 25MHz 250MSa/s √ HDS25S 25MHz 250MSa/s √ √ HDS242 40MHz 250MSa/s √ HDS242S 40MHz 250MSa/s √ √ HDS272 70MHz 250MSa/s √ HDS272S 70MHz 250MSa/s √ √ HDS2102 100MHz 500MSa/s √ HDS2102S 100MHz 500MSa/s √ √ HDS2202 200MHz 1GSa/s √ HDS2202S 200MHz 1GSa/s √ √ -
Model No. Channel Bandwidth Sample Rate HDS1022M-I 2 (channel isolation) 20MHz 100MS/s -
Model Bandwidth Sample rate Channel Multimeter HDS241 40MHz 250MSa/s 1 24000 counts HDS271 70MHz 250MSa/s 1 24000 counts -
Model No. Channel Bandwidth Sample Rate Record Length HDS1022M-N 2 20MHz 500MS/s 6K HDS2062M-N 2 60MHz 1GS/s 6K HDS3102M-N 2 100MHz 1GS/s 6K HDS4202M-N 2 200MHz 1GS/s 6K -
Model No. Channel Bandwidth Sample Rate Record Length HDS1021M-N 1 20MHz 500MS/s 24K HDS2061M-N 1 60MHz 500MS/s 24K HDS3101M-N 1 100MHz 1GS/s 24K -
Model No. Bluetooth Module Offline Recording Function B41T+ √ √ -
Model No. Bandwidth Sample Rate Record Length waveform refresh rate XDS2102 100MHz 1GSa/s 40M/80M(optional) 75，000 wfms/s XDS2202 200MHz 1GSa/s 40M/80M(optional) 75，000 wfms/s -
Model Bandwidth Sample Rate Channel Record Length XDS2102A 100 MHz 1 GSa/s 2 20 Mpts -
Model Bandwidth Sample Rate Vertical Resolution (A/D) Record Length XDS3064E 60MHz 1GS/s 8 bits 40M XDS3104E 100MHz 1GS/s 8 bits 40M XDS3064AE 60MHz 1GS/s 14 bits 40M XDS3104AE 100MHz 1GS/s 14 bits 40M XDS3104 100MHz 1GS/s (500MS/s for each channel) 8 bits 40M XDS3204E 200MHz 1GS/s (500MS/s for each channel) 8 bits 40M XDS3204AE 200MHz 1GS/s 14 bits 40M -
Model No. Channel Bandwidth Sample Rate Record Length SDS1104 4 100MHz 1GS/s 20K -
Model No. Channel Bandwidth Sample Rate Record Length SDS1022 2 20MHz 100MS/s 10K SDS1052 2 50MHz 500MS/s 10K SDS1102 2 100MHz 1GS/s 10K SDS1202 2 200MHz 1GS/s 10K -
Model No. Channel Bandwidth Sample Rate Record length SDS7102 2 + 1 100MHz 1GS/s 10M SDS8102 2 + 1 100MHz 2GS/s 10M SDS7202 2 + 1 200MHz 1GS/s 10M SDS8202 2 + 1 200MHz 2GS/s 10M SDS8302 2 + 1 300MHz 2.5GS/s 10M SDS9302 2 + 1 300MHz 3.2GS/s 10M -
Model No. Channel Bandwidth Sample Rate Recod Length SDS5032E 2 + 1 30MHz 500MS/s 10K SDS5052E 2 + 1 50MHz 500MS/s 10K SDS6062E 2 + 1 60MHz 500MS/s 1M SDS7072E 2 + 1 70MHz 1GS/s 1M SDS7102E 2 + 1 100MHz 1GS/s 1M SDS7122E 2 + 1 125MHz 1GS/s 1M -
Model No. Channel Bandwidth Sample Rate MSO7102T 2+1 | LA - 16 100MHz 1GS/s | LA - 2GS/s MSO8102T 2+1 | LA - 16 100MHz 2GS/s MSO8202T 2+1 | LA - 16 200MHz 2GS/s -
Model Bandwidth Sample Rate Channel Waveform Refresh Rate AS101 10MHz 100MS/s 1 130，000wfrms/s AS201 20MHz 100MS/s 1 130，000wfrms/s -
Model Frequency Range Resolution adapter Impedance ORF5060 1MHz-6GHz 3mm-45mm N-SMA 50Ω -
Model Bandwidth Sample Rate Vertical Resolution (A/D) Record Length TAO3074 70MHz 1GS/s 8 bits 40M TAO3074A 70MHz 1GS/s max14bits 40M TAO3104 100MHz 1GS/s 8 bits 40M TAO3104A 100MHz 1GS/s max14bits 40M -
Model Measurement mode Measurement Range Harmonic Analysis Interface OWH9811 AC / AC+DC (1-phase) 1000V / 20A Support RS232 OWH9830 AC / AC+DC (3-phase) 1000V / 20A Support RS232 -
Model Connector Type Frequency Range Characteristic Impedance CF5506-F N type（Female） DC～6GHz 50Ω CF5506-M N type（Male） DC～6GHz 50Ω CF5509-F N type（Female） DC～9GHz 50Ω CF5509-M N type（Male） DC～9GHz 50Ω -
Model Connector Type Frequency Range Characteristic Impedance CF6506-F 3.5mm（Female） DC～6GHz 50Ω CF6506-M 3.5mm（Male） DC～6GHz 50Ω CF6509-F 3.5mm（Female） DC～9GHz 50Ω CF6509-M 3.5mm（Male） DC～9GHz 50Ω -
Model NO. Test Frequency LCR2300 10Hz～300kHz LCR2200 10Hz～200kHz LCR2100 10Hz～100kHz LCR2020 10Hz～20kHz -
Model Frequency Range RBW Phase Noise (Typical) TG Model XSA1015-TG（Discontinued） 9kHz - 1.5GHz 10Hz - 3MHz <-82dBc/Hz@10KHz √ XSA1032-TG（Discontinued） 9kHz - 3.2GHz 10Hz - 3MHz <-82dBc/Hz@10KHz √ XSA1036-TG（Discontinued） 9kHz - 3.6GHz 10Hz - 3MHz <-98dBc/Hz@10kHz √ XSA1075-TG（Discontinued） 9kHz - 7.5GHz 10Hz - 3MHz <-98dBc/Hz@10kHz √ -
Model Bandwidth Maximum measured current Peak current Max accuracy OC7015 12MHz 150Arms 300Apk ±1%± 10mA OC7030 6MHz 300Arms 500Apk ±1%± 10mA OC7050 5MHz 500Arms 750Apk ±1%± 10mA -
Model Bandwidth Peak current Max current transfer ratio Max accuracy OC6053 50MHz 50Apk 0.1V/A ±1%±1mA OC6123 120MHz 50Apk 0.1V/A ±1%±1mA OC6055 50MHz 75Apk 0.1V/A ±1%±1mA -
Model No. Bandwidth Sample Rate Arb Wave Length AG4081(discontinued) 80MHz 400MS/s 2 pts to 1M pts AG4101(discontinued) 100MHz 400MS/s 2 pts to 1M pts AG4121(discontinued) 120MHz 400MS/s 2 pts to 1M pts AG4151(discontinued) 150MHz 400MS/s 2 pts to 1M pts -
Model Bandwidth Attenuation ratio Maximum differential measurement voltage Accuracy OD6007 70MHz 10X/100X ±700V (DC + Peak AC) ±2% OD6015 50MHz 50X/500X ±1500V (DC + Peak AC) ±2% OD6115 100MHz 50X/500X ±1500V (DC + Peak AC) ±2% OD6215 200MHz 50X/500X ±1500V (DC + Peak AC) ±2% OD6128 100MHz 100X/1000X ±2800V (DC + Peak AC) ±2% OD6070 70MHz 100X/1000X ±7000V (DC + Peak AC) ±2% OD6170 100MHz 100X/1000X ±7000V (DC + Peak AC) ±2% -
Model Bandwidth Gear level Current Ranges Range sensitivity OC5010A 500kHz L 50mA~10A peak 0.1V/A OC5110 1MHz L 50mA~10A peak 0.1V/A OC5310 3MHz H 1A~100A peak 0.01V/A OC5510 5MHz H 1A~100A peak 0.01V/A -
Model Bandwidth Attenuation ratio Maximum differential measurement voltage Accuracy OD5013 50MHz 50X/500X 1300V (DC + Peak AC) ±2% OD5113 100MHz 50X/500X 1300V (DC + Peak AC) ±2% OD5026 50MHz 50X/500X 2600V (DC + Peak AC) ±2% OD5126 100MHz 50X/500X 2600V (DC + Peak AC) ±2% OD5056 50MHz 50X/500X 5600V (DC + Peak AC) ±2% OD5156 100MHz 50X/500X 5600V (DC + Peak AC) ±2% -
Model Bandwidth Maximum measured current Current conversion ratio Accuracy OC4022 25MHz 20A（DC + peak AC） 100mV/A ± 3% OC4052 50MHz 20A（DC + peak AC） 100mV/A ± 3% OC4024 25MHz 40A（DC + peak AC） 50mV/A ± 3% OC4054 50MHz 40A（DC + peak AC） 50mV/A ± 3% -
Model No. DC Range AC Range Bandwidth Power CP024 4A - 400A 4A - 400A 200KHz 9V (6LR61) Battery -
-
-
-
Model No. Test Range Resolution Bandwidth CP-07+ 400mA - 4A 0.1mA DC - 1MHz (±3dB) -
Model Frequency Range RBW TG Model GPS HSA015 9kHz - 1.5GHz 10Hz - 3MHz × × HSA015TG 9kHz - 1.5GHz 10Hz - 3MHz √ × HSA032 9kHz - 3.2GHz 10Hz - 3MHz × × HSA032TG 9kHz - 3.2GHz 10Hz - 3MHz √ × -
Model Bandwidth Isolation Voltage Max Measurement Voltage Range Accuracy OIP3015 DC-150MHz 60kV ±2500V (optional) 1%（typical) OIP3035 DC-350MHz 60kV ±2500V (optional) 1%（typical) OIP3050 DC-500MHz 60kV ±2500V (optional) 1%（typical) OIP3080 DC-800MHz 60kV ±2500V (optional) 1%（typical) OIP3100 DC-1GHz 60kV ±2500V (optional) 1%（typical)
