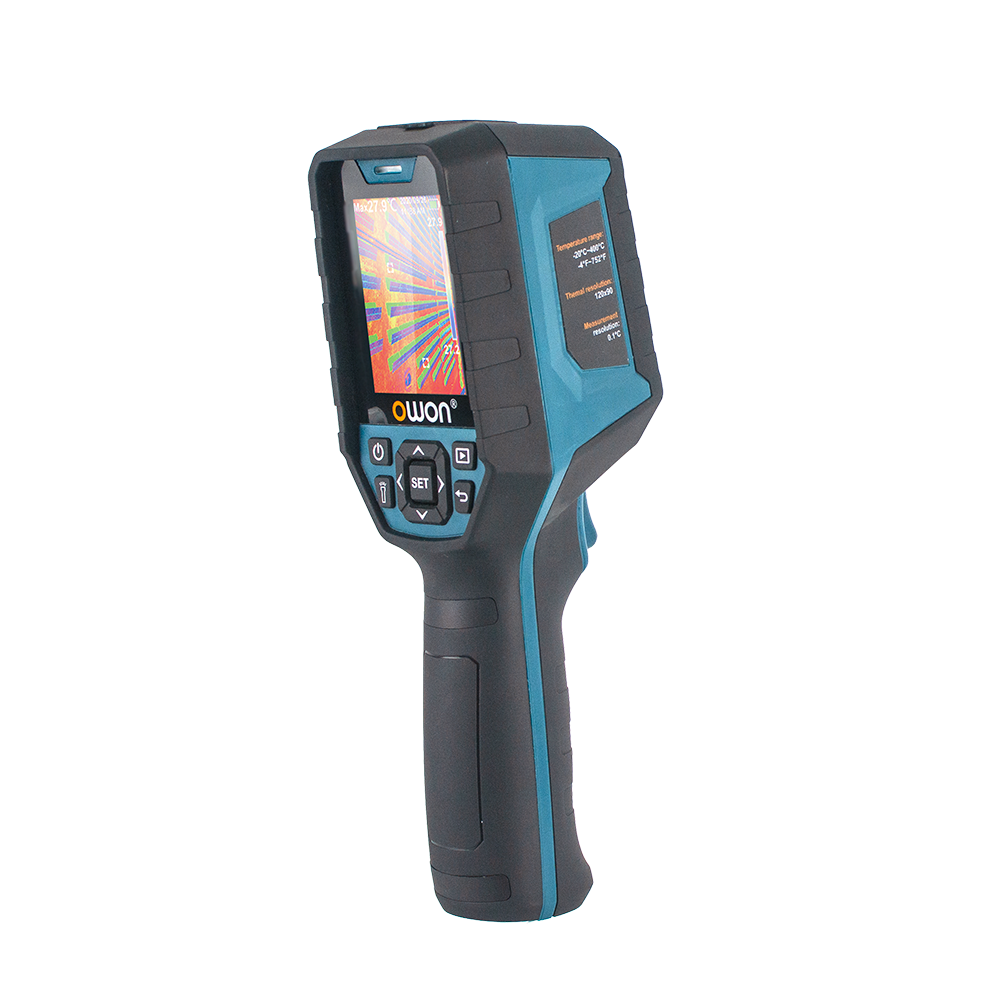

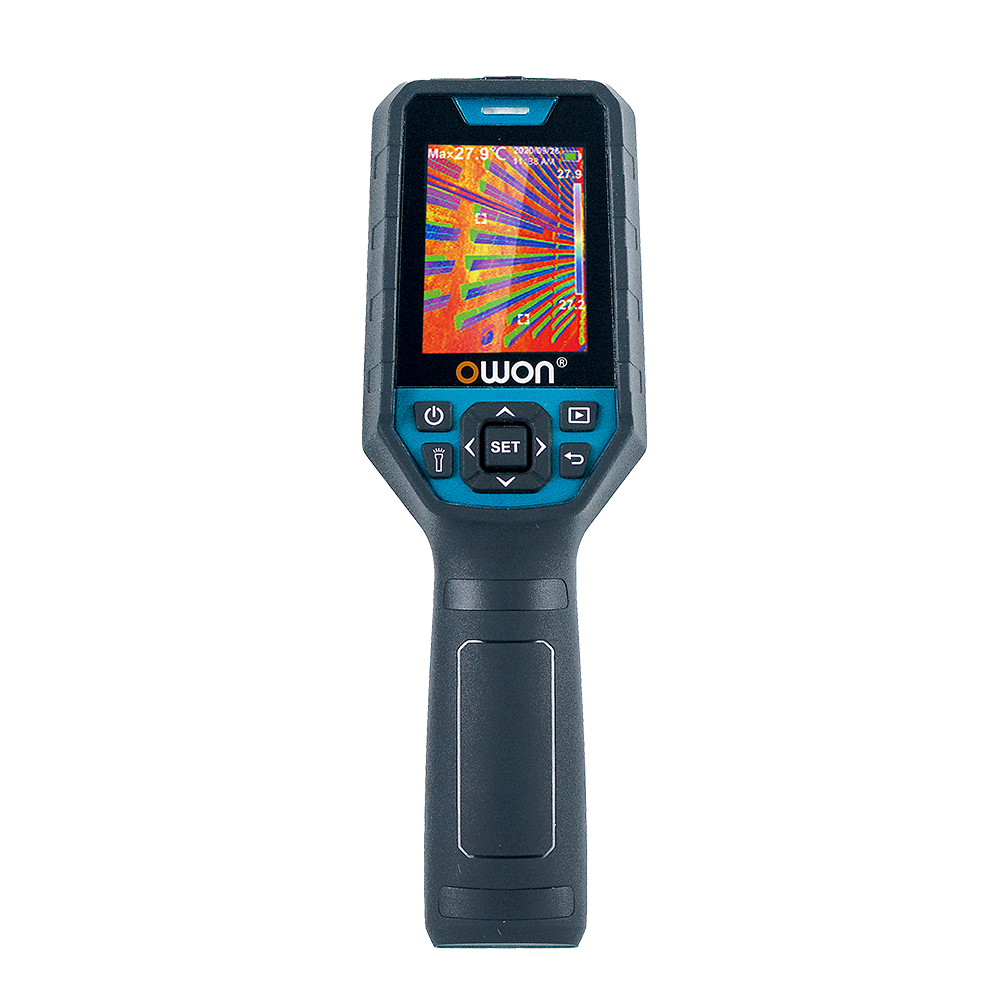

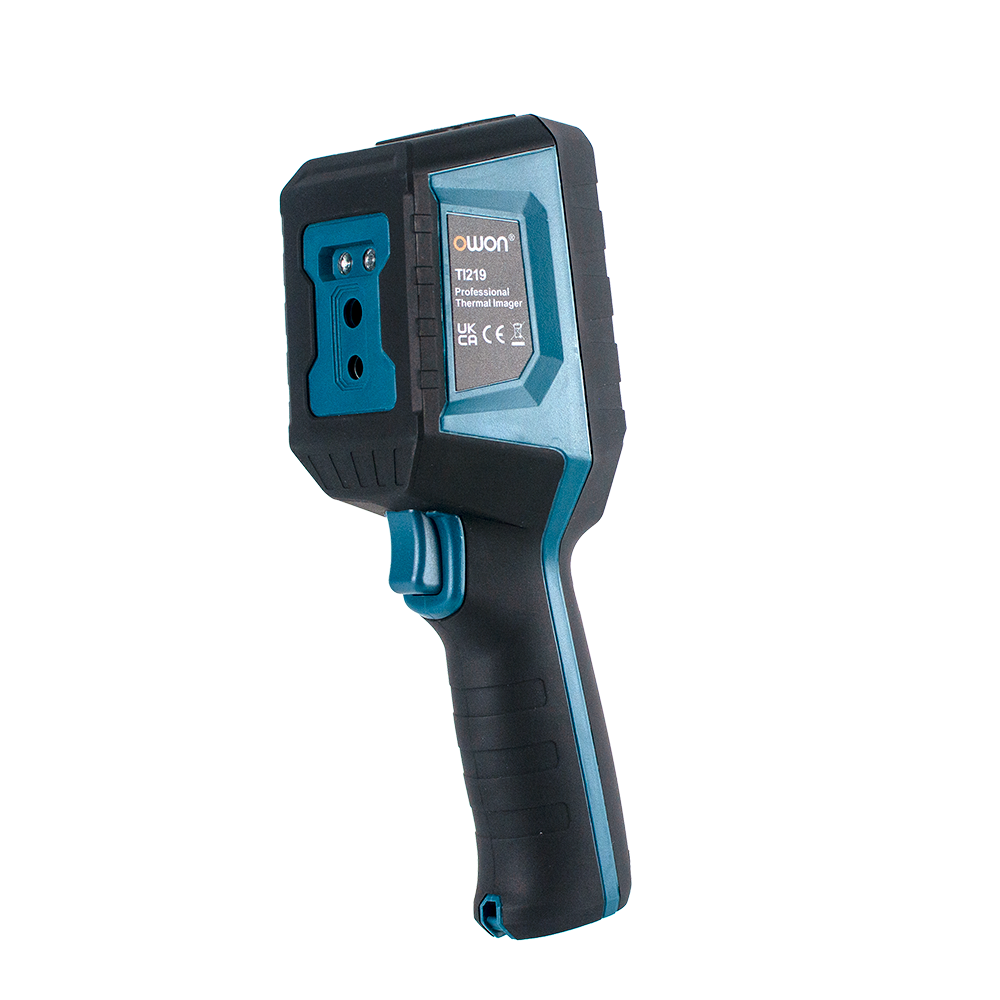

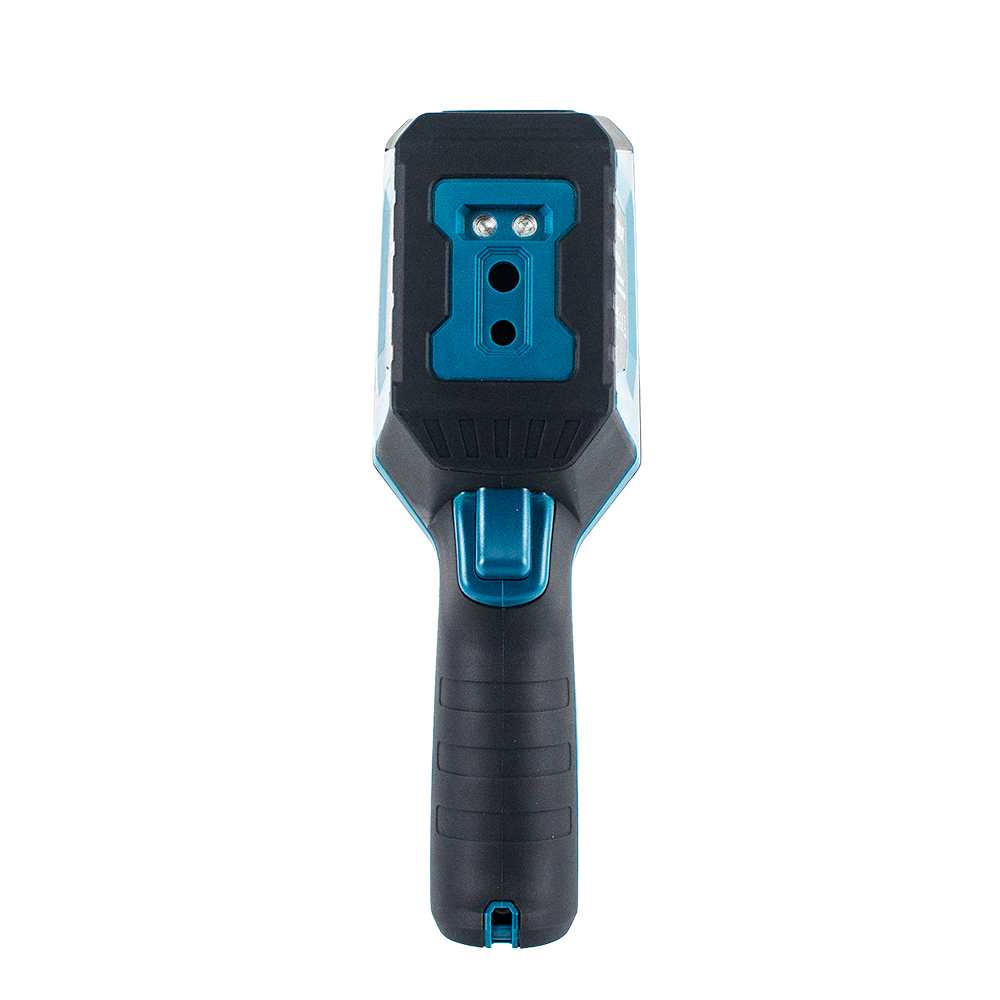

TI219 Handheld Thermal Imaging Camera
+ Temperature range: -20 to 400℃,suitable for various industrial and civil scenarios.
+ Accuracy:±2℃or±2% (the maximum value), ensuring precise measurements.
+ Emissivity: Adjustable from 0.1 to 0.99, allowing settings based on different materials and surface properties.
+ IP65 protection level/drop resistance up to 2m, offering excellent water and dust resistance, and impact durability.
+ Supports real-time image transmission for remote monitoring and control.
+ Equipped with PC analysis software for exporting infrared image reports,facilitating post-processing and analysis.
+ High-temperature alarm: LED flashing, alarm symbol, and buzzer alert to promptly notify users of abnormal temperatures.
+ Built-in rechargeable lithium battery: 3.6V/5000mAh, providing long-lasting battery life.
E-mail Us
|
Model |
TI219 |
|
Sensor |
120´90 |
|
Temperature range |
-20°C ~400°C |
|
Accuracy |
-10℃~400℃，the accuracy is ±2C or 2%; take the maximum value (normal temperature 25℃ ) |
|
Resolution ratio |
0.1℃ |
|
Mode |
Automatic gain |
|
The best measurement distance |
50cm |
|
Temperature measurement response time |
≤500ms |
|
Emissivity |
0.95 (default)(adjustable from 0.1 to 0.99) |
|
Pixel size |
17μm |
|
Palette |
Iron red, rainbow, white heat, black heat, red heat |
|
Infrared spectral bandwidth |
8~14μm |
|
Field of View Angle（FOV) |
50°（H)*38°（V) |
|
Instant Field of View Angle（FOV) |
7.3mrad |
|
Thermal imaging sensitivity |
≤60mK |
|
Frame rate |
≤25Hz |
|
Temperature measurement display |
Main area temperature measurement (ROI), central point temperature measurement, high and low temperature tracking |
|
Image format |
BMP |
|
Visible light resolution |
640*480 |
|
Field of View Angle（FOV) |
81 degree |
|
Image mode |
Thermal imaging,digital camera(visible band temperature display), integration |
|
Thermostat alarm |
Image alarm, LED alarm and buzzer alarm |
|
Auto shut off |
Optional (5min 10min 30min off) The default is 30min |
|
Data communication |
Type-C USB |
|
Battery |
Li-ion 3.7V/5000mAh |
|
Display |
2.8”TFT LCD（320*240） |
The accessories subject to final delivery.
-

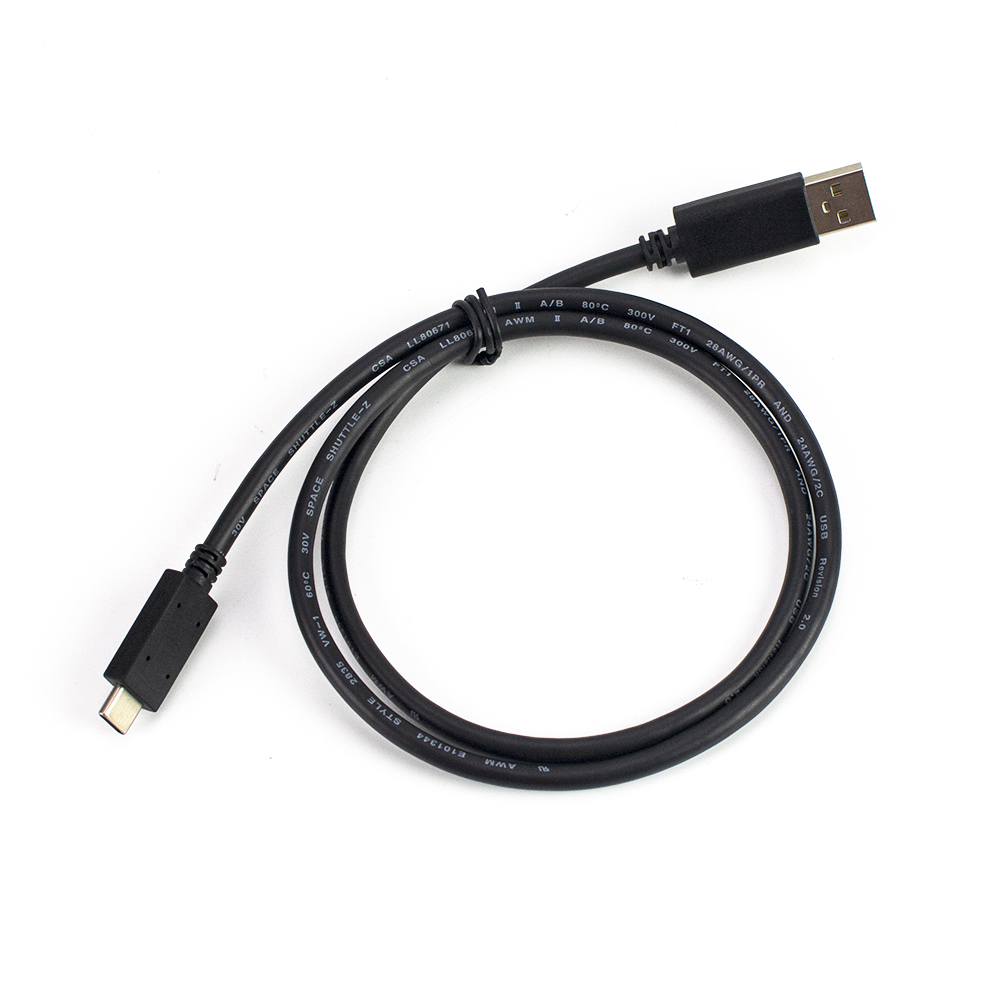

USB Cable
