current probe
-

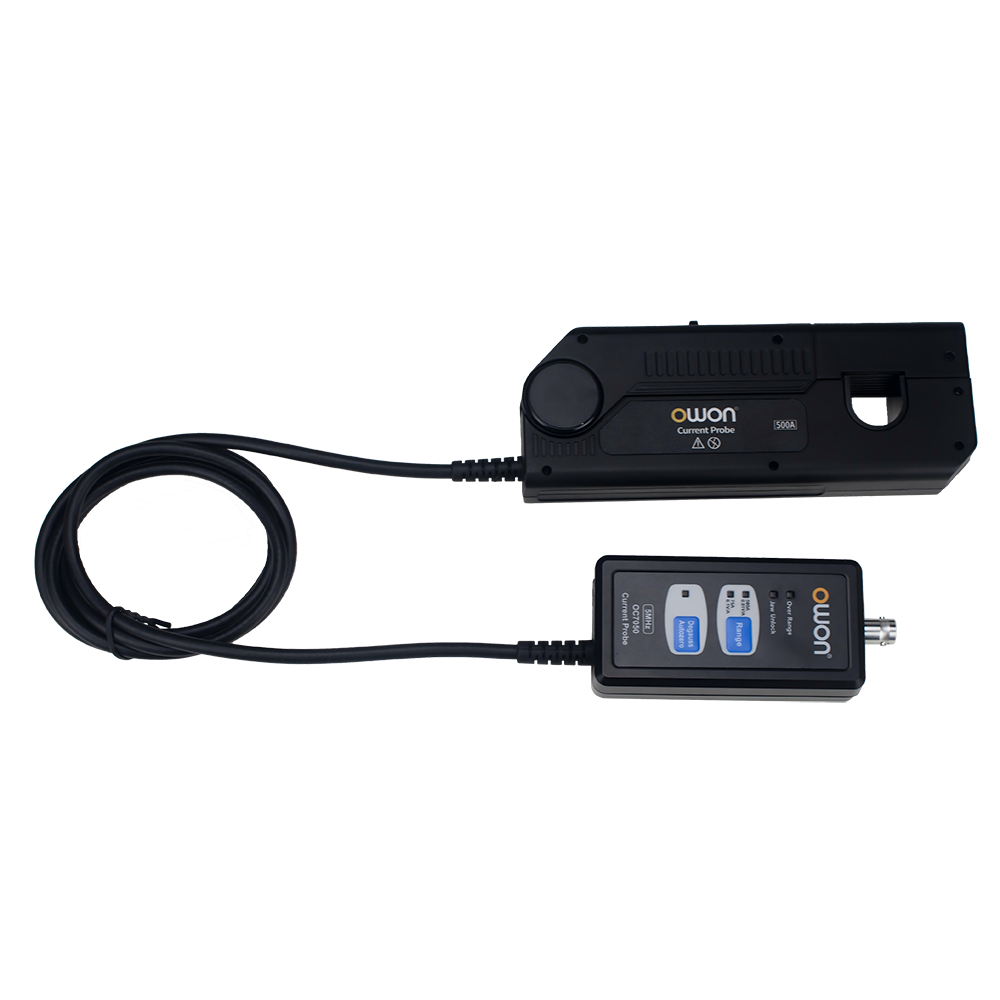

Model Bandwidth Maximum measured current Peak current Max accuracy OC7015 12MHz 150Arms 300Apk ±1%± 10mA OC7030 6MHz 300Arms 500Apk ±1%± 10mA OC7050 5MHz 500Arms 750Apk ±1%± 10mA -

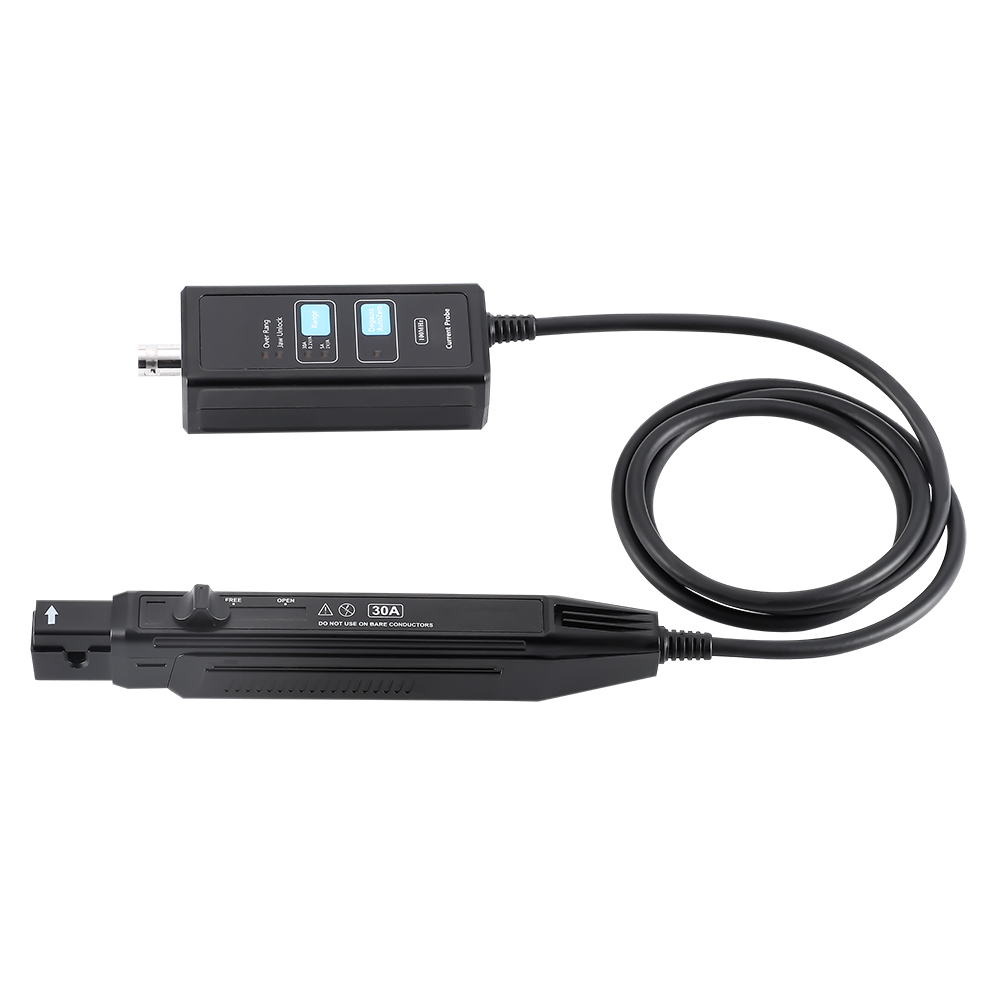

Model Bandwidth Peak current Max current transfer ratio Max accuracy OC6053 50MHz 50Apk 0.1V/A ±1%±1mA OC6123 120MHz 50Apk 0.1V/A ±1%±1mA OC6055 50MHz 75Apk 0.1V/A ±1%±1mA -

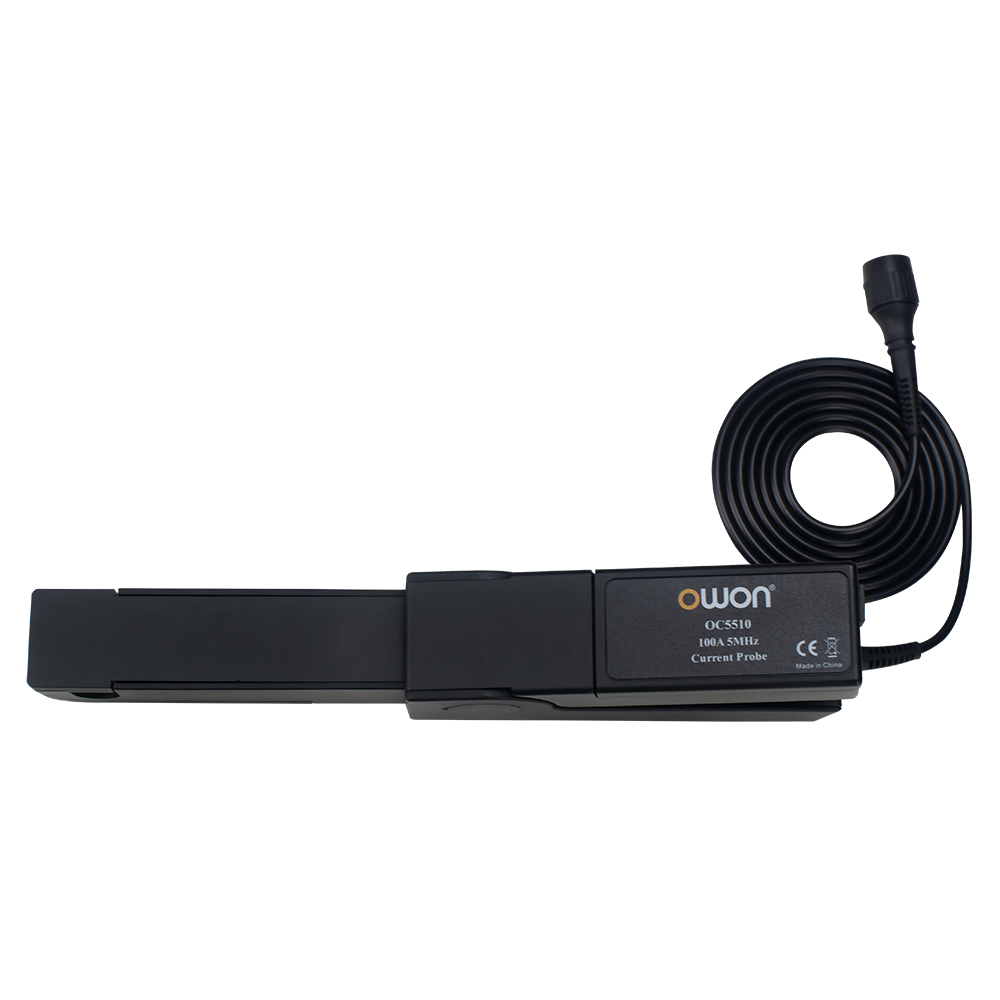

Model Bandwidth Gear level Current Ranges Range sensitivity OC5010A 500kHz L 50mA~10A peak 0.1V/A OC5110 1MHz L 50mA~10A peak 0.1V/A OC5310 3MHz H 1A~100A peak 0.01V/A OC5510 5MHz H 1A~100A peak 0.01V/A -

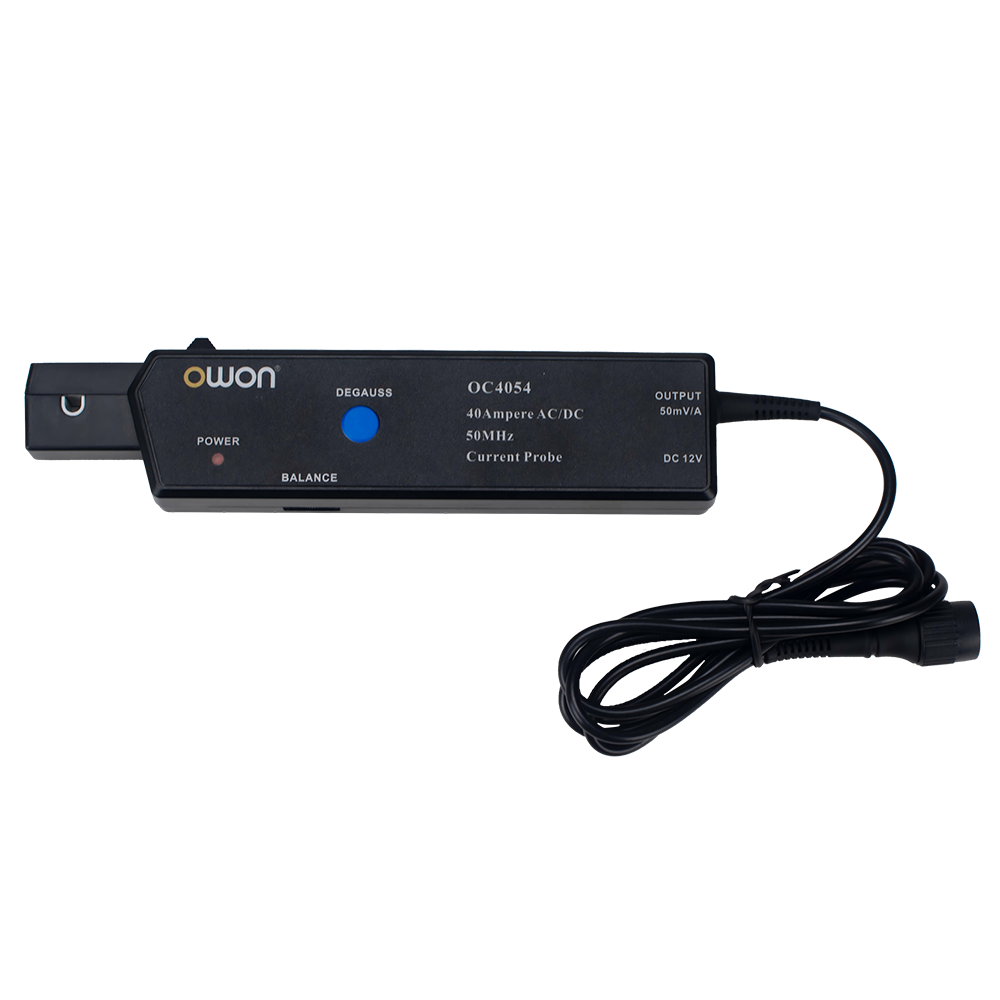

Model Bandwidth Maximum measured current Current conversion ratio Accuracy OC4022 25MHz 20A（DC + peak AC） 100mV/A ± 3% OC4052 50MHz 20A（DC + peak AC） 100mV/A ± 3% OC4024 25MHz 40A（DC + peak AC） 50mV/A ± 3% OC4054 50MHz 40A（DC + peak AC） 50mV/A ± 3%
