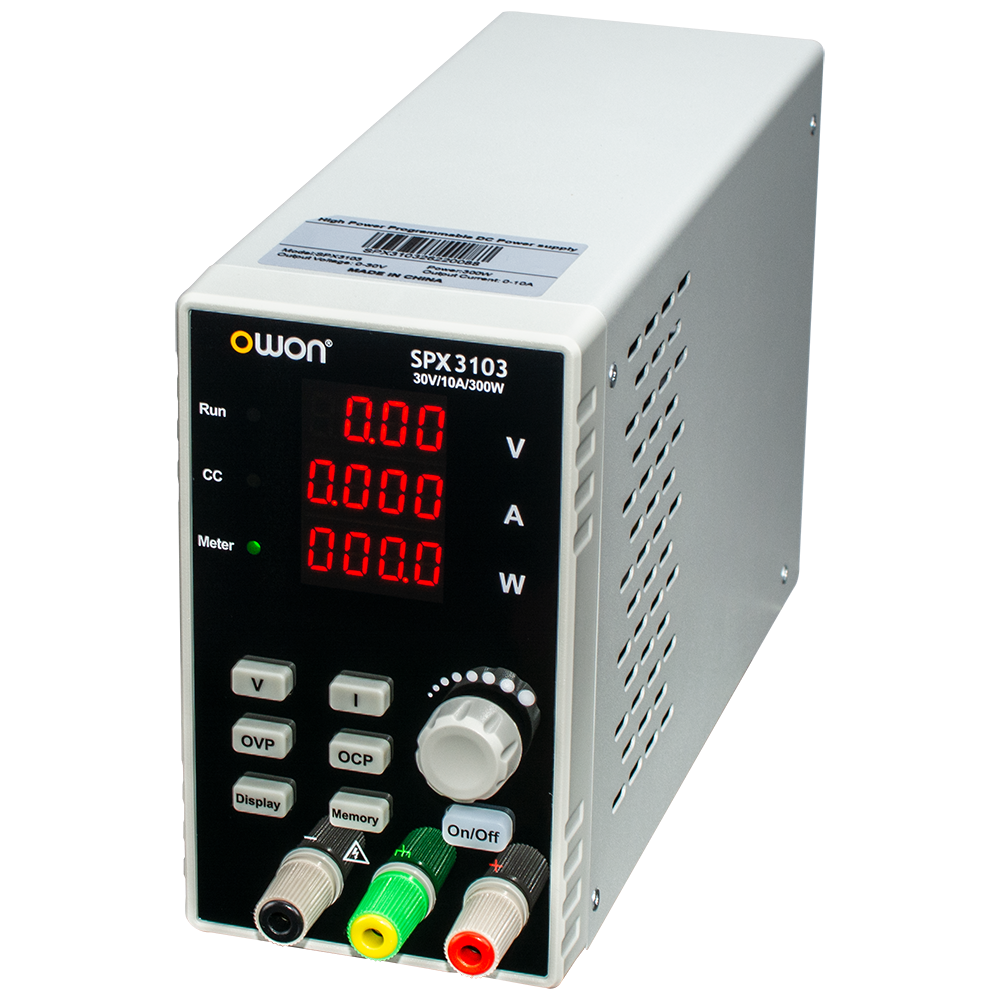

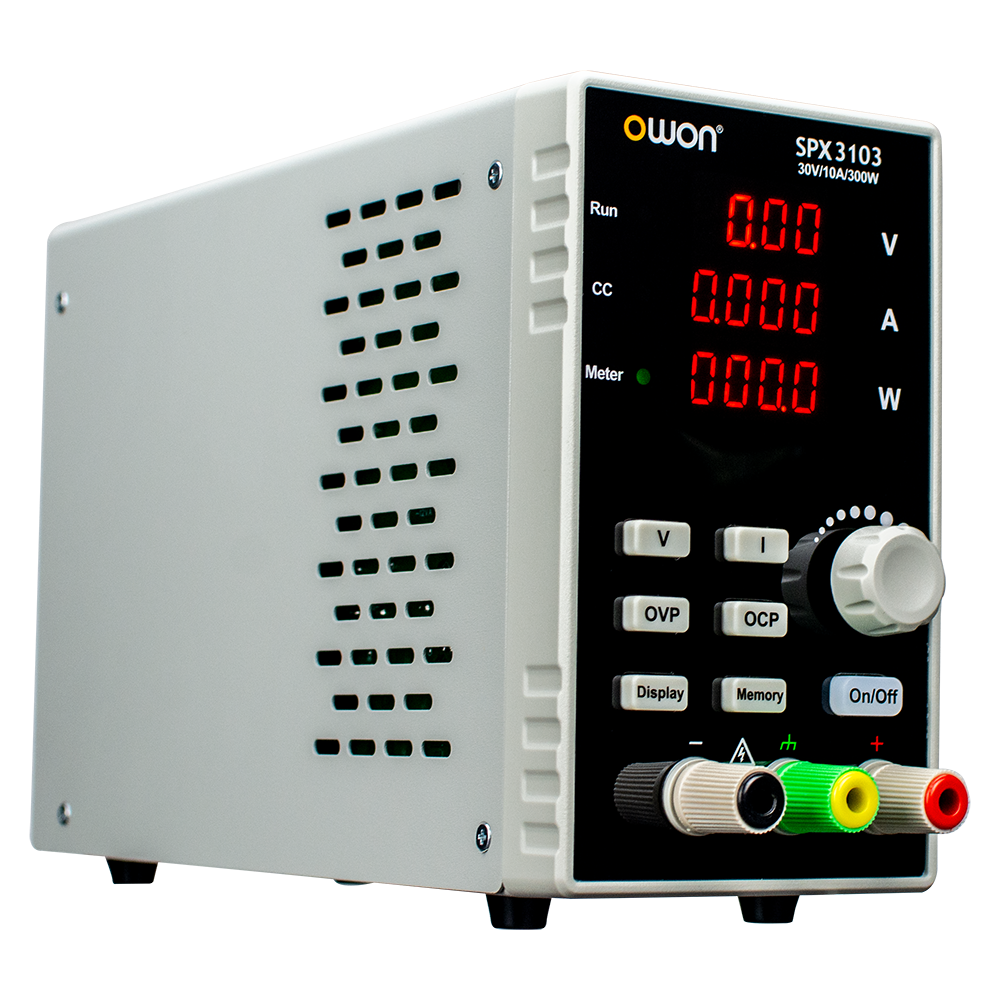

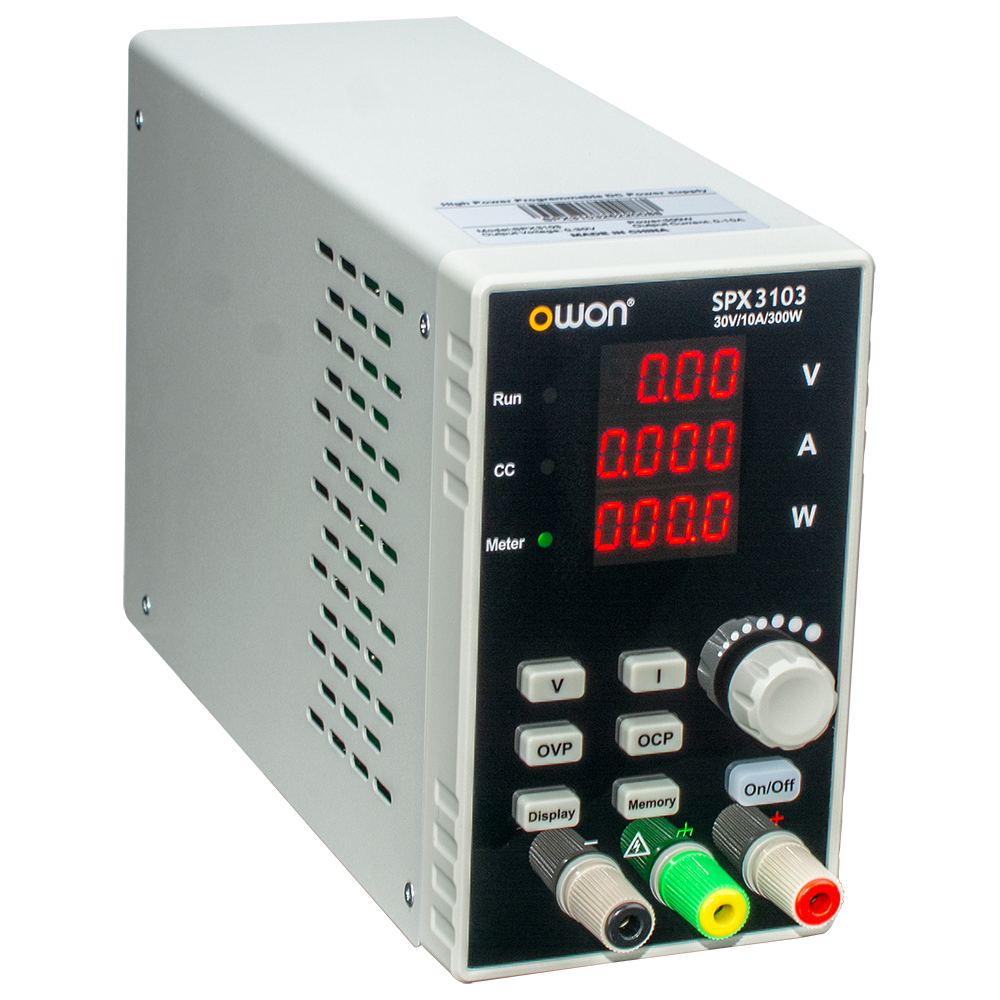

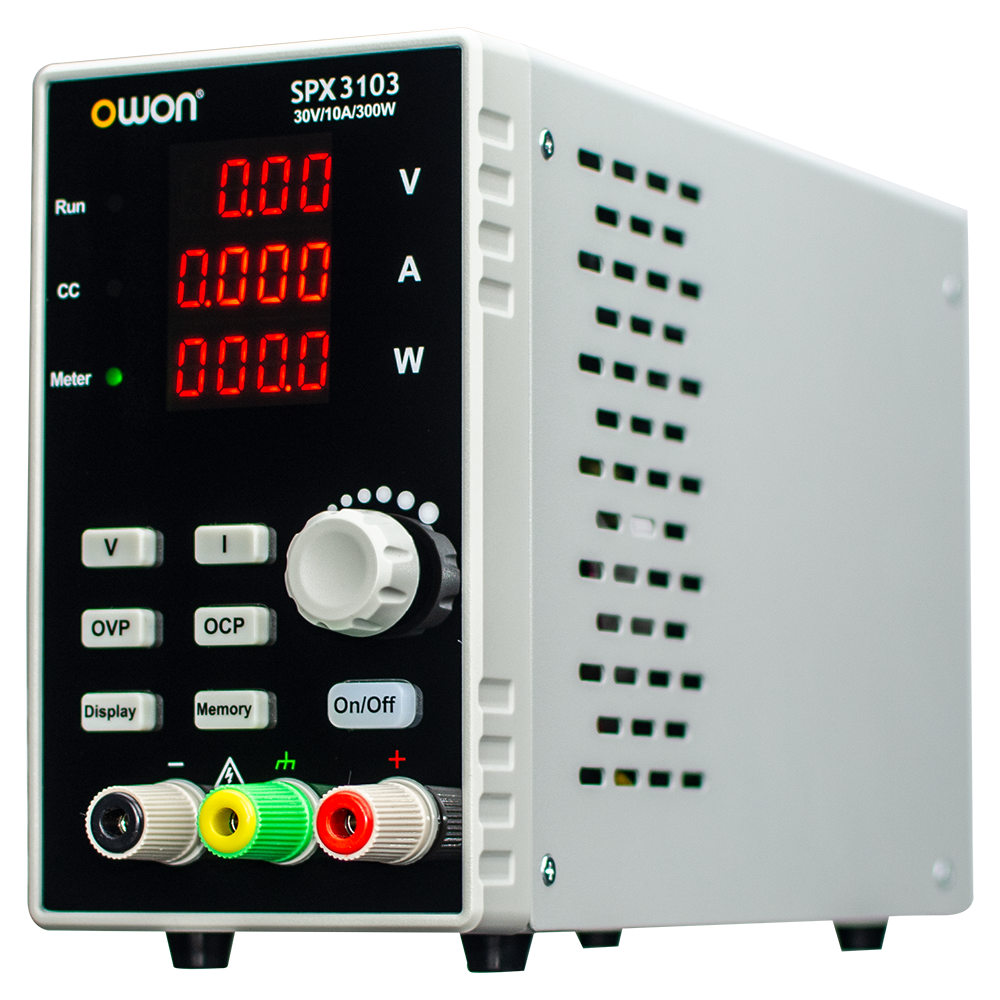

SPX Series Single-channel DC Power Supply

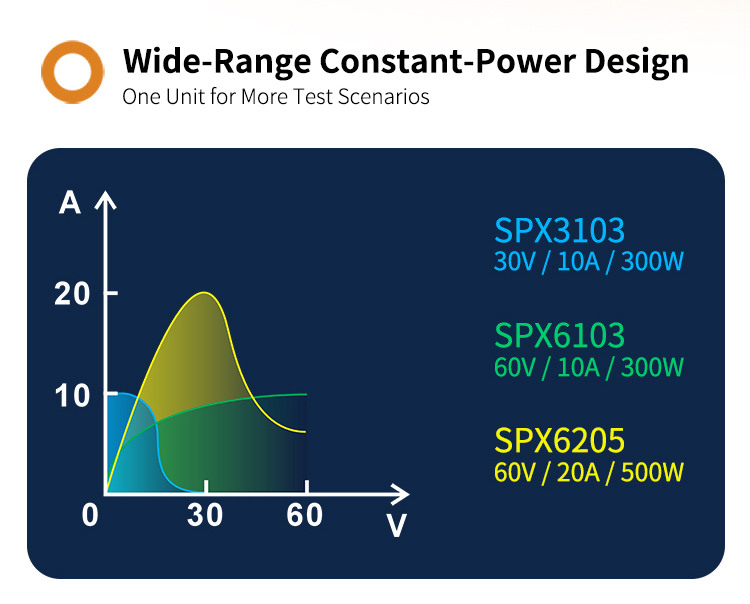

+ Wide-Range Constant Power Output.
+ 10mV/1mA resolution enables finer voltage and current adjustment.
+ Displays set and readback values simultaneously with real-time output power.

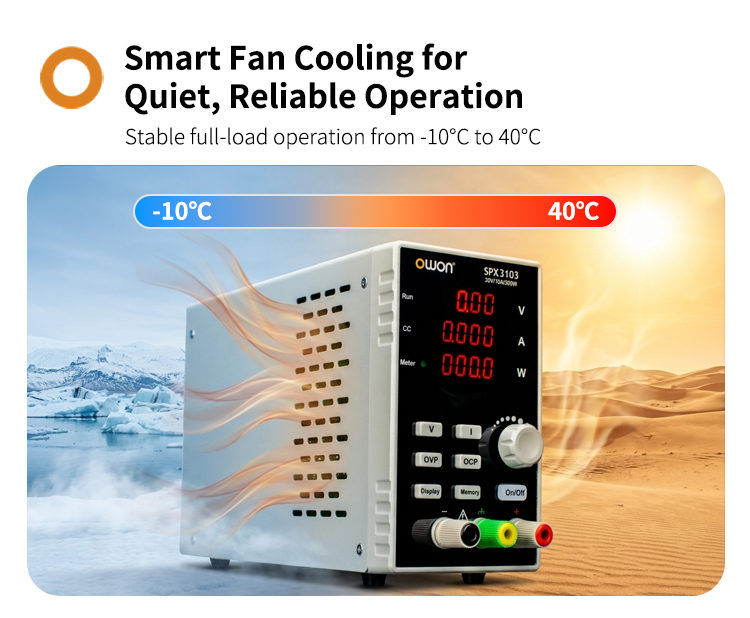

+ Intelligent fan control balances quiet operation with dependable cooling.

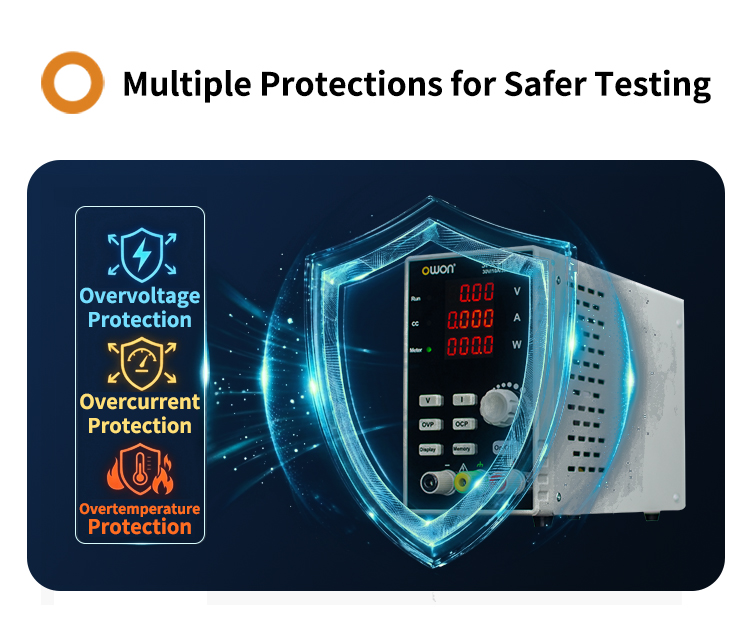

+ OVP/OCP/OTP protection for safer operation
+ Automatic CC/CV switching helps reduce risks caused by incorrect operation or abnormal loads.

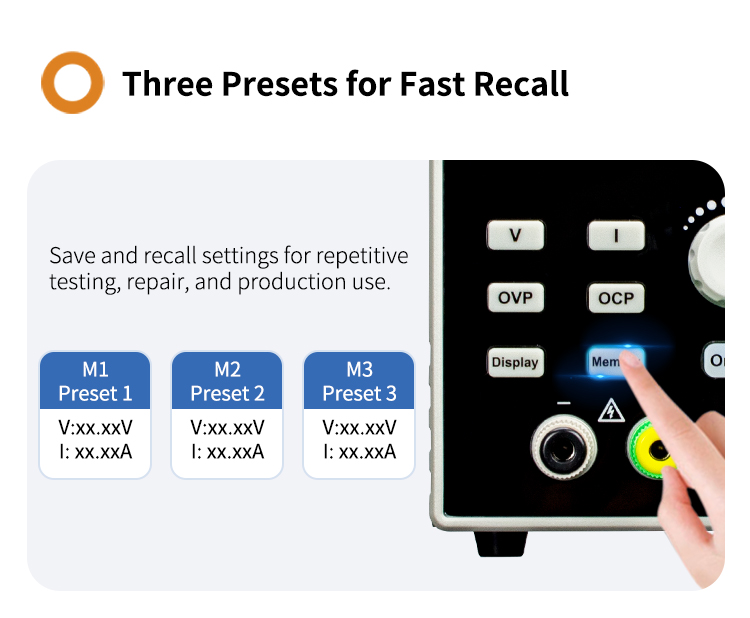

+ Store and recall up to 3 preset parameters to boost repetitive testing efficiency.
PDF Export
E-mail Us
Requires a 30-minute warm-up at operating temp to meet specifications.
|
Model |
SPX3103 |
SPX6103 |
SPX6205 |
|
Rated Output |
0~30V; 0~10A; 300W |
0~60V；0~10A；300W |
0~60V；0~20A；500W |
|
Load Regulation |
≤33mV（CV） ；≤30mA（CC） |
||
|
Line Regulation |
≤33mV（CV）；≤20mA（CC） |
||
|
Ripple & Noise (Noise bandwidth 20MHz, ripple bandwidth 1MHz, connect 10uF electrolytic capacitor in parallel with 0.1uF ceramic capacitor to the output terminal for testing) |
|||
|
Voltage (Vrms) |
≤40mVrms |
≤60mVrms |
|
|
Current (Arms) |
≤40mArms |
≤40mArms |
|
|
Setting & Readback Resolution |
10mV / 1mA |
||
|
Setting & Readback Accuracy |
≤0.2%+0.2%FS |
||
|
Transient recovery time |
≤5.0ms (10%~90% rated load) |
||
|
Protective function |
OVP， OCP， OTP |
||
|
Display |
3 x 4bit LED |
||
|
Cooling |
Fan cooling, temperature intelligent speed control |
||
|
Dimension |
82mm(Width)× 142mm(Height)×226mm(Depth) |
||
|
Weight |
Approx. 1.5kg |
Approx. 1.8kg |
|
The accessories subject to final delivery.
-
Power Cord -
Quick Guide -
Test Leads (optional)
