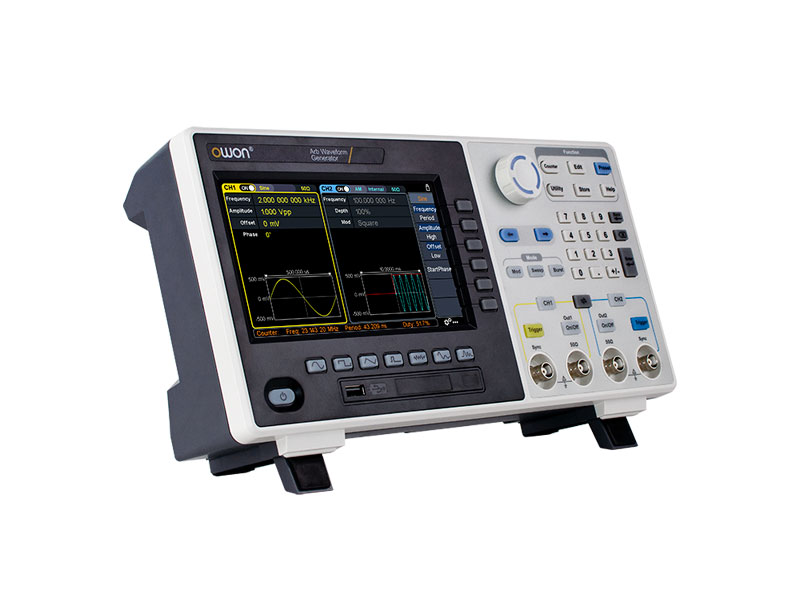

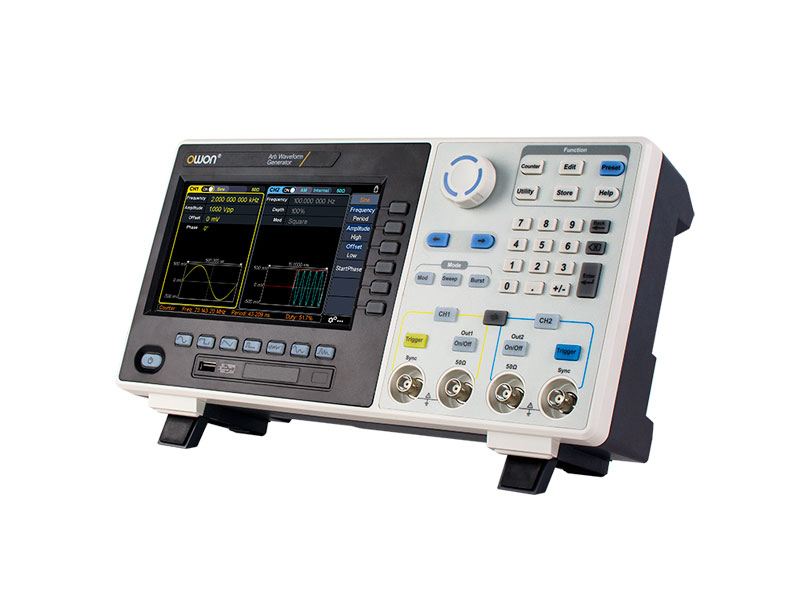

OWON XDG2000 Series 2-CH Arbitrary Waveform Generator



+ Max 100MHz frequency output

+ 500MSa/s Sample rate,Vertical resolution 1μHz

+ 14 bits Vertical Resolution,10Marb waveform length

+ Comprehensive waveform output : 6 basic waveforms, and 150 built-in arbitrary waveforms

+ Comprehensive modulation functions : AM, FM, PM, FSK,

3FSK, 4FSK, PSK, OSK, ASK, DSB-AM, QPSK,SUM,BPSK, PWM, Sweep, and Burst

+ High-accuracy frequency counter integrated, supported range 100mHz - 200MHz

+ SCPI, and LabVIEW supported

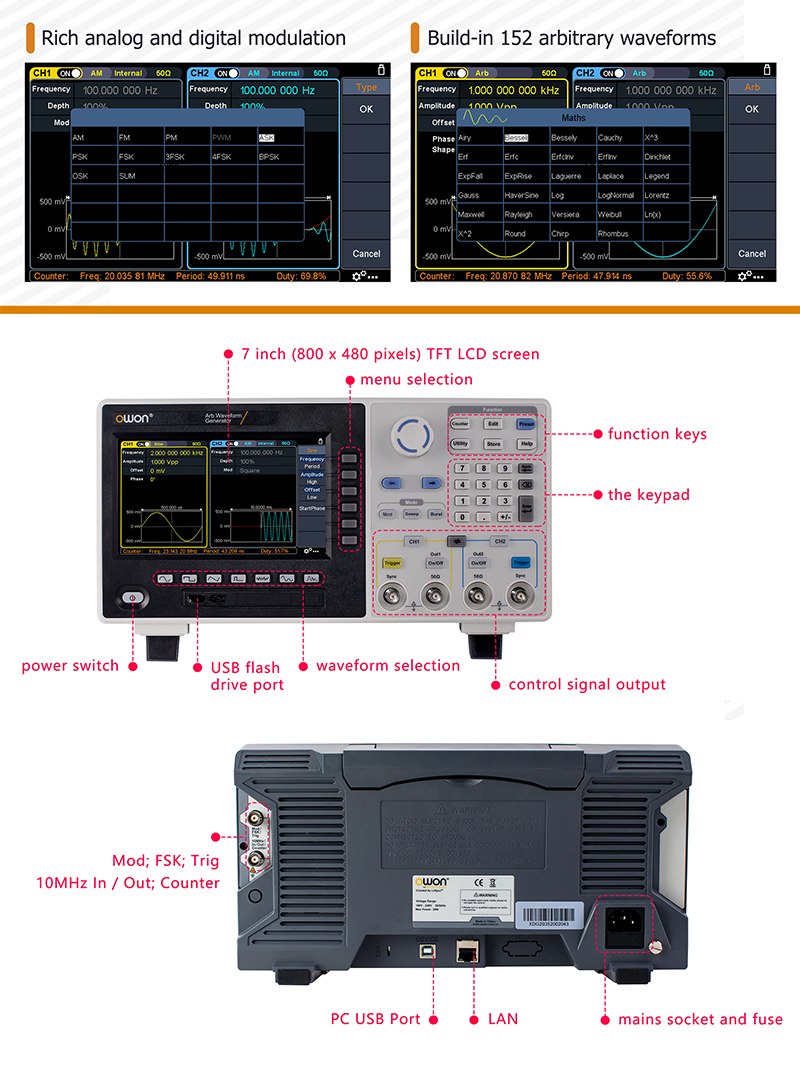

+ 7 inch (800 × 480 pixels) LCD

Send Inquiry
Product Details


Specifications

Model

XDG2100

XDG2080

XDG2060

XDG2035

XDG2030

Channel

2

Frequency Output

100MHz

80MHz

60MHz

35MHz

30MHz

Sample Rate

500MSa/s

Vertical Resolution

14 bits

Waveform

Standard Waveform

sine, square, pulse, ramp, noise, and harmonic

Arbitrary Waveform

exponential rise, exponential fall, sin(x)/x, step wave, and others,
total 150 built-in waveforms, and user-defined arbitrary waveform

Frequency (resolution 1μHz)

Sine

1μHz-100MHz

1μHz-80MHz

1μHz-60MHz

1μHz-35MHz

1μHz-30MHz

Square

1μHz ~ 30MHz

1μHz ~ 30MHz

1μHz ~ 30MHz

1μHz ~ 15MHz

1μHz-15MHz

Pulse

1μHz ~ 25MHz

1μHz ~ 25MHz

1μHz ~ 25MHz

1μHz ~ 15MHz

1μHz-15MHz

Ramp

1μHz ~ 3MHz

1μHz ~ 3MHz

1μHz ~ 3MHz

1μHz ~ 3MHz

1μHz-3MHz

Noise (-3dB,typical)

100MHz

80MHz

60MHz

35MHz

30MHz

Arbitrary Waveform

1μHz ~15MHz

1μHz ~15MHz

1μHz ~15MHz

1μHz ~15MHz

1μHz-15MHz

Harmonic

1μHz ~50MHz

1μHz ~40MHz

1μHz ~30MHz

1μHz ~17.5MHz

1μHz-15MHz

Accuracy

±2ppm, 25°C±5°C

Waveform Length

2 points - 10M points

Amplitude

into 50Ω load

1mVpp ~ 10Vpp(≤ 25MHz);
1mVpp ~ 5Vpp (≤60MHz);
1mVpp ~ 2.5Vpp(≤100MHz);

Modulation

Type

AM、DSB-AM、FM、PM、ASK、FSK、PSK、BPSK、QPSK、3FSK、4FSK、OSK、PWM、SUM

Frequency Counter

Function

Frequency, period, +width, -width, +duty, and -duty

Frequency Range

100mHz ~ 200MHz

Frequency Resolution

7 digits

Input / Output

Input mode

frequency counter,
external modulation input,
external trigger input,
Internal clock output,
external reference clock input / output

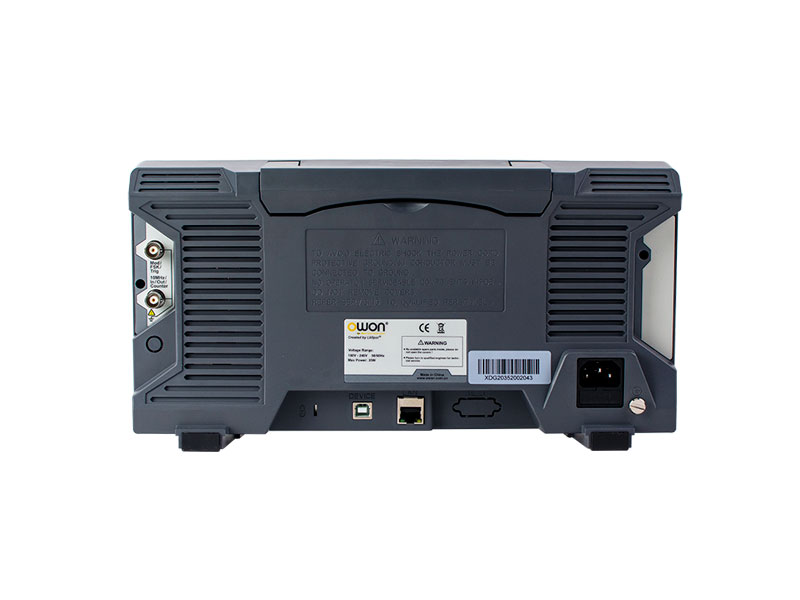

Communication Interface

USB Host, USB Device,LAN,RS232(optional)

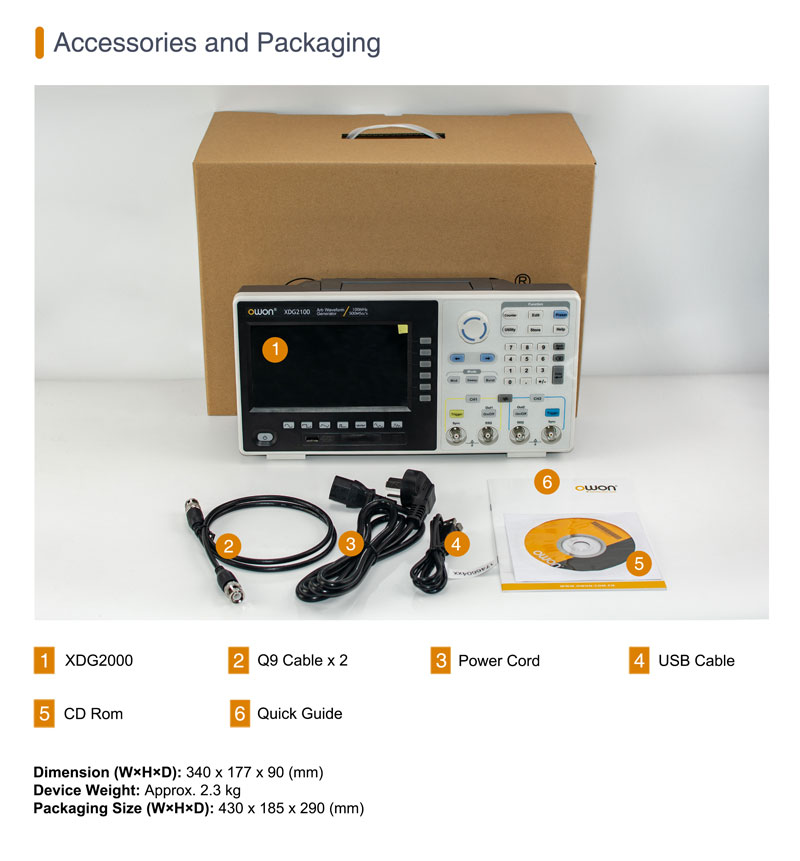

Mechanical specifications

Size

340mm x 177mm x 90mm

Weight

2.3kg
