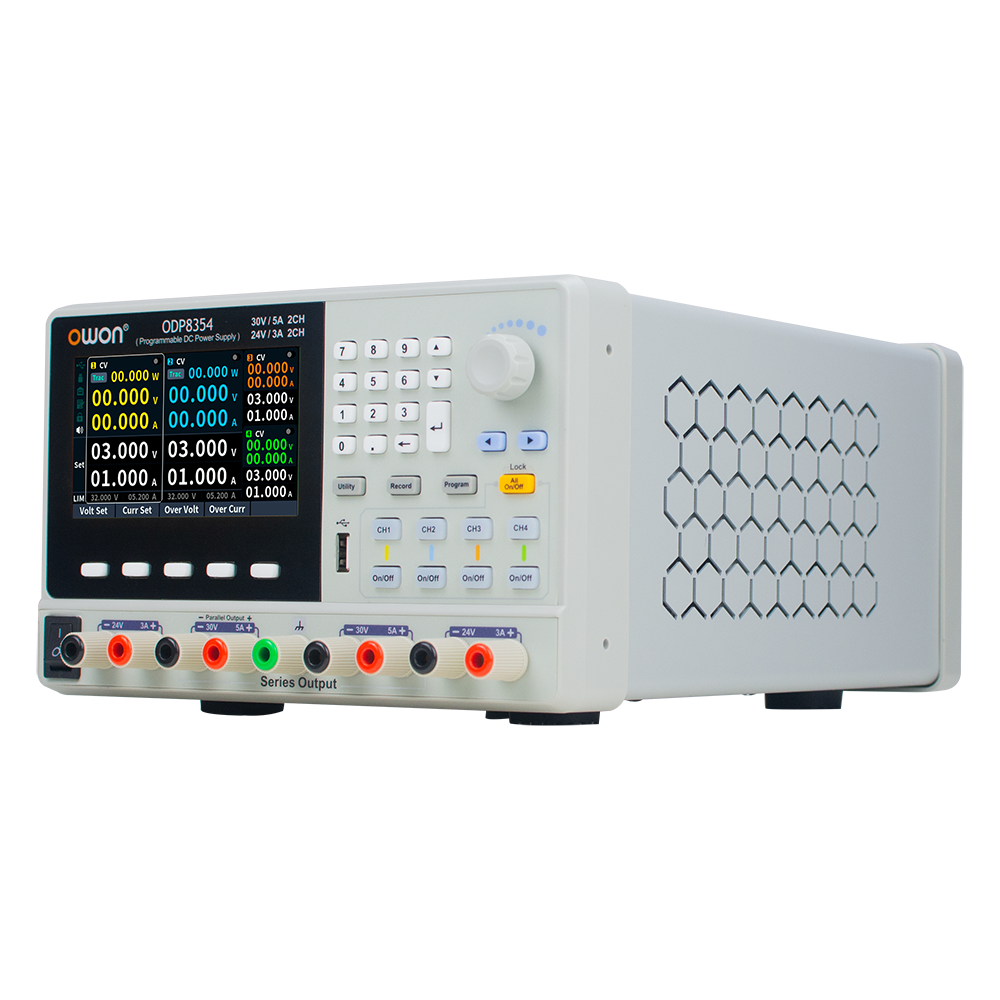

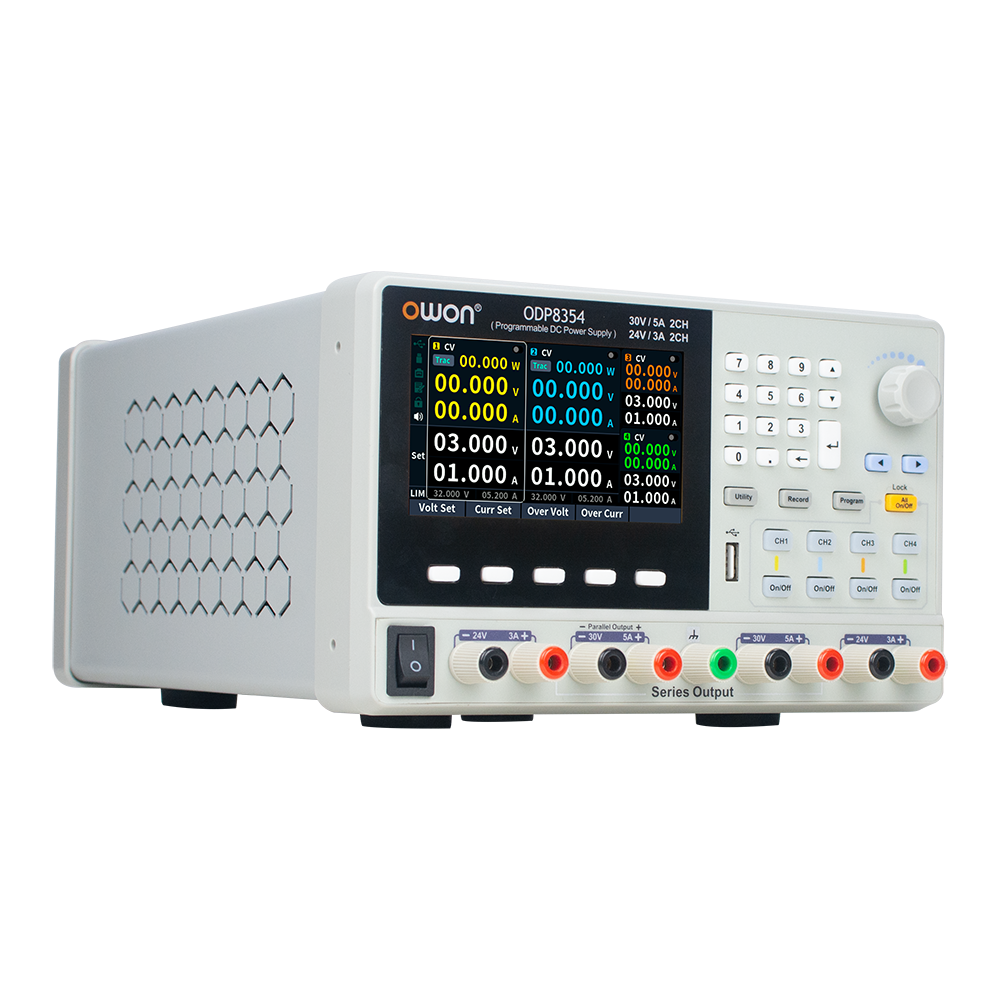

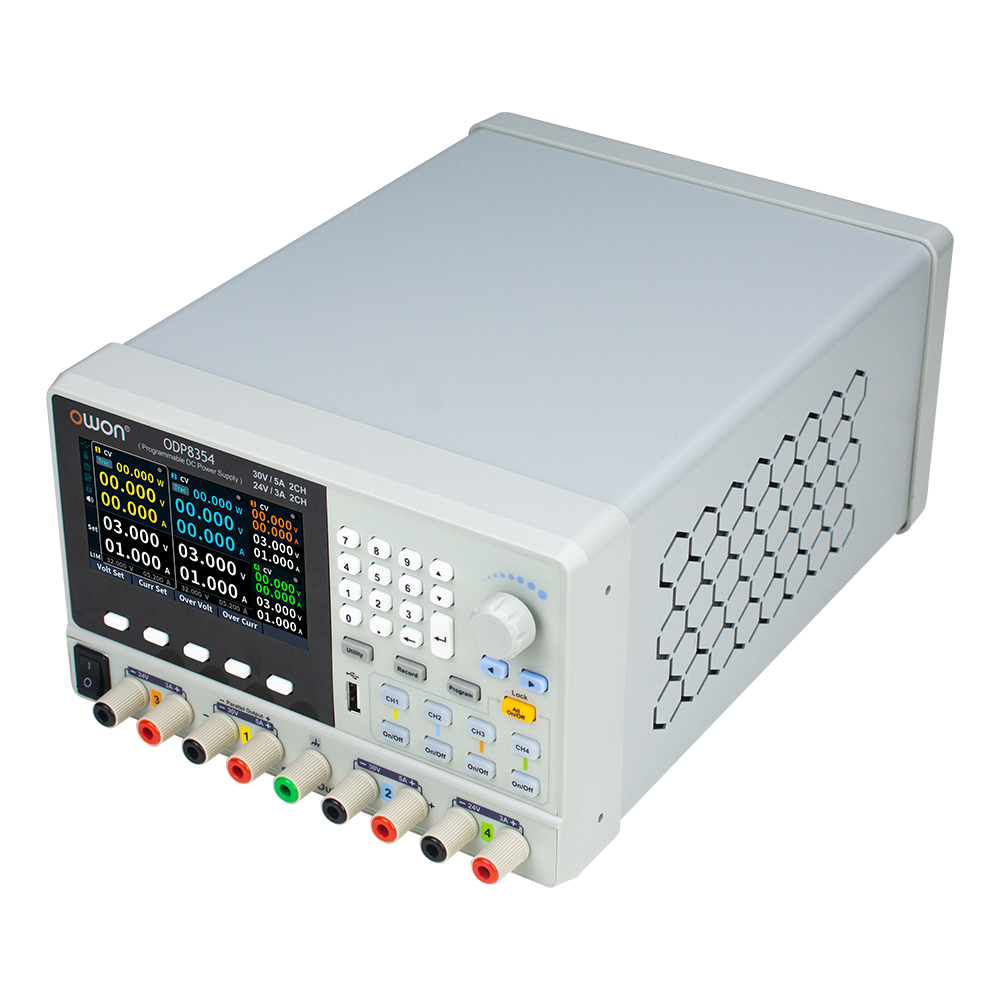

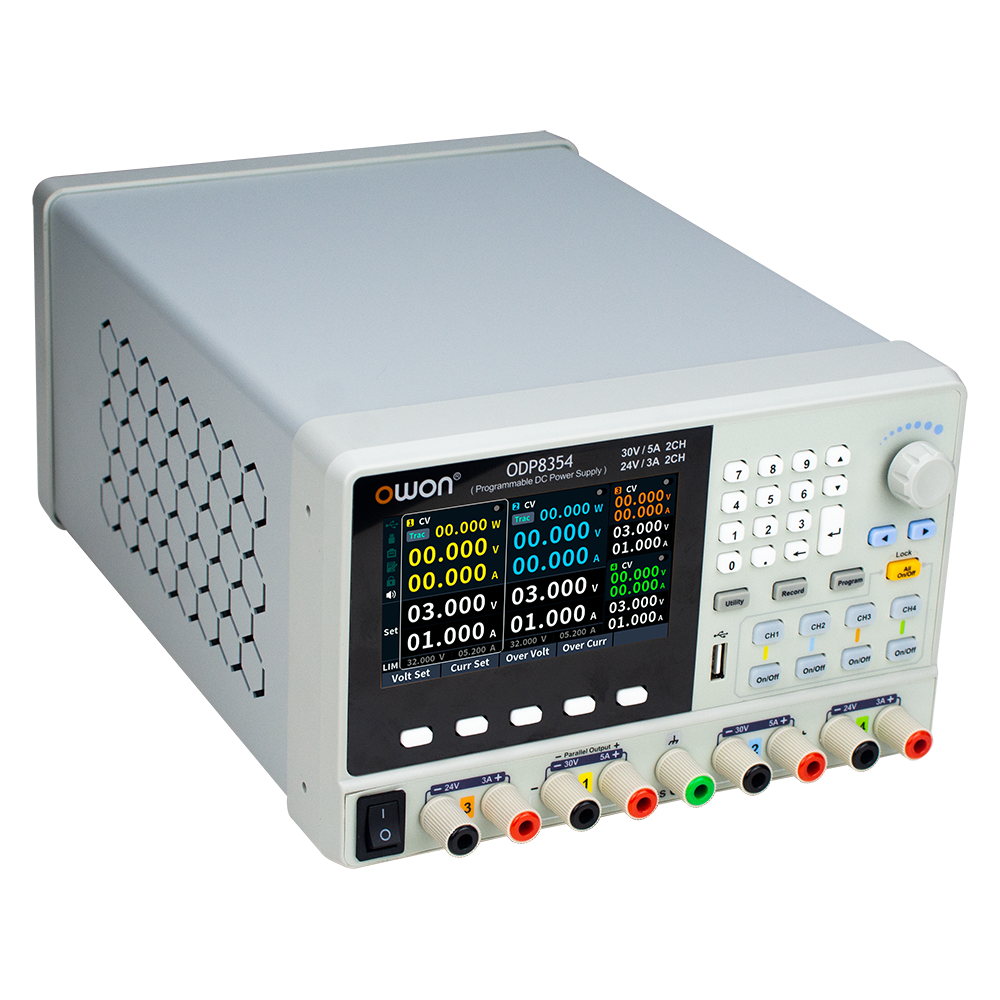

ODP8000 Series Programmable DC Power Supply
+ 3 or 4-channel independent adjustable output channels; CH1 and CH2 support series/parallel connection
+ CH1/CH2: 5A / 90W constant power; CH3/CH4: 3A / 24W constant power
+ 5-digit voltage/current display with 1mV / 1mA resolution
+ Low ripple and noise: ≤1mVrms / 5mVpp
+ OVP, OCP, OTP, OPP protection for safety and reliability
+ Intelligent CV/CC mode switching
+ Supports 100 sets of timed output sequences
+ Remote voltage sensing supported
+ Built-in data logger for displaying voltage, current, and power in table or waveform format
+ System parameter save/recall, with expandable data storage
+ 4.3-inch (480*272) IPS screen for sharp and vivid display
+ Supports USB 2.0, RS232, and LAN communication interfaces
High-Accuracy 3-/4-Channel Constant-Power Output
Provides three or four independent output channels. CH1 and CH2 each deliver up to 32 V/5 A and 102 W, with up to 252 W total output power. Setting and readback resolution reaches 1 mV/1 mA.

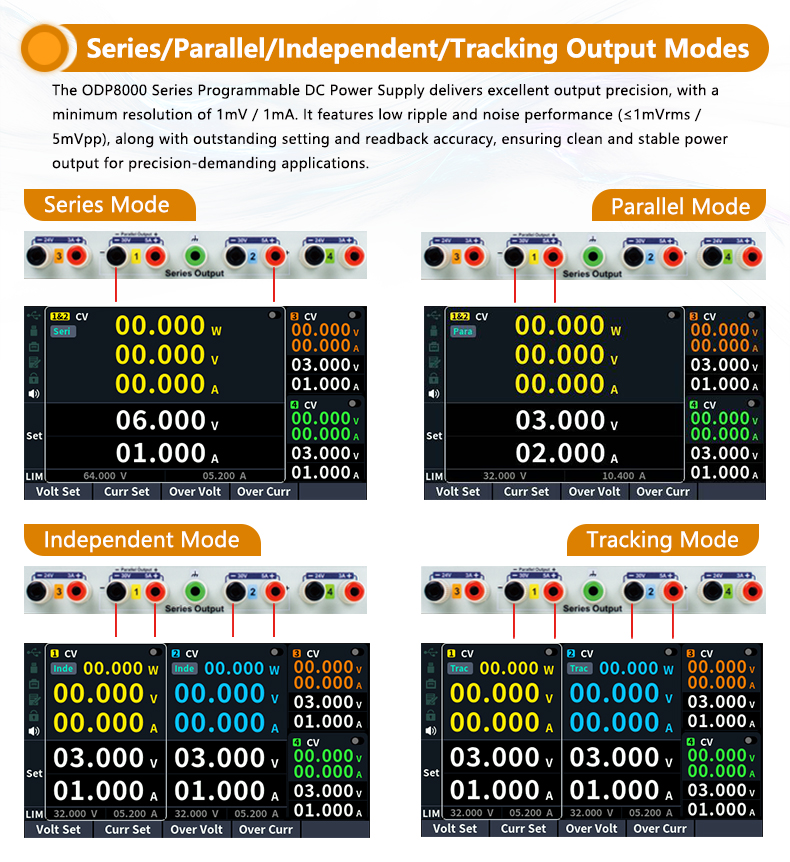

Flexible Output Expansion with Multiple Operating Modes
CH1 and CH2 support series, parallel, independent, and channel-tracking modes without external jumpers. Series operation delivers up to 64 V/5 A, parallel operation up to 32 V/10 A, and combined power up to 204 W.

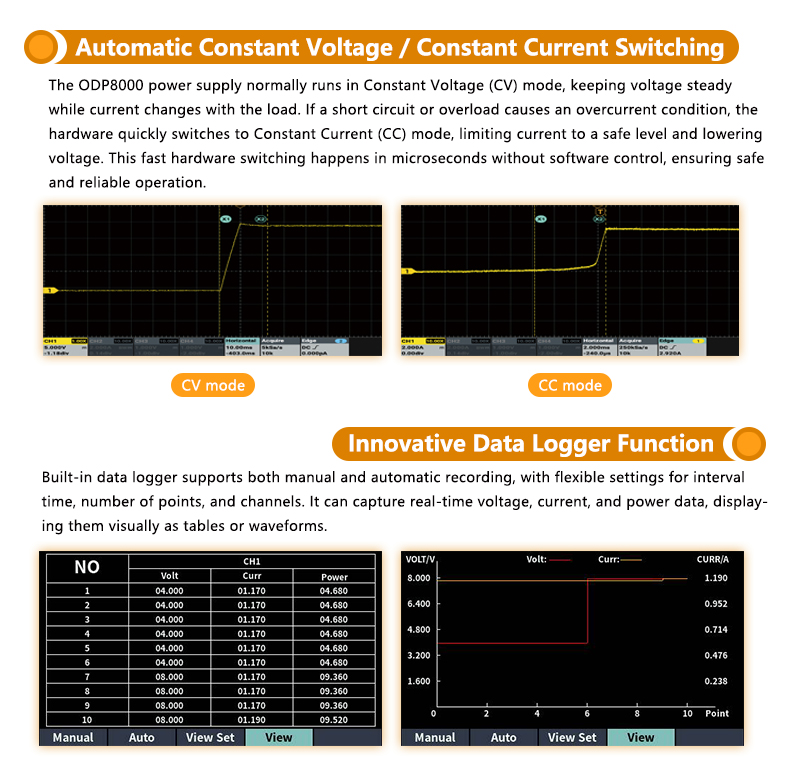

Fast CV/CC Switching with Multiple Protections
Hardware-based, microsecond-level automatic switching between CV and CC modes rapidly limits abnormal current. OVP, OCP, OPP, and OTP protections enhance test safety.

100-Step Programmable Timed Output
Each channel supports up to 100 timed steps with independently adjustable voltage, current, and dwell time. Data files can be imported from a USB drive for automated multistep sequences, cyclic testing, and complex operating-condition simulation.

Remote Sensing for Higher Load-Side Voltage Accuracy

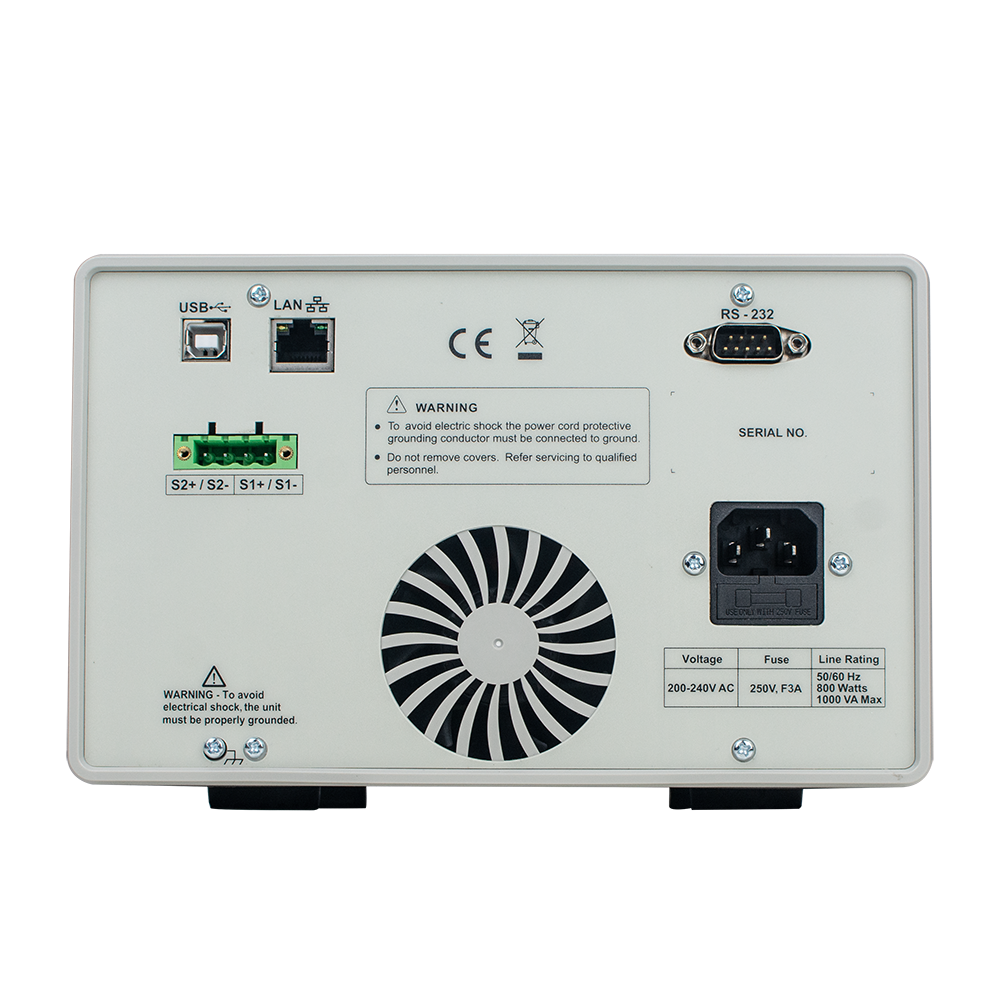

Rear-panel remote-sense terminals compensate in real time for voltage drop across the leads during high-current output, delivering more accurate and stable voltage at the load.

Versatile Interfaces
USB Host, USB Device, RS232, and LAN interfaces support the USB TMC protocol for easy system integration.

|
Model |
ODP8353 |
ODP8354 |
|
Output Ratings |
3 (independent controllable channel) |
4 (independent controllable channel) |
|
Voltage / Current |
CH1: 30V/5A, Maximum 90W constant power output CH2: 30V/5A, Maximum 90W constant power output CH3: 24V/3A, Maximum 24W constant power output |
CH1: 30V/5A, Maximum 90W constant power output CH2: 30V/5A, Maximum 90W constant power output CH3: 24V/3A, Maximum 24W constant power output CH4: 24V/3A, Maximum 24W constant power output |
|
CH1, CH2 Parallel Voltage / Current |
60V/5A, Maximum 180W constant power output |
60V/5A, 180W constant power output |
|
CH1, CH2 Series Voltage / Current |
30V/10A, Maximum 180W constant power output |
30V/10A, 180W constant power output |
|
Max out put power |
204W |
228W |
The specifications below are based on the instrument having run for at least 30 minutes continuously under the specified operating temperature.
|
Model |
ODP8353 |
ODP8354 |
|
|
Settings Resolution |
1mV/1mA |
||
|
Read Back Resolution |
1mV/1mA |
||
|
Settings Accuracy (Within 12 months) (25℃±5℃) |
Voltage |
Independent:±(0.03% of reading+10) mV;Parallel:±(0.03% of reading+10) mV; Series:±(0.06% of reading+20) mV |
|
|
Current |
Independent:±(0.1% of reading+5) mA;Parallel:±(0.2% of reading+20) mA; Series:±(0.1% of reading+5) mA |
||
|
Read Back Accuracy (25℃±5℃) |
Voltage |
Independent:±(0.03% of reading+10) mV;Parallel:±(0.03% of reading+10)mV; Series:±(0.06% of reading+20) mV |
|
|
Current |
Independent:±(0.1% of reading+5) mA;Parallel:±(0.2% of reading+10) mA; Series:±(0.1% of reading+5) mA |
||
|
Noise and Ripple* (20Hz-20MHz) |
Voltage |
Independent:≤5mVp-p;Parallel:≤5mVp-p;Series:≤10mVp-p |
|
|
Voltage |
≤1mVrms |
||
|
Current |
Independent:≤5mArms;Parallel:≤10mArms;Series:≤5mArms |
||
|
Load Regulation |
Voltage |
Independent:≤0.01%+5mV;Parallel:≤0.01%+50mV;Series:≤0.01%+50mV |
|
|
Voltage Regulation |
Voltage |
≤0.01%+3mV |
|
|
Current |
≤0.01%+3mA |
||
|
Read Back Temperature Coefficient |
Voltage |
100ppm/℃ |
|
|
Current |
200ppm/℃ |
||
|
Programmable output |
Storage |
1M points; 100 groups |
|
|
Time setting |
Second |
||
|
Data Record Function |
10k groups of data (voltage, current, power) |
||
|
Working temperature |
0-40℃ |
||
|
Ports |
USB Host, USB Device, RS232, LAN, supports USB TMC protocol |
||
|
Display |
4.3 inch IPS LCD |
||
|
Dimension |
290mm(W)*130mm(H)*212mm(D) |
||
|
Device weight |
≈9kg |
||
*Noise bandwidth 20MHz,ripple bandwidth 1MHz, connect 10uF electrolytic capacitor in parallel with 0.1uF ceramic capacitor to eht output terminal for testing.
General Accessories
| Name | Order Number |
|---|---|
| Quick Guide | ———— |
| Power Cord | ———— |
| USB Cable | 7ULD10 |
Optional Accessories
| Name | Order Number |
|---|---|
| Banana Plug to Alligator Clip Cable | 7B2A-10 |
