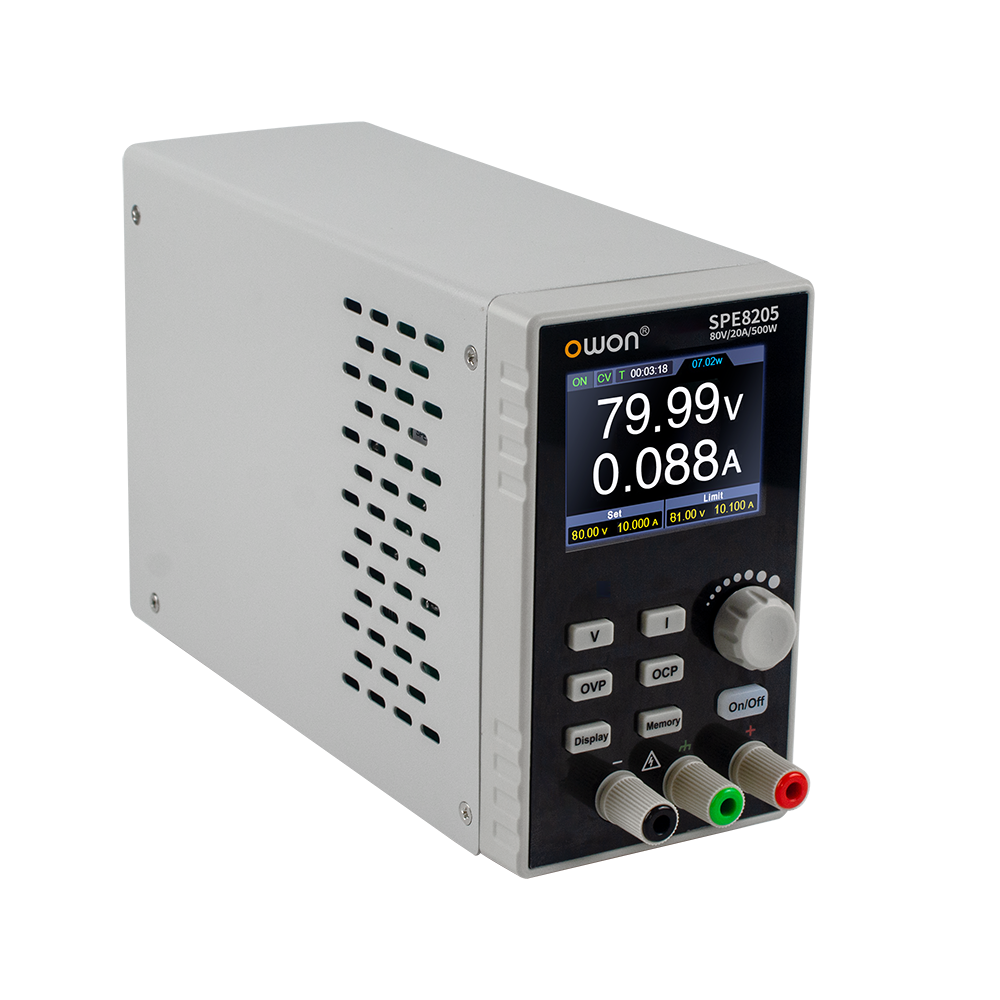

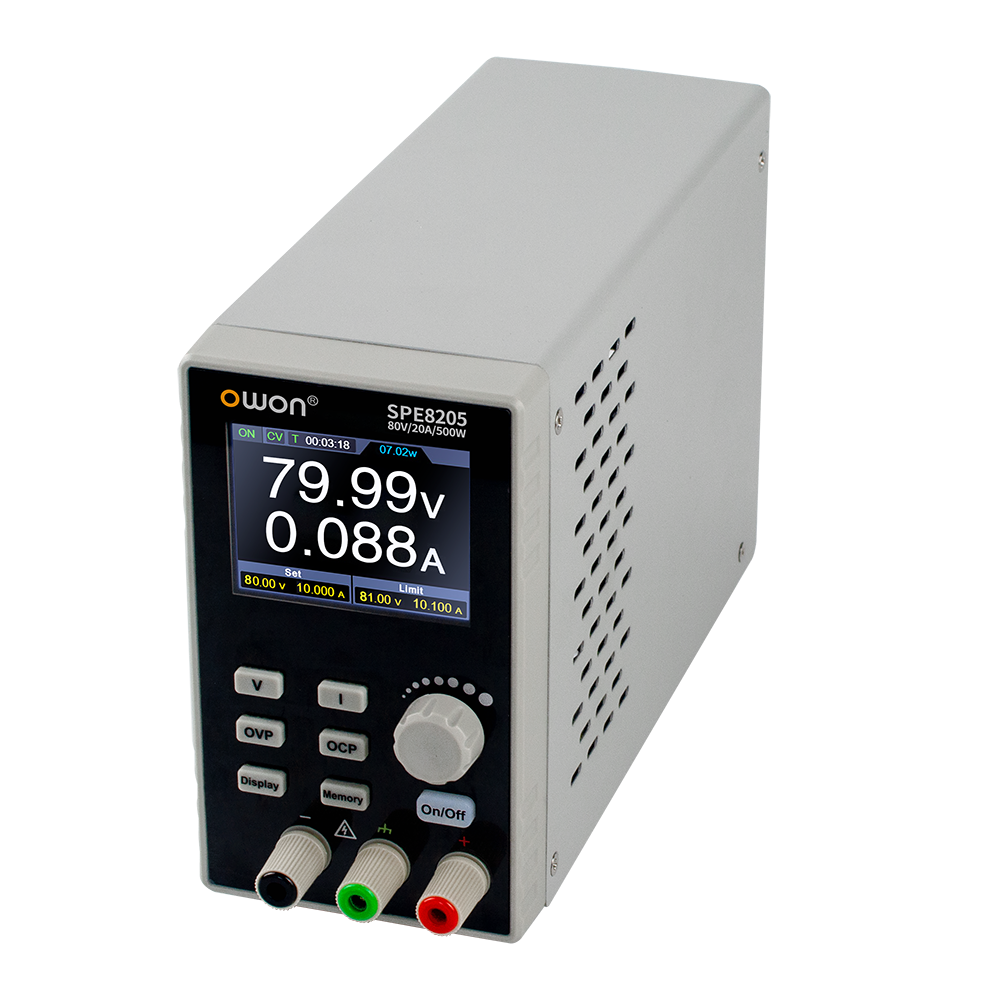

OWON SPE Series DC Power Supply
+ High resolution: 10mV / 1mA

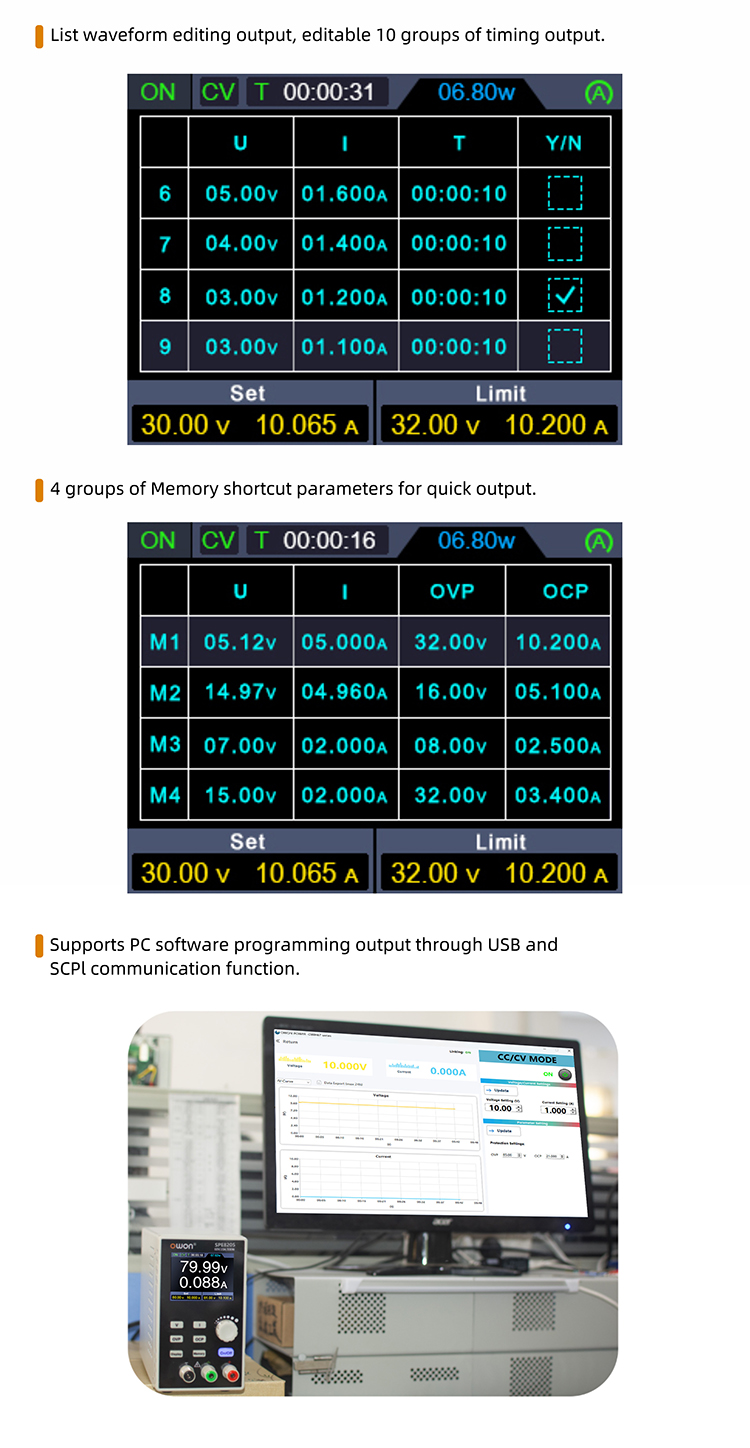

+ List waveform editing output
+ Low ripple / noise
+ Over voltage / over current protection
+ Output voltage and current curve monitoring function
+ Intelligent temperature control fan cooling

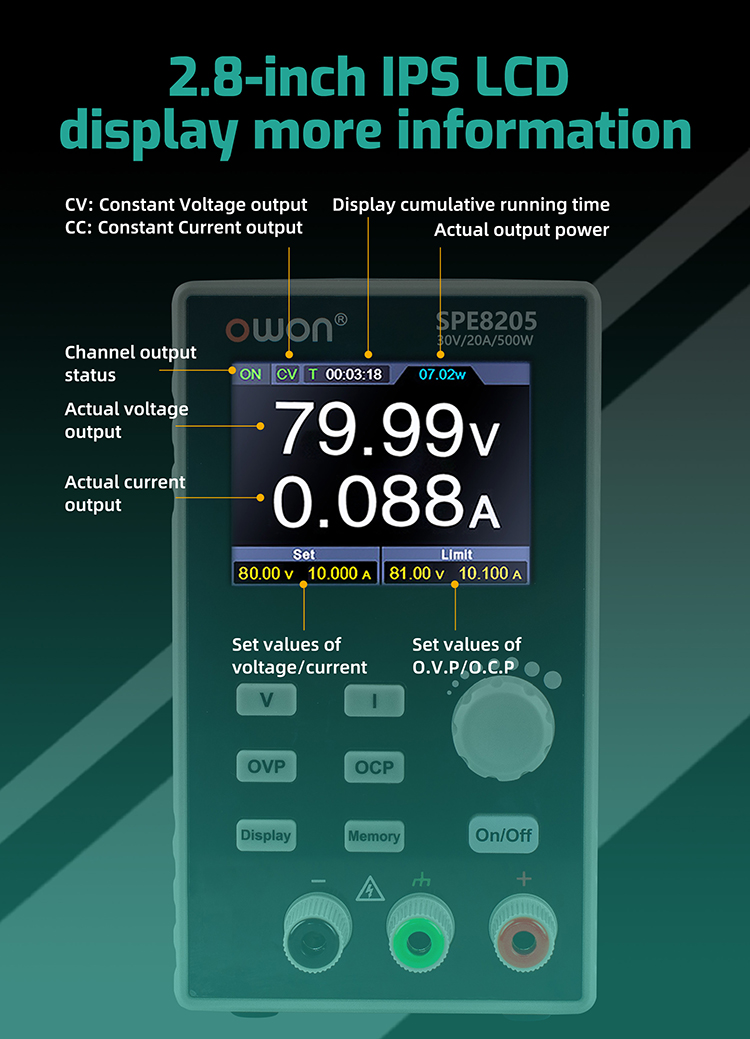

+ 2.8-inch IPS LCD
+ USB communication interface, support SCPI
PDF Export
E-mail Us
The instrument must be operated continuously for more than 30 minutes at the specified operating temperature to achieve the following specifications
|
Model |
SPE6205 |
SPE8105 |
SPE8205 |
|
|
Output Voltage |
0 - 60V |
0 - 80V |
0 - 80V |
|
|
Output Current |
20A |
10A |
20A |
|
|
Max Output Power |
500W |
|||
|
OVP |
63V |
85V |
85V |
|
|
OCP |
21A |
11A |
21A |
|
|
OTP |
85℃ |
|||
|
Load Regulation |
≤20mV（Voltage）；≤10mA（Current） |
|||
|
Power Regulation |
≤20mV（Voltage）；≤10mA（Current） |
|||
|
Setting Resolution |
10mV / 1mA |
|||
|
Readback Resolution |
10mV / 1mA |
|||
|
Setting Accuracy（25℃±5℃） |
Voltage |
≤0.05% ± 20mV ≤0.05% ± 10mA |
≤0.05% ± 20mV ≤0.05% ± 20mA |
|
|
|
Current |
|||
|
Readback Accurac（25℃±5℃） |
Voltage |
≤0.05% ± 20mV |
≤0.05% ± 20mV |
|
|
|
Current |
≤0.05% ± 10mA |
≤0.05% ± 20mA |
|
|
Ripple/Noise (*) |
≤50mVp-p；≤15mAp-p |
|||
|
Output temperature coefficient （0℃-40℃） |
100ppm/℃（Voltage）；200ppm/℃（Current） |
|||
|
Readback temperature coefficient |
100ppm/℃（Voltage）；200ppm/℃（Current） |
|||
|
Response Time (50%-100% rated load) |
≤5.0ms |
|||
|
Storage |
4 groups of data |
|||
|
Display |
2.8inch LCD (IPS) |
|||
|
Interface |
USB Device |
|||
|
Dimension |

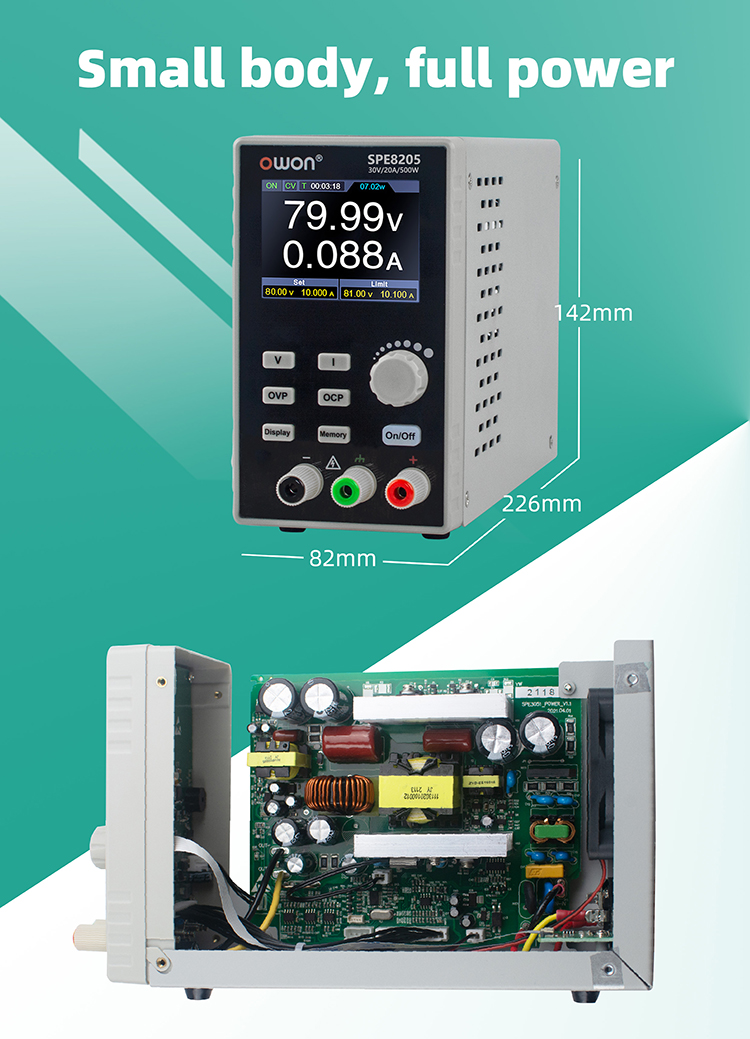

82mm（W）× 142mm（H）×226mm（D） |
|||
|
Weight |
Approx. 1.8 kg |
|||
* Ripple & Noise (Noise bandwidth 20MHz, ripple bandwidth 1MHz, connect 10uF electrolytic capacitor in parallel with 0.1uF ceramic capacitor to the output terminal for testing)
The accessories subject to final delivery.
-
Power Cord -
Quick Guide -
USB Cable -
Test Leads (optional)
