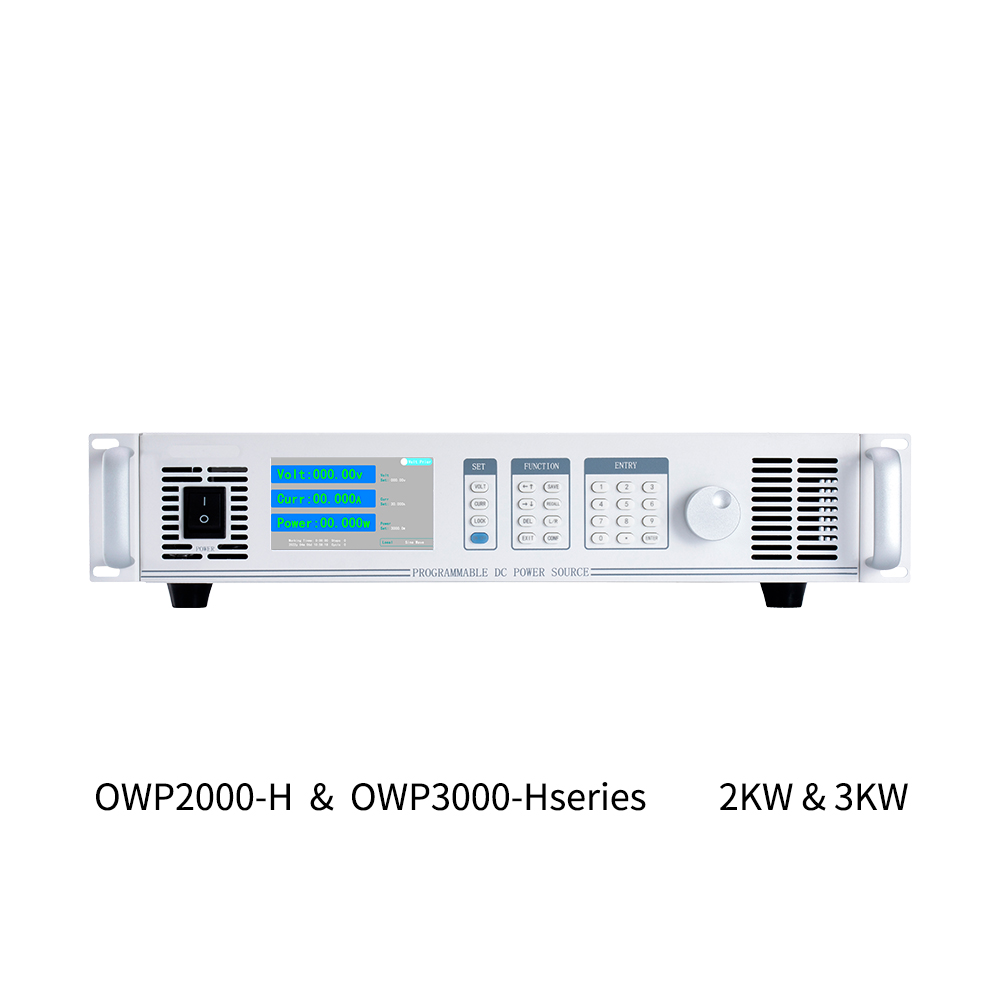

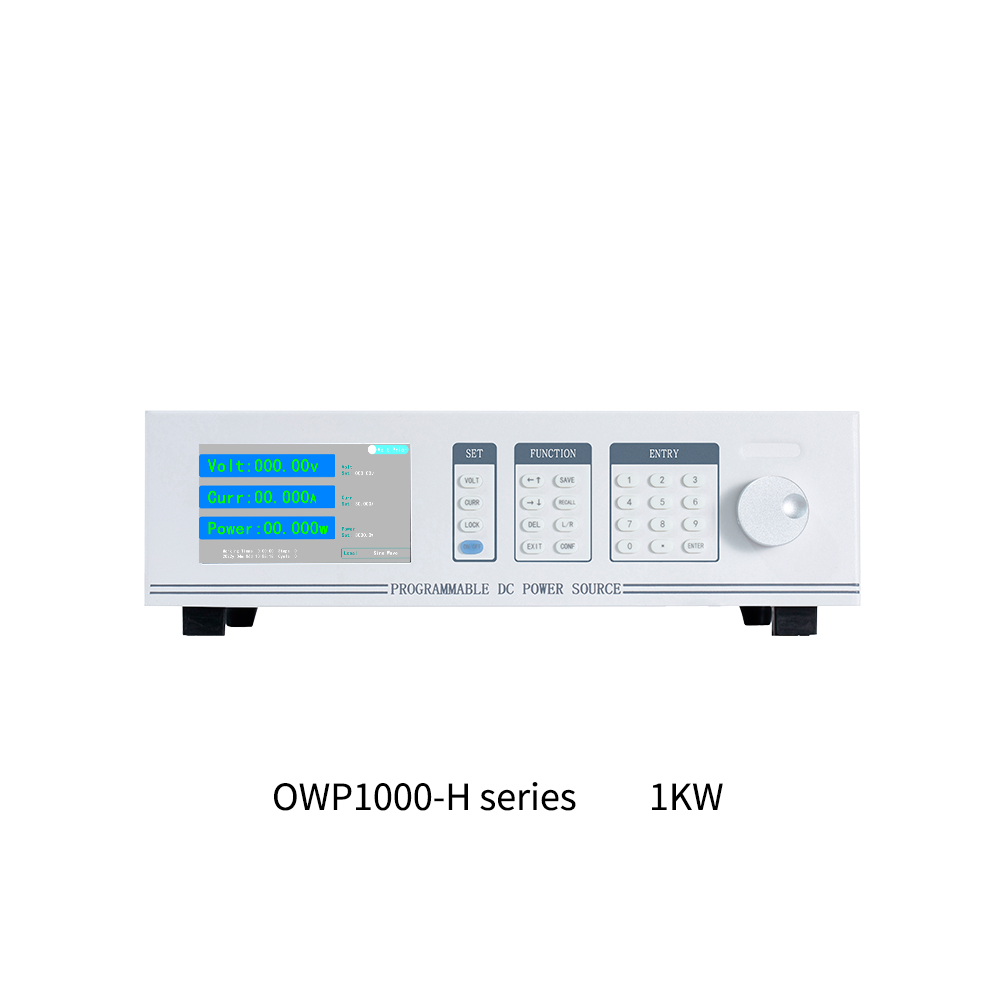

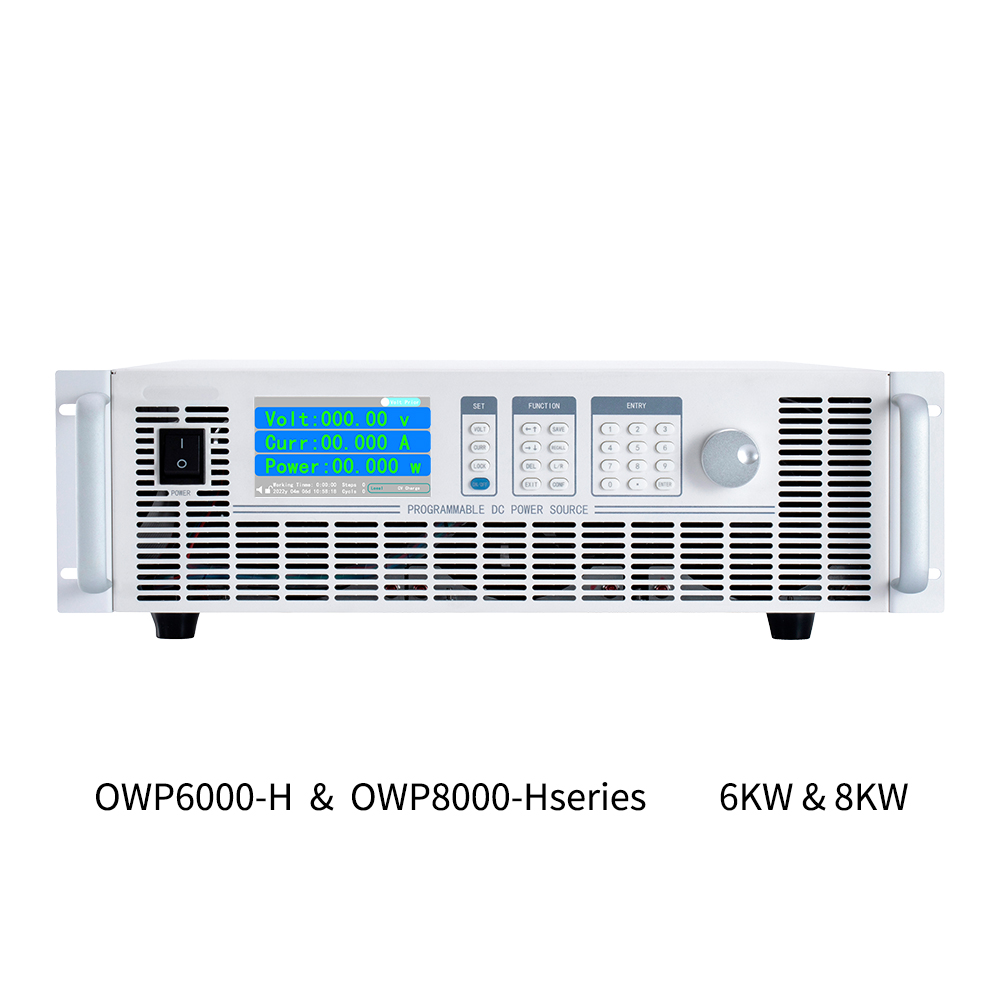

OWP-H Series High Power DC Power Supply

+ 2U/3U standard embedded height
+ High output resolution 1mV / 0.1mA
+ Constant power output, and wider output voltage, current range
+ SCOPE display mode to read voltage / current / power curve directly
+ CV / CC priority, with adjustable rise/fall time
+ List edit function for 50 group timed output
+ Function generating function to get access to rich dynamic waveform
+ Remote voltage compensation
+ Parallel by multi-device to expand power range up to 128KW
+ Support to save/recall 128 group application data
+ 4.3" TFT LCD
+ Standard RS485 communication interface, and optional dry node/analog interface
+ Smart temperature sensitive fan

Send Inquiry
Product Details

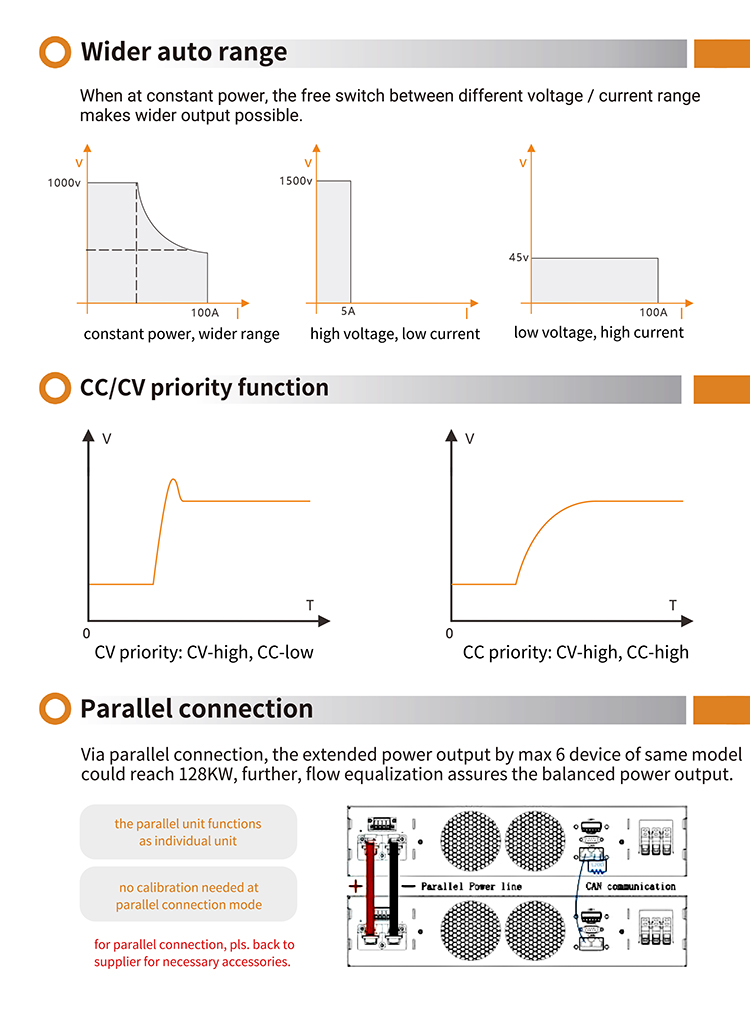

Wide-Range Constant-Power Output

The series covers 1 kW, 2 kW, 3 kW, 6 kW, and 8 kW power ratings, with output voltage up to 1500 V and current up to 100 A. Auto-ranging enables flexible voltage and current combinations within the rated power.

Parallel Operation for Flexible Power Expansion

Up to six power supplies can be connected in parallel, scaling system power to 128 kW. Current sharing and CAN-based master/slave synchronization maintain stable dynamic performance as output power expands.

CV/CC Priority Modes

Switch between constant-voltage and constant-current priority modes, with adjustable voltage and current rise/fall times to suppress startup surges or provide smooth transitions during battery charging and discharging.

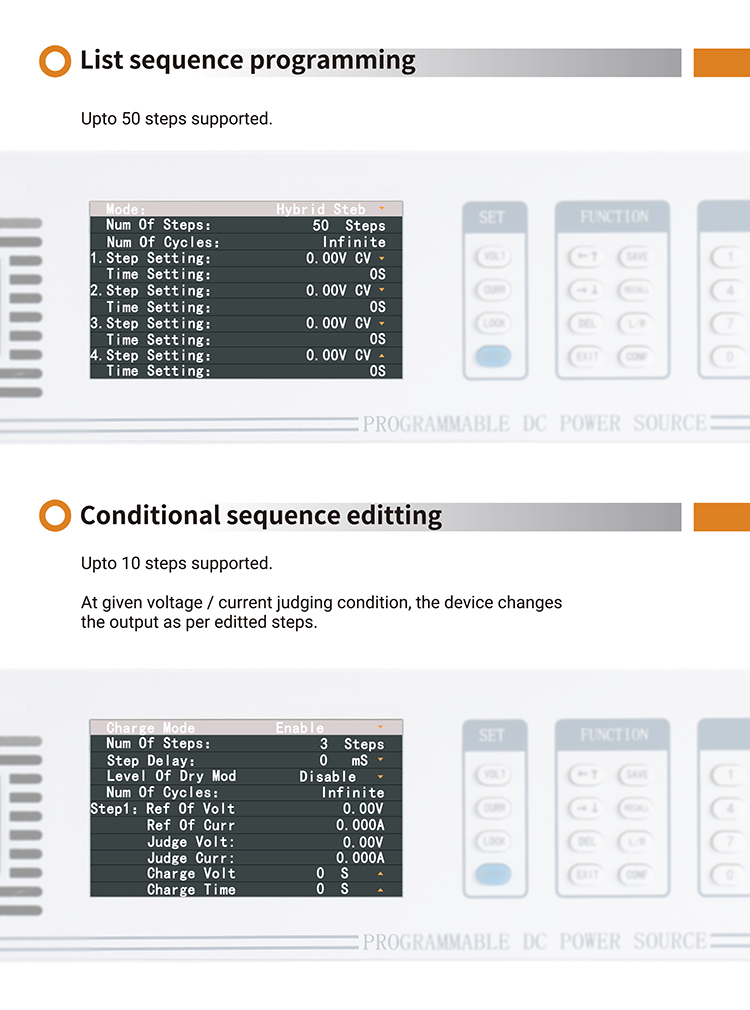

LIST Sequencing

Edit sequences of up to 50 steps, with independent output parameters and run time for each step. Sequences run automatically in CV or CC mode for cyclic testing and automatic switching between operating conditions.

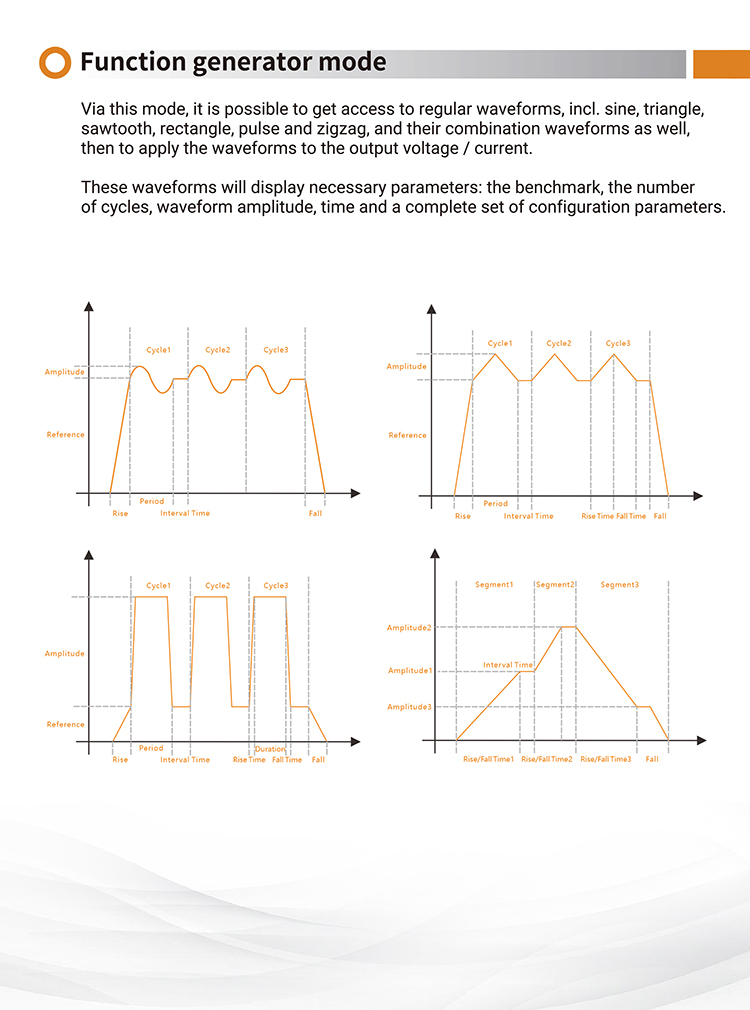

Built-In Waveform Generation

Generates sine, triangle, pulse, trapezoidal, and combined waveforms without external software. Edited waveforms can also be superimposed on the output voltage or current.

Conditional Sequence Programming

Define voltage or current conditions and automatically switch the output based on preset logic. Supports up to 10 programmable steps for charge/discharge and aging tests on lithium batteries, capacitors, and other energy-storage devices.

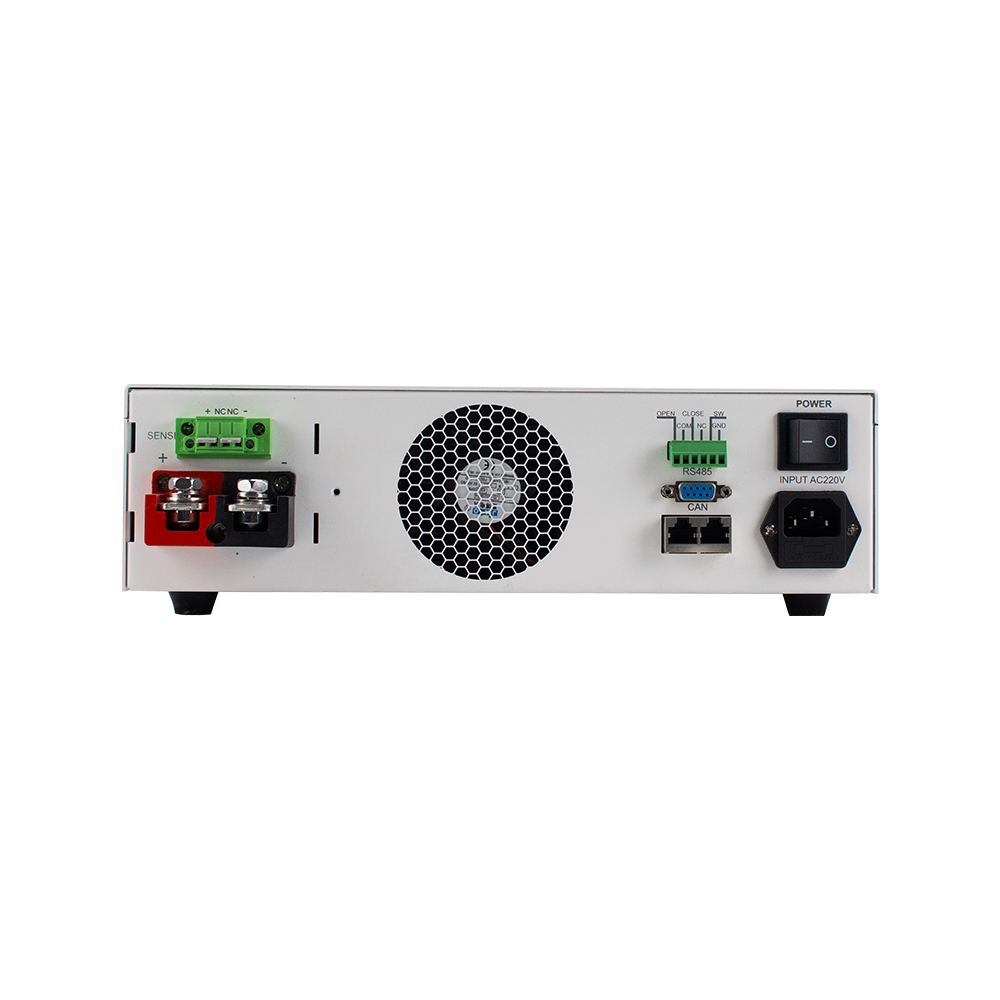

Versatile Interfaces for Easy System Integration

Standard RS485 and CAN interfaces, with optional RS232 or dry-contact interfaces, simplify automation integration.

Specifications

+Product Selection

Model

Voltage

Current

Power

Interface

OWP1006H

60.000V

30.000A

1000W

CAN、RS485、
Dry Node/Analog(optional)

OWP1010H

100.00V

15.000A

1000W

CAN、RS485、
Dry Node/Analog(optional)

OWP1020H

200.00V

8.0000A

1000W

CAN、RS485、Dry Node/Analog(optional)

OWP1030H

300.00V

5.0000A

1000W

CAN、RS485、
Dry Node/Analog(optional)

OWP2004H

45.000V

100.00A

2000W

CAN、RS485、
Dry Node/Analog(optional)

OWP2006H

60.000V

80.000A

2000W

CAN、RS485、
Dry Node/Analog(optional)

OWP2008H

80.000V

60.000A

2000W

CAN、RS485、
Dry Node/Analog(optional)

OWP2010H

100.00V

45.000A

2000W

CAN、RS485、
Dry Node/Analog(optional)

OWP2015H

150.00V

30.000A

2000W

CAN、RS485、
Dry Node/Analog(optional)

OWP2020H

200.00V

23.000A

2000W

CAN、RS485、
Dry Node/Analog(optional)

OWP2030H

300.00V

15.000A

2000W

CAN、RS485、
Dry Node/Analog(optional)

OWP2040H

400.00V

12.000A

2000W

CAN、RS485、
Dry Node/Analog(optional)

OWP2050H

500.00V

9.0000A

2000W

CAN、RS485、
Dry Node/Analog(optional)

OWP2060H

600.00V

8.0000A

2000W

CAN、RS485、
Dry Node/Analog(optional)

OWP3004H

45.000V

100.00A

3000W

CAN、RS485、
Dry Node/Analog(optional)

OWP3006H

60.000V

80.000A

3000W

CAN、RS485、
Dry Node/Analog(optional)

OWP3008H

80.000V

60.000A

3000W

CAN、RS485、
Dry Node/Analog(optional)

OWP3010H

100.00V

45.000A

3000W

CAN、RS485、
Dry Node/Analog(optional)

OWP3015H

150.00V

30.000A

3000W

CAN、RS485、
Dry Node/Analog(optional)

OWP3020H

200.00V

23.000A

3000W

CAN、RS485、
Dry Node/Analog(optional)

OWP3030H

300.00V

15.000A

3000W

CAN、RS485、
Dry Node/Analog(optional)

OWP3040H

400.00V

12.000A

3000W

CAN、RS485、
Dry Node/Analog(optional)

OWP3050H

500.00V

9.0000A

3000W

CAN、RS485、
Dry Node/Analog(optional)

OWP3060H

600.00V

8.0000A

3000W

CAN、RS485、
Dry Node/Analog(optional)

OWP6010H

100.00V

100.00A

6000W

CAN、RS485、
Dry Node/Analog(optional)

OWP6015H

150.00V

67.000A

6000W

CAN、RS485、
Dry Node/Analog(optional)

OWP6020H

200.00V

50.000A

6000W

CAN、RS485、
Dry Node/Analog(optional)

OWP6025H

250.00V

40.000A

6000W

CAN、RS485、
Dry Node/Analog(optional)

OWP6030H

300.00V

34.000A

6000W

CAN、RS485、
Dry Node/Analog(optional)

OWP6040H

400.00V

25.000A

6000W

CAN、RS485、
Dry Node/Analog(optional)

OWP6050H

500.00V

20.000A

6000W

CAN、RS485、
Dry Node/Analog(optional)

OWP6060H

600.00V

17.000A

6000W

CAN、RS485、
Dry Node/Analog(optional)

OWP6100H

1000.0V

10.000A

6000W

CAN、RS485、
Dry Node/Analog(optional)

OWP6150H

1500.0V

4.0000A

6000W

CAN、RS485、
Dry Node/Analog(optional)

OWP8010H

100.00V

100.00A

8000W

CAN、RS485、
Dry Node/Analog(optional)

OWP8015H

150.00V

67.000A

8000W

CAN、RS485、

Dry Node/Analog(optional)

OWP8020H

200.00V

50.000A

8000W

CAN、RS485、
Dry Node/Analog(optional)

OWP8025H

250.00V

40.000A

8000W

CAN、RS485、
Dry Node/Analog(optional)

OWP8030H

300.00V

34.000A

8000W

CAN、RS485、
Dry Node/Analog(optional)

OWP8040H

400.00V

25.000A

8000W

CAN、RS485、

Dry Node/Analog(optional)

OWP8050H

500.00V

20.000A

8000W

CAN、RS485、
Dry Node/Analog(optional)

OWP8060H

600.00V

17.000A

8000W

CAN、RS485、
Dry Node/Analog(optional)

OWP8100H

1000.0V

10.000A

8000W

CAN、RS485、
Dry Node/Analog(optional)

+Specifications

The specifications based upon the instrument having run for at least 30 minutes continuously, under the specified operating environment

Power

1KW

2KW

3KW

6KW

8KW

Power Supply

1Φ220VAC±10%;50-60HZ

3Φ380VAC±10%;50-60HZ

DC Voltage

Output voltage accuracy

<0.1% of rated value

Load Regulation

<0.05% of rated value

linear Regulation ±10% ΔUAC

<0.05% of rated value

Adjustment time with 10-100% load

<5ms

Slew rate10-90%

<20ms-60s

Voltage Compensation

<5% rated voltage

Ripple

<0.1% of rated value

DC Current

Output current accuracy

<0.15% of rated value+20mA

Load Regulation 1-100%

<0.1% of rated value

linear Regulation ±10% ΔUAC

<0.05% of rated value

Power accuracy

<0.3% of rated value

Insulation

AC Input to enclosure

1500VDC

AC input to DC output

1500VDC

DC output to enclosure (PE)

500VDC

Other

Protection

OVP, OCP, OLP, OTP

Digital Interface

RS232(optional)、RS485

Dry contact input/out put

Dry contact input

Dry contact out put

Cooling methods

Air cooling

Operating Temperature

-5℃-45℃

Storage Temperature

-20℃-60℃

Relative humidity

<80%,NO condensation

Dimension(W*H*D)

325*88*450mm

(1KW)

425*88*450mm(2KW,3KW)

425*132*551mm(6KW,8KW)

Weight

9KG (1KW)

11KG (2KW)

14KG (3KW)

25KG (6KW, 8KW)

Support
Accessories


General Accessories


NameOrder Number
Quick Guide————

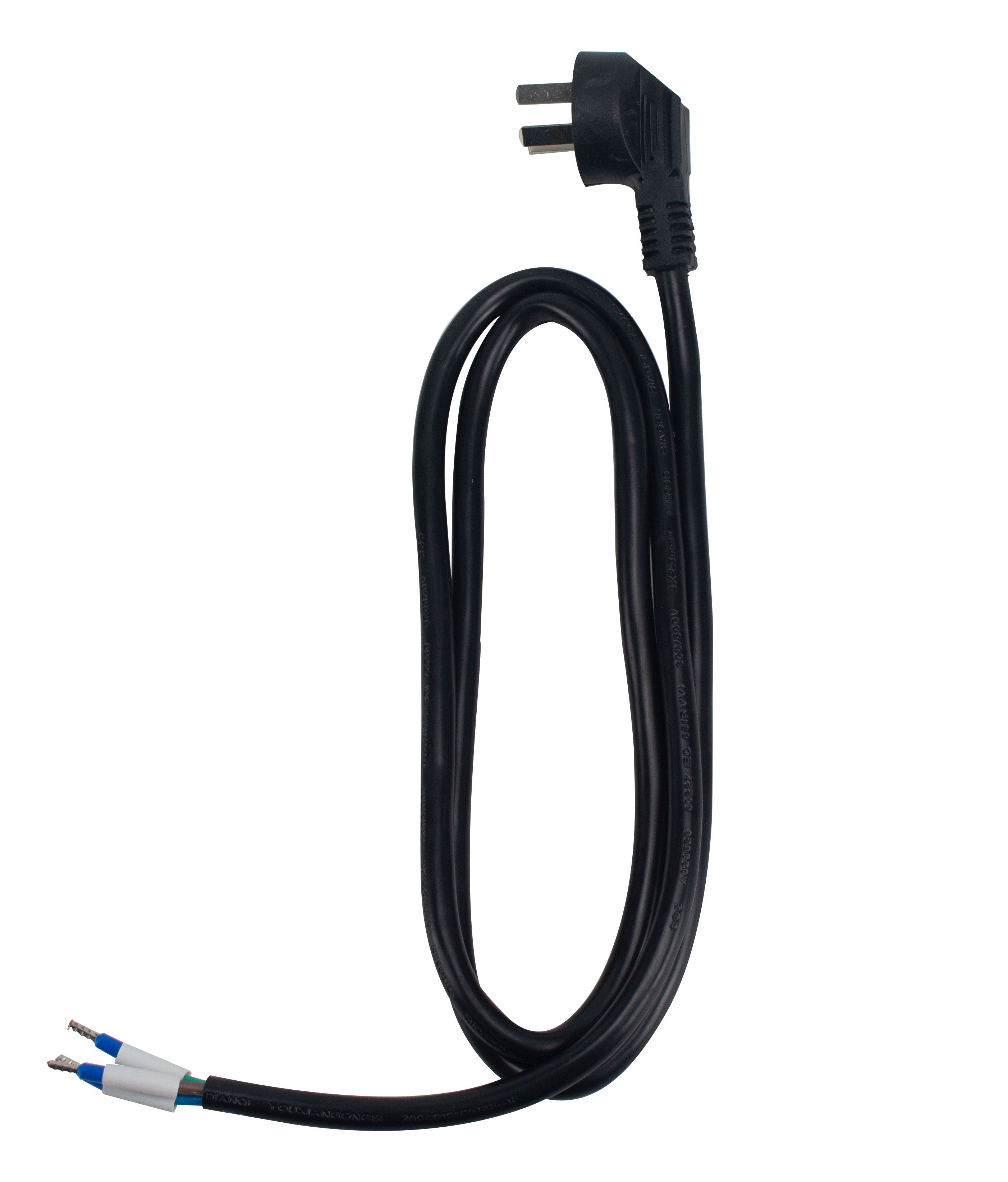

Power Cord(1kW)
Power Cord(2/3kW)
