spectrum analyzers
Spectrum Analyzer
-
Model Frequency Range Resolution adapter Impedance OF5060 1MHz-6GHz 3mm-45mm N-SAM 50Ω -

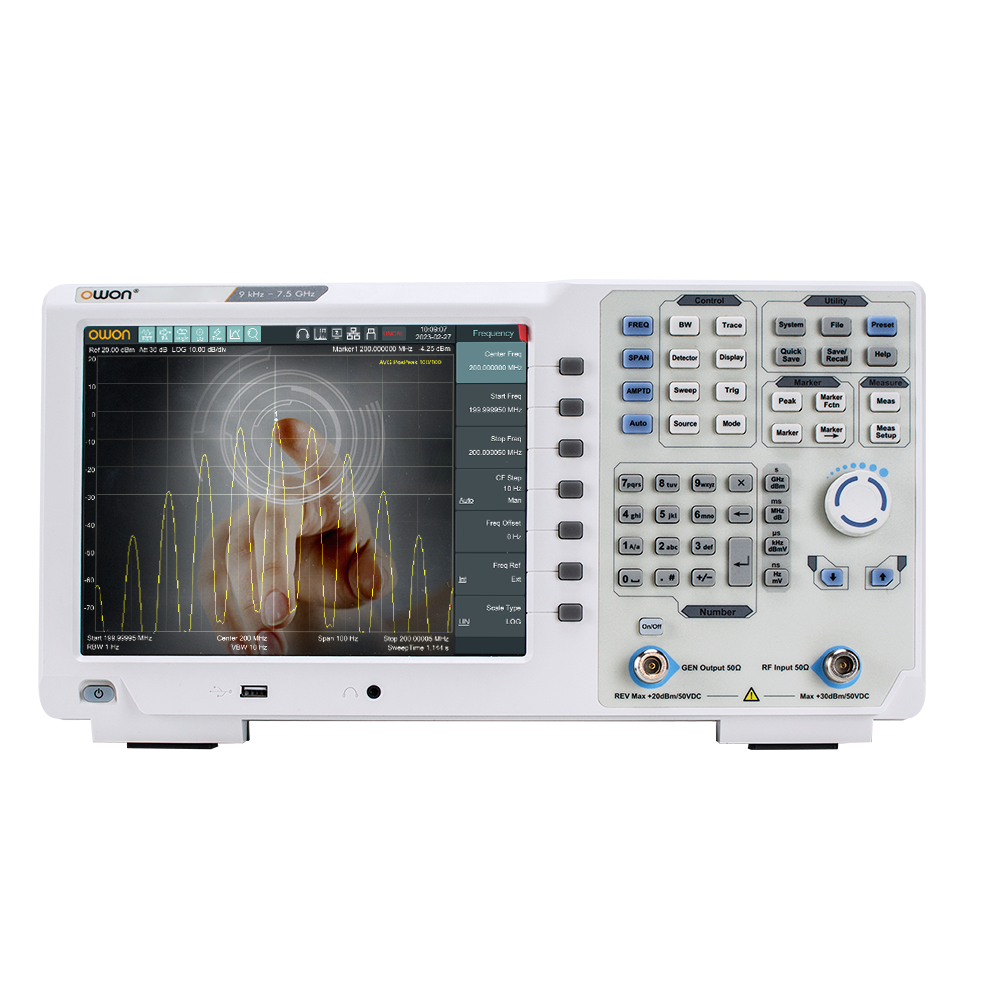

Model Frequency Range RBW Phase Noise (Typical) TG XSA1015P 9kHz-1.5GHz 1Hz - 1MHz -106 dBc/Hz @1GHz √ XSA1036P 9kHz-3.6GHz 1Hz - 1MHz -106 dBc/Hz @1GHz √ XSA1075P 9kHz-7.5 GHz 1Hz - 1MHz -106 dBc/Hz @1GHz optional -

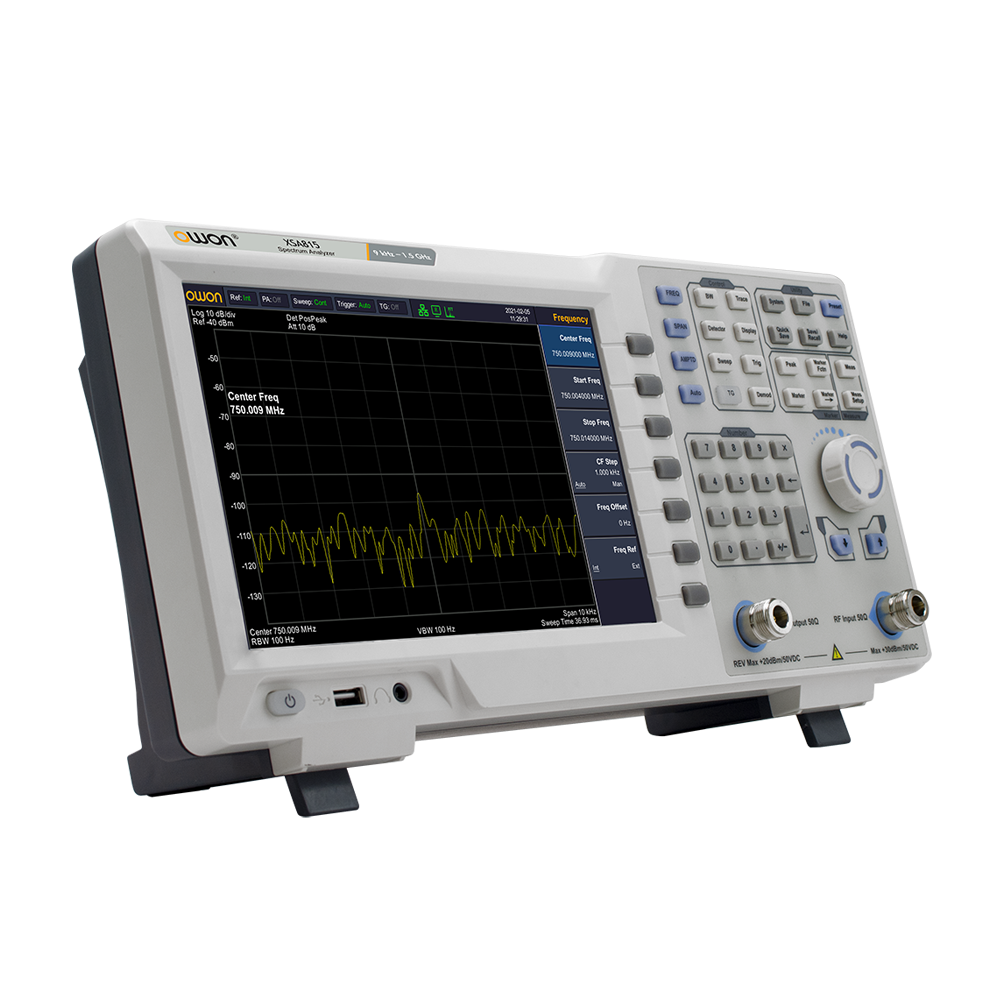

Model Frequency Range RBW Phase Noise (Typical) TG Model XSA805 9kHz - 500MHz 1Hz - 1MHz -80 dBc/Hz @1GHz and offset at 10 kHz optional XSA810 9kHz - 1GHz 1Hz - 1MHz -80 dBc/Hz @1GHz and offset at 10 kHz optional XSA815 9kHz - 1.5GHz 1Hz - 1MHz -80 dBc/Hz @1GHz and offset at 10 kHz optional -
Model Frequency Range RBW TG Model GPS HSA1016 9kHz - 1.6GHz 10Hz - 3MHz × √ HSA1016TG 9kHz - 1.6GHz 10Hz - 3MHz √ √ HSA1036 9kHz - 3.6GHz 10Hz - 3MHz × √ HSA1036TG 9kHz - 3.6GHz 10Hz - 3MHz √ √ HSA1075 9kHz - 7.5GHz 10Hz - 3MHz × √ HSA1075TG 9kHz - 7.5GHz 10Hz - 3MHz √ √ -
Model Frequency Range Bandwidth Sample Rate Multimeter HSA2105 9kHz-1.5GHz 50MHz 250MSa/s 4 1/2 digits HSA2307 9kHz-3GHz 70MHz 250MSa/s 4 1/2 digits HSA2310 9kHz-3GHz 100MHz 500MSa/s 4 1/2 digits HSA2320 9kHz-3GHz 200MHz 1GSa/s 4 1/2 digits -
Model Frequency Range RBW SSB Phase Noise Support VSA815P 9kHz - 1.5GHz 1Hz-1MHz -106 dBc/Hz @1GHz Linux/Android/Windows VSA836P 9kHz - 3.6GHz 1Hz-1MHz -106 dBc/Hz @1GHz Linux/Android/Windows VSA1036P 9kHz - 3.6GHz 1Hz-1MHz -98 dBc/Hz @1GHz Linux/Android/Windows VSA880P 9kHz - 8GHz 1Hz-1MHz -106 dBc/Hz @1GHz Linux/Android/Windows -
Model Frequency Range RBW Phase Noise (Typical) TG Model XSA1015-TG 9kHz - 1.5GHz 10Hz - 3MHz <-82dBc/Hz@10KHz √ XSA1032-TG 9kHz - 3.2GHz 10Hz - 3MHz <-82dBc/Hz@10KHz √ XSA1036-TG 9kHz - 3.6GHz 10Hz - 3MHz <-98dBc/Hz@10kHz √ XSA1075-TG 9kHz - 7.5GHz 10Hz - 3MHz <-98dBc/Hz@10kHz √ -
Model Frequency Range RBW TG Model GPS HSA015 9kHz - 1.5GHz 10Hz - 3MHz × × HSA015TG 9kHz - 1.5GHz 10Hz - 3MHz √ × HSA032 9kHz - 3.2GHz 10Hz - 3MHz × × HSA032TG 9kHz - 3.2GHz 10Hz - 3MHz √ ×
