OWH9800 Series Power Meter

+ Two-channel design

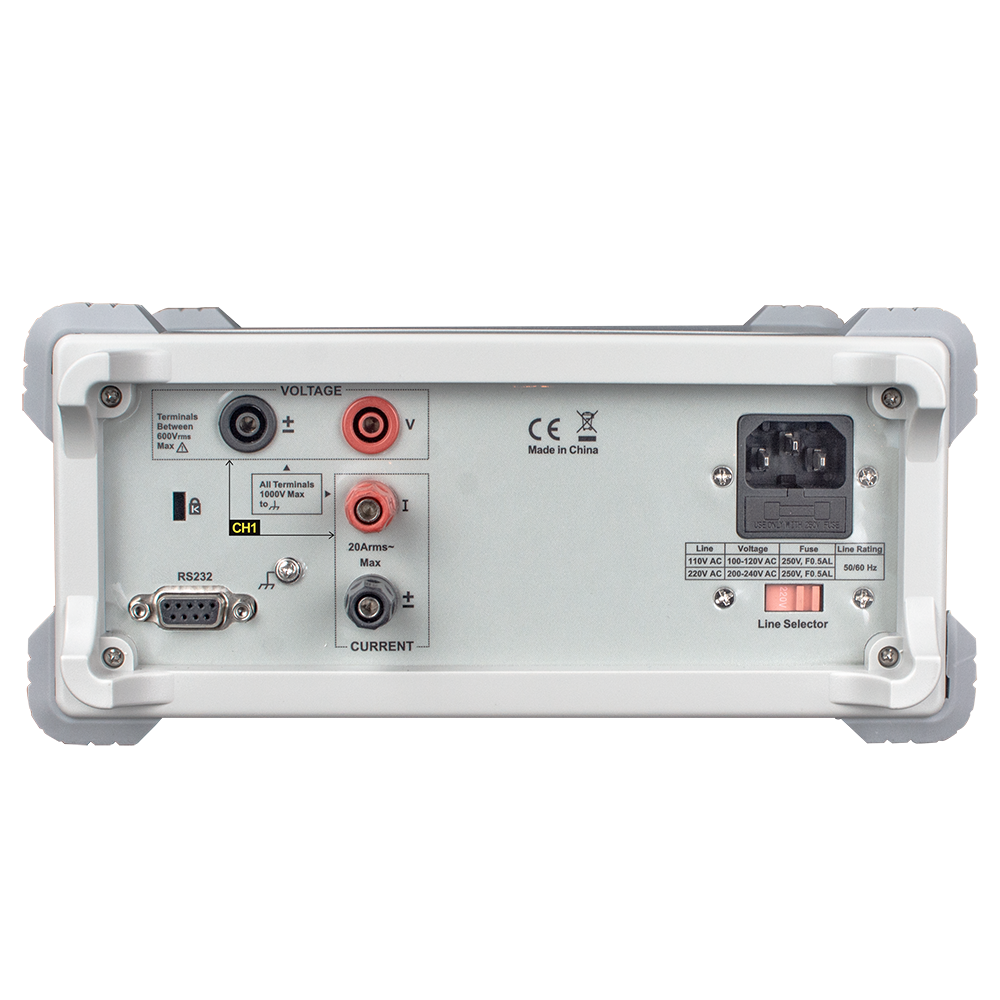

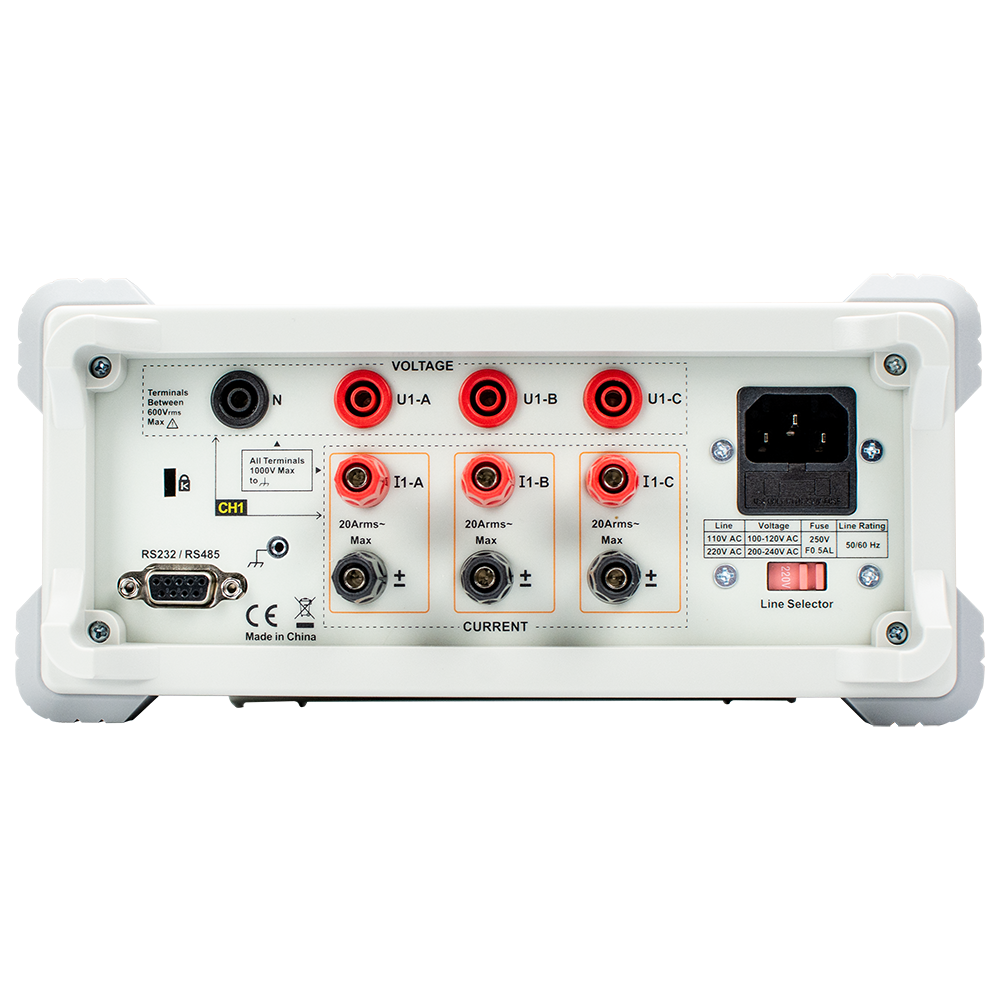

CH1 (rear panel): AC input – Supports 3–600V / 0–20A RMS, with an accuracy of ±0.5%
CH2 (front panel): AC/DC input – Supports 0–1000V / 0–20A, with an accuracy of ±0.5%

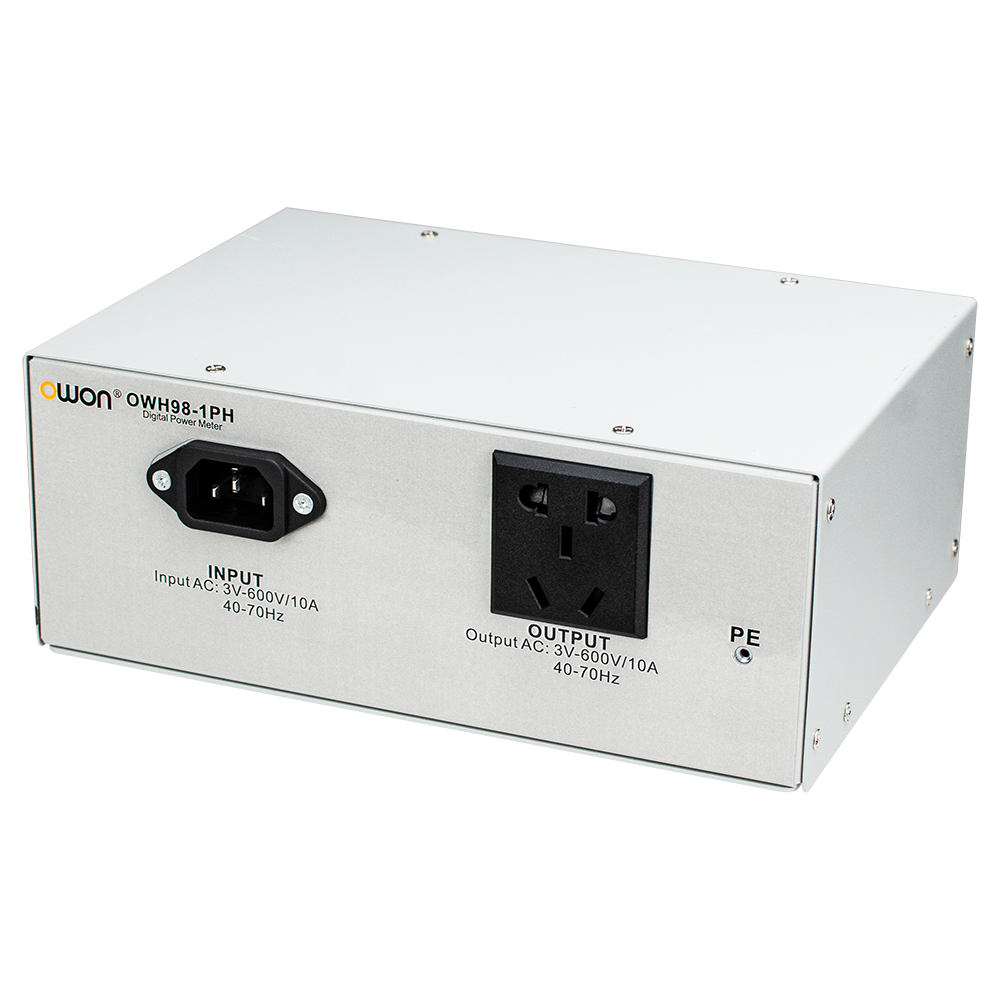

+ Supports single-phase and three-phase measurements, with 16 common parameters available for
measurement
+ Harmonic measurement and analysis functionality, capable of analyzing up to 63rd harmonics
+ Combination of input and output power information for both channels, with automatic calculation of
conversion efficiency
+ Trend waveform display, providing visual representation of dynamic parameter changes for easy debugging
and analysis

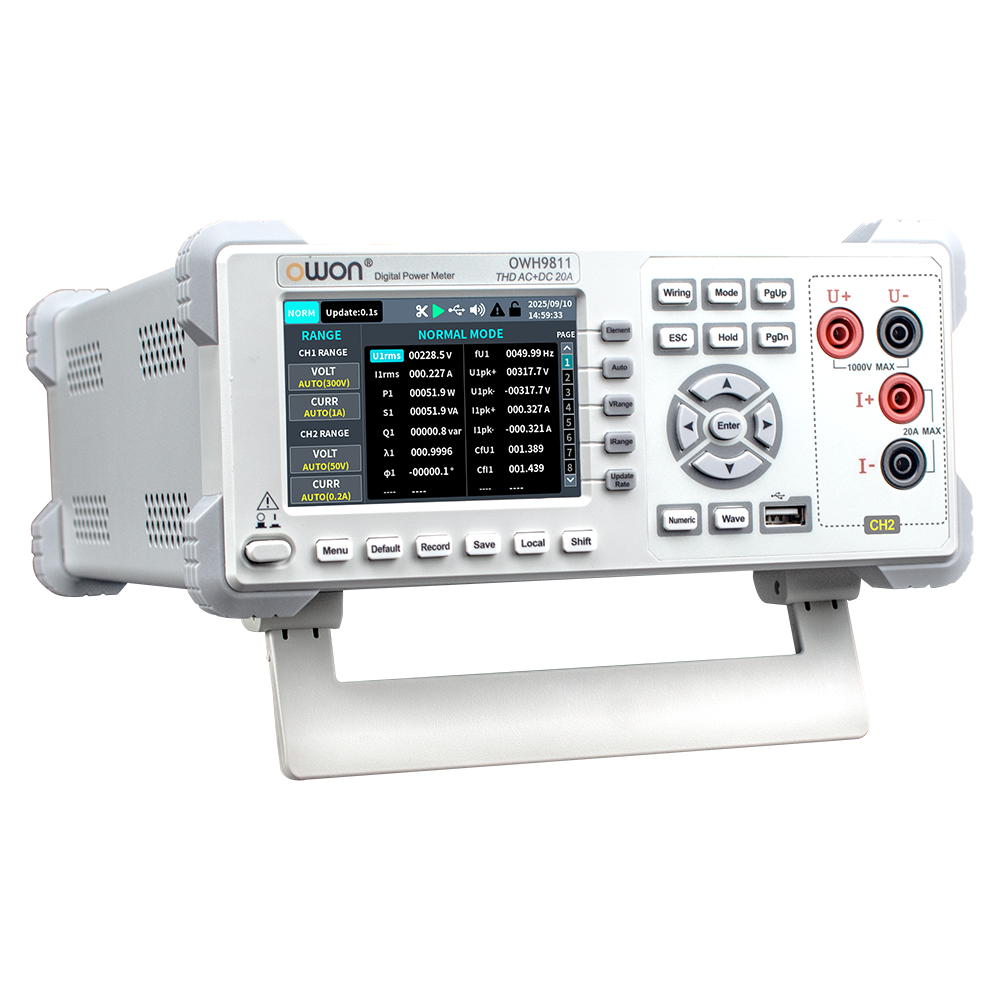

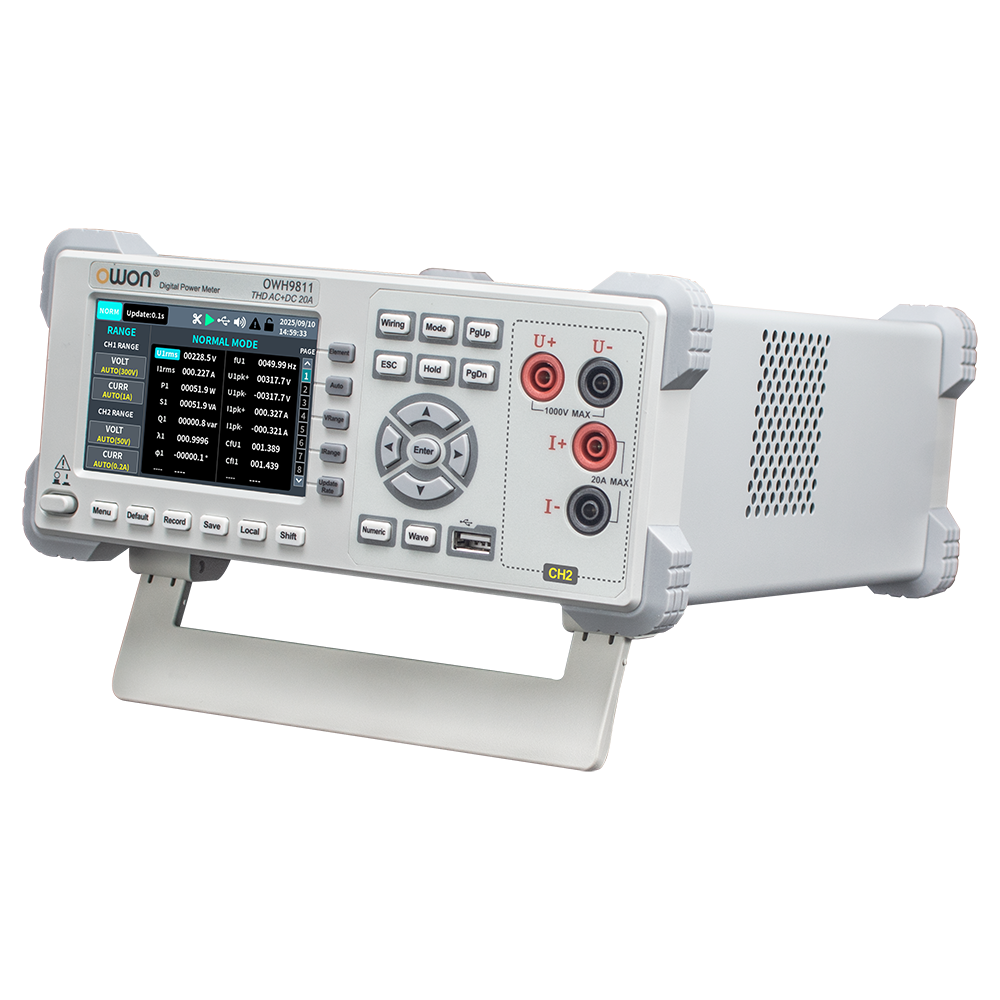

+ 3.95” TFT LCD screen with clear, graphical display of multiple parameters, offering intuitive operation
+ Standard RS232 interfaces for remote monitoring and data logging, compatible with SCPI and Modbus protocols

Send Inquiry

Product Details

Specifications

The instrument must be operated continuously for more than 30 minutes at the specified operating temperature to meet the following specifications

Model	OWH9811		OWH9830
Display	3.95-inch TFT Screen
Update rate	0.1s、0.2s、0.5s、1s、2s、5s
Measurement items	V, A, W, VA, var, λ, fU, CfU, CfI, Upk, Ipk, THD
Measurement method	CH1 1ph-AC	CH2 1ph-AC+DC	CH1 3ph-AC	CH2 1ph-AC+DC
Voltage measurement range	3.0V-600Vrms	0V-1000Vpk^*1	3.0V-600Vrms	0V-1000Vpk^*1
Voltage range	CF=3：75V/150V/300V/600V CF=6：37.5/75V/150V/300V	50V/100V/500V/1000V	CF=3：75V/150V/300V/600V CF=6：37.5/75V/150V/300V	50V/100V/500V/1000V
Voltage accuracy	±(0.4% of reading + 0.1% of range + 1 digit）
Voltage resolution	0.01V/0.1V
Current measurement range	0~20.0Arms	0-20Apk^*1	0~20.0Arms	0-20Apk^*1
Current range	CF=3：0.2A/1A/4A/20A CF=6：0.1A/0.5A/2A/10A	0.2A/1A/4A/20A	CF=3：0.2A/1A/4A/20A CF=6：0.1A/0.5A/2A/10A	0.2A/1A/4A/20A
Current accuracy	±(0.4% of reading + 0.1% of range + 1 digit)
Current resolution	0.001A
ange Switching	Auto/Manual
Power Range	0~12kW	0~20kW	0~36kW	0~20kW
Power accuracy	±(0.4% of reading + 0.1% of range + 1 digit)
Power Resolution	0.01W/0.1W/1W
Power Factor Range	-1.000~1.000
Power Factor Accuracy	±(0.4% of reading + 0.1% of range + 1 digit)	----	±(0.4% of reading + 0.1% of range + 1 digit)	----
Operating Frequency	40Hz~70Hz	DC+40Hz-70Hz	40Hz~70Hz	DC+40Hz-70Hz
Frequency Accuracy	±(0.1% of reading + 1 digit)	----	±(0.1% of reading + 1 digit)	----
Harmonic Analysis	2.8 kHz bandwidth, up to 63rd order	----	2.8 kHz bandwidth, up to 63rd order	----
Integration Function	Watt-hour (Wh), Ampere-hour (Ah)
Warm-up Time	>30 min
Peak Current	60A	30A	60A	30A
Maximum Continuous Input	Vrms=700V; Irms=24A	Vpk=1100V; Ipk=24A	Vrms=700V; Irms=24A	Vpk=1100V; Ipk=24A
Interface	RS232
Communication Protocol	Standard SCPI ， Modbus protocal
Baud Rate (bps)	4800、9600(default)、19200、38400、57600，115200,
Display Hold	YES
Mute	YES
Key Lock	YES
Power Supply	AC 100V~240V, 50/60Hz
Operation environment	18 ℃ ~ 28 ℃, 30% ~ 75% RH (When operating temp. is outside 18 ℃ ~ 28 ℃, add temp. coefficient: 0.05% of reading / ℃)
Storage Environment	-10 ℃ ~ 50 ℃, ≤ 80% RH (non-condensing)
Operating Altitude	≤2000 meters
Weight	1.3kg
Dimensions	295mm(W) × 110mm(H) ×235mm(L)
