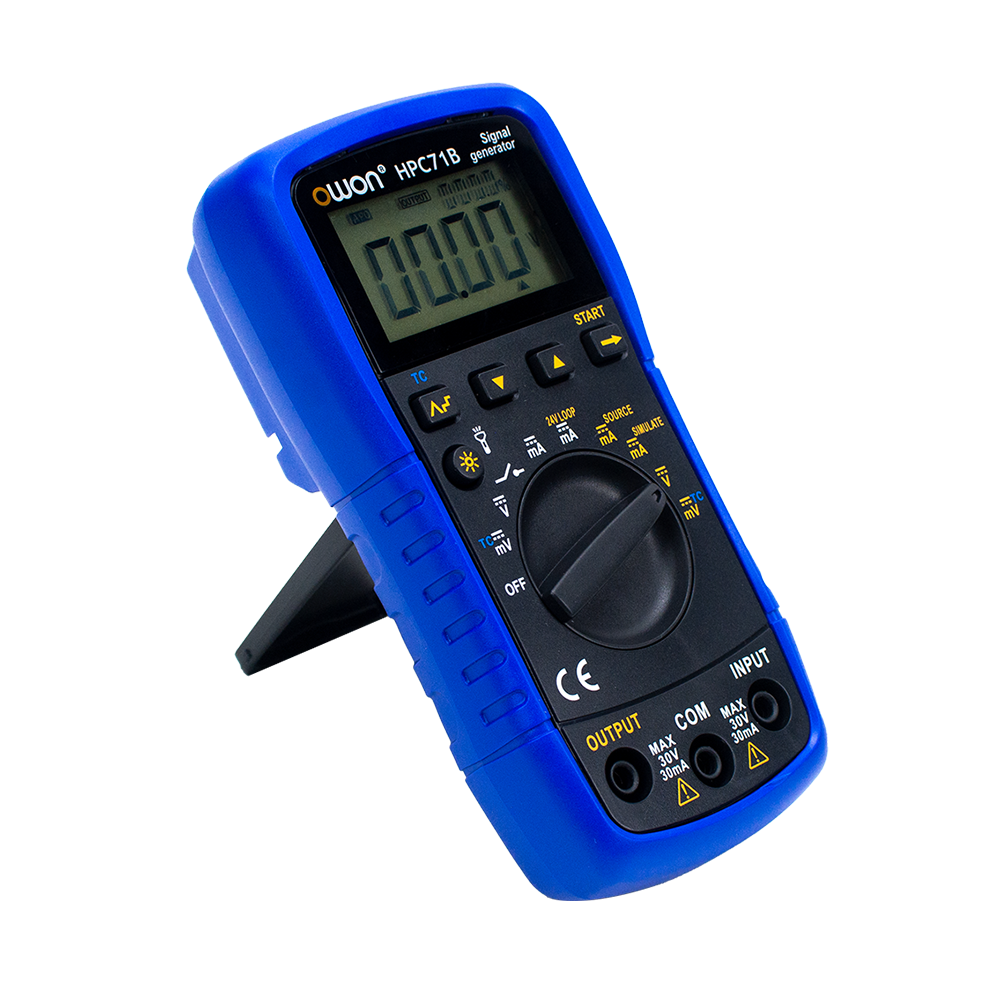

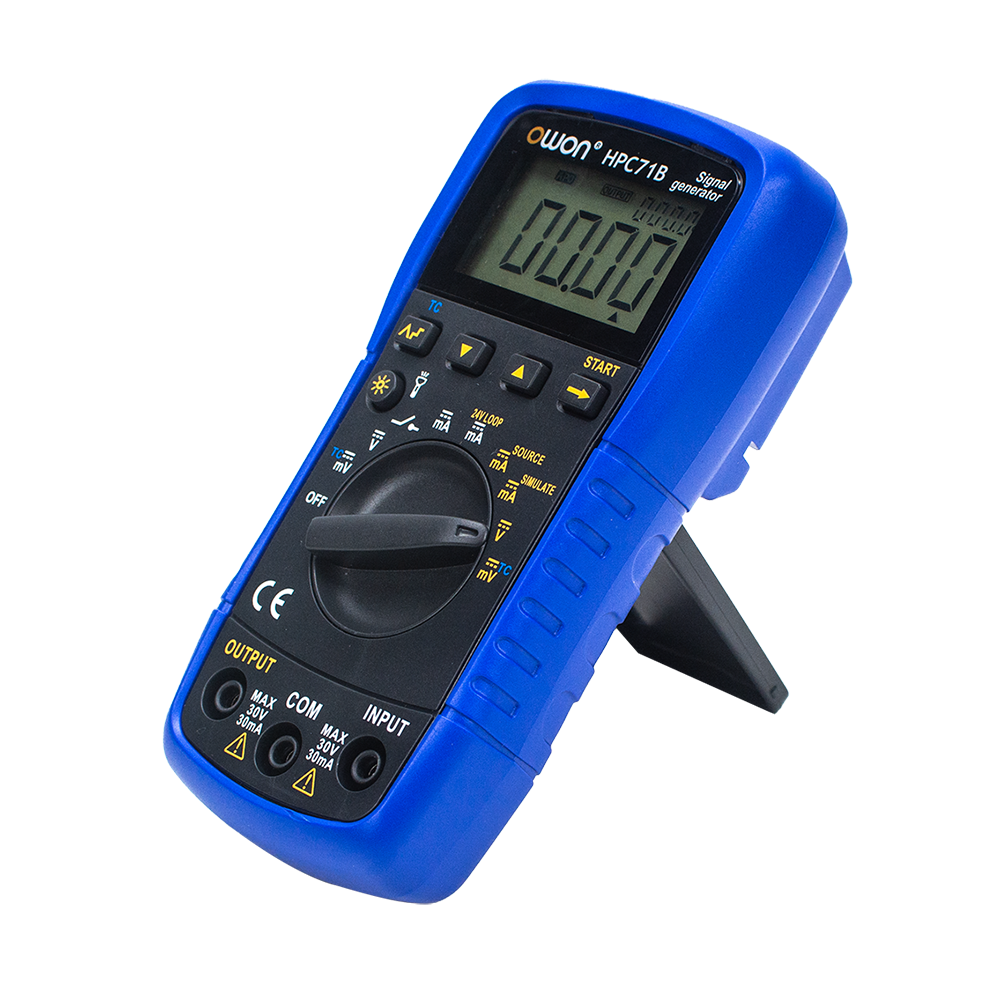

HPC71 Series Process Signal Generator
+ Measures/outputs multiple process parameters: voltage, current, thermocouple (only for 71B)
+ Provides 24V loop power supply for field transmitter debugging
+ Manual step output for V/mA value and automatic waveform output
+ Manual/automatic thermocouple cold junction compensation
+ Compact design for one-handed operation, ideal for tight spaces

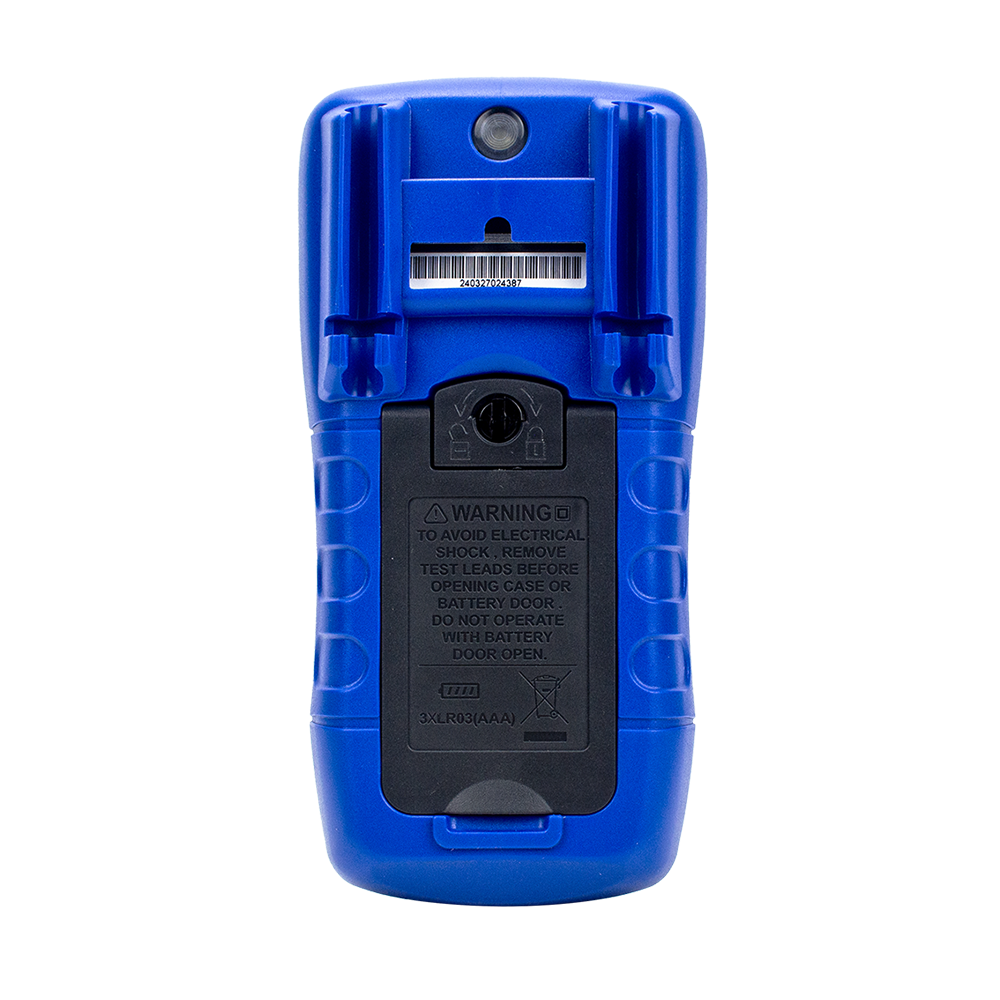

+ Over 4 hours continuous operation powered by 3 AAA batteries
+ LCD screen and built-in flashlight for better visibility in low-light conditions
E-mail Us|
Model |
HPC71A |
HPC71B |
|
|
SOURCE |
|||
|
DC millivolt |
Range & Accuracy & Resolution |
110mV; 0.2%+4; 100uV |
|
|
DC voltage |
Range & Accuracy & Resolution |
10V; 0.2%+4; 10mV |
|
|
DC current |
Range & Accuracy & Resolution |
0 - 22mA; 0.2%+4; 0.01mA |
|
|
Sink current |
Range & Accuracy & Resolution |
0 - 22mA; 0.2%+4; 0.01mA |
|
|
External power supply |
5 ～ 28V |
||
|
Thermocouple |
Range & Accuracy & Resolution |
/ |
8 types(R/S/K/E/J/T/B/N); 0.2%+4; 1℃ |
|
MEASURE |
|||
|
DC Millivolt |
Range & Accuracy & Resolution |
-10 - 110mV; 0.2%+4; 100uV |
|
|
DC Voltage |
Range & Accuracy & Resolution |
-5 - 30V; 0.2%+4; 10mV |
|
|
DC Current |
Range & Accuracy & Resolution |
0 - 22mA; 0.2%+4; 0.01mA |
|
|
Loop Power |
Range & Accuracy & Resolution |
24V; 10%; 25mA |
|
|
Thermocouple |
Range & Accuracy & Resolution |
/ |
8 types(R/S/K/E/J/T/B/N); 0.2%+4; 1℃ |
|
Other functions |
|||
|
Manual Step Output |
√ |
||
|
Automatic Waveform Output |
√ |
||
The accessories subject to final delivery.
-
Multimeter Leads -
Soft Bag -
Alligator Clip -
User Manual
