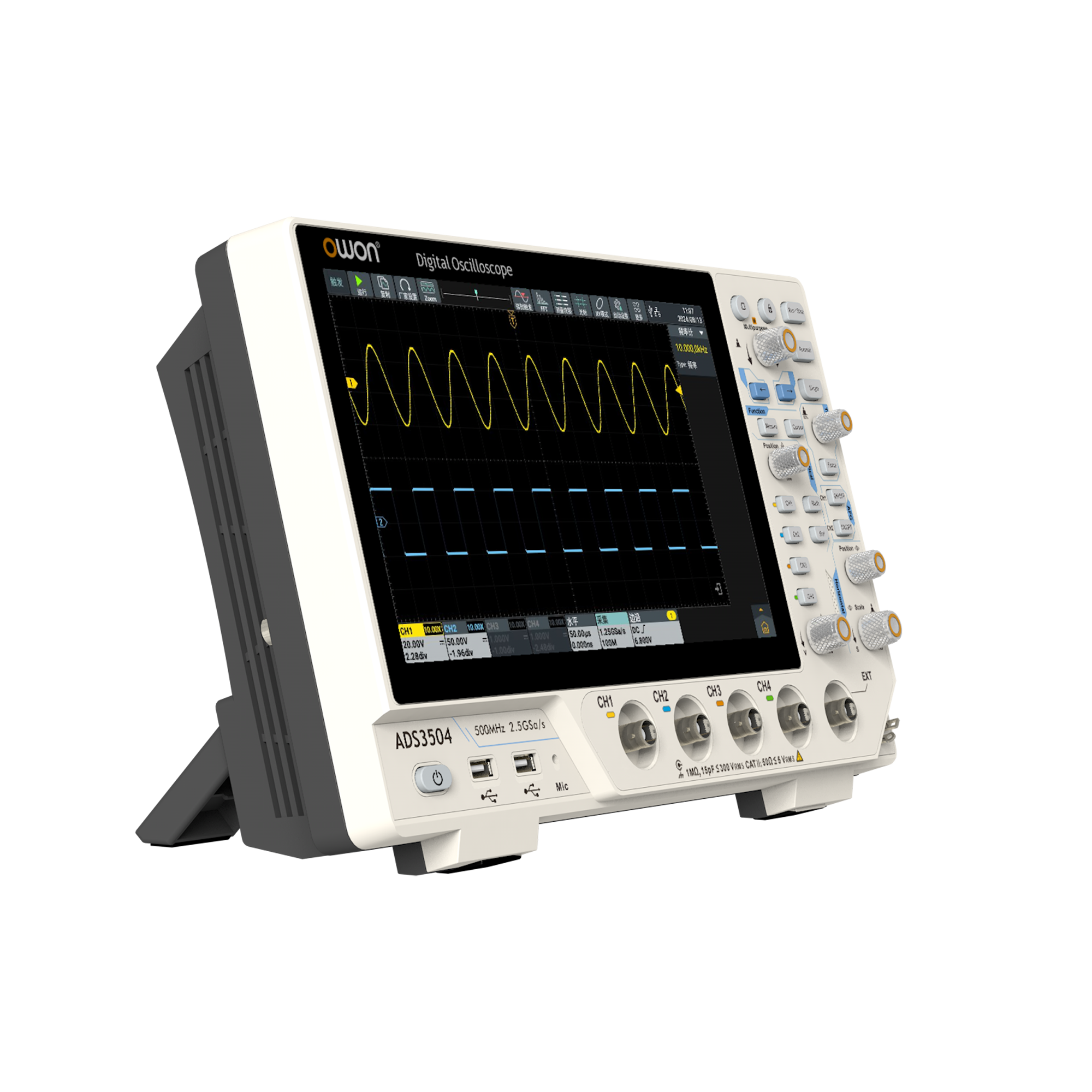

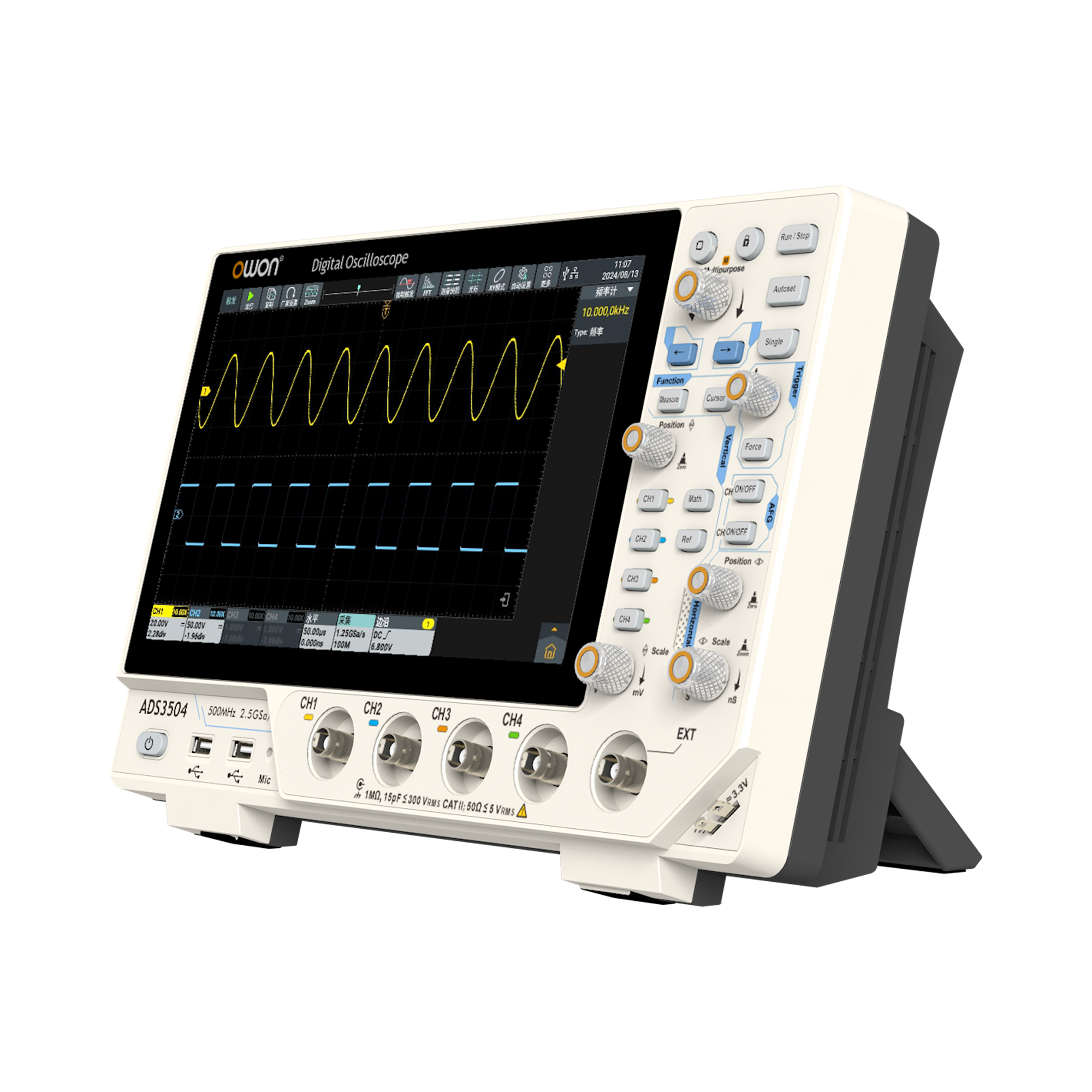

ADS3000 Series 4th-Generation Multifunction Digital Oscilloscope

Superior Performance
+ Based on the OWON X-Vision II advanced architecture: lower noise, higher storage, faster refresh.
+ 100M storage depth, up to 500,000wfms/s waveform refresh rate, ensuring clear signal capture.
+ Vertical accuracy is 500uV/div-10 V/div, and time base range is 500 ps/div-1000s/div.
+ 1M- point FFT analysis ensures accurate frequency component display.
Android Based,Extensive Expandability
+ Built-in microphone and speaker, with support for external devices like mouse and keyboard, greatly enhancing efficiency.
+ Enhanced file management for easier viewing, editing, and exporting.
+ Optional wireless module (Wi-Fi/Bluetooth) supports FTP, network printers, mobile hotspots, and more.
Comprehensive Features
+ Integrates oscilloscope, dual-channel 50MHz AFG (optional), frequency counter, voltmeter, FFT spectrum analyzer and protocol analyzer.
+ Multi triggering: edgevideo,pulse width,slope,under amplitude,over amplitude, timeout, Nth edge, logic,
and RS232/UART, 12C, SPI, CAN, LIN;
+ Waveform cloning and Bode plot functions (AFG models).
+ Enhanced FFT and ZOOM features provide clearer waveform display and cursor information.
+ Convenient measurement statistics,with measurement indicators,cursor gating,and more measurement prompts.
Human-machine Interaction and Design

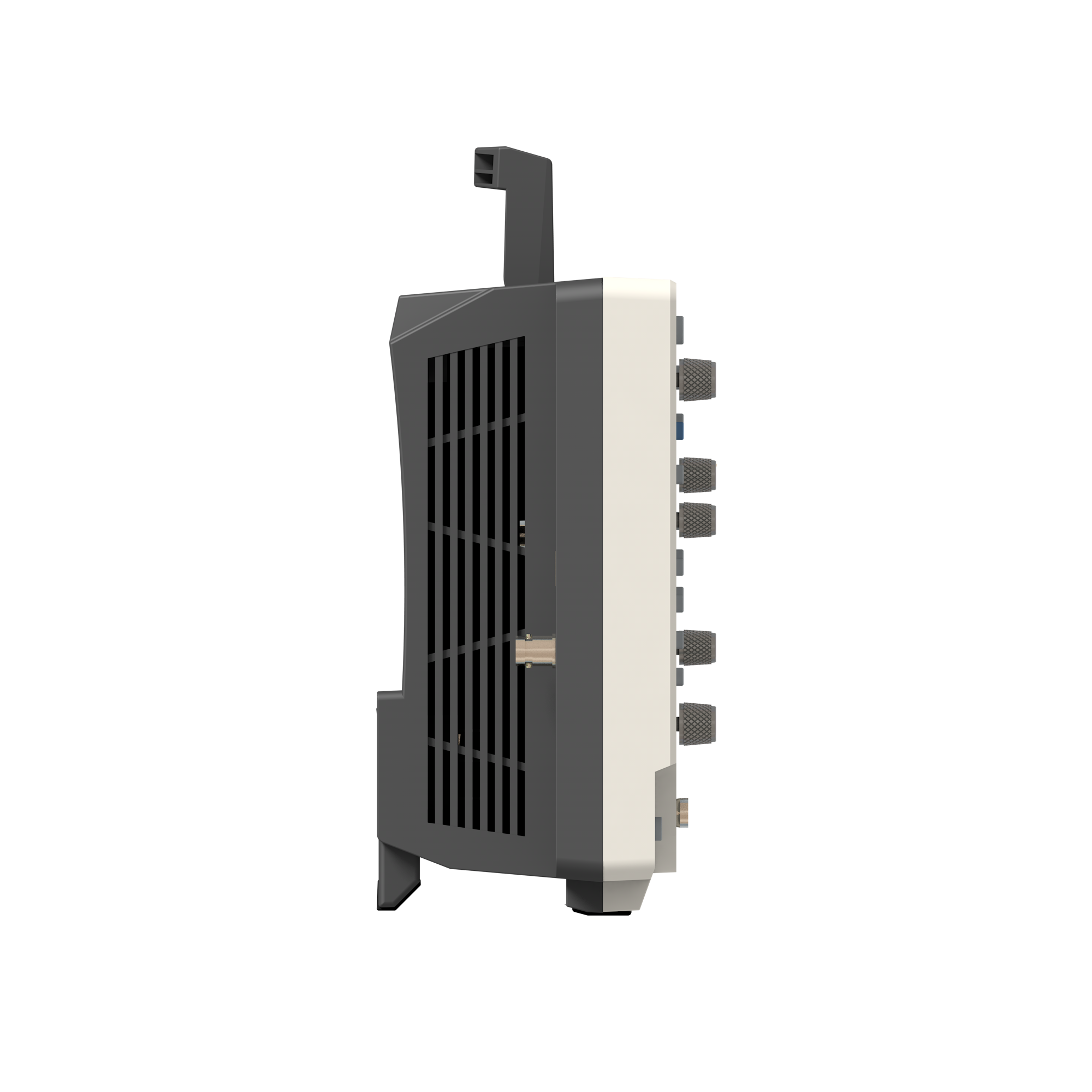

+ Ultra-thin design at just 10 cm, saving valuable workspace.
+ 10.1-inch touchscreen with multi-touch support for an enhanced interactive experience.
+ Multi-touch gestures, and customizable shortcuts for easier use.

Send Inquiry

Product Details

Specifications

Model	ADS3102	ADS3202		ADS3352				ADS3502
Bandwidth (-3 dB)	100MHz	200MHz		350MHz				500MHz
Channel	2+EXT
Sample Rate	2.5 GSa/s (single channel) 1.25 GSa/s (dual channel)

Model	ADS3104	ADS3204		ADS3354				ADS3504
Bandwidth (-3 dB)	100MHz	200MHz		350MHz				500MHz
Channel	4 + EXT
Sample Rate	2.5 GSa/s (single channel) 1.25 GSa/s (dual channel) 1.25 GSa/s (full channel)

Acquire mode	Sample, Peak, High Res, Average			Record Length			100M
Waveform Refresh Rate	Max 500,000 wfms/s			Vertical Resolution			8bits
Scanning speed (S/div)	500μV/div - 10 V/div			Sampling rate range			0.05 S/s～2.5 GS/s
DC Gain Accuracy	4%(≤1mV)3%(≥2 mV)			Relay time accuracy			±1 ppm(typical)
Input Impedance	1 MΩ ± 2%, parallel with 15pF ± 5pF, 50Ω ± 2%
Probe attenuation coefficient	1μX-1MX, step by 1-2-5, support custom
Trigger type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I2C, SPI CAN, LIN
Bus Decoding (optional)	UART, I2C, SPI, CAN, LIN
Auto measurement	Period, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty,-Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area,Delay(-),Delay(-), Phase(-), Phase(-), FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Waveform Math	+, -, *, /, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT rms, User Defined, digital filter (low pass, high pass, band pass, band reject)
Frequency counter	6-digit frequency counter； Maximum frequency: maximum analog bandwidth of oscilloscope
Voltmeter	Support DC, AC+DCrms, ACrms；Resolution: 4 digits (ACV/DCV)
Arb Waveform Generator (optioanl) Specification
Max frequency output	50MHz Dual	Sample rate			160 MSa/s
Vertical resolution	14 bits	Standard waveform			Sine, Square, Ramp, Pulse, Noise
Arbitrary waveform	Exponential Rise/Fall, Sin(x)/x, Step Wave, and others total 28 built-in waveforms
Arbitrary waveform frequency	1 μHz - 10 MHz
Arbitrary waveform length	2-16K points
Amplitude	2mVpp - 10Vpp (high impedance), 1mVpp - 5Vpp (50 Ω)
Modulation	AM, FM, PM, FSK, Sweep and Burst
Other

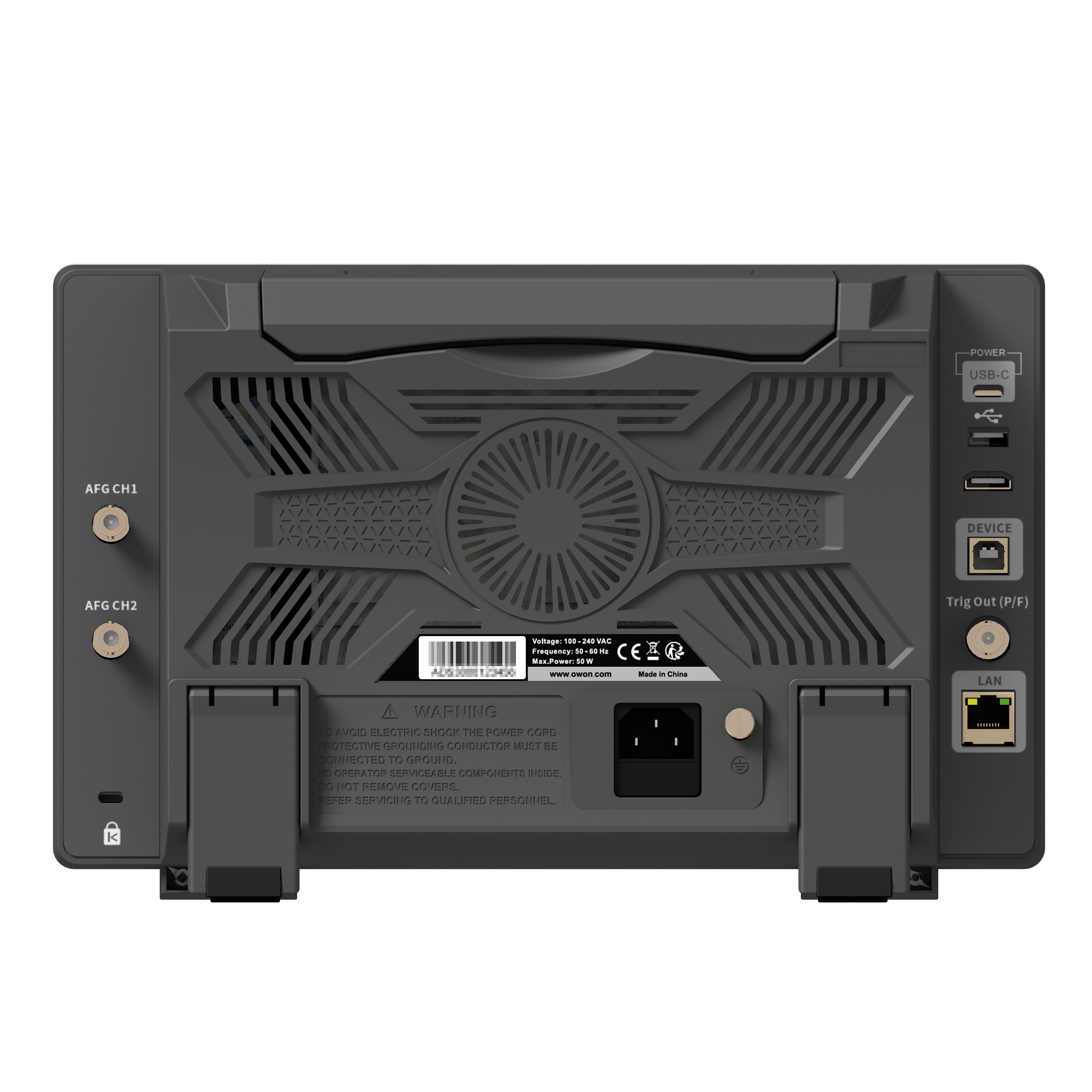

Communication Interface	HDMI, USB device x1, USB Host x3, Trig Out (P/F), Type-C power supply*, LAN
Display	10.1 inch (1024×600), LCD
Power	100V – 240 VACRMS, 50/60 Hz, CAT Ⅱ
Dimension (WxHxD)	325mm x 209mm x 111.5mm		Weight (without package)			≈3.2kg
