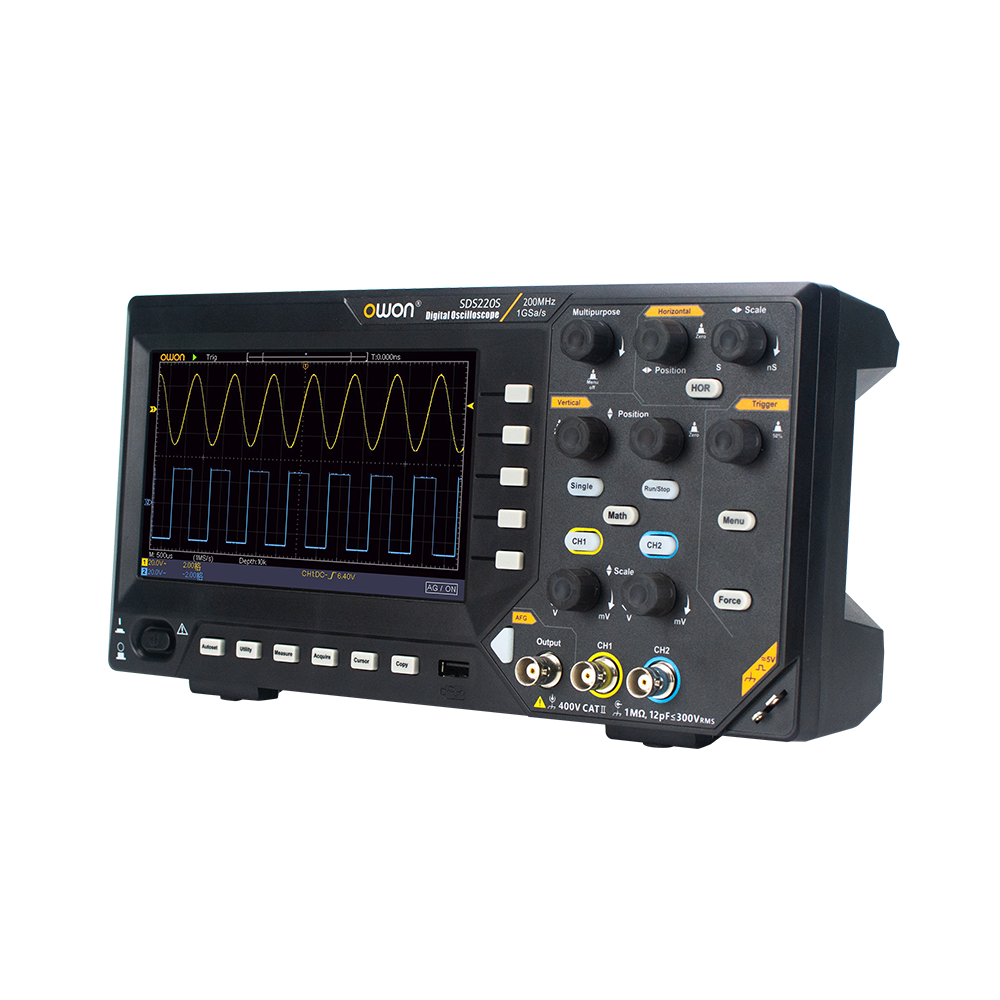

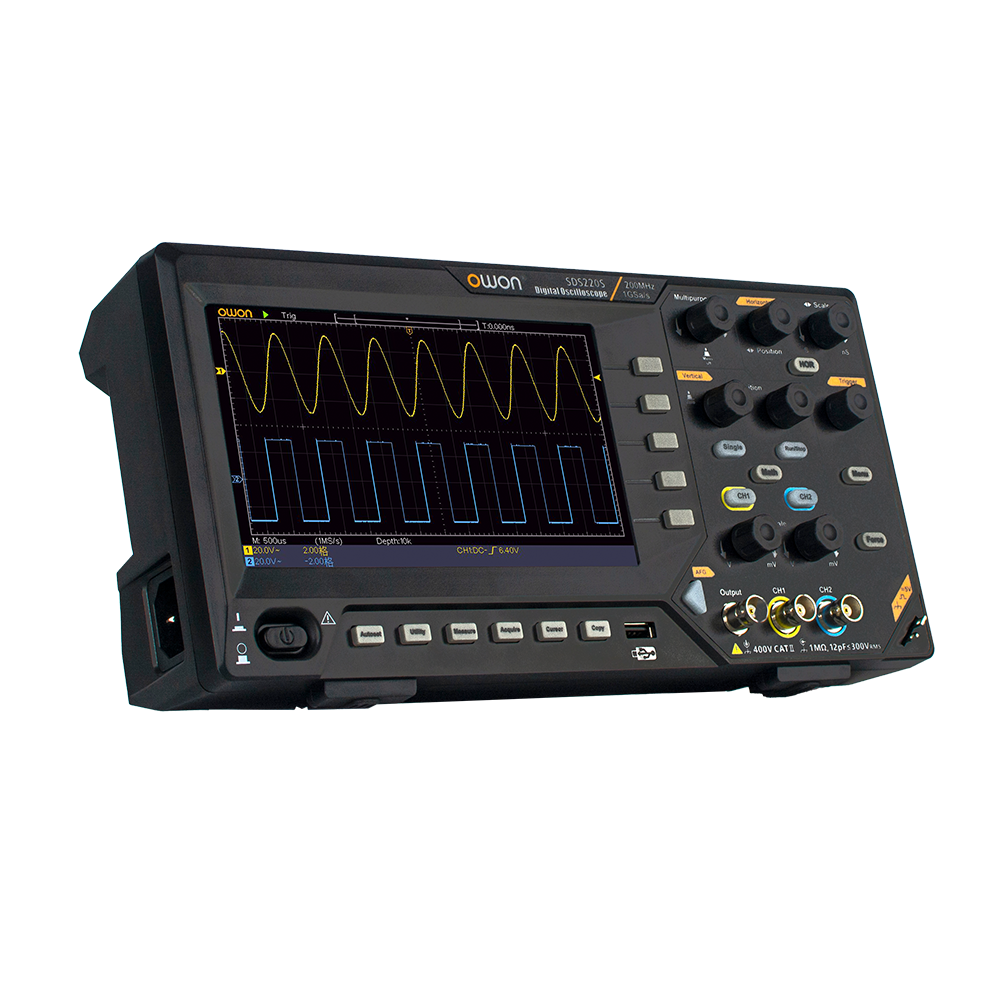

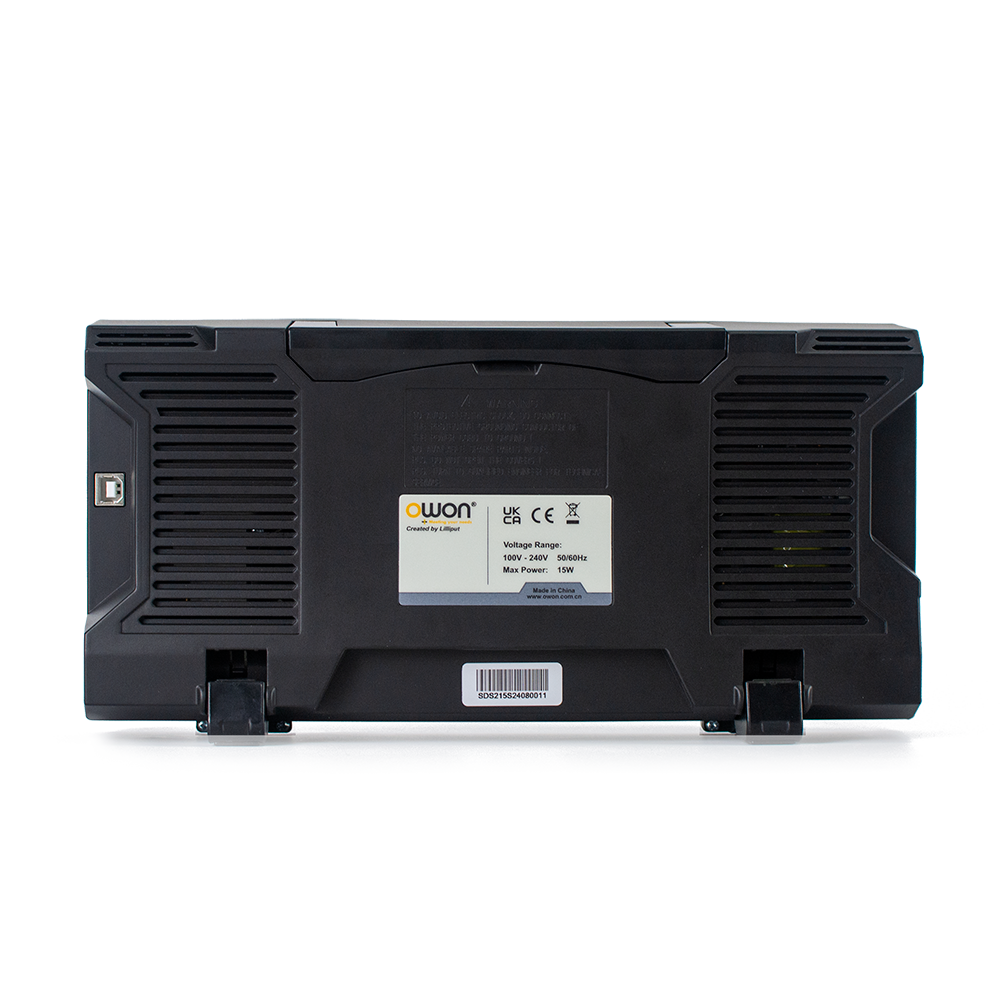

SDS200 Series Digital Oscilloscope

+ Dual-channel Oscilloscope+25MHz Signal Generator(SDS210S,215S,220S)

+ 100MHZ、150MHz, 200MHz bandwidth

+ Dual-channel independent 1GS/s real-time sampling rate

+ 20M memory depth

+ Support 30 Automatic Waveform Measurements

+ 6-digit High-precision Frequency Counter

+ FFT Spectrum Analysis

+ Communicate with PC via USB Device interface, support SCPI and LabVIEW functions, provide free computer software and some programming development demos, so you can remotely control the instrument and conduct secondary development.

+ 7-inch TFT LCD display

Send Inquiry
Product Details








Specifications

Model

SDS210(S)

SDS215(S)

SDS220(S)

Bandwidth

100MHz

150MHz

200MHz

Channels

Dual

Sample Rate

Max 1GS/s

Acquisition Mode

Normal, Peak detect, Averaging

Input Coupling

DC,  AC ,  Ground

Input Impedance

1MΩ±2%,in parallel with 20 pF±5 pF

Probe Attenuation Factor

1X,10X,100X,1000X

Record length

20M

Horizontal Scale (s/div)

2 ns/div – 1000 s/div, step by 1 – 2 - 5

Vertical Sensitivity

2 mV/div~10 V/div

Automatic Measurement

Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area.

Waveform Math

+, -, ×, ÷, FFT

Waveform Storage

16 waveforms

Trigger Type

Edge, Video

Communication Interface

USB Host and Device

Frequency Counter

available



Waveform Generator Specifications (only for SDS210S,215S,220S)

Standard Waveforms

Sine wave, square wave, ramp wave, pulse wave, arbitrary wave

Arbitrary Waveforms

Sinc, exponential rise, exponential decline, Gaussian more than 160 kinds

Max Frequency Output

25MHz

Arbitrary Waveform

0.1Hz~5MHz

Sample rate

 125MSa/s

Amplitude (50Ω)

0.005Vpp ~ 3Vpp

DC Offset Range

±(3V) (high resistance)

Channel

1

Waveform Length

8k

Vertical Resolution

14 bit

Load Impedance

50 Ω

Others

Display

7 inch(800*480)LCD

Dimension (L x H x D)

301mm × 152mm × 70 mm

Weight

≈ 1.1kg

Accessories

The accessories subject to final delivery.

  • Power Cord
  • Quick Guide
  • USB Cable
  • Probe
  • Probe Adjust
