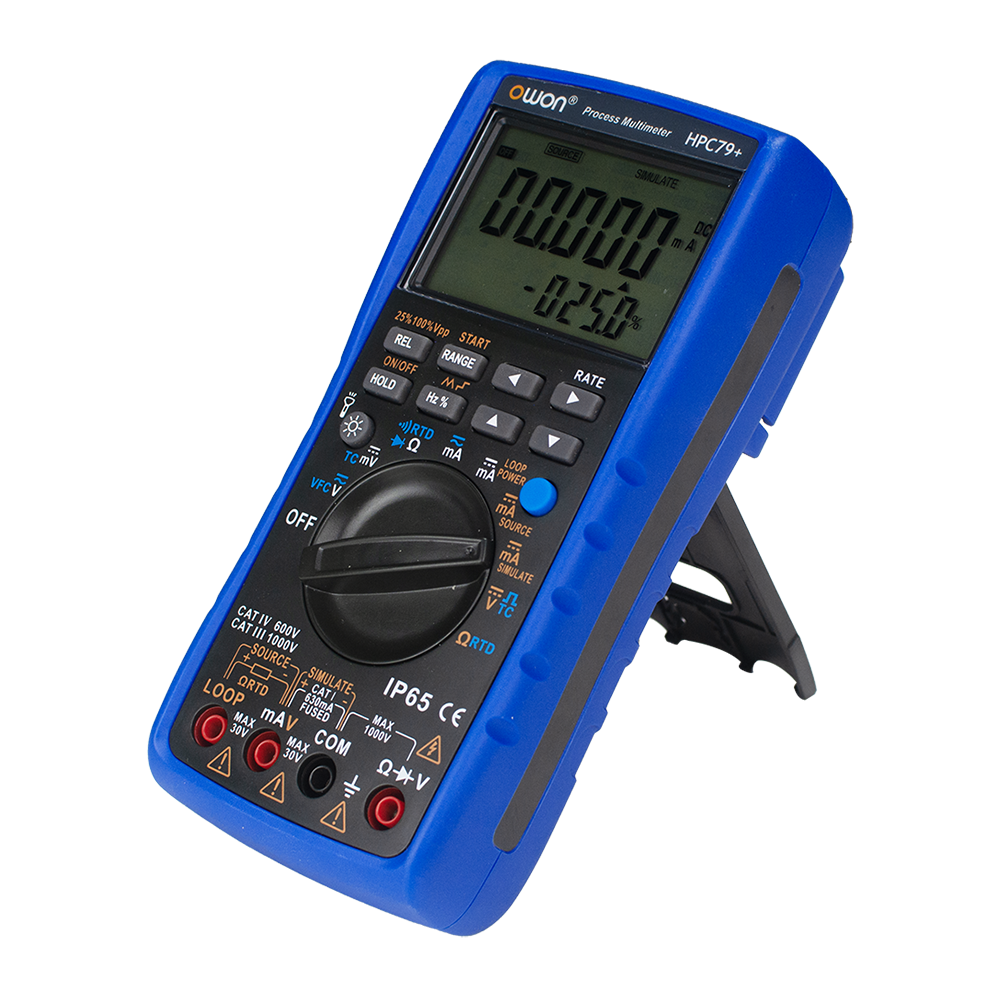

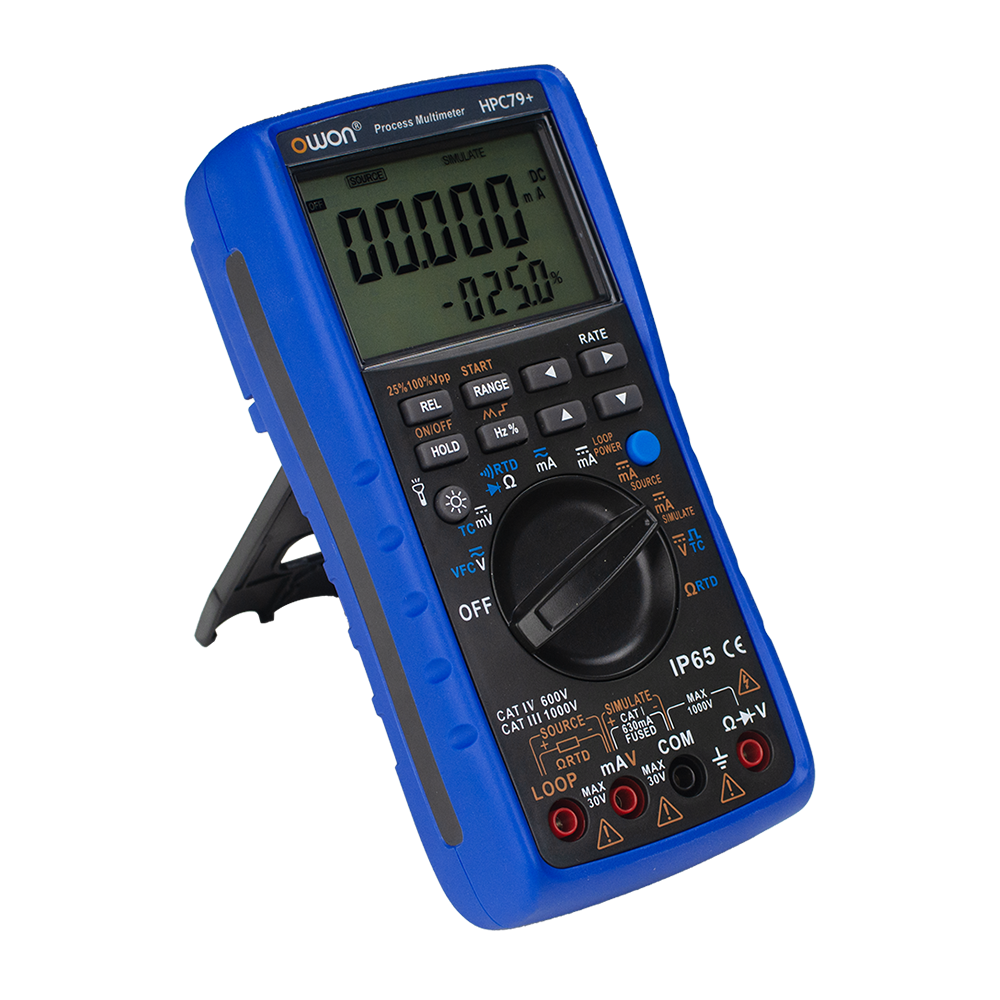

HPC Series Process Multimeter
Powerful Analog Output
+ Provides output for DC voltage, active/passive DC current, thermocouple, and RTD (Resistance Temperature Detectors, specific to Model 79+), meeting diverse calibration and testing needs.
+ Features dual display & smart control for current output: Simultaneous display of mA and Percentage values.
+ Supports manual stepping (25%/100%), auto-steppingand auto-ramp current output to simulate real-world operational changes.
High Precision Output
+ Output accuracy up to 0.2% with 5-digit high-resolution display, ensuring clear output status visibility.
+ Provides 24V loop power while accurately measuring loop current, simplifying loop testing and maintenance.Comprehensive Measurement Capabilities
+ Basic measurement accuracy up to 0.1% with 6000-count display.
+ Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, continuity, diode tests, thermocouple and RTD (Model dependent).
+ VFC (Variable Frequency Control) voltage measurement: Designed for variable-frequency environments to capture critical signals accurately.
+ Data Hold (HOLD): Locks measurement results for easy recording and analysis.
+ Manual/Auto-ranging (Modeldependent), offering flexible and efficient operation.
Durable Design · User-Friendly Features
+ IP65-rated dustand water resistance(excluding Model 77+), suitable for harsh industrial environments.
+ Auto Power Off: Saves power and extends usage time.
+ Backlight and flashlight: Clear readings in low-light conditions.

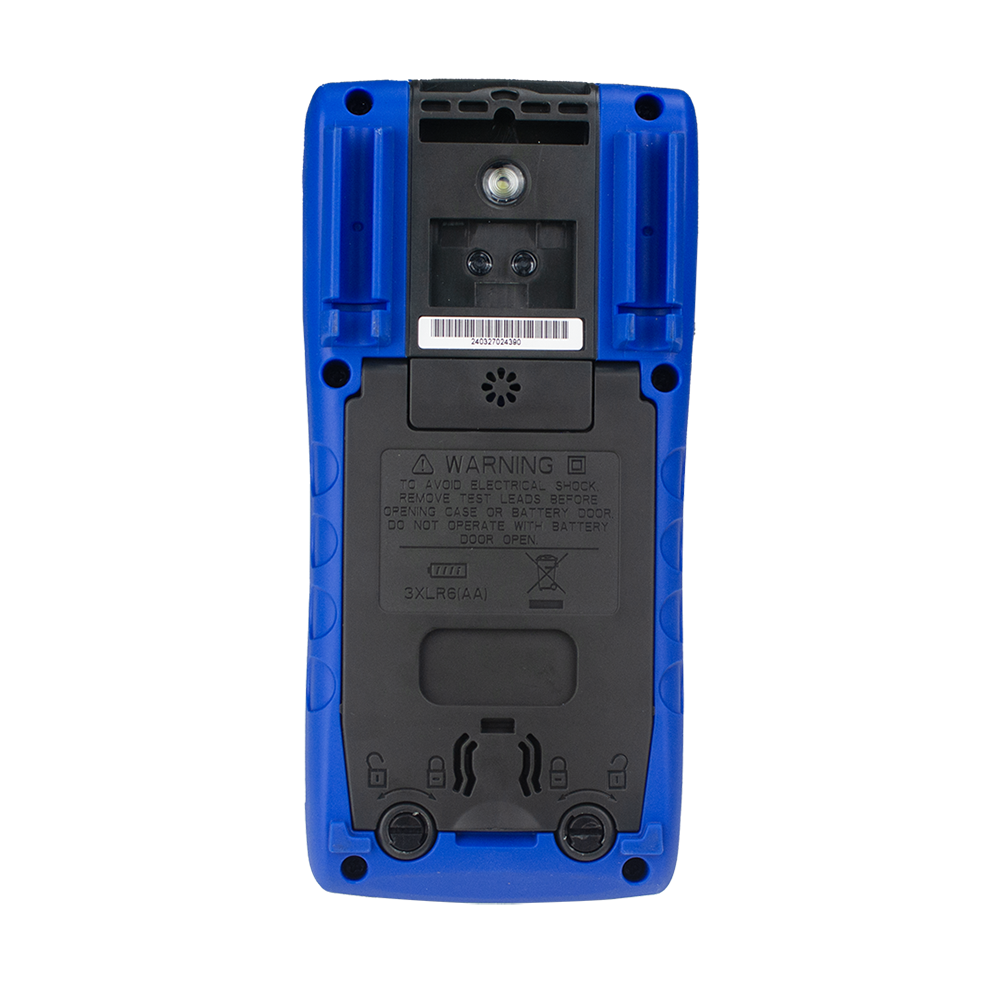

+ Powered by 3 standard AA batteries, easily replaceable with long battery life.
E-mail Us|
Model |
HPC77+ |
HPC78+ |
HPC79+ |
|
|
Display |
5000 Counts |
6000 Counts |
||
|
DC Voltage |
Range & Optimal Accuracy |
50.00V; ±(0.1%+4) |
60.00mV / 600.0mV / 6.000V / 60.00V / 600.0V / 1000V; ±(0.2%+4) |
|
|
AC Voltage |
Range & Optimal Accuracy |
500.0V; ±(1%+10) |
6.000V / 60.00V / 600.0V; ±(0.5%+4) |
|
|
DC Current |
Range & Optimal Accuracy |
50.00mA; ±(0.1%+4) |
60.00mA/600.0mA; ±(0.2%+4) |
|
|
AC Current |
Range & Optimal Accuracy |
/ |
60.00mA/600.0mA; ±(0.2%+4) |
|
|
Resistance |
Range & Optimal Accuracy |
500.0Ω/5.000KΩ; ±(0.1%+4) |
600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/6.000MΩ/60.00MΩ; ±(0.2%+4) |
|
|
Frequency |
Range & Optimal Accuracy |
/ |
10.0000Hz/100.000Hz/1000.00Hz/10.0000KHz; ±(0.02%+4) |
|
|
Thermocouple |
Range & Resolution & Optimal Accuracy |
/ |
K/E/J/T/N/R/S/B; 1℃; ±(0.5%+2℃) |
|
|
Thermal resistor |
Range & Resolution & Optimal Accuracy |
/ |
Cu50/Pt100/Pt1000; 1℃; ±(0.5%+3℃) |
|
|
Output |
||||
|
DC Voltage |
Range & Optimal Accuracy |
10.00V;±(0.2%+4) |
100.00mV/1000.0mV/10.000V; ±(0.2%+4) |
|
|
DC Current |
Range & Optimal Accuracy |
20.00mA; ±(0.2%+4) |
30.000mA; ±(0.2%+4) |
|
|
Resistance |
Range & Optimal Accuracy |
/ |
/ |
400.0Ω; ±(0.2%+4) |
|
Frequency |
Range & Optimal Accuracy |
/ |
100.0Hz/1.000KHz/5.00KHz/10.0KHz; ±(0.2%+2) |
|
|
Thermocouple |
Range & Resolution & Optimal Accuracy |
/ |
R/S/K/E/J/T/B/N; 0.1/1℃; ±(0.2%+2℃) |
|
|
Thermal resistor |
Range & Resolution & Optimal Accuracy |
/ |
Cu50/Pt100; 0.1℃; ±(0.5%+0.6℃) |
|
|
Other |
||||
|
Refreshing measurement display |
2.5 times/second |
Slow speed：5 times/second, Fast speed：20 times/second |
||
|
Measure the true effective value |
/ |
√ |
||
|
Bandwidth |
/ |
20Hz - 1KHz |
||
|
The duty ratio |
/ |
10%～90% |
||
|
Diode test |
√ |
|||
|
Continuity beeper |
√ |
|||
|
VFC |
√ |
|||
|
The reference junction compensation |
/ |
√ |
||
|
°C/°F conversion |
/ |
√ |
||
|
24V loop power supply and measuring the current |
√ |
|||
|
Backlight |
√ |
|||
|
Power Supply |
3×1.5V AA |
|||
|
Safety |
CAT Ⅳ 600V |
CAT. Ⅲ,1000V; CAT. Ⅳ,600V |
||
|
Electromagnetic compatibility |
IEC61326-1, Group2, Class B |
|||
|
Dimension (W×H×D) |
90×189×55mm |
|||
|
Device Weight |
≈0.9kg |
|||
The accessories subject to final delivery.
-
Quick Guide -
Multimeter Leads -
Alligator Clip
