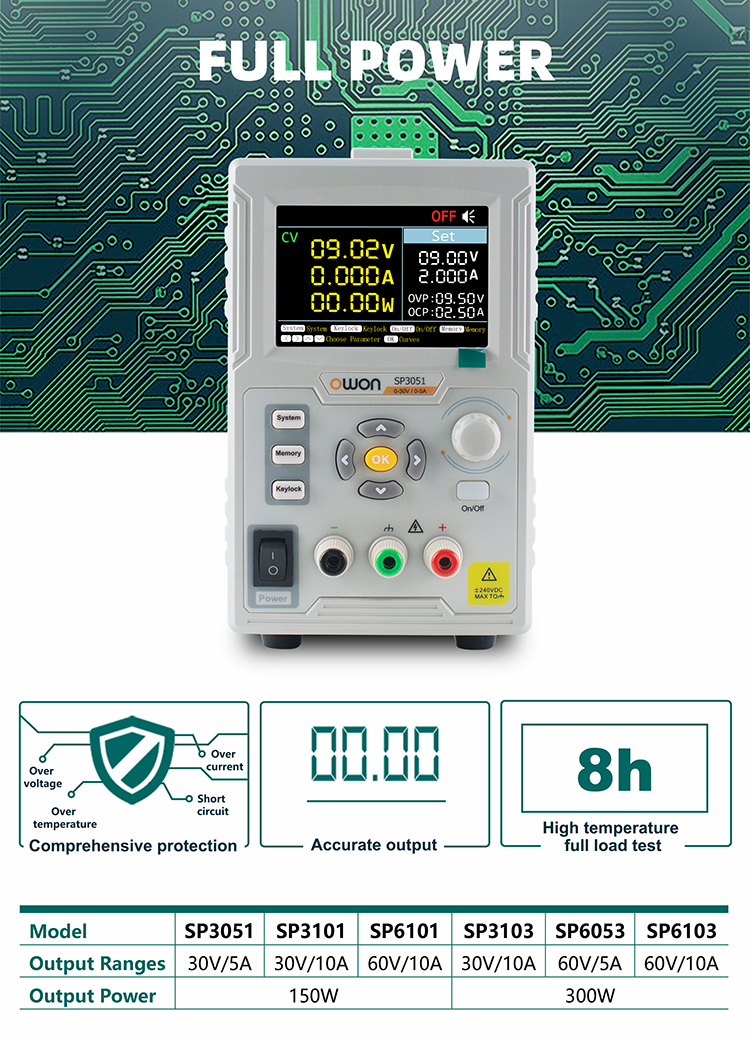

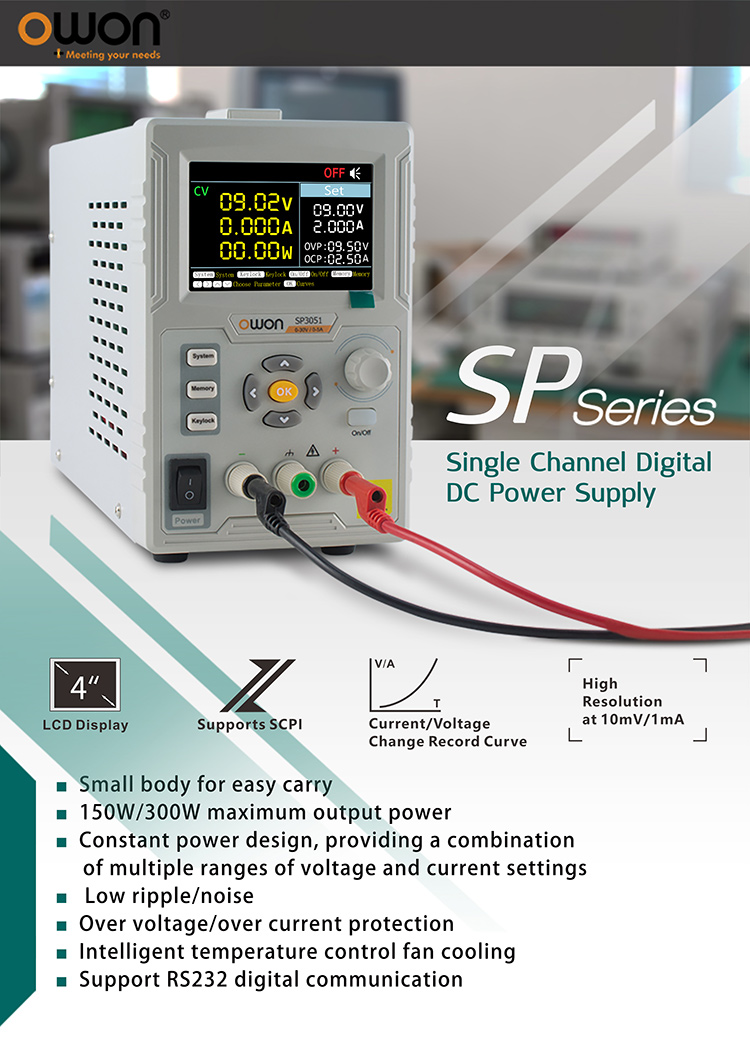

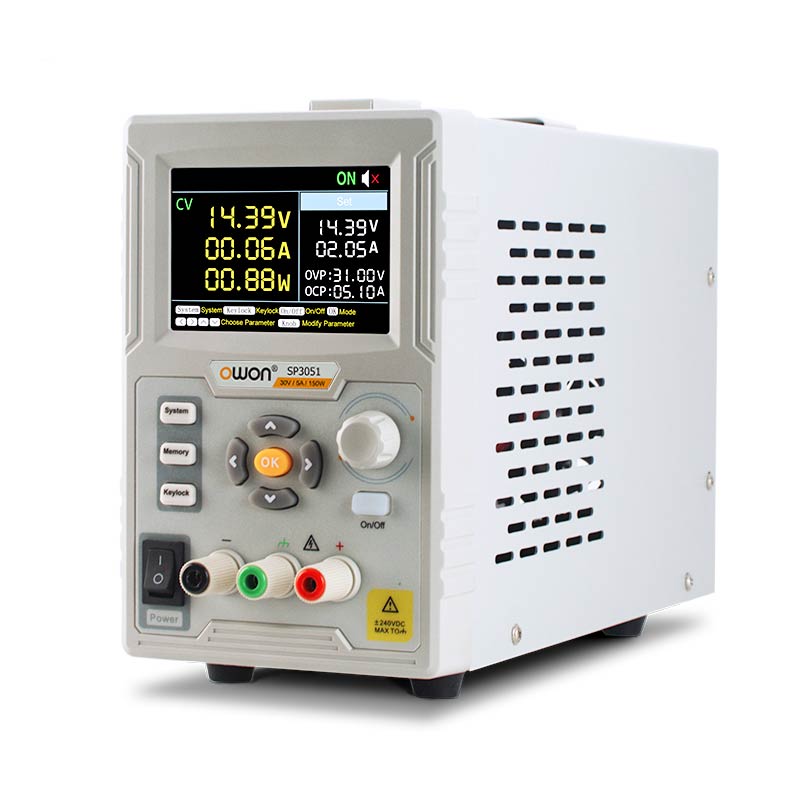

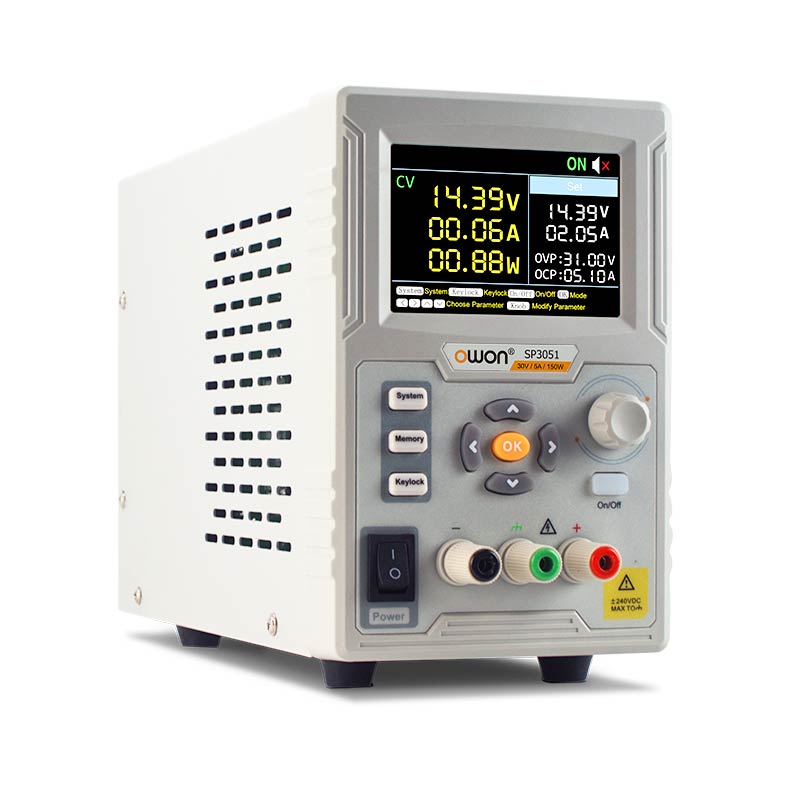

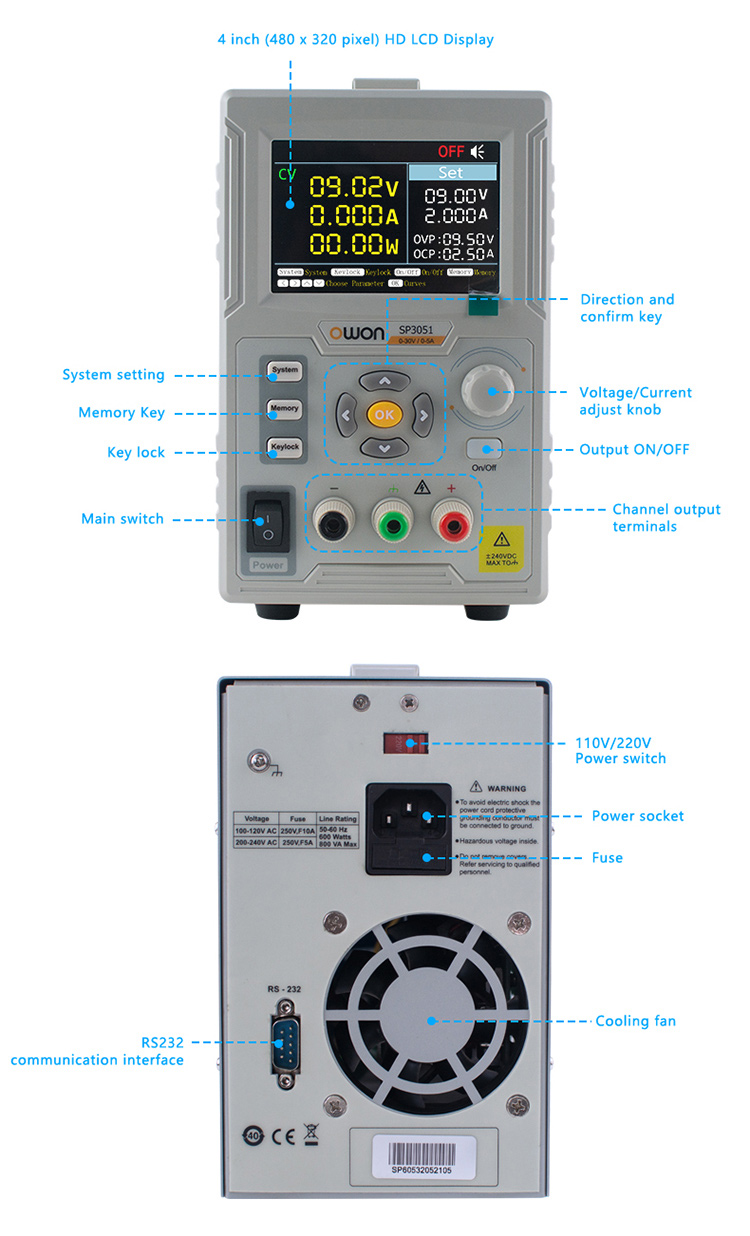

OWON SP Series 1 CH DC Power Supply

+ Small body for easy carry
+ 150W / 300W maximum output power
+ High resolution: 10mV/1mA

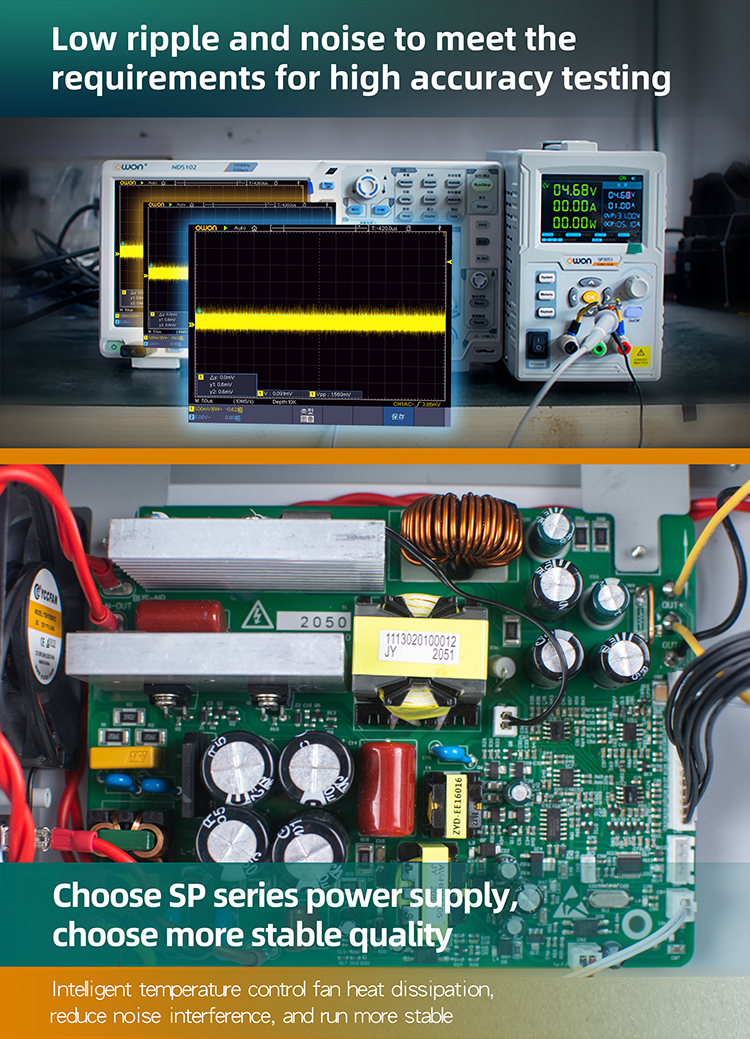

+ Low ripple and noise
+ Over-voltage/over-current protection
+ Intelligent temperature control fan cooling

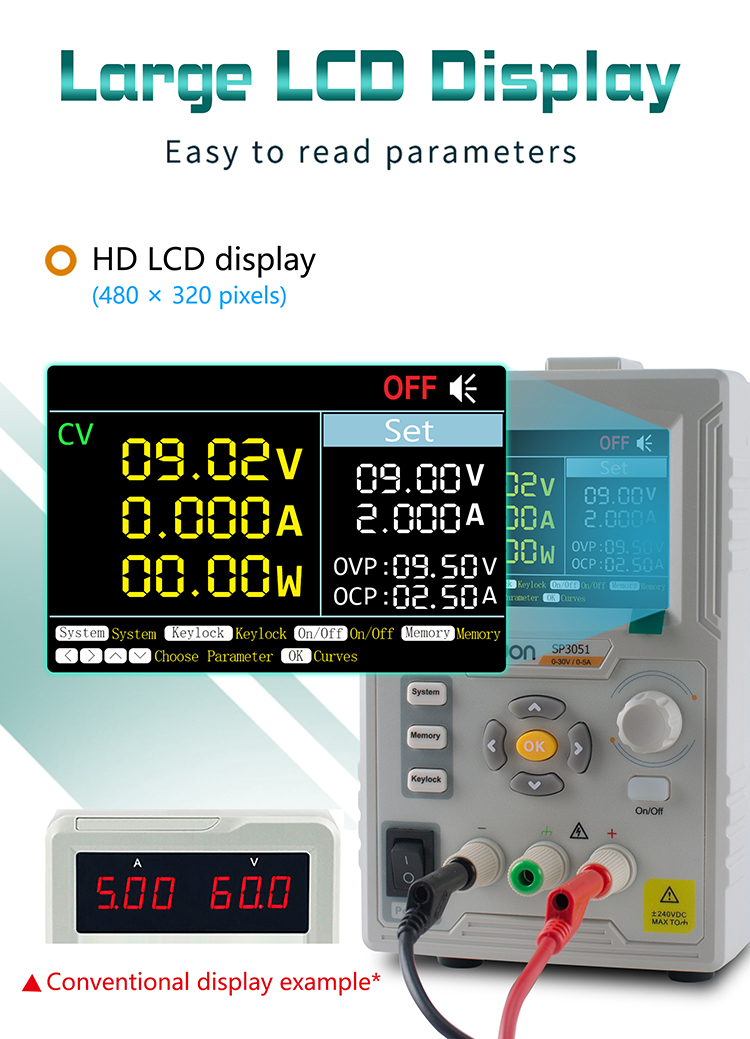

+ 3.7 inch TFT LCD display
+ Support RS232 digital communication
+ Support SCPI

Send Inquiry
Product Details


Specifications

Model

SP3051

SP3101

SP6101

SP6053

SP3103

SP6103

Channel

Single Channel Output

Total Output Power

150W

300W

Channel Output

0 - 30V / 0 - 5A

0 - 30V / 0 - 10A

0 - 60V / 0 - 10A

0 - 60V / 0 - 5A

0 - 30V / 0 - 10A

0 - 60V / 0 - 10A

Display

3.7 inch color LCD display

Dimension

117mm(L)*194mm(H)*295mm(D)

Weight

Approx. 3.0kg

Interface

RS232



Model

SP3051

SP3101

SP6101

SP6053

SP3103

SP6103

Rated Output

 (0℃-40℃)

Voltage

0 - 30V

0 - 30V

0 -60V

0 -60V

0 - 30V

0 -60V

Current

5A

10A

10A

5A

10A

10A

Output Power

150W

150W

150W

300W

300W

300W

Load Regulation

Voltage

≤30mV

Current

≤30mA

Power Regulation

Voltage

≤20mV

Current

≤20mA

Setting Resolution

Voltage

10mV

Current

1mA

Readback Resolution

Voltage

10mV

Current

1mA

Value Resolution

(within 12 months)

(25℃±5℃)

Voltage

≤0.1% ± 20mV

≤0.1% ± 30mV

≤0.1% ± 20mV

≤0.1% ± 30mV

Current

≤0.05% ± 10mA

Readback Value Resolution

(25℃±5℃)

Voltage

≤0.1% ± 20mV

≤0.1% ± 30mV

≤0.1% ± 20mV

≤0.1% ± 30mV

Current

≤0.1% ± 10mA

Ripple/Noise

(20Hz-20MHz,measured with external 10μF + 100nF capacitor)

Voltage (Vp-p)

≤30mVp-p

≤50mVp-p

≤30mVp-p

≤50mVp-p

Voltage (rms)

≤3mVrms

≤5mVrms

≤3mVrms

≤5mVrms

Current (rms)

≤30mAp-p

Output temperature coefficient

(0℃-40℃)

Voltage

≤0.3% ± 10mV

≤0.3% ± 20mV

≤0.3% ± 10mV

≤0.3% ± 20mV

Current

≤0.3% ± 10mA

≤0.3% ± 20mA

Readback temperature coefficient

Voltage

≤0.3% ± 10mV

≤0.3% ± 20mV

≤0.3% ± 10mV

≤0.3% ± 20mV

Current

≤0.3% ± 10mA

≤0.3% ± 20mA

Response Time

≤1.0ms

Storage

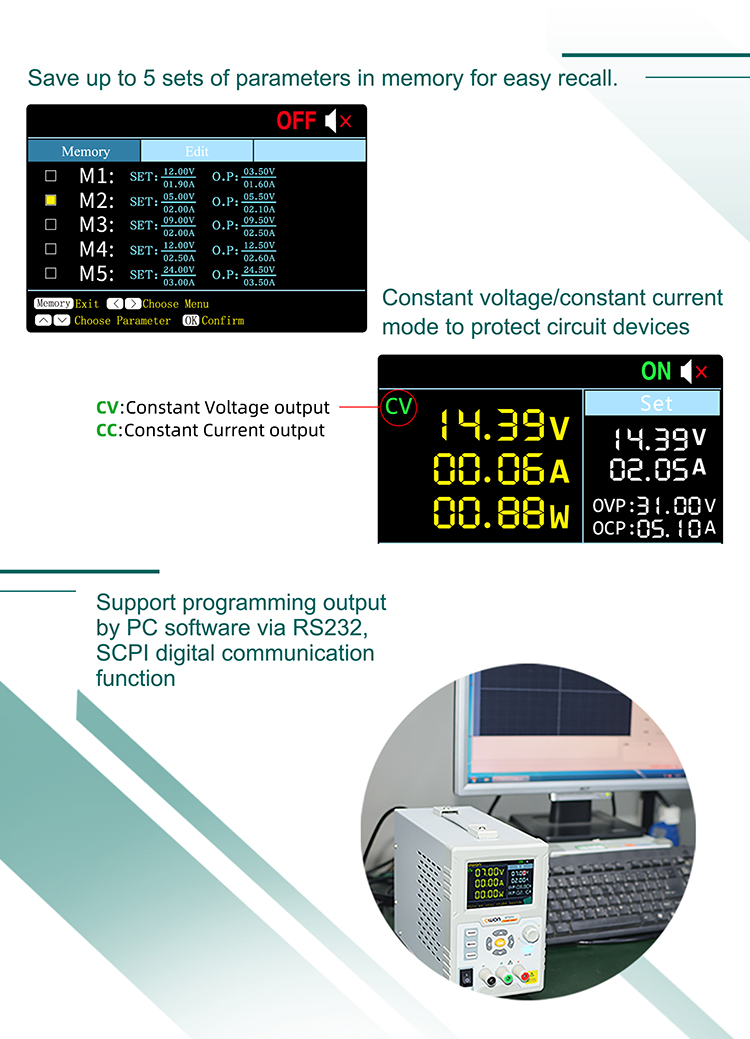

5 groups of data

Working Temperature

0-40℃

Support
Accessories

The accessories subject to final delivery.

  • Power Cord
  • Quick Guide
  • Fuse
  • Test Leads (optional)

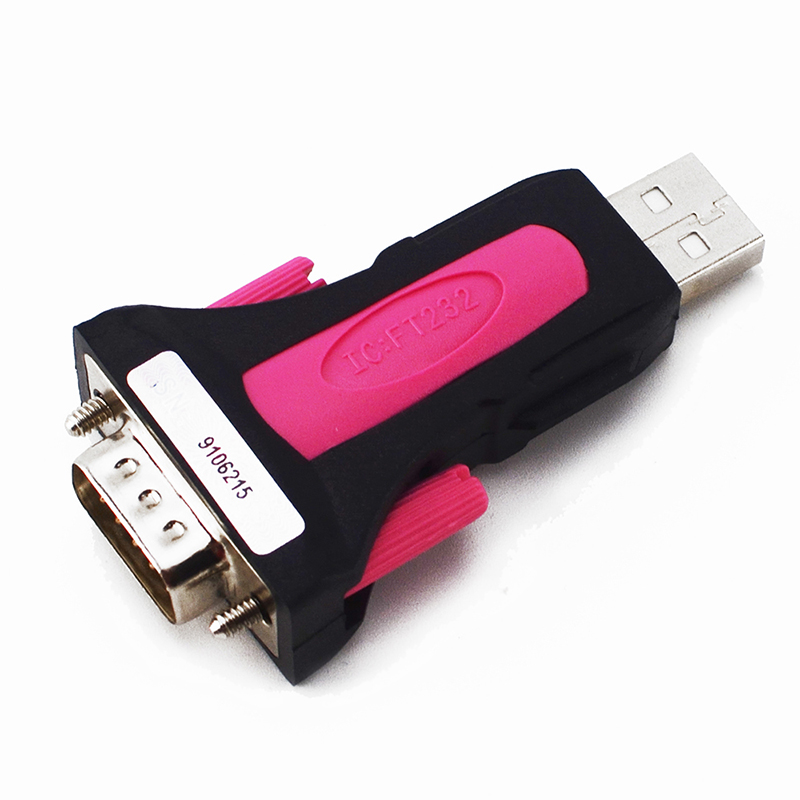

  • RS232 TO USB Module (optional)
  • RS232
