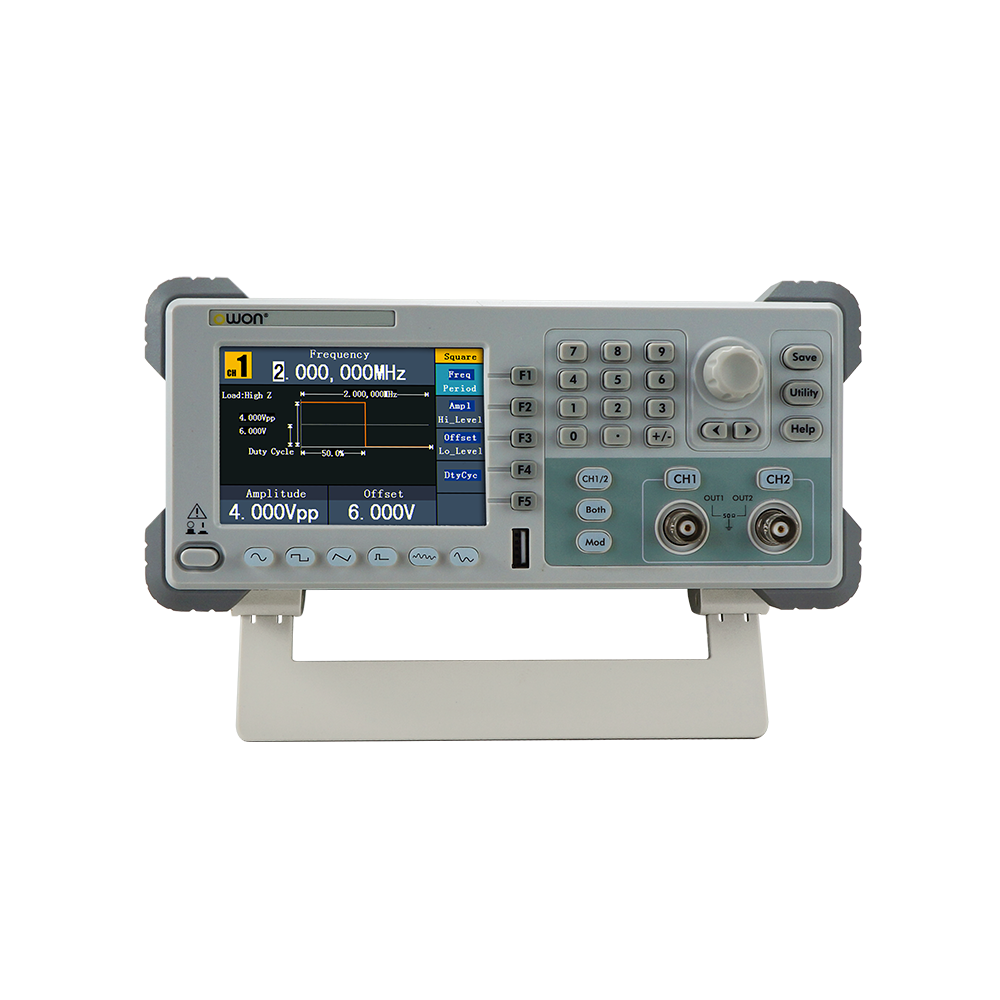

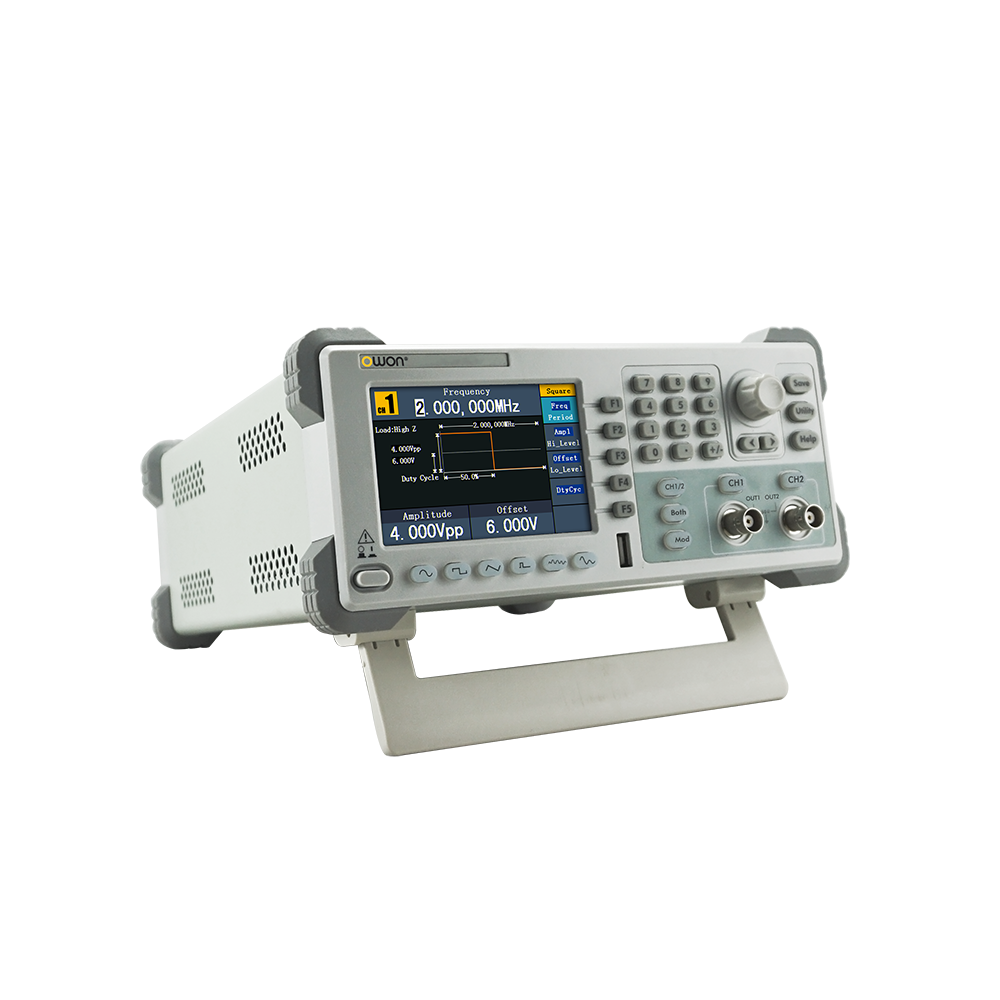

OWON 2-CH Arbitrary Waveform Generator Without Counter

- Advanced DDS technology, max 60MHz frequency output
- Up to 250MS/s sample rate, and 1μHz frequency resolution
- Vertical Resolution : 14 bits, up to 1M arb waveform length
- Comprehensive waveform output :
   5 basic waveforms, and 45 built-in arbitrary waveforms

- Comprehensive modulation functions :
   AM, FM, PM, FSK, PWM, Sweep, and Burst
- High-accuracy frequency counter integrated,
   supported range 100mHz - 200MHz

- Supported SCPI
- 4 inches high resolution (480 × 320 pixels) TFT LCD display

Send Inquiry
Product Details

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON 2-ch arbitrary waveform generator without counter, dual channel waveform generator, frequency generator, power amplifier generator, arbitrary waveform generator, usb waveform generator, generator modulation function with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.

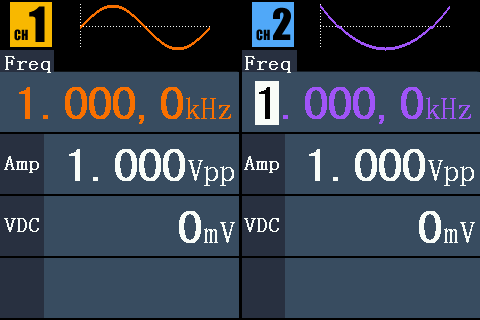

1. Dual Channel Equivalent Output

Dual equivalent channel output. Waveform and status copy can be implement between channels, frequency/amplitude/phase coupling.

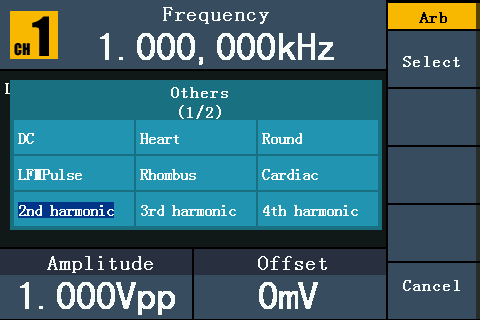

2. Build-in 45 arbitrary waveforms

Build-in educational/industrial common waveforms and divide it into common, math, engineer, window, other types.





Specifications

Model AG1012 AG1022
Channel dual
Frequency Output 10MHz 25MHz
Sample Rate 125MS/s
Vertical Resolution 14 bits
Waveform
Standard Waveform Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrar y waveform
Frequency (resolution 1μHz)
Sine 1μHz - 10MHz 1μHz - 25MHz
Square 1μHz - 5MHz
Pulse 1μHz - 5MHz
Ramp 1μHz - 1MHz
Noise 25MHz (-3dB) (typical)
Arb 1μHz - 10MHz
Amplitude
Amplitude 1mVpp - 10Vpp (50Ω), 1mVpp - 20Vpp (high impedance)
Resolution 1m Vpp or 4 digits
DC Offset Range (AD+DC) ±5V (50Ω), ±10V (high impedance)
DC Offset Range Resolution 1mV or 4 digits
Load Impedance 50Ω (typical)
Arbitrary Waveform
Wave Length 2 pts to 8K pts
Non-volatile Memory 64M byte

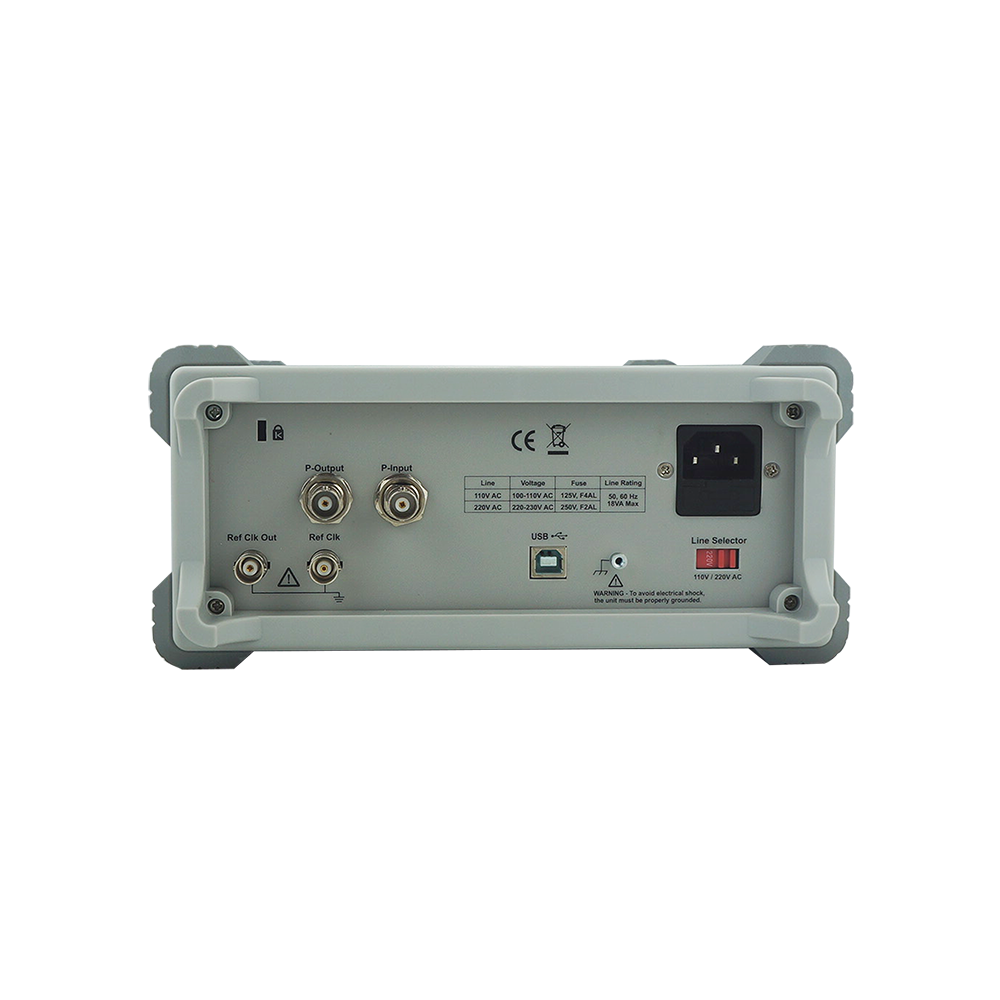

Power Amplifier Module (optional)
Input Impedance 50 kΩ Output Impedance <2 Ω
Max Input Voltage 2.2Vpp Gain X 10
Max Output Voltage 22 Vpp Offset <7%
Output Slew Rate 10V/us Bandwidth (at full power) DC 100kHz
Max Output Power 10 W

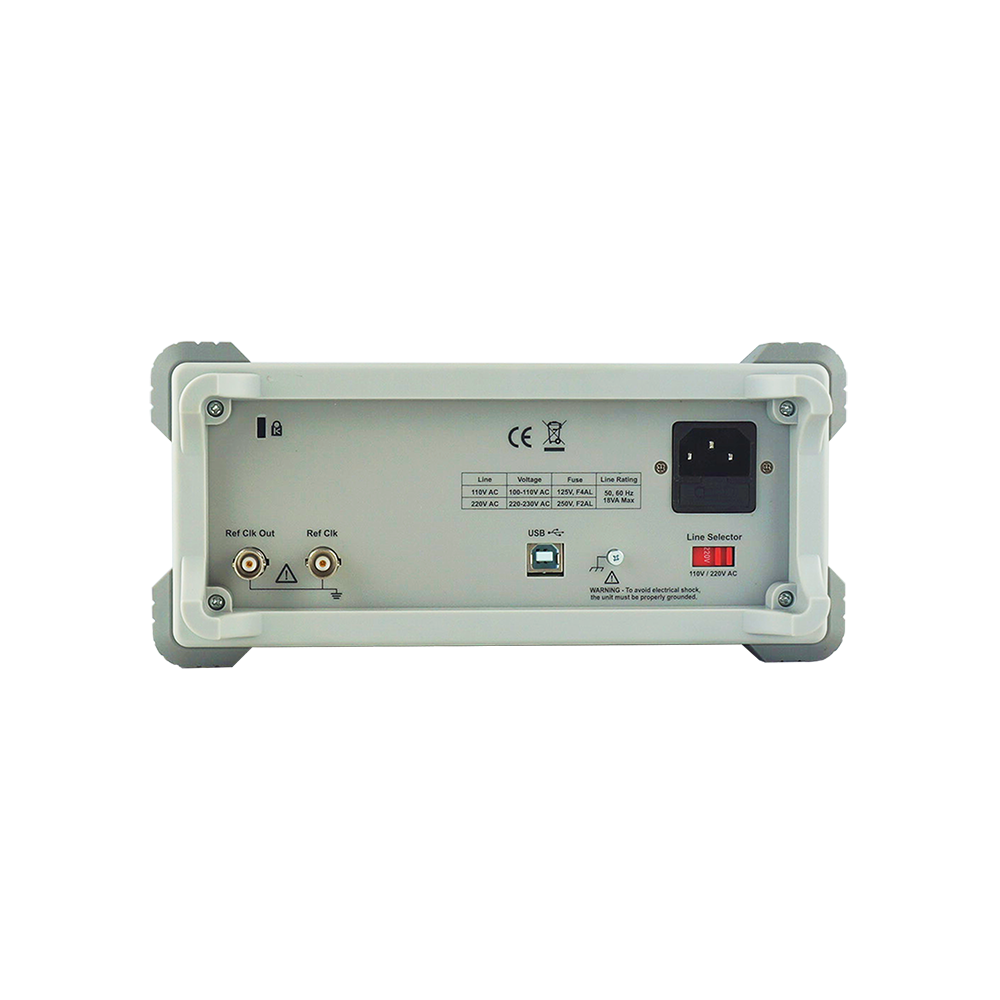

Input / Output
Display 4 inch (480 × 320 pixels) LCD
Type external reference clock input / output
Communication Interface USB host, and USB device, RS232 (option)
Mechanical
Dimension (W×H×D) 235 × 110 × 295 (mm)
Device Weight 3.00 kg

Support
Accessories

The accessories subject to final delivery.

  • Power Cord
  • CD Rom
  • Quick Guide
  • USB Cable
  • Q9
