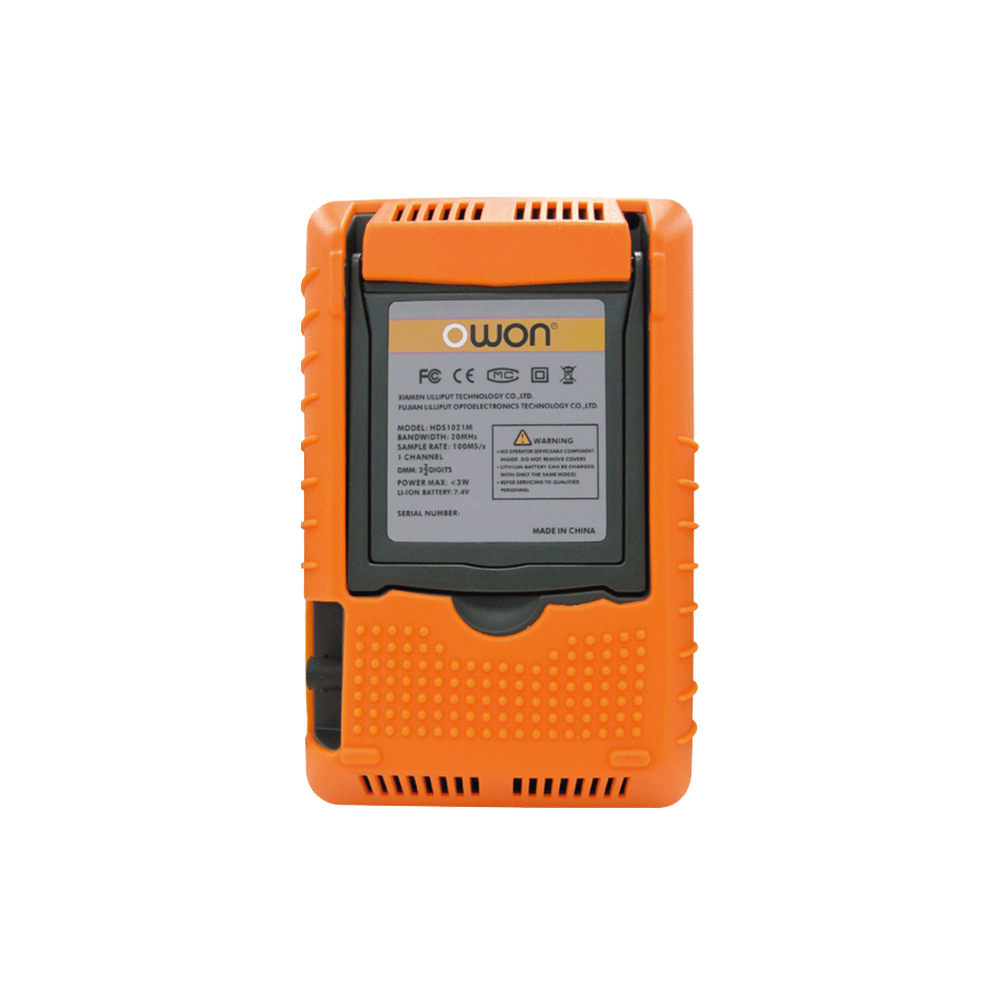

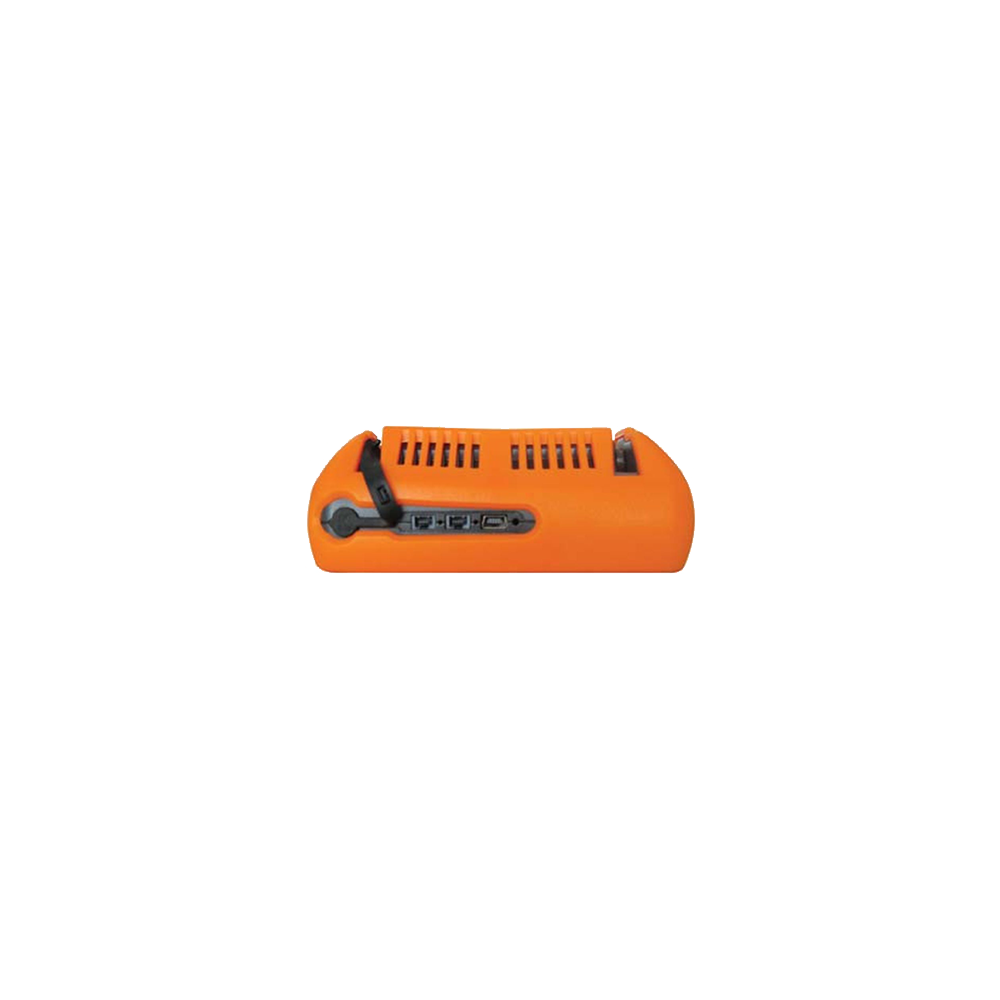

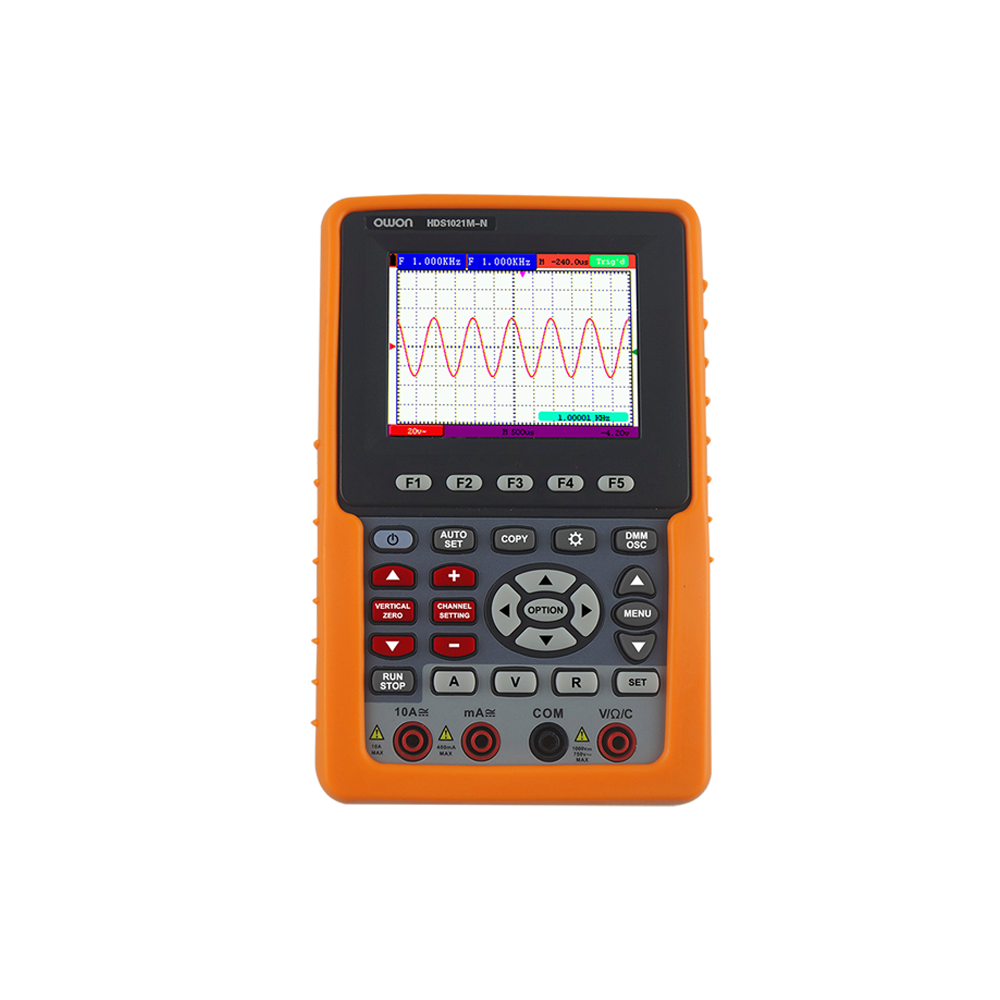

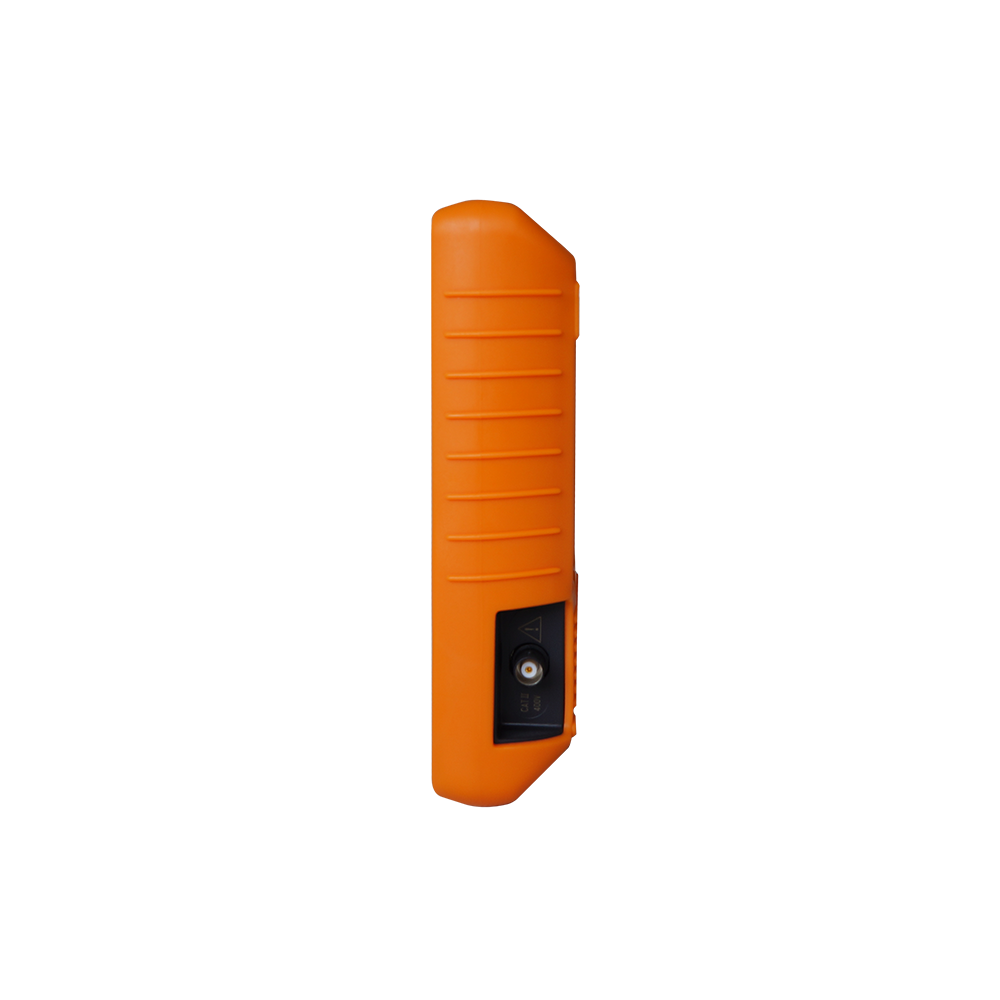

OWON HDS-N Series 1-CH Digital Oscilloscope

- 2 in 1 (DSO + Multimeter)
- Auto-scale function
- 20 automatic measurements
- Bandwidth : 20MHz - 100MHz
- USB data transmission supported
-  Waveform record and replay
-  Multimeter newly supported SCPI
- Rechargeable Li-ion battery (6 hours' backup)

Send Inquiry
Product Details

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON hds-n series 1-ch digital oscilloscope, handheld scope, electronic oscilloscope with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.

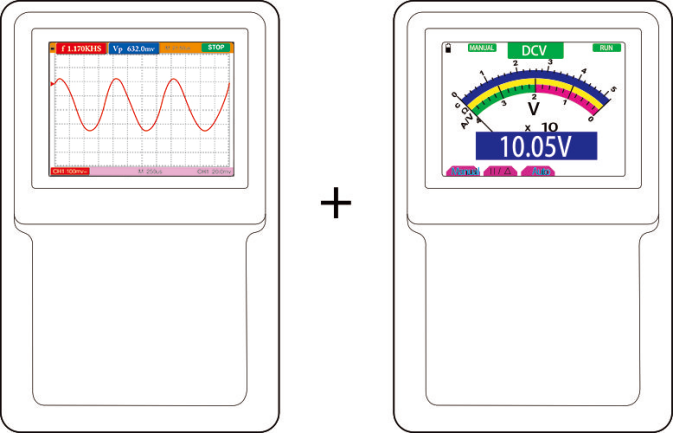

1. 2-in-1 station

Oscilloscope + 3 3/4 digits multimeter + FFT spectrum analyzer.

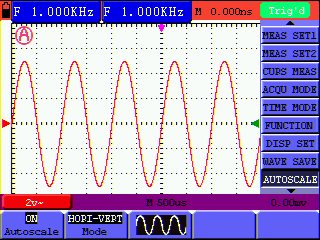

2. Auto-scale Function

While in auto-scale status, the oscilloscope will switch to the specific trigger mode, vertical scale and timebase scale according to the type, amplitude and frequency of input signal.

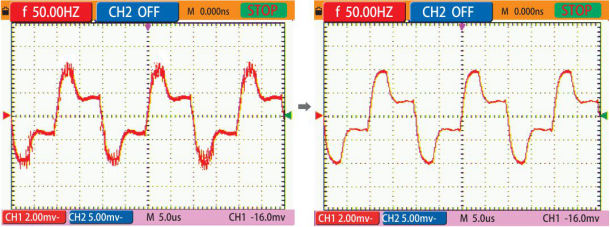

3. Trigger Sensitivity Adjustable

Original adjustable trigger sensitivity, greatly filter the overlay noise and trigger the signal stably under noise circumstance.













Video
  • HDS Battery Installation Guide

Specifications

Model HDS1021M-N HDS2061M-N HDS3101M-N
 Bandwidth  20MHz  60MHz  100MHz
 Sample Rate (real time )  500MS/s  1GS/s
 Horizontal Scale (s/div)  5ns/div~100s/div, step by 1~2.5~5  5ns/div~100s/div, step by 1~2~5
 Display  3.7” color TFT display (640 × 480 pixels)
 Channel  single
 Record Length  24K points
 Vertical Sensitivity  5mV/div~5V/div (at input)
 Vertical Resolution (A/D)  8 bits
 Trigger Type  Edge, and Video Edge, Video, and Alternate
 Trigger Mode  Auto, Normal, and Single
 Trigger Level  ±6 divisions from screen center
 Acquisition Mode  Sample, Peak Detect, and Average
 Waveform Storage  4 waveforms
 Communication Interface  mini-USB,mini-RS232
 Power Supply  100V-240V AC, 50/60Hz
 Li-ion Battery  7.4V, 6 hours’ operation
 Dimensions (W × H × D)  115 × 180 × 40 (mm)
 Weight (without package)  645.00 g
Multimeter Specifications
Full Scale Reading  3(3/4)digits (max 4000-count)  diode  0V-1V
Input Impedance  10 MΩ  On / Off Test  < 50 (± 30) beeping
Voltage VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V
VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz;
max input : AC 750V (virtual value)
Current DC : 40mA, 400mA : ±(1.5% ± 1 digit), 10A : ±(3% ± 3 digits)
AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 10A : ±(5% ± 3 digits)
Impedance  400Ω : ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits)
Capacitance  51.2nF - 100uF : ±(3% ± 3 digits)
