OWON DGE3000 series Arbitrary Waveform Generator

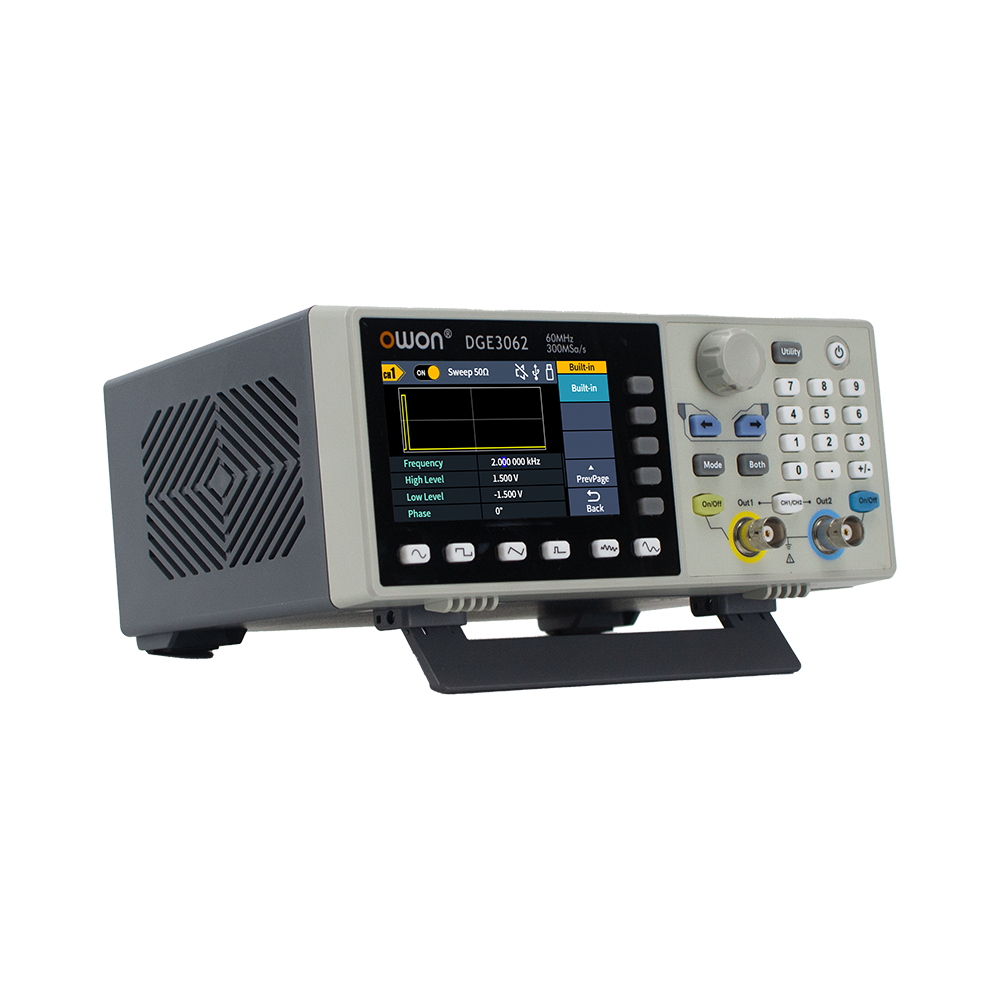

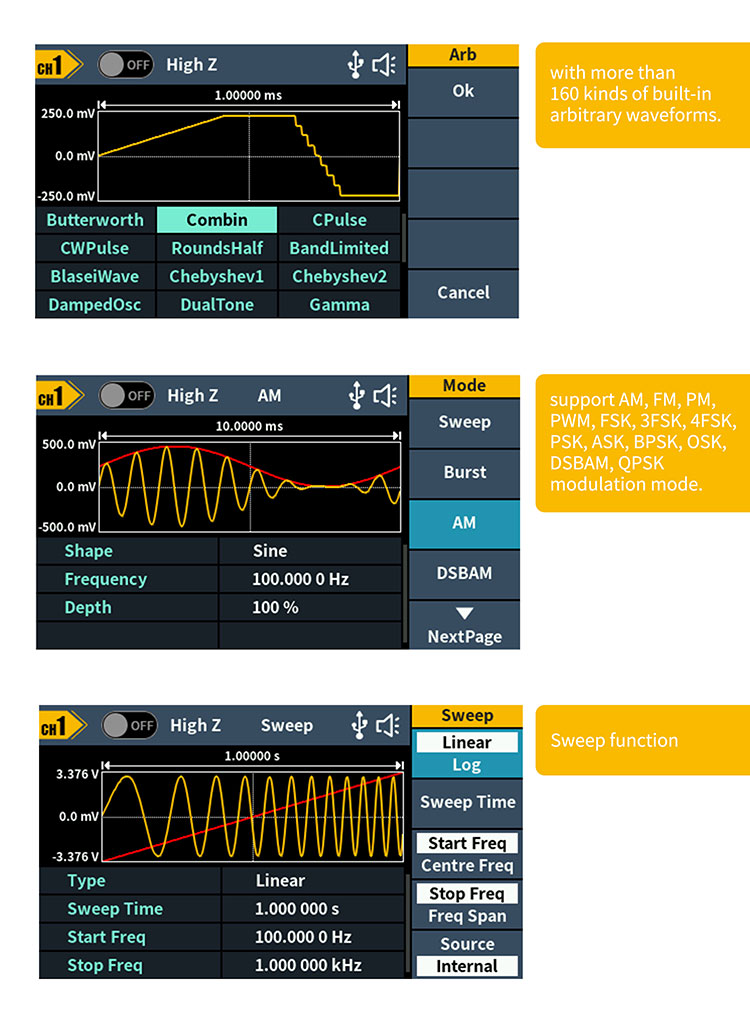

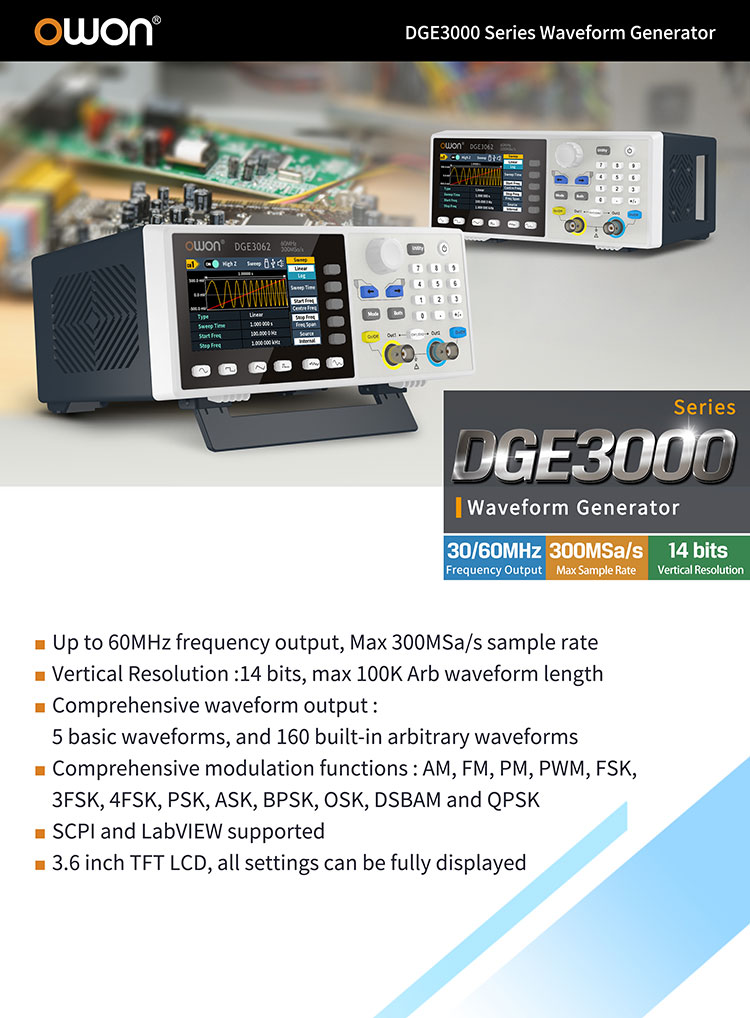

+ Max 60MHz frequency output,300MSa/s Sample rate

+ 14 bits Vertical Resolution,100K Arb waveform length

+ Comprehensive waveform output : 5 basic waveforms,

  and 160 built-in arbitrary waveforms

+ Comprehensive modulation functions : AM、FM、PM、PWM、
   FSK、3FSK、4FSK、PSK、ASK、BPSK、OSK、DSBAM、QPSK、
   SUM、sweep、Burst

+ SCPI supported

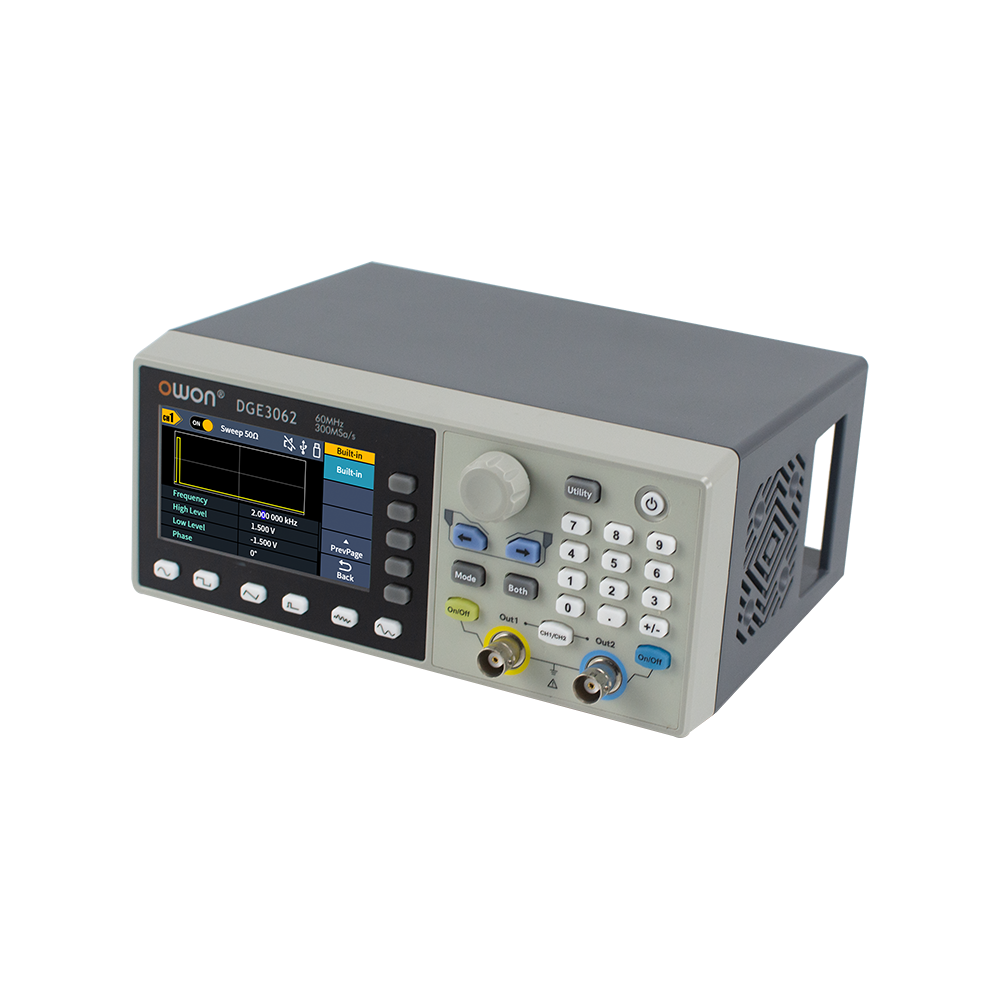

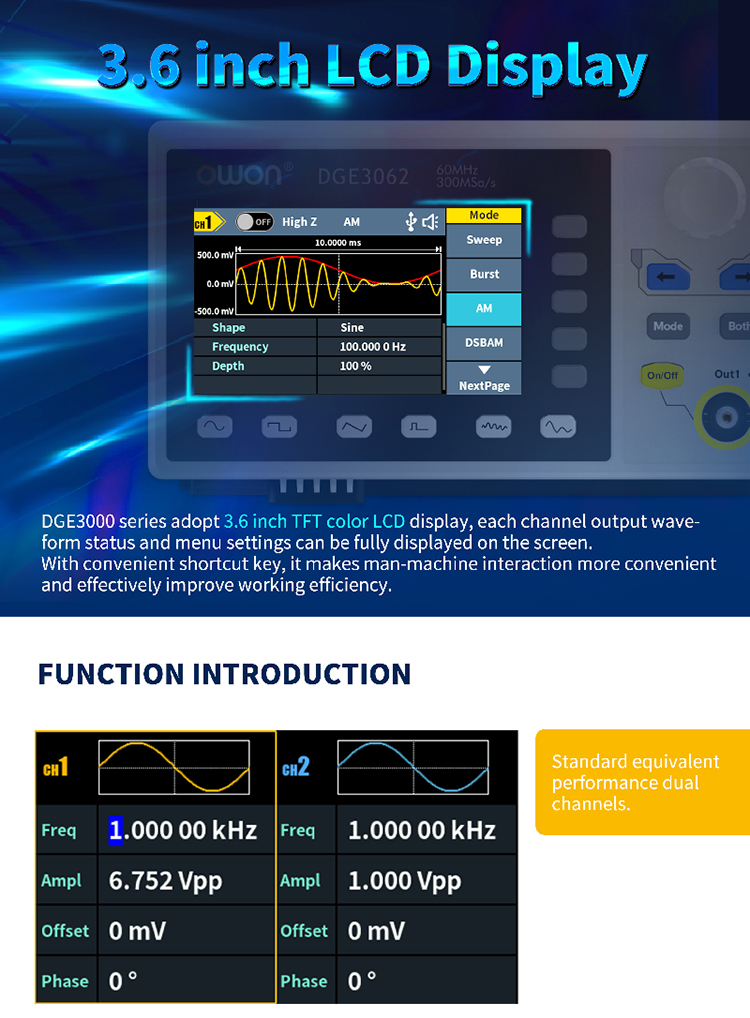

+ 3.6 inch (480 × 272 pixels) LCD

Send Inquiry
Product Details

OWON DGE3000 series Arbitrary Waveform Generator






Specifications



Model

DGE3031

DGE3032

DGE3061

DGE3062

Channel

1

2

1

2

Frequency Output

30MHz

60MHz

Sample Rate

125MSa/s

300MSa/s

Vertical Resolution

14 bits

Waveform

Standard Waveform

sine, square, pulse, ramp, noise

Arbitrary Waveform

exponential rise, exponential fall, sin(x)/x, step wave, and others,
total 160 built-in waveforms

Frequency (resolution 1μHz)

Sine

1μHz-30MHz

1μHz-60MHz

Square

1μHz ~ 15MHz

1μHz ~ 20MHz

Pulse

1μHz ~ 15MHz

1μHz ~ 20MHz

Ramp

1μHz ~ 1MHz

1μHz ~ 2MHz

Noise

20MHz (-3dB,typical)

Arbitrary Waveform

1μHz ~10MHz

Arbitrary

Waveform Length

2 points – 100K points

Sample Rate

125MSa/s

300MSa/s

Amplitude

into 50Ω load

1mVpp ~ 10Vpp(≤10Hz)
1mVpp ~ 5Vpp (≤60MHz)

DC Offset Range
(AD+DC)

±(10 Vpk – Amplitude Vpp/2) high resistance
±(5 Vpk – Amplitude Vpp/2) 50 Ω

DC offset resolution

1mV or 4digits

Load Impedance

50Ω (typical)

DC offset Accuracy

±(1 % of |setting| + 1 mV + amplitude Vpp * 0.5%)

Modulation

Type

AM、FM、PM、PWM、FSK、3FSK、4FSK、PSK、ASK、BPSK、OSK、DSB-AM、QPSK、SUM、Sweep、Burst

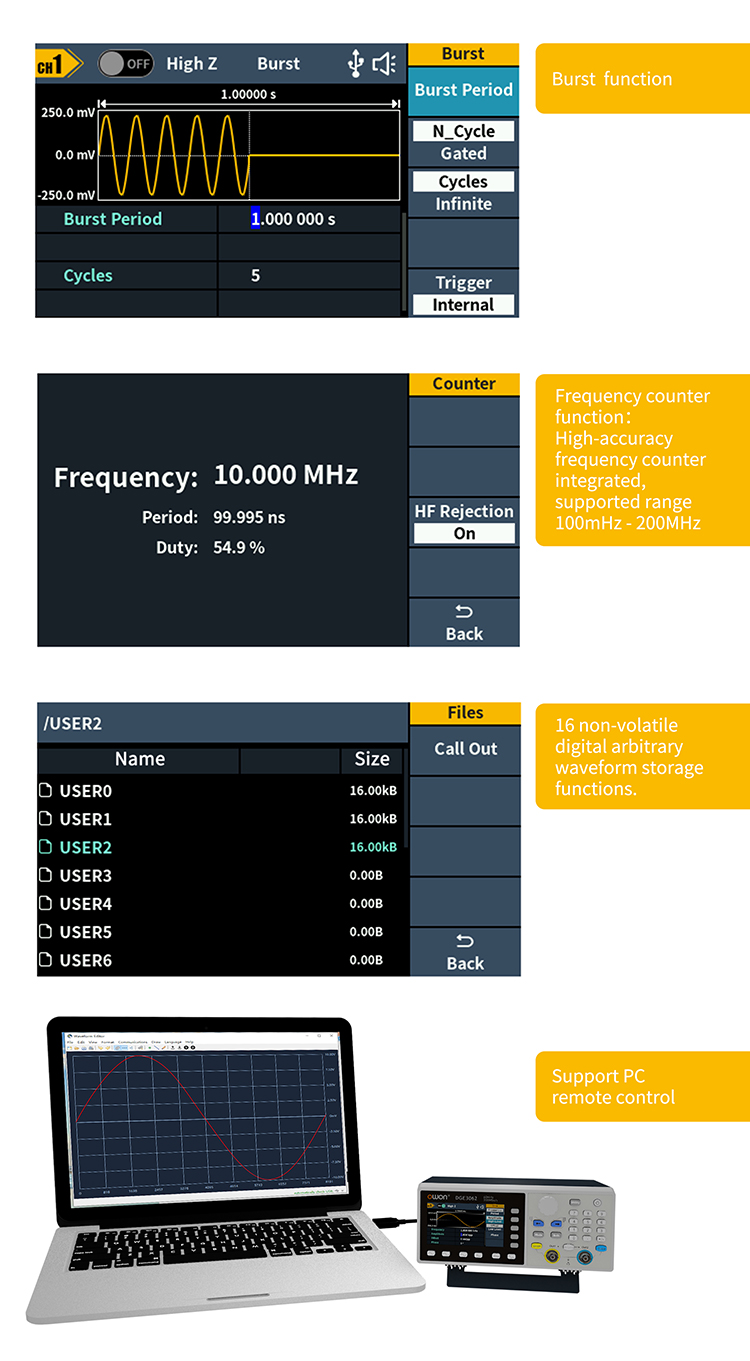

Frequency Counter

Function

Frequency, period

Frequency Range

100mHz ~ 200MHz

Frequency Resolution

6 digits

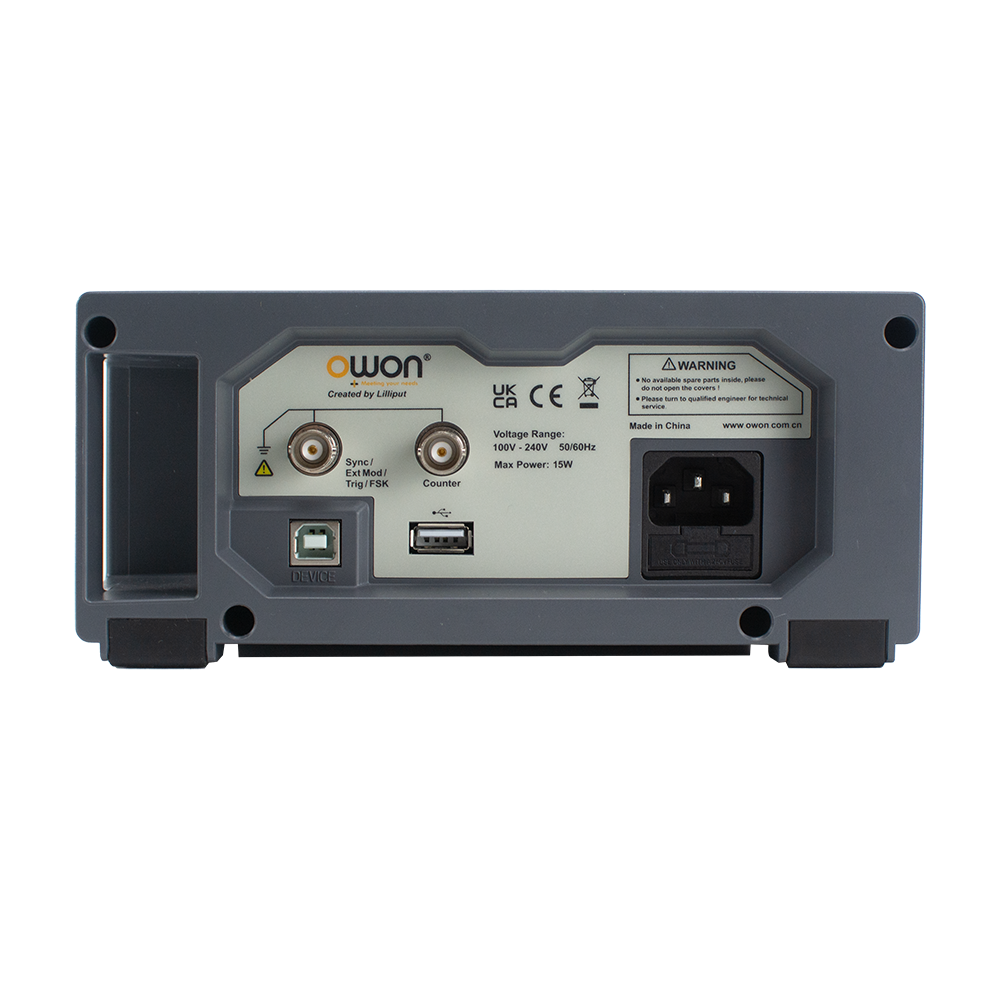

Input / Output

Display

3.6” LCD

Input mode

external modulation input,
external trigger input,
external reference clock input / output

Communication Interface

USB Host, USB Device

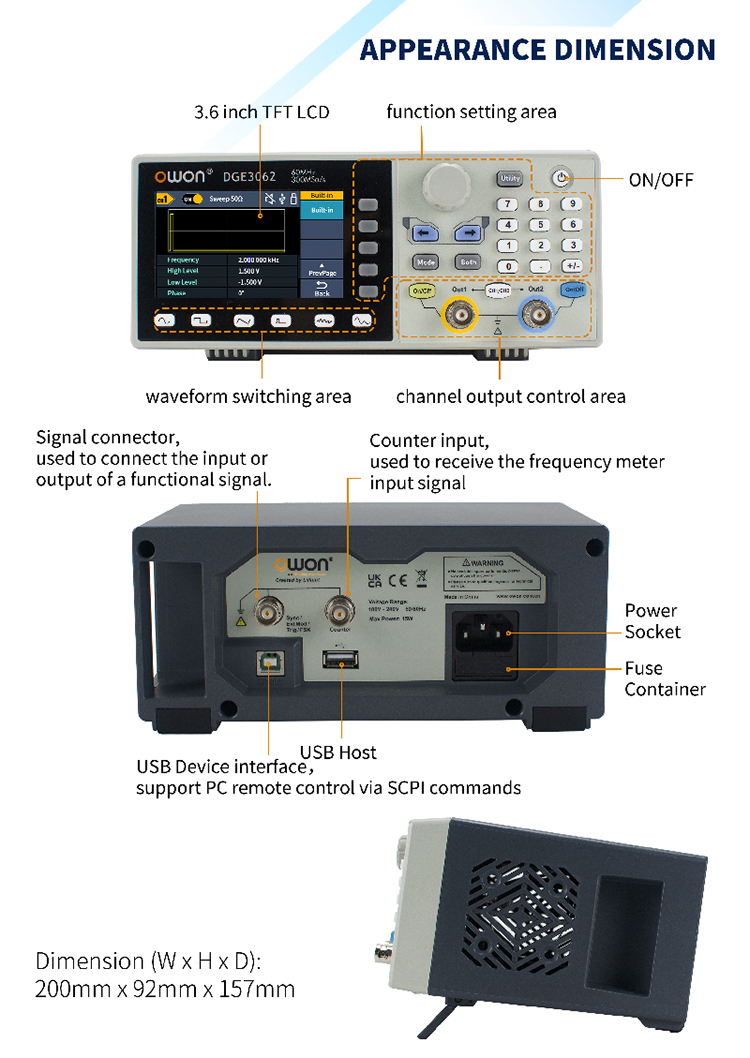

Mechanical specifications

Dimension (W×H×D)

200 x 92 x 157mm

Weight
(without package)

0.8kg

Support
Accessories

The accessories subject to final delivery.

  • Power Cord
  • Quick Guide
  • USB Cable
  • Q9 Cable
  • BNC to Alligator Clip
