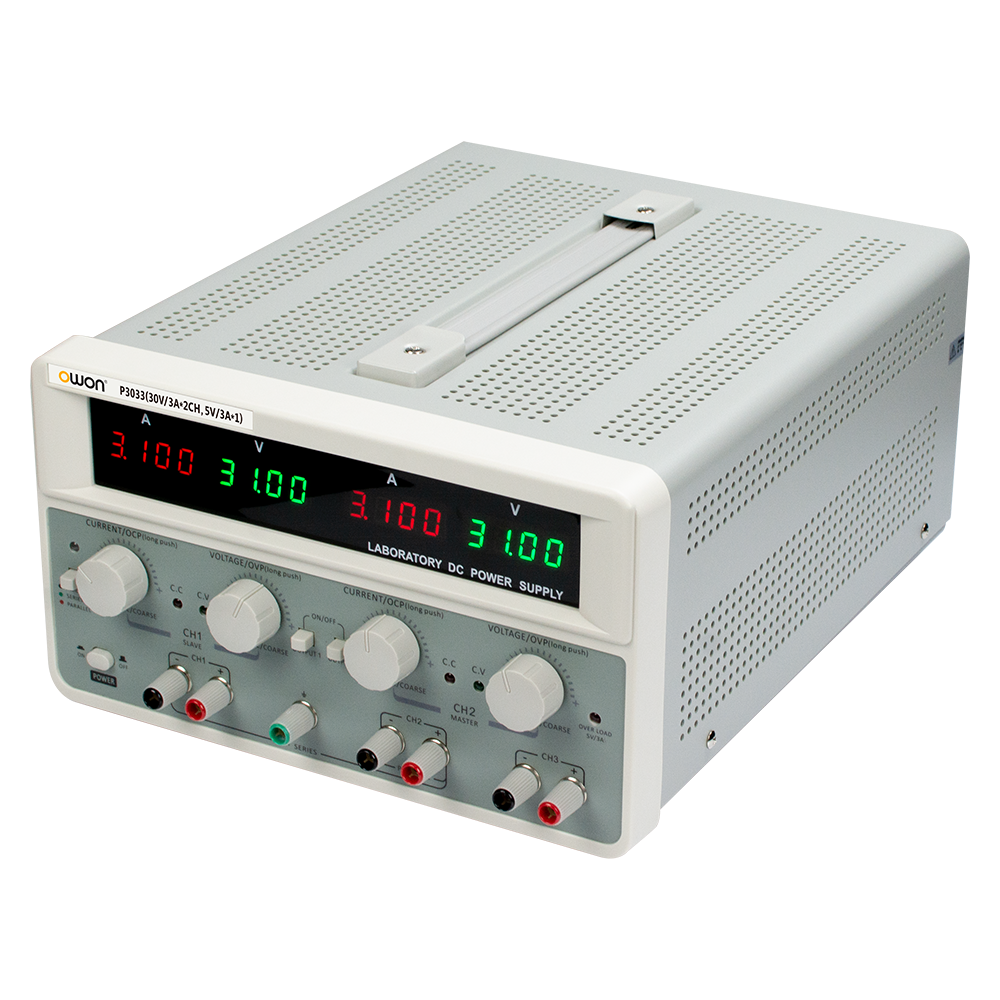

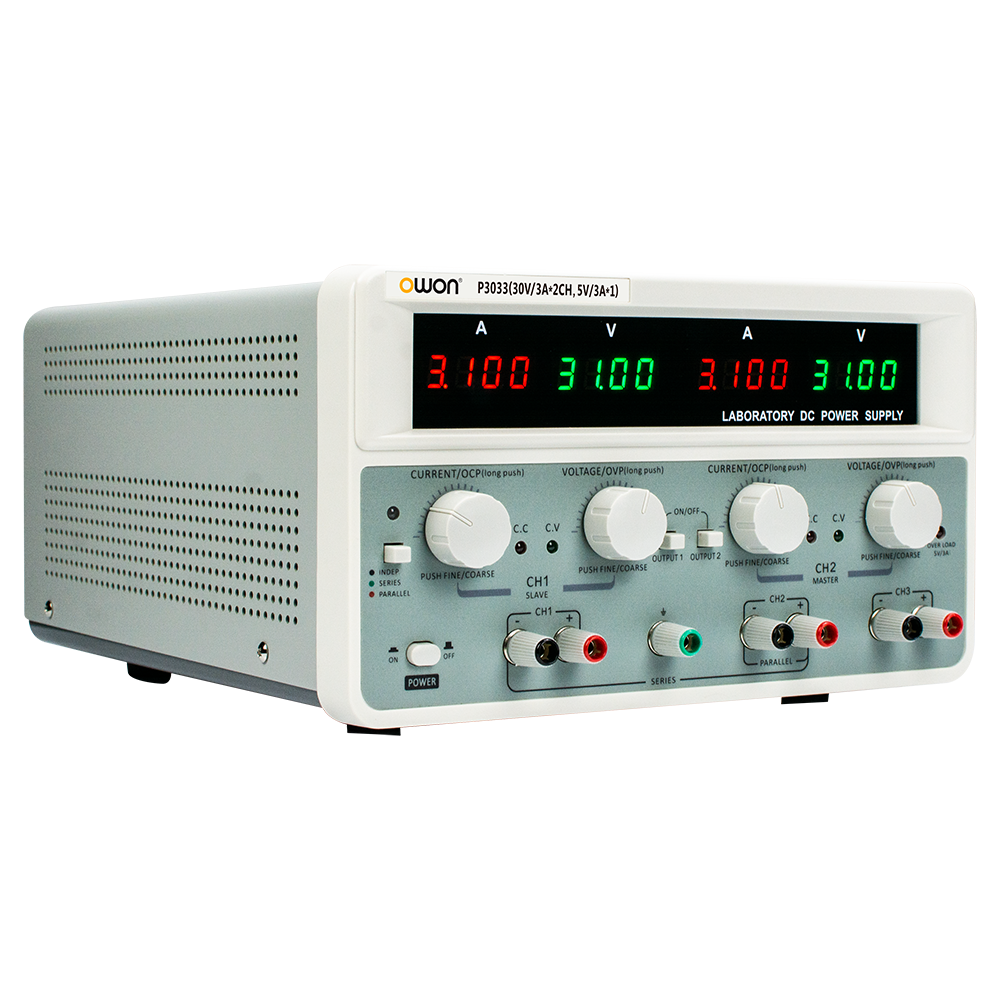

P3000 Series 3CH DC Power Supply
+ 10mV/1mA maximum output resolution
+ OVP/OCP Protection: Configurable over-voltage & over-current protection thresholds
+ Soft-start circuit design with low inrush current for enhanced reliability
+ Series/parallel configuration with directly display of combined output voltage and current
+ Buzzer on/off function
+ Adjustable Voltage/Current range limits prevent misuse
+ One-touch restoration to default settings
E-mail UsThe instrument must be operated continuously for more than 30 minutes at the specified operating temperature to achieve the following specifications
|
Model |
P3033 |
P3053 |
|||||
|
Channel |
|
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
|
Rated Output |
Voltage |
0 - 30V |
0 - 30V |
5V |
0 - 30V |
0 - 30V |
5V |
|
Current |
0 - 3A |
0 - 3A |
3A |
0 - 5A |
0 - 5A |
3A |
|
|
Load Regulation |
Voltage |
≤0.01% + 5mV |
≤15mV |
≤0.01% + 5mV |
≤15mV |
||
|
Current |
≤0.1% + 5mA |
- |
≤0.1% + 5mA |
- |
|||
|
Power Regulation |
Voltage |
≤0.01% + 5mV |
- |
≤0.01% + 5mV |
- |
||
|
Current |
≤0.1% + 5mA |
- |
≤0.1% + 5mA |
- |
|||
|
Setting Resolution |
Voltage |
10mV |
- |
10mV |
- |
||
|
Current |
1mA |
- |
1mA |
- |
|||
|
Readback Resolution |
Voltage |
10mV |
- |
10mV |
- |
||
|
Current |
1mA |
- |
1mA |
- |
|||
|
Seting Accuracy (25℃±5℃) |
Voltage |
≤0.03% + 10mV |
- |
≤0.03% + 10mV |
- |
||
|
Current |
≤0.1% + 5mA |
- |
≤0.1% + 5mA |
- |
|||
|
Readback Accuracy (25℃±5℃) |
Voltage |
≤0.03% + 10mV |
- |
≤0.03% + 10mV |
- |
||
|
Current |
≤0.1% + 5mA |
- |
≤0.1% + 5mA |
- |
|||
|
parallel mode |
Power Efficiency |
≤0.01% + 5mV |
- |
≤0.01% + 5mV |
- |
||
|
Load Efficiency |
≤0.01% + 5mV |
- |
≤0.02% + 5mV |
- |
|||
|
Tandem mode |
Power Efficiency |
≤0.01% + 5mV |
- |
≤0.01% + 5mV |
- |
||
|
Load Efficiency |
≤0.01% + 5mV |
- |
≤0.02% + 5mV |
- |
|||
|
Ripple/Noise |
Voltage |
≤2mVrms |
|||||
|
Current |
≤5mArms |
||||||
|
Working Temperature |
0 - 40℃ ≤ 80%RH |
||||||
|
Dimension (W x H x D) |
250 x 150 x 330 (mm) |
||||||
|
Device Weight |
≈8kg |
≈9kg |
|||||
The accessories subject to final delivery.
-
Power Cord -
Quick Guide -
Test Leads
