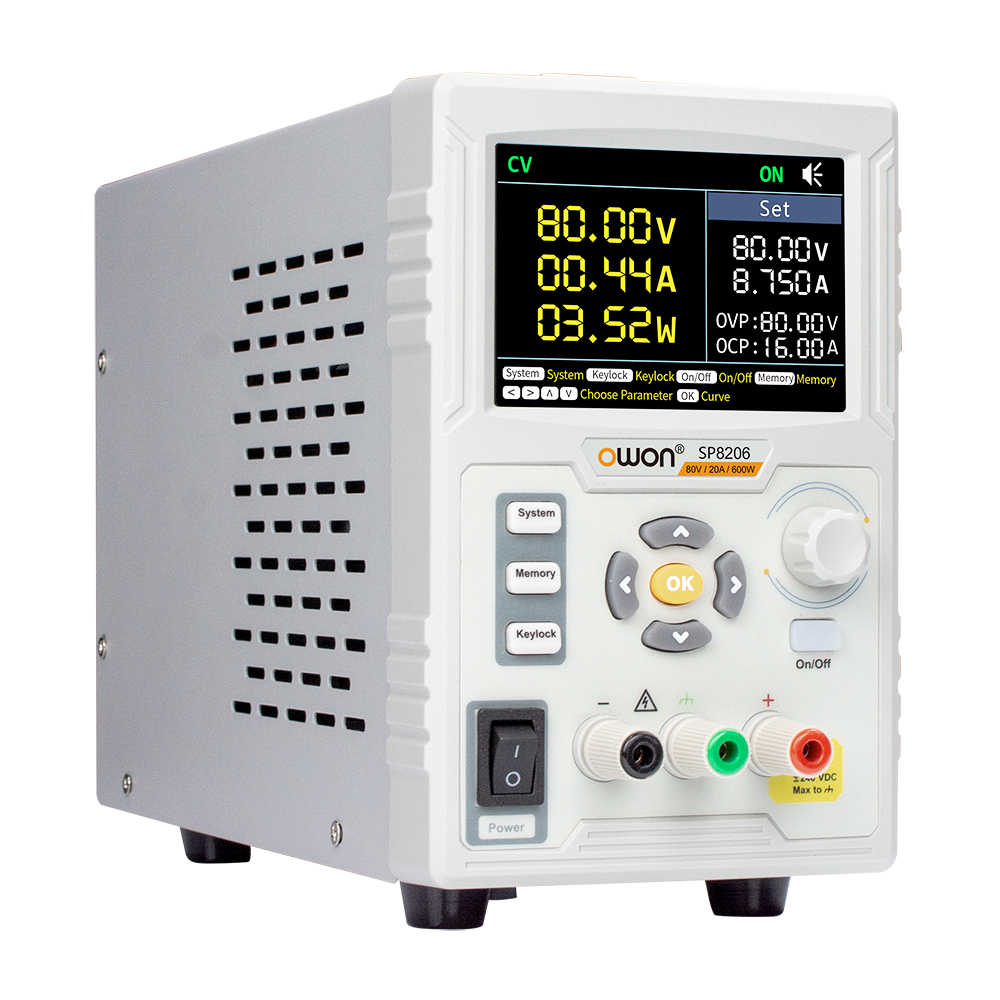

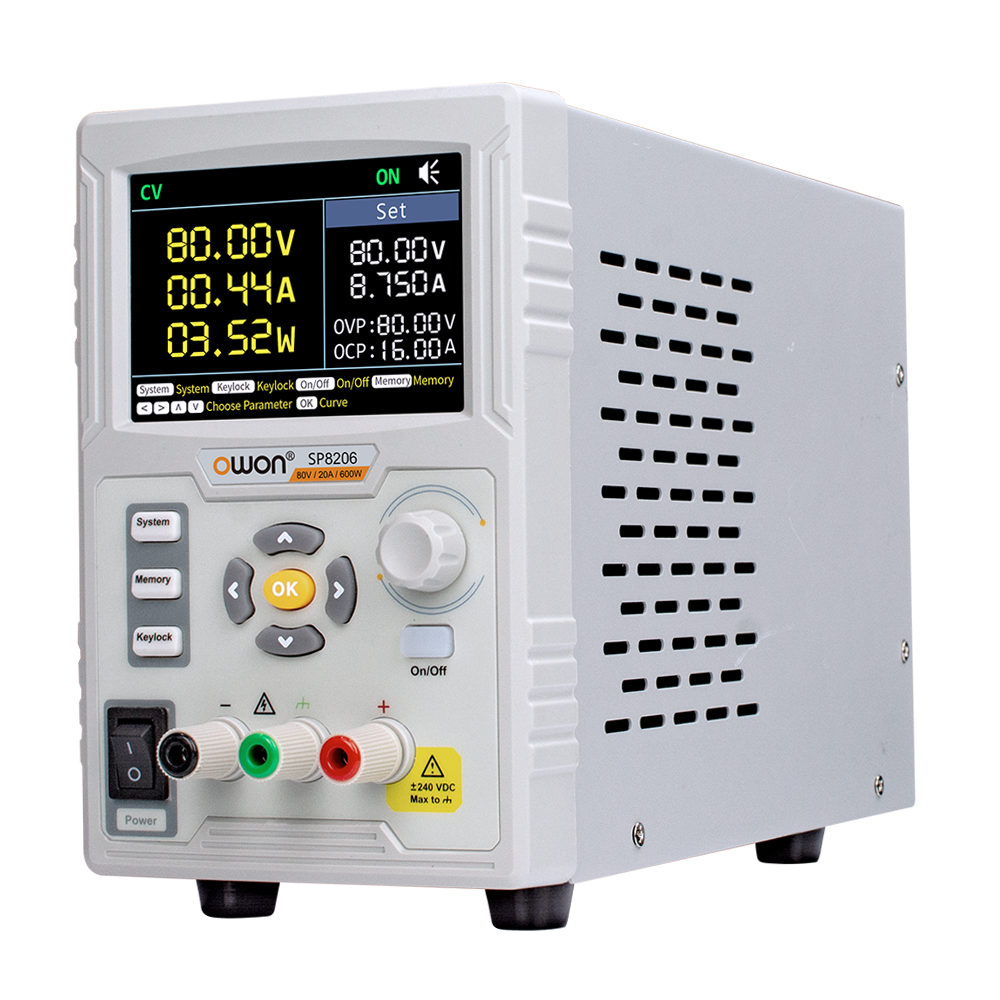

SP8000 High Power Series Programmable DC Power Supply

+ 80 V / 20 A / 700 W constant power output

+ Remote sense function

+ 10 mV / 1 mA high resolution

+ Low ripple, low noise

+ OVP / OCP protection

+ Auto power-on for automation applications

+ 3.7-inch LCD with waveform display

+ RS232 or LAN, with SCPI support

+ PC remote control and programmable output

Send Inquiry
Product Details


Wide-Range High-Power Output

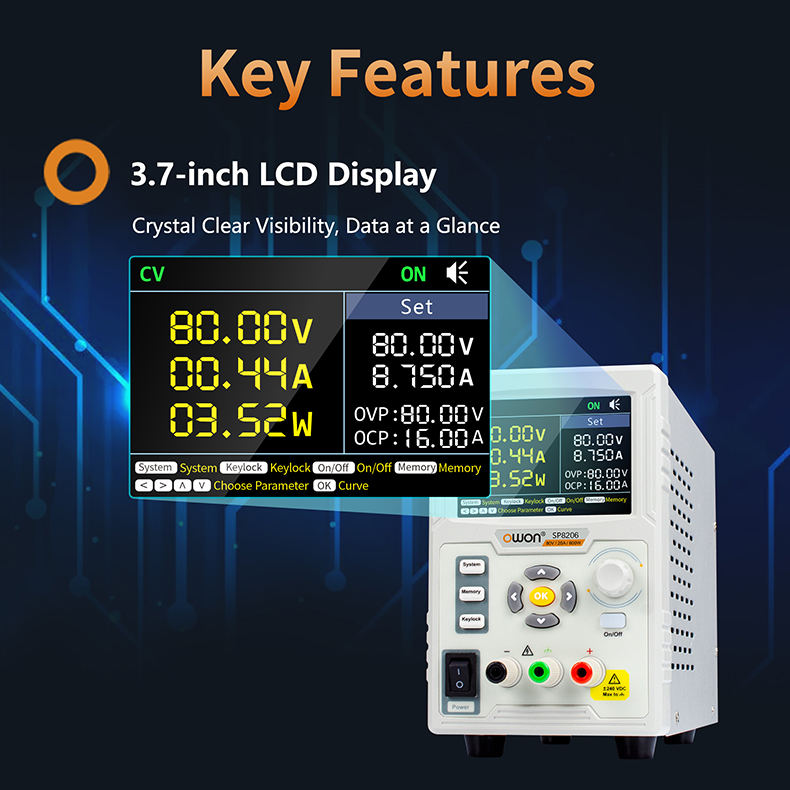

Features a 3.7-inch color LCD and supports output up to 80 V, 20 A, and 600 W. The wide-range design covers diverse voltage and current requirements, providing flexible power for electronic devices and power components.

High-Resolution Control with Stable, Low-Ripple Output

With 10 mV/1 mA setting and readback resolution and voltage ripple of ≤50 mVp-p, the series minimizes the impact of power-supply noise and provides a stable reference for precision adjustment.

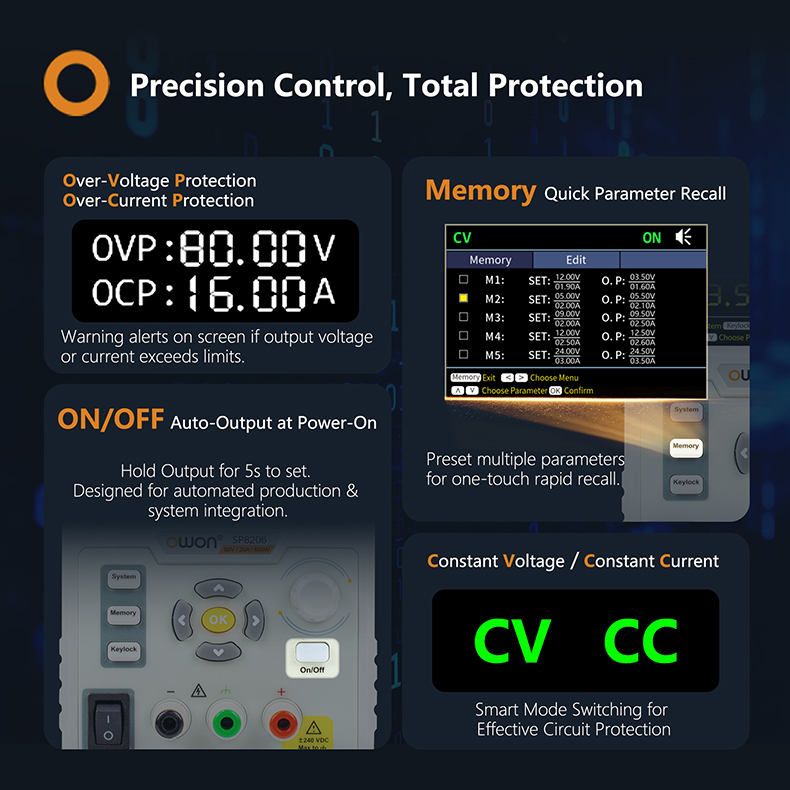

Quick Recall and Multiple Safety Protections

5 Memory presets, intelligent CV/CC switching, and OVP/OCP protections enable efficient operation. Independent output control and automatic output at power-on support continuous testing.

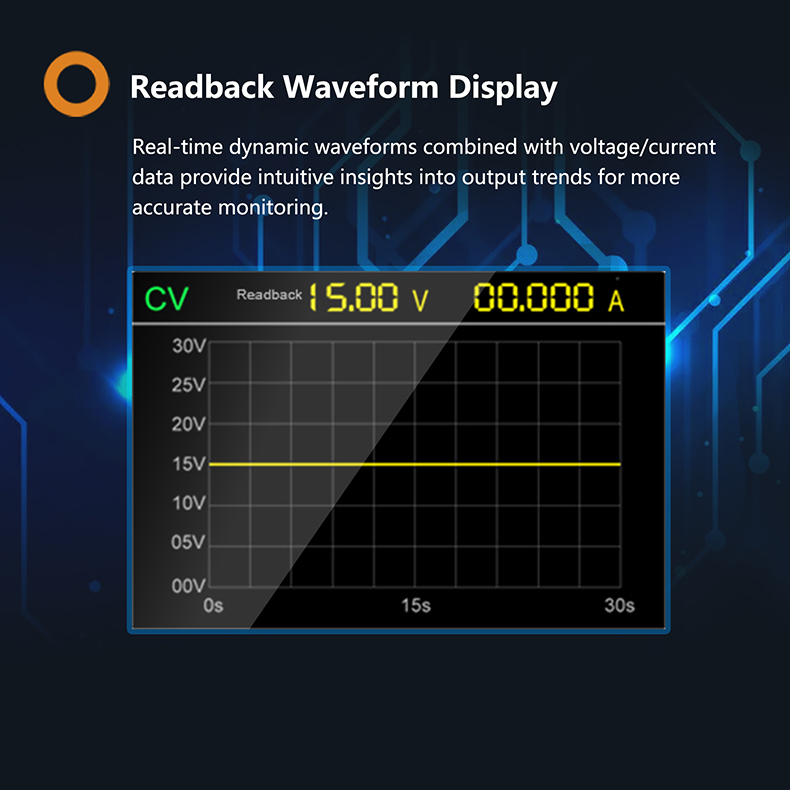

Voltage and Current Readback Waveforms

Real-time dynamic waveforms together with voltage and current data provide an intuitive view of output status and trends for more precise monitoring.

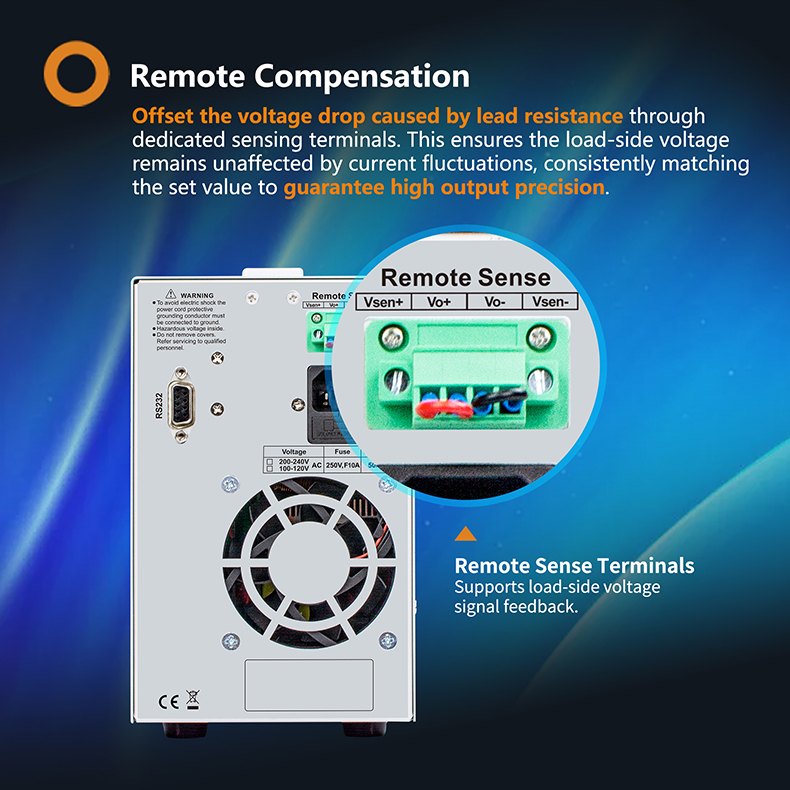

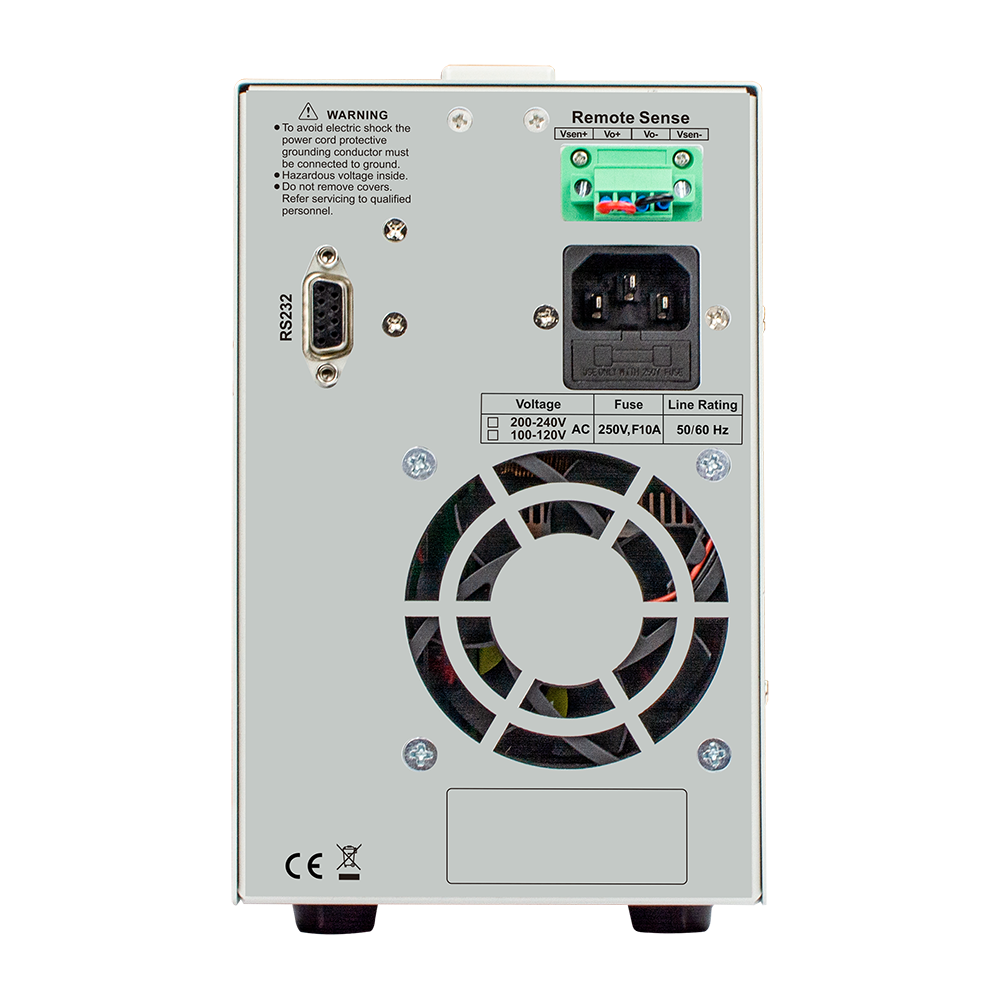

Remote Sensing for Accurate Load-Side Voltage

Remote Sense compensates for voltage drop across the connection leads, keeping the actual load voltage closer to the set value. Ideal for long cable runs and high-current testing.

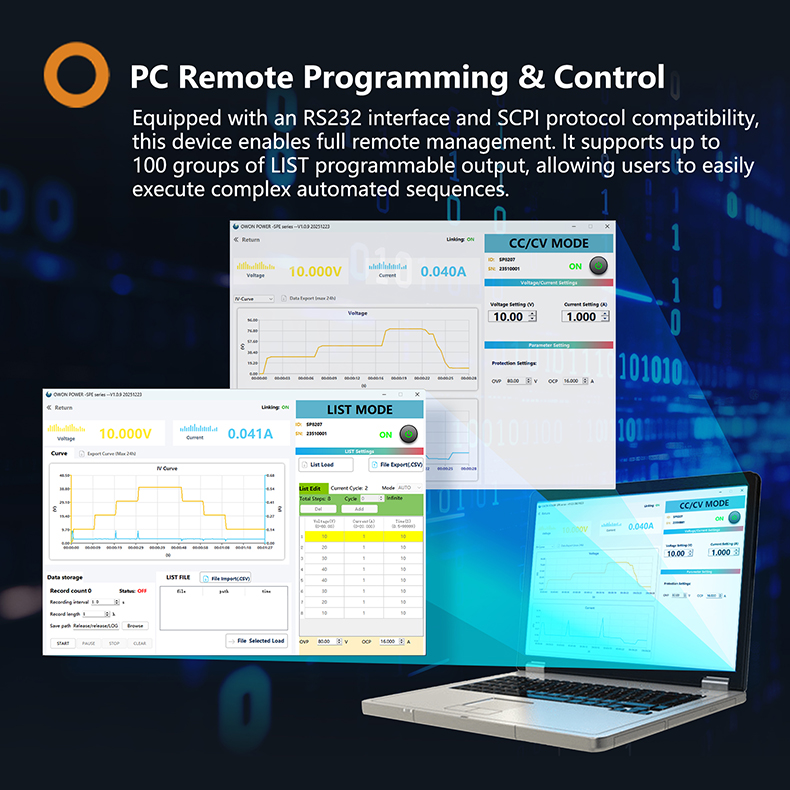

PC Programming for Easy Automation Integration

Supports PC remote control, SCPI commands, and up to 100 LIST output steps. Choose either RS232 or LAN communication for system integration and automated batch testing.

Specifications

The instrument must operate continuously for more than 30 minutes under the specified temperature to ensure the following parameters.

Model

SP8206

Rated Output

(0℃-40℃)

Voltage

0 - 80V

Current

0 - 20A

Power

600W

Input

Characteristics

Supply Voltage

100 - 240Vac

Input Frequency

50 - 60Hz

Full-Load Input Current

≤6.6A(110Vac)

≤3.2A(220Vac)

No-Load Input Current

≤200mA(110Vac)

≤100mA(220Vac)

Load Regulation

Voltage

≤30mV

Current

≤30mA

Line Regulation

Voltage

≤20mV

Current

≤20mA

Setting Resolution

Voltage

10mV

Current

1mA

Readback Resolution

Voltage

10mV

Current

1mA

Setting Accuracy

(25℃±5℃)

Voltage

≤0.1% ± 20mV

Current

≤0.1% ± 20mA

Readback Accuracy

(25℃±5℃)

Voltage

≤0.1% ± 20mV

Current

≤0.1% ± 20mA

Ripple & Noise(20Hz-20MHz)

Voltage(Vp-p)

≤50mVp-p

Voltage(rms)

≤20mVrms

Current(Ap-p)

≤20mA

Temperature coefficient of output

Voltage

100ppm/℃

Current

200ppm/℃

Temperature coefficient of readback value

Voltage

100ppm/℃

Current

200ppm/℃

Transient recovery time

(10%- 100% rated load)

≤5.0ms

Storage Temperature

-20℃ - 60℃

Working Temperature

0℃ - 40℃

Fuse

250 V,F10A

Display

3.7-inch Color LCD Display

Dimension (W / H / D)

117 × 194 × 290 mm

Weight

Approx. 2.0kg

Support
Accessories

The accessories subject to final delivery.

Accessories
Power Cord
Quick Guide
Fuse
Test Leads (20A) (optional)
Remote Compensation (optional)
