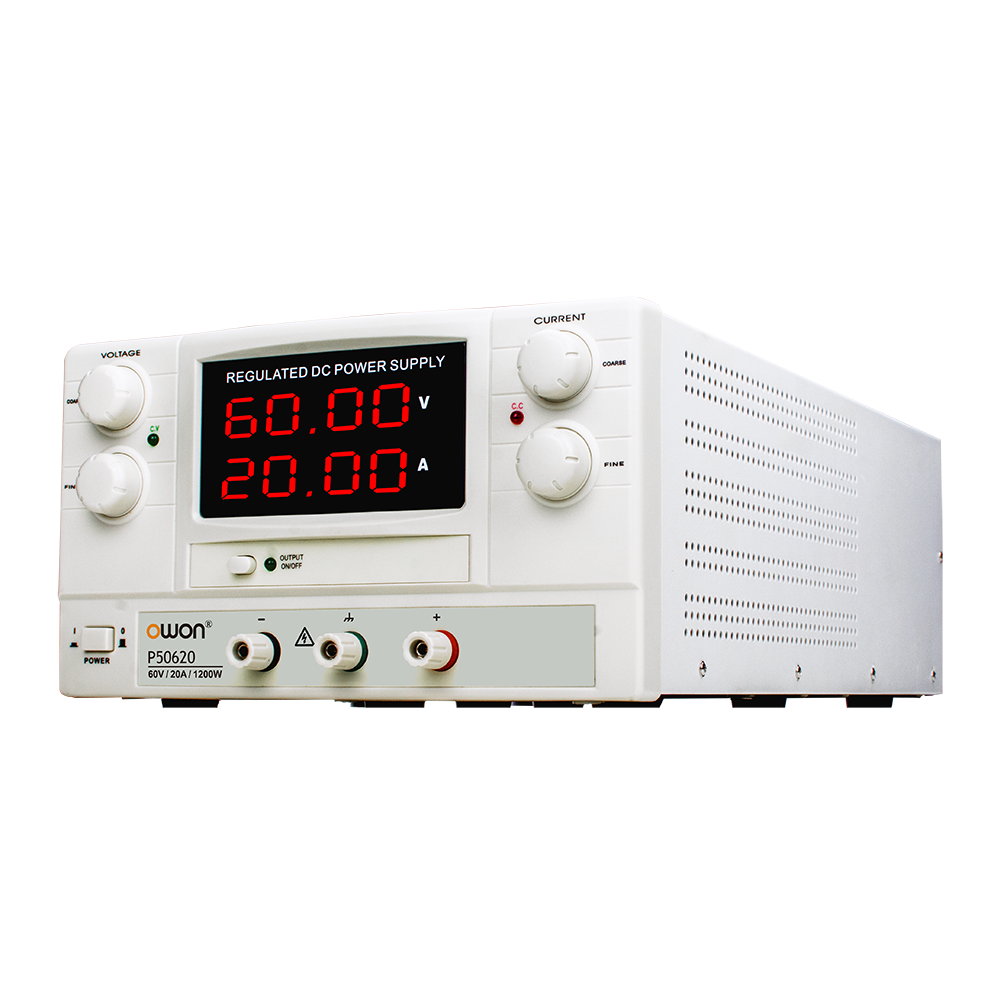

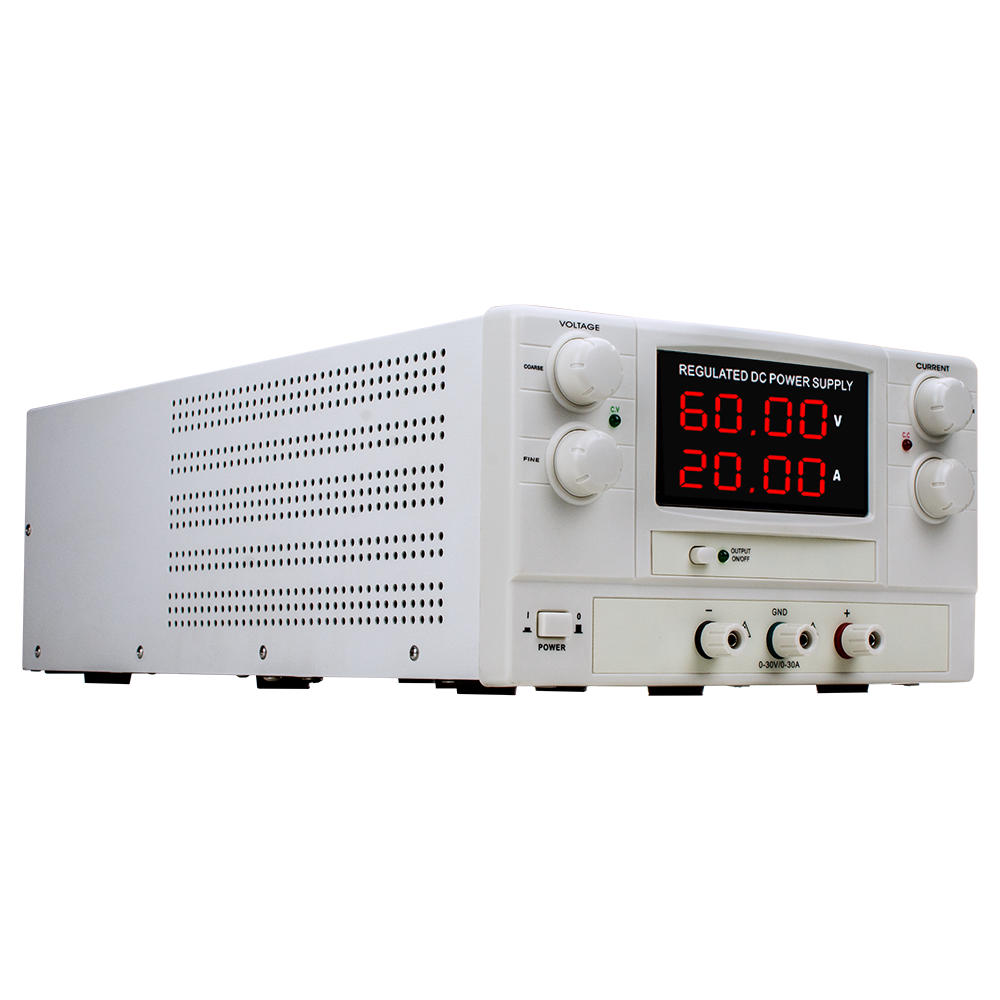

P50000 Series Single-Channel High-Power Linear DC Regulated Power Supply
+ Wide adjustable output range: 0-200V voltage, 0-30A current
+ 4-digit LED display for real-time voltage and current monitoring
+ Constant voltage and constant current functionality with automatic CC/CV switching
+ Voltage/Current Preset
+ Independent output switch control for enhanced testing safety and equipment protection
+ Ultra-clean power output with ripple and noise as low as 1.5mV
+ Load regulation: ≤0.05% + 2mV
+ Line regulation: ≤0.05% + 2mV
E-mail Us|
Rated Working Conditions |
||
|
Power supply voltage |
AC 110V/220V ±10%, 50Ｈz/60Ｈz |
|
|
Working conditions |
Temperature: 0-40 ℃ Relative humidity: ≤85%RH |
|
|
Storage conditions |
Temperature: -10℃-80℃ Relative humidity: ≤80%RH |
|
|
Technical Indicators |
||
|
Stabilized voltage characteristic |
Source effect: CV |
5×10-4＋2ｍＶ |
|
Load effect: CV |
5×10-4＋2ｍＶ |
|
|
Ripples and noise |
≤ 1.5ｍV |
|
|
Stabilized current characteristic |
Source effect: CC |
2×10-4＋3ｍＶ |
|
Load effect: CC |
≤15ｍＡ |
|
|
Current temperature coefficient |
500PPｍ/℃ |
|
|
Ripples and noise |
1.5ｍA(RMS) |
|
|
Display accuracy |
Four digits show ≤ ±(0.1% + 5d) |
|
|
Power Resolution |
Voltage four digit display resolution: 10 mV Current four digit display resolution: 1 mA |
|
|
Recovery Time |
≤100μs |
|
|
Dimensions（W*H*D mm） |
205*155*305(≤600W Models)，255*155*465(＞600W Models) |
|
The above parameters are subject to change without further notice, please refer to the website update.
The accessories subject to final delivery.
-
Power Cord -
Quick Guide
