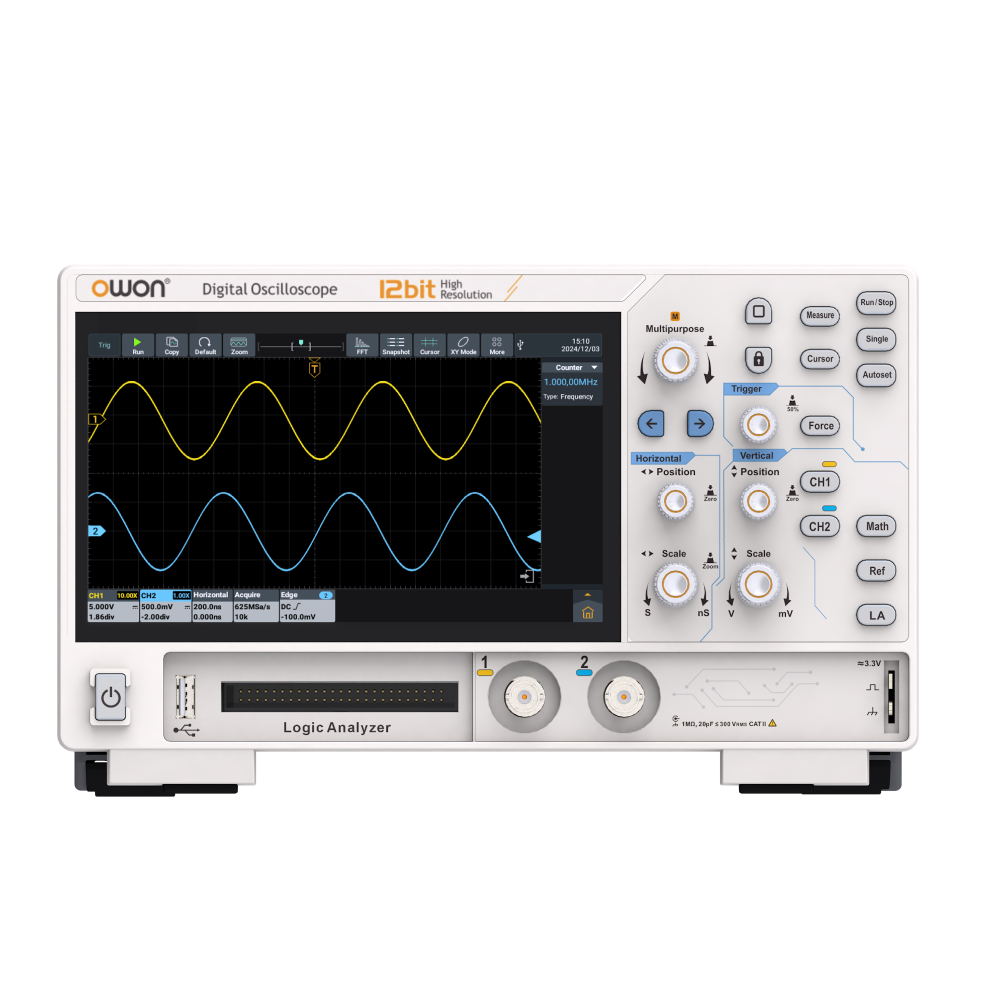

ADS900A Series 12bits Multifunction Digital Oscilloscope

Superior Performance

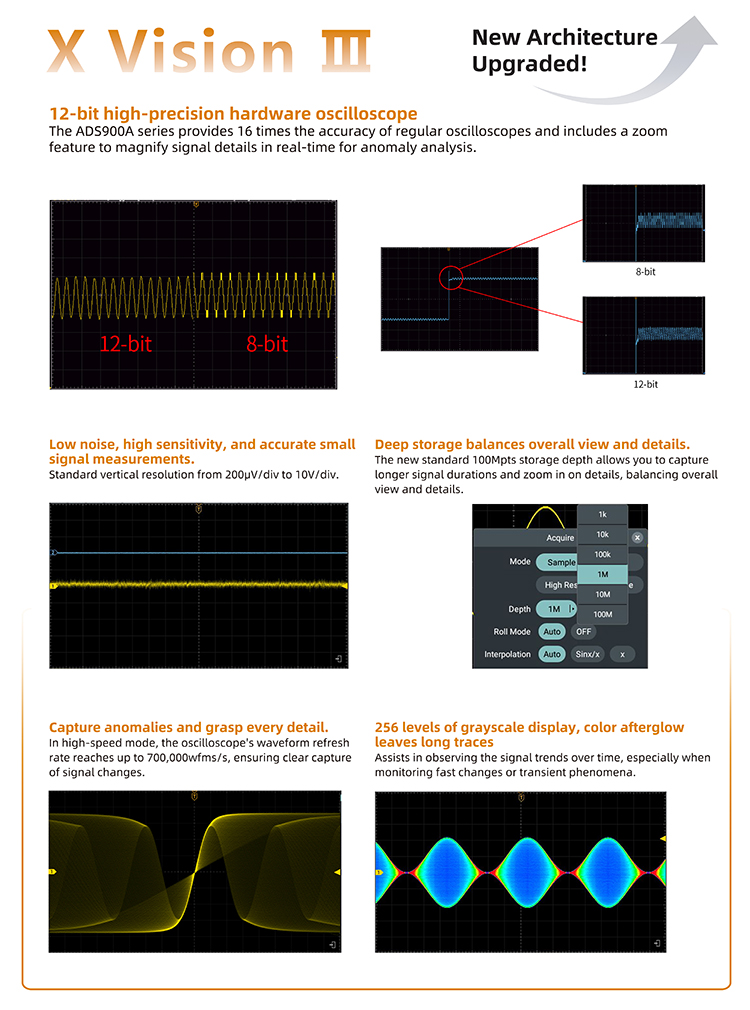

+ Based on the OWON X-Vision II advanced architecture: lower noise, higher storage, faster refresh.
+ 100M storage depth, up to 700,000wfms/s waveform refresh rate, ensuring clear signal capture.
+ Vertical accuracy is 200uV/div-10 V/div.
+ 1M- point FFT analysis ensures accurate frequency component display.

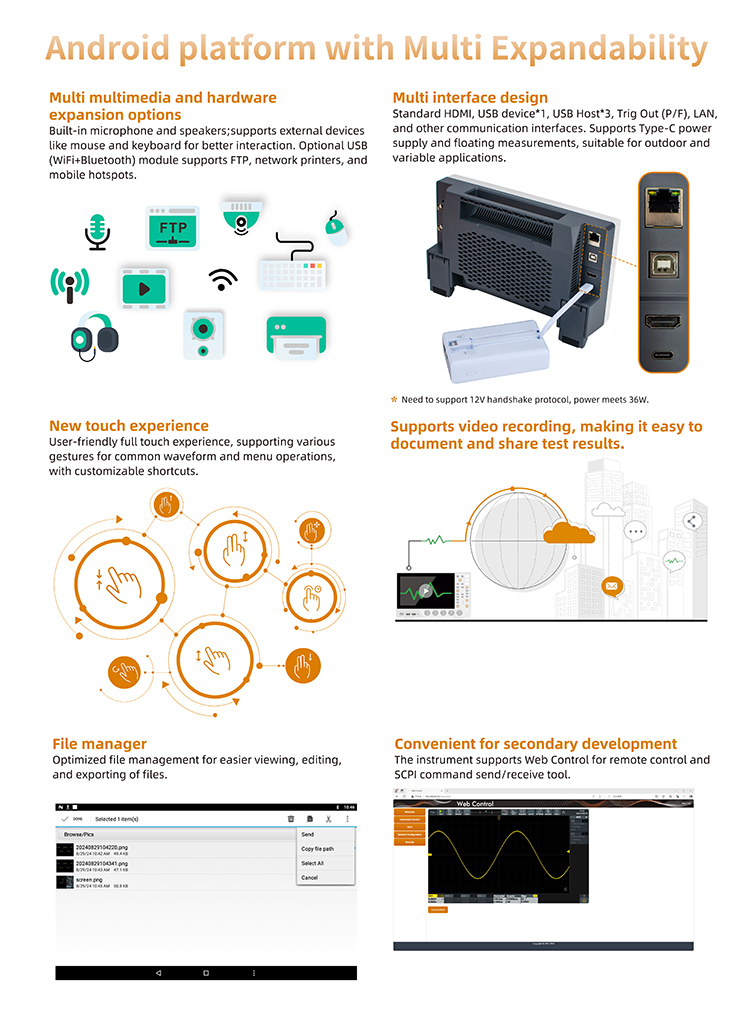

Android Based,Extensive Expandability
+ Support for external devices like mouse and keyboard, greatly enhancing efficiency.
+ Enhanced file management for easier viewing, editing, and exporting.
+ Optional wireless module (Wi-Fi/Bluetooth) supports FTP, network printers, mobile hotspots, and more.

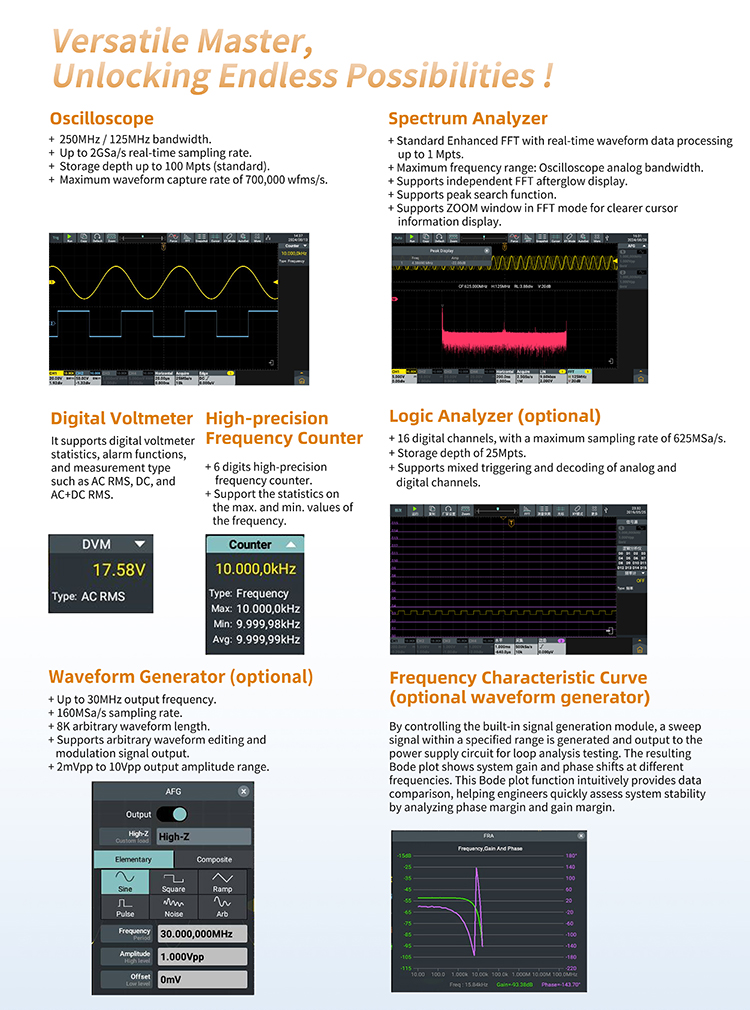

Comprehensive Features
+ Integrates oscilloscope, 30MHz AFG (optional), frequency counter, voltmeter, FFT spectrum     analyzer and protocol analyzer.
+ Bode plot functions (AFG models).

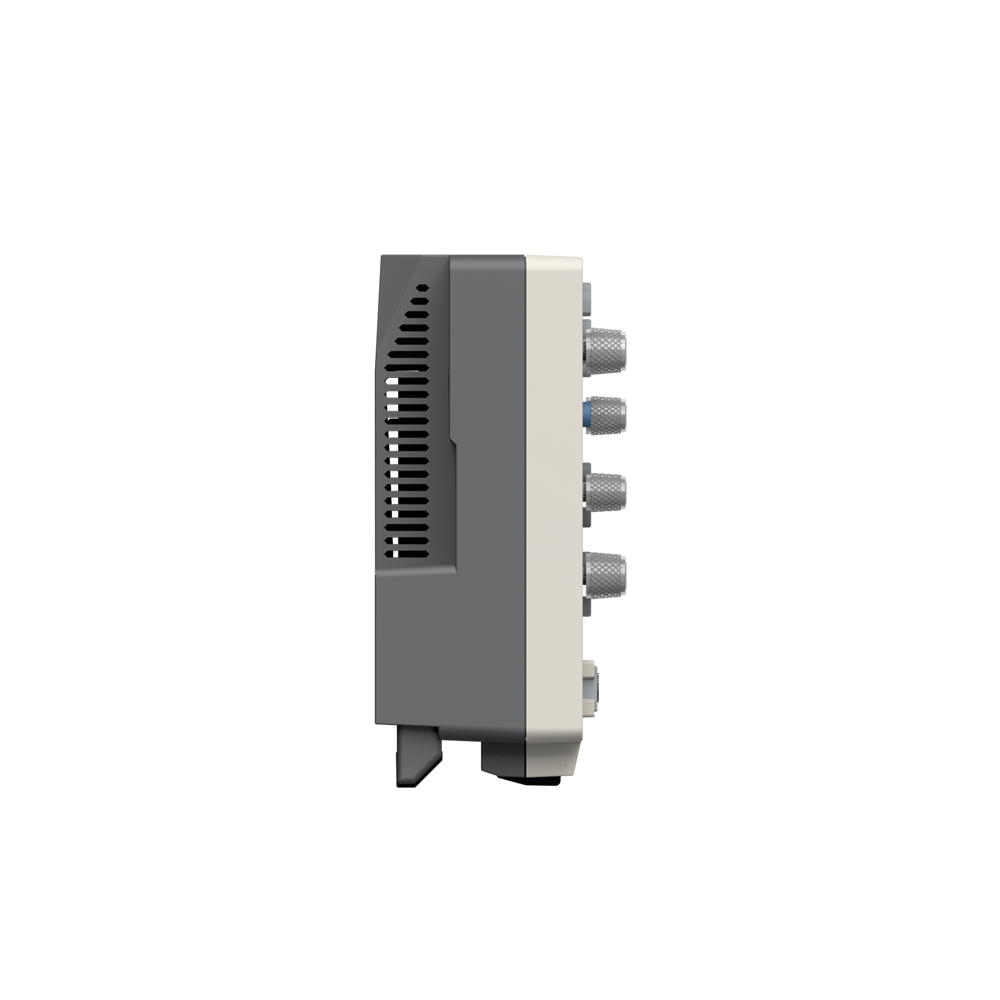

Human-machine Interaction and Design

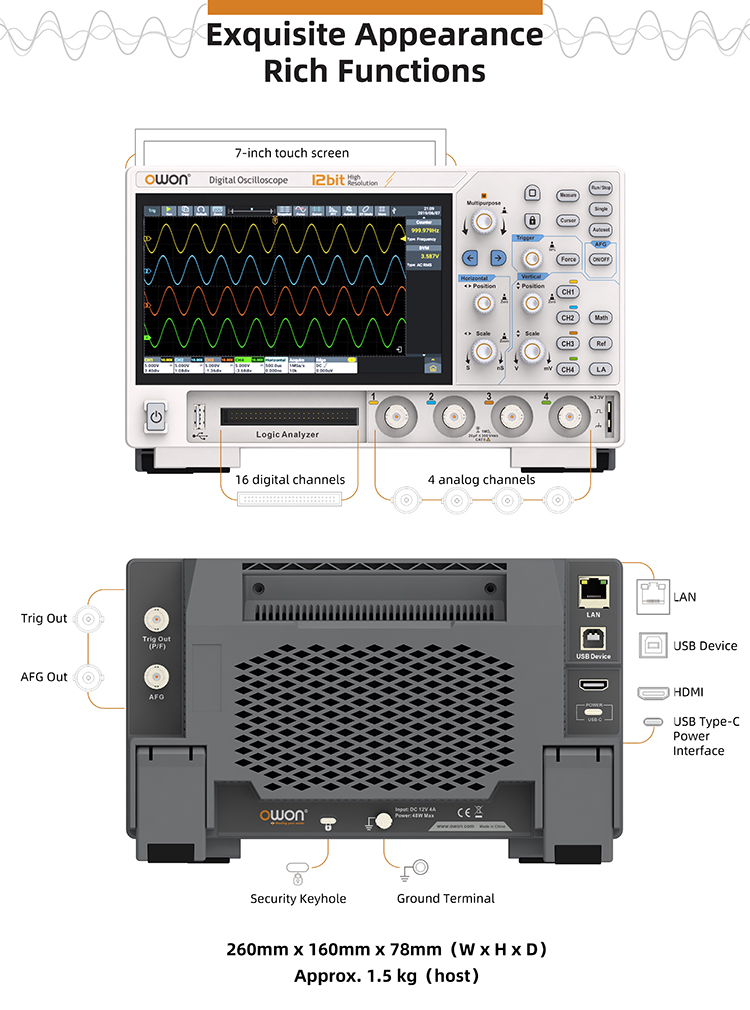

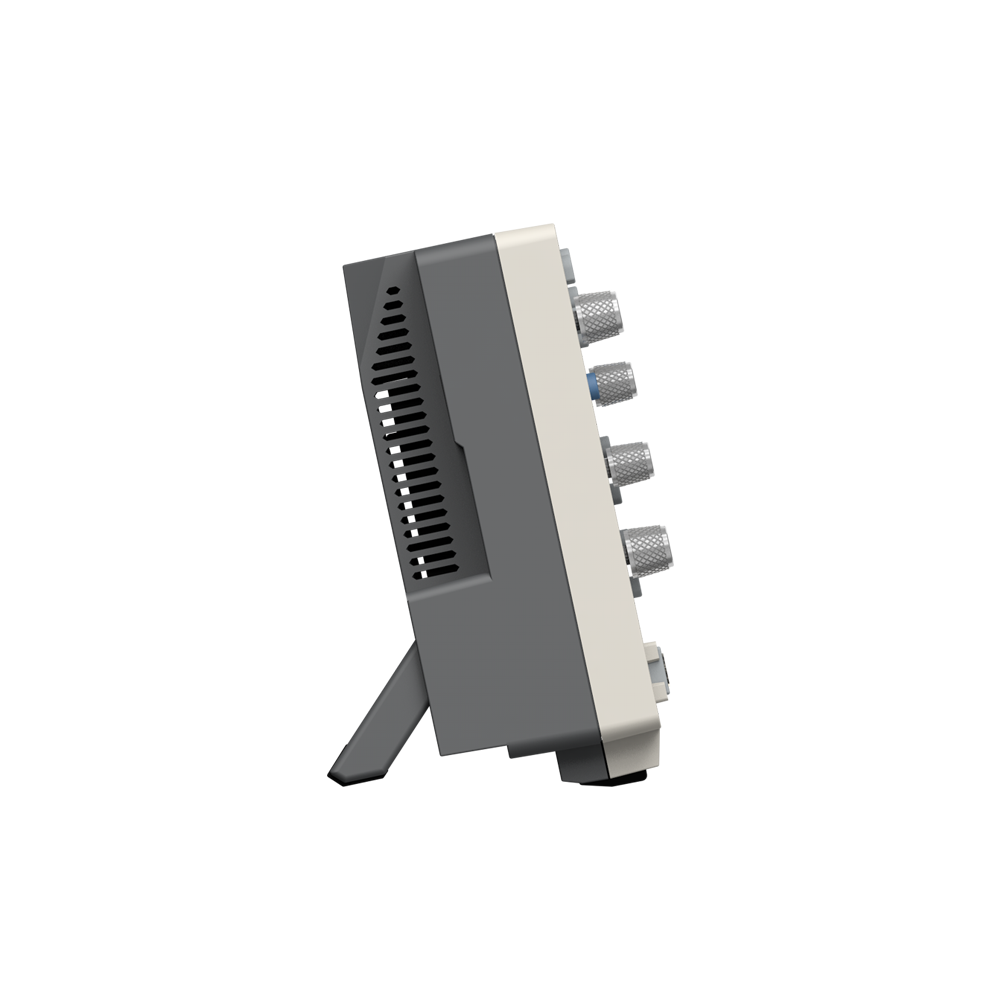

+ Ultra-thin design saving valuable workspace.
+ 7-inch touchscreen with multi-touch support for an enhanced interactive experience.
+ Multi-touch gestures, and customizable shortcuts for easier use.
Send Inquiry
Product Details





Specifications

Model

ADS912A

ADS922A

ADS914A

ADS924A

Bandwidth(-3 dB)

125MHz

250MHz

125MHz

250MHz

Channel

2

4

Max. sample rate

2GSa/s(single-channel)1GSa/s (dual-channel) 500MSa/s(full-channel)

Acquire mode

Sample, Peak, High Res, Average,

Segmentation

DC Gain Accuracy

3%(≤1 mV),

2%(≥2 mV)

Max. waveform capture rate

Max. 700,000wfms/s

Max memory depth

100M

Vertical Sensitivity Range

200μV/div~10 V/div

Vertical resolution

12bits

Sampling rate range

1ns/div - 1000s/div,step by 1-2-5

Relay time accuracy

±25 ppm (typical)

Input Impedance

1 MΩ±2%, parallel with20 pF±5 pF

Probe Attenuation Coefficient

1.00μX-1M.00X,step by 1-2-5, support custom

Trigger type

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I2C, SPI CAN, LIN

Bus decoding

RS232/UART, I2C, SPI, CAN, LIN

Auto measurement

Period, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty,-Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(A↑-B↑), Delay(A↑-B↓), Delay(A↓-B↑), Delay(A↓-B↓), Phase(A↑-B↑),
Phase(A↑-B↓), Phase(A↓-B↑), Phase(A↓-B↓),FRR(A↑-B↑),FRF(A↑-B↓),
FFR(A↓-B↑), FFF(A↓-B↓), LRR(A↑-B↑), LRF(A↑-B↓), LFR(A↓-B↑),LFF(A↓-B↓)

Waveform Math

+, -, *, /, &&, ||, ^, !, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT rms, User Defined, digital filter (low pass, high pass, band pass, band reject)

Frequency counter

6-digit frequency counter,

Maximum frequency: maximum analog bandwidth of oscilloscope

Voltmeter

Support DC, AC+DCrms, ACrms, Resolution: 4 digits (ACV/DCV)

Arb Waveform Generator (optional)Specification

Max frequency output

30MHz single

Sample rate

160MSa/s

Standard waveform

Sine, Square, Ramp, Pulse, Noise

Arbitrary waveform

28 built-in waveforms

Vertical resolution

14 bits

Arb waveform

1μHz ~ 10MHz

Arb waveform length

2-8K points

Amplitude

2mVpp ~ 10Vpp , 1mVpp ~ 5Vpp (50 Ω)

Impedance

50Ω (type)

Modulation

AM, FM, PM, FSK

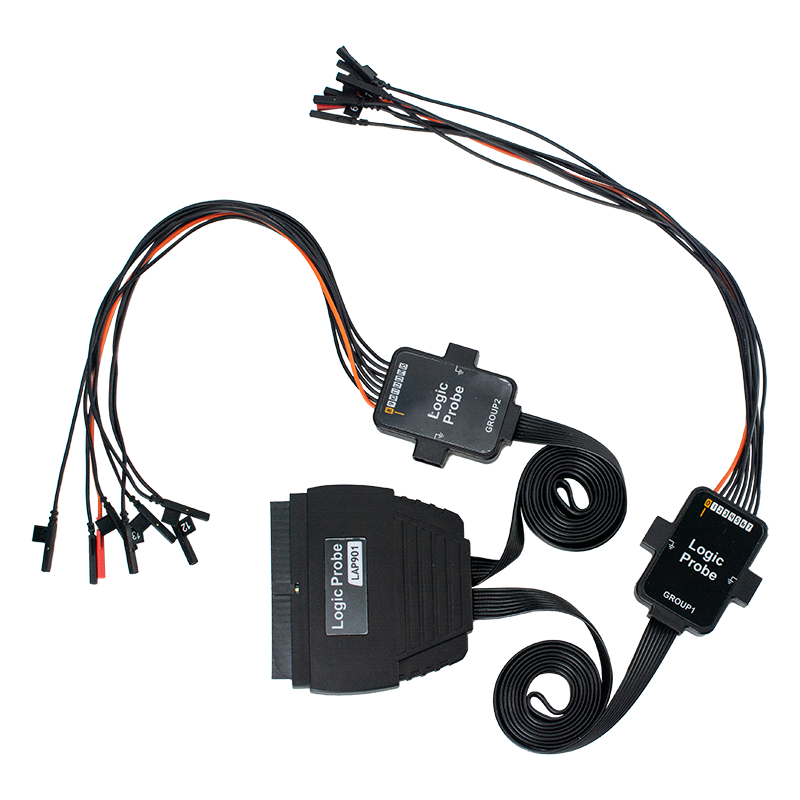

Logical analyzer(optional)Specification

Number of channels

16 input channels (D0-D15) (D0 to D7, D8 to D15)

Threshold Range

±20.0 V, 10 mV step

Max. input voltage

±40V peak CAT I, transient overvoltage 800Vpk

Minimum voltage swing

500mVpp

Input Impedance

100kΩ, 8 pF

Max. Input dynamic range

±30 V+ threshold

Vertical resolution

1 bit

Other

Communication Interface

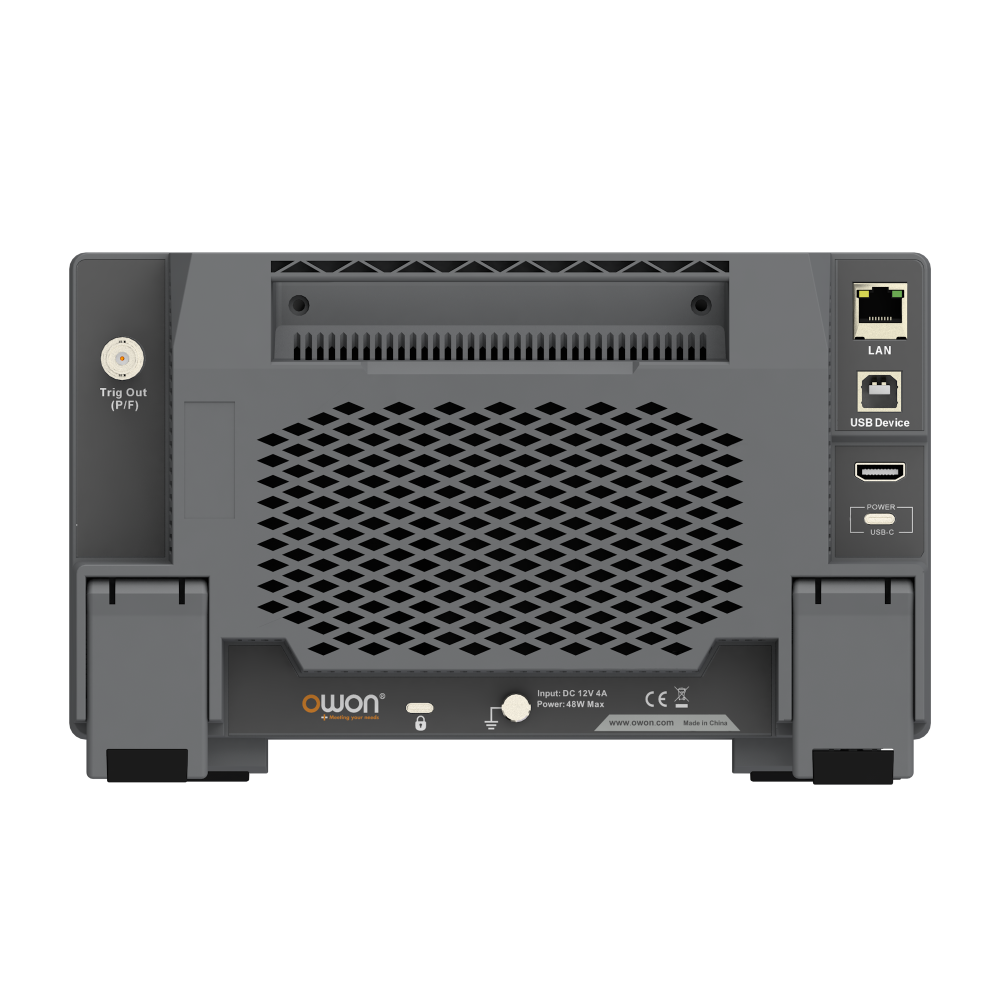

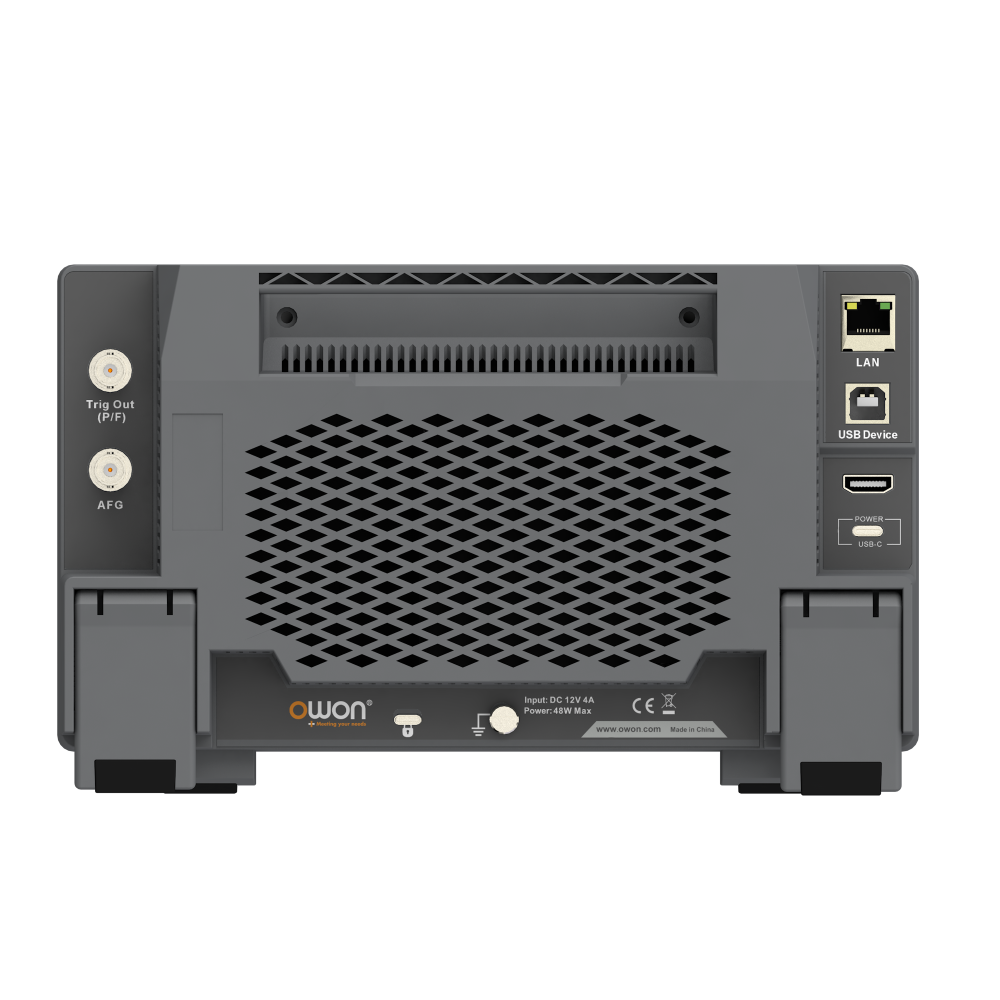

HDMI,USB device,USB Host,Trig Out(P/F),LAN

Display

7 inch(1024×600),capacitive multi-touch screen

Power supply interface

Type-C [1]

Dimension (W x H x D)

260mm x 160mm x 78mm

Weight

≈1.5kg (package excluded)


[1] The external power bank must meet 12V/4A output.

Accessories

The accessories subject to final delivery.

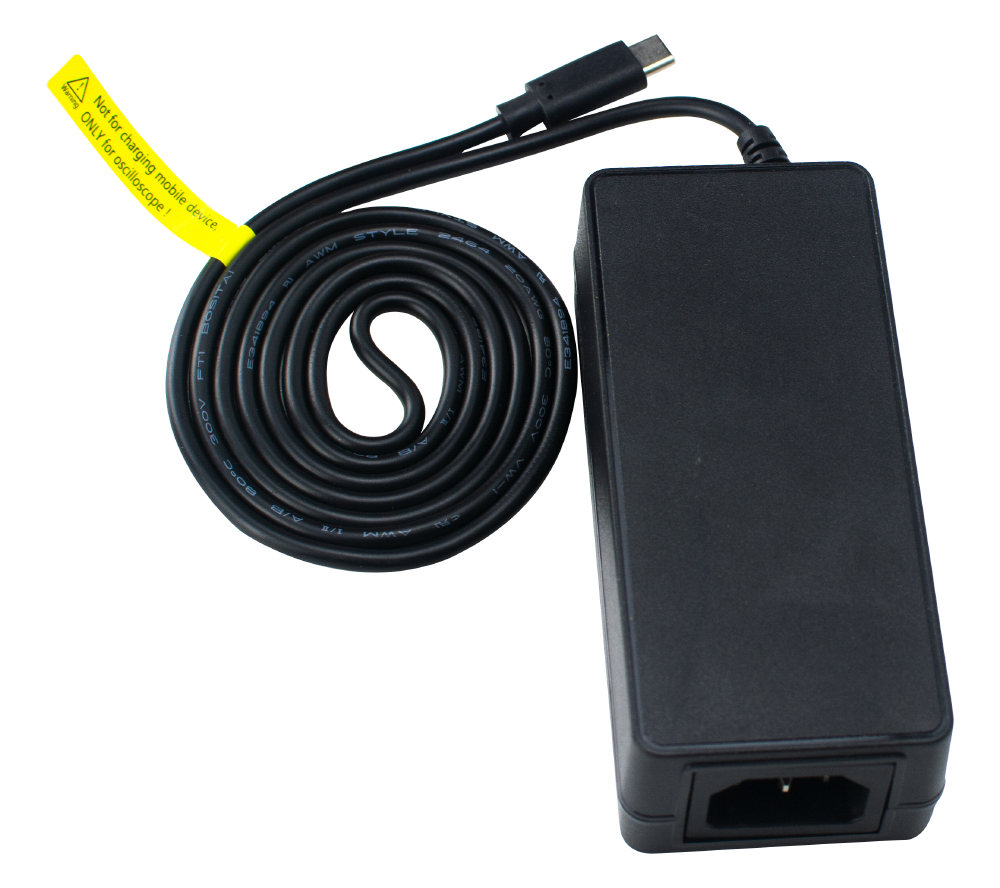

  • Adapter
  • Power Cord
  • Quick Guide
  • USB Cable
  • Probe
  • Q9 (optoinal)
