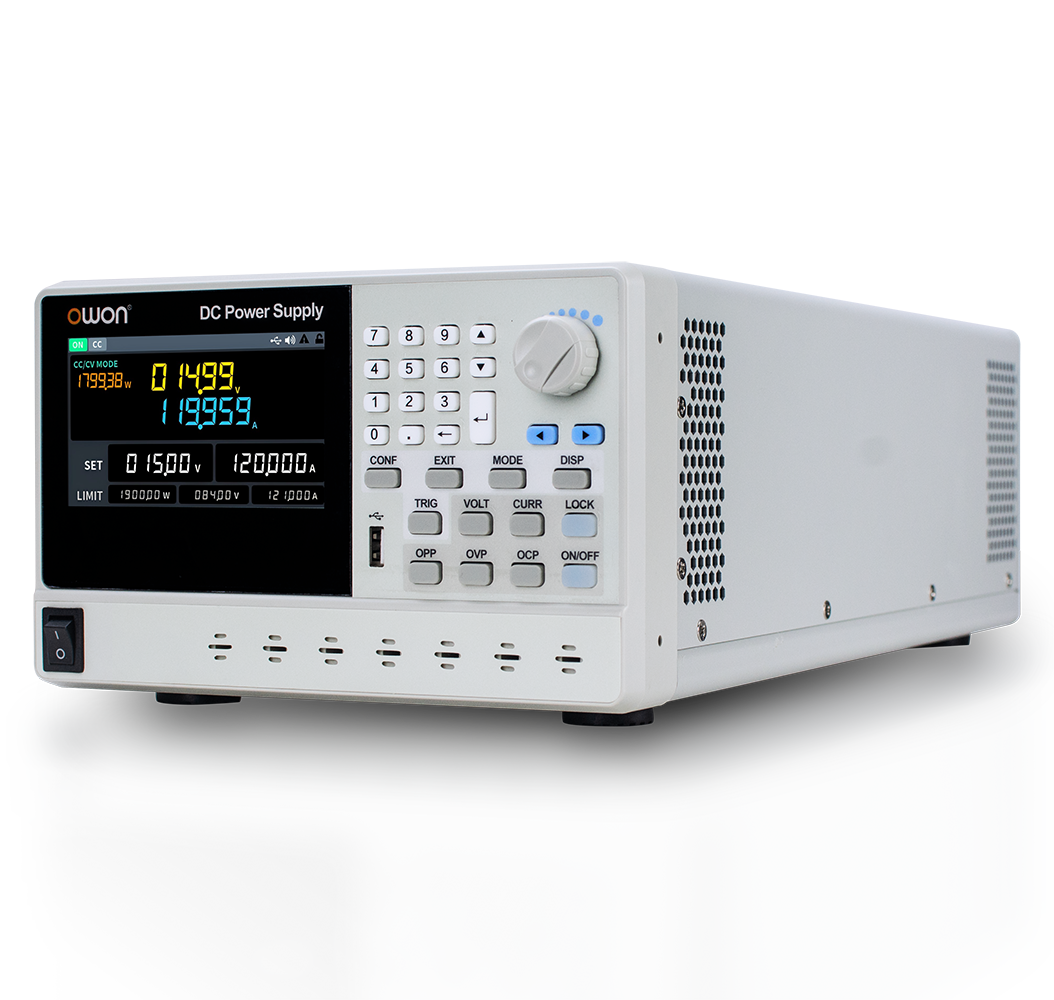

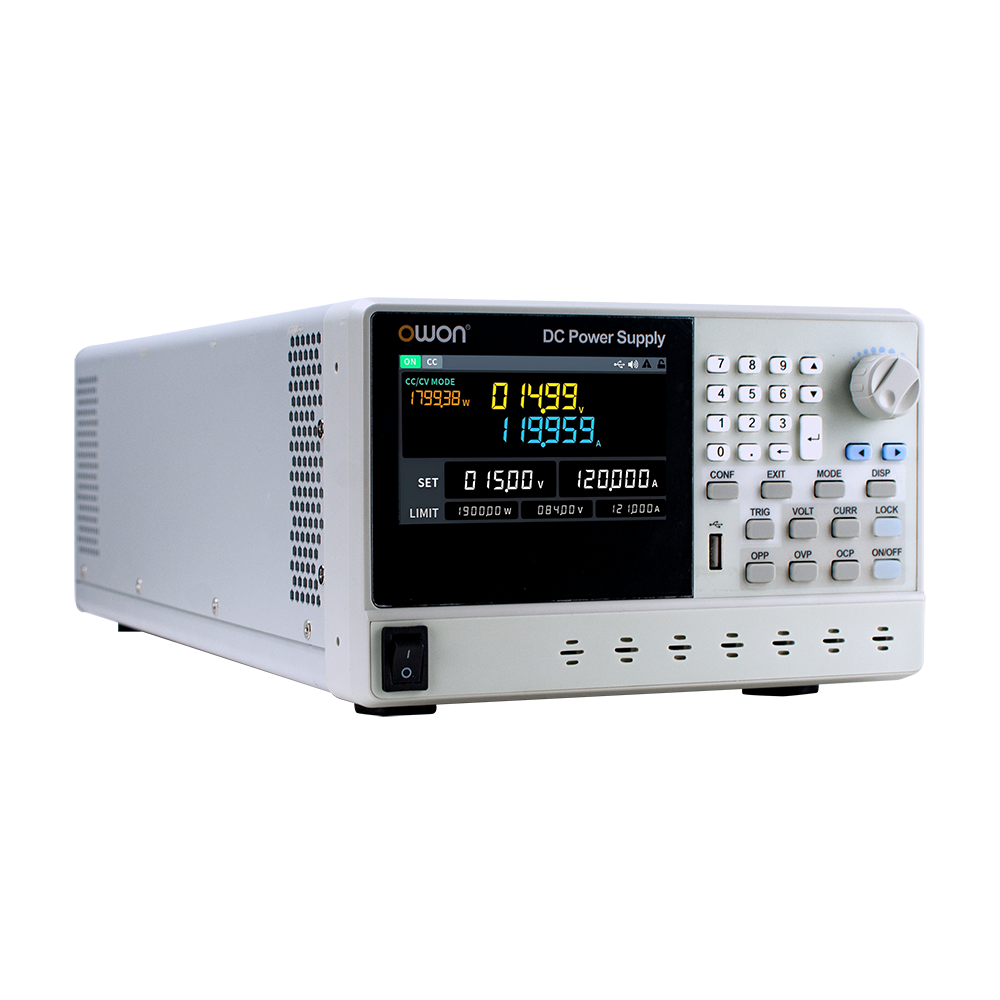

OWH80 Series DC Power Supply
+ 1/2 3U rack cabinet size, suitable for installation in standard 19-inch racks
+ High-Performance Power: 1800W/2000W output with 0.05% accuracy.
Provides massive 80V voltage and current up to 120A.
+ High setting/readback resolution: 10mV/1mA
+ CV/CC priority setting
+ Built-in bleed circuit to ensure no residual high voltage at shutdown
+ 3-inch TFT LCD color screen display with curve output and online 1-minute data logging
+ Full digital control integrated with OVP, OCP, OPPprotection
+ Supports LAN, RS485, RS232 serial communication interfaces, and support SCPI
2 kW Wide-Range Output

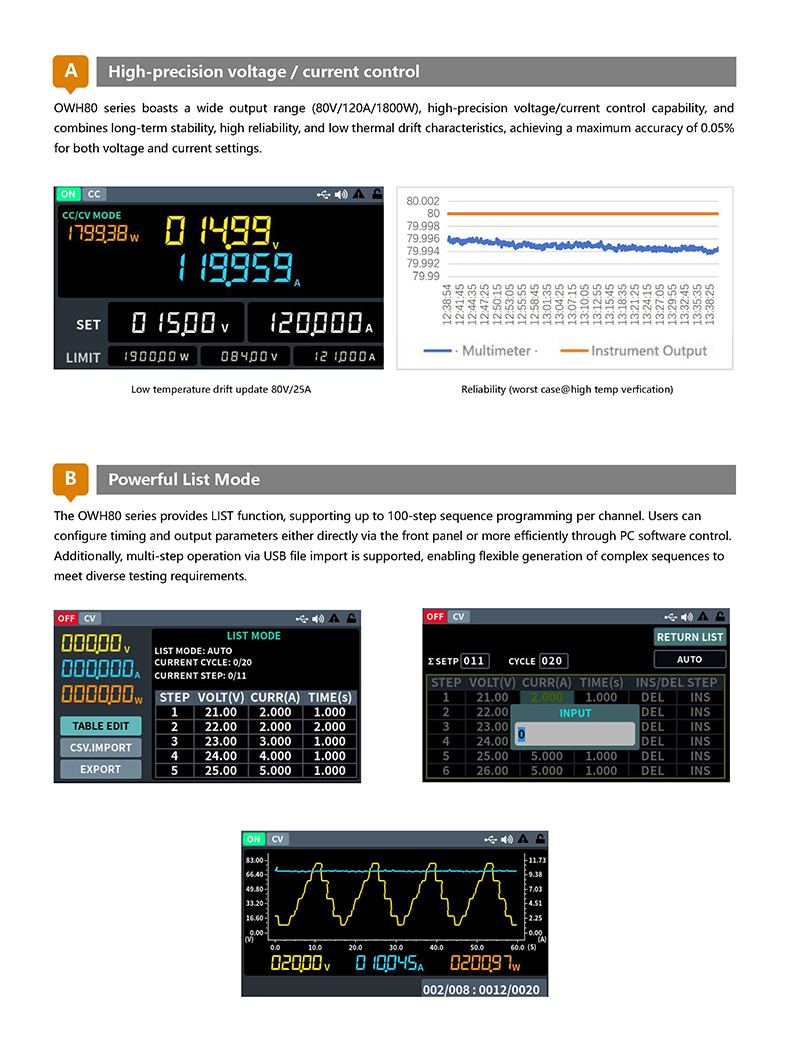

The series offers three configurations: 50 V/120 A, 80 V/120 A, and 80 V/80 A, with 1800 W or 2000 W output power for high-voltage and high-current testing.

0.05% Accuracy with Fast Response
Features 10 mV/1 mA setting and readback resolution, voltage setting accuracy of ≤0.05% ± 40 mV, and voltage ripple of ≤100 mVp-p. Long-term stability, low thermal drift, and high reliability ensure stable output for precision testing.

100-Step LIST Sequencing
Supports up to 100 programmable steps with adjustable voltage, current, and dwell time. CSV import and export simplify the creation and reuse of complex test sequences.

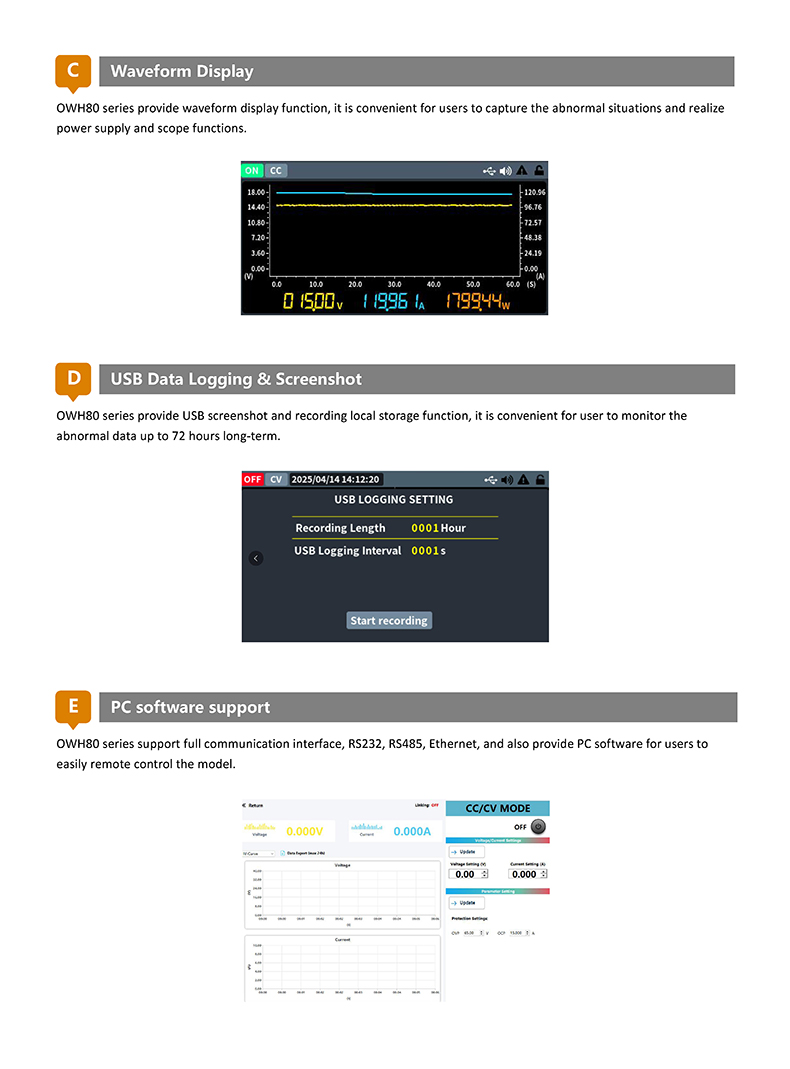

Real-Time Waveforms and 72-Hour Logging
Displays dynamic voltage and current waveforms in real time, combining power supply and oscilloscope functionality. Supports USB screenshot capture and up to 72 hours of local data logging to help capture intermittent anomalies.

CV/CC Priority and Multiple Protections
Switch between CV and CC priority modes to suit different load characteristics. A built-in bleeder circuit and OVP, OCP, and OPP protections help reduce residual high voltage after shutdown.

Remote Control via PC Software
PC software supports remote monitoring, parameter configuration, output control, and data logging, simplifying complex control and management tasks for more efficient testing.

Versatile Interfaces for Easy System Integration

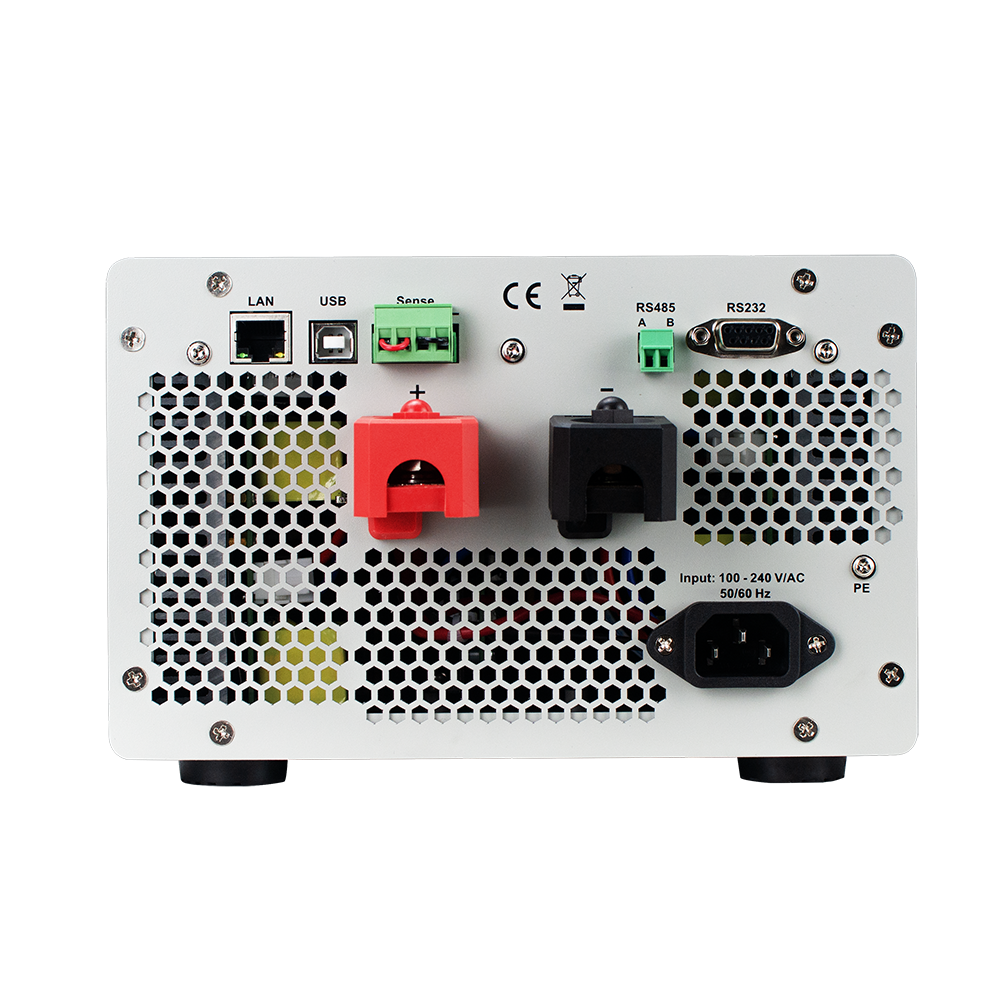

USB Host, USB Device, LAN, RS485, and RS232 interfaces support SCPI commands and connect to computers or automated test systems for remote communication and system integration.

The instrument must be operated continuously for more than 30 minutes at the specified operating temperature to achieve the following specifications
|
Model |
OWH80120-1800 |
OWH50120-1800 |
OWH8080-2000 |
|
|
Channel |
1 |
1 |
1 |
|
|
Rated output (0℃-40℃) |
Voltage |
0 - 80V |
0 -50V |
0-80V |
|
Current |
0 -120A |
0-120A |
0-80A |
|
|
Power |
1800W |
1800W |
2000W |
|
|
Input power |
198V-240Vac*;45Hz-65Hz |
|||
|
Load regulation (%of output+offset) |
CV |
≤0.03% + 20mV |
≤0.03% + 20mV |
≤0.03% + 20mV |
|
CC |
≤0.05% + 30mA |
≤0.05% + 30mA |
≤0.05% + 30mA |
|
|
Input power regulation (%of output+offset) |
CV |
≤0.03% + 20mV |
≤0.03% + 20mV |
≤0.05% + 20mV |
|
CC |
≤0.05% + 30mA |
≤0.05% + 30mA |
≤0.05% + 30mA |
|
|
Setting resolution |
10mV/1mA |
|||
|
Readback resolution |
1mV/1mA |
|||
|
Setting accuracy |
Voltage |
≤0.05% ± 40mV |
≤0.05% ± 40mV |
≤0.05% ± 40mV |
|
Current |
≤0.1% ± 0.1%FS |
≤0.1% ± 0.1%FS |
≤0.1% ± 0.1%FS |
|
|
Readback accuracy |
Voltage |
≤0.05% ± 40mV |
≤0.05% ± 40mV |
≤0.05% ± 40mV |
|
Current |
≤0.1% ± 0.1%FS |
≤0.1% ± 0.1%FS |
≤0.1% ± 0.1%FS |
|
|
Ripple noise |
Voltage |
≤100mVp-p |
≤100mVp-p |
≤100mVp-p |
|
Current |
≤100mArms |
≤100mArms |
≤120mArms |
|
|
Output temp drift coefficient (0℃-40℃) |
100ppm/℃(Voltage);200ppm/℃(Current) |
|||
|
Readback temp drift |
100ppm/℃(Voltage);200ppm/℃(Current) |
|||
|
Transient response (10%-90% rated load) |
≤5.0ms |
|||
|
Working temperature |
0-40℃ |
|||
|
Display |
USB, LAN, RS485,RS232 |
|||
|
Interface |
4.3-inch TFT LCD screen |
|||
|
Dimension(W*H*Dmm) |
215.0 x 133.0 x 446.2 |
|||
|
Weight (kg) |
Approx. 6kg |
|||
*:Input voltage: 100-120Vac, output power reduced by half.
