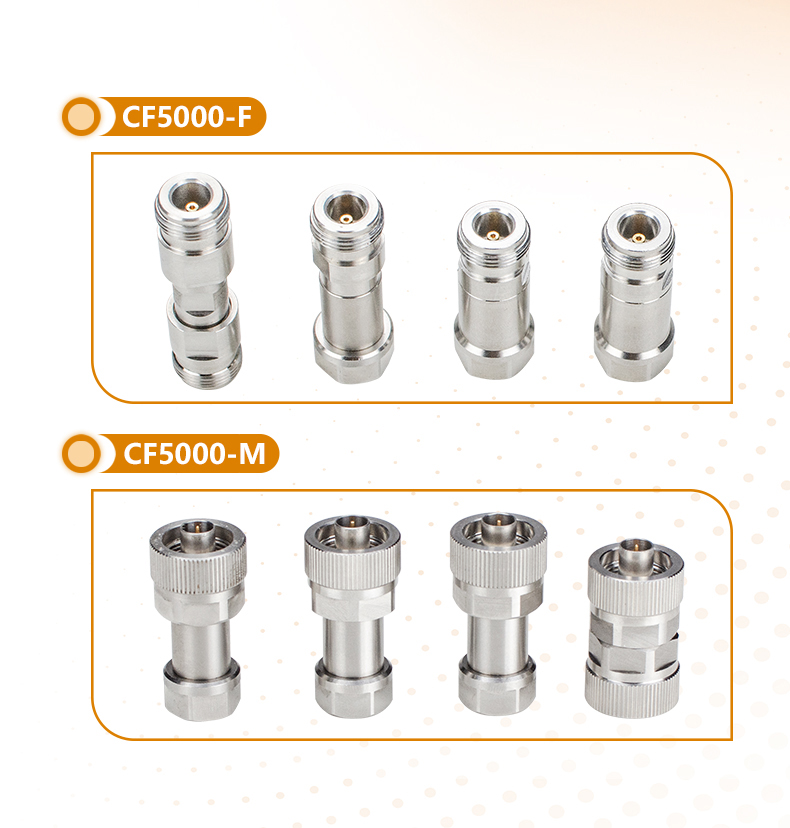

CF5000 Series Network Analyzer Calibration Kit
+ This calibration kit is designed for measurement applications involving components with N-type connectors.
+ The kit can be used with the correction parameters of the 85032F standard.
E-mail Us
Main Specifications
|
Model |
CF5506-F |
CF5509-F |
CF5506-M |
CF5509-M |
|
Connector Type |
N type（Female） |
N type（Female） |
||
|
Frequency Range |
DC～6GHz |
DC～9GHz |
DC～6GHz |
DC～9GHz |
|
Characteristic Impedance |
50Ω |
|||
|
Average Power |
≤0.5W |
|||
|
Mating Cycles |
＞500 times |
|||
|
Mating Torque |
0.9Nm |
|||
|
Operating Temperature |
15℃～35℃ |
|||
|
Storage Temperature |
﹣40℃～75℃ |
|||
Main Materials
|
Inner Conductor |
Beryllium Bronze, Silicon Bronze, Gold-plated |
|
Outer Conductor |
Stainless Steel, Gold-plated |
|
Body |
Stainless Steel |
Technical Specifications
|
Model |
Component |
Electrical Specifications |
Dimensions（mm） |
|
CF5506-F N Type（Female） |
Open Termination |
Phase Deviation≤±2° |
50*18 (L*D) |
|
Short Termination |
|||
|
Load Termination |
VSWR≤1.03 |
||
|
CF5509-F N type（Female） |
Open Termination |
Phase Deviation≤±2° |
50*18 (L*D) |
|
Short Termination |
|||
|
Load Termination |
VSWR≤1.04 |
||
|

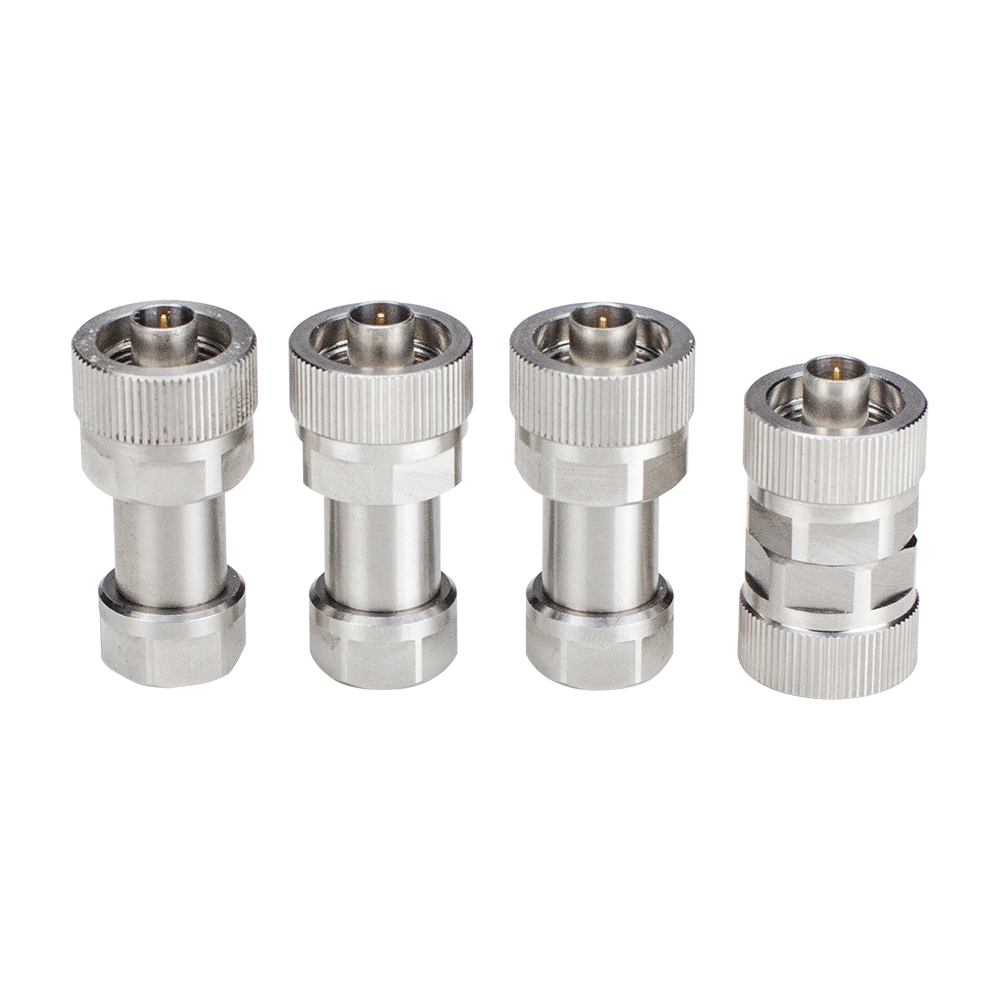

CF5506-M N type（Male） |
Open Termination |
Phase Deviation≤±2° |
46*22 (L*D) |
|
Short Termination |
|||
|
Load Termination |
VSWR≤1.03 |
||
|
CF5509-M N type（Male） |
Open Termination |
Phase Deviation≤±2° |
46*22 (L*D) |
|
Short Termination |
|||
|
Load Termination |
VSWR≤1.04 |
