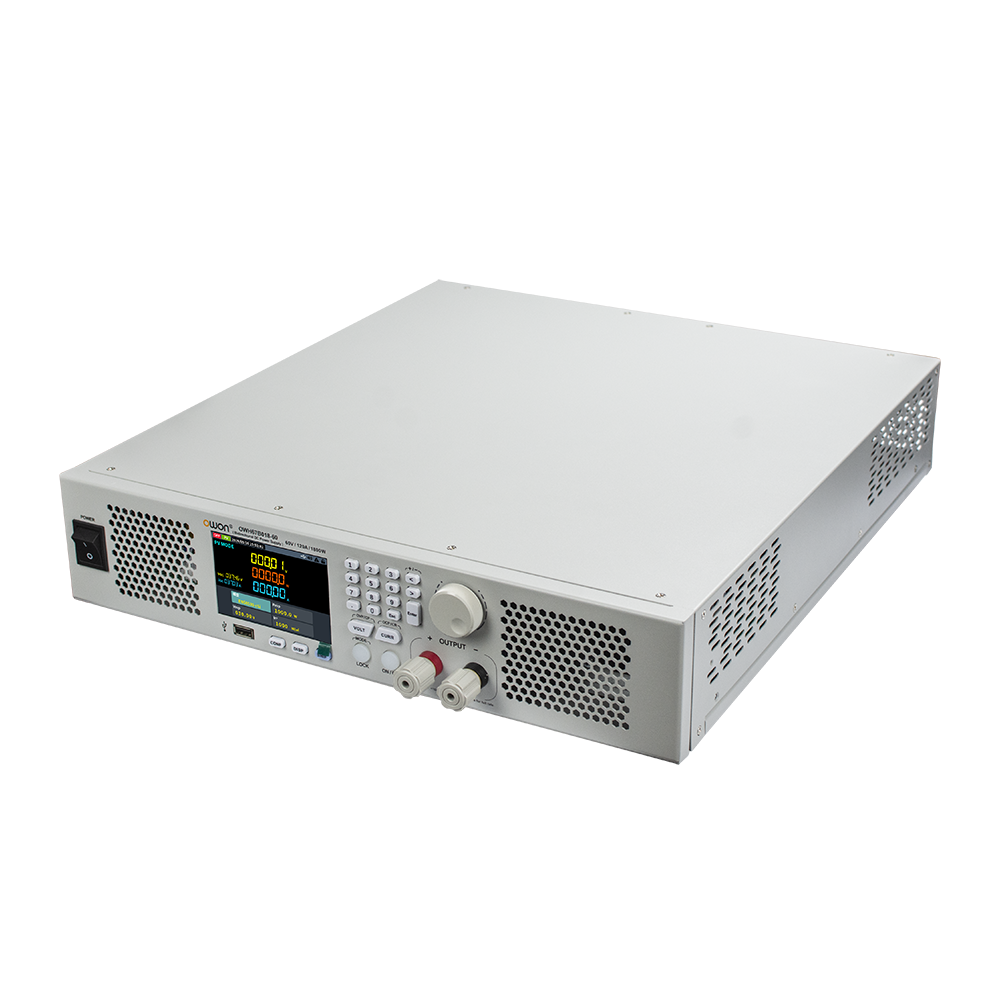

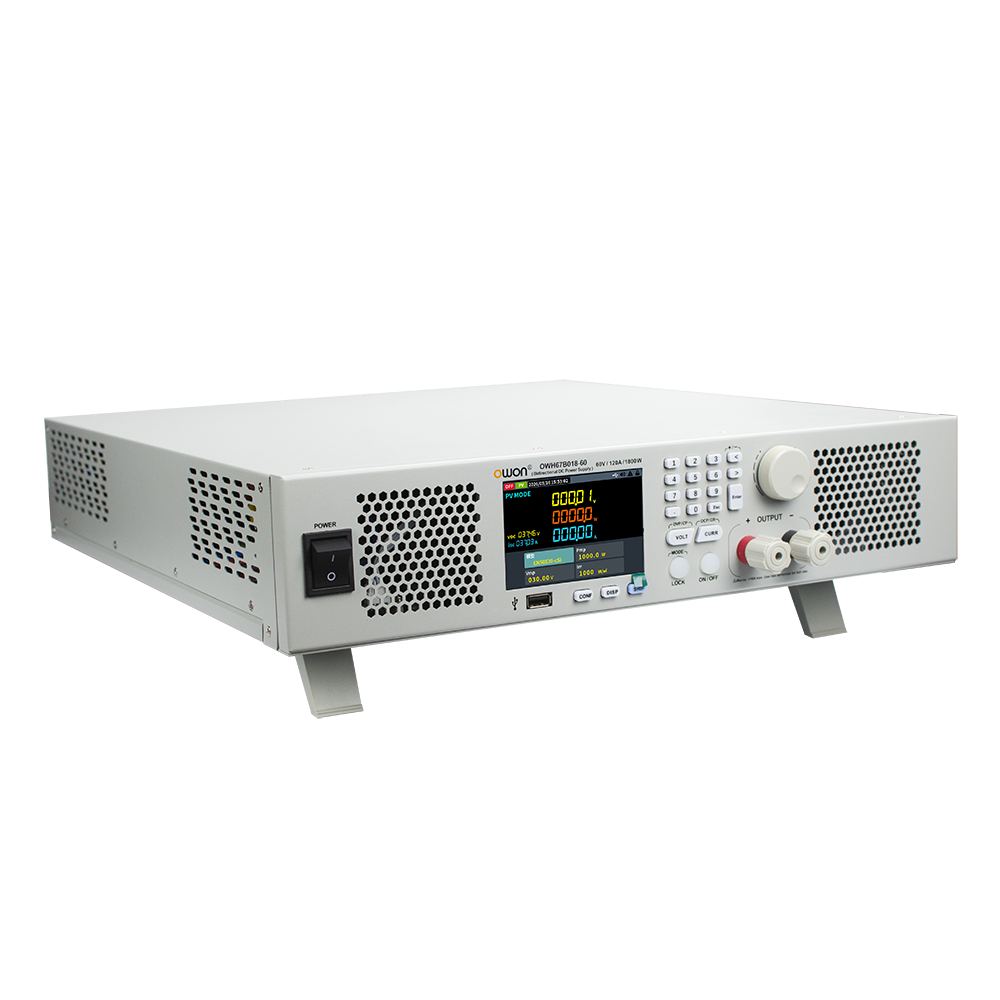

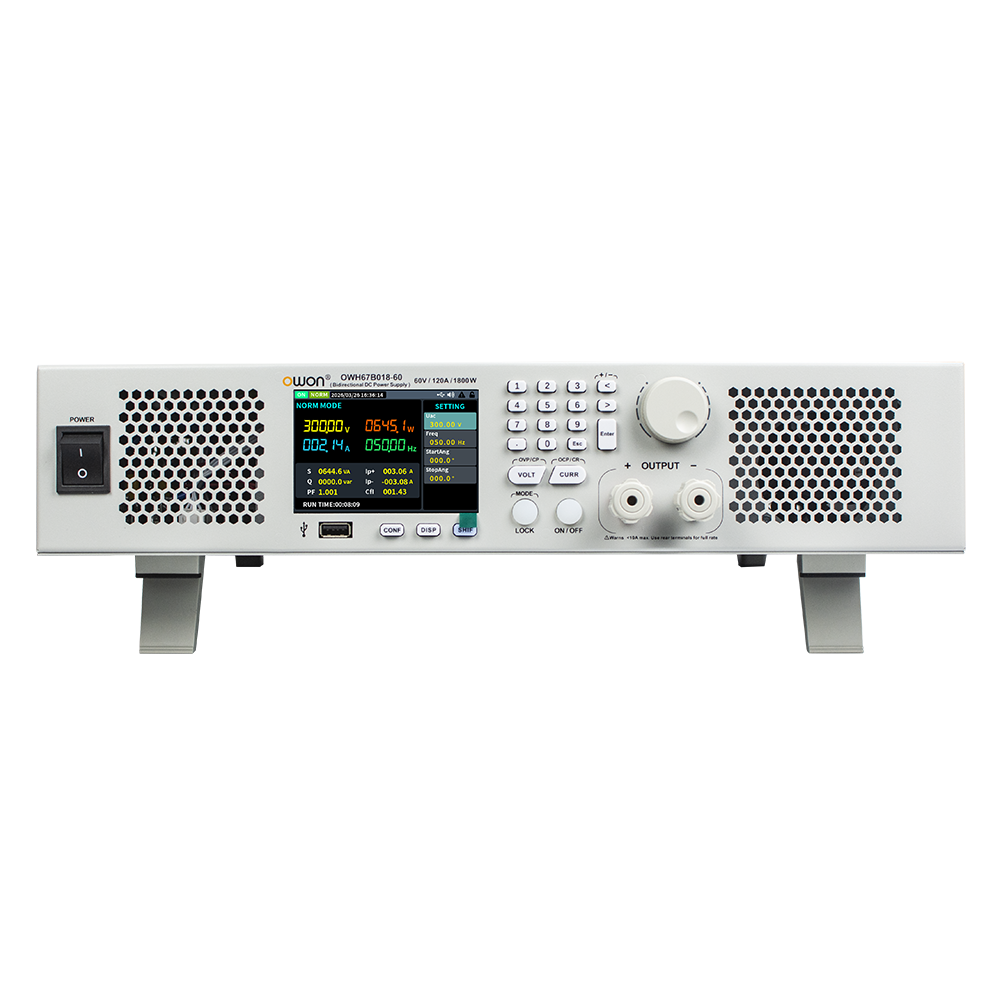

OWH67B Series Bidirectional Programmable DC Power Supply

+ Source/load integrated architecture, Source mode( CC/ CV / CP ) Load mode ( CC / CV / CR / CP )
+ 2U rack-mounted structure, compliant with standard 19-inch cabinet installation
+ Bidirectional power architecture, seamless switching between source and load modes
+ High-precision output (0.05%), supporting a wide power range up to 60V / ±120A / ±1800W
+ Supports battery simulation: built-in 7 high-fidelity battery characteristic models
+ Built-in bleed circuit to ensure no residual high voltage at shutdown
+ Built-in photovoltaic simulation function, supporting SAS models such as EN50530 and Sandia
+ High setting/readback resolution: 10mV/10mA
+ Full digital control integrated with OVP, OCP, OPP protection
+ Supports LAN, RS485, USB communication interfaces, and support SCPI

Send Inquiry
Product Details

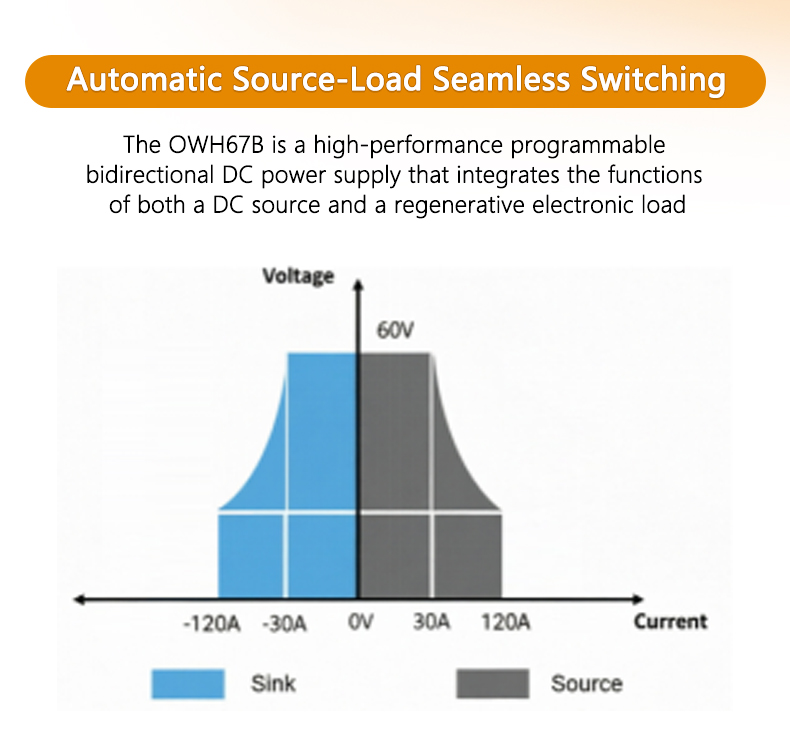

Integrated Source and Load with One-Touch Switching

The OWH67B integrates a bidirectional DC power supply and regenerative DC electronic load in one unit. Source mode supports CC, CV, and CP, while load mode supports CC, CV, CR, and CP. Switch between modes seamlessly with the Mode Select key.

89%+ Energy Regeneration for Lower Test Costs

With regenerative efficiency exceeding 89%, absorbed load energy is fed back to the grid, reducing heat output and cooling requirements to lower energy costs in high-power testing.

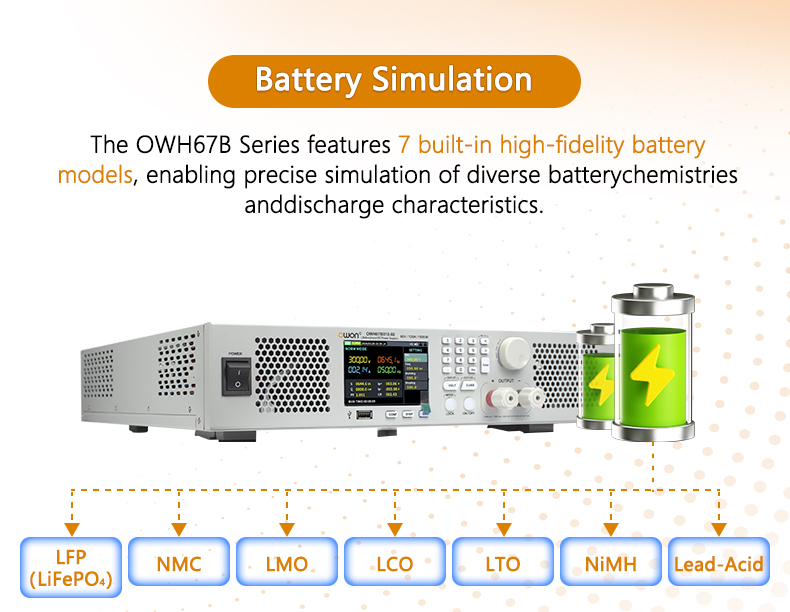

High-Fidelity Battery Simulation

Seven built-in battery models combine equivalent-circuit, SOC-OCV curve, and dynamic RC network algorithms to reproduce the charge and discharge characteristics of different battery types, simplifying battery and energy-storage product testing.

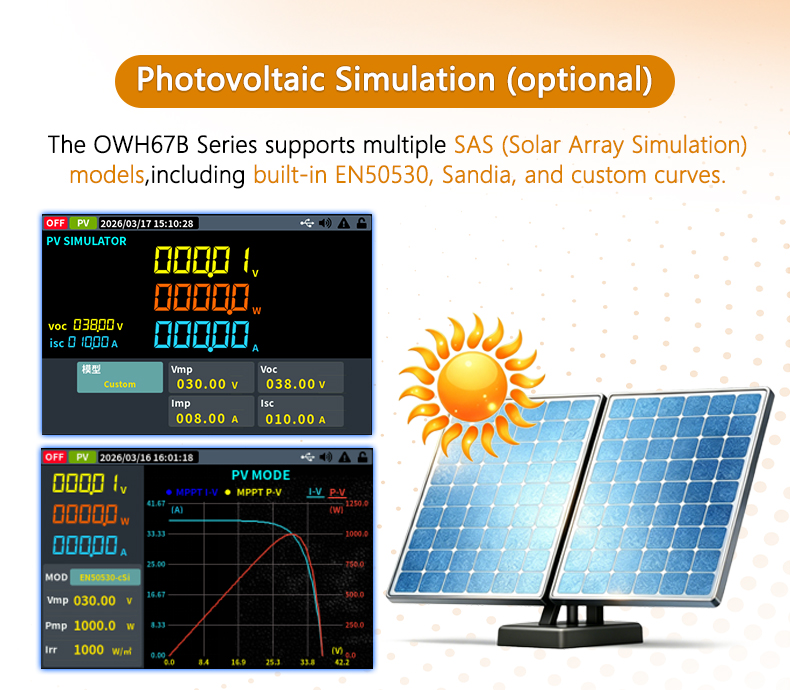

PV Simulation and MPPT Testing

The -S models support EN 50530, Sandia, and user-defined SAS curves for simulating PV module output characteristics. Optional software enables multi-unit MPPT tracking tests.

Wide-Range, High-Accuracy Bidirectional Output

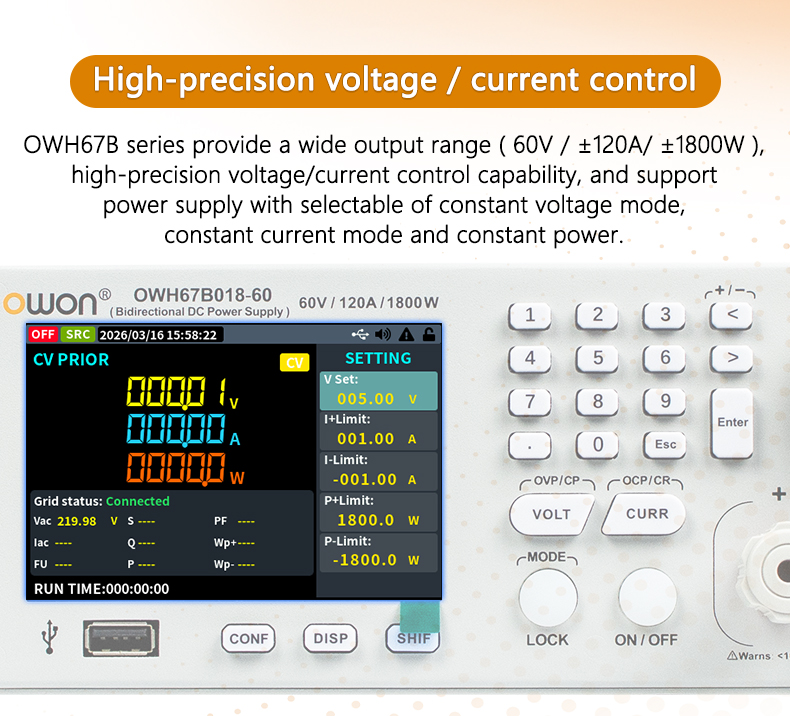

Delivers wide-range output up to 60 V, ±120 A, and ±1800 W with 0.05% control accuracy for stable, precise power. CV, CC, and CP modes support a wide range of precision power and test applications.

LIST Sequencing and Dynamic Monitoring

Supports up to 100 programmable output steps, configured from the front panel, PC software, or a CSV file imported via USB. Displays voltage and current readback curves for the latest 60 seconds and supports screenshot capture, data logging, and file management.

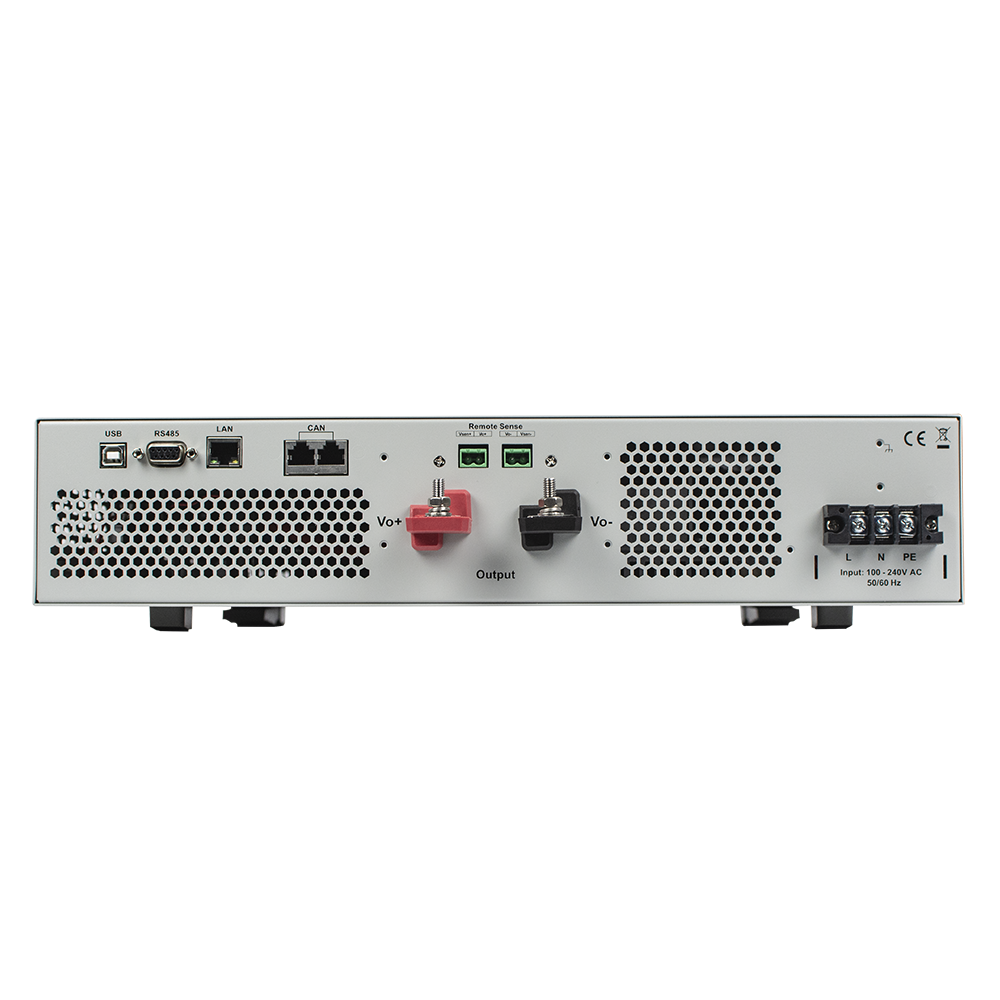

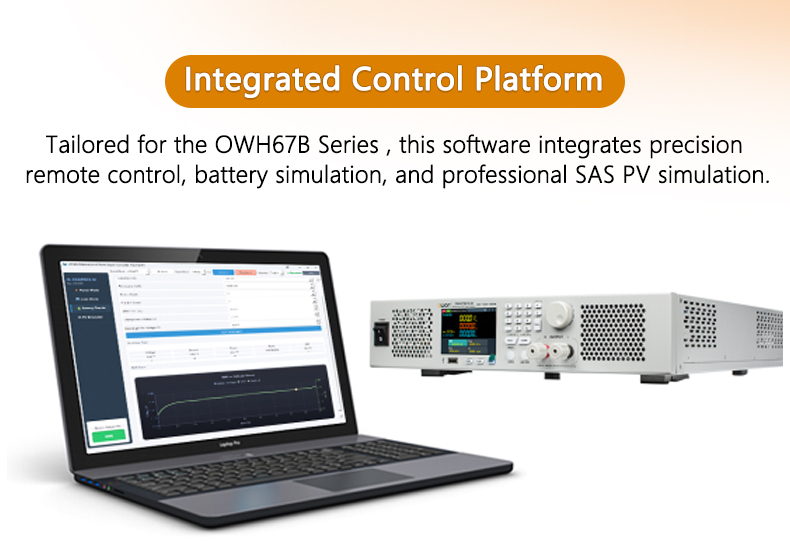

Safe Connectivity and Automated Control

Built-in OVP, OCP, OPP, and other protections ensure safe operation. Standard USB Device, USB Host, LAN, and RS485 interfaces support SCPI commands and enable remote configuration and centralized control via PC software.

Specifications

The instrument must be operated continuously for more than 30 minutes at the specified operating temperature to achieve the following specifications

Model

OWH67B018-60

Rate Output

(0℃-40℃)

Output voltage

0 - 60V

Output current

-120A ~120A

Output power

-1.8kW-1.8kW

Input

Volt/freq./Curr

100V-240Vac;45Hz-65Hz;13Arms Max

Load regulation (%of output+offset)[1]

CV

≤0.03% +0.03%FS

CC

≤0.05% +0.05%FS

Line regulation (%of output+offset)

CV

≤0.03% +0.03%FS

CC

≤0.05% +0.05%FS

Setting resolution

Volt/Curr

10mV/10mA

Readback resolution

Volt/Curr

10mV/10mA

Setting accuracy

Voltage

≤0.05% +0.05%FS

Current

≤0.1% +0.1%FS

Readback accuracy

Voltage

≤0.05% +0.05%FS

Current

≤0.1% +0.1%FS

Noise &ripple[2]

Voltage/Current

≤80mVp-p(Voltage),

≤120mArms(Current )

Temperature drift

(0℃-40℃)

Voltage/Current

100ppm/℃(Voltage), 200ppm/℃(Current )

Dynamic (10%-90% rated load)

≤5.0ms

MOV

2.6V@120A

Working temperature

0-40℃

Display

3.95-inch TFT LCD

Interface

USB,LAN,RS485

Dimensions

428mm(W) x 88mm(H) x 446mm(D)

Weight

Approx. 12kg

  • Voltage regulation is measured at the output remote sense points.
  • 20MHz noise bandwidth; measured at the output terminals with a 10uF electrolytic capacitor and a 0.1µF ceramic capacitor in parallel across the output.

Support
Accessories


General Accessories


NameOrder Number
Quick Guide————

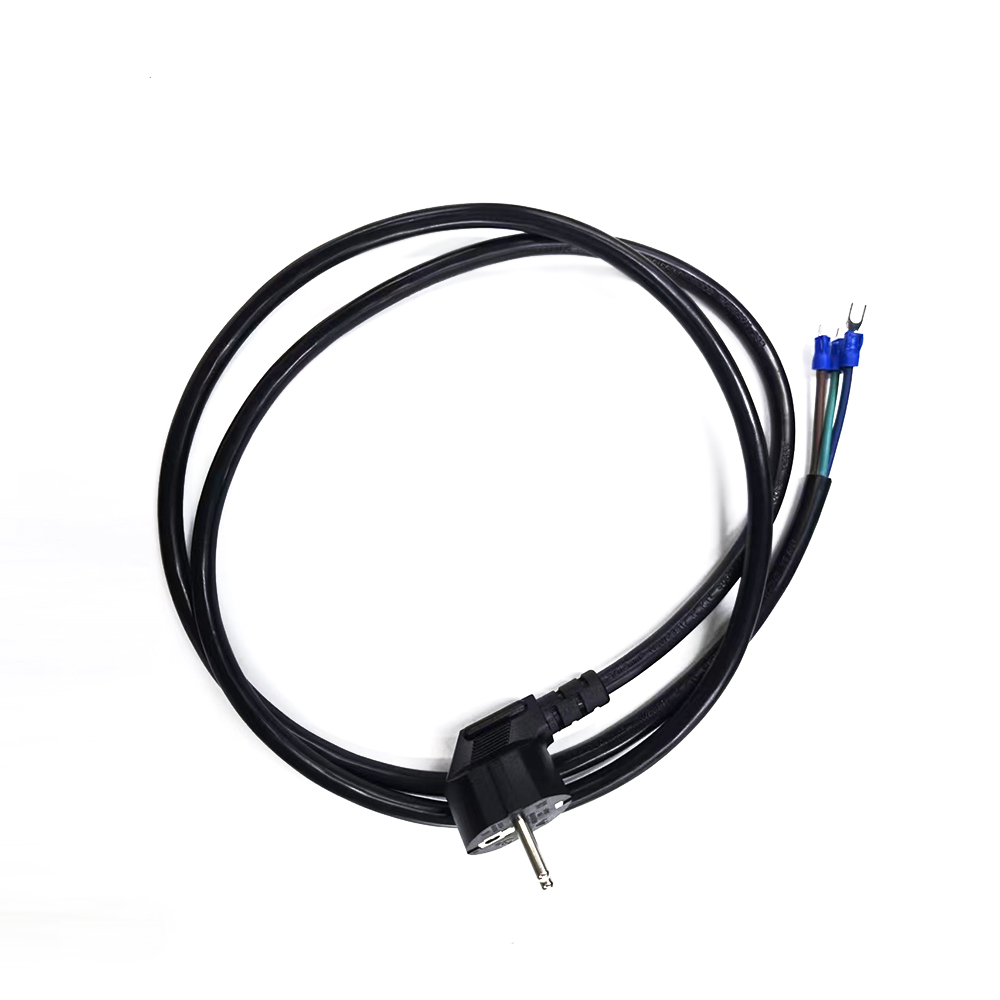

Power Cord7Power-1 / 7Power-4(EU)
Data Cable7ULD10

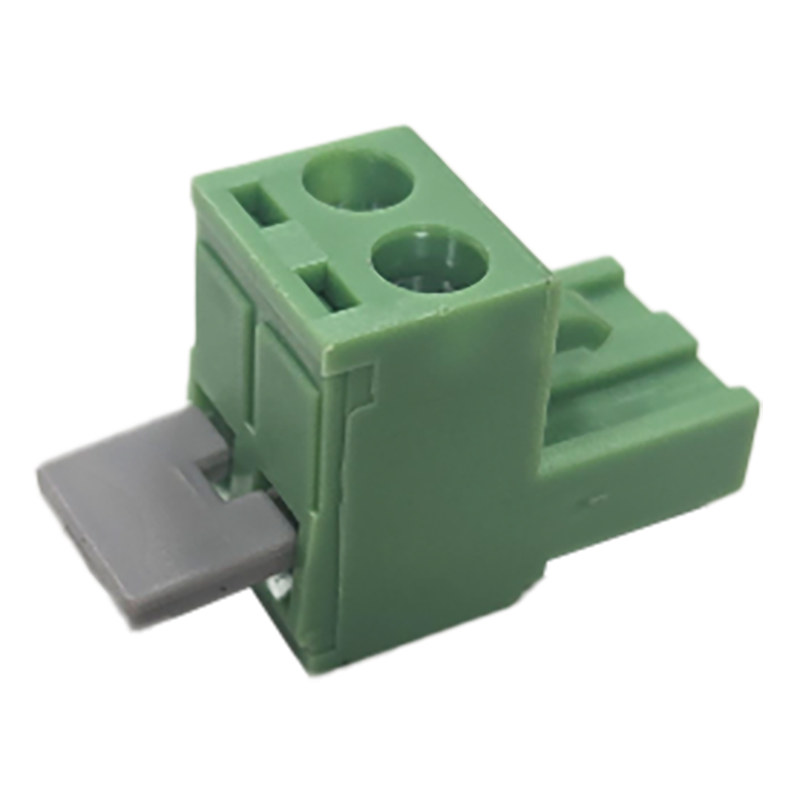

Remote Voltage Sense Terminals7Term-1

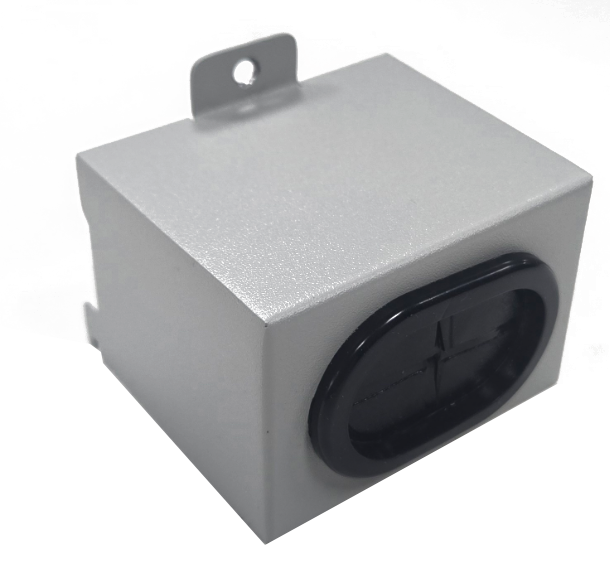

AC Terminal Protective Cover7cover-1


Optional Accessories


NameOrder Number

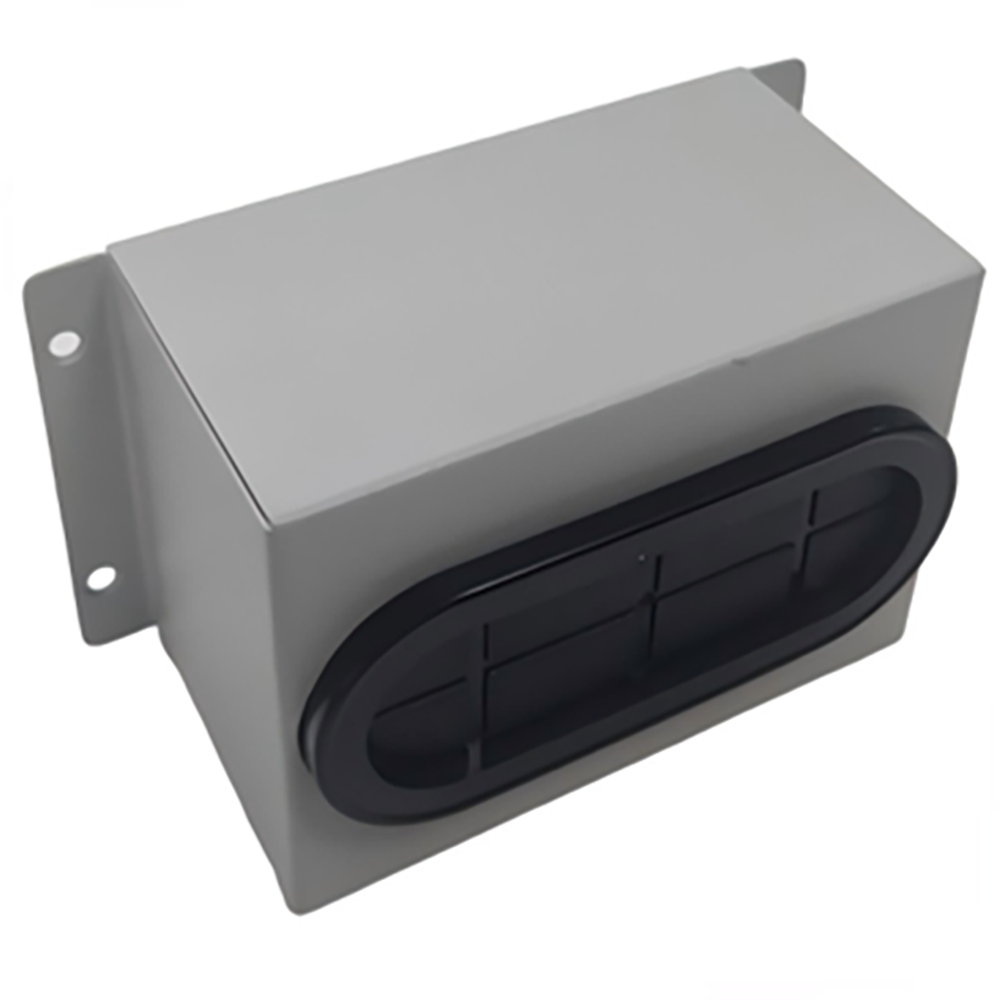

DC Terminal Protective Cover7cover-2
Handle7L-B
