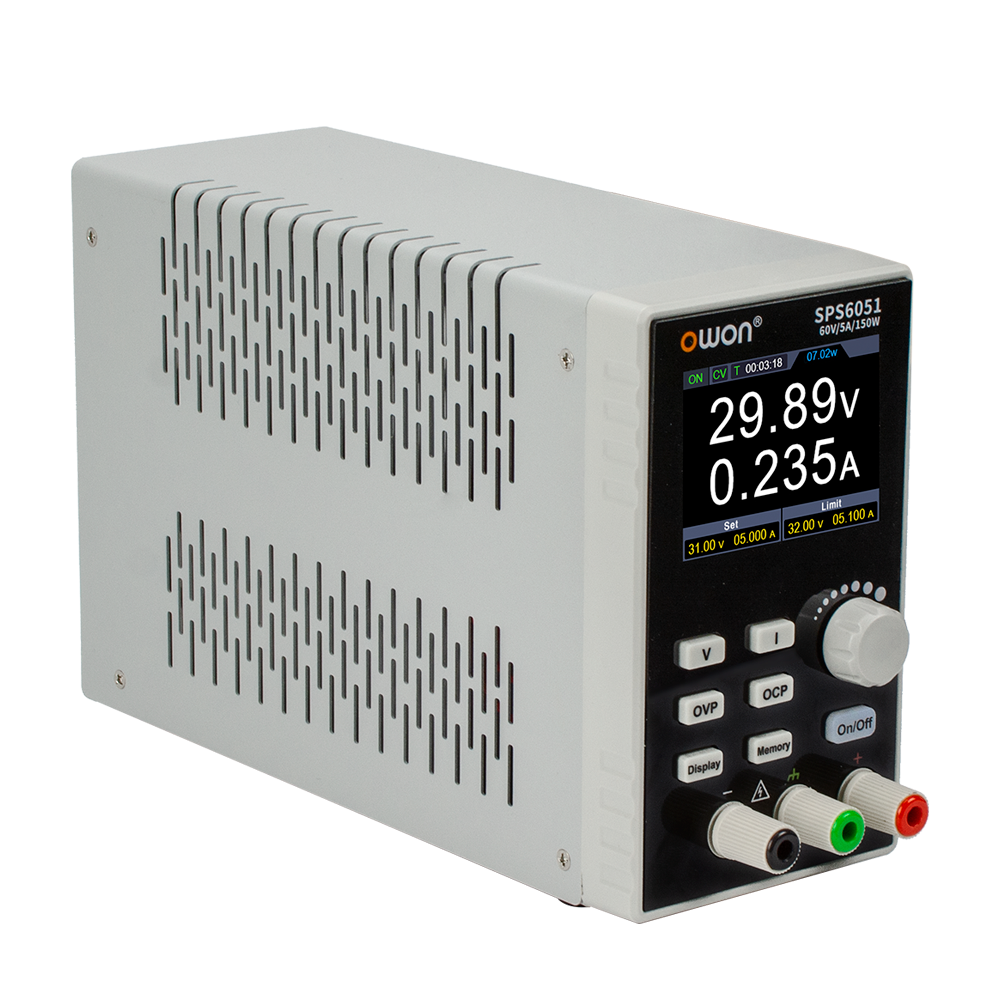

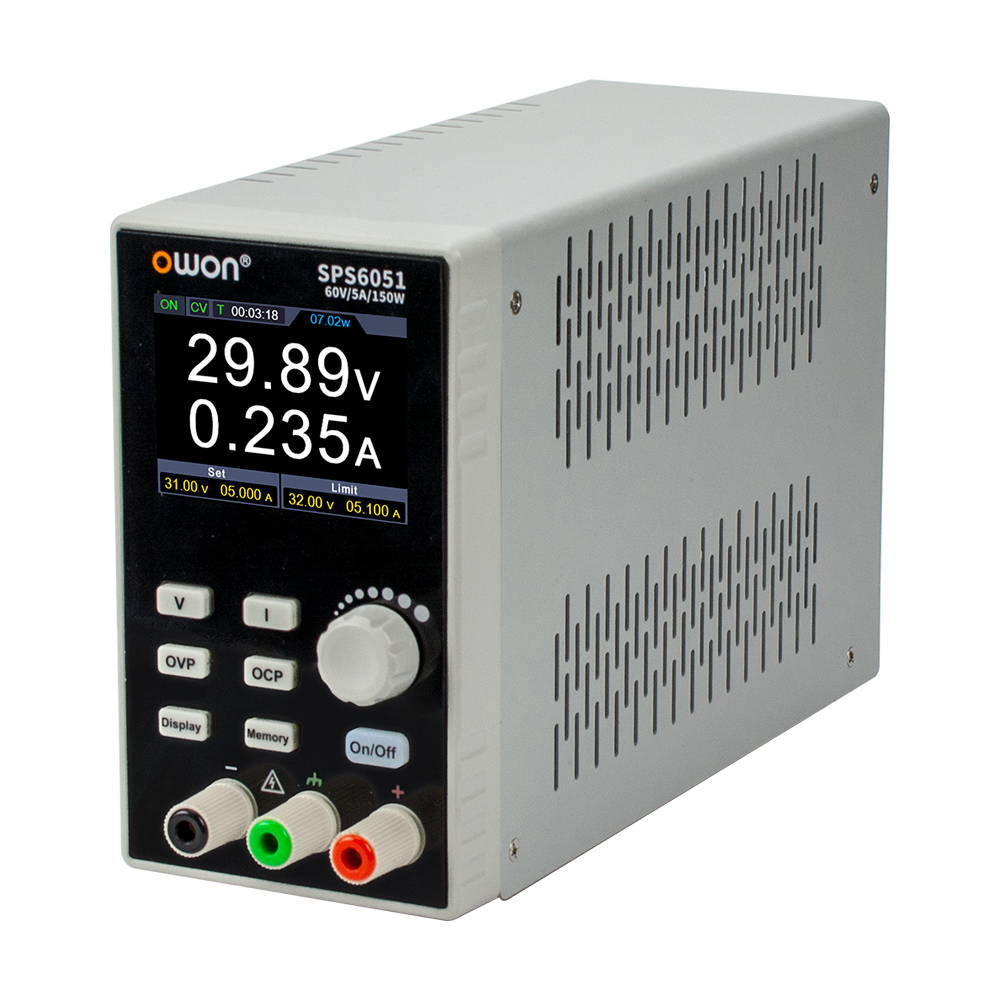

OWON SPS Fanless Single Channel Programmable DC Power Supply

+ Fanless design: Ultra-quiet and reduces the vibration noise and potential failure risks of traditional cooling fans.

+ Excellent heat dissipation design:Long-term operation under full load conditions ensures controlled temperature rise for internal component longevity.

+ Lightweight and ultra-thin design.

+ Output accuracy up to 10mV/1mA.

+ Support List waveform editing and output,4 groups of memory shortcut parameters for quick output.

+ Integrated protection features include overvoltage, overcurrent,overtemperature and input undervoltage.

+ The output includes a built-in discharge circuit to prevent residual high voltage risks when the power is turned off.

+ Offers USB communication interface and supports SCPI protocol, allowing PC programming and remote control,simplifying user remote management.

+ 2.8-inch TFT LCD screen

Send Inquiry

Product Details

Specifications

The instrument must be operated continuously for more than 30 minutes at the specified temperature to ensure the following parameters.

Model		SPS3051	SPS6051	SPS3081	SPS6081	SPS8081
Input Characteristics		85V-265V（45~65Hz）
Rated Output (0℃-40℃)	Voltage	0 - 30V	0 - 60V	0 - 30V	0 - 60V	0 - 80V
	Current	0 - 5A	0 - 5A	0 - 8A	0 - 8A	0 - 8A
	Power	150W	150W	120W	120W	120W
Regulation(CV)	Load	≤30mV	≤30mV	≤30mV	≤30mV	≤30mV
Regulation(CV)	Power	≤20mA	≤20mA	≤20mA	≤20mA	≤20mA
Regulation(CC)	Load	≤30mV	≤30mV	≤30mV	≤30mV	≤30mV
Regulation(CC)	Power	≤20mA	≤20mA	≤20mA	≤20mA	≤20mA
Setting Resolution	Voltage	10mV	10mV	10mV	10mV	10mV
Setting Resolution	Current	1mA	1mA	1mA	1mA	1mA
Readback Resolution	Voltage	10mV	10mV	10mV	10mV	10mV
Readback Resolution	Current	1mA	1mA	1mA	1mA	1mA
Setting Resolution （25℃±5℃）	Voltage	≤0.05% ± 20mV	≤0.05% ± 20mV	≤0.1% ± 20mV	≤0.05% ± 20mV	≤0.05% ± 20mV
Setting Resolution （25℃±5℃）	Current	≤0.05% ± 20mA	≤0.05% ± 20mA	≤0.2% ± 20mA	≤0.05% ± 20mA	≤0.05% ± 20mA
Readback Resolution（25℃±5℃）	Voltage	≤0.05% ±20mV	≤0.05% ±20mV	≤0.1% ±20mV	≤0.05% ±20mV	≤0.05% ±20mV
Readback Resolution（25℃±5℃）	Current	≤0.05% ±20mA	≤0.05% ±20mA	≤0.2% ± 20mA	≤0.05% ±20mA	≤0.05% ±20mA
Ripple & Noise(*)	Voltage(Vp-p)	≤30mV	≤30mV	≤30mV	≤30mV	≤30mV
	Voltage(rms)	≤4mV	≤4mV	≤5mV	≤4mV	≤4mV
	Current(Ap-p)	≤10mA	≤10mA	≤30mA	≤10mA	≤10mA
Temperature coefficient of output	Voltage	100ppm/℃
Temperature coefficient of output	Current	200ppm/℃
Temperature coefficient of readback value	Voltage	100ppm/℃
Temperature coefficient of readback value	Current	200ppm/℃
Response time (50%~100% reted road)		≤1.0ms
Storage		4 groups
Display Type		2.8 inches color LCD
Display Resolution		240(horizontal) × 320(vertical) pixels
Working Temperature		0℃~40℃
Storage Temperature		-20℃~60℃
Relative Humidity		≤90%RH; no condensation

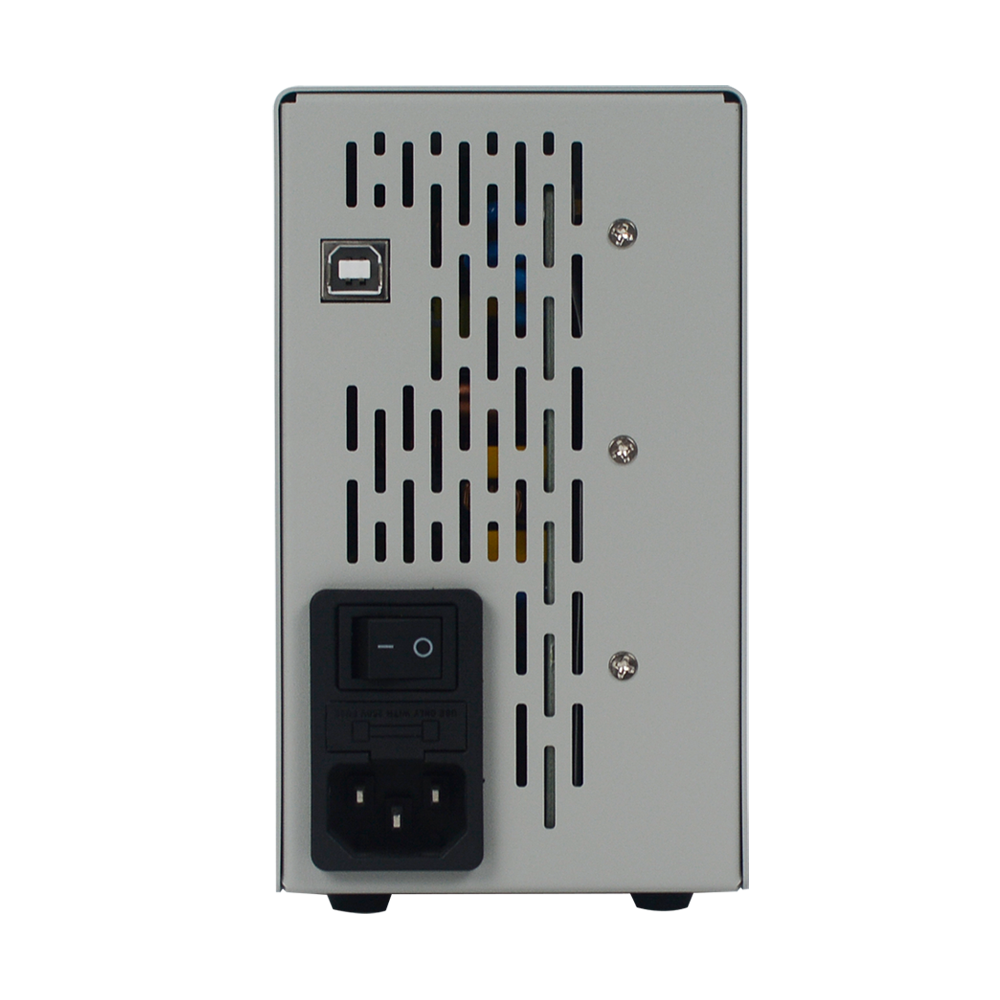

Communication Port		USB communication, compatible with SCPI communication protocol
Dimension		82mm(Width)× 142mm(Height)×226mm(Depth)
Weight		Approx. 1.8 kg

* Noise bandwidth 20MHz, ripple bandwidth 1MHz, connect 10uF electrolytic capacitor in parallel with 0.1uF ceramic capacitor to eht output terminal for testiong
