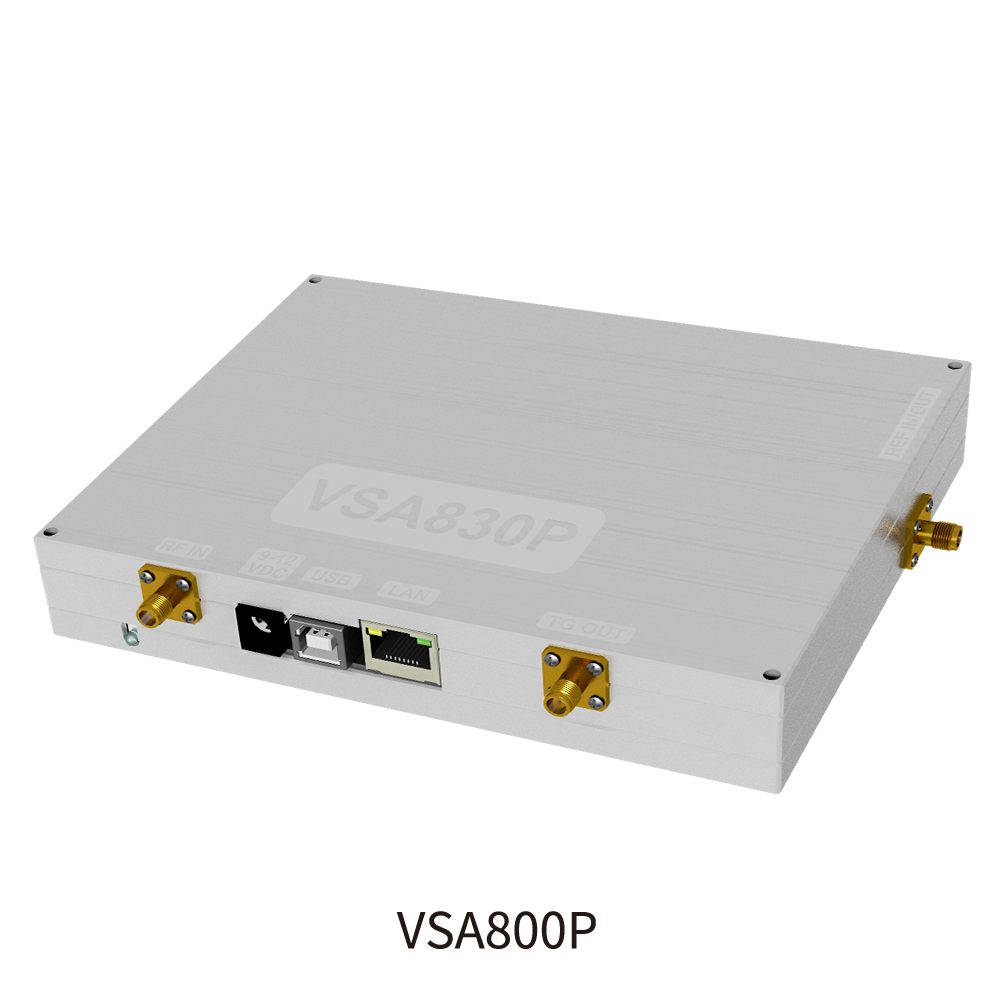

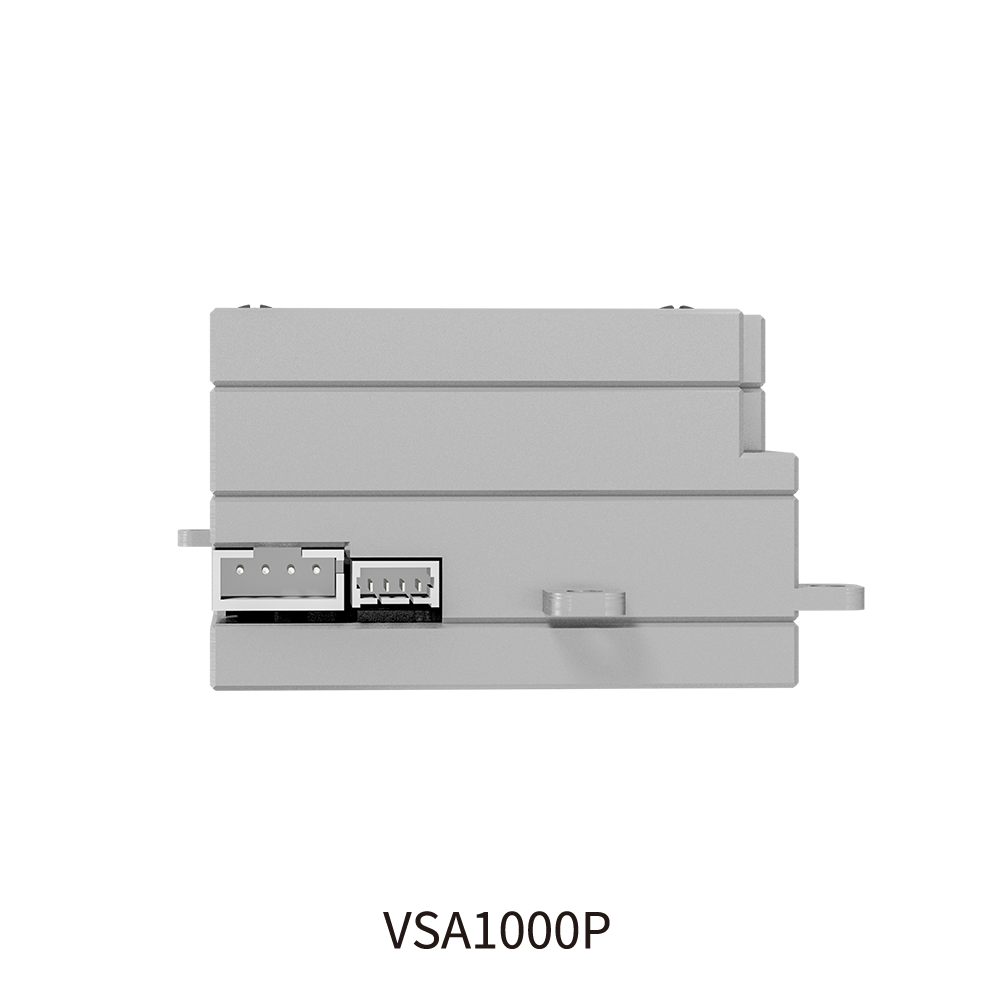

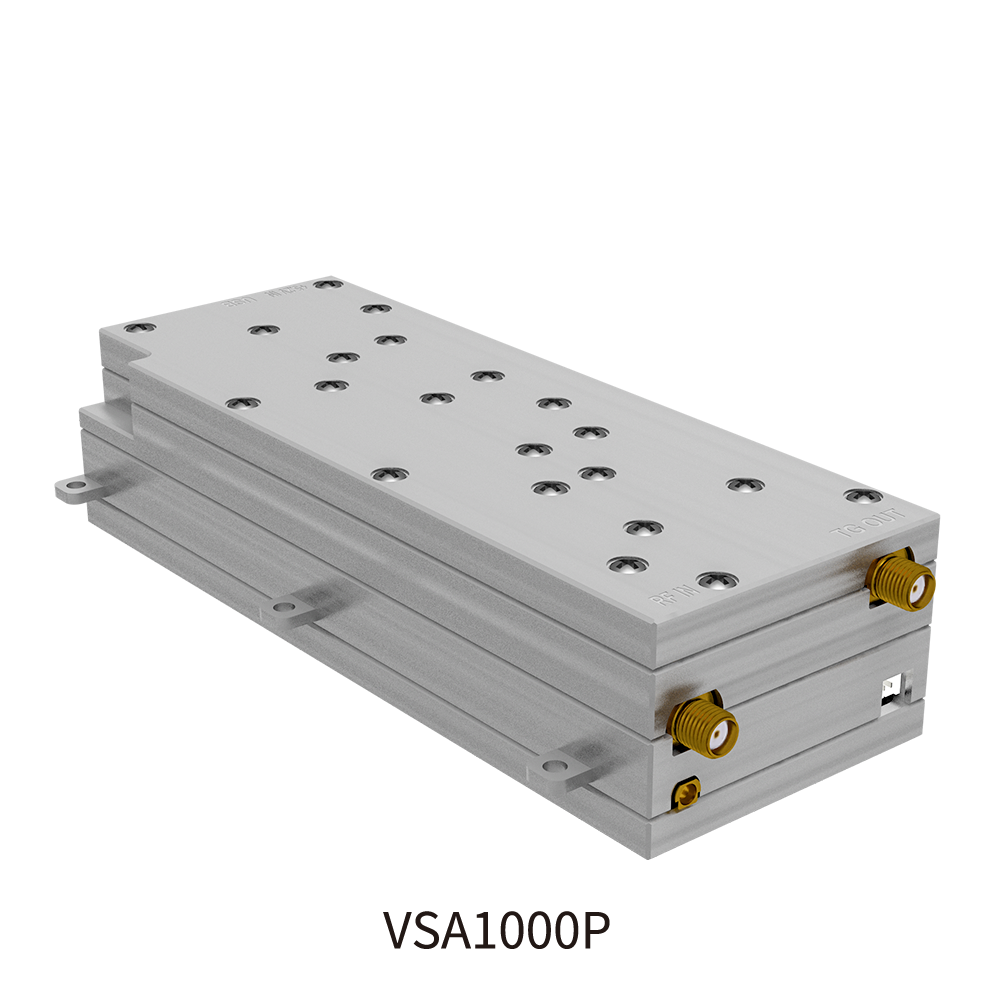

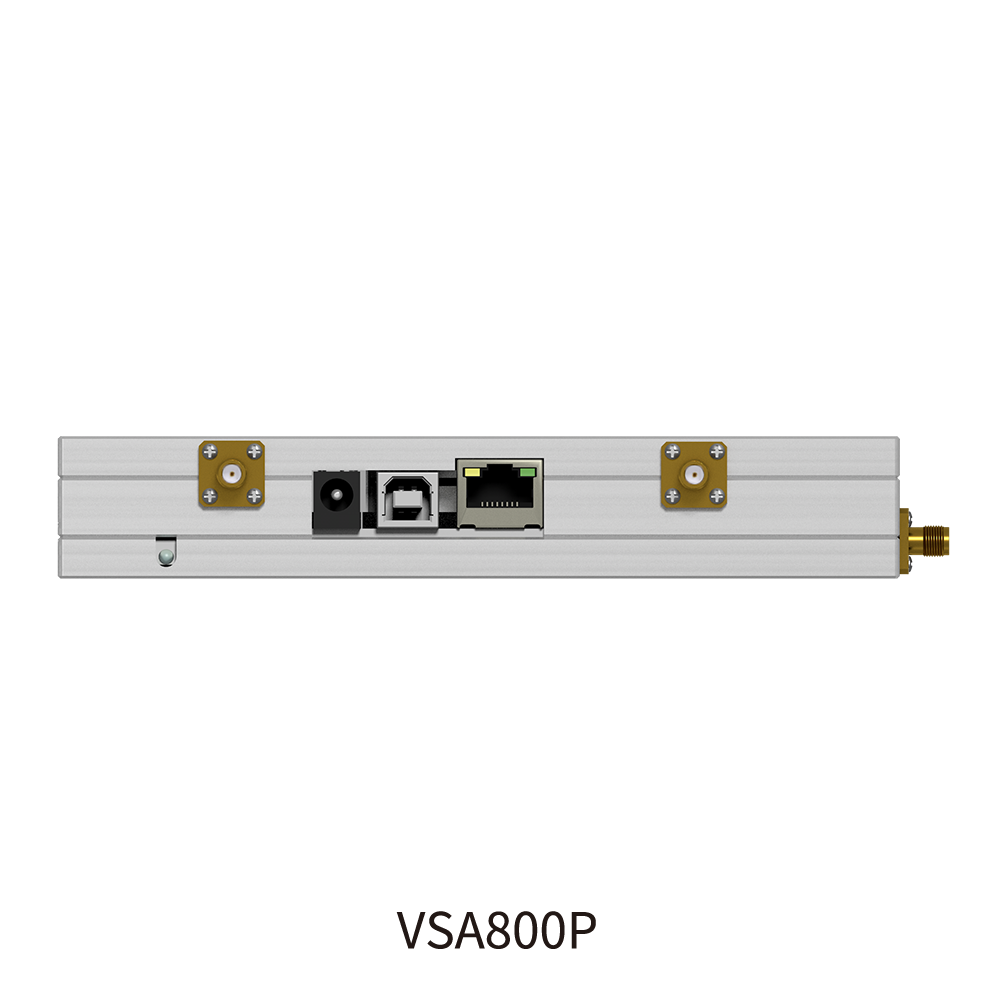

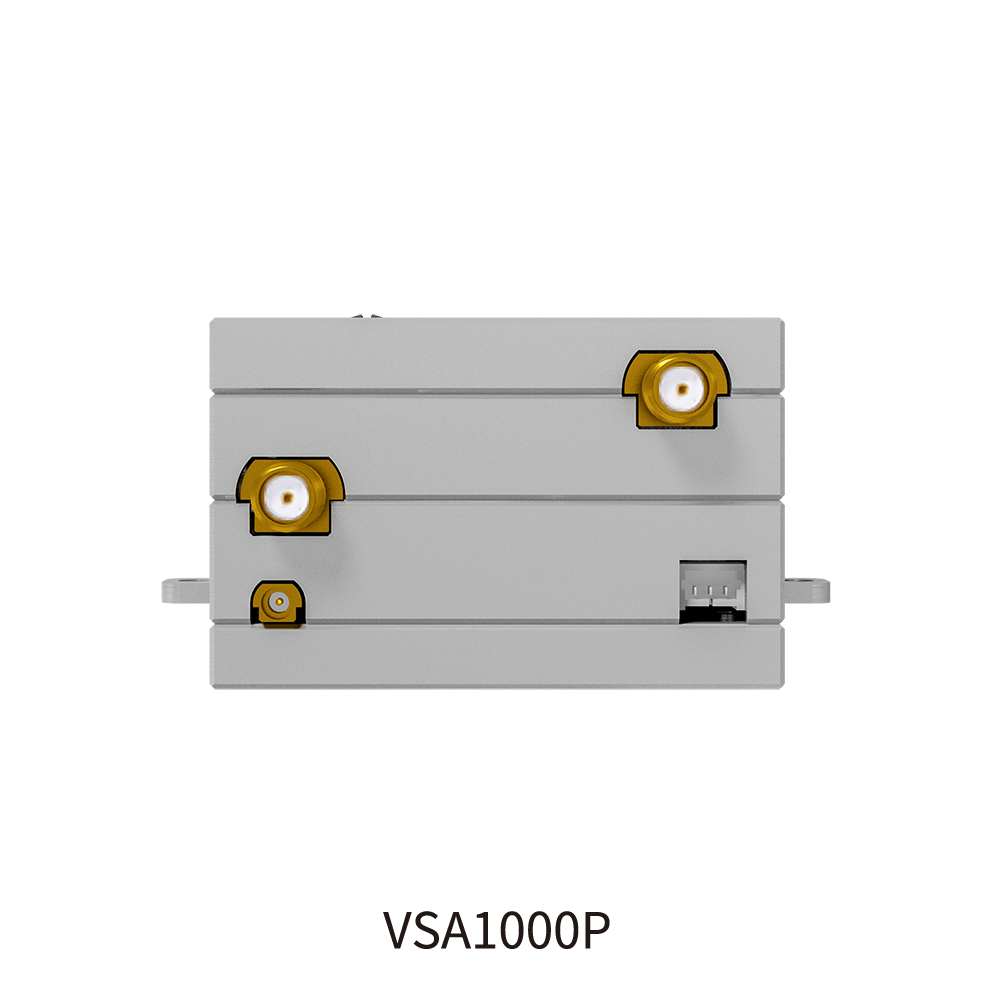

VSA-P Series Spectrum Analyzer Module
+ DANL as low as -160dBm/HzPhase noise -106dBc/Hz@1GHz and offset at 10kHz
+ Optional built-in bridge (VSA1036P) for S11/S21 vector network analysis
+ EMl pre-compliance testing with optional EMC software
+ Multi-protocol communication: USB(USBTMC)，LAN(Vxi11,TCP, Web), and more
+ Standard SCPl command support
+ Powerful companion software: User-friendly interface with comprehensive measurementcapabilities
+ Supports cross-platform development including C, C++,C#, Java, and Python
+ Supports microcontrollers,ARM/x86 processors, and compatible with Kylin Linux, Ubuntu,other Linux
distributions, all Windows versions, and Android systems.
+ Compact design with single power supply for easy integration
E-mail UsThe VSA-P series is a compact superheterodyne digital lF-based receiver/spectrum analyzer module integratingUSB 2.0 and LAN interfaces with high-speed FPGA signal processing. Designed for spectrum monitoring, RF testing, and receiver applications, it delivers precise spectrum data,power detection waveforms, andmodulated signals.Optimized for portability and low power consumption, it supports standard SCPIcommands for integration into test systems.
|
Model |
VSA815P (TG) |
VSA836P (TG) |
VSA1036P（TG） |
VSA880P（TG） |
|
|
Frequency |
|||||
|
Frequency range |
9kHz-1.5GHz |
9kHz-3.6GHz |
9kHz-3.6GHz |
9kHz-8GHz |
|
|
Frequency resolution |
1Hz |
||||
|
Frequency Span Range |
0 Hz, 100 Hz to maximum frequency |
||||
|
Uncertainty |
± span / (number of sweep points - 1) |
||||
|
SSB Phase Noise (20℃ to 30℃,fc=1 GHz) |
|||||
|
Carrier offset |
10 kHz (typical) |
< -106dBc/Hz |
< -106dBc/Hz |
< -98dBc/Hz |
< -106dBc/Hz |
|
100kHz (typical) |
< -106dBc/Hz |
< -104dBc/Hz |
|||
|
1 MHz (typical) |
< -115dBc/Hz |
||||
|
Resolution bandwidth(-3dB) |
1 Hz to 1 MHz (1-3-5-10 steps by sequence) |
||||
|
Video bandwidth (-3 dB) |
10 Hz to 1 MHz (1-3-5-10 steps by sequence) |
||||
|
Amplitude Range |
VSA815P (TG) |
DANL to +10dBm，100 kHz~ 10 MHz，preamp off DANL to +20dBm，10 MHz~ 1.5 GHz，preamp off |
|||
|
VSA836P (TG) VSA1036P(TG) |
DANL to +10dBm，100 kHz~ 10 MHz，preamp off DANL to +20dBm，10 MHz~ 3.6 GHz，preamp off |
||||
|
VSA880P (TG） |
DANL to +10dBm，100 kHz~ 10 MHz，preamp off DANL to +20dBm，10 MHz~ 8GHz，preamp off |
||||
|
Max Input DC |
50V |
||||
|
Display Average Noise Level(DANL) |
|||||
|
Frequency |
attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, 20℃ to 30℃, input impendence = 50 Ω |
||||
|
Preamp On |
VSA815P（TG） |
100 kHz-1 MHz: -135dBm (typical)，<-128dBm |
|||
|
1 MHz-500 MHz: -160dBm (typical)，<-150dBm |
|||||
|
500 Hz-1.5 GHz: -158dBm (typical)，<-148dBm |
|||||
|
VSA836P（TG） VSA1036P（TG) |
9 kHz-1 MHz: -135dBm (typical)，<-128dBm |
||||
|
1 MHz-500 MHz: -160dBm (typical)，<-150dBm |
|||||
|
500 MHz-3.6 GHz: -158dBm (typical)，<-148dBm |
|||||
|
VSA880P（TG） |
9 kHz-1 MHz: -135dBm (typical)，<-128dBm |
||||
|
1 MHz-500 MHz: -160dBm (typical)，<-150dBm |
|||||
|
500 MHz-3.6 GHz: -158dBm (typical)，<-148dBm |
|||||
|
3.6 GHz-6 GHz: -154dBm (typical)，<-144dBm |
|||||
|
6 GHz-8 GHz: -149dBm (typical)，<-139dBm |
|||||
|
Frequency response |
Preamp Off:＜0.7dB (fc≥9kHz, attenuation=10dB, relative to 50 MHz, 20℃ to 30℃) |
||||
|
Preamp On:1.0dB (fc≥100kHz, attenuation=10dB, relative to 50 MHz, 20℃ to 30℃) |
|||||
|
Tracking Generator (Option) |
|||||
|
Frequency Range |
100kHz - 1.6GHz |
100kHz - 3.6GHz |
100kHz - 8.0GHz |
||
|

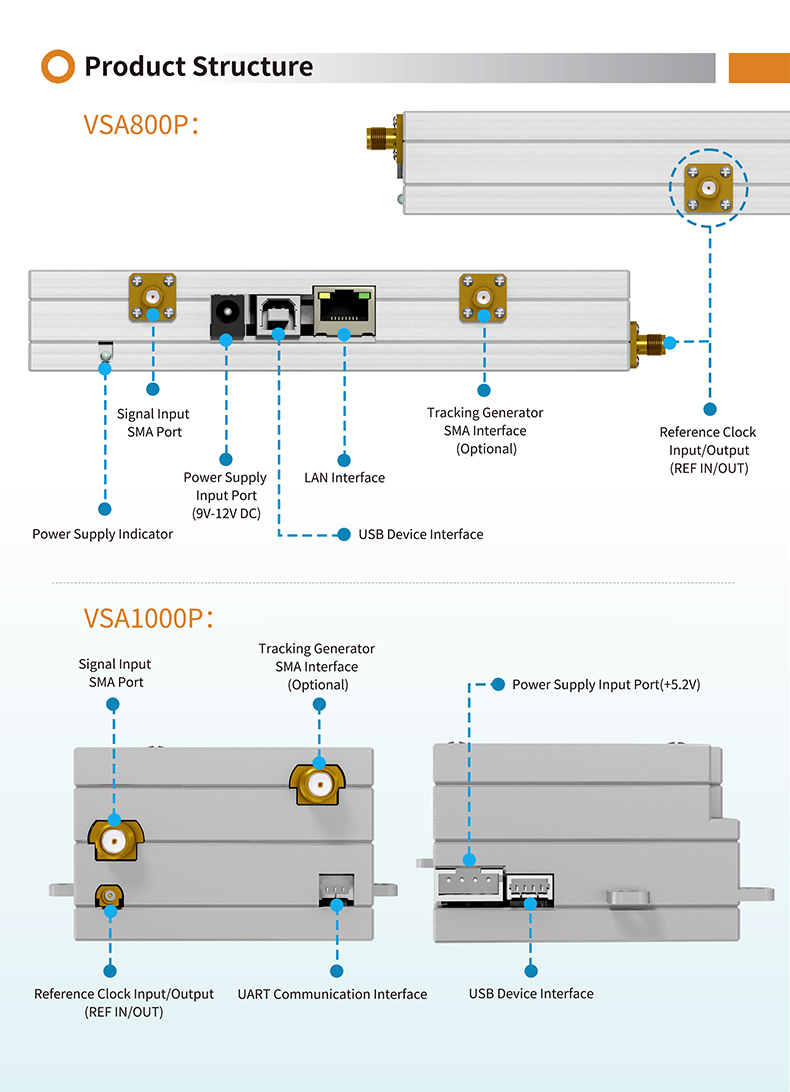

Communication port |
USB Devise，LAN |
||||
|
Input voltage range |
+9V～+12V |
+9V～+12V |
＋5.2V~+5.4V |
+9V～+12V |
|
|
Current |
0.8A（+12V) |
0.8A（+12V) |
1.5A（+5.2V) |
0.9A (+12V) |
|
|

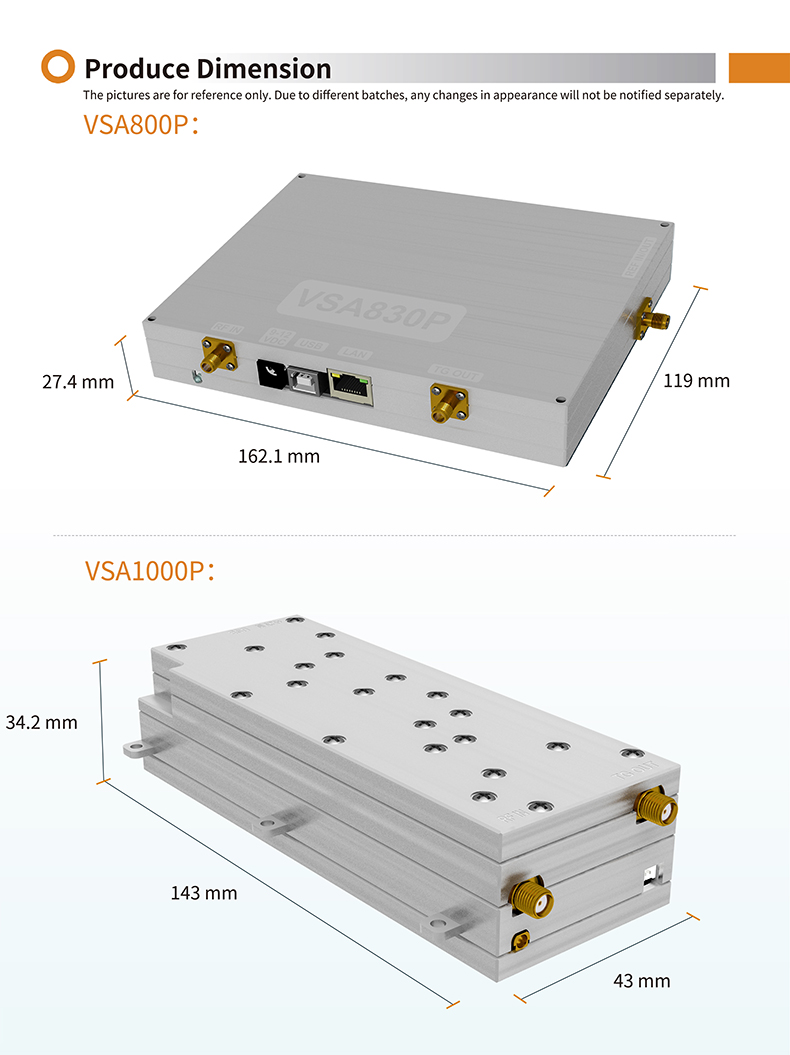

Dimension (L×W×H) |
145×120×30（mm） |
143 ×43×34.2 (mm) |
145×120×30 (mm) |
||
|
Weight |
Approx. 0.8kg |
Approx. 0.5kg |
Approx. 0.8kg |
||
The accessories subject to final delivery.
-
Power Cord -
Quick Guide -
USB Cable -
Adapter
