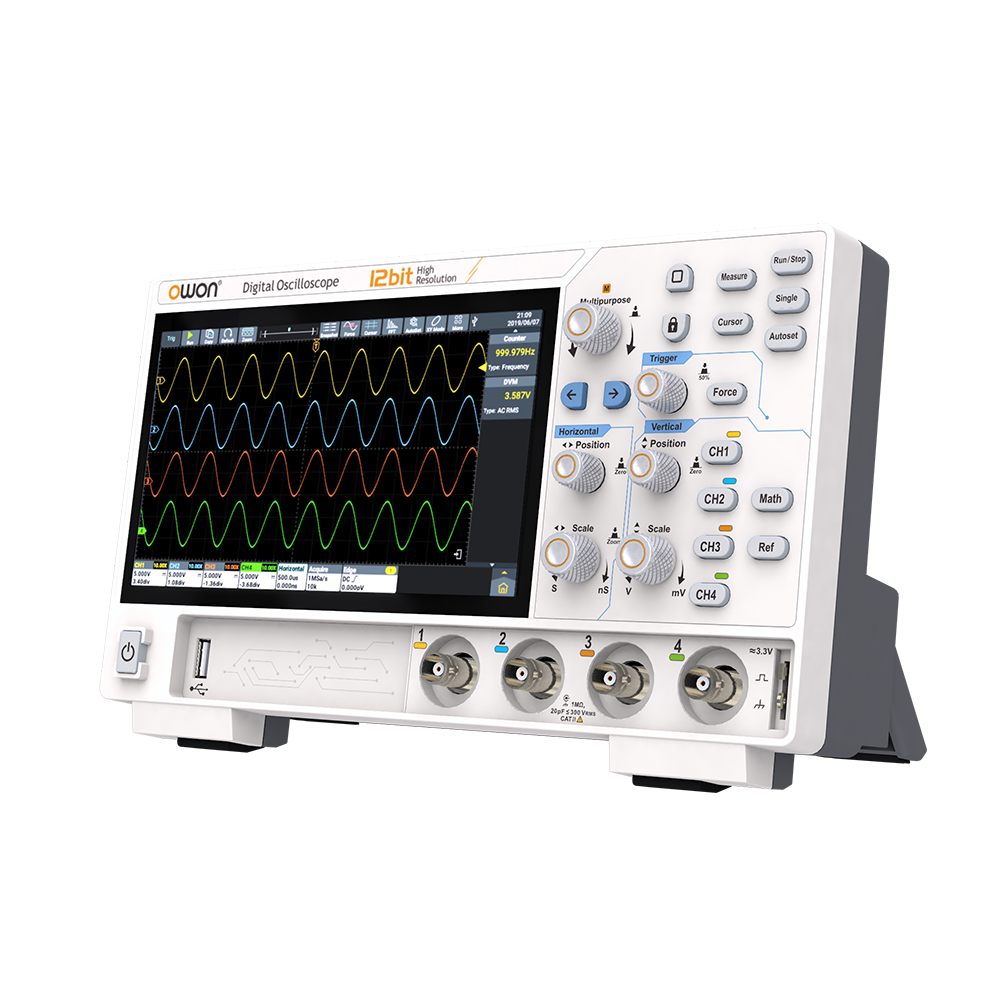

ADS800A Series 12bits Digital Oscilloscope

+ Integrated with oscilloscope, frequency counter, voltmeter and FFT spectrum analyzer.
+ 70 - 200MHz bandwidth,1.25GSa/s real-time sampling rate.
+ 50M storage depth, up to 700,000wfms/s waveform refresh rate, ensuring clear signal capture.

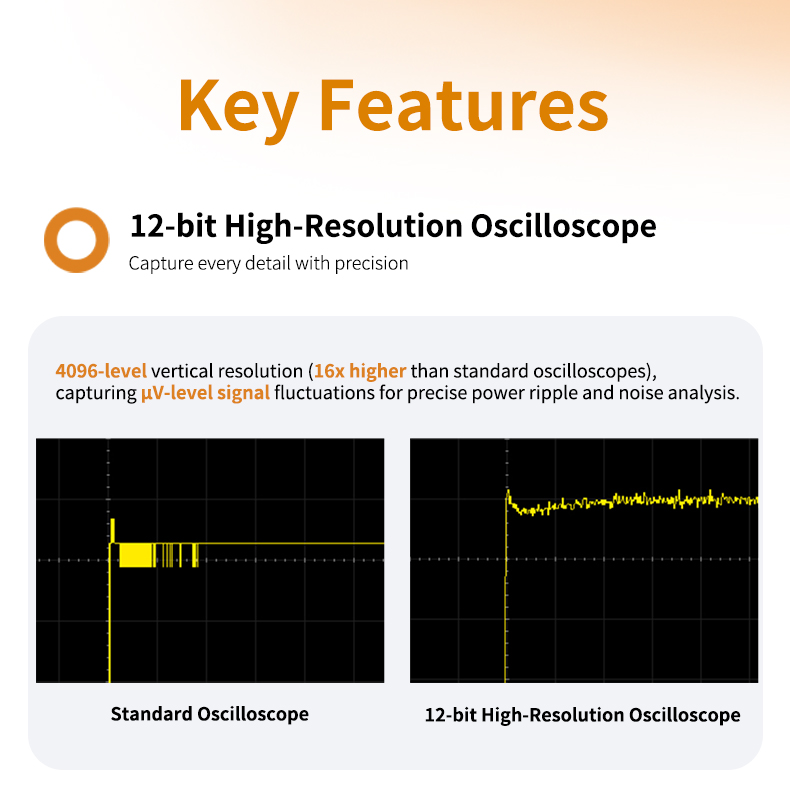

+ 12-bit Vertical Resolution, vertical sensitivity is 500uV/div-10 V/div.
+ 1M- point FFT analysis ensures accurate frequency component display.
+ Rich triggering:edge,video,pulse width,slope,under-amplitude,over-amplitude, timeout, Nth edge,

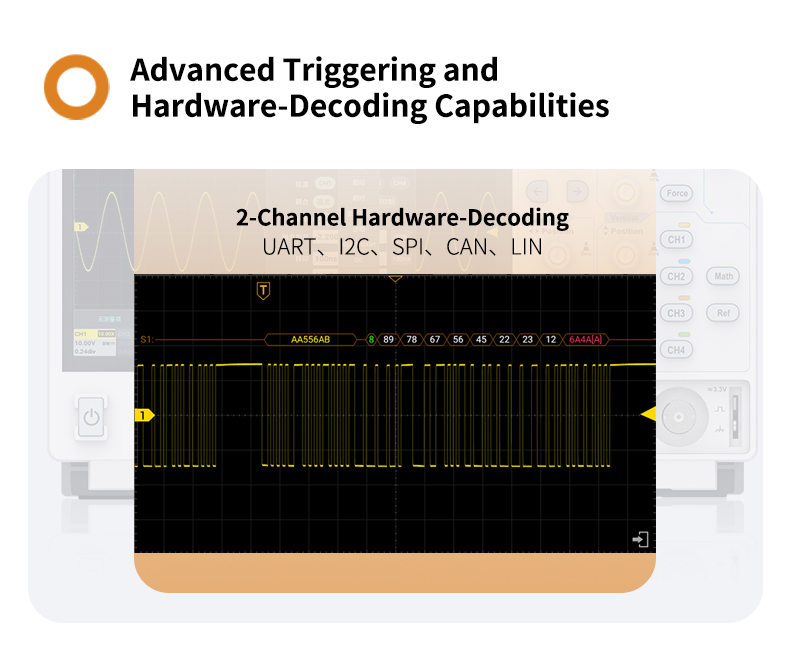

logic andRS232/UART,l2C, SPI, CAN,LIN; 2-channel hardware decoding:RS232 / UART,I2C,SPIl,CAN,LIN.
+ Support for external devices like mouse and keyboard, greatly enhancing efficiency.
+ Optional wireless module (Wi-Fi/Bluetooth) supports network printers.

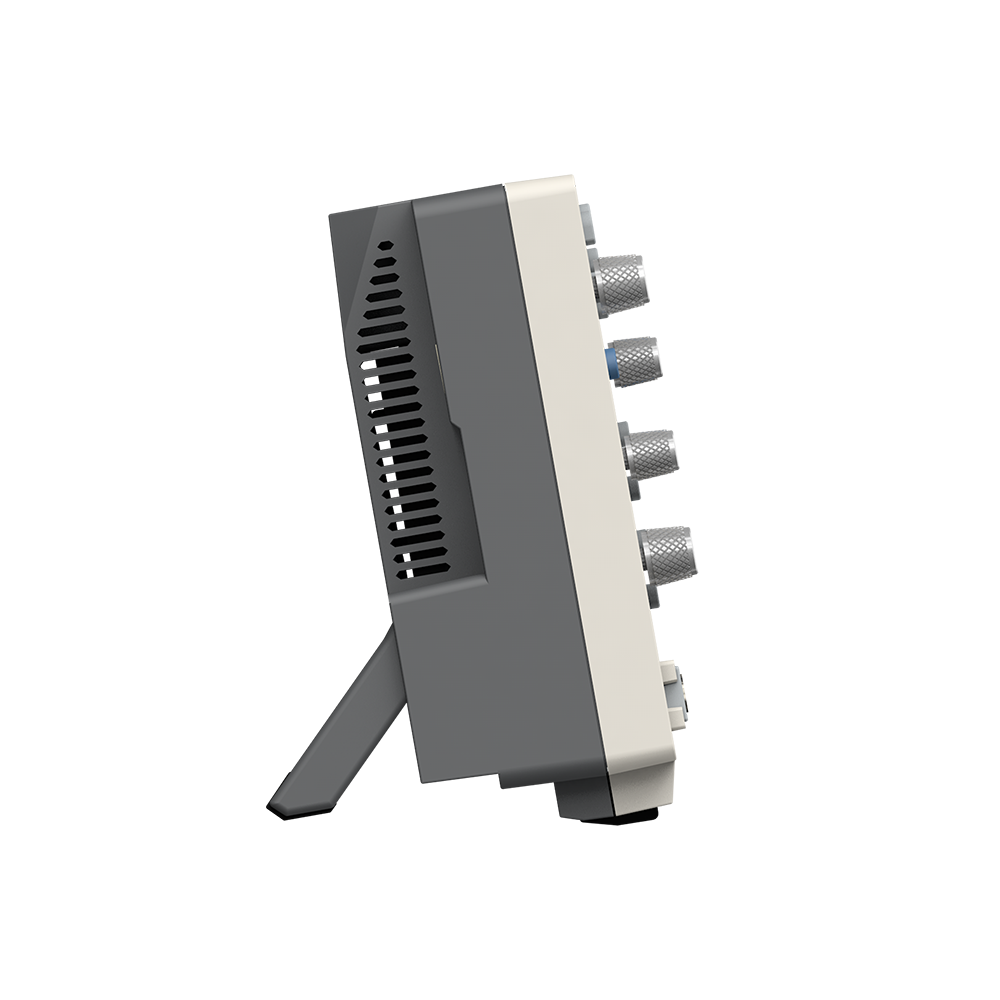

+ Ultra-thin design saving valuable workspace.
+ 7-inch touchscreen with multi-touch support for an enhanced interactive experience.

Send Inquiry

Product Details

Specifications

Model	ADS802A	ADS812A	ADS822A	ADS804A	ADS814A	ADS824A
Bandwidth（-3 dB）	70MHz	100MHz	200MHz	70MHz	100MHz	200MHz
Channel	2			4
Max. sample rate	1.25GSa/s（single-channel）625MSa/s (dual-channel) 6250MSa/s（full-channel）
Acquire mode	Sample, Peak, High Res, Average, Segmentation			DC Gain Accuracy	3%（≤1 mV）; 2%（2 mV）; 1.5% (≥5mV)
Max. waveform capture rate	Max. 700,000wfms/s			Max memory depth	50M
Vertical Sensitivity Range	500μV/div - 10 V/div			Vertical resolution	12bits
Sampling rate range	1ns/div - 1000s/div, step by 1-2-5			Relay time accuracy	±25 ppm (typical)
Input Impedance	1 MΩ±2%, parallel with 20 pF±5 pF
Probe Attenuation Coefficient	1.00μX-1.00MX, step by 1-2-5, support custom
Trigger type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I2C, SPI CAN, LIN
Bus decoding	RS232/UART、I2C、SPI、CAN、LIN

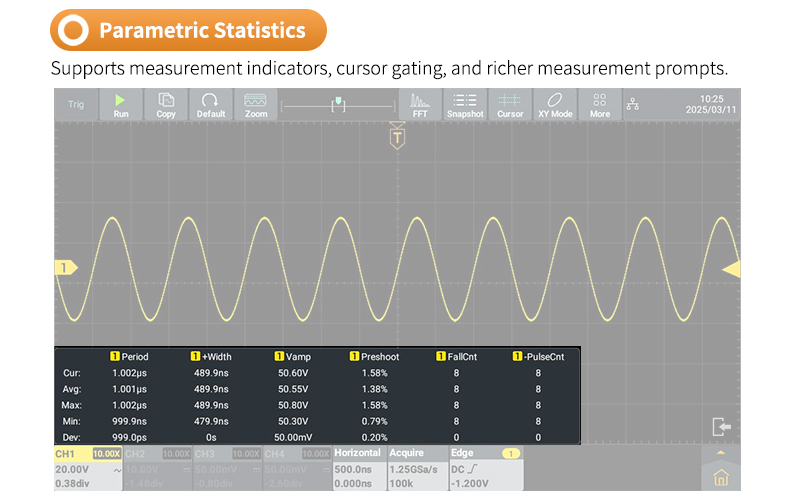

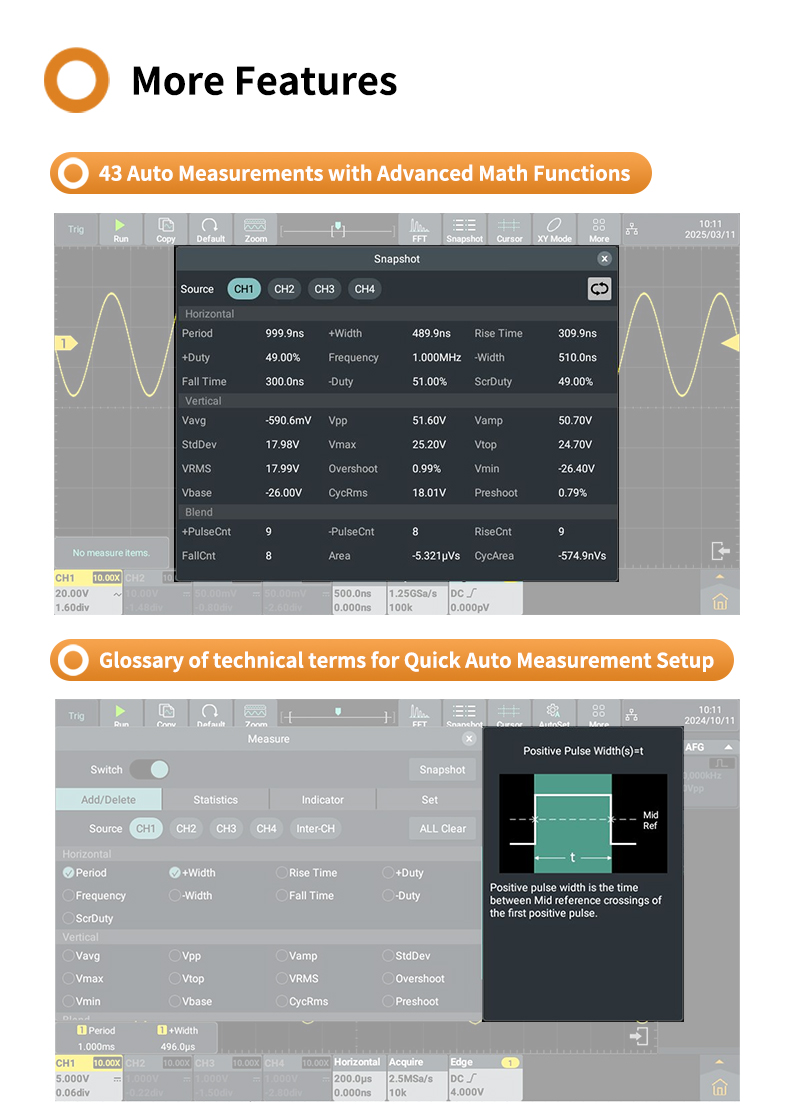

Auto measurement	Period, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty,-Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(A↑-B↑), Delay(A↑-B↓), Delay(A↓-B↑),Delay(A↓-B↓), Phase(A↑-B↑), Phase(A↑-B↓), Phase(A↓-B↑), Phase(A↓-B↓), FRR(A↑-B↑), FRF(A↑-B↓), FFR(A↓-B↑), FFF(A↓-B↓), LRR(A↑-B↑), LRF(A↑-B↓), LFR(A↓-B↑), LFF(A↓-B↓）
Waveform Math	+, -, *, /,&&, \|\|, ^, ！, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT rms, User Defined, digital filter (low pass, high pass, band pass, band reject)
Frequency counter	6-digit frequency counter. 7-Maximum frequency: maximum analog bandwidth of oscilloscope
Voltmeter	Support DC, AC+DCrms, ACrms. Resolution: 4 digits (ACV/DCV)
Other

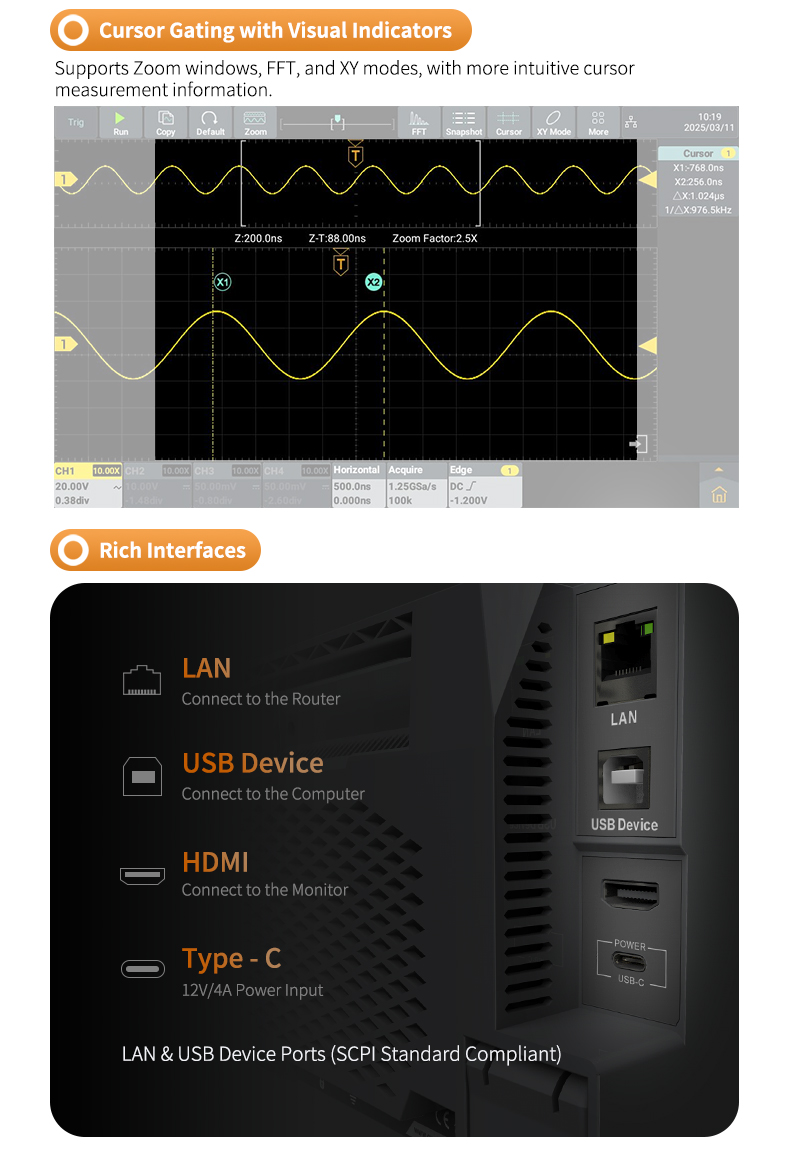

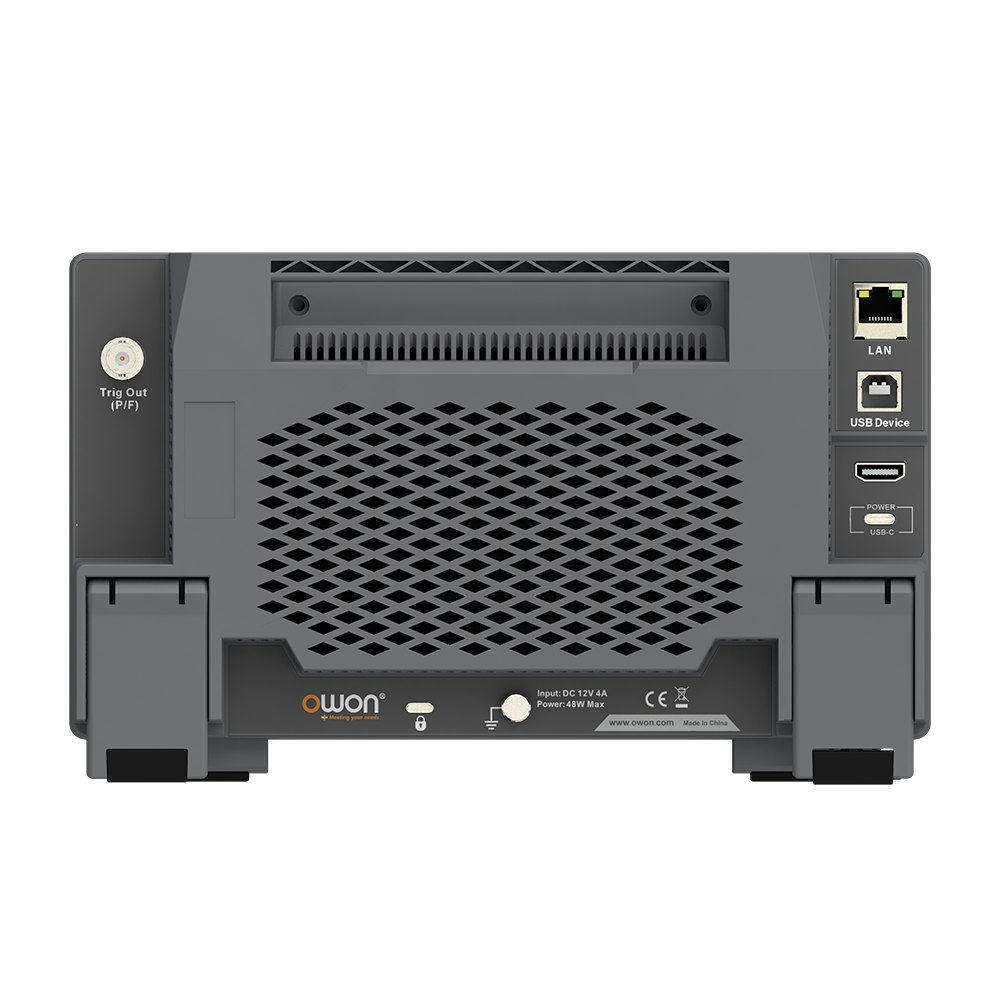

Communication Interface	HDMI, USB device, USB Host, Trig Out(P/F), LAN
Display	7 inch (1024×600), capacitive multi-touch screen
Power supply interface	Type-C [1]
Dimension (W x H x D)	260mm x 160mm x 78mm
Weight	≈1.5kg（package excluded）
