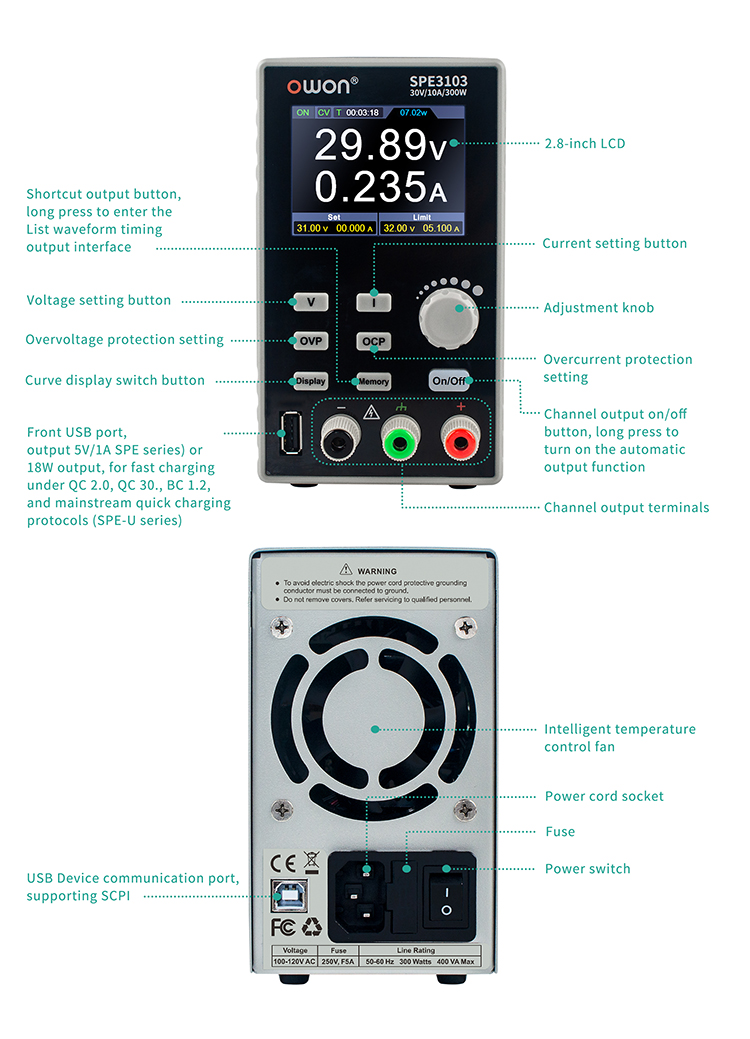

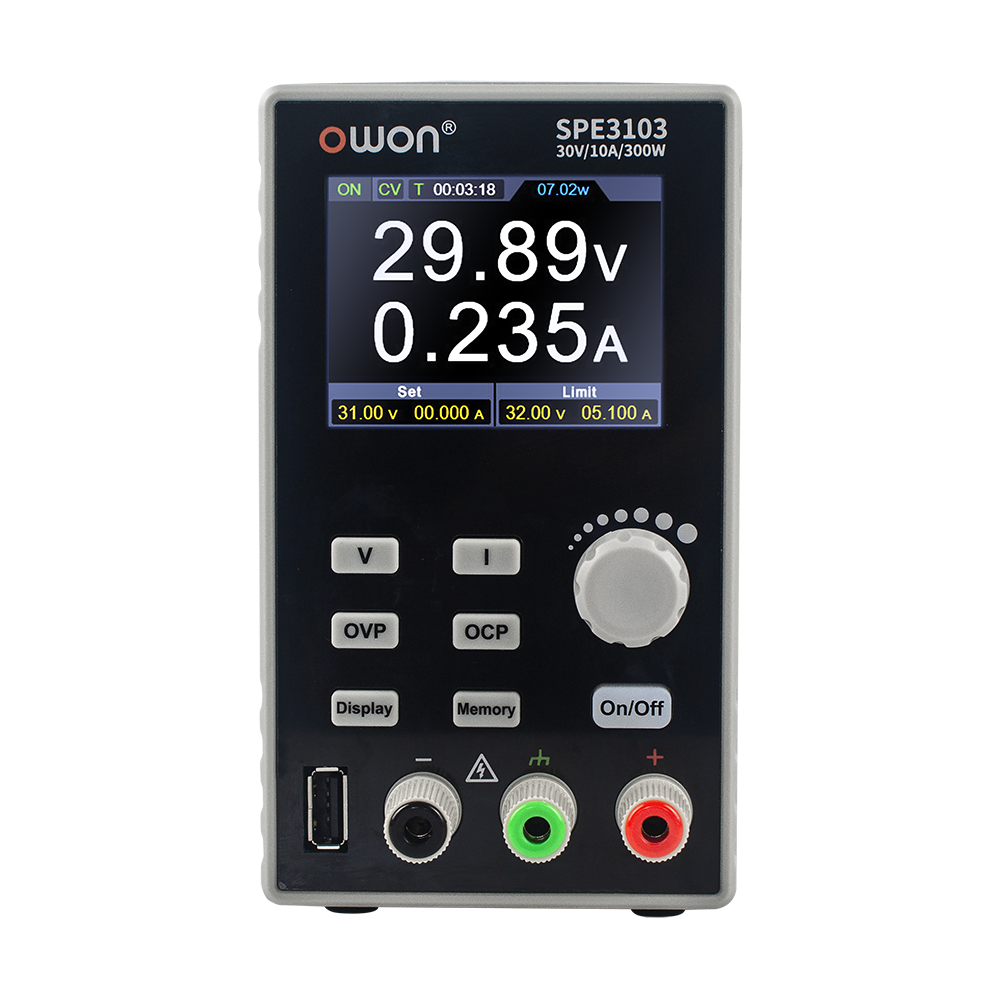

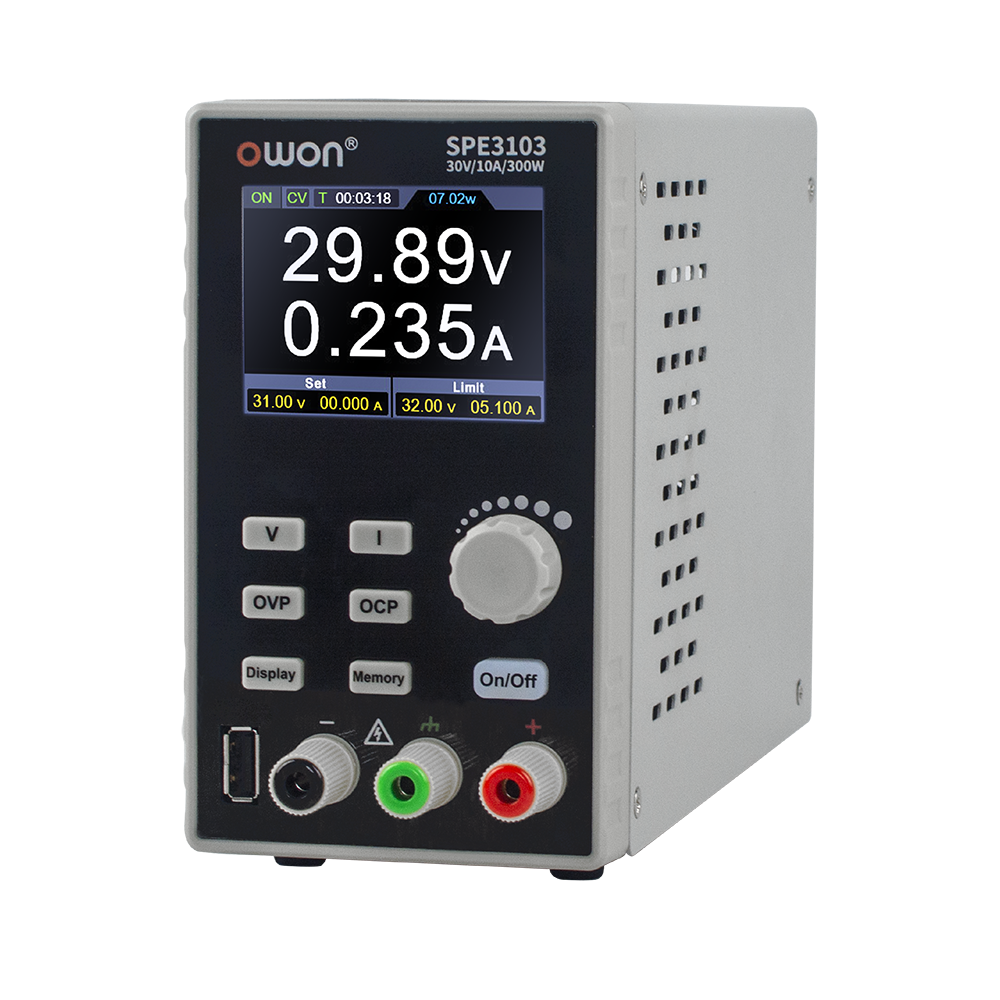

OWON SPE Series 1 CH 100W-300W DC Power Supply

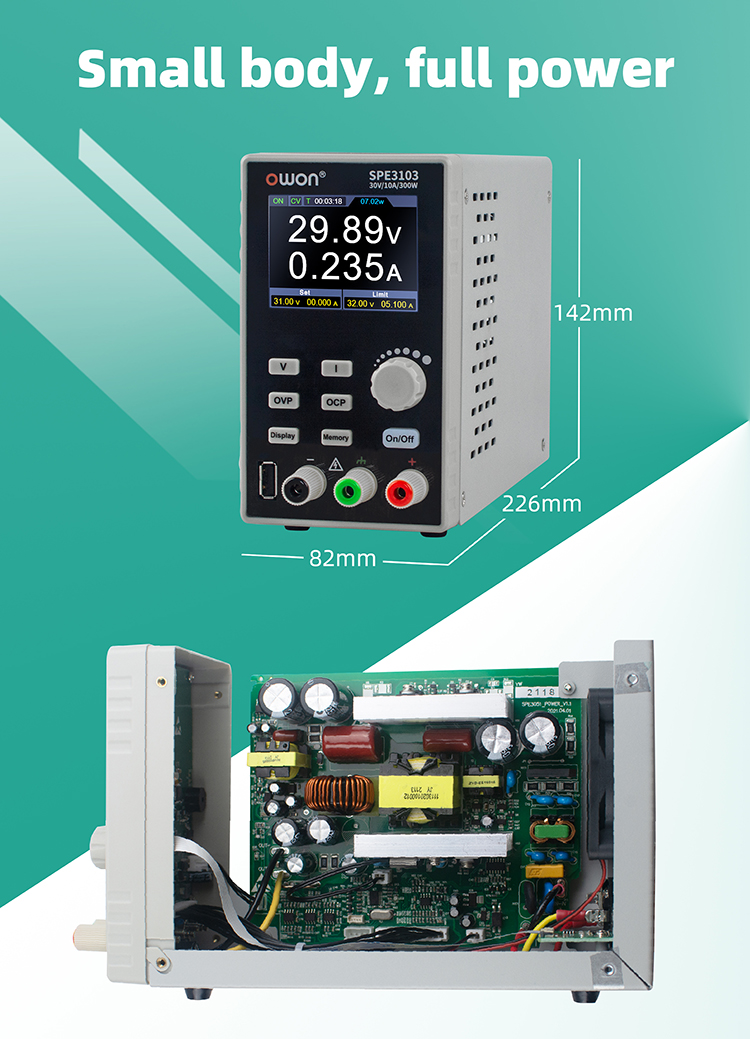

+ Small body for easy carry
+ High resolution: 10mV / 1mA

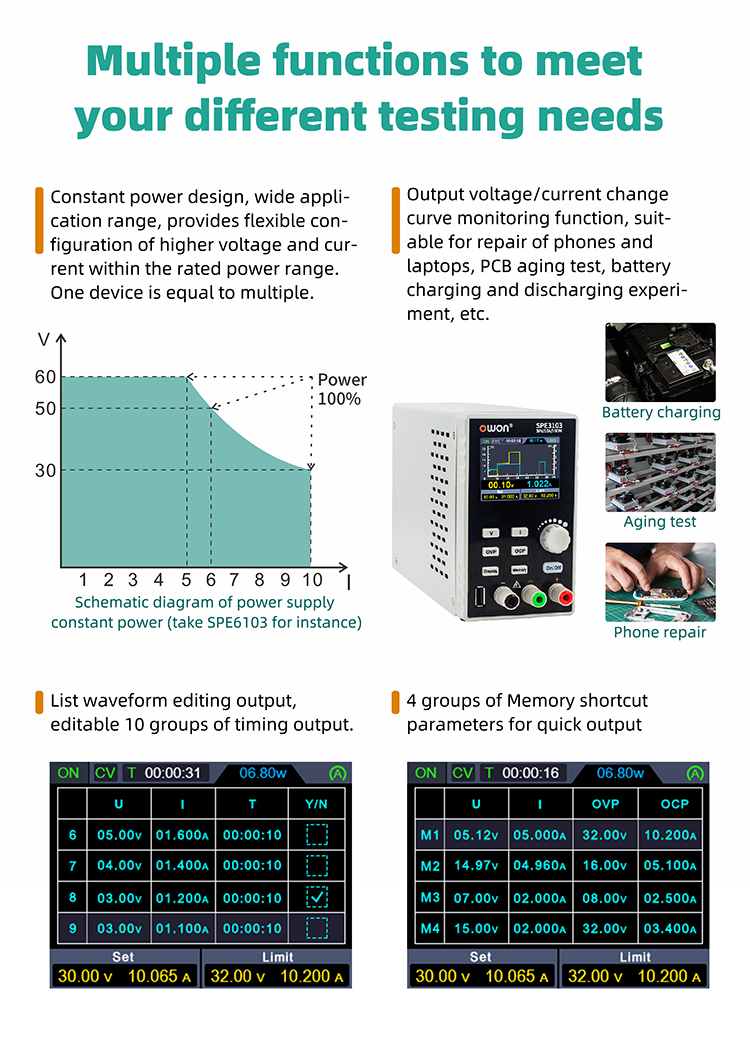

+ List waveform editing output, editable 10 groups of timing output function
+ Low ripple / noise

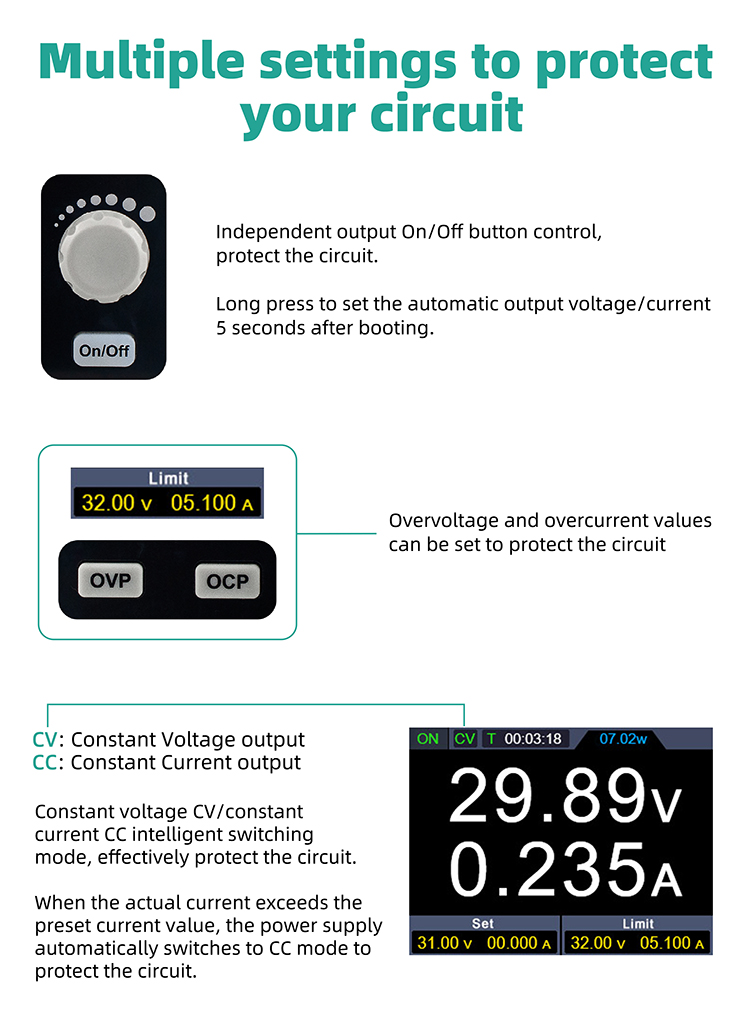

+ Over voltage / over current protection
+ Output voltage and current curve monitoring function

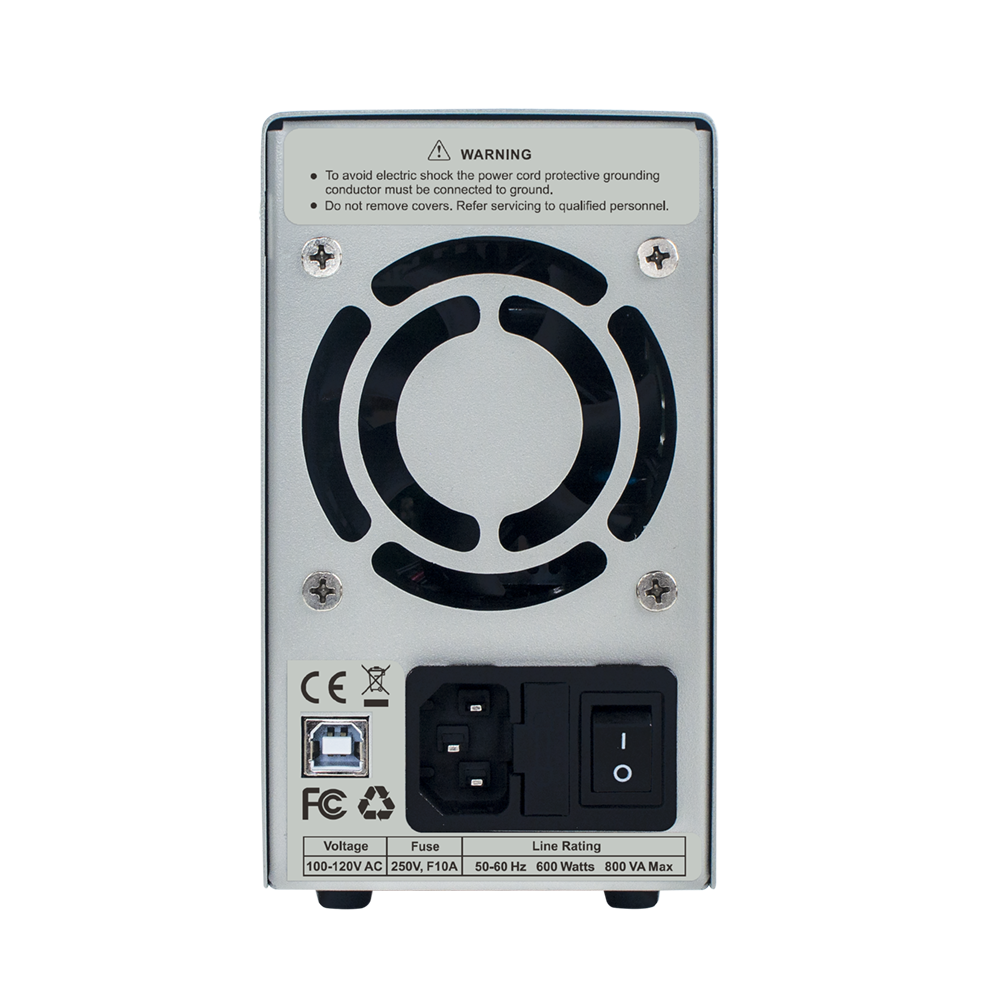

+ Intelligent temperature control fan cooling

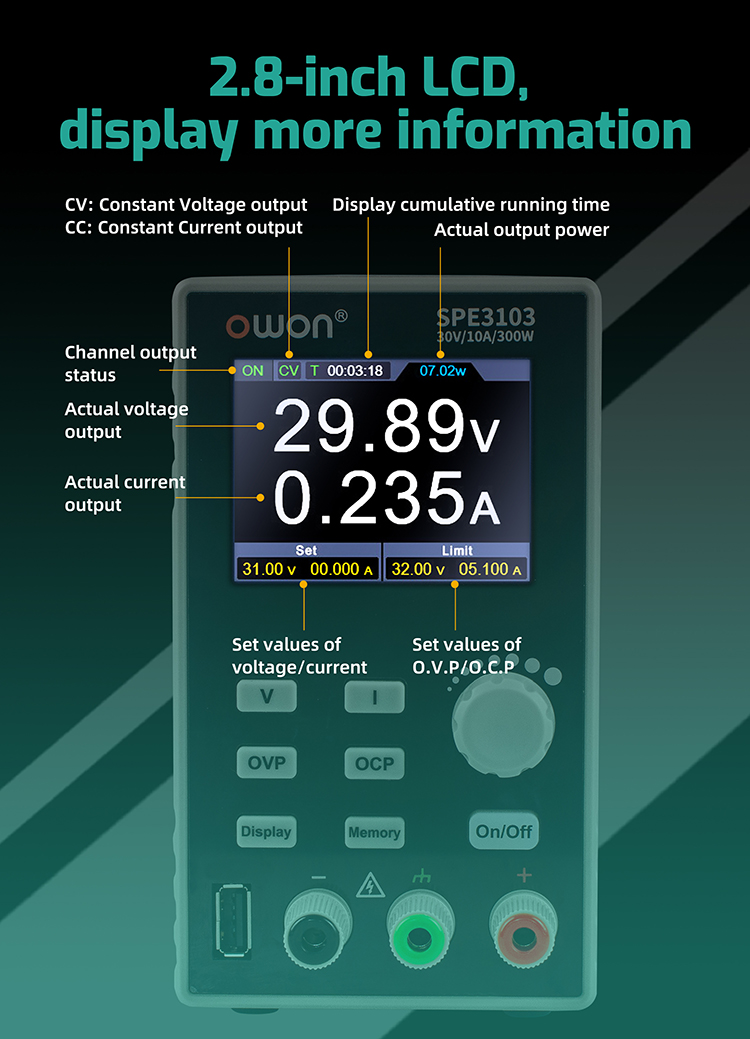

+ 2.8-inch TFT LCD display
+ USB communication interface, support SCPI
PDF Export
E-mail Us
|
Model |
SPE3051 |
SPE3102 |
SPE6102 |
SPE6053 |
SPE3103 |
SPE6103 |
|
|---|---|---|---|---|---|---|---|
|
Rated Output (0℃-40℃) |
Voltage |
0 - 30V |
0 - 30V |
0 -60V |
0 -60V |
0 - 30V |
0 -60V |
|
Current |
5A |
10A |
10A |
5A |
10A |
10A |
|
|
Output Power |
150W |
200W |
200W |
300W |
300W |
300W |
|
|
USB Output |
5V/1A(SPE Series) or suppout QC2.0, QC3.0, BC1.2, Apple, Huawei, Samsung fast charging protocols (optional) |
||||||
|
Load Regulation |
Voltage |
≤30mV |
|||||
|
Current |
≤20mA |
||||||
|
Power Regulation |
Voltage |
≤30mV |
|||||
|
Current |
≤20mA |
||||||
|
Setting Resolution |
Voltage |
10mV |
|||||
|
Current |
1mA |
||||||
|
Readback Resolution |
Voltage |
10mV |
|||||
|
Current |
1mA |
||||||
|
Value Resolution |
Voltage |
≤0.1% ± 20mV |
≤0.1% ± 30mV |
≤0.1% ± 20mV |
≤0.1% ± 30mV |
||
|
Current |
≤0.05% ± 10mA |
||||||
|
Readback Value Resolution (25℃±5℃) |
Voltage |
≤0.1% ± 20mV |
≤0.1% ± 30mV |
≤0.1% ± 20mV |
≤0.1% ± 30mV |
||
|
Current |
≤0.1% ± 10mA |
||||||
|
Ripple/Noise(*) |
Voltage(Vp-p) |
≤30mVp-p |
≤50mVp-p |
≤30mVp-p |
≤50mVp-p |
||
|
Voltage (rms) |
≤3mVrms |
≤5mVrms |
≤3mVrms |
≤5mVrms |
|||
|
Current (rms) |
≤30mAp-p |
||||||
|
Output temperature coefficient (0℃-40℃) |
Voltage |
100ppm/℃ |
|||||
|
Current |
200ppm/℃ |
||||||
|
Readback temperature coefficient |
Voltage |
100ppm/℃ |
|||||
|
Current |
200ppm/℃ |
||||||
|
Response Time(50%-100% rated load) |
≤1.0ms |
||||||
|
Storage |
4 groups of data |
||||||
|
Working Temperature |
0-40℃ |
||||||
* Noise bandwidth 20MHz, ripple bandwidth 1MHz, connect 10uF electrolytic capacitor in parallel with 0.1uF ceramic capacitor to eht output terminal for testiong
The accessories subject to final delivery.
-
Power Cord -
Quick Guide -
USB Cable -
Fuse
