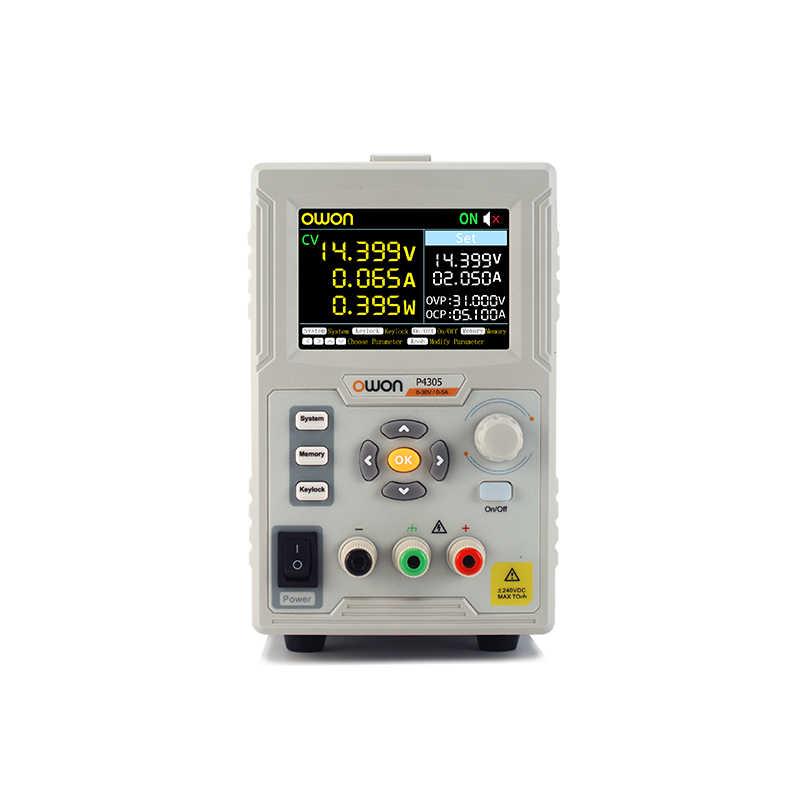

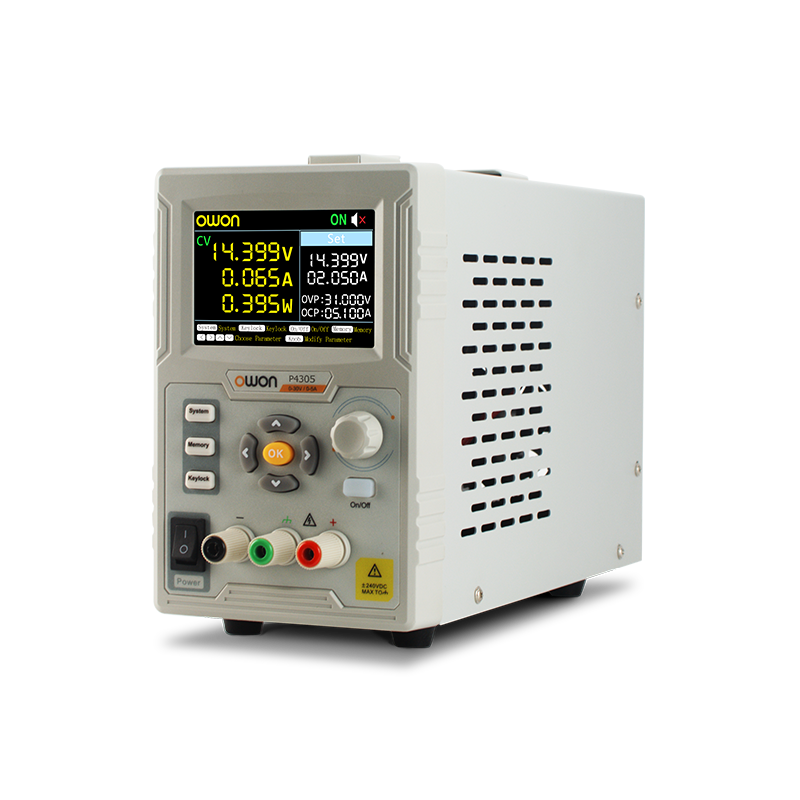

OWON P4000 Series 1CH Liner DC Power Supply
+ Small body for easy carry
+ 180W maximum output power

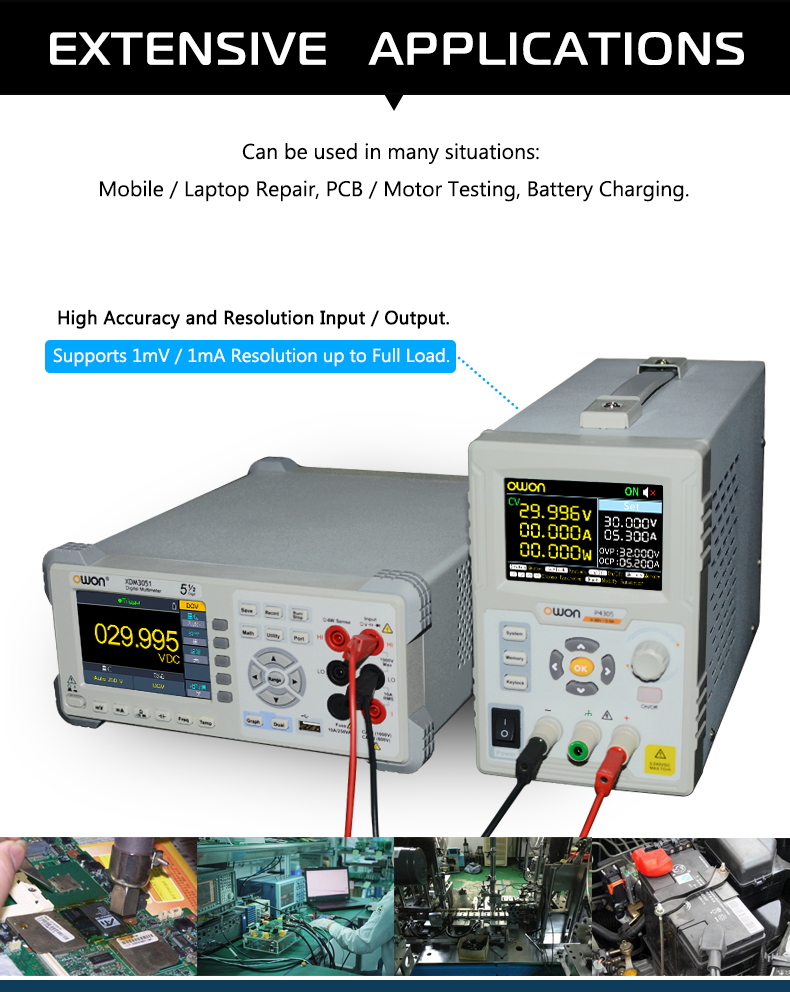

+ High resolution： 1mV / 1mA
+ Low ripple/noise
+ Over voltage/over current protection

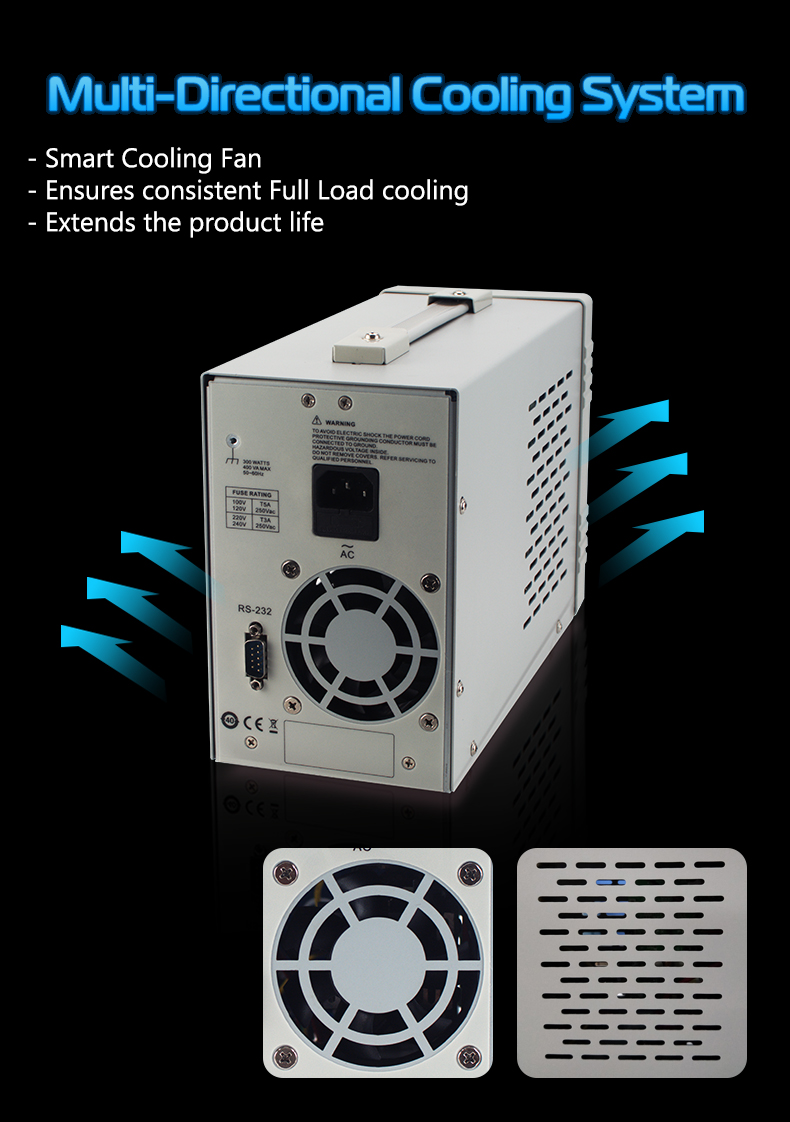

+ Multi-directional cooling system with smart fan

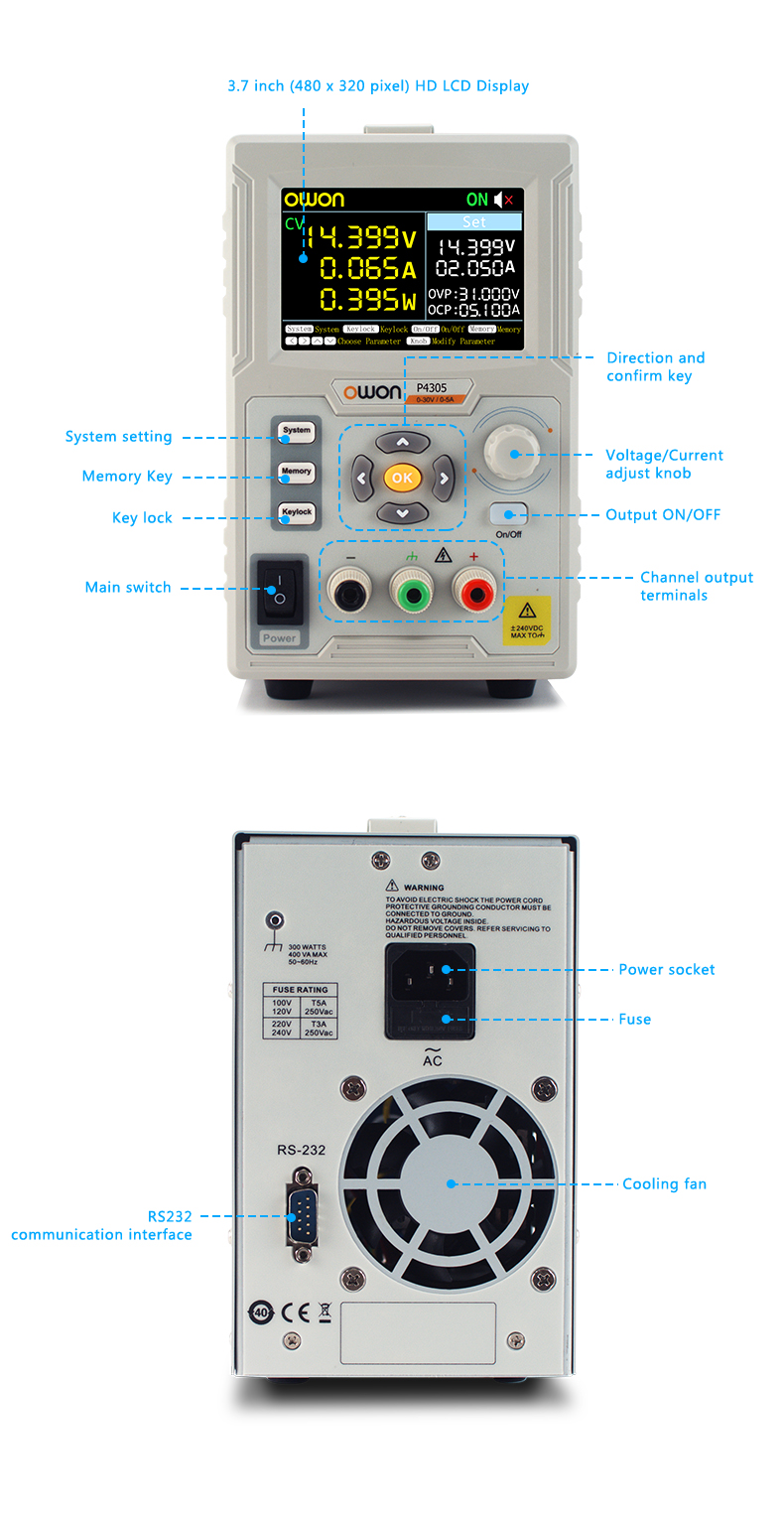

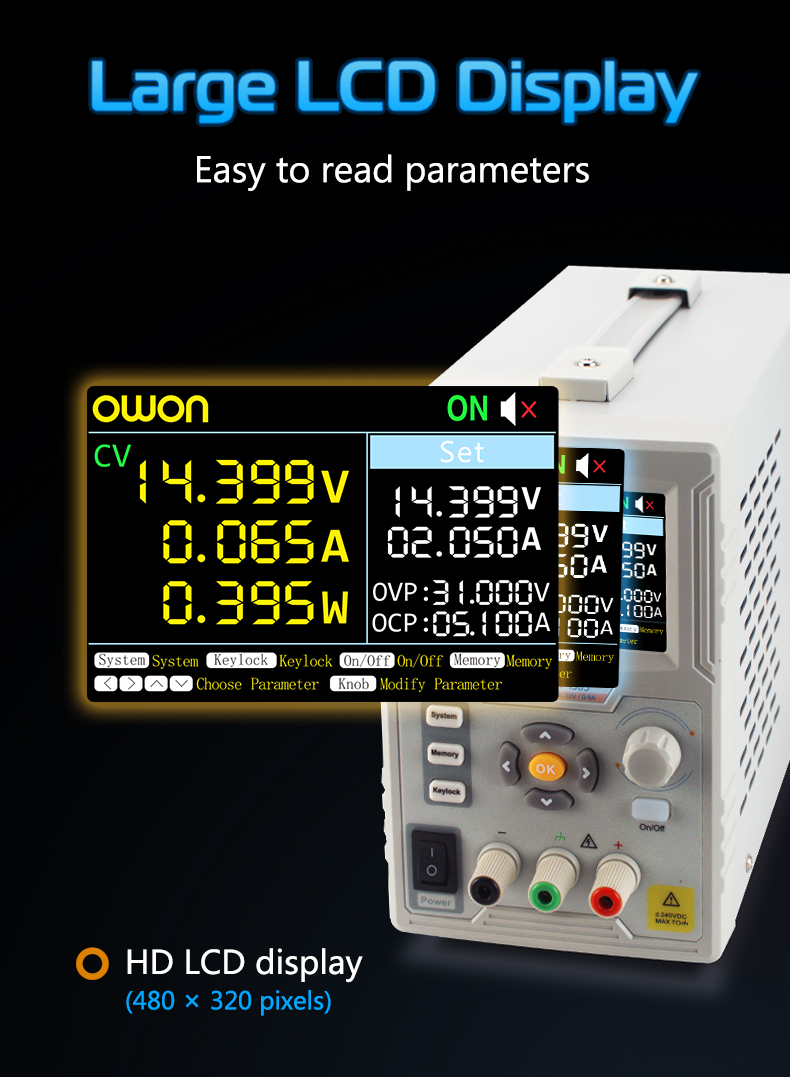

+ 3.7 inch TFT LCD display

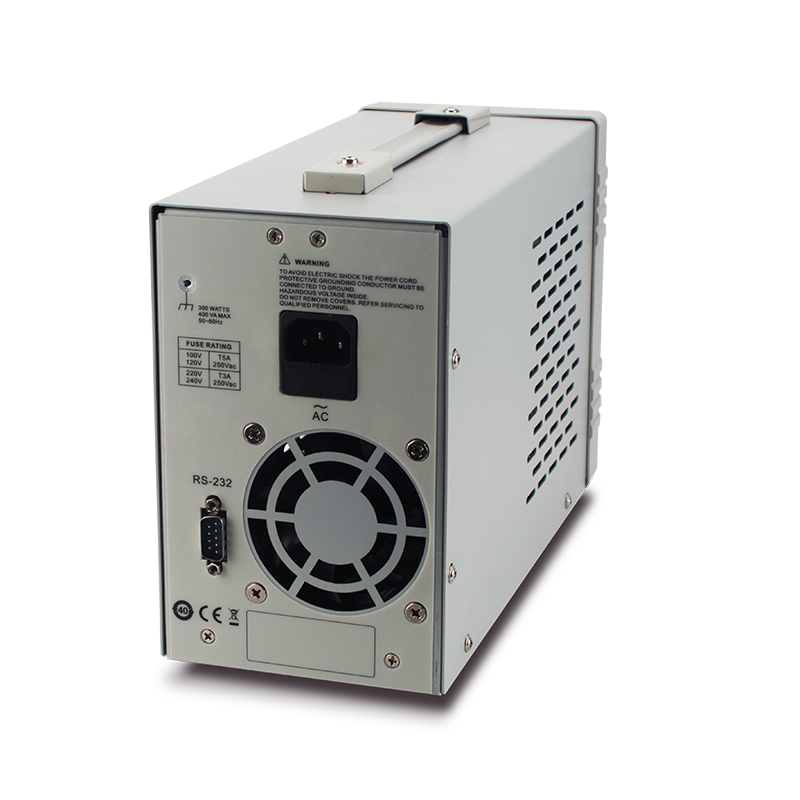

+ Support RS232 digital communication
+ Support SCPI
PDF Export
E-mail UsWe are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON programmable dc power supply, 180w, 30v power supply, 6a power supply with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.

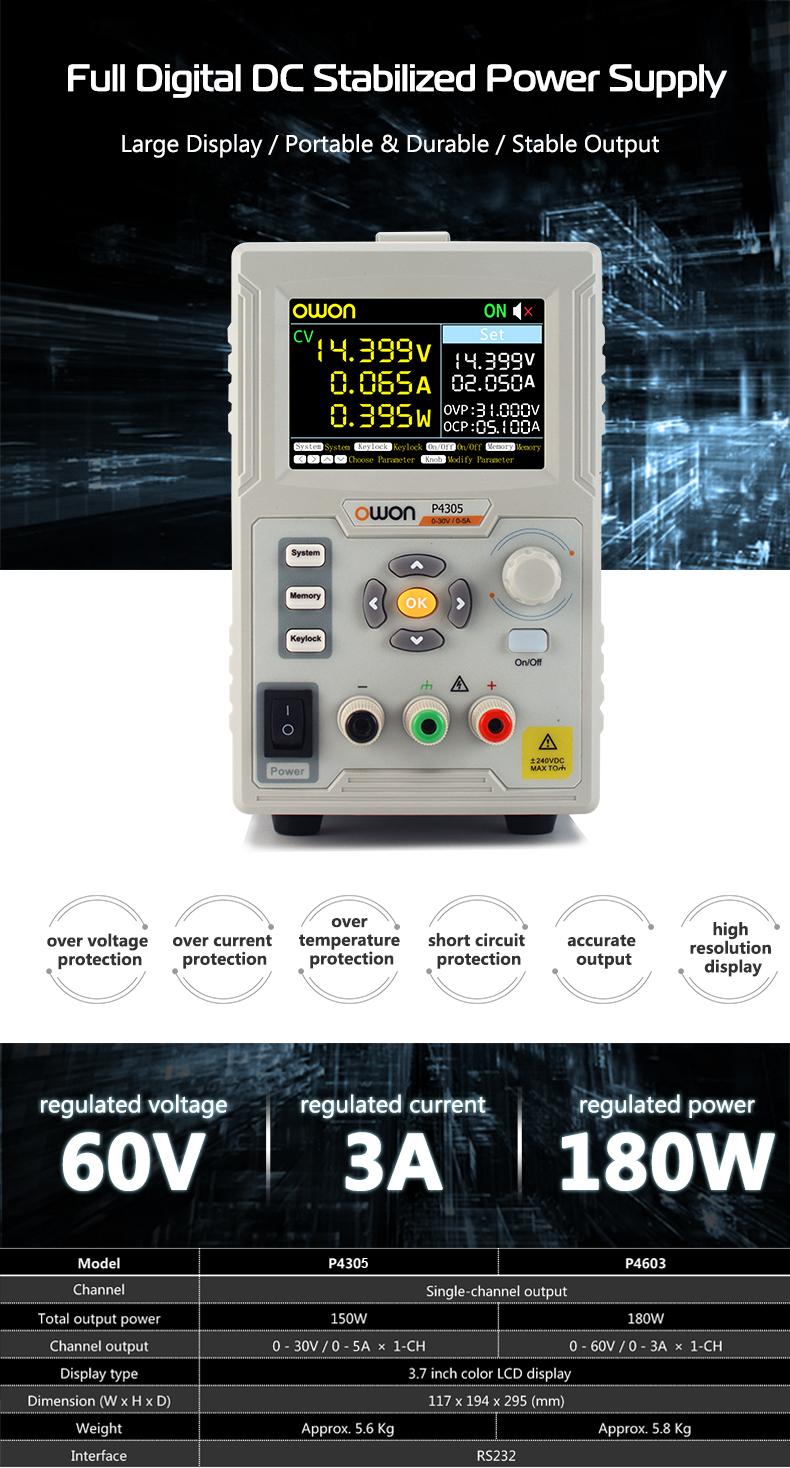

| Model | P4305 | P4603 | |
|---|---|---|---|
| Channel | Single Channel Output | ||
| Total Output Power | 150W | 180W | |
| Channel Output | 0 - 30V / 0 - 5A × 1-CH | 0 - 60V / 0 - 3A × 1-CH | |
| Display | 3.7 inch color LCD display | ||

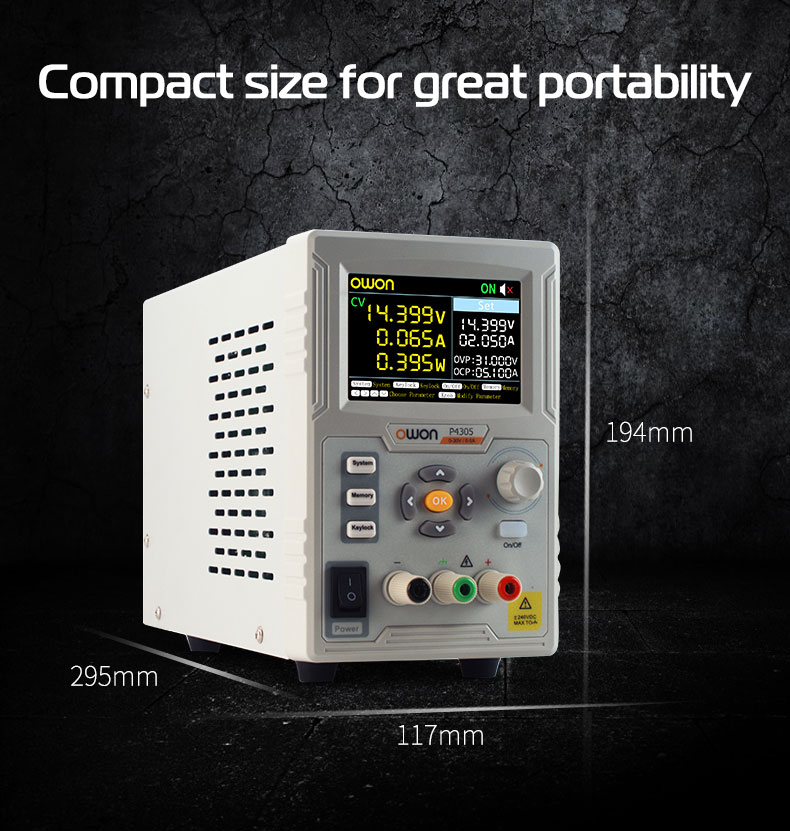

| Dimension | 117mm(L) × 194mm(H)× 295mm(D) | ||
| Weight | Approx. 5.6 kg | Approx. 5.8 kg | |
| Interface | RS232 | ||
The instrument must be operated continuously for more than 30 minutes at the specified temperature to ensure the following parameters.
| Model | P4305 | P4603 | |
|---|---|---|---|
| Rated Output (0℃-40℃) | Voltage | 0 - 30V | 0 - 60V |
| Current | 5A | 3A | |
| Load Regulation | Voltage | ≤0.04%+3mV | |
| Current | ≤0.04% + 3mA | ||
| Power Regulation | Voltage | ≤0.01% + 3mV | |
| Current | ≤0.01% + 3mA | ||
| Setting Resolution | Voltage | 1mV | |
| Current | 1mA | ||
| Readback Resolution | Voltage | 1mV | |
| Current | 1mA | ||
| Setpoint accuracy (within 12 months) (25℃±5℃) |
Voltage | ≤0.03% + 10mV | |
| Current | ≤0.1% + 5mA | ||
| Readback Resolution (25℃±5℃) |
Voltage | ≤0.03% + 10mV | |
| Current | ≤0.1% + 5mA | ||

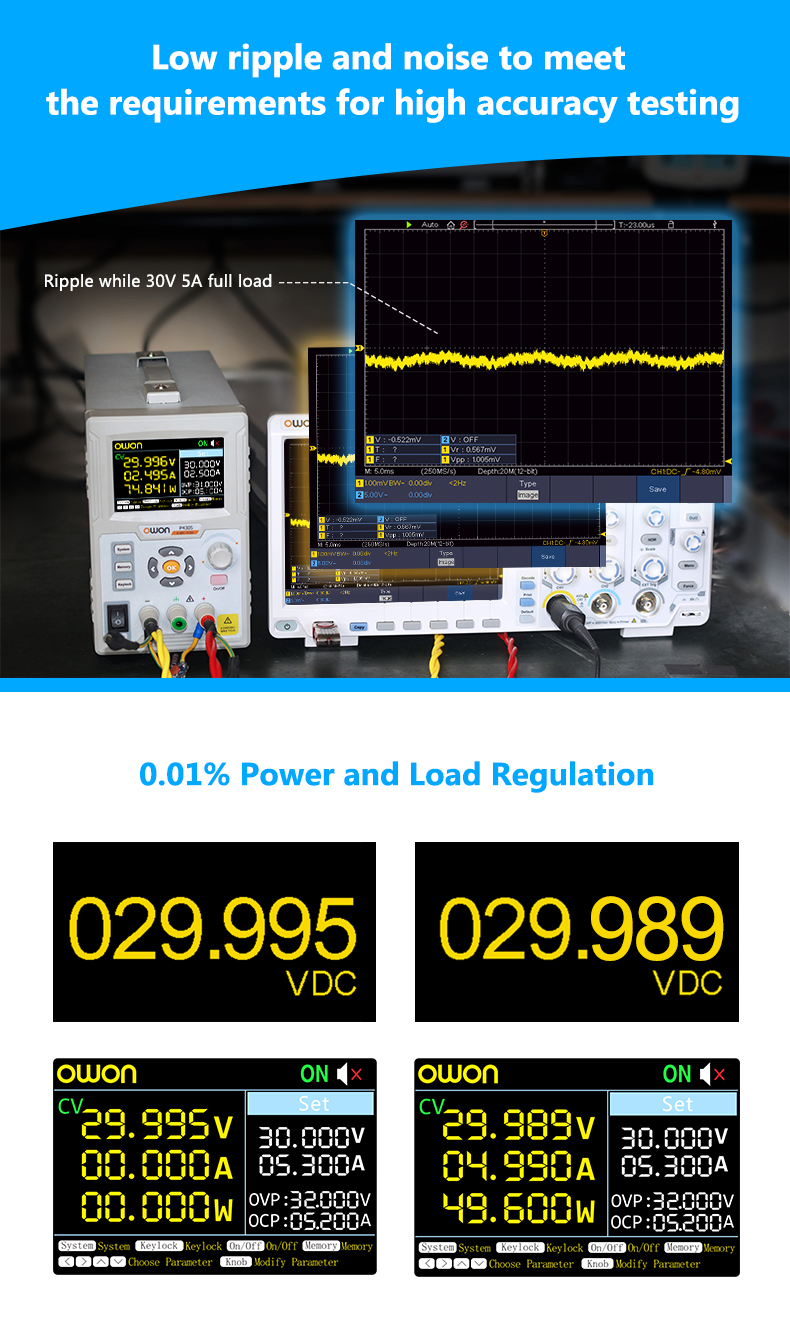

| Ripple/Noise (20Hz-20MHz) |
Voltage (Vp-p) | ≤4mVp-p | |
| Voltage (rms) | ≤1mVrms | ||
| Current (rms) | ≤4mArms | ||
| Output temperature coefficient (0℃-40℃) |
Voltage | ≤0.03% + 10mV | |
| Current | ≤0.1% + 5mA | ||
| Readback temperature coefficient | Voltage | ≤0.03% + 10mV | |
| Current | ≤0.1% + 5mA | ||
| Response Time | 100 μs | ||

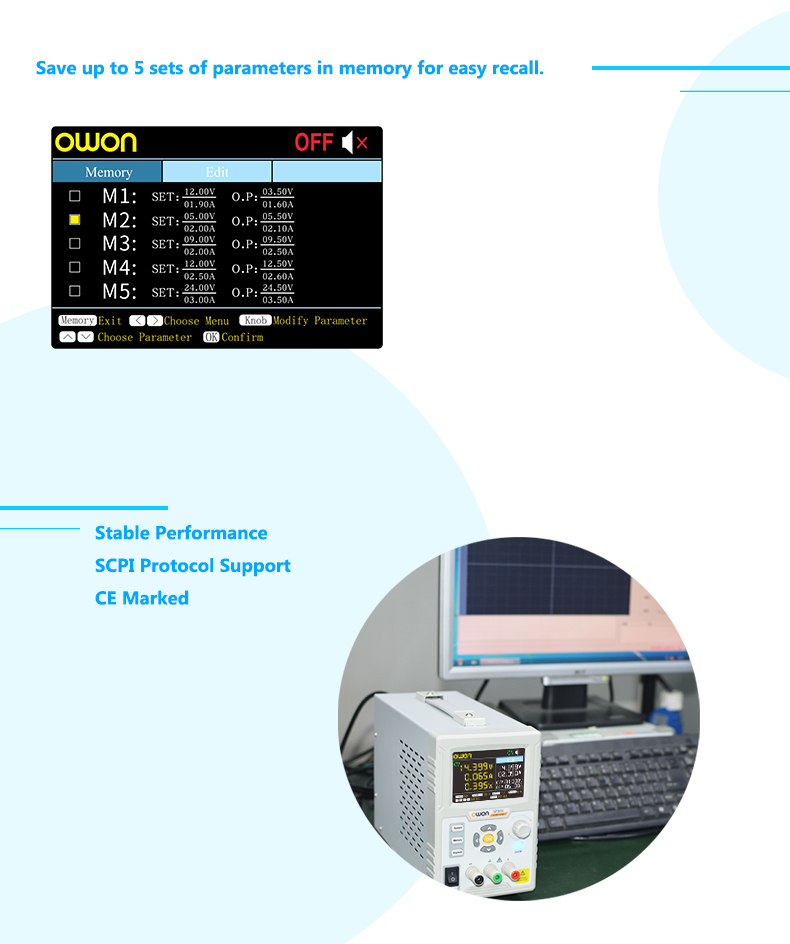

| Storage | 5 groups of data | ||
| Working Temperature | 0-40℃ | ||
The accessories subject to final delivery.
-
Power Cord -
Quick Guide -
Fuse -
Test Leads (optional) -
RS232 TO USB Module (optional) -
RS232
