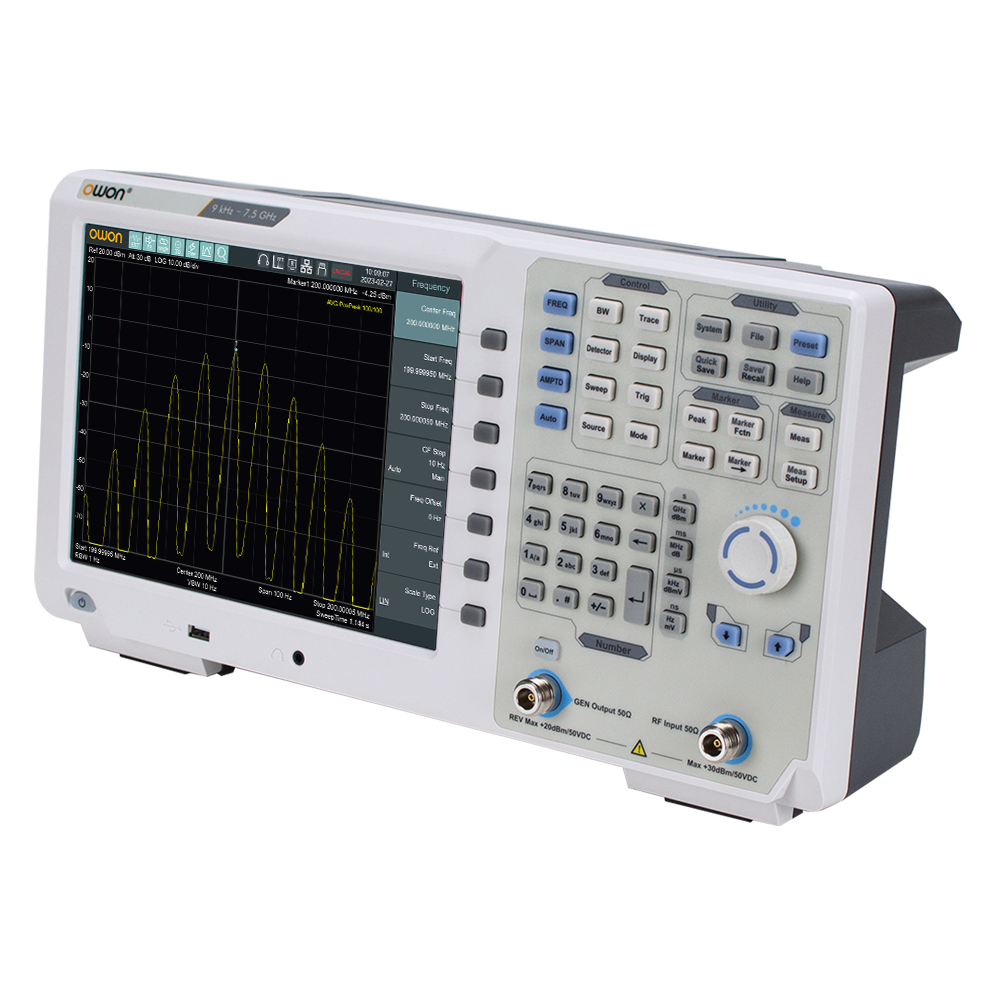

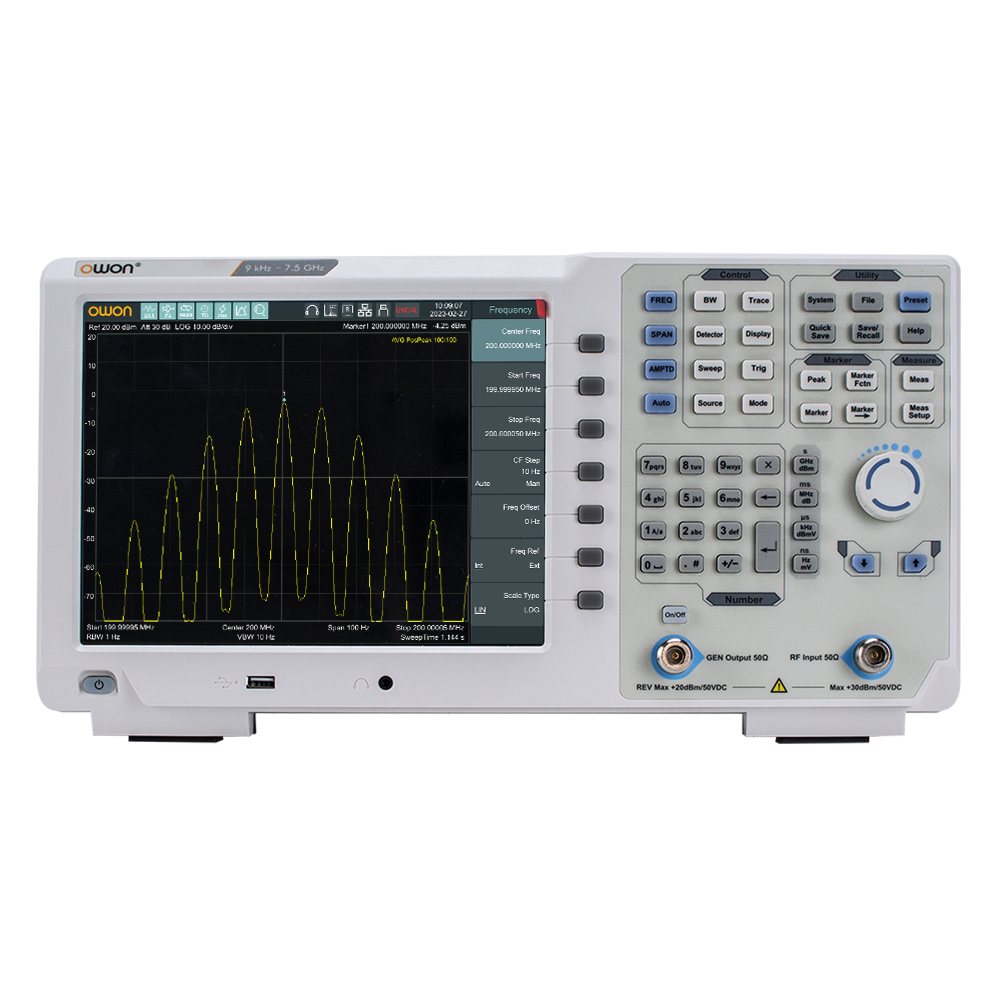

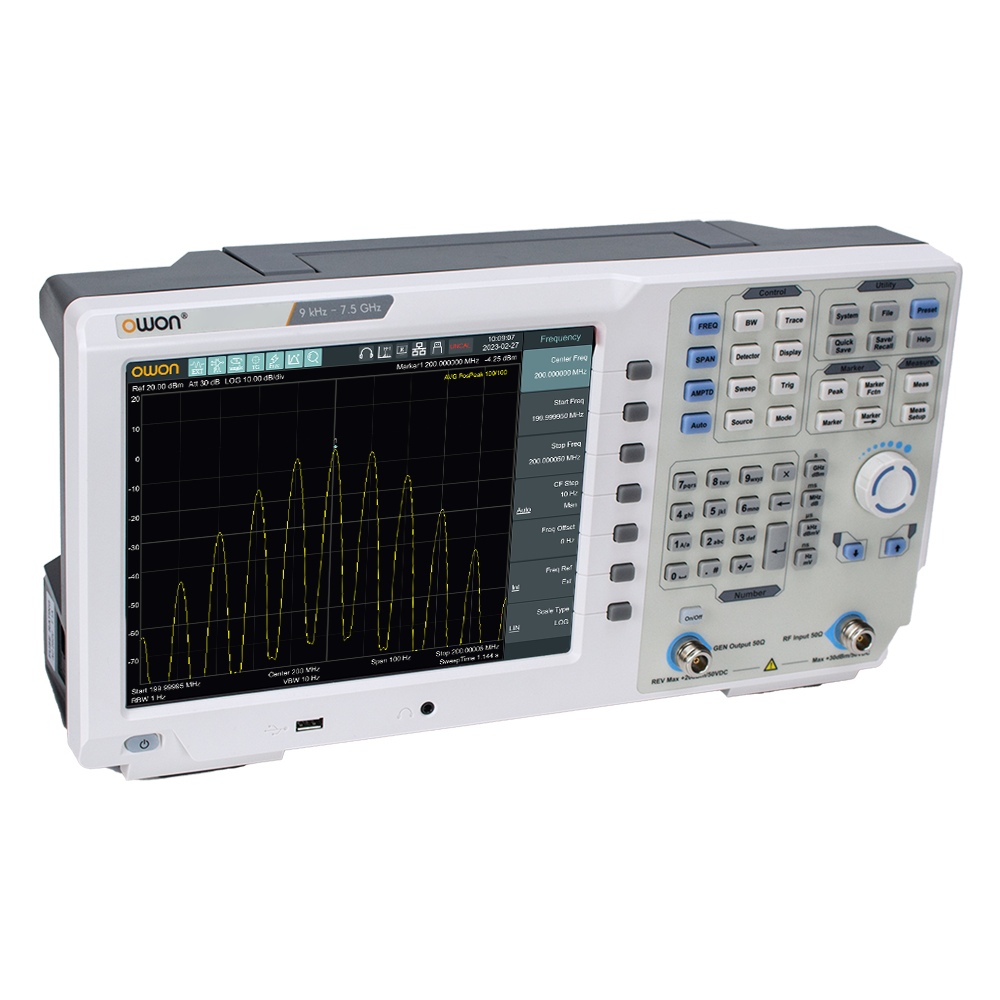

XSA1000P Series Spectrum Analyzer

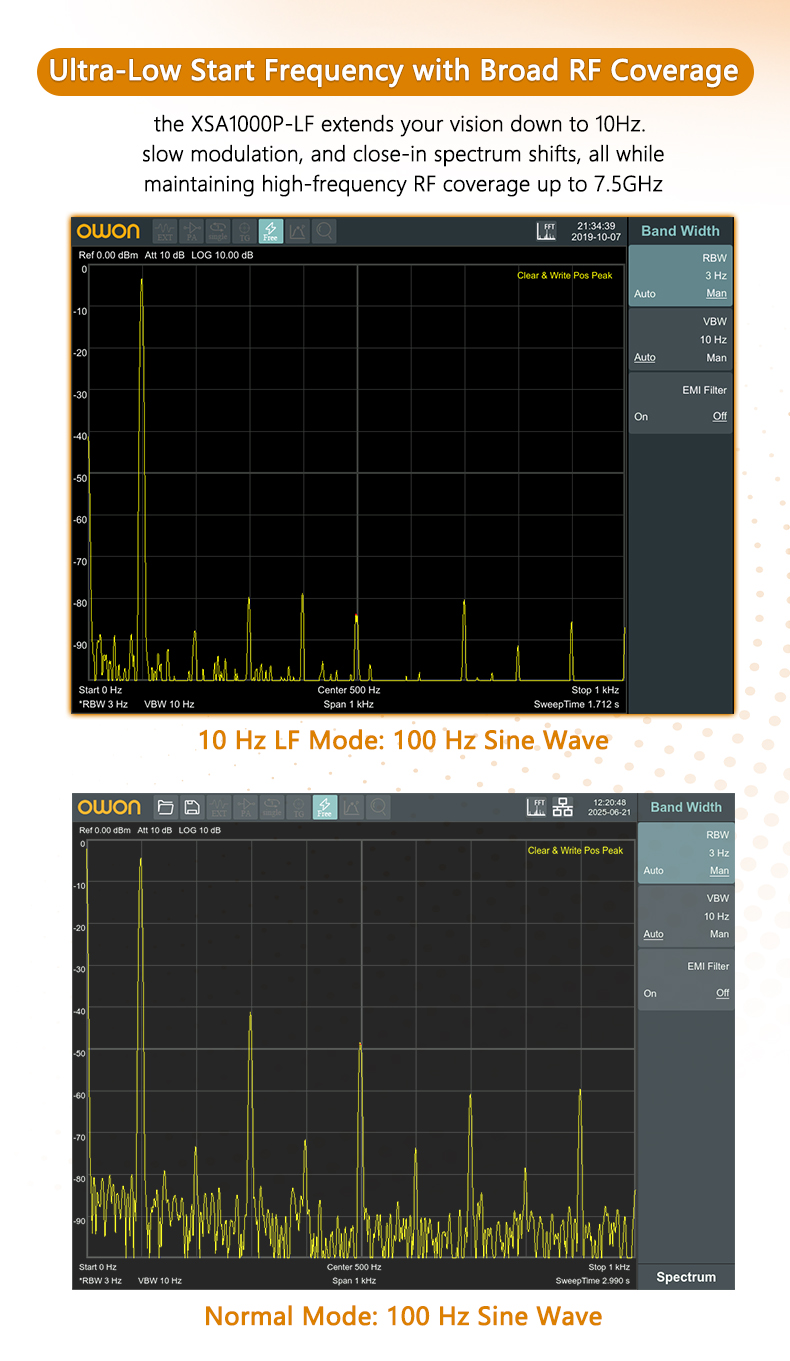

+ Frequency range 9kHz - 7.5GHz
+ -163 dBm Displayed Average Noise Level (DANL)
+ Phase noise -106 dBc/Hz @1GHz and offset at 10 kHz
+ Total amplitude accuracy <0.7 dB

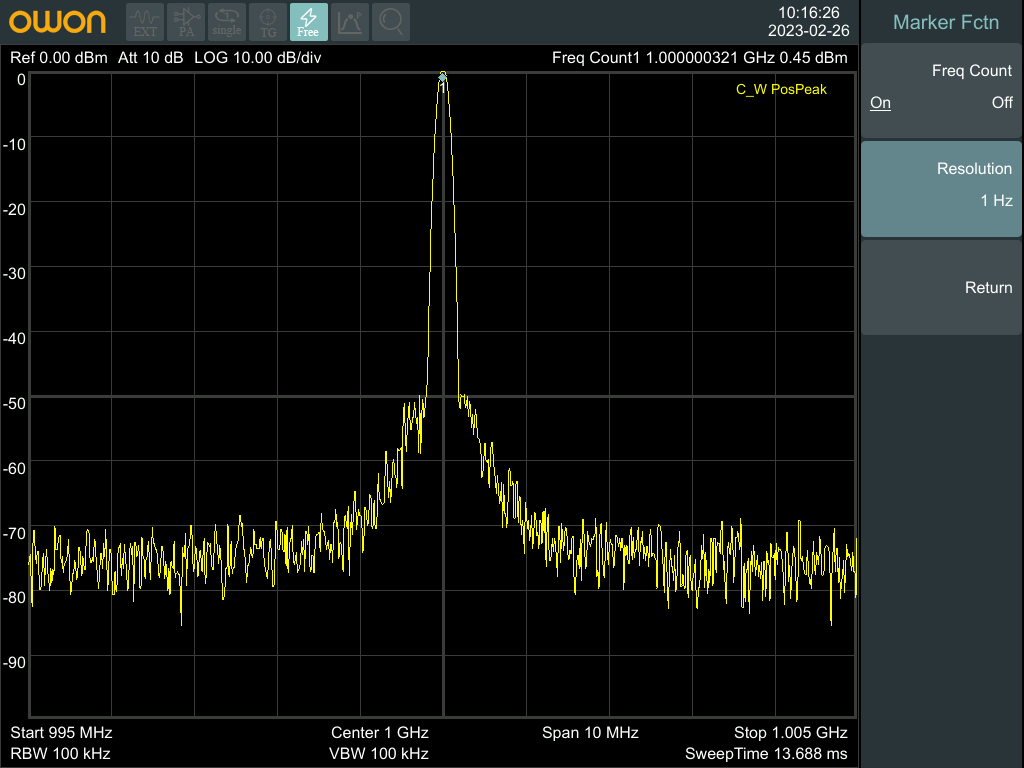

+ 1 Hz minimum resolution bandwidth (RBW)
+ EMI pre-compliance test kit, optional EMC test software
+ Waterfall plot graphic, modulation signal quality analysis, audio demodulation, ect. multiple general and extended test functions.
+ tandard Pass/Fail on-site test and alert function
+ Adopt all-digital intermediate frequency technology

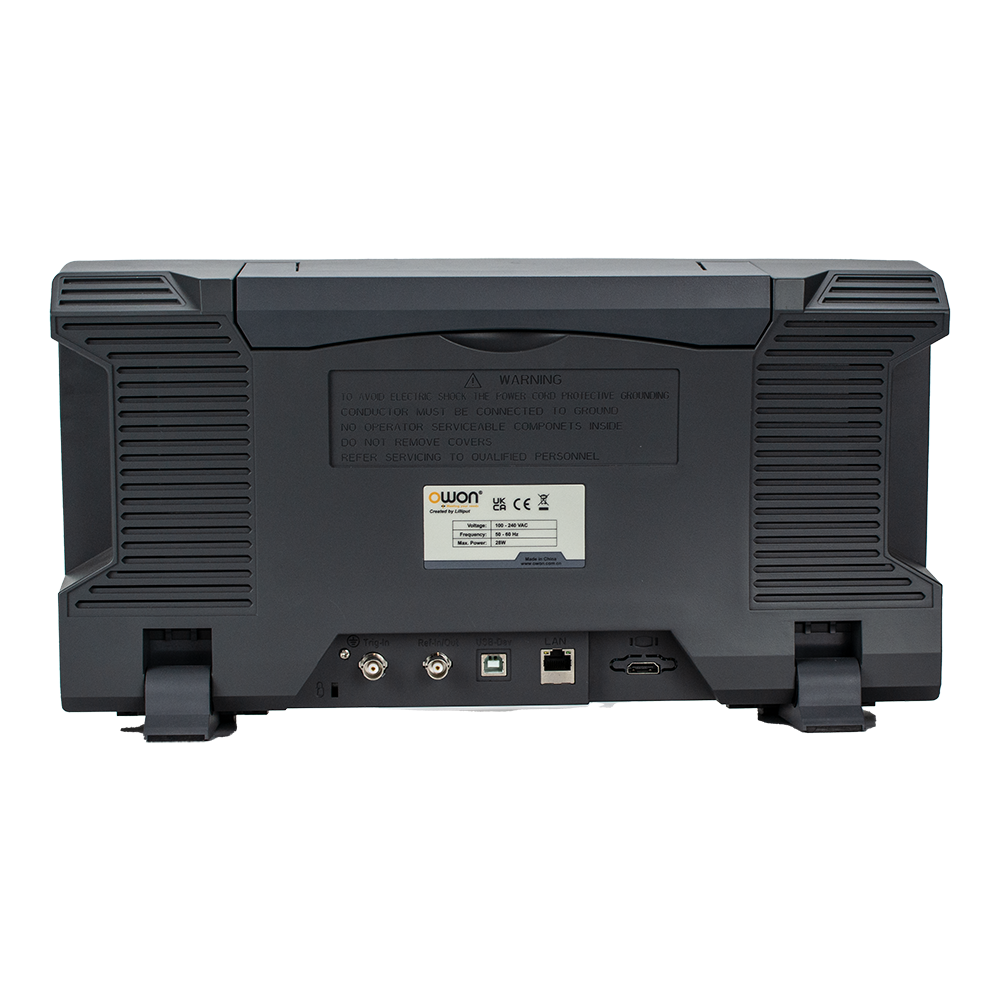

+ Multiple interfaces: USB Host, USB Device, LAN, earphone interface, HDMI
+ 10.4-inch multi-touch screen

Send Inquiry

Product Details

1. 1Hz minimum resolution bandwidth (RBW),
effectively distinguishingthe nearby signal

2.Quick capture function

Car rernote keys，TPMS tire pressure modules and smll wireless modules usually use ASKFSK mnodulation.XSA800 can complete the capture of ASK/FSK signals，and directly obtain its center frequency, powerand offset parameters.

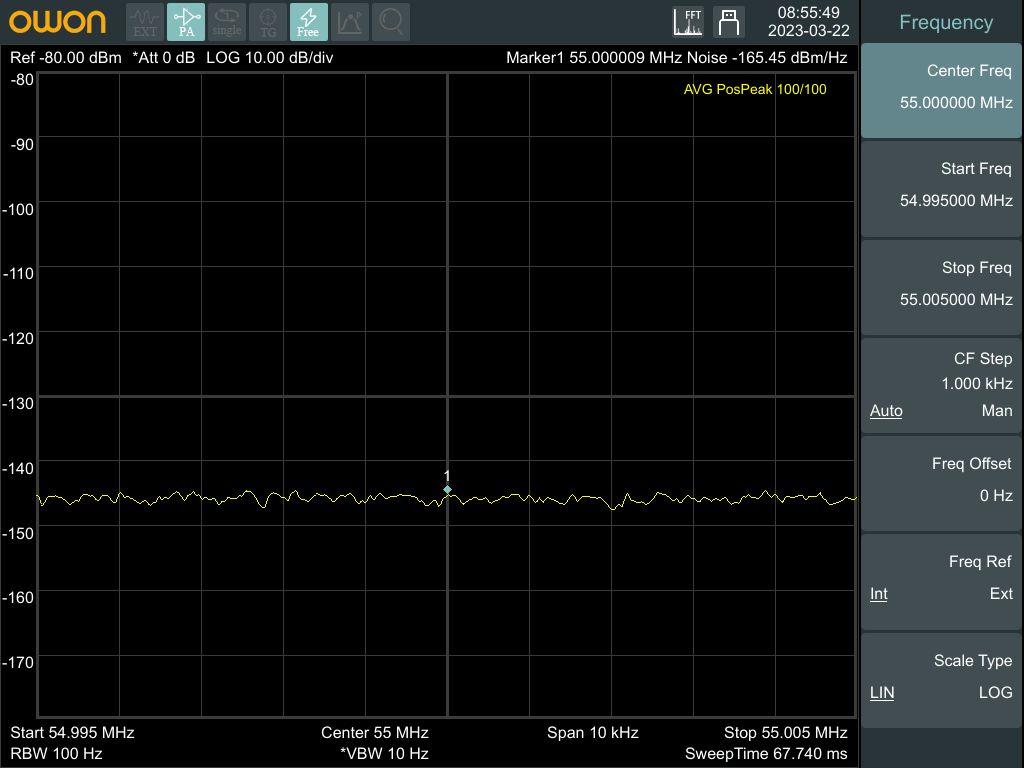

3.Excellent small signal measurement capability

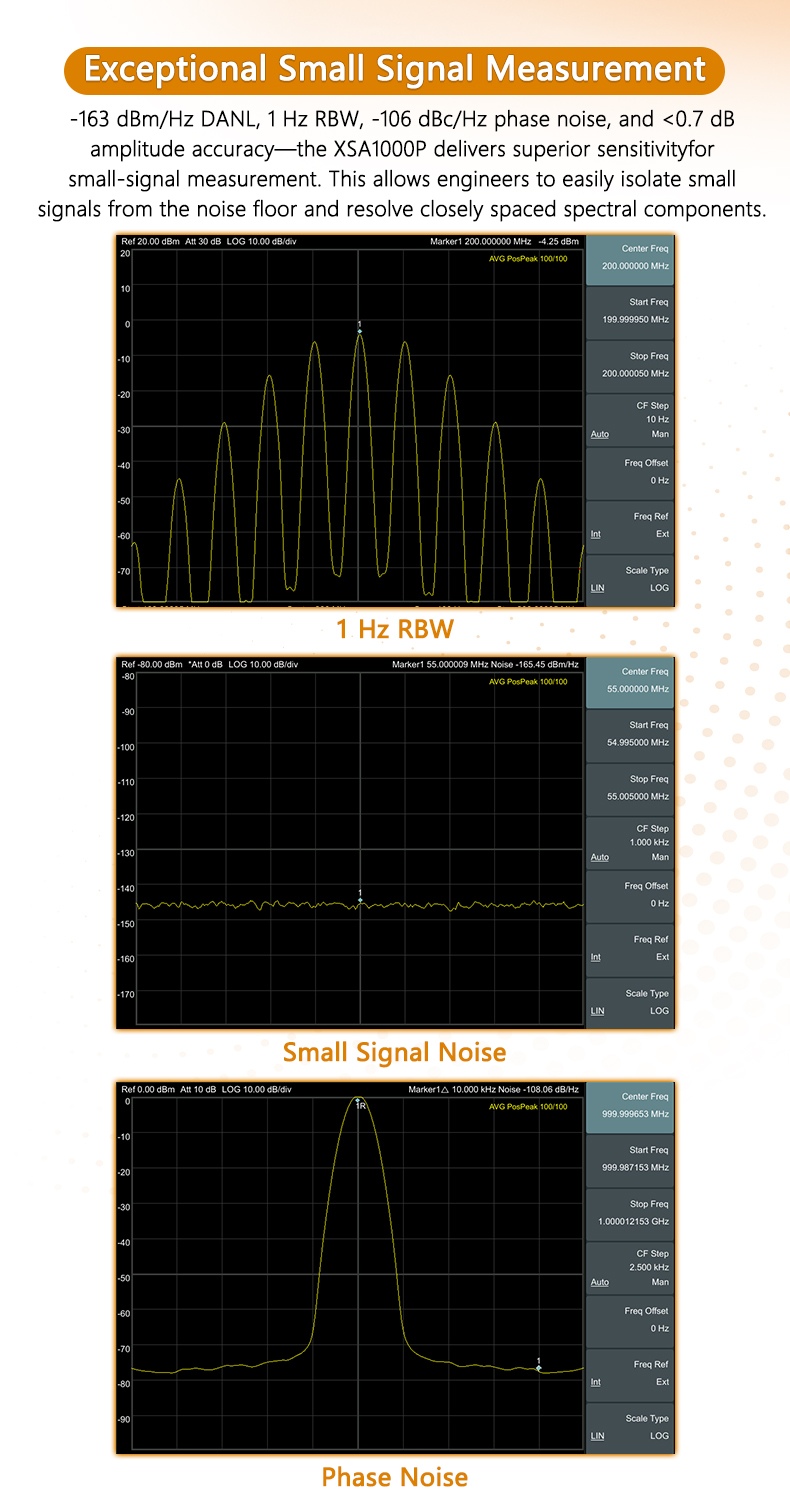

-163 dBm DANL (Displayed Average Noise Level),can observe weaker small signals

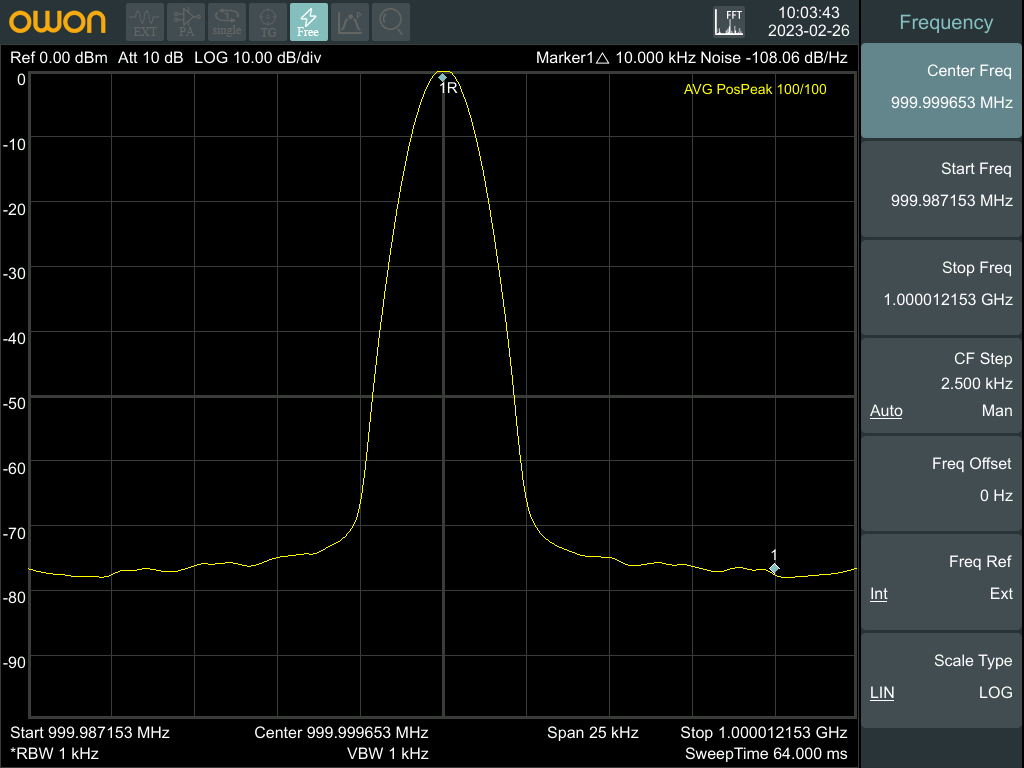

4.More accurate low-noise measurements

Phase Noise < -106 dBc/Hz @1GHz at 10 kHz offset

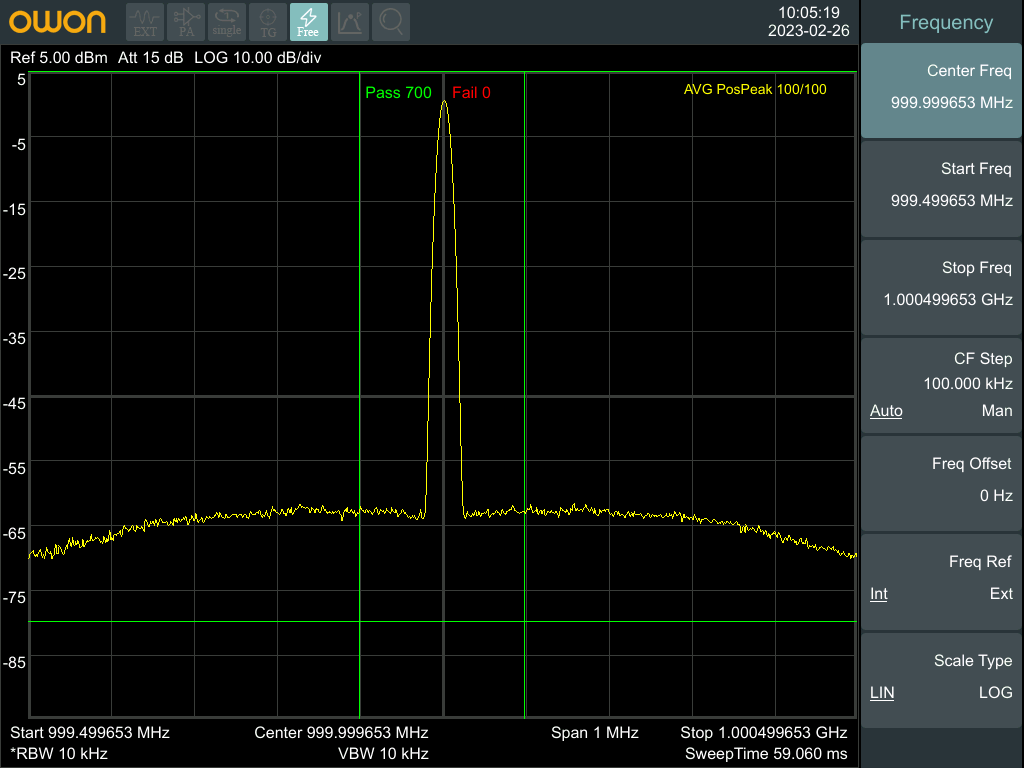

5.Pass/Fail function

Quickly determine if the test results pass

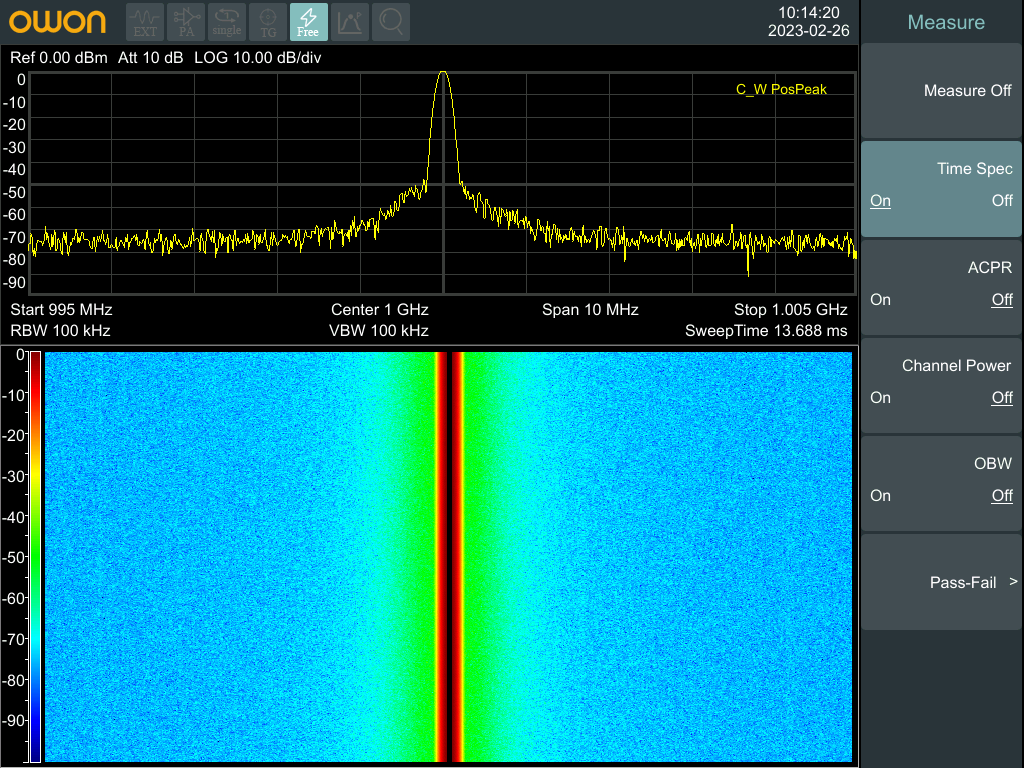

6.Waterfall plot graphic

View the behavior of varying signal parametersover time，track the frequency and power behaviorover the time,particularly intermittent signals.
The user can use waterfall plot graphic to analyzethe stability of a signal over the time，or to identifyintermittent interference signals in communicationssystems.

7.Provide EMC test function (requires optional software)

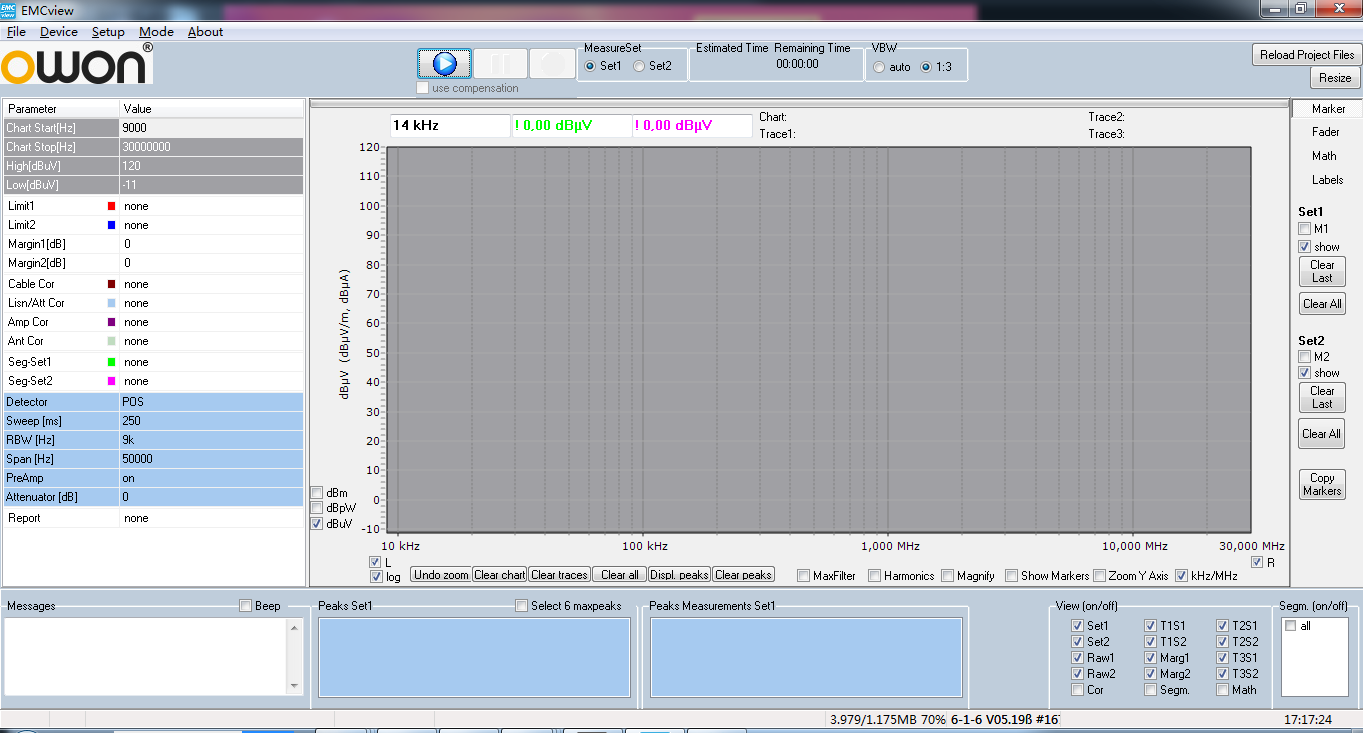

Built-in more than 200 mainstream EMC test standards and regulations templates.The user selects the correspondingtemplate, and the software automaticaly sets the spectrum analyzer and records the test data.The data and regulationscan be compared on the same screen.Users can also customize regulations for comparative analysis.

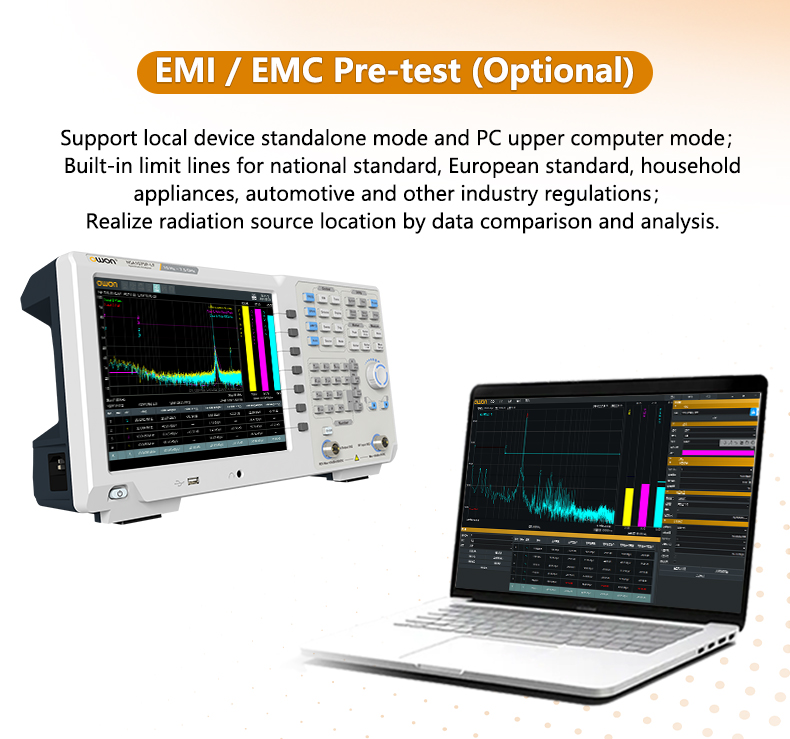

8.Provides EMl pre-compliance test function

Equipped with EMl filter (6dB) and quasi-peak detector as standard, it is more accurate for EMl pre-testand diagnosis,and complete testing and production report can be completed by using supporting software.

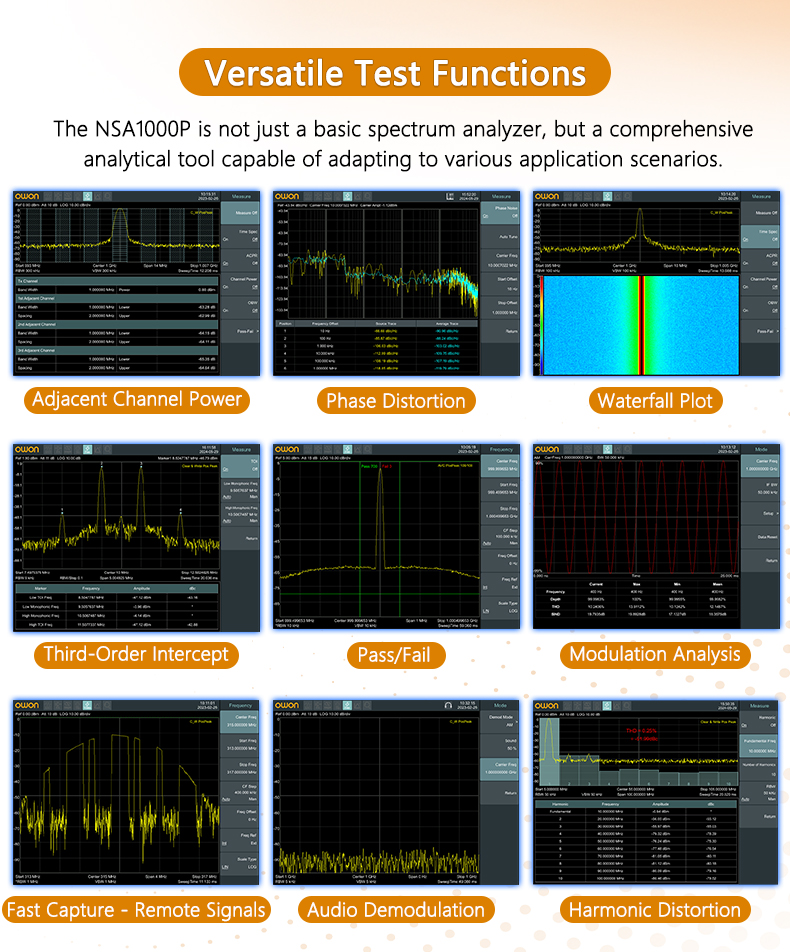

9.Provide multiple extended function modes

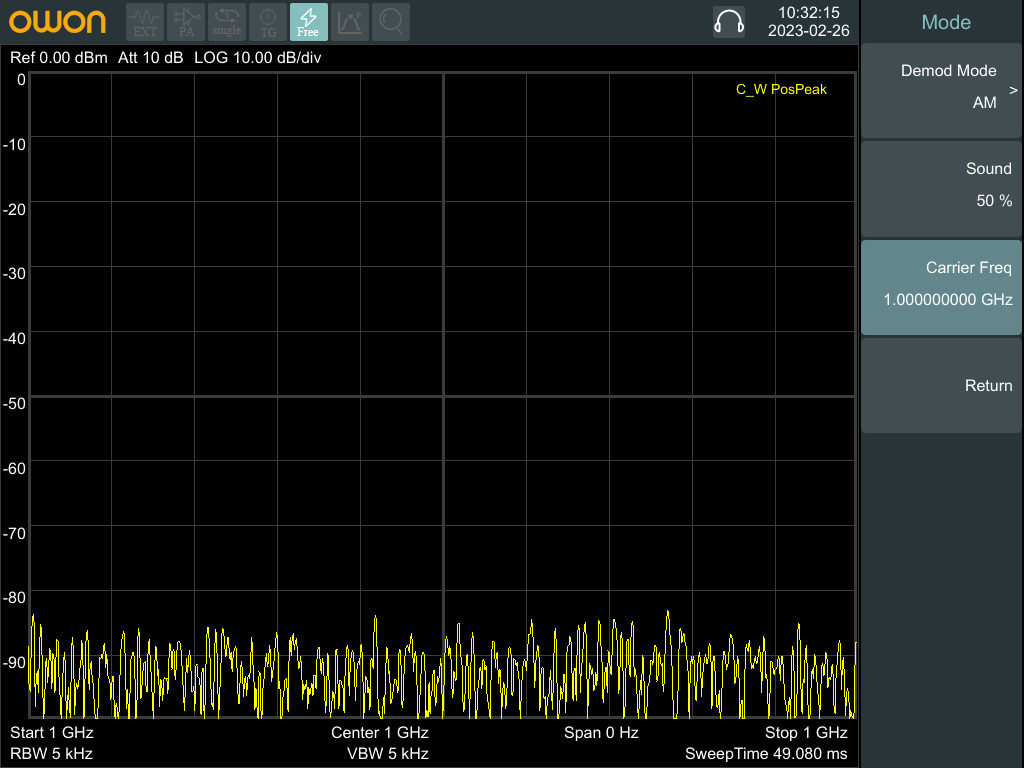

Standard modulation signal quality analysis, audio demodulation, field strength measurerment, charnel measurementand frequency counter，ect. multiple general and extended test functions.

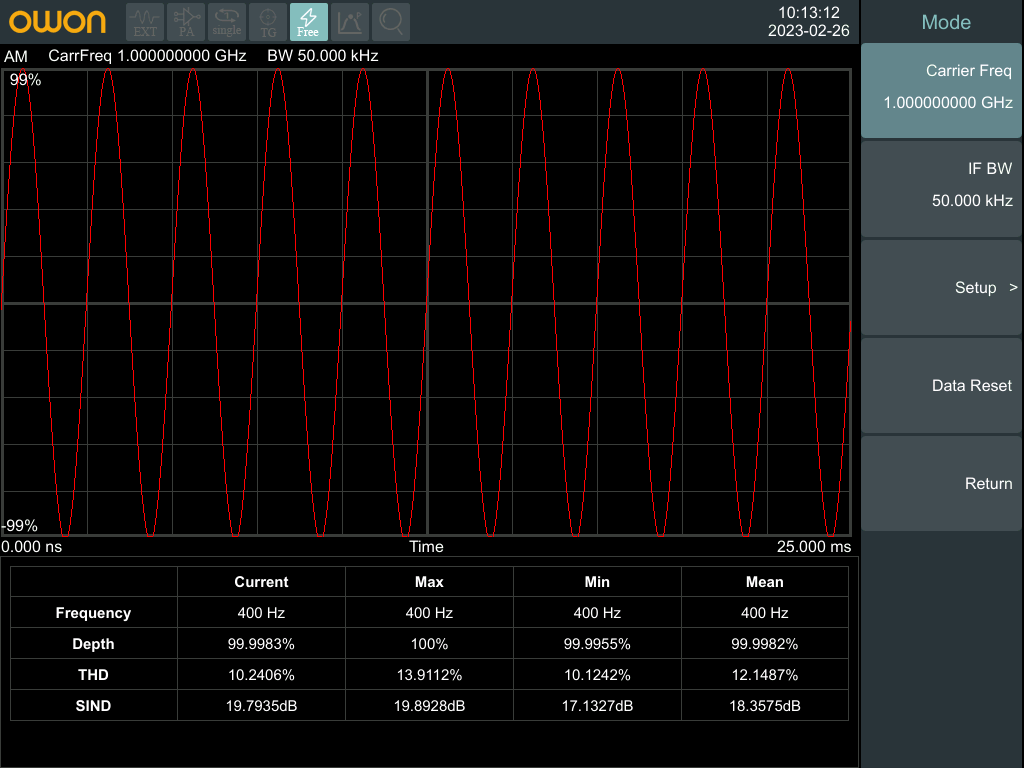

modulation signal quality analysis

audio demodulation

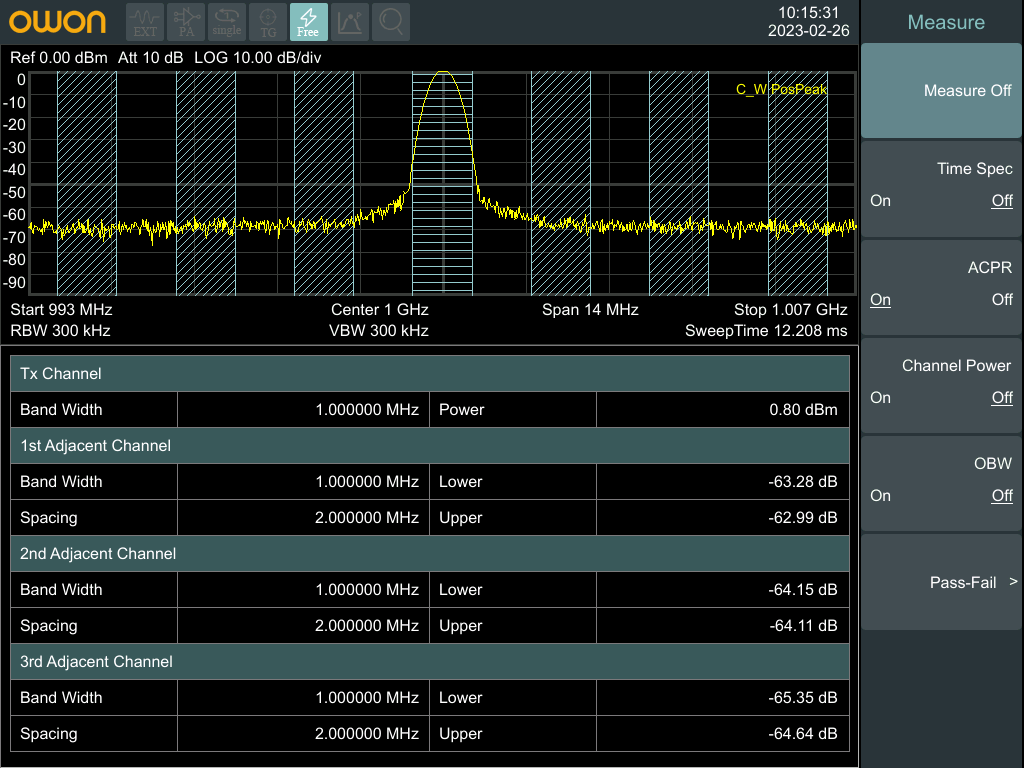

channel measurement

frequency counter

Weight: Approx. 5kg (main device)

Dimensions:375 mm (W) x 185 mm (H) x 120 mm (D)

Specifications

Frequency
Frequency Range		XSA1015P			9 kHz to 1.500000000 GHz
		XSA1036P			9 kHz to 3.600000000 GHz
		XSA1075P			9 kHz to 7.500000000 GHz
Frequency Resolution		1 Hz
Frequency Span
Span Range		0 Hz, 100 Hz to max frequency of instrument
Span Uncertainty		± span / (sweep points-1)
SSB Phase Noise(20℃ to 30℃,fc=1 GHz)
Carrier Offset	10 kHz				< -106 dBc/Hz
	100 kHz				< -104 dBc/Hz
	1 MHz				< -115 dBc/Hz
Bandwidth
Resolution Bandwidth（-3 dB）		1 Hz to 1 MHz, in 1-3-5-10 sequence
RBW Accuracy		< 5% nominal
Resolution Filter Shape Factor (60 dB : 3 dB)		<5 nominal
Video Bandwidth (-3 dB)		10 Hz to 3 MHz, in 1-3-5-10 sequence
Resolution Bandwidth（-6 dB）(EMI)		200 Hz，9 kHz，120 kHz，1 MHz
Amplitude
measurement range		XSA1015P			DANL to +10 dBm,100 kHz to 10 MHz, Preamp Off DANL to +20 dBm,10 MHz to 1.5 GHz, Preamp Off
		XSA1036P			DANL to +10 dBm,100 kHz to 10 MHz, Preamp Off DANL to +20 dBm,10 MHz to 3.6 GHz, Preamp Off
		XSA1075P			DANL to +10 dBm,100 kHz to 10 MHz, Preamp Off DANL to +20 dBm,10 MHz to 7.5 GHz, Preamp Off
Max Input Level
DC Voltage		50 V
Continuous RF power		Attenuation = 40 dB, +20 dBm(100mV)
Max. damage level		+30 dBm（1 W）
Display Average Noise Level (DANL)
Preamp Off		9 kHz to 1 MHz			-95 dBm (Typical), <-88 dBm
		1 MHz to 500 MHz			-140 dBm (Typical), <-130dBm
		500 MHz to 3.6 GHz					-138 dBm (Typical),<-128 dBm
		3.6 GHz to 6 GHz					-134 dBm (Typical),<-124 dBm
		6 GHz to 7.5 GHz					-129 dBm (Typical),<-119 dBm
Preamp On		100 kHz to 1 MHz			-135 dBm (Typical), <-128 dBm
		1 MHz to 500 MHz			-160 dBm (Typical),<-150 dBm
		500 MHz to 3.6 GHz					-158 dBm (Typical),<-148 dBm
		3.6 GHz to 6 GHz					-154 dBm (Typical),<-144 dBm
		6 GHz to 7.5 GHz					-149 dBm (Typical),<-139 dBm
Frequency response(20℃ to 30℃,30% to 70% relative humidity, input attenuation=10 dB, reference frequency= 50 MHz)
Preamp Off (fc≥9kHz)		＜0.7 dB
Preamp On (fc≥50 MHz)		＜1.0 dB
Difference and Accuracy
Uncertainty		fc = 50 MHz, peak detector, preamplifier off, attenuation = 10 dB, input signal level = -10 dBm, 20℃ to 30℃
		＜ 0.4 dB
Tracking Generator (optional)
Frequency Range		XSA1015P			100 kHz to 1.5 GHz
		XSA1036P			100 kHz to 3.6 GHz
		XSA1075P			100 kHz to 7.5 GHz
Output power level range		-40 dBm to 0 dBm
Output level resolution		1 dB
Output flatness		Relative to 50 MHz
		± 3 dB
Tracking generator spurious		Harmonic spurious				-20 dBc (Tracking generator output power -10 dBm)
		Non-harmonic spurious				-20 dBc (Tracking generator output power -10 dBm)
Tracking generator to input terminal isolation		-60 dB (Tracking generator output power 0 dBm)
USB
USB Host
Connector			A Plug
Protocol			USB 2.0
USB Device
Connector			B Plug
Protocol			USB 2.0
Display
Type			TFT LCD
Resolution			1024*768
Size			10.4 inches
Color			65536
Remote Control
LAN			10/100Base,RJ-45
HDMI			Connector	A Plug
			Protocol	Version 1.4

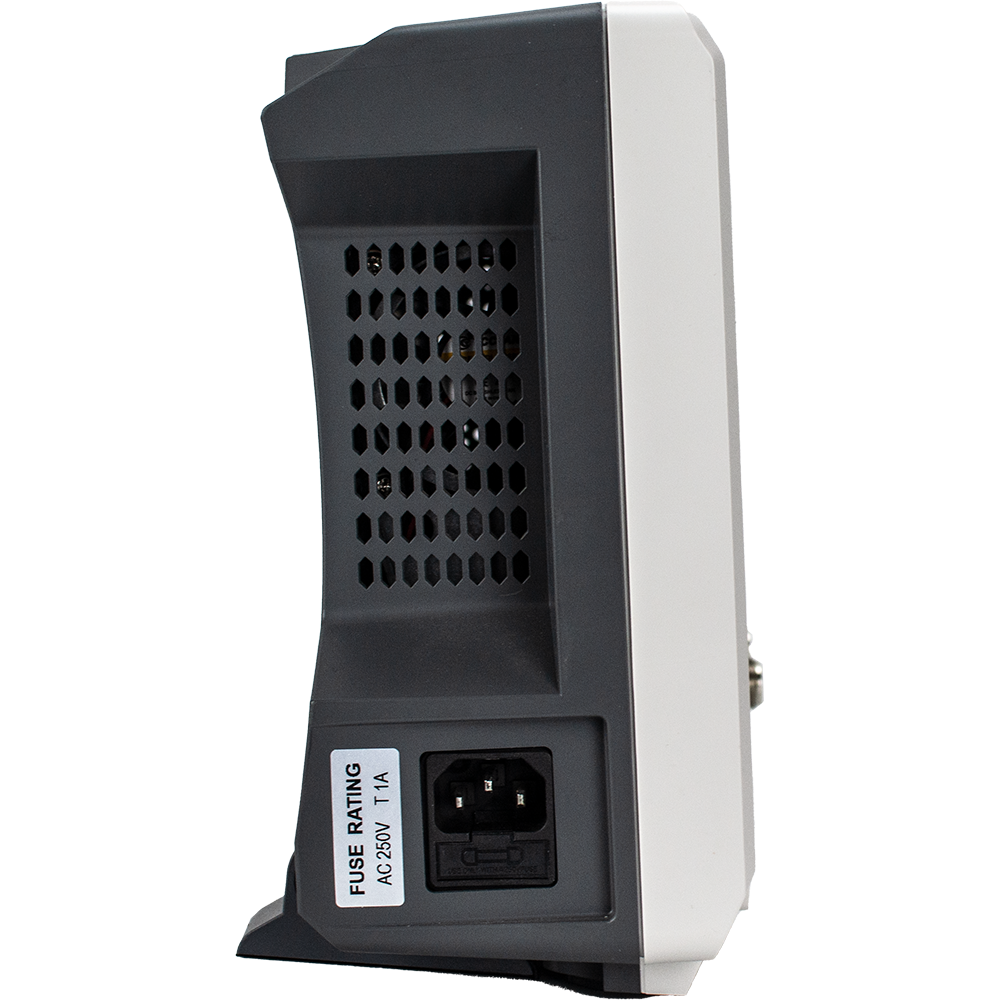

Appearance
Dimensions		375 mm (W) × 185 mm (H) × 120 mm (D)
Weight		Approx. 5.0 kg (without package)

Support

Accessories

The accessories subject to final delivery.

Power Cord
CD Rom
Quick Guide
USB Cable
N-N Cable (optional)
N-SMA Cable (optional)
SMA-SMA Cable (optional)
SMA Adaptor (optional)
Near Field Probe (optional)

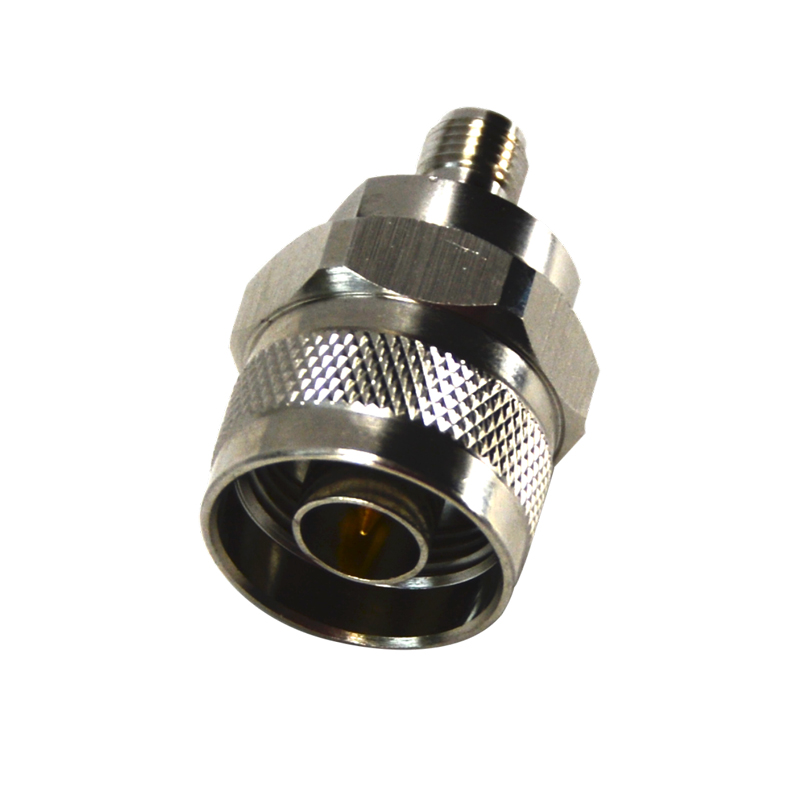

N-SMA Adaptor (optional)
