OWON XDS3000 Series n-in-1 Digital Oscilloscope

Super Performance

+ 8-bit, 12-bit or 14-bit high resolution ADC, restoring the waveform detail fully

+ 40M record length, max 70,000 wfms/s waveform refresh rate

+ low background noise, vertical sensitivity in 1 mV/div - 10 V/div

+ multi- trigger, and bus decoding function

+ SCPI, and LabVIEW supported

Creative New Look

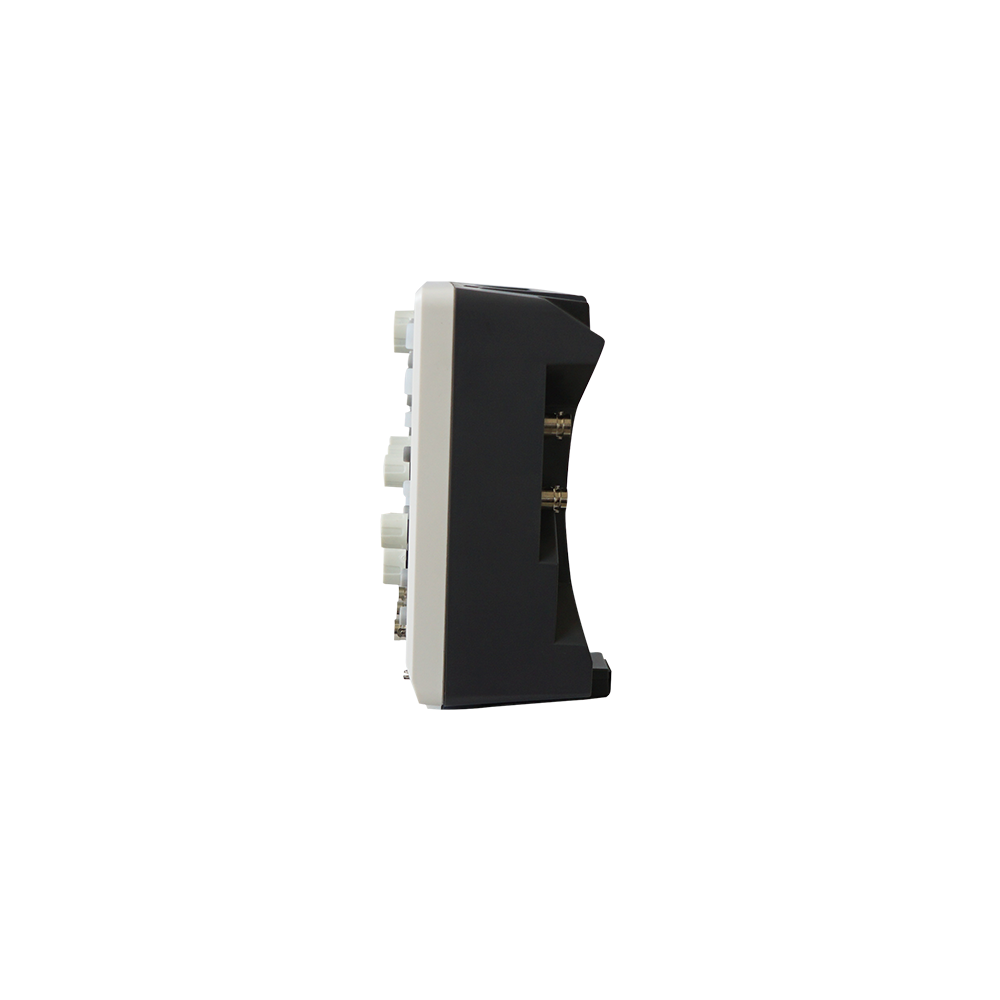

+ ultra-thin body-design, less space accommodation

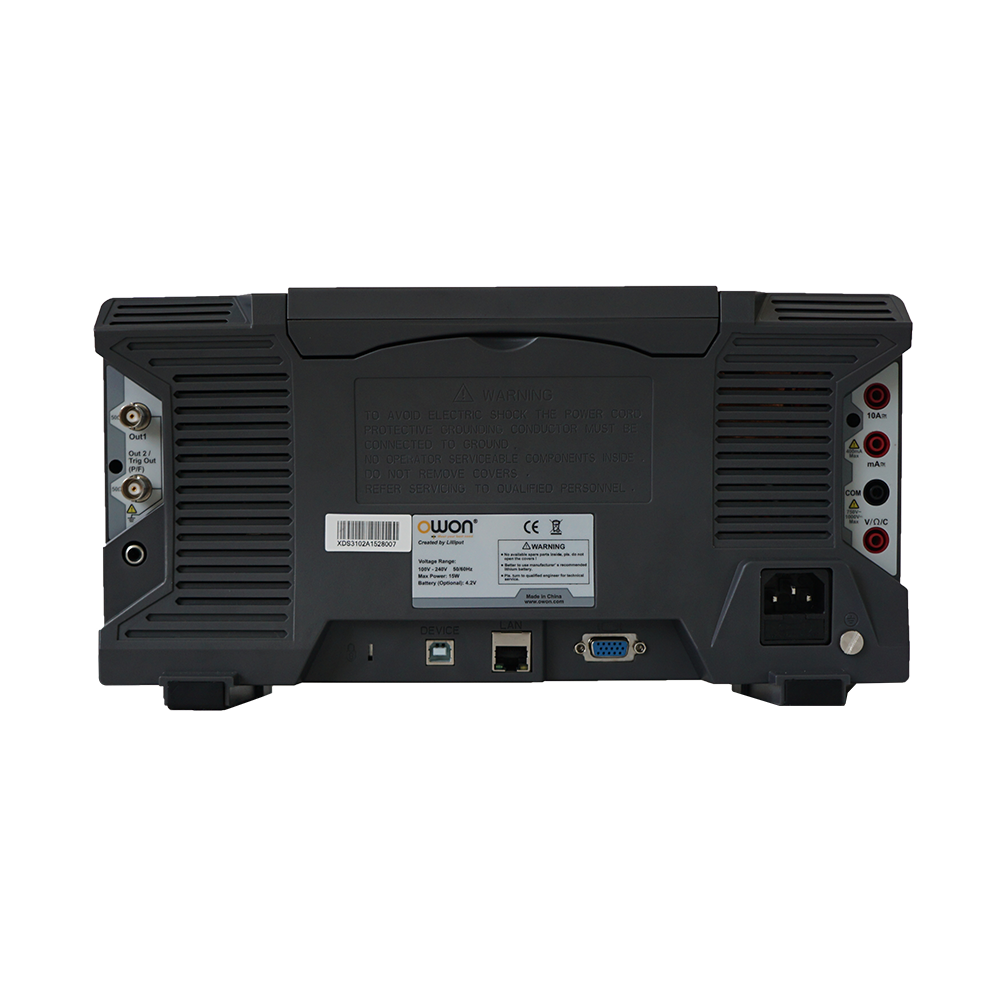

+ multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and more

+ VGA port - better solution for video expansion, and teaching demonstration

+ 8 inch 800 x 600 high resolution LCD

+ optional multi-point touch screen, more user-friendly operation experience

n-in-1

functions as data logger, and multimeter with data logging function,

and dual-channel 25MHz / 50MHz arbitrary waveform generator,

furthermore, battery pack, and WiFi module supported

Send Inquiry

Product Details

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON xds series n-in-1 digital oscilloscope, usb scope, multimeter oscilloscope, high resolution oscilloscopes, wifi oscilloscope, oscilloscope app with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.

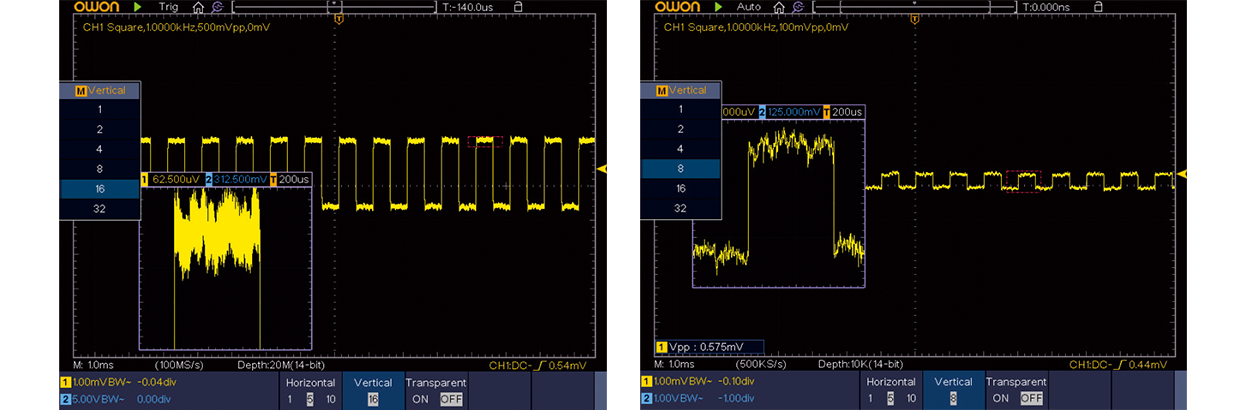

1. 12 / 14-bits ADC and original magnifier function

XDS series introduce 12 / 14 bits hardware ADC, the precision is 16/64 times against other oscilloscope on market. Equipping with OWON’s original magnifier function, it can observe the signal low down to 31.25μV/div.

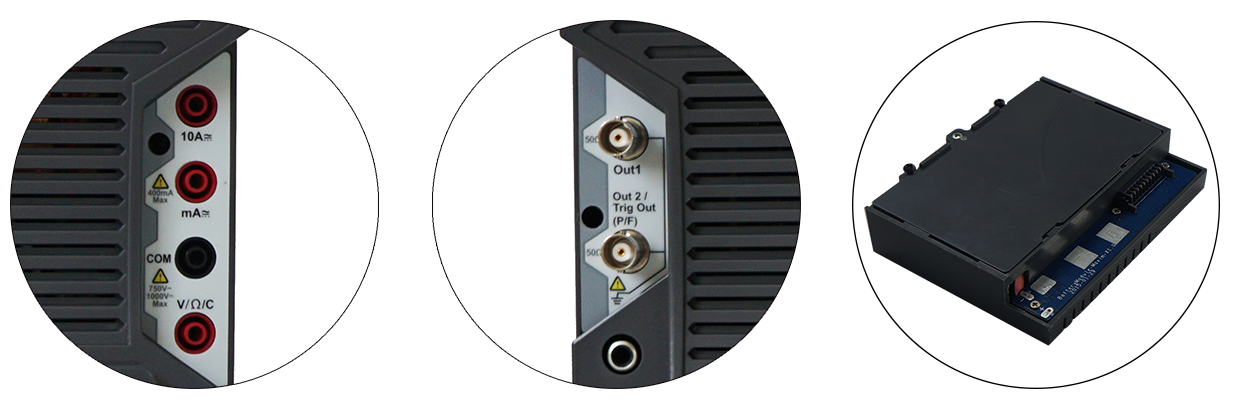

2. Multi-function mobile tester

Oscilloscope + signal generator + multimeter +data logger +frequency counter + decoder. Support Li-on battery to implement floating test.

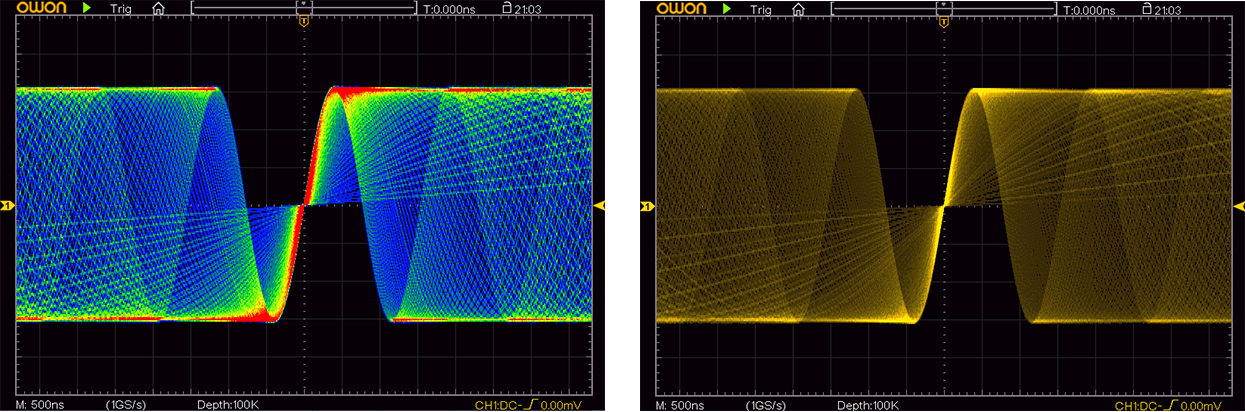

3. Max 70,000 frame/sec waveform refresh rate, muti-level gray scale and color temperature display.

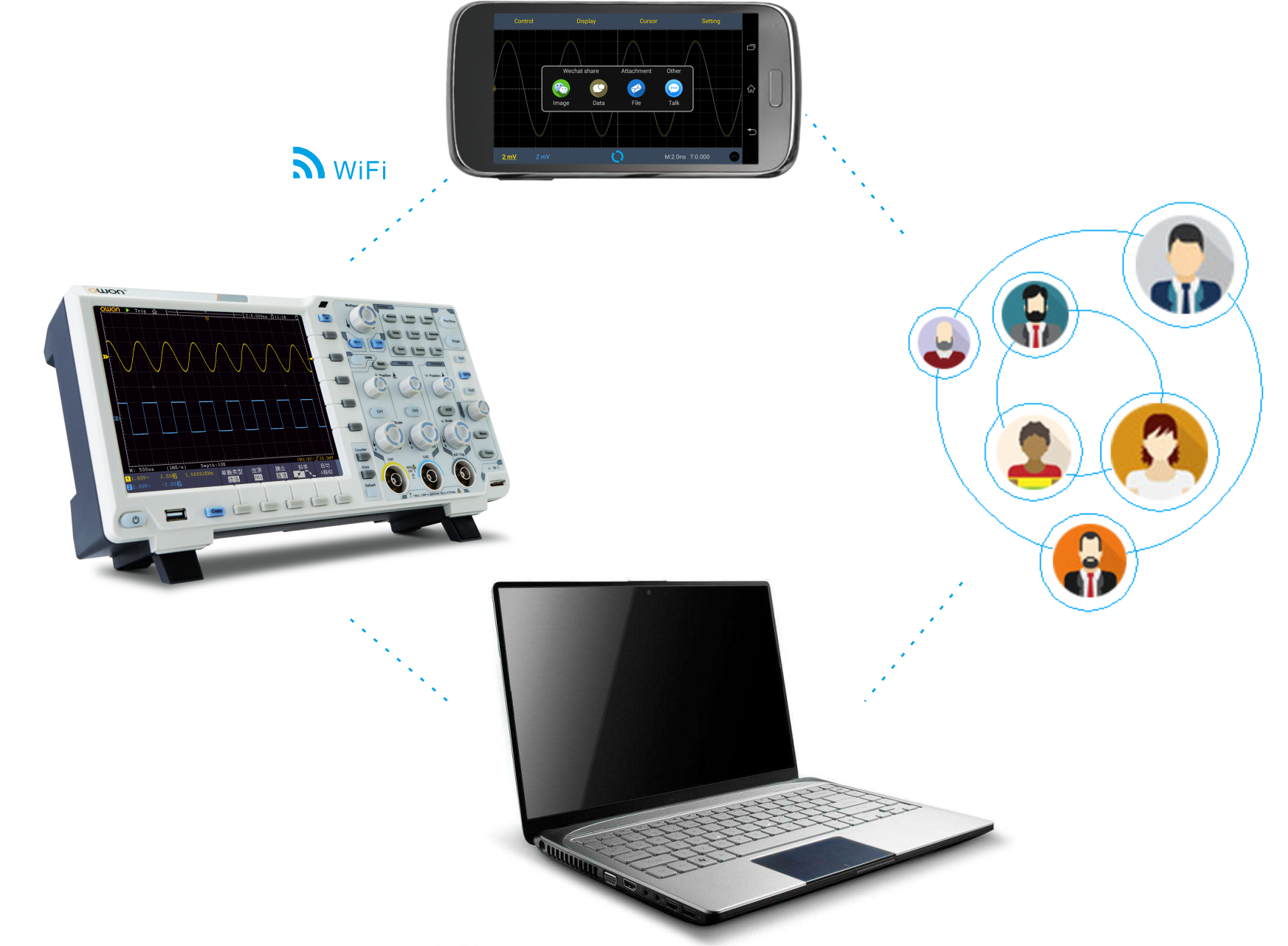

4. WiFi function

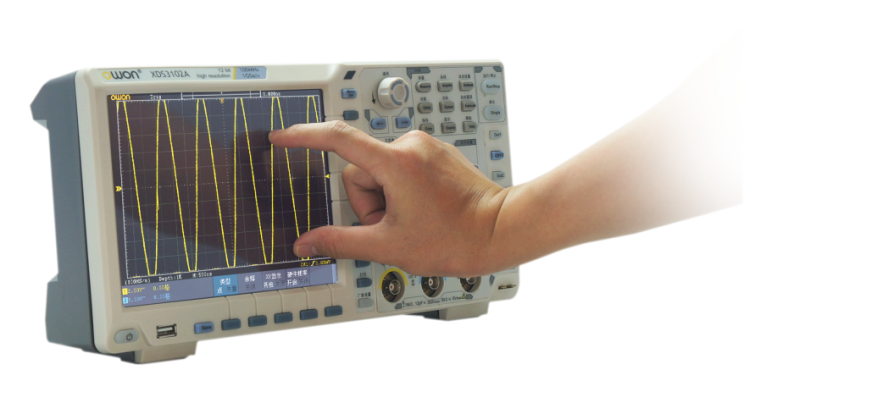

5. Multi-touch screen, easy to operate

Video

XDS3000 WiFi & Xlab #2
XDS3000 WiFi & Xlab #1
XDS3000 multi-module introduction
XDS3000 DSO 12 bits #2
XDS3000 Decoding & Waveform Clone
XDS3000 Refresh Rate
XDS3000 DSO 12 bits #1
XDS3000 DSO touch screen guide
XDS3000 DSO unpack review
XDS3000 DSO introduction

Specifications

Model	XDS3062A	XDS3102A	XDS3202A	XDS3102	XDS3202E	XDS3202	XDS3302
Bandwidth	60MHz	100MHz	200MHz	100MHz	200MHz		300MHz
Sample Rate	1GS/s					2GS/s	2.5GS/s
Vertical Resolution (A/D)	12 bits		14 bits	8bits
Record length	40M
Horizontal Scale (s/div)	2ns/div - 1000s/div, step by 1 - 2 - 5		1ns/div - 1000s/div, step by 1 - 2 - 5	2ns/div - 1000s/div, step by 1 - 2 - 5	1ns/div - 1000 s/div, step by 1 - 2 - 5
Channel	2 + 1 (external)
Display	8" color LCD, 800 x 600 pixels
Waveform Math	＋, －, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject)
Trigger Type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
Bus Decoding	I2C, SPI, RS232, and CAN (optional)
Communication Interface	USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Power Supply	100V - 240V AC, 50/60Hz, CAT II
Power Consumption	＜24W
Fuse	2A, T class, 250V

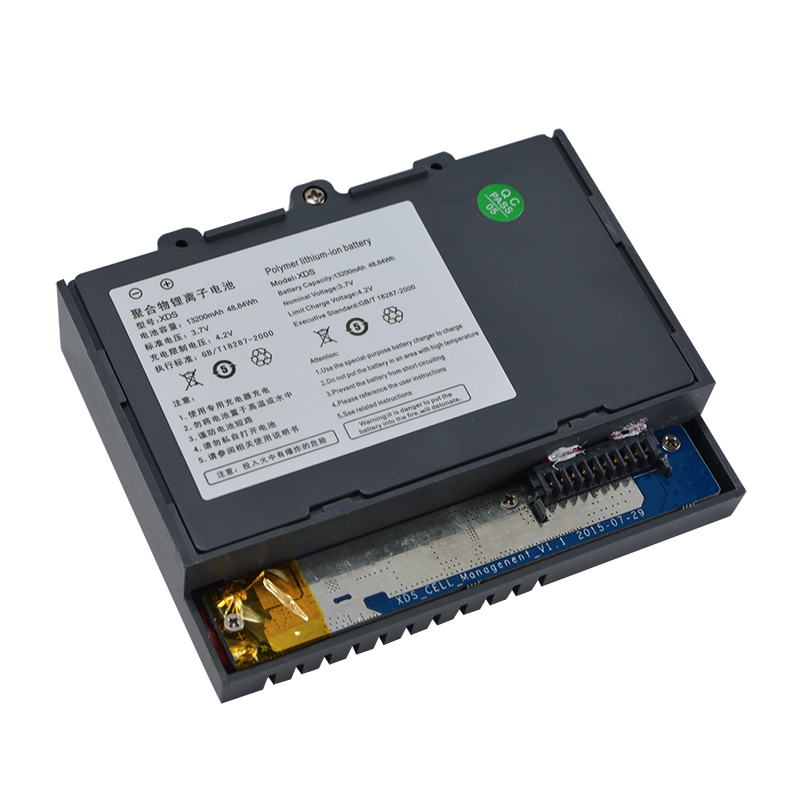

Battery (optional)	3.7V, 13200mAh
Dimension (W x H x D)	340 x 177 x 90 mm
Weight	2.60 kg±200g（）
