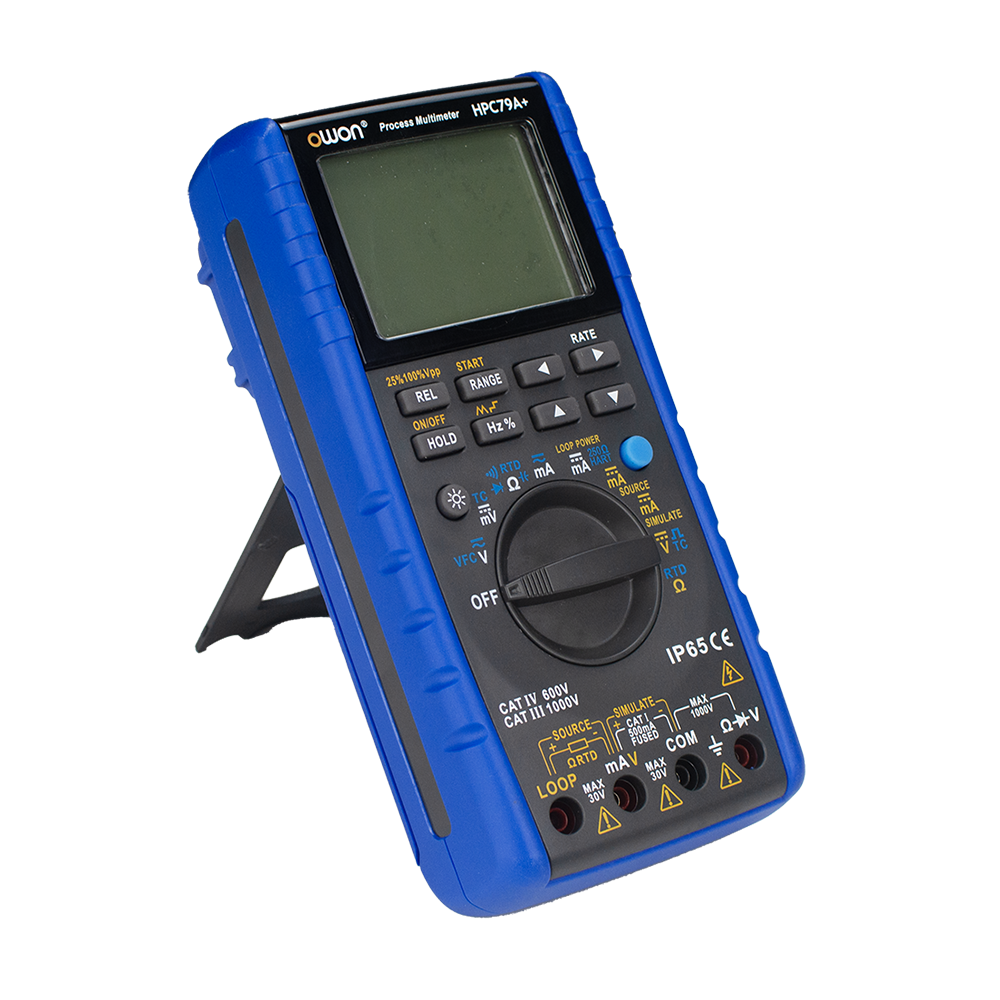

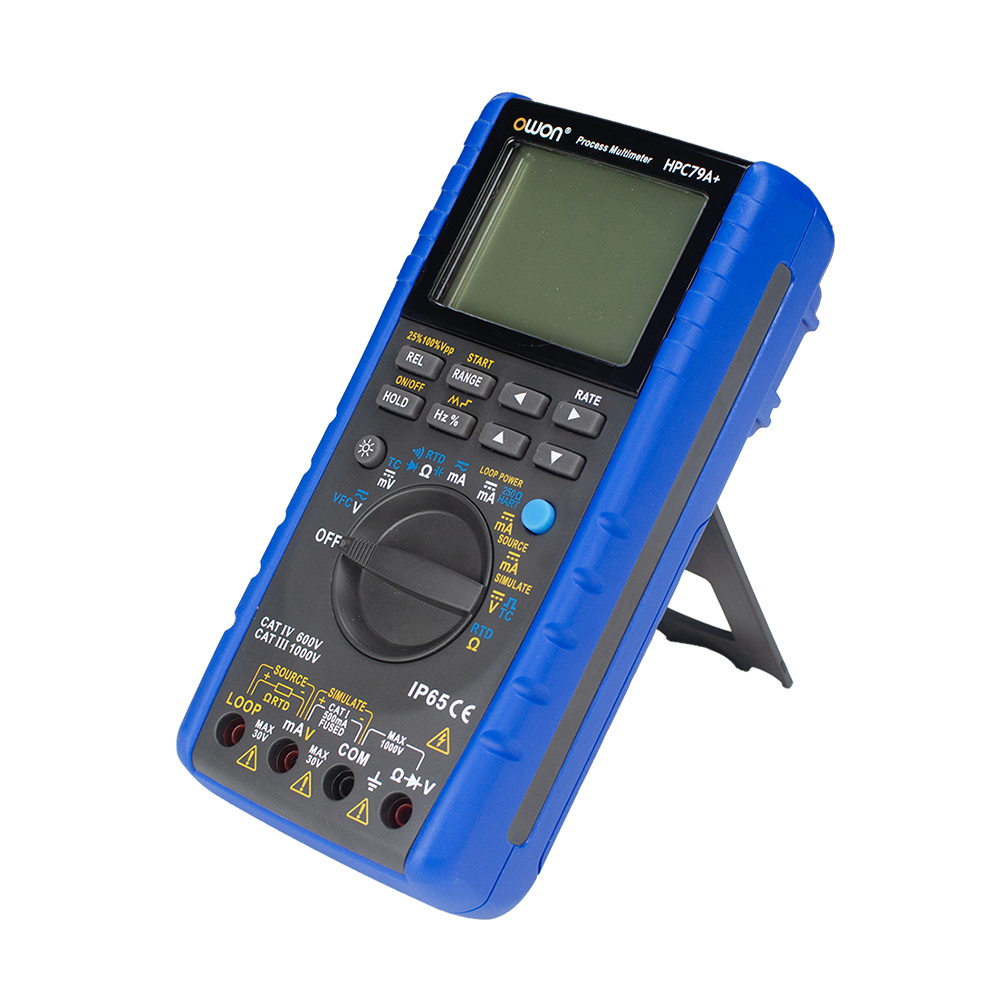

HPC79A Process Signal Generator
Output Basic Characteristics
+ Output basic accuracy: 0.05%, output display with 5 digits.
+ Output functions: DC voltage, DC current, resistance, frequency, thermocouple, RTD (Resistance Temperature Detectors), and SIMULATE function to emulate transmitters.
+ Dual display for DC current output: Simultaneously shows mA and Percentage values;supports manual stepping (25%/100%), auto-stepping, and auto-ramp current output.
+ Built-in 24V loop power supply.
Measurement Basic Characteristics
+ Measurement functions: AC/DC voltage, resistance, capacitance, AC/DC current, continuity, diode testing, frequency, thermocouple, and RTD.
+ High precision: 0.05% basic accuracy with 55,000 counts display.
+ Measurement rate: Fast mode (20 readings/sec), slow mode (5 readings/sec).
+ Manual or auto range option, with hold function.
+ Relative value measurement (REL_%)
+ Low-pass filtering function (VFC) enables accurate voltage measurement in variable-frequency drives or other noisy environments.
+ Dual functionality: Simultaneously powers 24V loops and measures loop current.
+ Built-in optional 250Ω HART loop resistor for easy use with HART communication devices, eliminating the need for an external load resistor.
+ Built-in temperature sensor with automatic cold-junction compensation (℃/℉display).
+ Manual cold-junction compensation option.
Other Features
+ IP65-rated dust and water resistance.
+ CAT IV 600V and CAT III 1000V safety standards.
E-mail Us|
Model |
HPC79A+ |
|
|
Display |
55000 Counts |
|
|
DC Voltage |
Range & Optimal Accuracy |
50.000mV/500.00mV/5.0000V/ 50.000V/500.00V/1000.0V; ±(0.05%+5) |
|
AC Voltage |
Range & Optimal Accuracy |
5V/50V/500V/1000V; ±(0.5%+4) |
|
DC Current |
Range & Optimal Accuracy |
50.000mA/500.00mA; ±(0.1%+5) |
|
AC Current |
Range & Optimal Accuracy |
50.000mA/500.00mA; ±(0.15%+10) |
|
Resistance |
Range & Optimal Accuracy |
500.00Ω/5.0000KΩ/50.000KΩ/500.00KΩ/5.0000MΩ/50.000MΩ; ±(0.05%+10) |
|
Capacitance |
Range & Optimal Accuracy |
10.00nF/100.0nF/1000nF/10.00uF/100.0uF/1000uF; ±(0.5%+5) |
|
Frequency |
Range & Optimal Accuracy |
10.0000Hz/100.000Hz/1000.00Hz/10.0000KHz; ±(0.02%+4) |
|
Thermocouple |
Range & Resolution & Optimal Accuracy |
K/E/J/T/N/R/S/B; 0.1℃/1℃; ±(0.1%+1℃) |
|
Thermal resistor |
Range & Resolution & Optimal Accuracy |
Cu50/Pt100/Pt1000; 0.1℃; ±(0.1%+1℃) |
|
DC Voltage Output |
Range & Optimal Accuracy |
100.00mV/1000.0mV/10.000V; ±(0.05%+3) |
|
DC Current Output |
Range & Optimal Accuracy |
30.000mA ±(0.05%+4) |
|
Resistance Output |
Range & Optimal Accuracy |
400.0Ω/4.000KΩ; ±(0.05%+2) |
|
Frequency Output |
Range & Optimal Accuracy |
100.0Hz/1.000KHz/5.00KHz/10.0KHz; ±(0.05%+2) |
|
Thermocouple Output |
Range & Resolution & Optimal Accuracy |
R/S/K/E/J/T/B/N; 0.1/1℃; ±(0.05%+1℃) |
|
Thermal resistor Output |
Range & Resolution & Optimal Accuracy |
Cu50/Pt100/Pt1000; 0.1℃; ±(0.05%+0.6℃) |
|
Refreshing measurement display |
Slow speed：5 times/second，Fast speed：20 times/second |
|
|
Measure the true effective value |
√ |
|
|
Bandwidth |
20Hz~1KHz |
|
|
The duty ratio |
10%～90% |
|
|
Diode test |
√ |
|
|
Continuity beeper |
√ |
|
|
VFC |
√ |
|
|
The reference junction compensation |
√ |
|
|
°C/°F conversion |
√ |
|
|
24V loop power supply and measuring the current |
√ |
|
|
Backlight |
√ |
|
|
Power Supply |
4×1.5V AA or AC adapter(option) |
|
|
Safety |
CAT. Ⅲ,1000V； CAT. Ⅳ,600V |
|
|
Electromagnetic compatibility |
IEC61326-1，Group2，Class B |
|
|
Dimension (W×H×D) |
97×206×60mm |
|
|
Device Weight |
≈1.7kg |
|
The accessories subject to final delivery.
-
Multimeter Leads -
Alligator Clip -
User Manual
