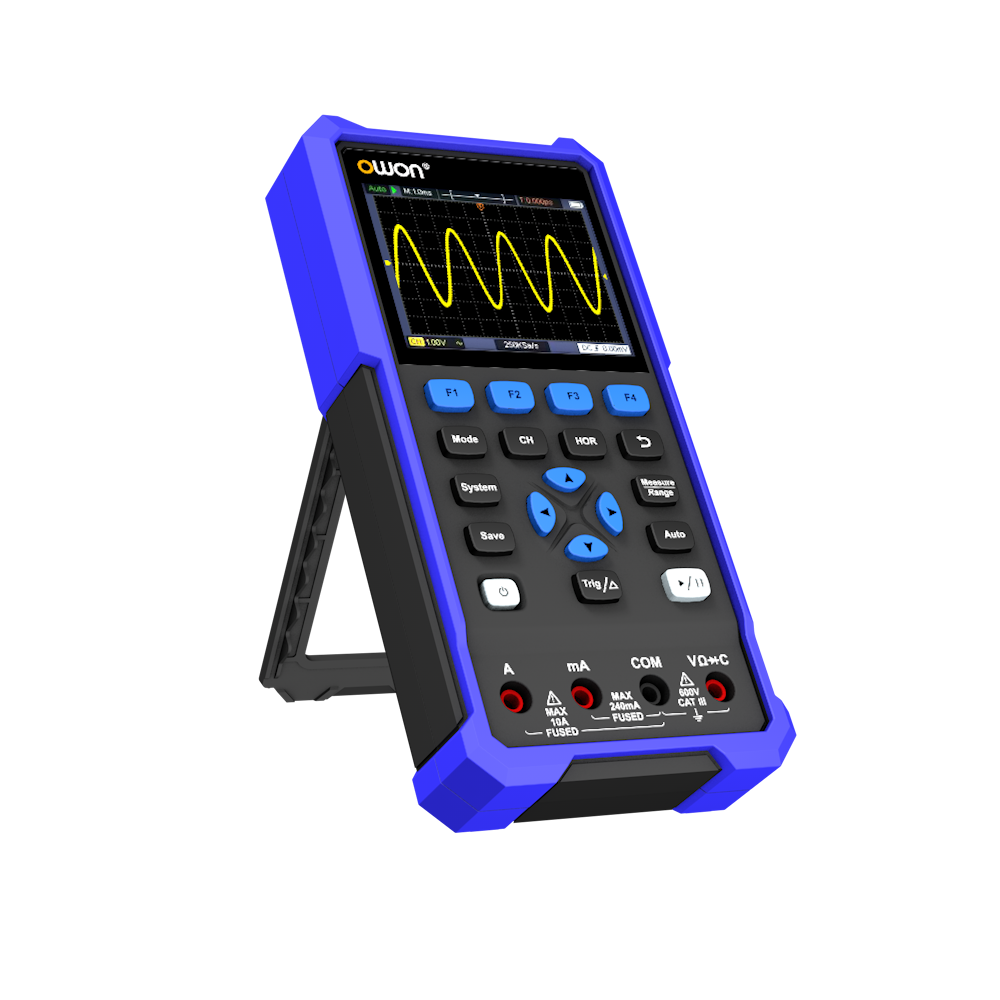

OWON HDS200 1CH Series Digital Oscilloscope
+ Oscilloscope + multimeter + waveform generator, multifunction in one
+ Maximum bandwidth of 70MHz and real-time sampling rate up to 250MSa/s
+ 24000counts display, supports voltage, current, resistance, capacitance,diode. and continuity testing
+Maximum waveform output frequency: 100kHz
+Supports sine wave, square wave, sawtooth wave,and pulse wave outputs
+ 3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use

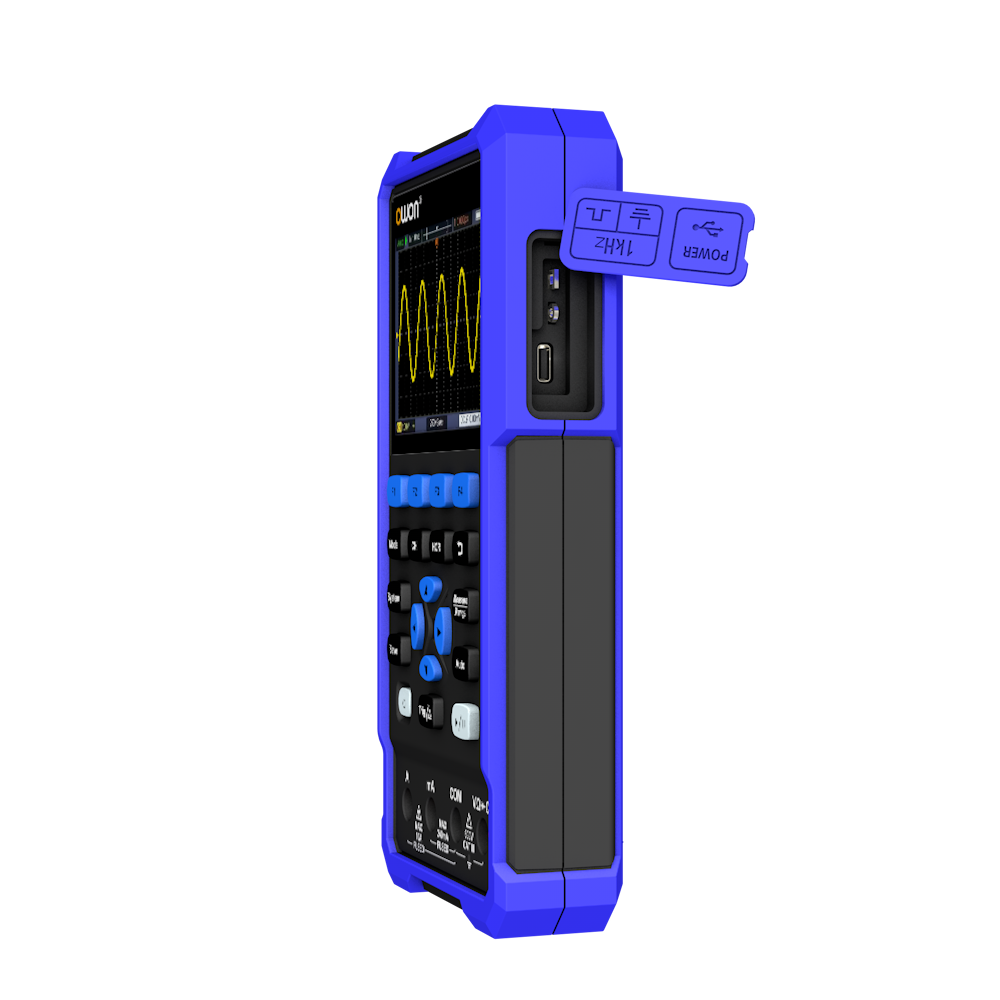

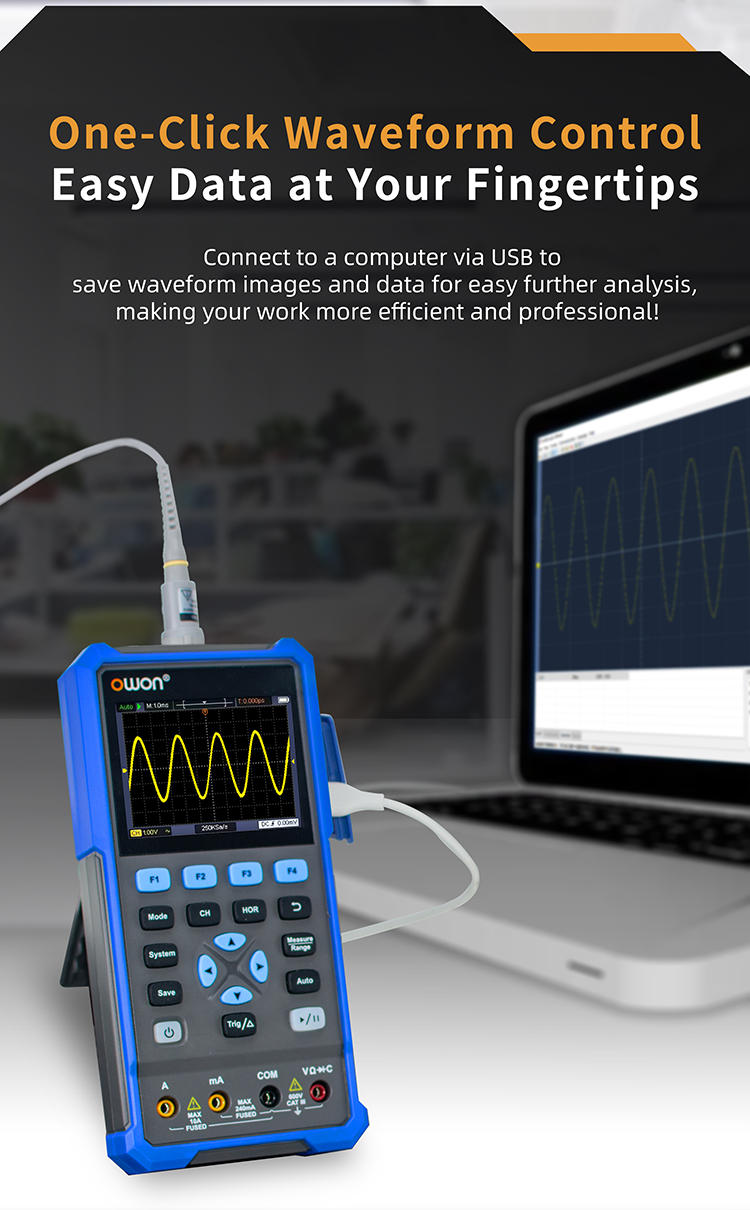

+ USB Type-C interface, support power bank, support PC software connection
+ SCPI supported, facilitate secondary development
All-in-One Integration,One-Touch Mode Switching
Seamlessly combines a Digital Oscilloscope and a 4½-Digit Multimeter in one compact device.

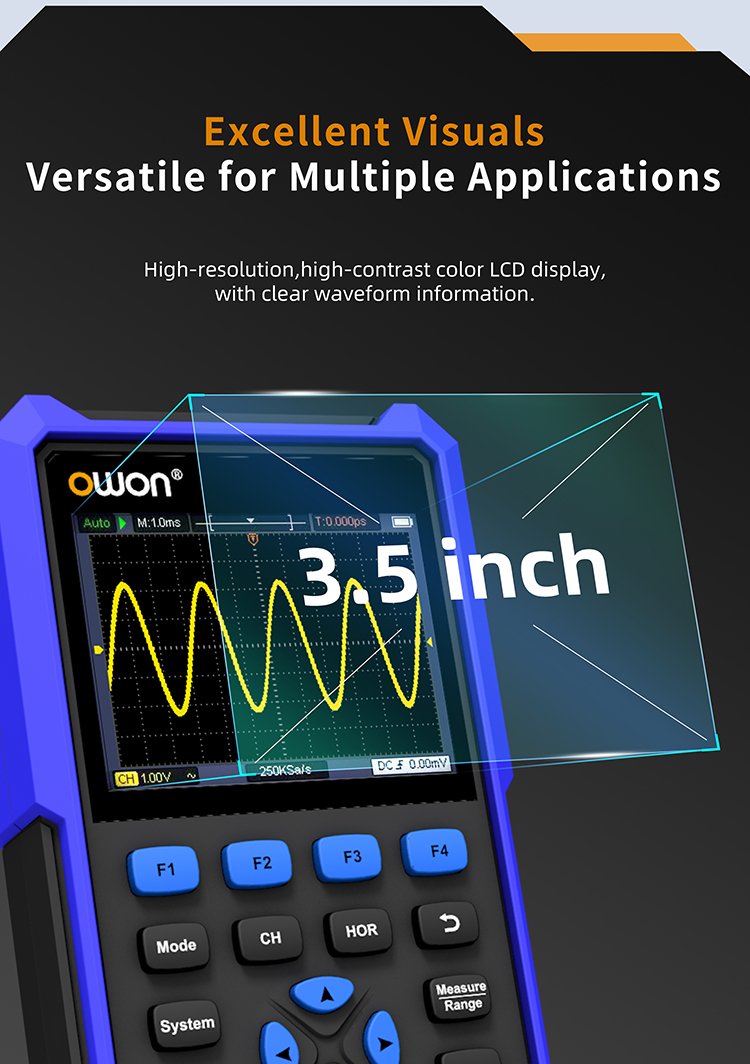

3.5-Inch Color LCD
High-resolution and high-contrast color LCD screen provides clear, highly visible waveform details and measurement data for quick visual inspection.

Professional Digital Oscilloscope

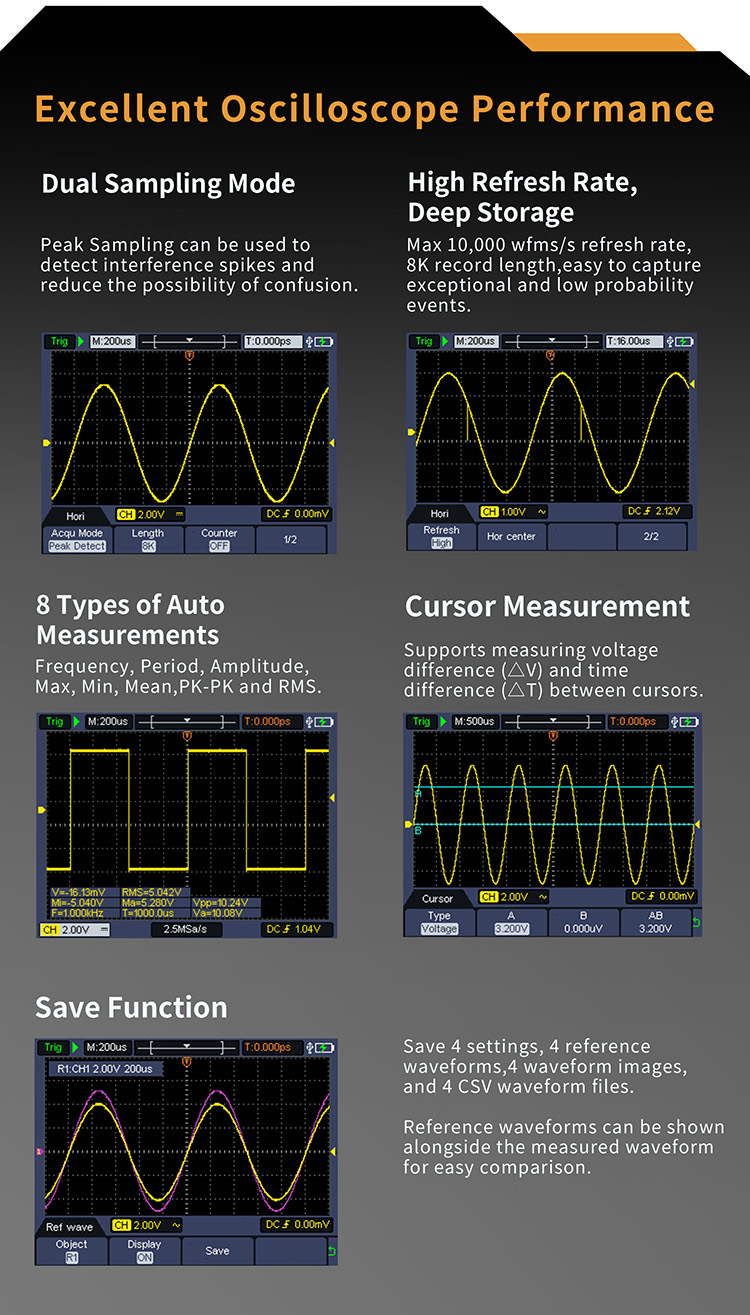

Designed with high refresh rates and deep storage memory to easily capture and analyze abnormal signals. Features 8 automatic measurements and versatile dual sampling modes for accurate signal inspection.

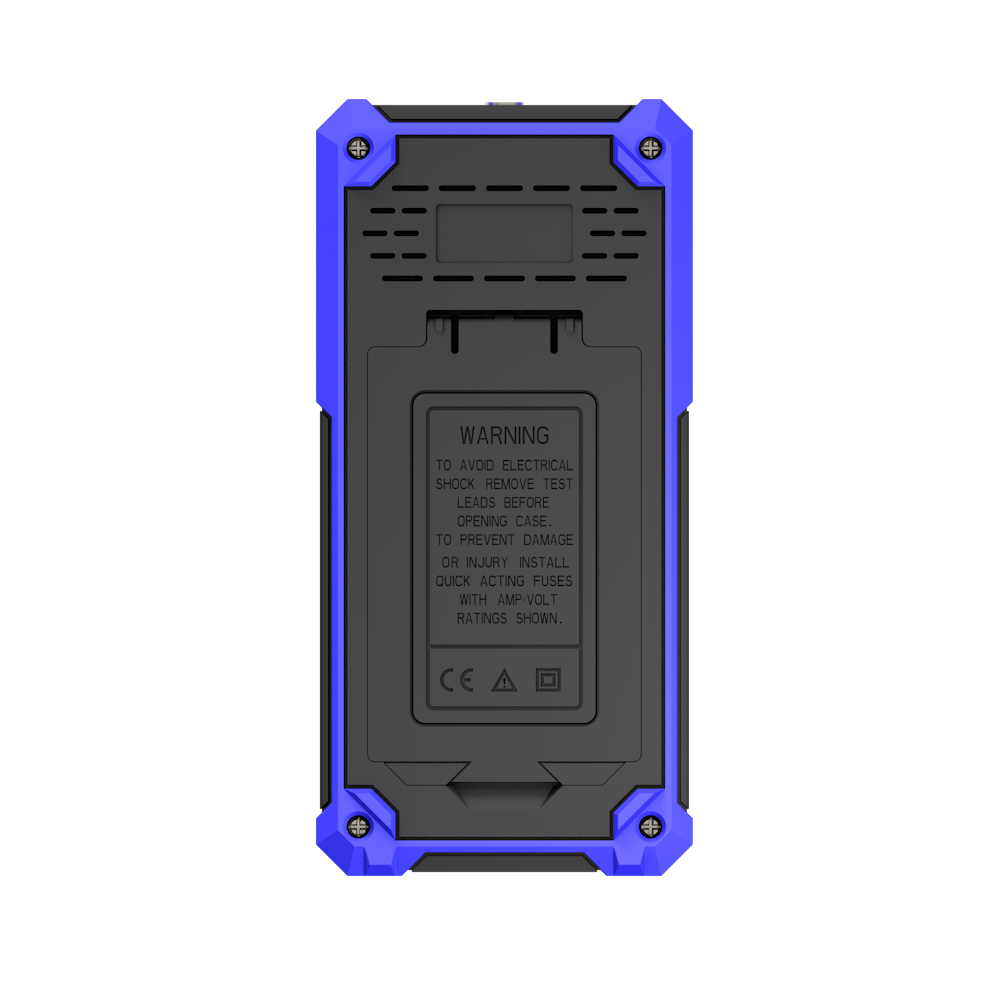

Integrated Hanging Bracket
Features a built-in retractable bracket that folds completely flat when not in use. Delivers reliable, stable positioning whether hanging or resting flat on a surface.

「Oscilloscope」Specifications
|
Model |
HDS241 |
HDS271 |
|
Bandwidth |
40MHz |
70MHz |
|
Channel |
1 |
|
|
Sampling rate |
250MSa/s |
|
|
Sampling method |
Sampling, peak detection |
|
|
Record length |
4K or 8K |
|
|
Display |
3.5-inch LCD |
|
|
Waveform refresh rate |
10,000wfms/s |
|
|
Input coupling |
DC, AC, GND |
|
|
Probe attenuation |
1X,10X,100X,1000X,10000X |
|
|
Maximum input voltage |
400V (DC+AC, PK-PK) |
|
|
Sweep speed range (s/div) |
5ns/div-1000s/div, Step by1-2-5 |
|
|
Sensitivity (Volt/div) range |
10mV/div~10V/div |
|
|
Trigger Type |
Edge |
|
|
Automatic measurement |
Period, Frequency, Mean, PK-PK, Max, Min, Amplitude, RMS |
|
|
Cursor measurement |
ΔV, ΔT |
|
|
Interface |
USB Type-C |
|
「Multimeter」Specification
|
Digital display |
24000 readings |
||
|
Measurement type |
Voltage, Current, Resistance, Capacitance, Continuity, Diode |
||
|
Maximum input voltage |
AC:750V DC:1000V |
||
|
Maximum input current |
AC:10A DC:10A |
||
|
Diode test |
0-2V |
Continuity |
<50Ω |
|
Auto range |
√ |
TRMS |
√ |
「Waveform Generator」Specification
|
Output Frequency |
Sine, Square, Ramp |
10Hz~100kHz, Step by1-2-5 |
|
Pulse |
10Hz~10kHz, Step by1-2-5 |
|
|
Amplitude |
1Vpp or 2.5Vpp |
|
General Accessories
| Name | Order Number |
|---|---|
| Quick Guide | ———— |
| Multimeter Leads | 7MP101 |
| Probe | ———— |

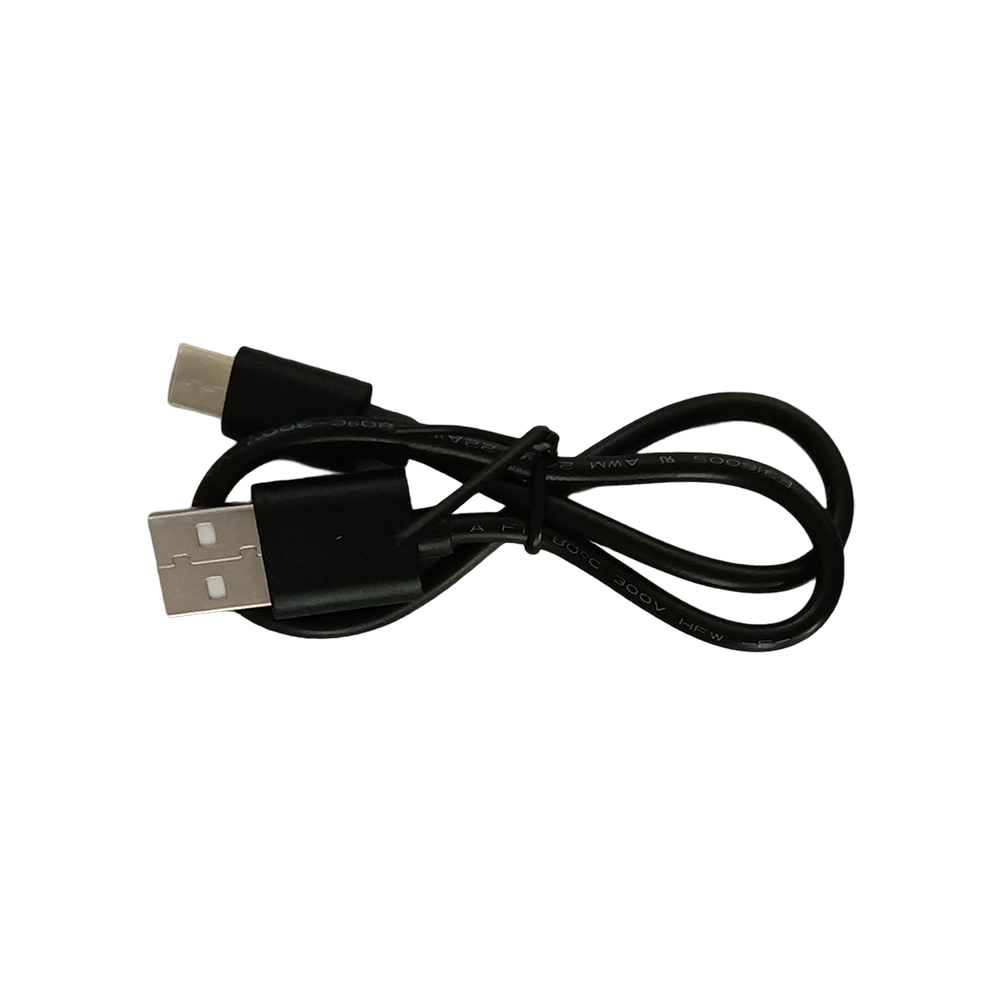

| USB Cable(Type-C) | 7ULC08 |
