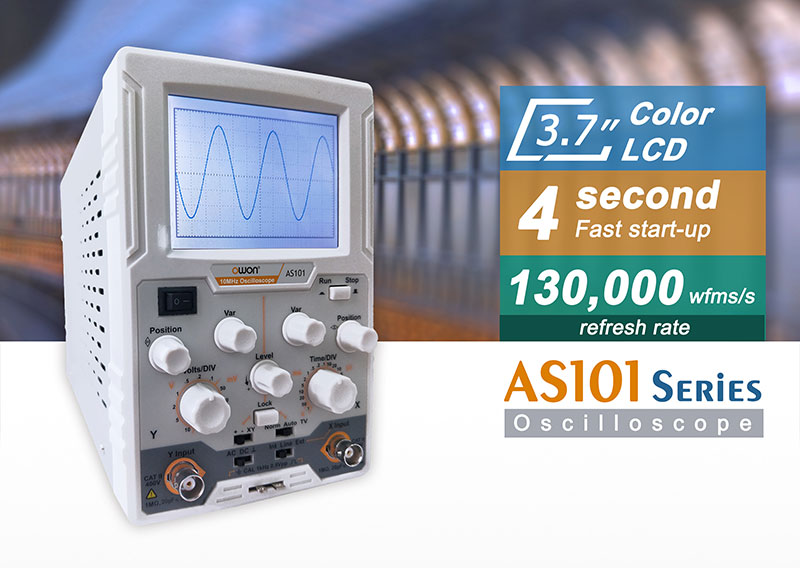

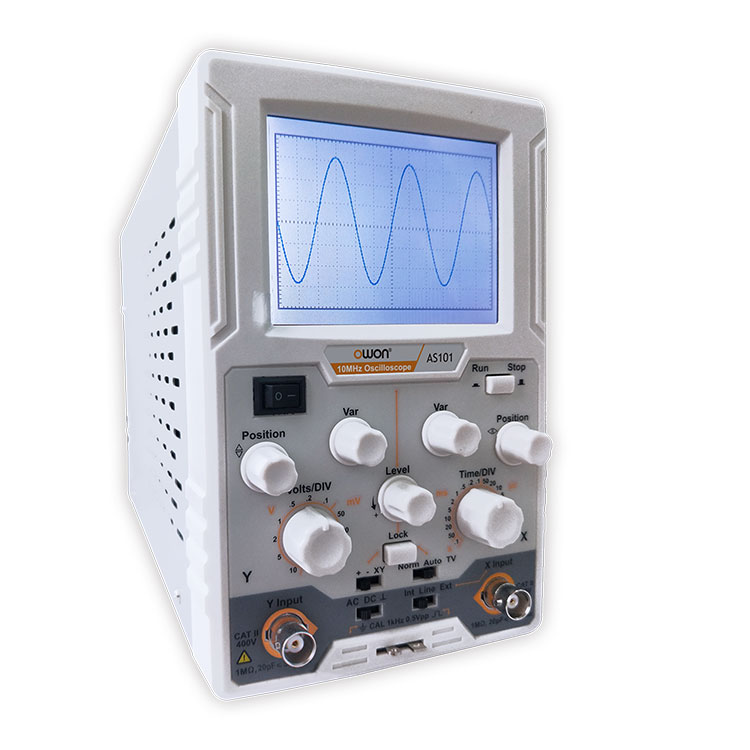

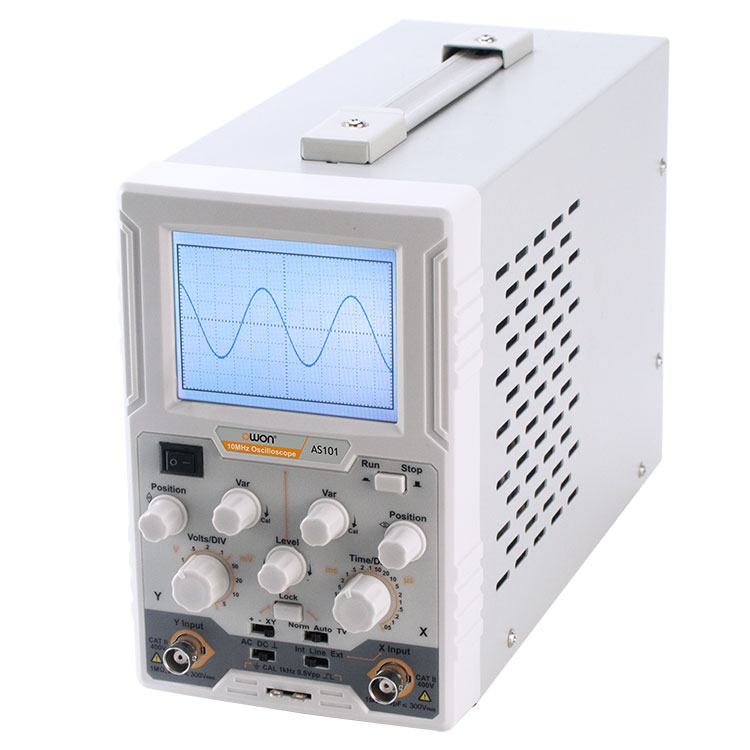

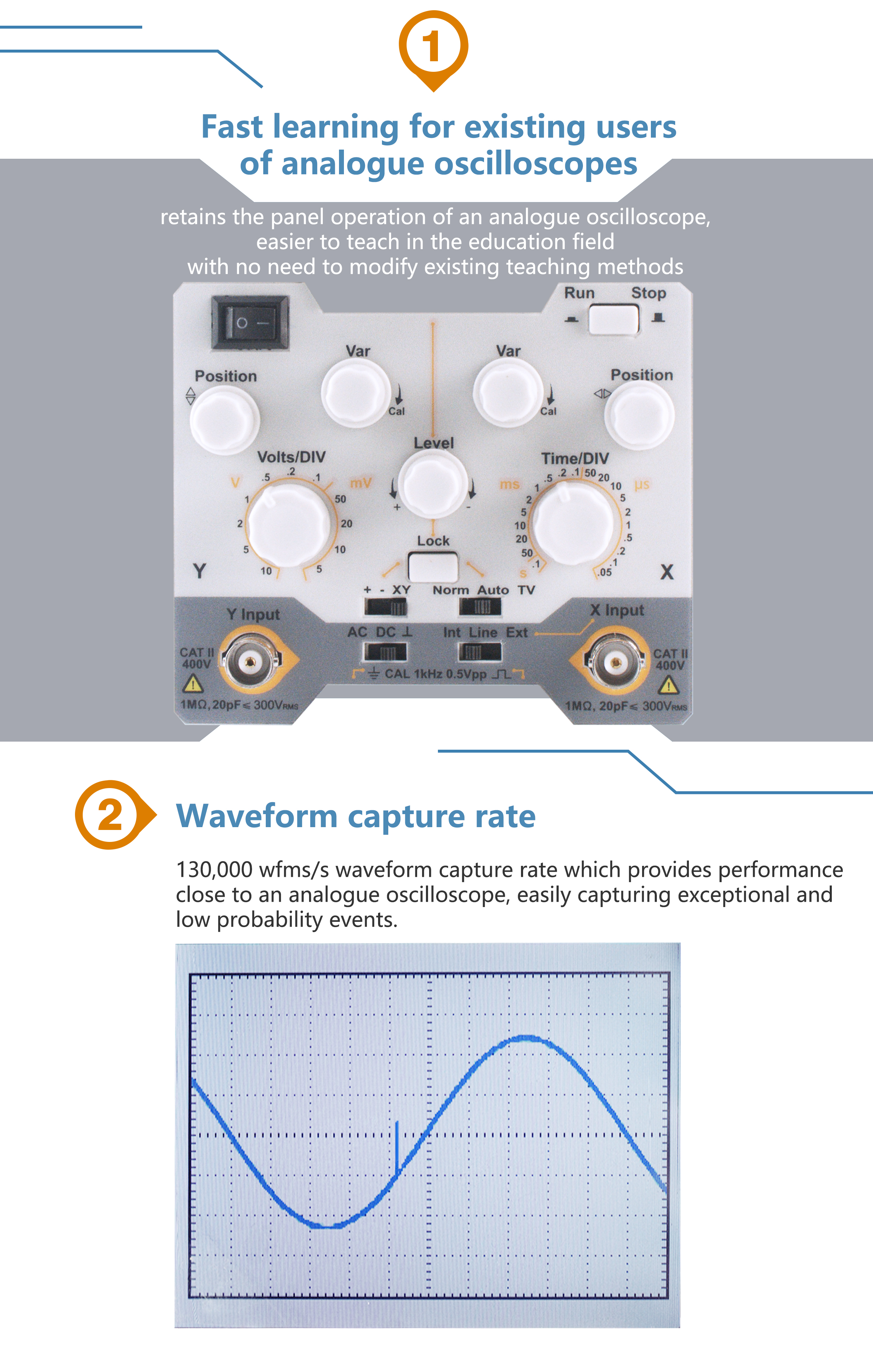

Model

AS101

AS201

Bandwidth

DC:0~10MHz,

AC: 10 Hz~10MHz

DC:0~20MHz,

AC: 10 Hz~20MHz

Channel

1

 Horizontal system

Sample Rate

100MS/s

Interpolation

(Sinx)/x

Scanning speed (S/DIV)

0.05us/DIV ~ 0.1s/DIV,step by 1 – 2 - 5

relay time accuracy

±100 ppm

Trimming Ratio

≧2.5:1

Vertical system

Sensitivity

5 mV/DIV～10 V/DIV

Displacement

±10DIV

Low Frequency

≥10 Hz (at input, AC coupling, -3 dB)

Rise time (at input, Typical)

≤ 30 ns

Trimming Ratio

≧2.5:1

Input coupling

DC,  AC ,  Ground

Input impedance

1 MΩ±2%, in parallel with 20 pF±5 pF

Max. input voltage

400V (DC+AC, PK - PK)

X-Y Model

Sensitivity

X:0.5V/DIV   Y:0.1V/DIV ~ 1V/DIV

Bandwidth(-3dB)

DC: 0 ~ 1MHz  AC: 10Hz ~ 1MHz

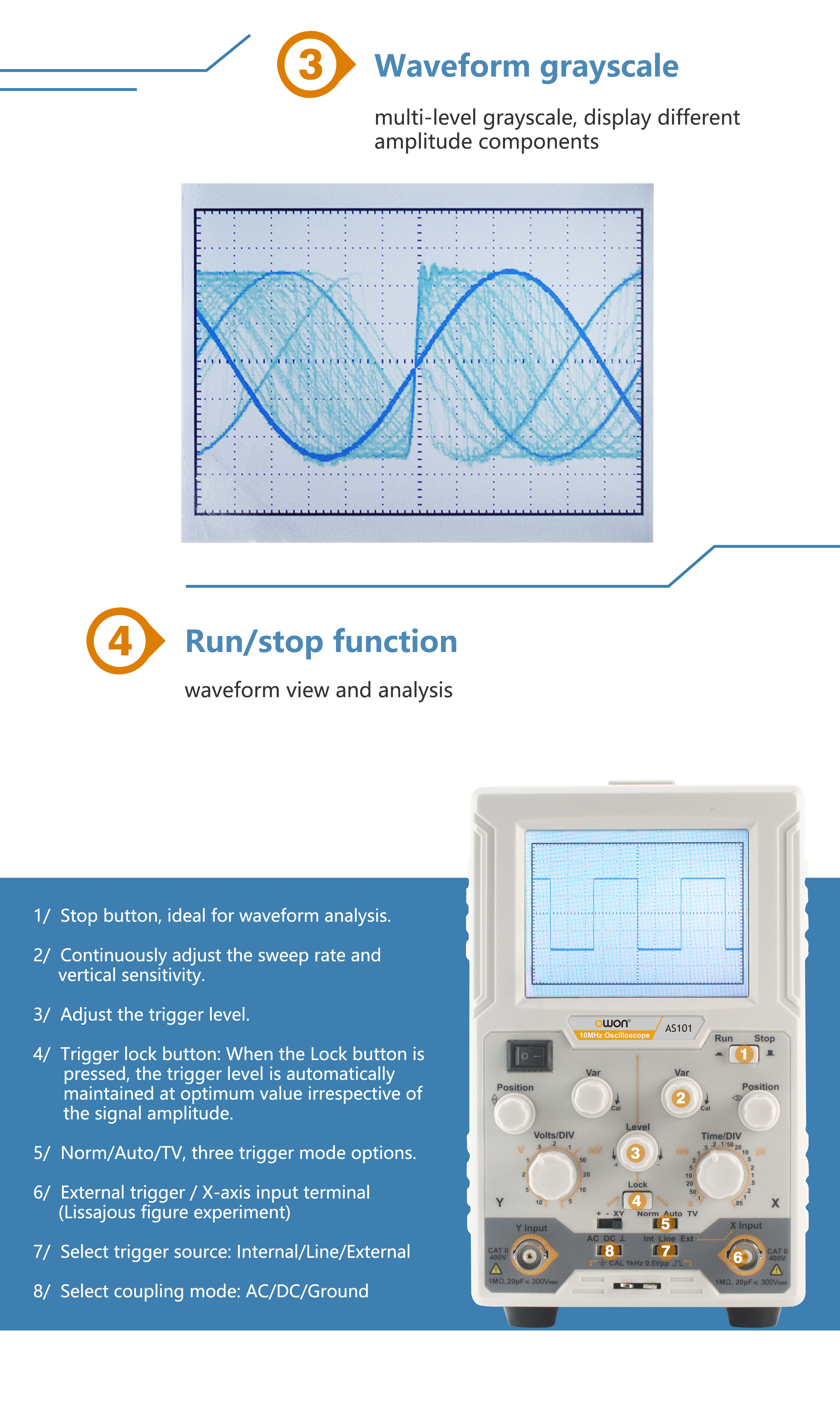

Trigger

Trigger level range

±4 DIV from the screen center

Trigger level Accuracy (typical)

±0.3 DIV

Trigger Sources

Int, Line, Ext

Trigger Mode

Norm, AUTO, TV

Edge trigger

Rising, Falling

Video Trigger

Support standard NTSC, PAL and SECAM broadcast systems

 Sample Rate / Relay Time

±100ppm

Trigger lock

support

Ext. Trigger Input Impedance

1 MΩ±2%, in parallel with 20 pF±5 pF

Ext. Trigger Max. Input Voltage

400Vpp

Trigger Output of the probe compensator

 Output Voltage (Typical)

Square, 0.5Vpp±2%

Frequency (Typical)

Square wave of  1 kHz(±1%)

Display

3.7" Colored LCD (Liquid Crystal Display)

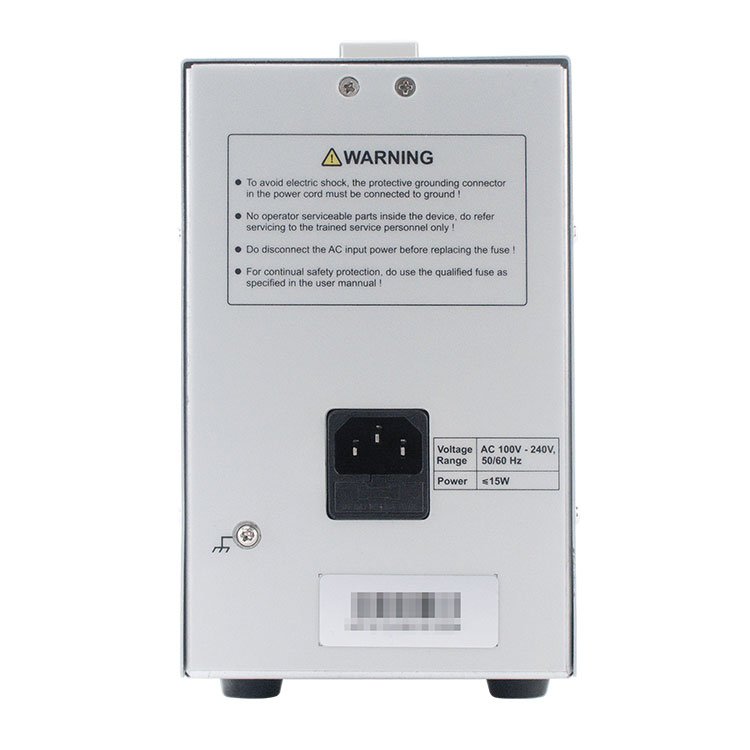

 Power Supply

100V - 240V AC, 50/60Hz, CAT II

 Power Consumption

＜15W

 Fuse

1A, T class, 250V

 Dimension (W x H x D)

117 x 192 x 288 mm

 Device Weight

About 1.8 kg
