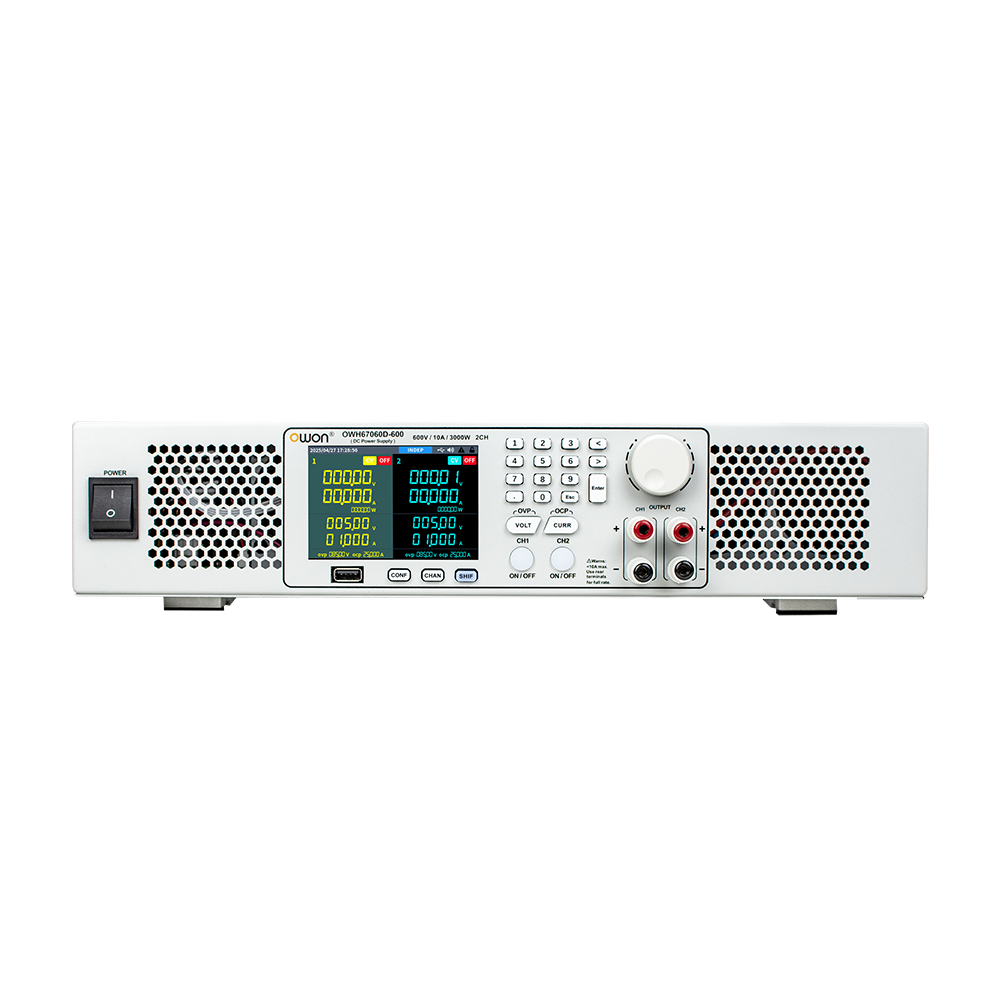

OWH67D Series 2CH DC Power Supply

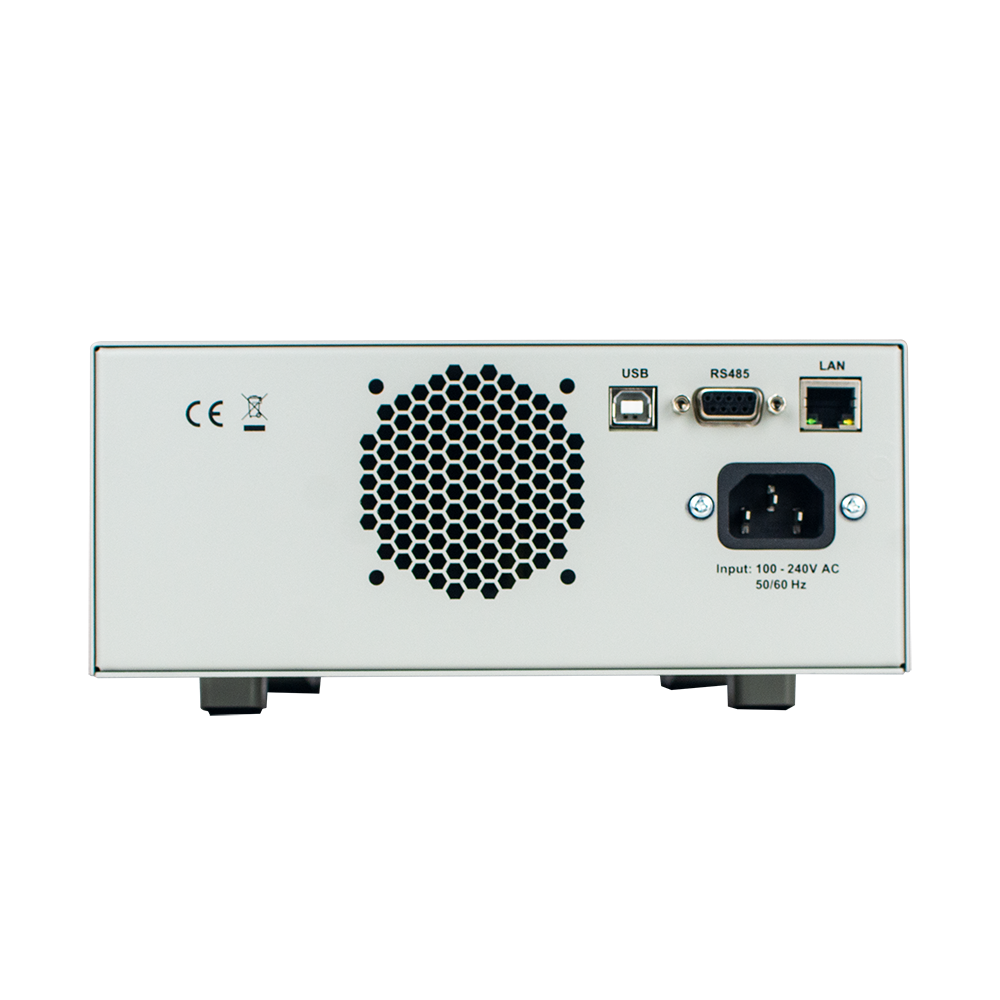

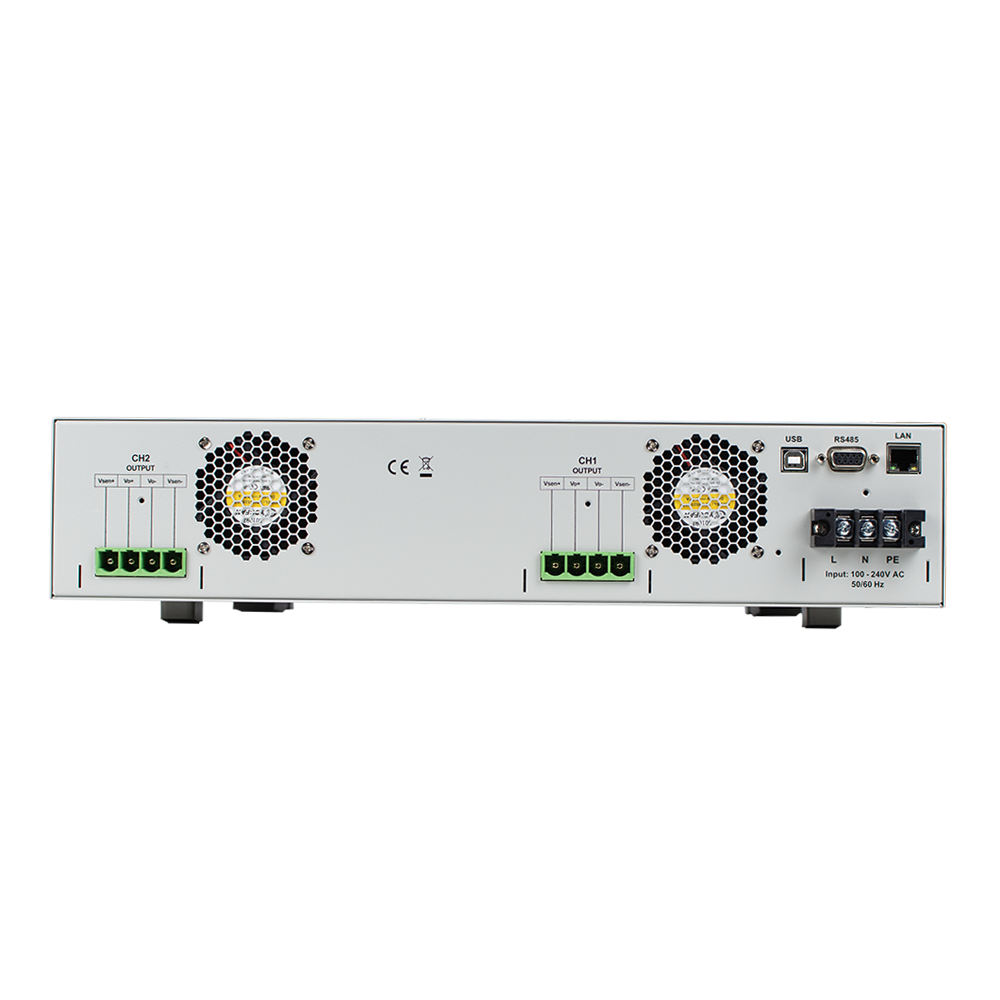

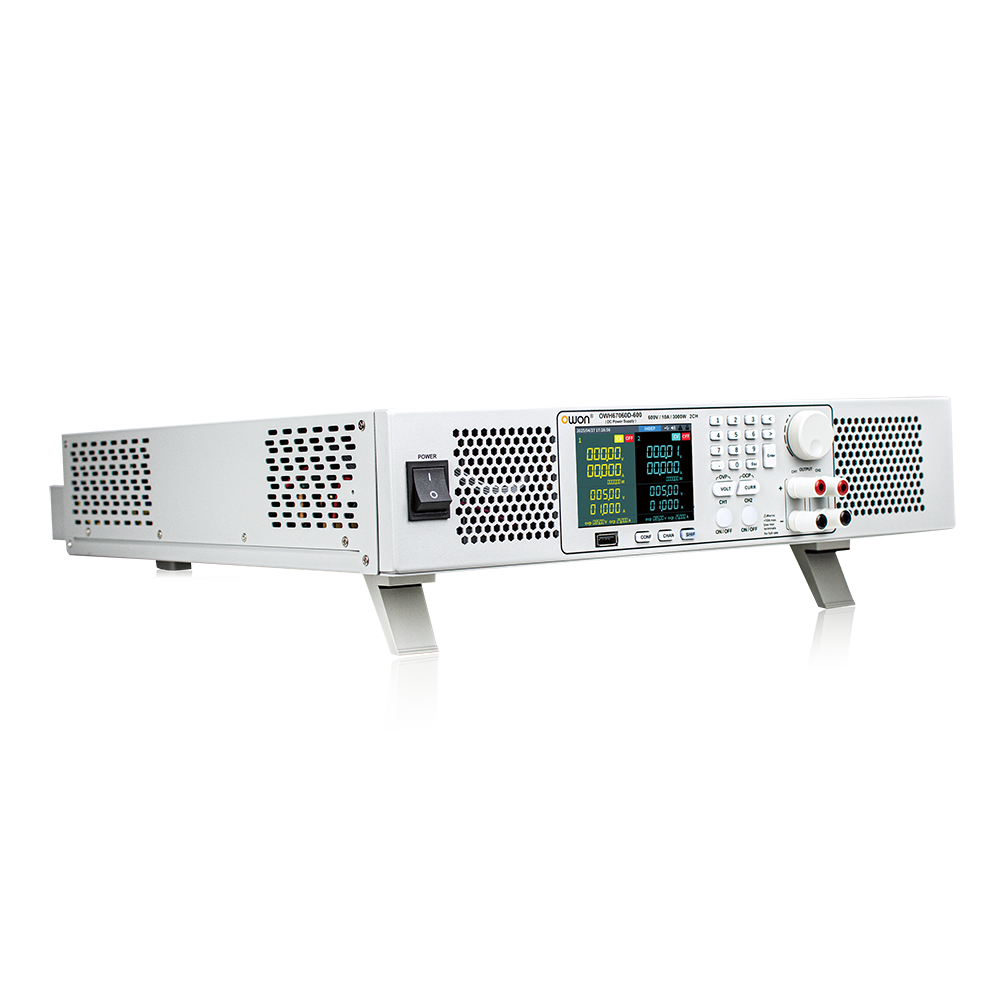

+ 2U standard rack size,front and rear panel output, suitable for rack-mounted applications
+ Supports wide-range AC input and wide voltage output, with constant power up to 1000W / 6000W.
+ 0.05% high-precision output and excellent stability, providing reliable assurance for demanding applications such as precision experiments, testing and measurement, and industrial manufacturing.
+ Supports 100-step LIST waveform programmable output
+ Selectable CC/CV Priority with smooth startup and no overshoot, adaptable to different load conditions.
+ Built-in discharge circuit to eliminate residual high voltage when power is turned off
+ Equipped with USB, LAN, and RS485 interfaces, supporting SCPI and Modbus protocols separately. Enables real-time monitoring, flexible output configuration, and easy integration into automation systems.
+ Supports photovoltaic simulator output function, embedded with EN50530, Sandia and other PV standard curves for direct evaluation of PV inverter MPPT efficiency (optional)
+ 3.95-inch TFT display provides real-time, intuitive visualization of voltage/current waveforms and parameters, making power status monitoring clearer and safer.
Send Inquiry
Product Details

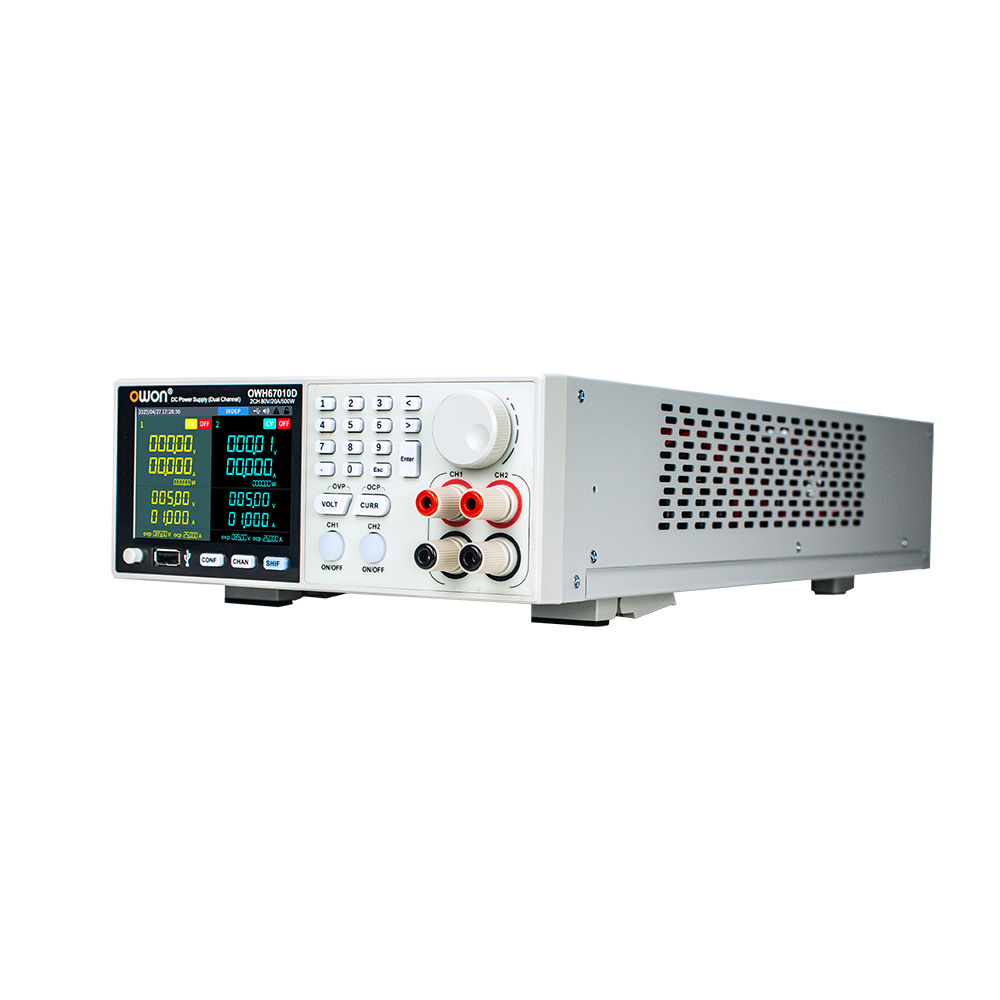

The OWH67D Series is a dual-channel high--power programmable DC power supply that supports wide-range constant power output. It includes models OWH67010D-80 (80V/20A,1000W),
OWH67060D-600(600V/10A,6000W), OWH67060D-150 (150V/30A,6000W) and
OWH67060D-300(300V/15A), covering diverse high-voltage and high-current testing applications.
Equipped with a 3.95-inch color LCD display, the OWH67D offers a user-friendly interface and excellent performance, with a minimum setting resolution of 10mV / 1mA.
lt delivers high-precision, stable, and reliable output, with selectable CC / CV priority, programmable LlST waveform output, and a built-in discharge circuit. Comprehe nsive protections include adjustable
OVP, OCP, OPP, input undervoltage, and internal short-circuit protection. Beyond power output, it also provides measurement capability and supports PV simulator functions with built-in EN50530 and Sandia curves for direct evaluation of PV inverter MPPT efficiency.
The OWH67D series comes with standard LAN /RS485 / USB interfaces, supporting SCPl and Modbus protocols. It allows remote control via USB communication for real-time monitoring and flexible output co
onfiguration. It is widely used in power design validation, general laboratory testing, automotive electronics, and new energy applications.

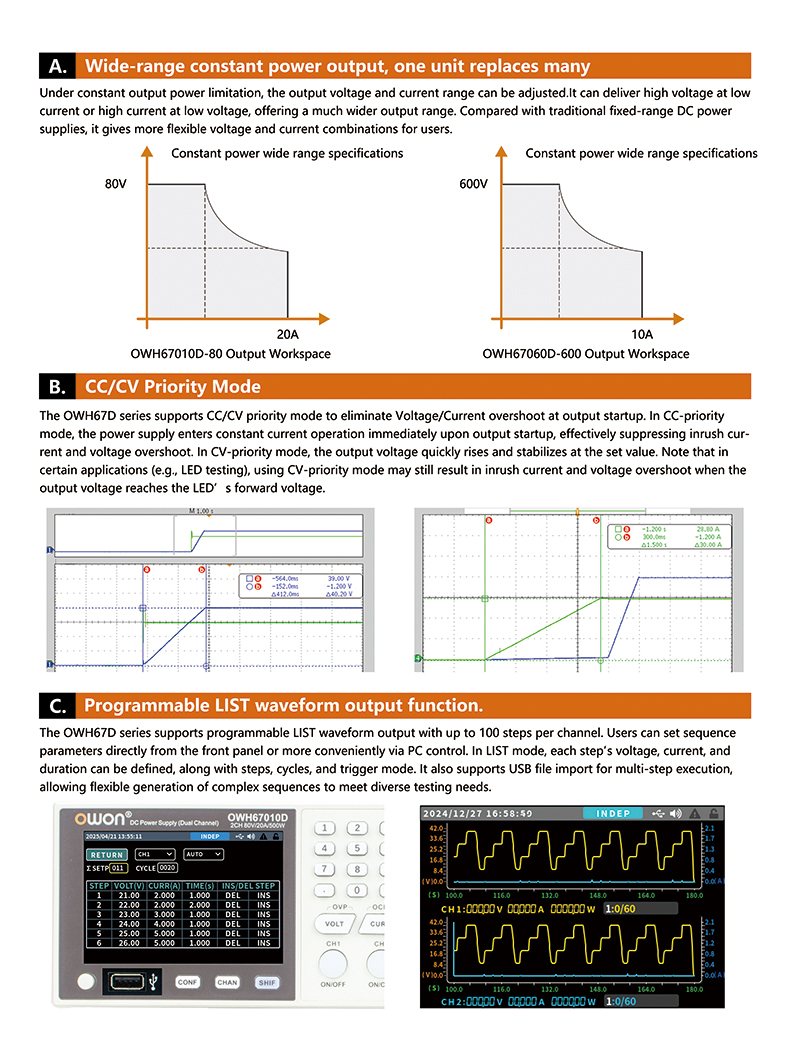

Wide-Range Constant-Power Output

Available in 1000 W and 6000 W power classes, with up to 600 V or 30 A per channel. Provides 10 mV/1 mA resolution, 0.05% output accuracy, and ≤5 ms dynamic response.

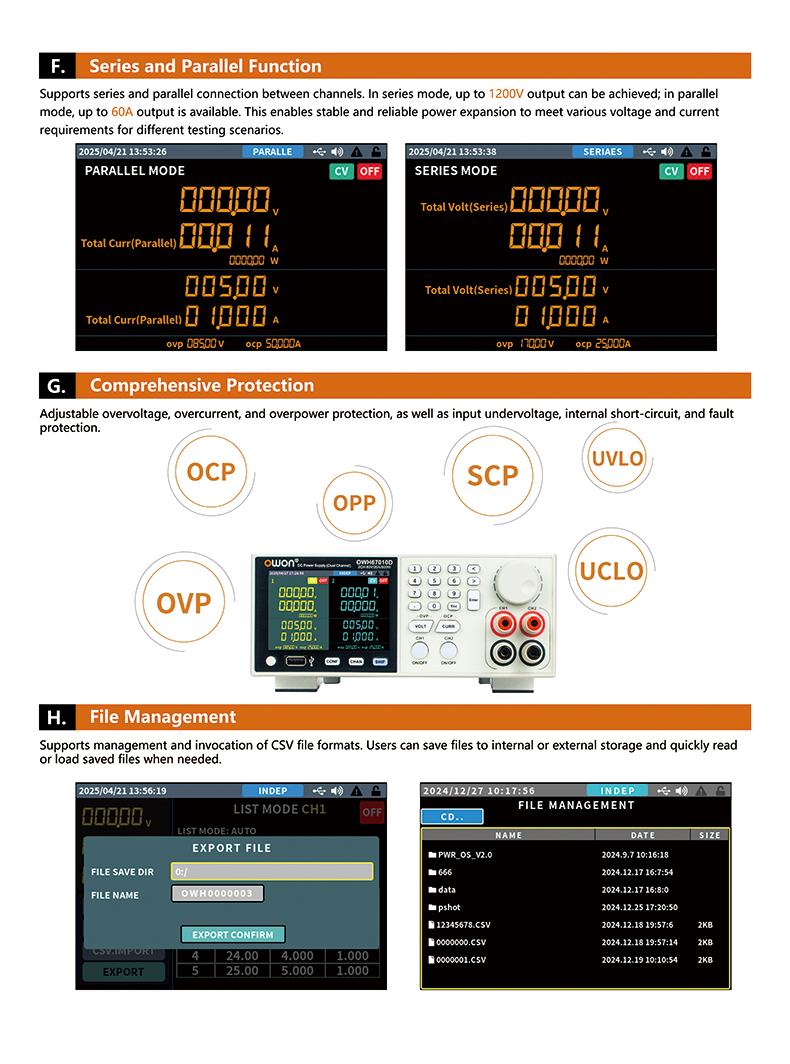

Independent Dual Channels with Series/Parallel Operation

Both channels operate independently or in series/parallel, delivering up to 1200 V in series or 60 A in parallel for high-voltage and high-current loads.

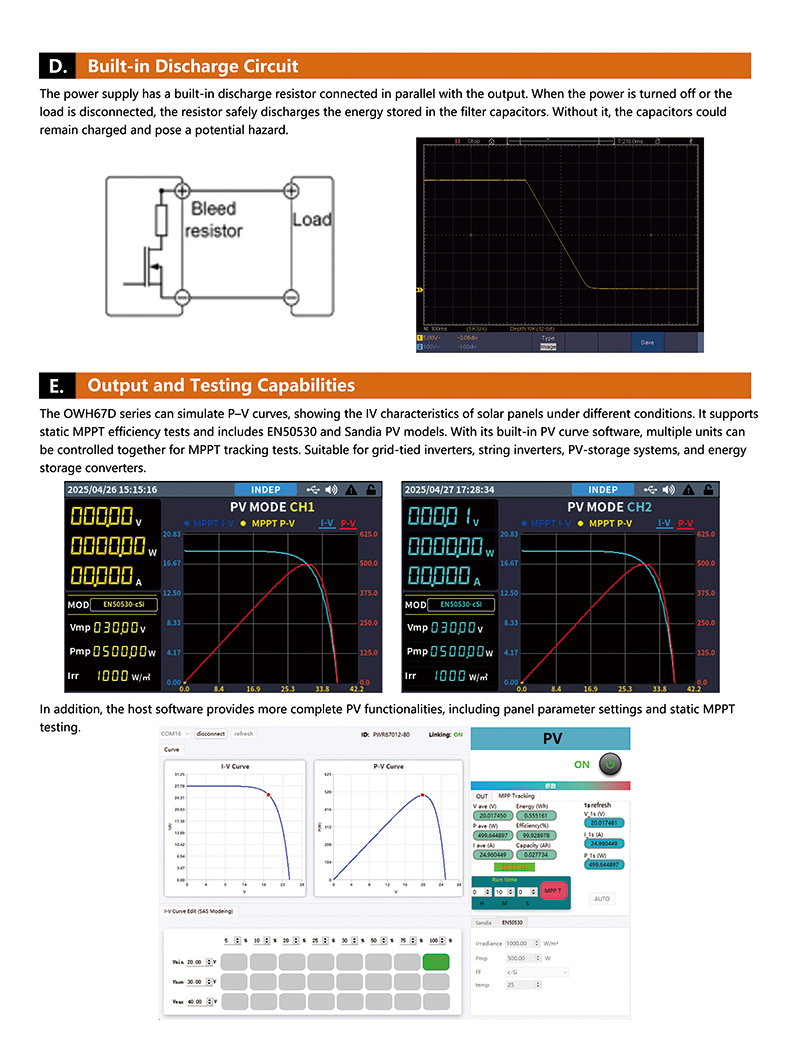

PV Simulation and MPPT Efficiency Testing

-S models support I-V/P-V curve output, static MPPT testing, and built-in EN50530 and Sandia PV models. Optional PC software enables advanced PV setup and multi-unit tracking tests.

Multiple Safety Protections

CV/CC priority modes reduce voltage or current overshoot during startup. A built-in bleeder circuit and OVP, OCP, OPP, SCP, UVLO, and fault protection enhance operating safety.

100-Step LIST Programming and File Management

Each channel supports up to 100 LIST steps with programmable voltage, current, dwell time, cycle count, and trigger mode. CSV import, export, saving, and recall simplify test reuse.

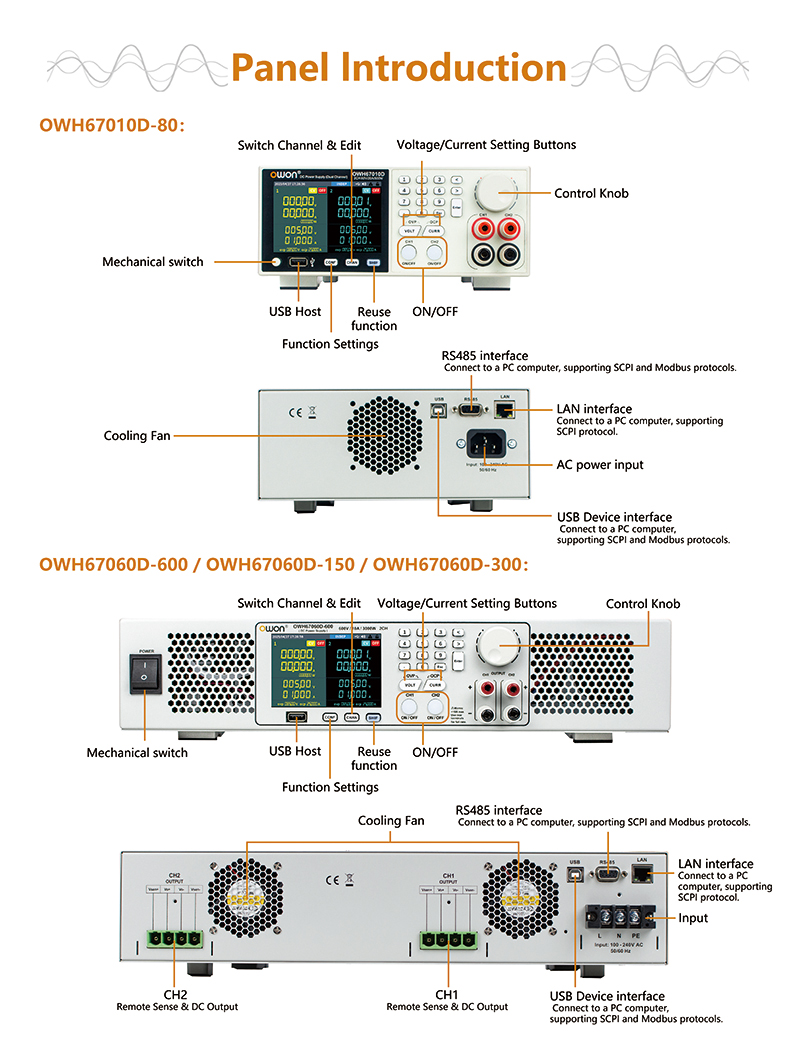

Intuitive Operation and Automated System Connectivity

A 3.95-inch color display shows voltage, current, power, and output status for both channels. USB Host/Device, LAN, and RS485 interfaces support SCPI and Modbus for remote control and automated integration.

Specifications

The specifications based upon the instrument having run for at least 30 minutes continuously, under the specified operating environment

Model

OWH67010D-80

OWH67060D-150

OWH67060D-300

OWH67060D-600

Channel

2

Rated Output

(0℃-40℃)

Output

Voltage Range

0-80V;0-80V

0 -150V;0 -150V

0 -300V;0 -300V

0-600V;0-600V

Output

Current Range

0-20A;0-20A

0-30A;0-30A

0-15A;0-15A

0-10A;0-10A

Power

1000W

6000W

6000W

6000W

Power Supply

100V-240Vac;45Hz-65Hz

Load Regulation±(%of Output+Offset)

CV

≤0.03% + 0.03%FS

CC

≤0.03% + 0.05%FS

linear Regulation±(%of Output+Offset)

CV

≤0.03% + 0.03%FS

CC

≤0.03% + 0.05%FS

Settings Resolution

10mV/1mA

Readback Resolution

10mV/1mA

Settings Accuracy

Voltage

≤0.05% + 0.05%FS

Current

≤0.05% + 0.1%FS

Readback Accuracy

Voltage

≤0.05% + 0.05%FS

Current

≤0.05% + 0.1%FS

Noise/Ripple(*)

CV

≤50mVp-p

≤150mVp-p

≤250mVp-p

≤500mVp-p

CC

≤20mArms

≤50mArms

≤50mArms

≤50mArms

Temperature Coefficient (0℃-40℃)

100ppm/℃(Voltage);200ppm/℃(Current)

Readback Temperature Coefficient

100ppm/℃(Voltage);200ppm/℃(Current)

Recovery Time (10%~90% rated load)

≤5.0ms

Operation Temperature

0-40℃

Interface

USB / LAN / RS485

Display

3.95 inch LCD

Size (W*H*D mm)

215.0 x 88.0 x 453.0

430.0 x 88.0 x 453.0

Weight (kg)

5

13

Support
Accessories


General Accessories


NameOrder Number
Quick Guide————
Data Cable7ULD10

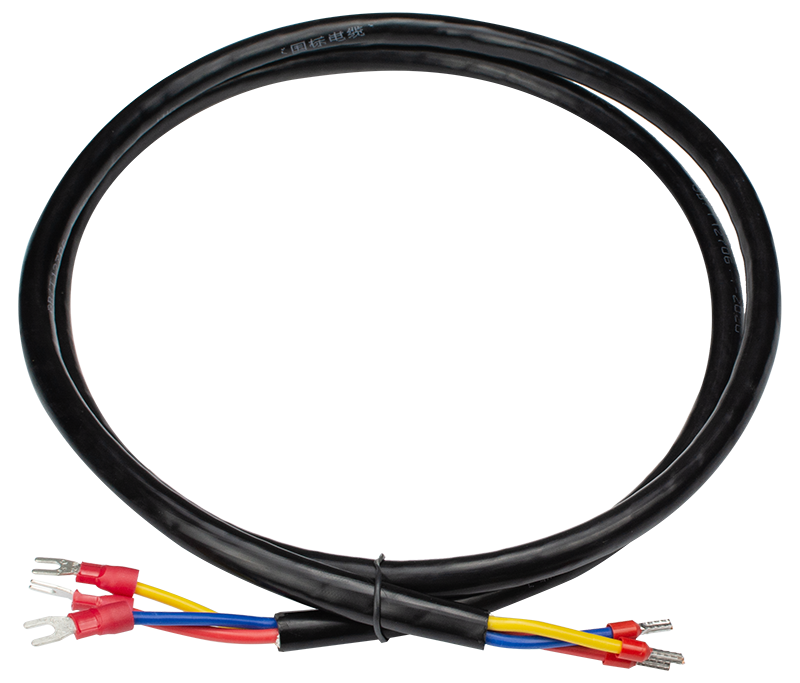

Power Cord(1000W)7Power-1
Power Cord(1000W)7Power-2

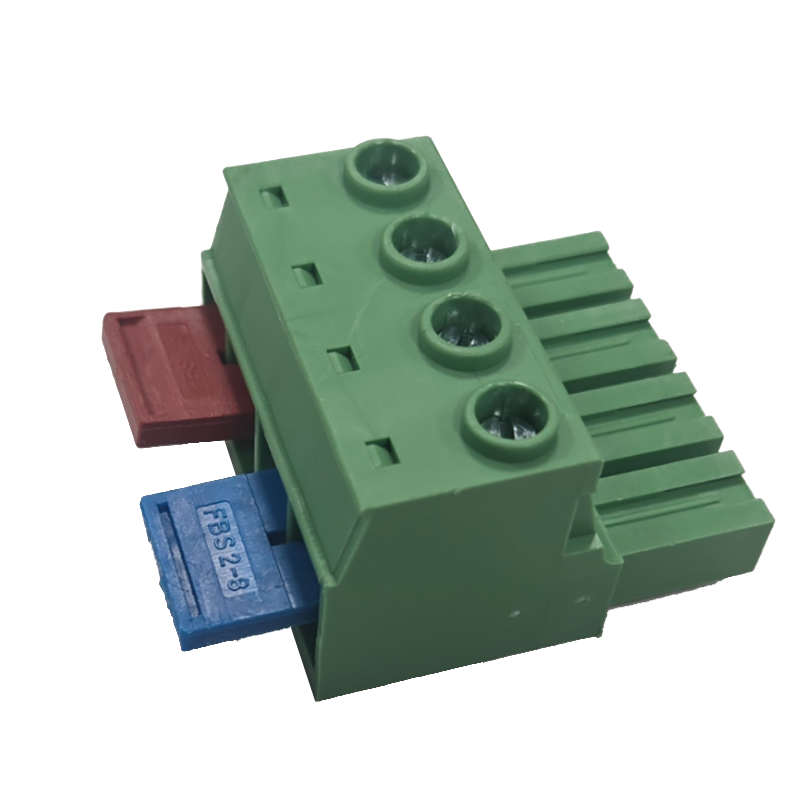

Output Terminal7Term-2
AC/DC Terminal Protective Cover7Cover-1


Optional Accessories


NameOrder Number
L-shaped Mounting Bracket7L-Bracket
