OWM5500 Smart Anemo Meter

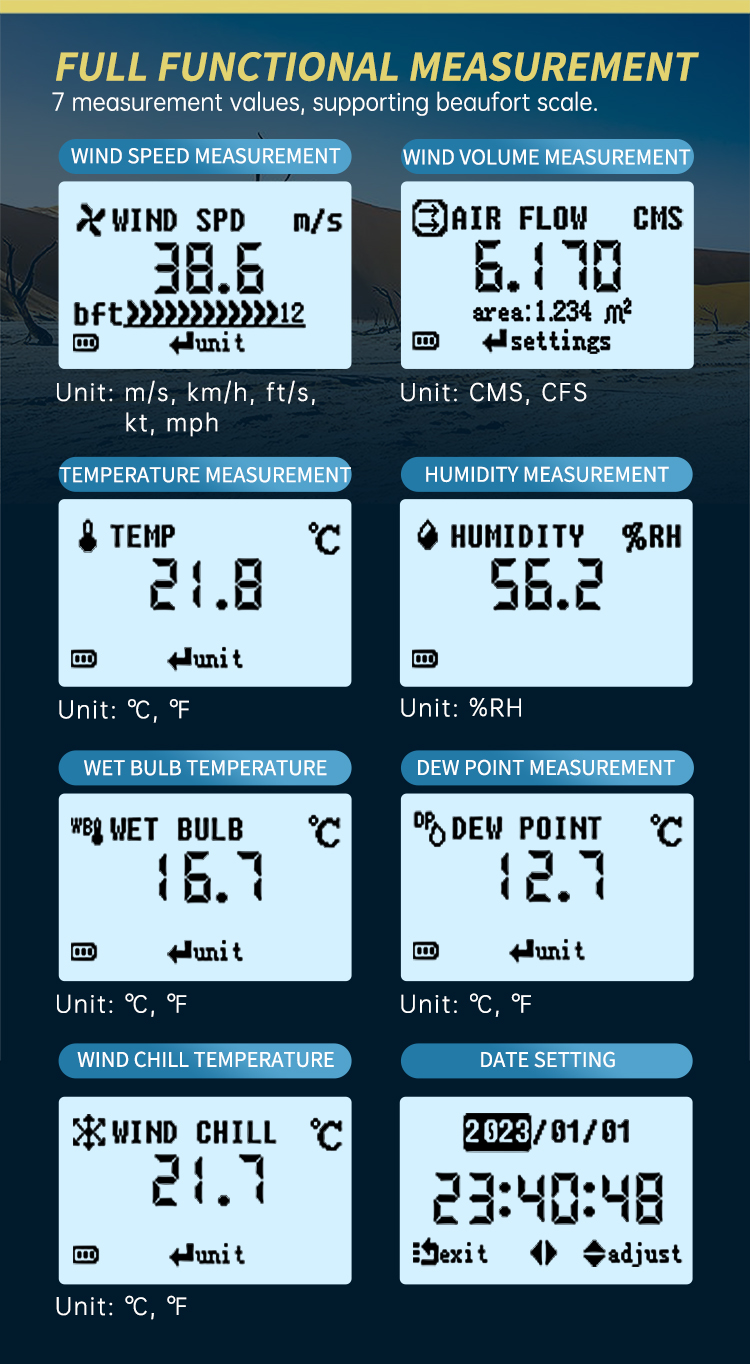

+ 7 kinds of measurement: wind speed, air volume, temperature, humidity, etc., Supports Pufu wind rating

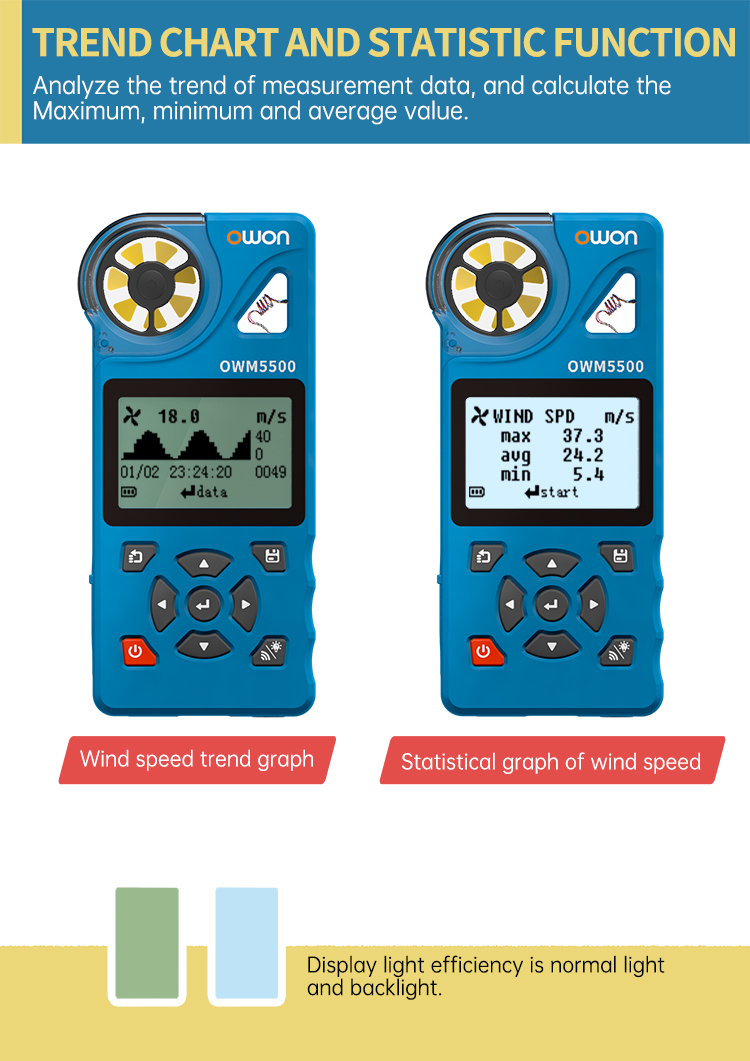

+ Charts display mode, can analyze trends, and perform statistics on data

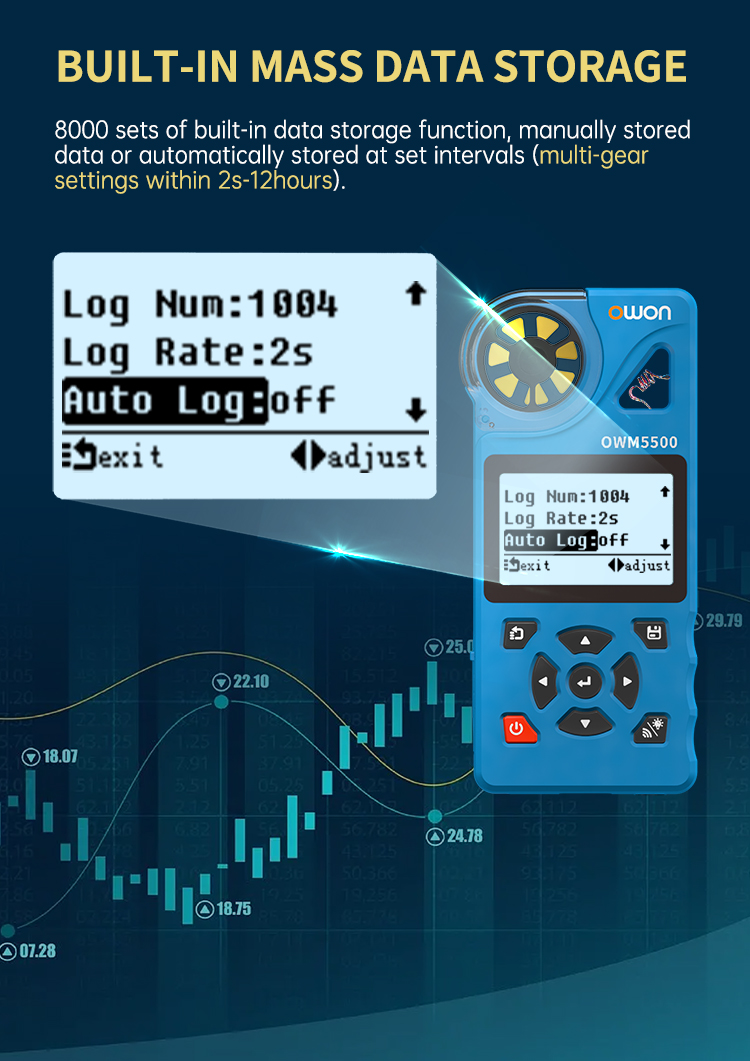

+ Built-in 8000 sets of data storage, which can be stored automatically or manually, and supports data zero clearing with one click
+ Multi - gear setting, automatic power off, energy saving
+ Built-in lithium battery, can be connected to the charging bank through USB TYPE-C interface, providing longer use time

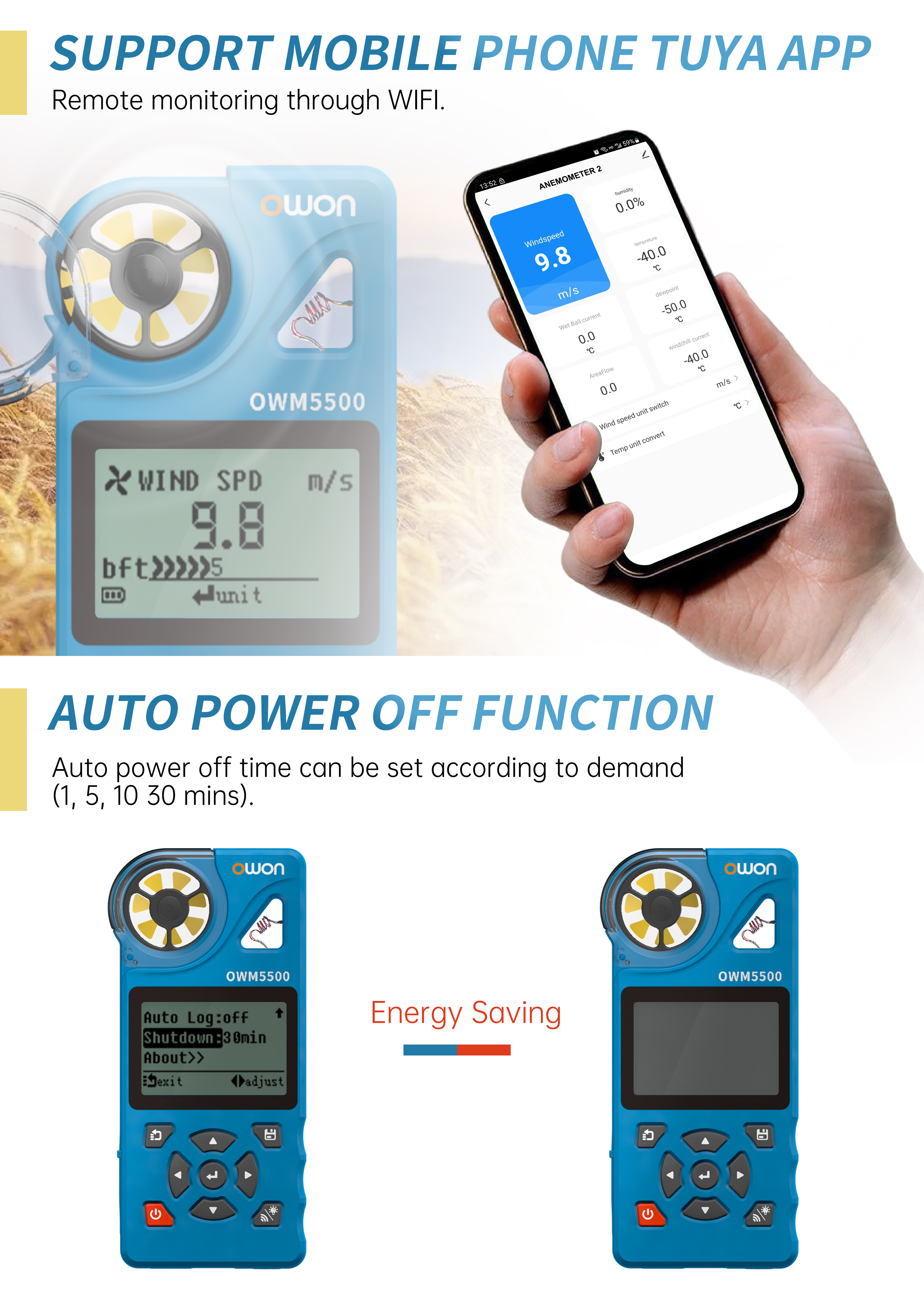

+ Support APP remote control

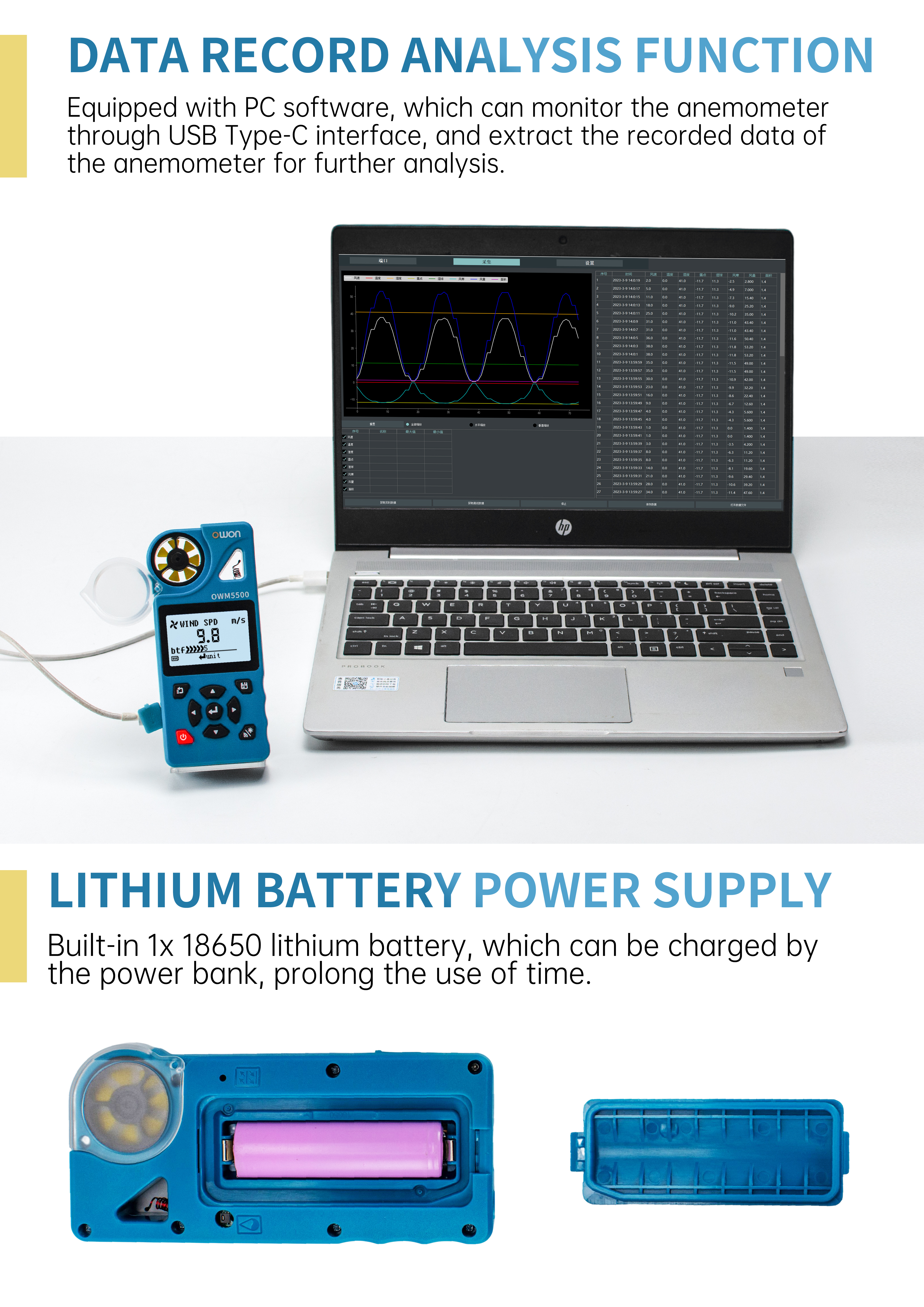

+ Supports the data graph mode, and can export the data for further analysis through PC software
Send Inquiry
+ Charts display mode, can analyze trends, and perform statistics on data
+ Built-in 8000 sets of data storage, which can be stored automatically or manually, and supports data zero clearing with one click
+ Multi - gear setting, automatic power off, energy saving
+ Built-in lithium battery, can be connected to the charging bank through USB TYPE-C interface, providing longer use time
+ Support APP remote control
+ Supports the data graph mode, and can export the data for further analysis through PC software
E-mail UsProduct Details
Specifications
|
Measurement Type |
Icon |
Name |
Unit |
Range |
Resolution |
Accuracy |
Response Time |
|---|---|---|---|---|---|---|---|
|
Wind speed |
|
WIND SPD |
m/s, km/h, ft/s, |
0.6 - 40 m/s |
0.1m/s |
±3%+0.1 |
0.5s |
|
Temperature |
|
TEMP |
℃, ℉ |
-10 - 50 ℃ |
0.1℃ |
±1.0℃ |
0.5s |
|
Humidity |
|
HUMIDITY |
%RH |
5 - 95 %RH |
0.1%RH |
±5.0%RH |
0.5s |
|
Dew point |
|
DEW POINT |
℃, ℉ |
-40 - 50℃ |
0.1℃ |
±2.0℃ |
0.5s |
|
Wet bulb temperature |
|
WET BULB |
℃, ℉ |
-40 - 50℃ |
0.1℃ |
±2.0℃ |
0.5s |
|
Wind chill |
|
WIND CHILL |
℃, ℉ |
-40 - 50℃ |
0.1℃ |
±2.0℃ |
0.5s |
|
Air volume |
|
AIR FLOW |
CMS, CFS |
0.001 - 300.0CMS |
0.001CMS |
|
0.5s |
|

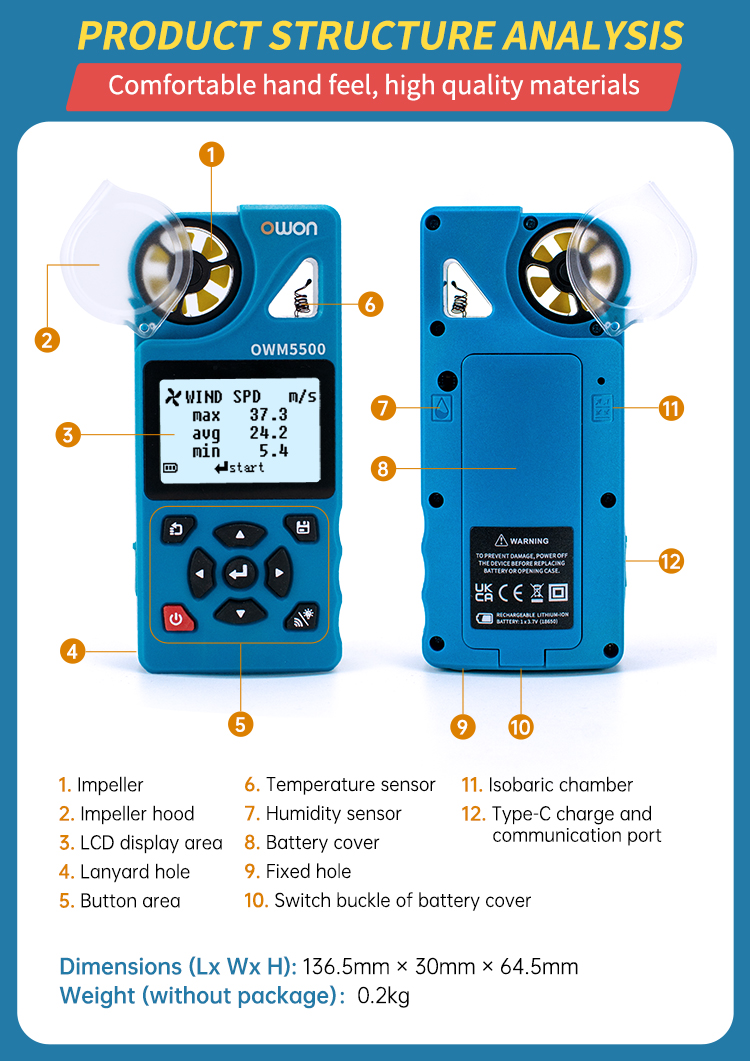

Dimensions (L x H x W) |
136.5mm x 30mm x 64.5mm |
||||||
|
Wight |
0.2kg |
||||||
Support
Accessories
The accessories subject to final delivery.
-
Quick Guide -

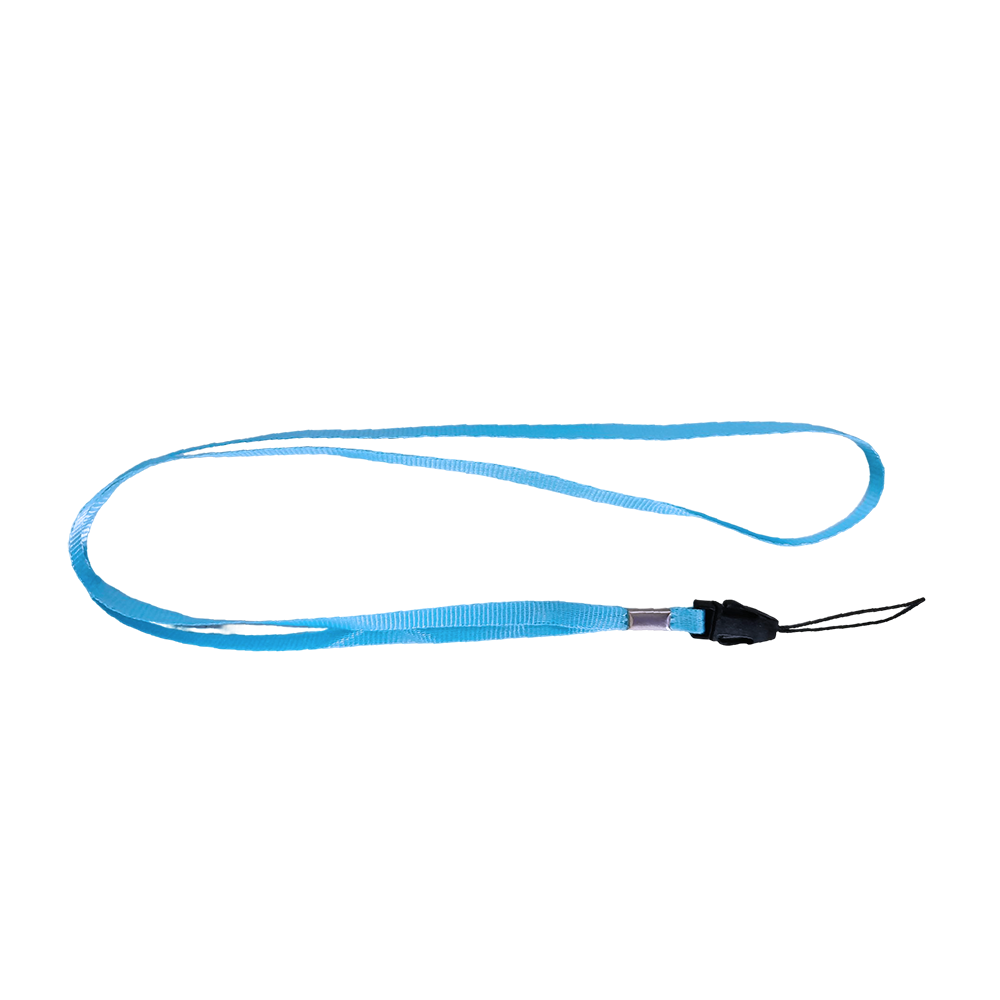

Lanyard -
USB cable(Type-c)
