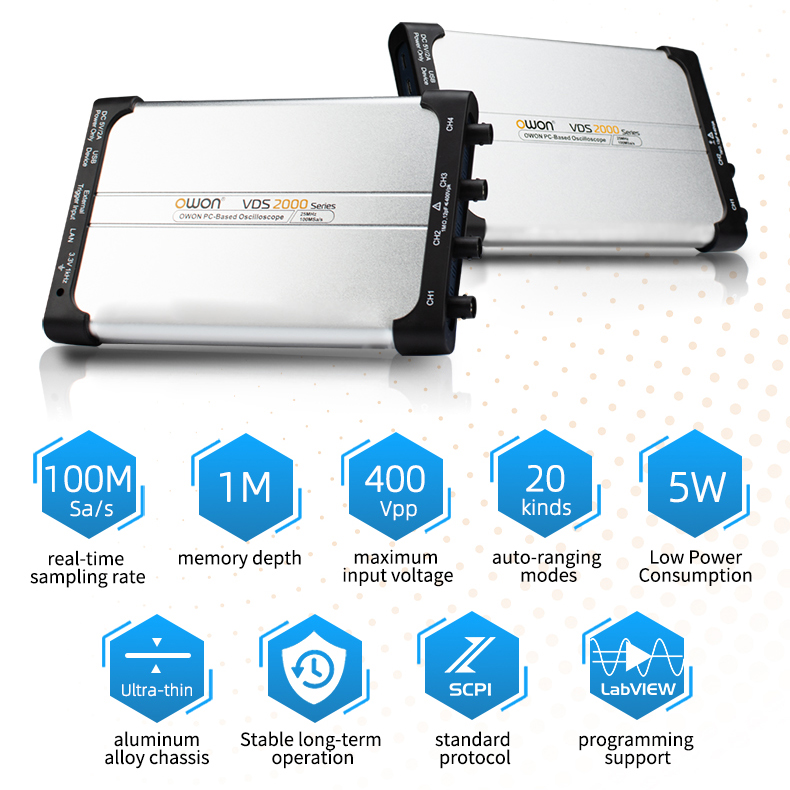

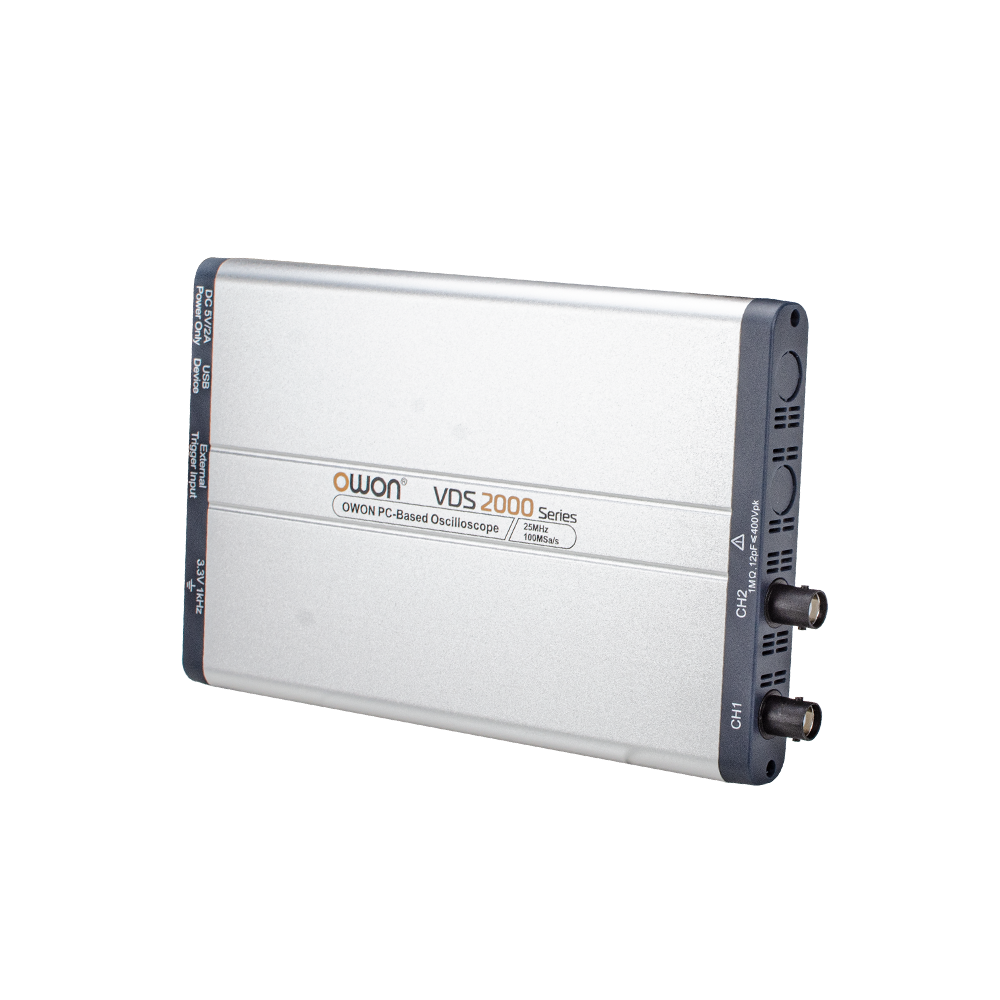

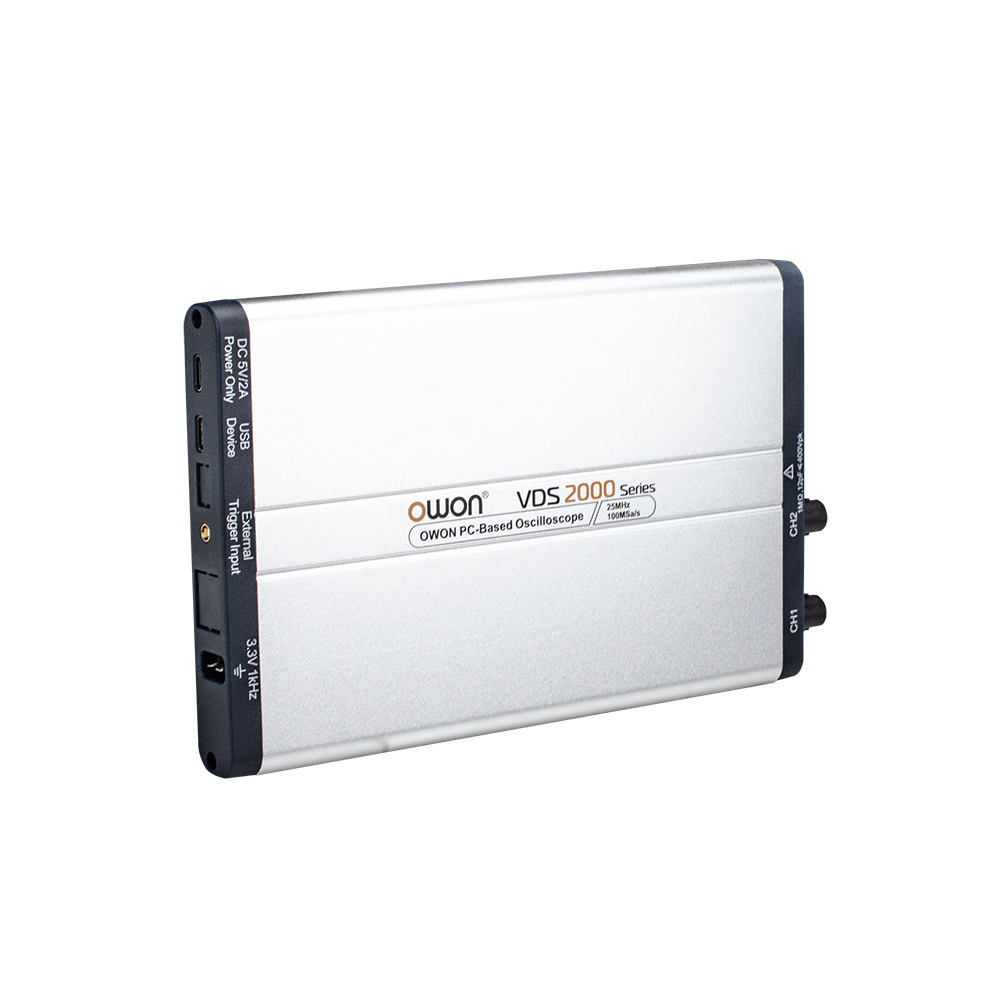

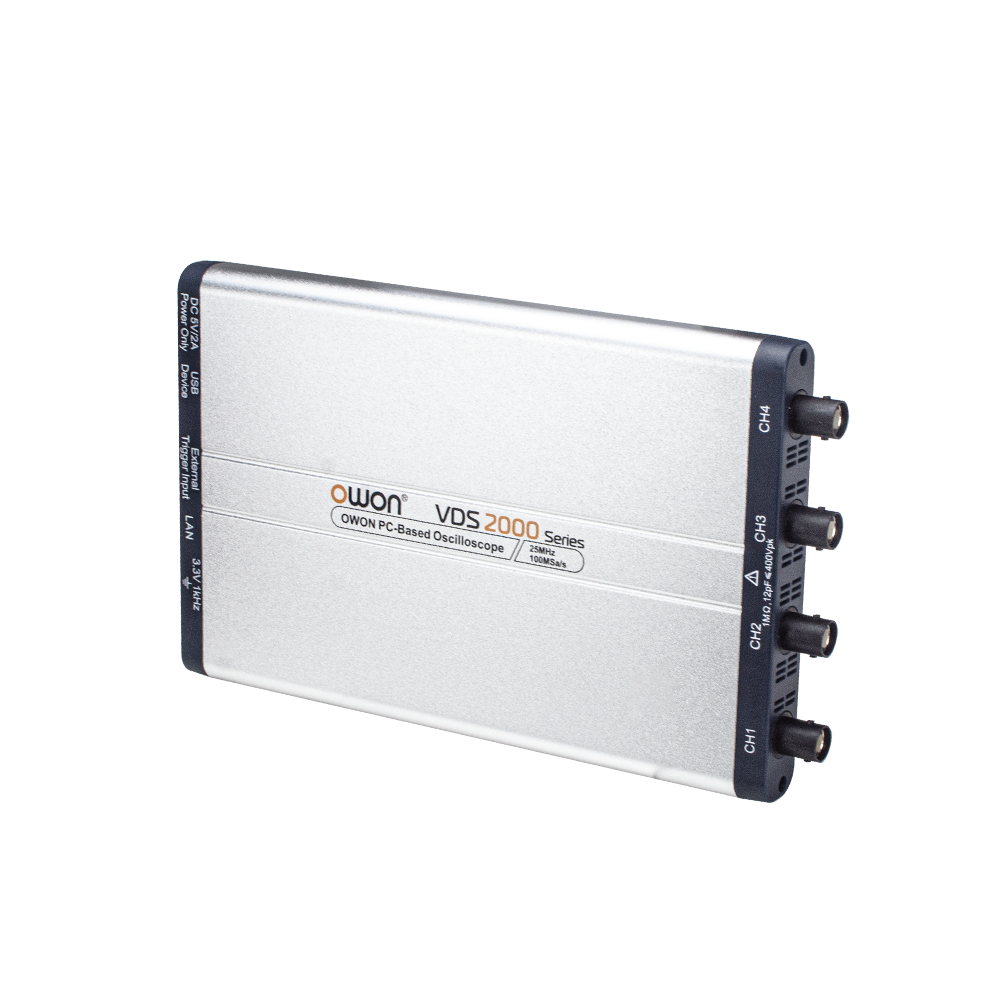

VDS2000 Series PC Oscilloscope
+ Aluminum Alloy Enclosure: Provides excellent corrosion resistance, extends instrument lifespan, and reduces downtime and maintenance costs caused by oxidation or damage to the enclosure

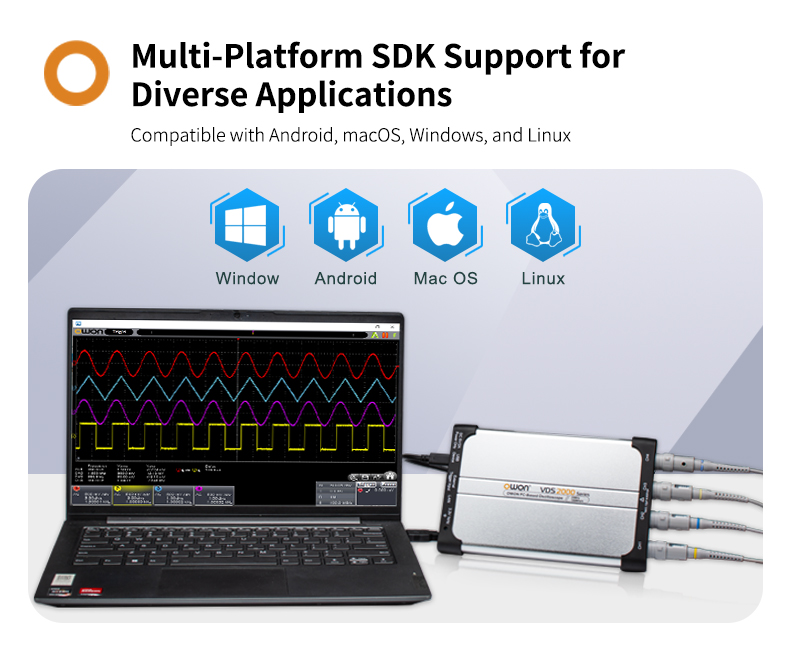

+ Cross-platform SDK Support: Compatible with Android, macOS, Windows, and Linux platforms, providing enhanced customization capability to meet diverse application requirements
+ Ultra-slim Design: Only 18mm thick, saving space, easy to carry, and convenient for installation on compact test benches or embedded systems
+ USB Interface Isolation : Protects computers and measured analog signals from power supply and ground loop interference (VDS-I model)
+ Low Power Consumption: Operates at just 5W with minimal heat generation, enabling long-term operation without affecting the temperature or performance of other system components

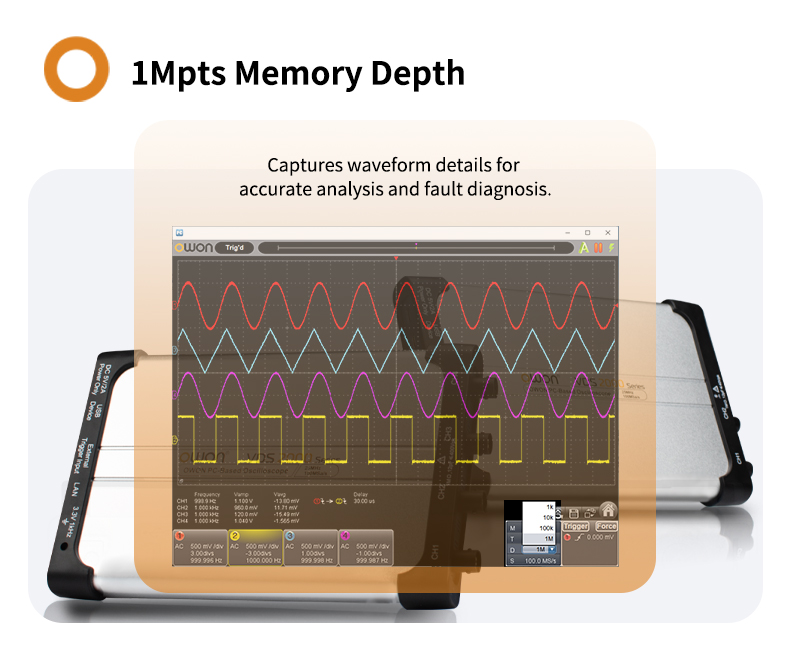

+ Each channel features 1M storage length, allowing capture and preservation of more waveform details to aid engineers in more accurate analysis and fault diagnosis

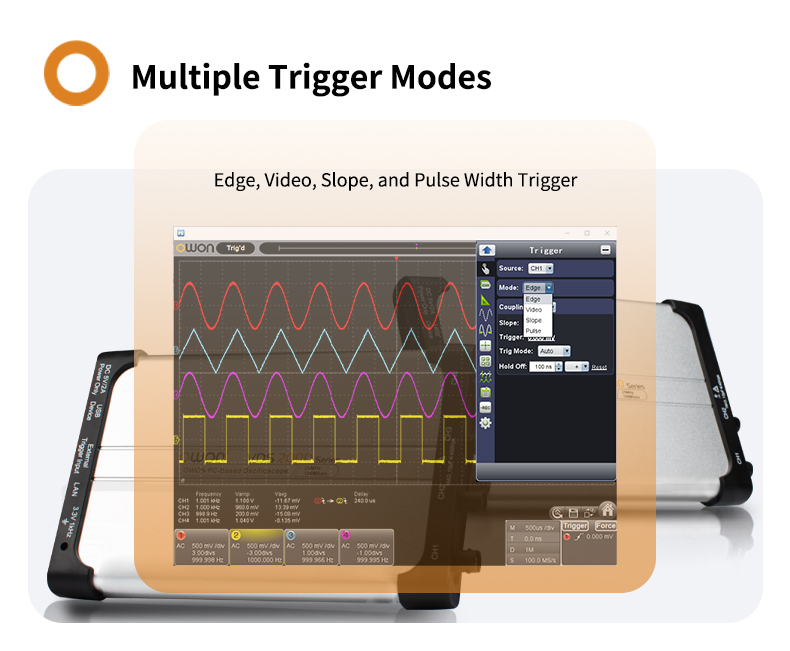

+ Multiple trigger modes: Supports edge, video, slope, and pulse width triggering

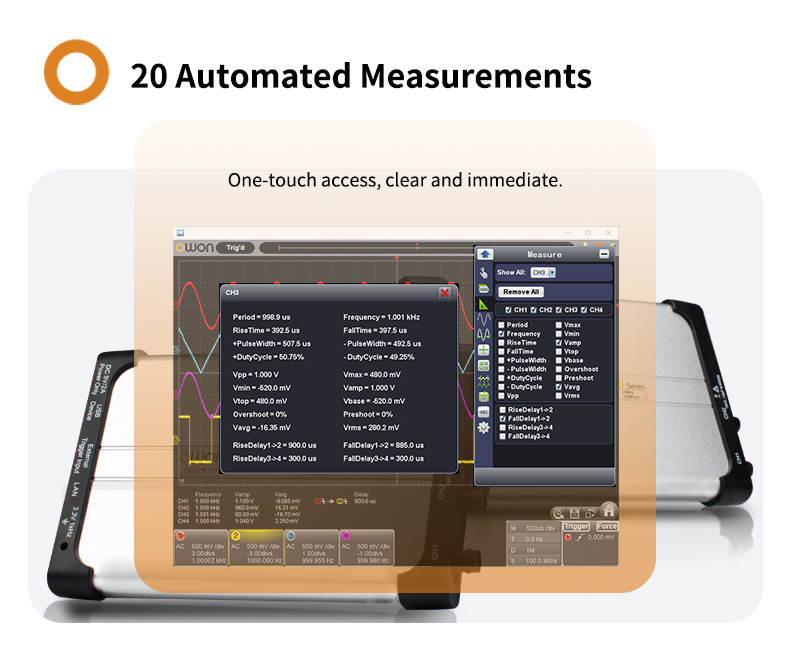

+ 20 built-in automatic measurement functions
PDF Export
E-mail Us.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
|
Product Model |
VDS2252 |
VDS2254 |
VDS2252I |
VDS2254I |
|
Bandwidth |
25MHz |
|||
|
Vertical Resolution (A/D) |
8bits |
|||
|
Channel Number |
2 |
4 |
2 |
4 |
|
Sampling Rate |
100 MSa/s |
|||
|
Rise Time |
≤14 ns |
|||
|
Horizontal Scale (s/div) |
5ns/div - 1000s/div, step by 1 - 2 - 5 |
|||
|
Sampling Mode |
sample, peak detect, average |
|||
|
Record Length |
1M |
|||
|
Input Coupling |
DC, AC, ground |
|||
|
Input Impedance |
1 MΩ ± 2%, in parallel with 12 pF ± 5 pF |
|||
|
Max Input Voltage |
40 V (DC + AC Peak) |
400 V (DC + AC Peak) |
||
|
Channel Isolation |
100 : 1 @ 50Hz; 40 : 1 @ 10MHz |
|||
|
DC Gain Accuracy |
±3% |
|||
|
Vertical Sensitivity |
2 mV/div - 10 V/div, step by 1 - 2 - 5 |
|||
|
Vertical Displacement |
± 2V (2 mV/div – 200 mV/div) ± 40V (500 mV/div – 10 V /div) |
± 2V (2 mV/div – 200 mV/div) ± 100V (500 mV/div – 10 V /div) |
||
|
Trigger Type |
edge, video, slope, pulse |
|||
|
Trigger Mode |
auto, normal, single |
|||
|
Line/Field Frequency (invideo trigger) |
supported standards: NTSC, PAL and SECAM broadcast systems |
|||
|
Automatic Measurement |
Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Frequency, Period, Rise Time, Fall Time, Delay A→B, Delay A→B, +Width, -Width, +Duty, -Duty |
|||
|
Isolation |
no isolation |
communication Interface Isolation, power Interface Isolation |
||
|

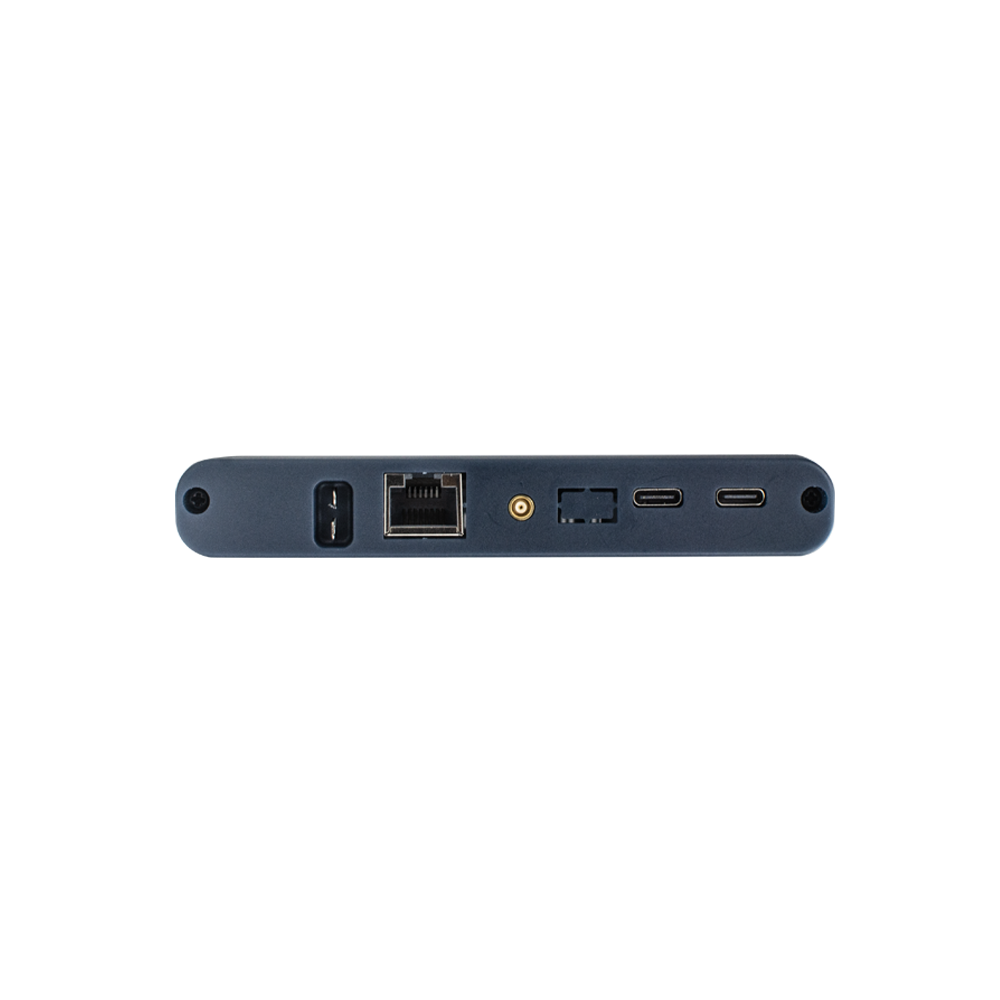

Communication Interface |
USB Device (Type C) |
USB device (type-C), LAN |
||
|
Power Source |
DC 5V |
|||
|
Power Consumption |
≤ 5 W |
≤ 6 W |
≤ 5 W |
≤ 8 W |
|
Device Dimension |
190 x 18 x 120 mm (W x H x D) |
|||
|
Weight |
≈ 0.38 kg |
|||
The accessories subject to final delivery.
-
Quick Guide -
USB Cable -
Probe
