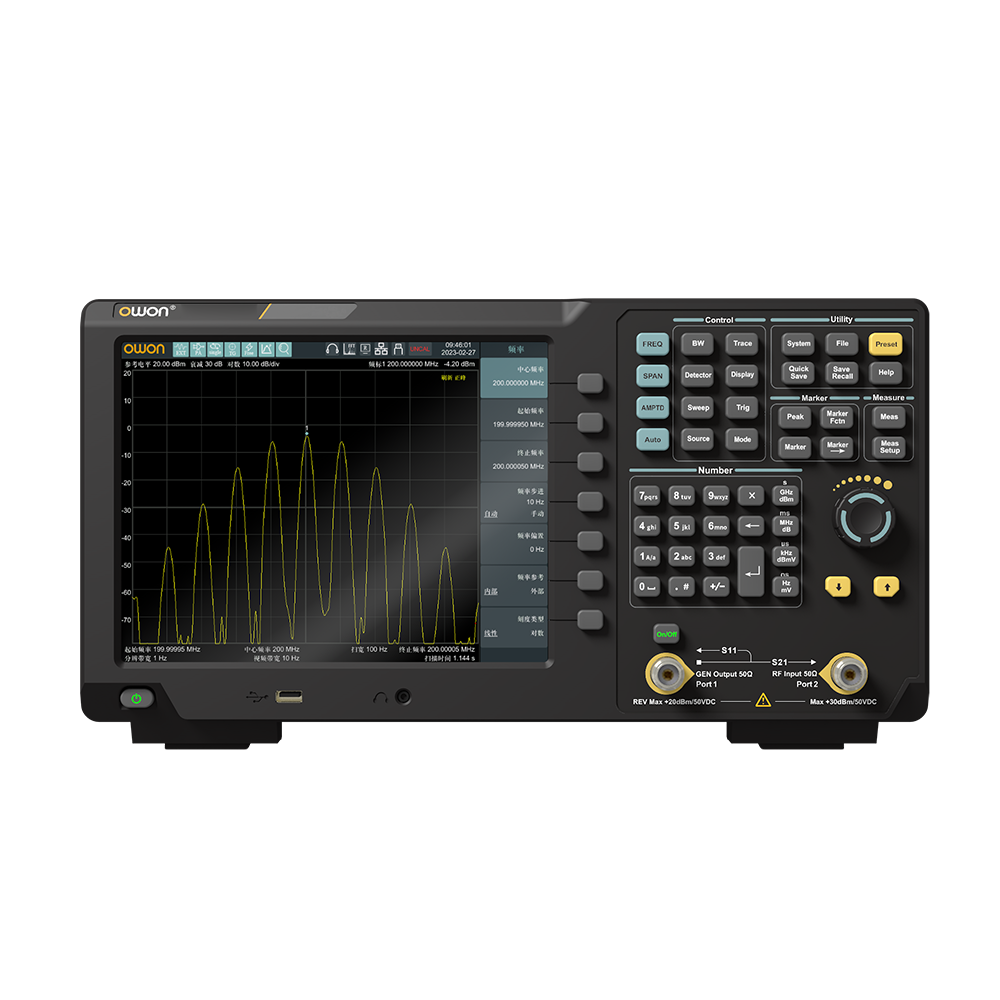

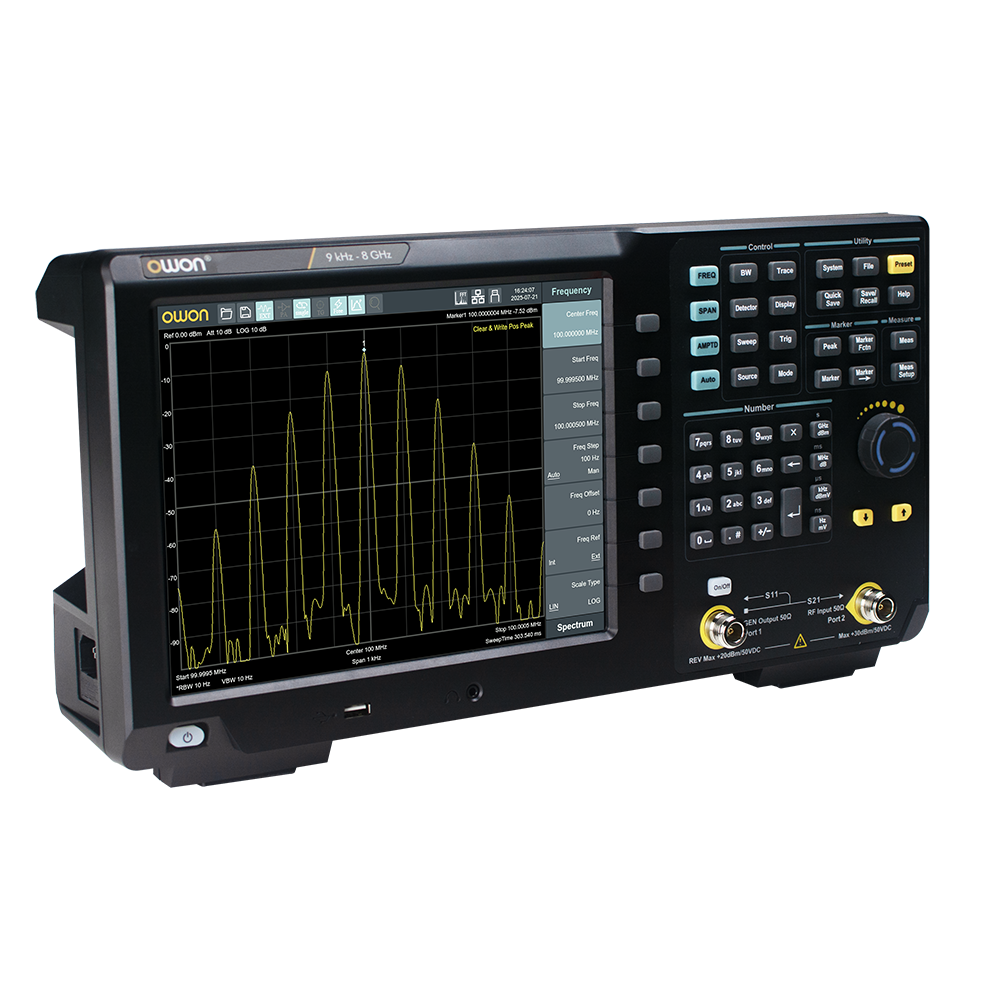

XSA3000-R Series Real Time Spectrum Analyzer
+ Spectrum Analyzer Frequency Range from 9kHz up to 8GHz
+ Vector Network Analyzer Frequency Range from 100kHz up to 8GHz
+ 100% POI 6.25μs, Dynamic Range 60dB
+ -165 dBm/Hz Displayed Average Noise Level (Typ.)
+-106dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
+ 1Hz Minimum Resolution Bandwidth (RBW)
+ Full Amplitude Accuracy < 0.7dB (Typ.)
+ Preamplifier and Tracking Generator Standard
+ Standard 100 MHz Real Time Analysis Bandwidth
+ Distance to Fault Mode (Standard)
+ Multiple display modes (Probability Density Spectrum, Time Power, 3D, etc.) for multi-dimensional viewing of complex transient signals
+ EMI Measurement Software (Opt.)
+ 10.4 inch Multi-Touch Screen , Mouse and Keyboard supported
+ Web Browser Remote Control on PC and Mobile Terminals and File Operation
+ Communication Interfaces: LAN, USB Device, USB Host

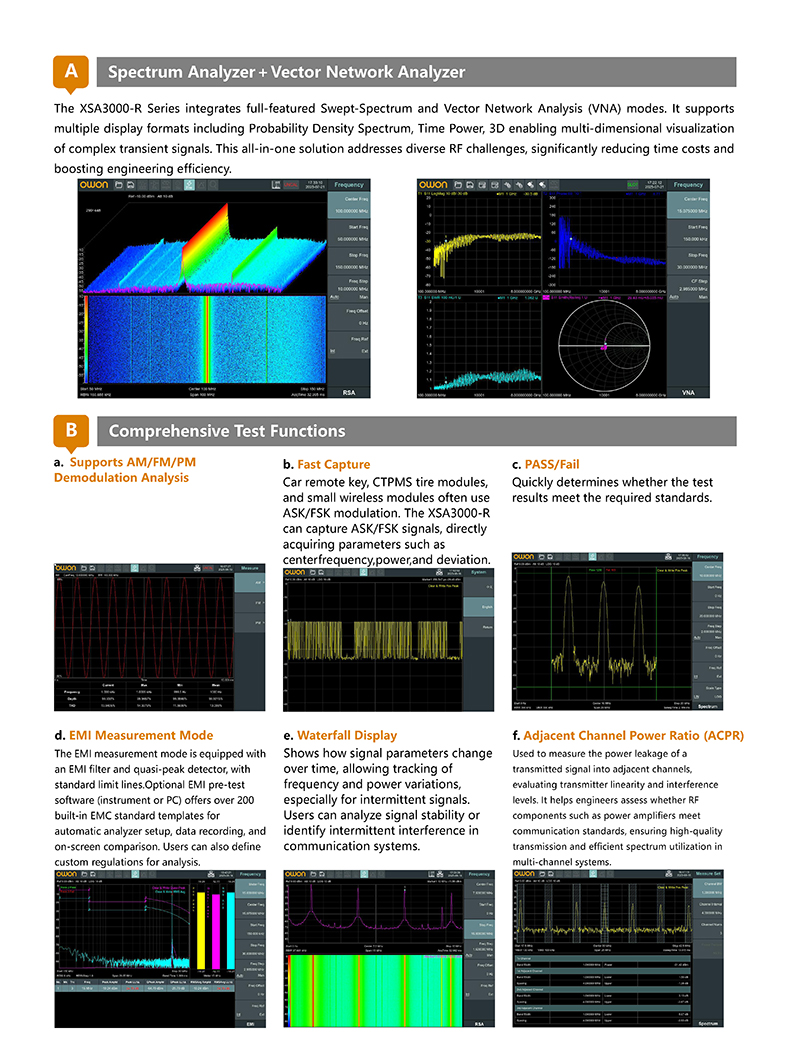

The XSA3000-R series integrates real-time spectrum analysis and vector network analysis, covering 9kHz – 8GHz (spectrum) and 100kHz – 8GHz (VNA), meeting needs from R&D to production testing.

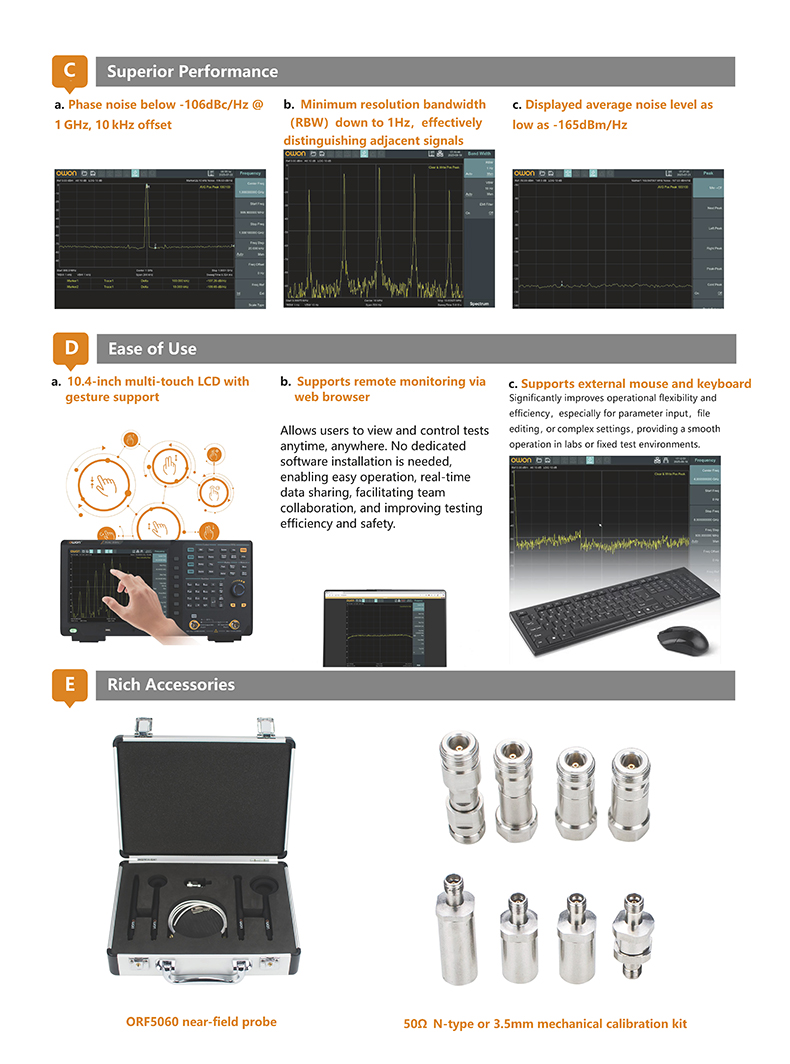

In spectrum analysis, the XSA3000-R delivers outstanding real-time performance with a 100% probability of intercept (POI) as short as 6.25 µs, and a spurious-free dynamic range up to 60dB. It offers a displayed average noise level (DANL) below
−165dBm/Hz, phase noise of −106dBc/Hz (10 kHz offset), and a minimum resolution bandwidth (RBW) of 1 Hz. With full-scale amplitude accuracy of 0.7 dB, it ensures high sensitivity and dynamic performance when capturing and analyzing transient or low-level signals.
Standard features include a tracking generator, preamplifier, and Distance to Fault mode. Multiple display modes, including probability density spectrum, time power, 3D visualization, enable multi-dimensional signal observation. It comes with 40 MHz real-time bandwidth (optional 100MHz) and optional EMI software.
The 10.4-inch multi-touch LCD supports mouse / keyboard, and enables remote monitoring via PC or mobile browsers. It provides LAN, USB Device, and USB Host interfaces make integration and data transfer easy. With powerful performance and versatility, the XSA3000-R is ideal for research, communications, manufacturing and maintenance.
Wide Frequency Coverage for Real-Time Transient Capture
9 kHz to 20 GHz coverage, 100 MHz real-time bandwidth, and 6.25 μs 100% POI capture frequency-hopping, burst, and intermittent signals.

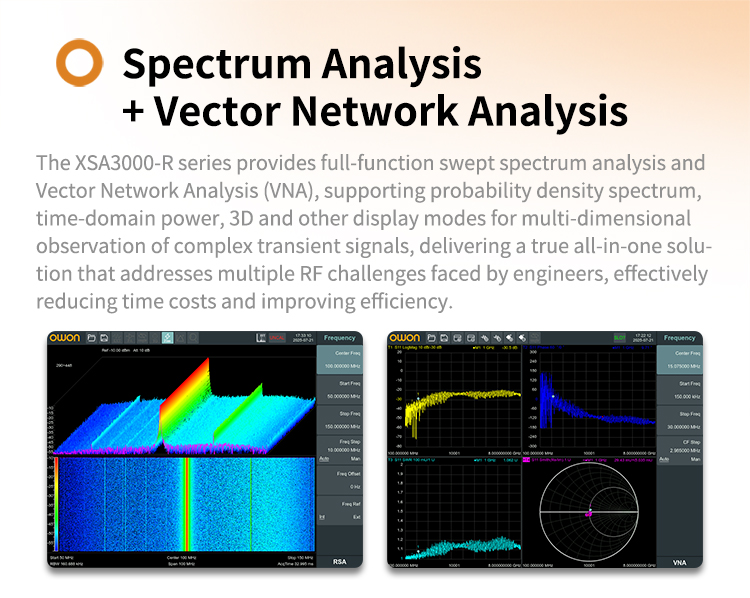

Built-In Vector Network Analyzer
100 kHz to 8 GHz VNA with vector S11/S21 measurements and up to 90 dB dynamic range supports return loss, insertion loss, phase, group delay, VSWR, and Smith chart analysis.

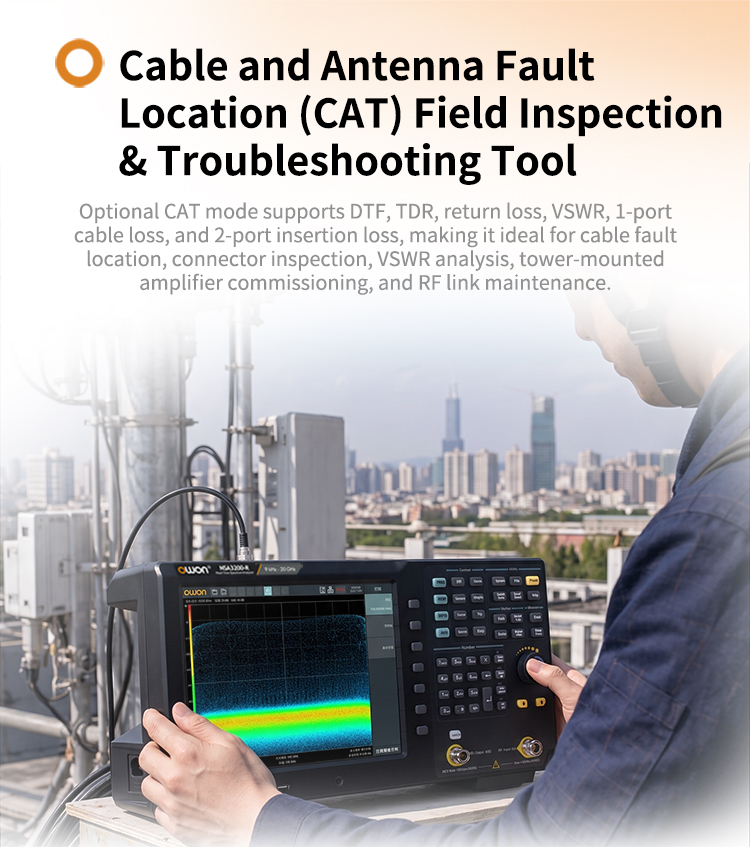

Quickly Locate Cable and Antenna Faults
DTF, return loss, VSWR, 1-port cable loss, and 2-port insertion loss simplify antenna, cable, connector, and RF link troubleshooting.

Rich Real-Time Displays and Advanced Measurements
Supports Density Spectrum, Waterfall, Power vs. Time (PvT), and 3D Spectrum displays, along with channel power, occupied bandwidth, ACPR, harmonics, third-order intermodulation, and AM/FM/PM demodulation analysis.

Fast EMI Pre-Compliance Testing
The optional EMI test function provides 200+ limit templates and Pass/Fail evaluation for early issue detection.

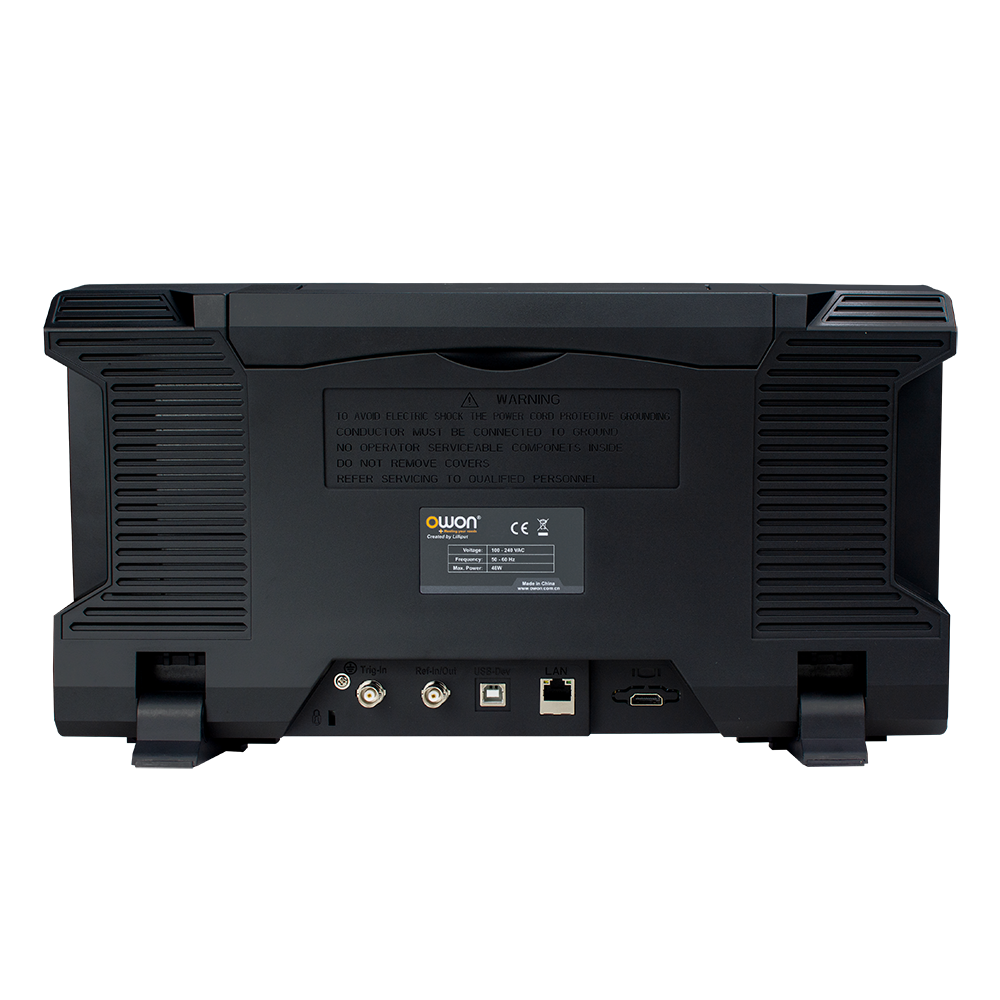

Flexible Connectivity and Remote Control
LAN, USB Host/Device, HDMI, reference clock I/O, and external trigger support SCPI, LabVIEW, IVI, and browser-based remote control.

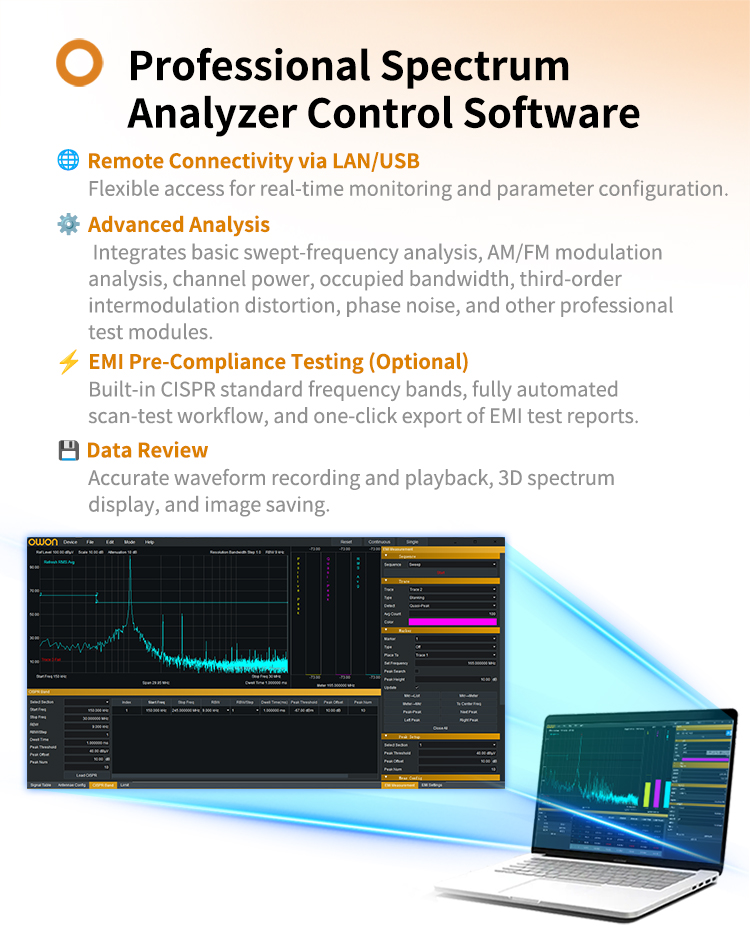

Advanced PC Software
Remote setup, live monitoring, sweep and modulation analysis, EMI pre-testing, waveform playback, 3D Spectrum, and report export streamline RF testing.

The specifications apply under the following conditions:
The instrument has been warmed up for at least 30 minutes prior to use.
The instrument is within the calibration cycle and has undergone self-calibration.
|
Model |
XSA3036-R |
XSA3060-R |
XSA3080-R |
XSA3140-R |
XSA3200-R |
|
Spectrum analysis range |
9 kHz~3.6 GHz |
9 kHz~6.0GHz |
9 kHz~8.0GHz |
9 kHz~14.0 GHz |
9 kHz~20.0 GHz |
|
VNA frequency range |
100kHz~3.6GHz |
100kHz~6.0GHz |
100kHz~8.0GHz |
- |
- |
|
Cable and antenna test frequency range |
100kHz~3.6GHz |
100kHz~6.0GHz |
100kHz~8.0GHz |
- |
- |
|
Tracking generator |
100kHz~3.6GHz |
100kHz~6.0GHz |
100kHz~8.0GHz |
- |
- |
|
Resolution bandwidth (RBW) |
1Hz ~ 5MHz |
1Hz ~ 5MHz |
1Hz ~ 5MHz |
1Hz ~ 5MHz |
1Hz ~ 5MHz |
|
Displayed Average Noise Level |
-165 dBm/Hz |
-165 dBm/Hz |
-165 dBm/Hz |
-165 dBm/Hz |
-165 dBm/Hz |
|
SSB phase noise |
<-106 dBc/Hz |
<-106 dBc/Hz |
<-106 dBc/Hz |
<-100 dBc/Hz |
<-100 dBc/Hz |
|
Third-order intercept (TOI) |
+14 dbm |
+14 dbm |
+14 dbm |
+14 dbm |
+14 dbm |
|
Frequency span range |
0 Hz,100 Hz to the maximum frequency of the instrument |
||||
|
Frequency span accuracy |
± span / (number of sweep points - 1) |
||||
|
Marker frequency resolution |
span / (number of display points - 1) |
||||
|
Marker frequency uncertainty |
±[marker reading*reference frequency accuracy+1%*span + 0.5*marker frequency resolution + 1 Hz] |
||||
|
Marker functions |
noise marker, N dB bandwidth, frequency counter |
||||
|
Amplitude accuracy |
< 0.7 dB |
||||
|
Real-time analysis bandwidth |
100MHz |
||||
|
Dynamic range |
60 dB |
||||
|
Minimum signal duration for 100% response |
6.25μs |
||||
|
Real-time spectrum views |
probability density spectrum, waterfall, 3D spectrum, power vs. time |
||||
|
VNA measurement parameters |
vector S11, vector S21 |
No Support |
|||
|
Network analysis dynamic rang |
90 dB |
||||
|
Display modes |
reflection/transmission coefficient, return/insertion loss, phase, group delay, log magnitude, fault location, linear magnitude, real part, imaginary part, VSWR, Smith chart, polar plot |
||||
|
Advanced measurements |
CHP,ACPR,OBW,CNR,Harmonic,Monitor,CCDF,SEM,TOI |
||||
|
Vector signal modulation analysis |
AM,FM,PM |
||||
|
EMI filters (-6 dB) |
200 Hz,9 kHz,120 kHz,1 MHz |
||||
|
Detectors |
positive peak, RMS average, quasi-peak |
||||
|
EMI measurement |
built-in 200+ standard templates and custom templates |
||||
|
Communication interfaces |
LAN,USB Device,USB Host |
||||
|
Remote Control Interface |
SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket |
||||
|
Compatible Software |
NI-MAX,Web Browser,Spectrum Vision software |
||||
|
Display |
10.4-inch multi-touch screen, supports mouse and keyboard |
||||
General Accessories
| Name | Order Number |
|---|---|
| Quick Guide | ———— |
| Power Cord | ———— |
| USB Device Cable | 7ULD10 |
| N-BNC Adaptor | 7AN-B-6 |
Optional Accessories
| Name | Order Number |
|---|---|
| N - N Cable,1m, 6G | 7LN-N-610 |
| N - SMA Cable,1m, 6G | 7LN-SAM-610 |
| SMA - SMA Cable, 1m, 6G | 7LSAM-S-610 |
| SAM (F) Adaptor | 7ASMA-KK-6 |
| N - SMA Adaptor,6G | 7AN-SAM-6 |
| N - SMA Adaptor,3G | 7AN-SAM-3 |
| 433M Line | 7SAL433 |
VNA Optional Accessories
| Name | Order Number |
|---|---|
| N type Economic Calibration Kit,DC - 6GHz, 50Ω,Female end | CF5506-F |
| N type Economic Calibration Kit,DC-6GHz, 50Ω,Male end | CF5506-M |
| N type Economic Calibration Kit,DC-9GHz, 50Ω,Female end | CF5509-F |
| N type Economic Calibration Kit,DC-9GHz, 50Ω,Male end | CF5509-M |
| 3.5mm type Economic Calibration Kit,DC-6GHz, 50Ω,Female end | CF6506-F |
| 3.5mm type Economic Calibration Kit,DC-6GHz, 50Ω,Male end | CF6506-M |
| 3.5mm type Economic Calibration Kit,DC-9GHz, 50Ω,Female end | CF6509-F |
| 3.5mm type Economic Calibration Kit,DC-9GHz, 50Ω,Male end | CF6509-M |
EMI Measurement Options
| Name | Order Number |
|---|---|
| 1MHz - 6GHz Near Field Probe Kit: 3 H-probes (45/30/13 mm), 1 E-probe (3 mm) | ORF5060 |
Function Options
| Name | Order Number |
|---|---|
| Vector Network Analyzer (VNA), Tracking Generator (TG) (For ≤8GHz models only, limited-time free offer) (only HSA3036-R & HSA3075-R) | VNA |
| EMI Measurement Software (Embedded) | EMI_LC |
| EMI Measurement Software (PC-based) | EMI_PC |
