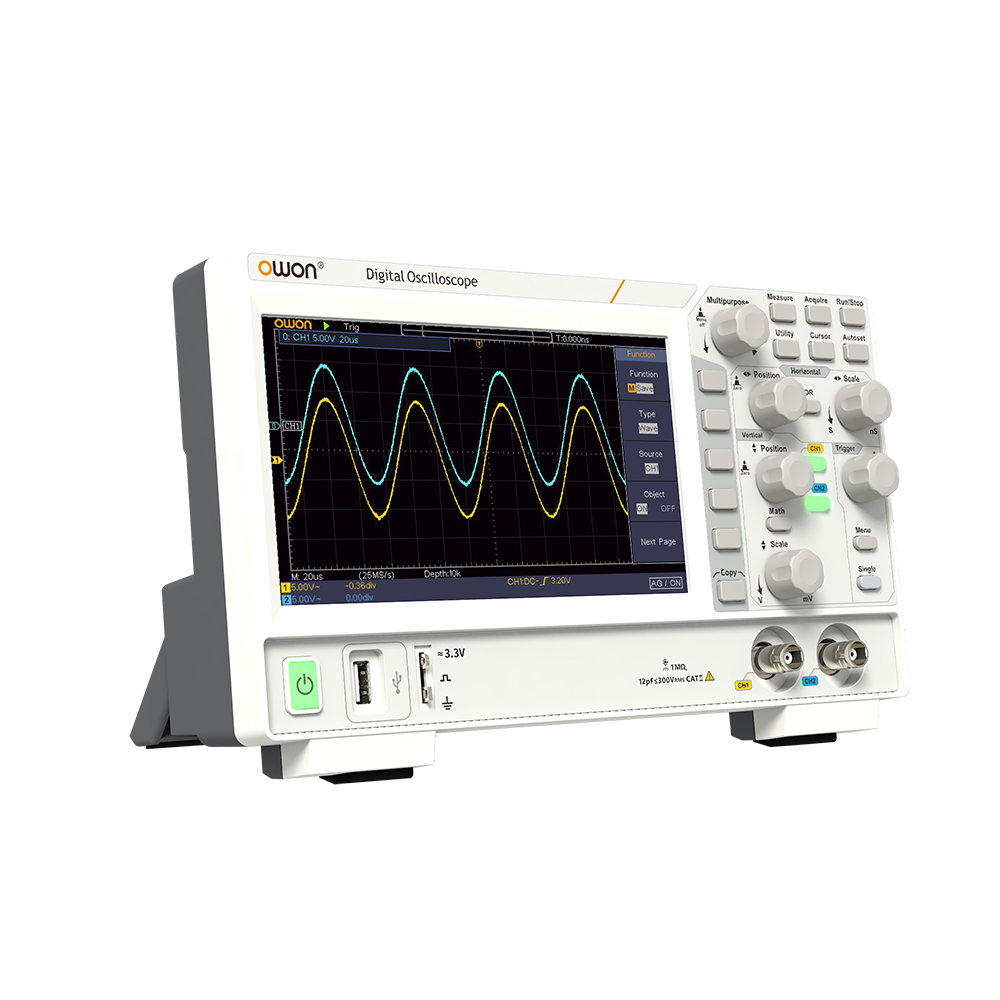

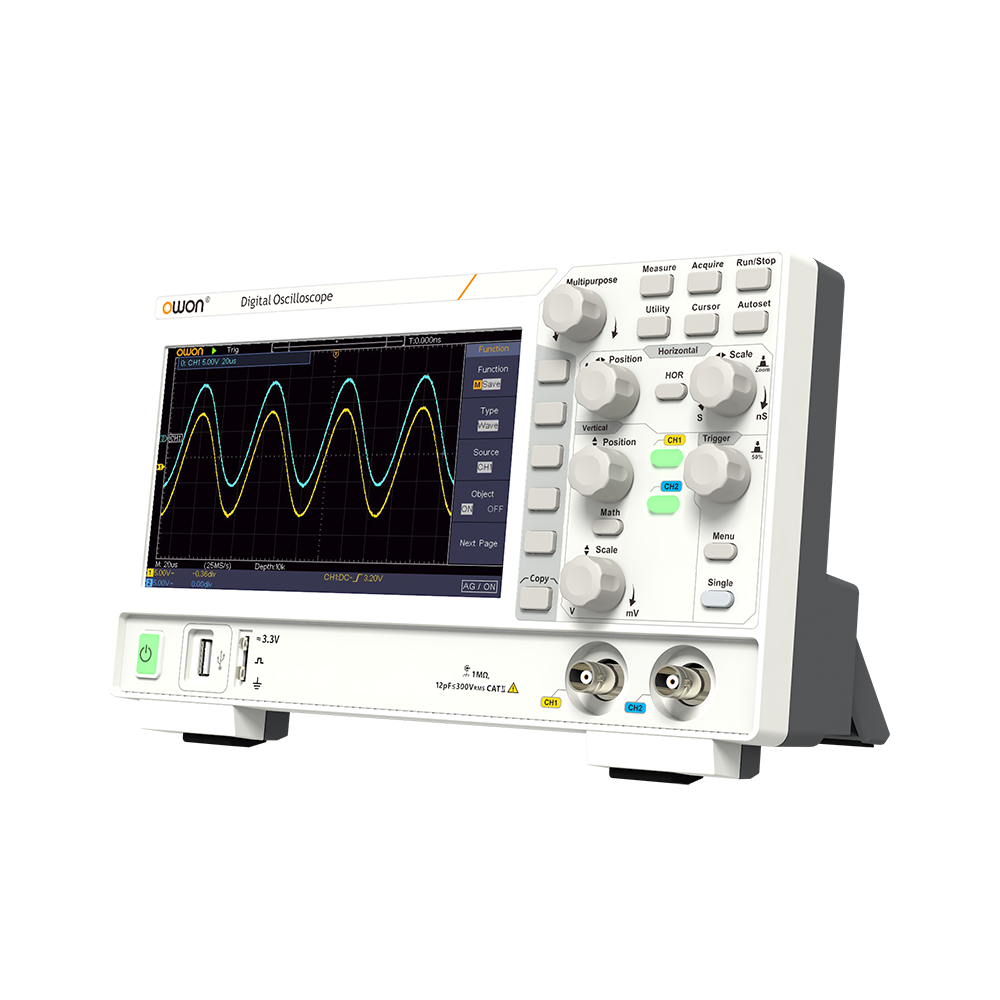

Model

SDS3102

SDS3152

SDS3202

Bandwidth

100MHz

150MHz

200MHz

Channel

2

Sample rate

1GSa/s

Acquire mode

Sample, Peak, Average

Input coupling

DC, AC, Ground

Input impedance

1 MΩ±2%, in parallel with 12 pF±5 pF

Input coupling

1X，10X，100X，1000X

Max Record length

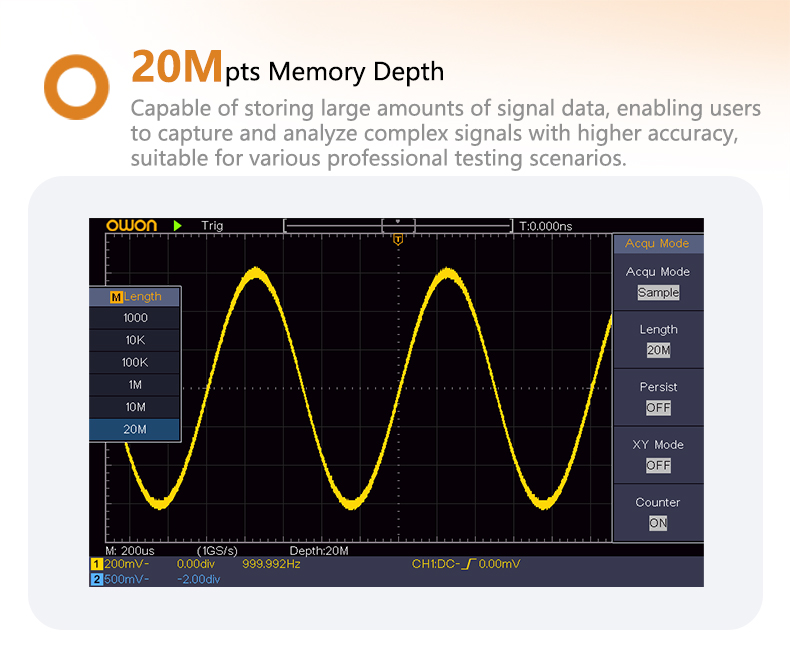

20M

Scanning speed (S/div)

2 ns/div – 1000 s/div,step by 1 – 2 - 5

Sensitivity

2mV/div～10 V/div

Max. input voltage

400V (DC+AC, PK - PK)

Bandwidth limit

20 MHz, full bandwidth

Sampling rate / relay time accuracy

±100 ppm

Displacement

±2 V (2 mV/div – 200 mV/div)；±100 V (500 mV/div – 10 V/div)

Waveform inverted

support

Automatic

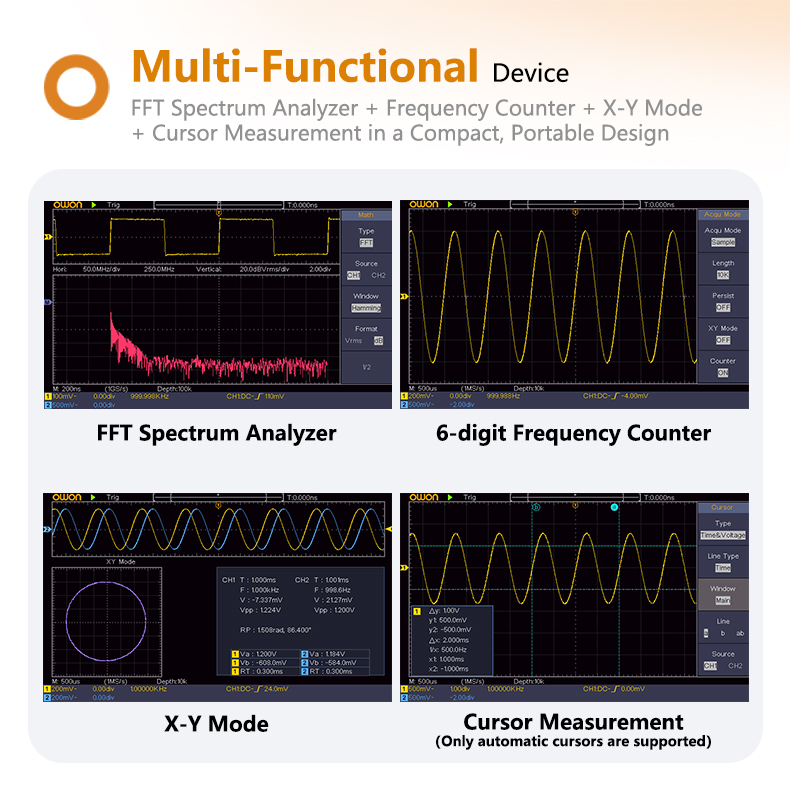

Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area

Waveform Math

＋, －, ×, ÷, FFT

Waveform storage

16 waveforms

Trigger Type

edge, video, pulse, slope

Communication port

USB 2.0

Counter

Support

Cursor

△V, △T, △T&△V between cursors, auto cursor

Lissajous figure

Bandwidth：Full bandwidth；Phase difference：±3 degrees

Display

7"（800 x 480）LCD

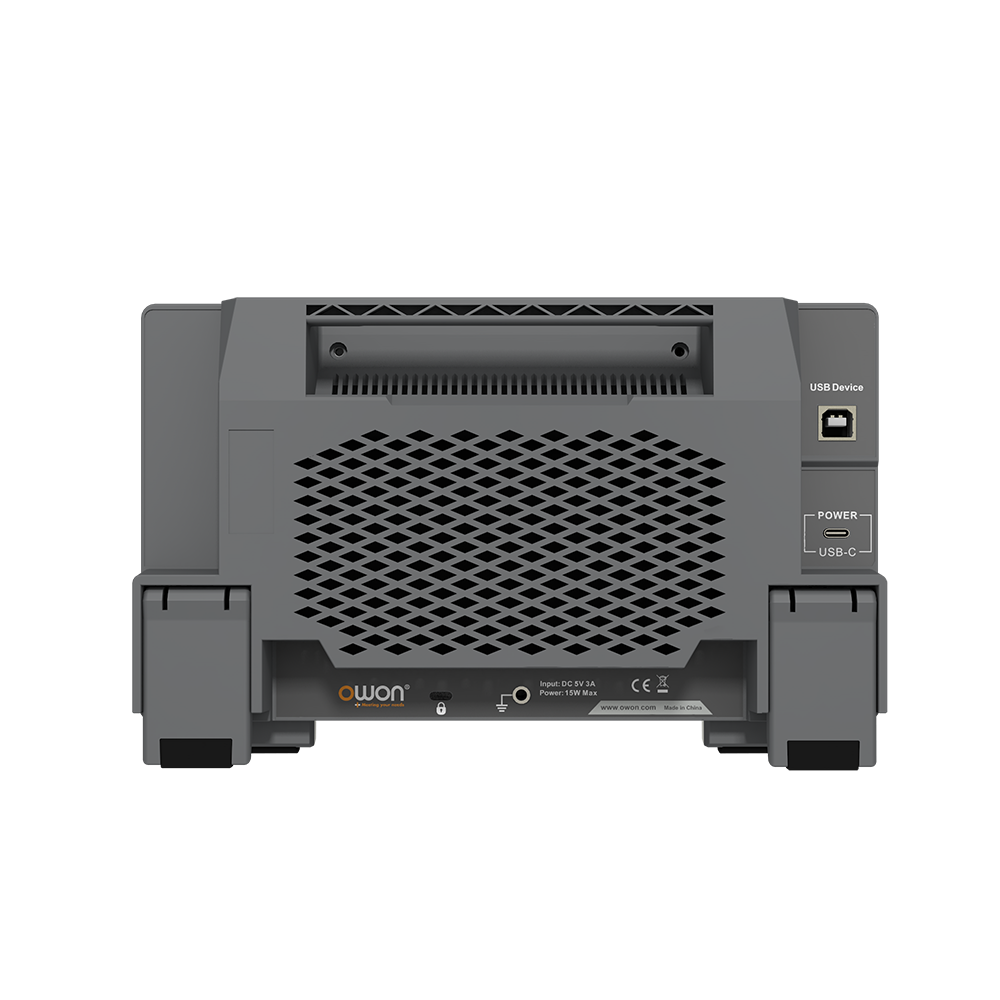

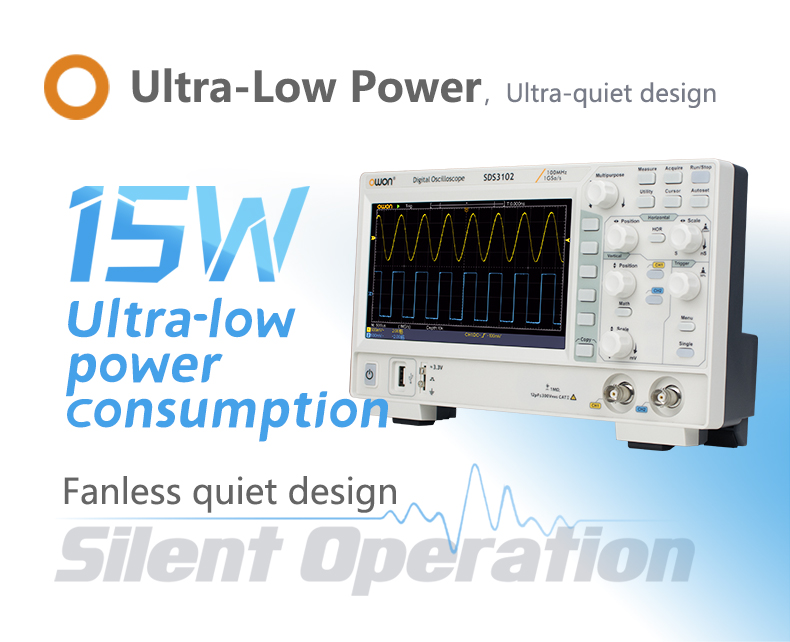

Mains Voltage

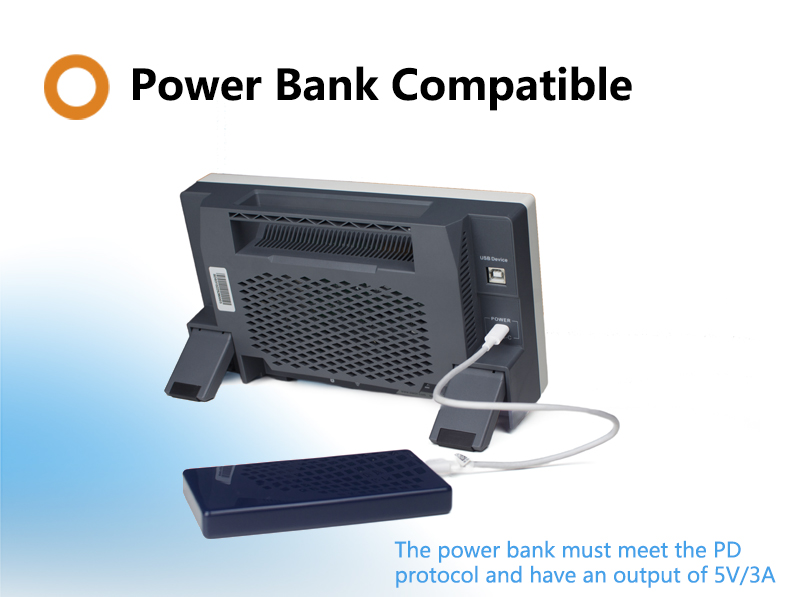

Type-C power supply, DC: 5V 3A

Dimension

260 mm× 160 mm×78 mm (W*D*H)

Weight

Approx. 1.1 kg
