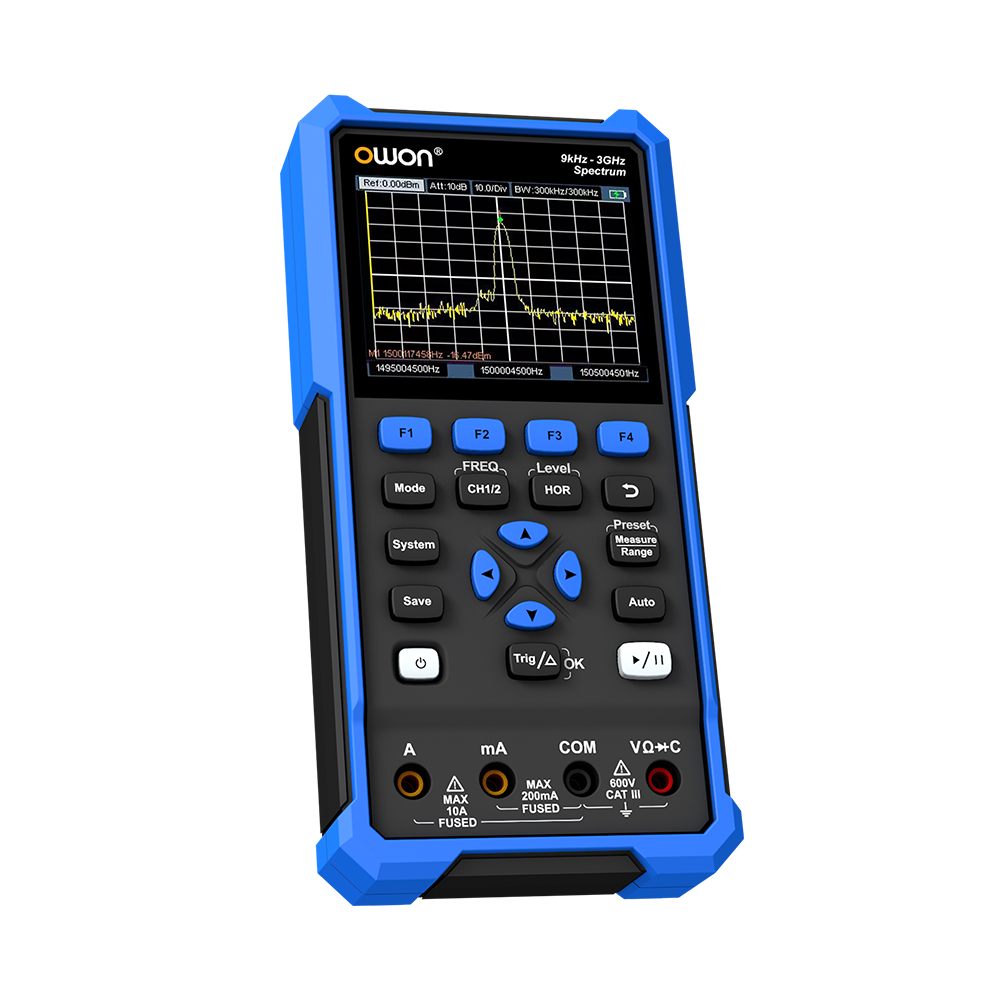

HSA2000 Series Multifunction Handheld Spectrum Analyzer
+ All-in-One: Spectrum Analyzer + Oscilloscope + Multimeter
+ Spectrum Analyzer: max.9kHz to 3GHz frequency range, 100Hz frequency resolution
+ Oscilloscope: 70MHz-200MHz bandwidth, 250MSa/s sampling rate, 8K memory depth
Up to 10,000wfrms/s waveform refresh rate, supports auto measurements
+ Multimeter: 4 1/2 digits multimeter, supports standard measurements of voltage, current
resistance, capacitance, diode, and continuity testing
+ Standard USB Type-C interface, supports PC communication

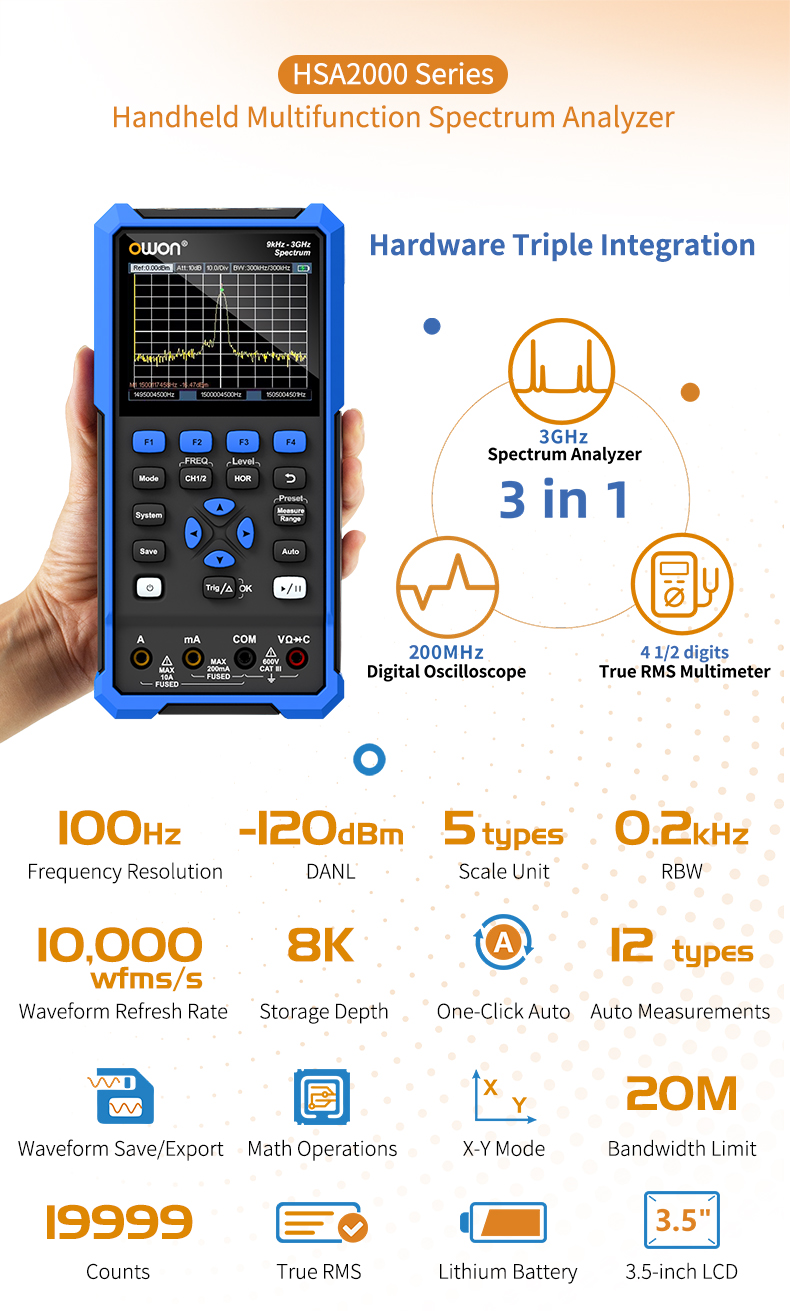

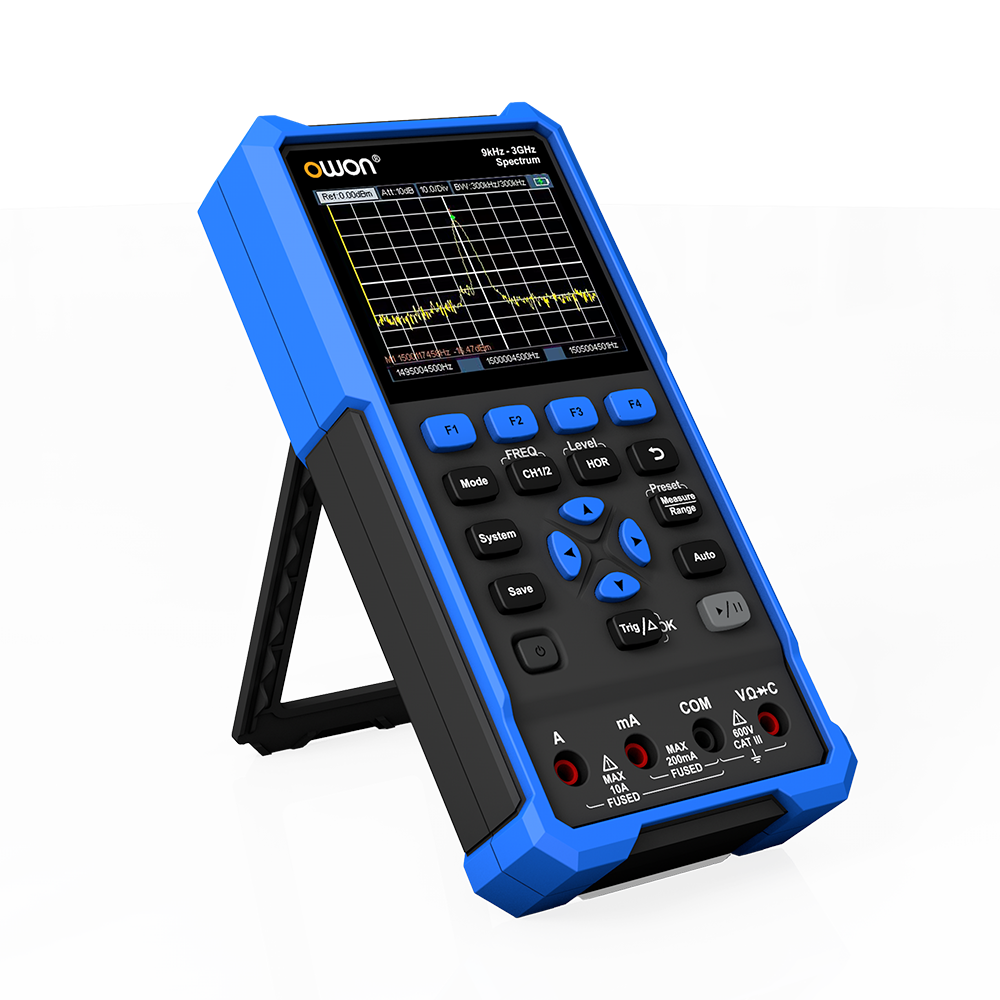

3-in-1 Testing with One-Touch Switching
Integrates a spectrum analyzer, 200 MHz dual-channel oscilloscope, and 4½-digit True RMS multimeter for efficient R&D and field troubleshooting.

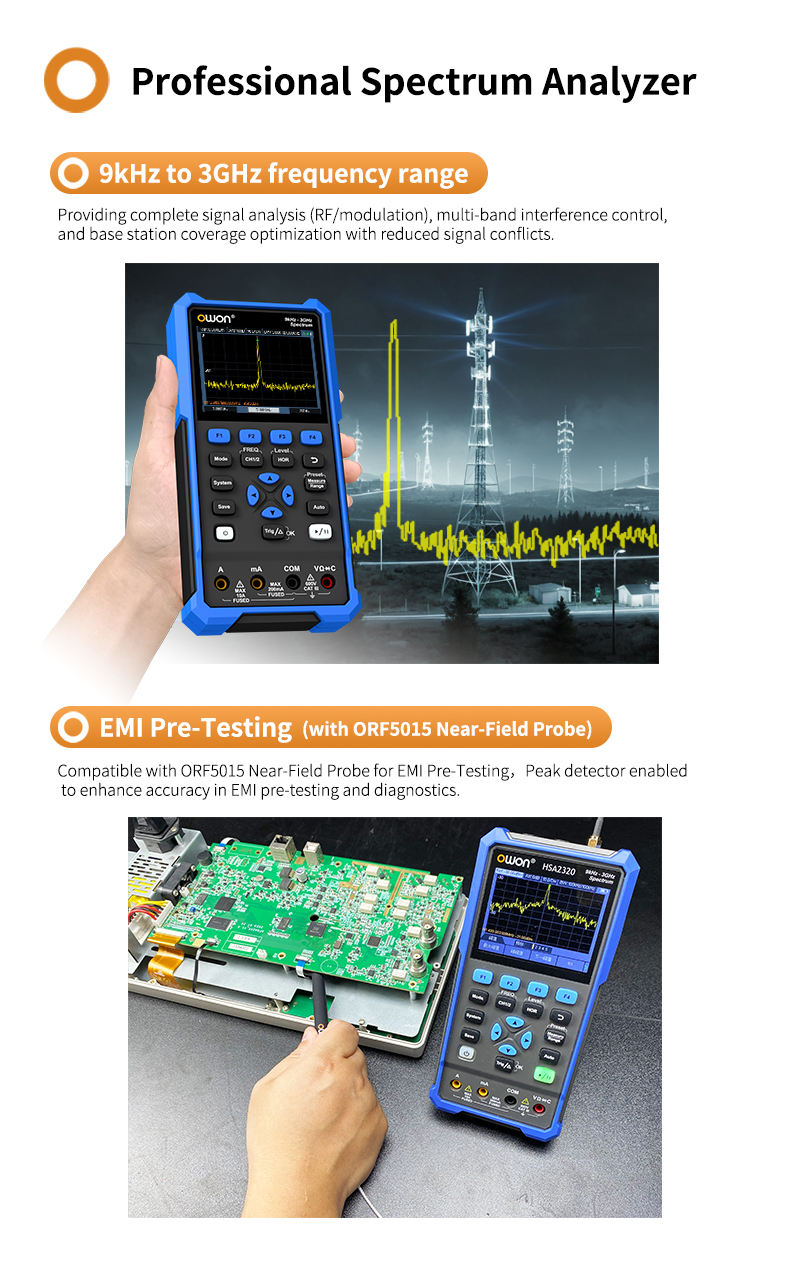

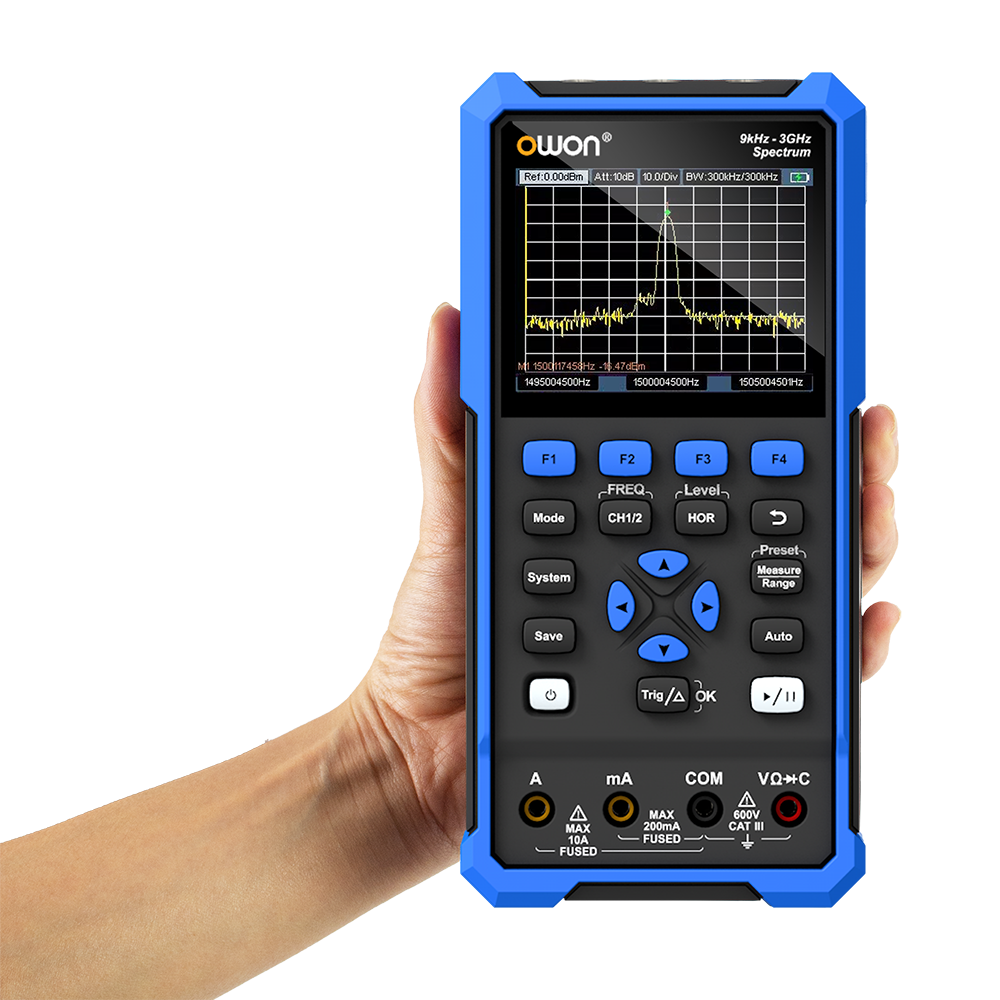

Spectrum Analysis and EMI Pre-Compliance Testing
Covers 9 kHz to 3 GHz with 100 Hz frequency resolution, -120 dBm DANL, and 200 Hz minimum RBW. The ORF5015 near-field probe and peak detection help locate PCB emission sources.

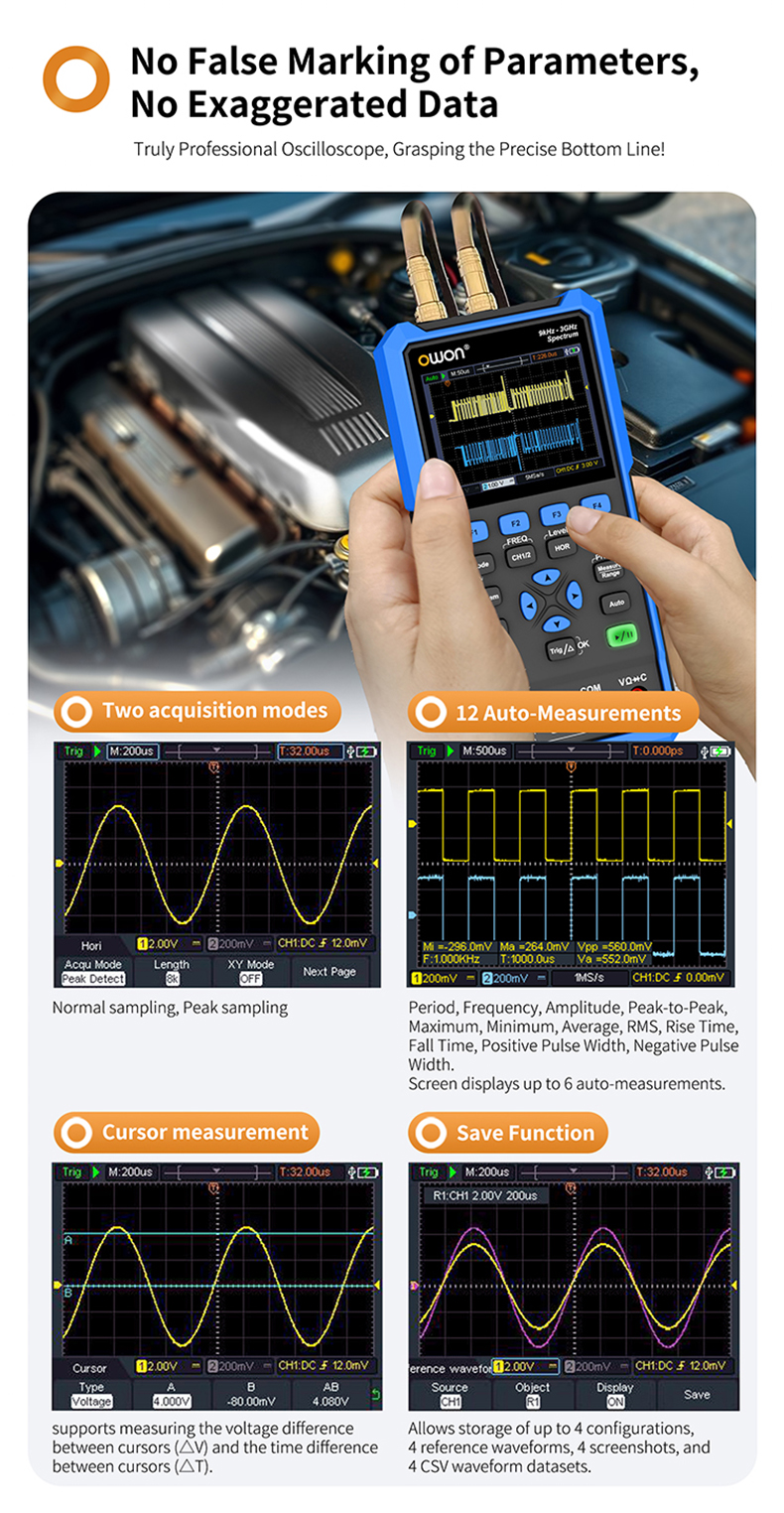

200 MHz Dual-Channel Oscilloscope
Up to 200 MHz bandwidth, 1 GSa/s sampling, and 10,000 wfms/s waveform capture reveal high-speed, transient, and abnormal signals.

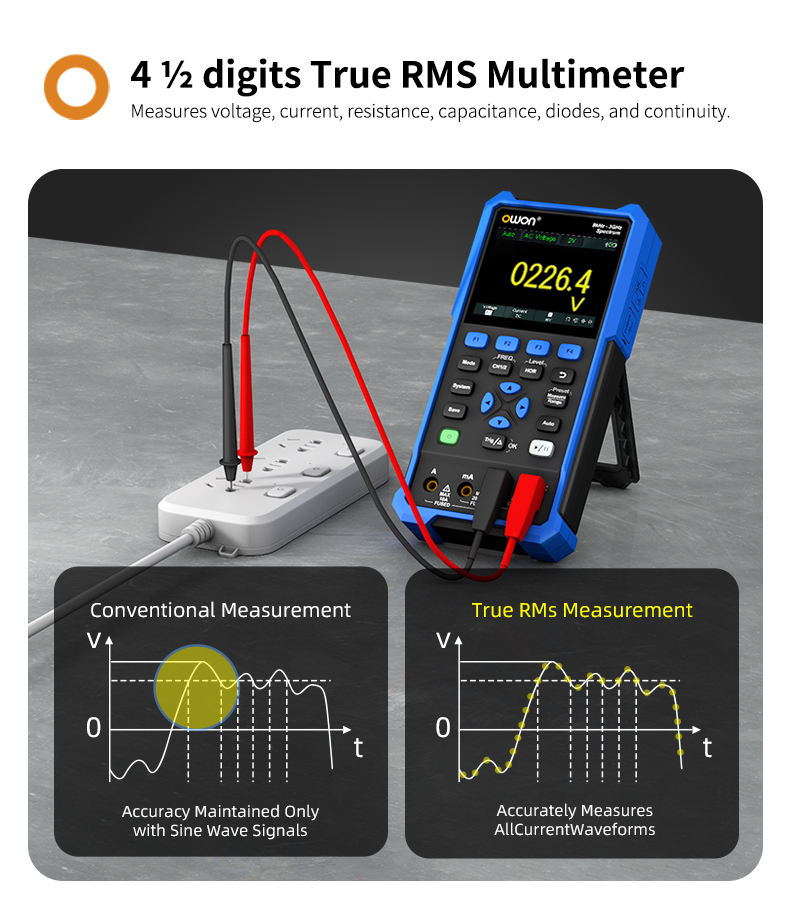

4 ½-Digit True RMS Multimeter
Built-in 4½-digit True RMS digital multimeter with a 20,000-count display. Measures voltage, current, resistance, capacitance, diodes, and continuity for electronics repair and everyday electrical testing.

Dedicated Ports for Easy Connections
Dual BNC oscilloscope inputs, an SMA spectrum input, and separate multimeter terminals keep connections clear. USB-C supports charging and communication.

「Digital Oscilloscope」Specification
|
Model |
HSA2105 |
HSA2307 |
HSA2310 |
HSA2320 |
|
Bandwidth |
50MHz |
70MHz |
100MHz |
200MHz |
|
Max Sample Rate |
250MSa/s |
500MSa/s |
1GSa/s |
|
|
Channel |
Dual |
|||
|
Acquisition Model |
Sample, Peak |
|||
|
Record Length |
8K |
|||
|
Waveform Refresh Rate |
10000wfrms/s |
|||
|
Probe Attenuation |
1X,10X,100X,1000X,10000X |
|||
|
Sampe Rate Range |
5ns/div - 1000s/div, Step by1-2-5 |
|||
|
Vertical Resolution |
10mV/div - 10V/div |
|||
|
Trigger Type |
Edge |
|||
|
Trigger Model |
Auto, Normal, Single |
|||
|
Cursor Measurement |
△V, △T |
|||
|
Automatic Measurement |
Period, Frequency, Mean, PK-PK, Max, Min, RMS, Rise Time, Fall Time, +Width, -Width |
|||
「Spectrum Analyzer」Specification
|
Frequency Range |
9kHz to 1.5GHz |
9kHz to 3GHz |
|
Frequency Resolution |
100Hz |
|
|
Frequency sweep range |
zero span, 300Hz to the maximum frequency of the instrument |
|
|
Continuous power |
+20 dBm (100mW) |
|
|
SSB Phase Noise(20℃-30℃,fc=1GHz) |
< -60dBc/Hz (type) @10kHz < -62dBc/Hz (type) @100KHz |
|
|
Resolution Bandwidth (-3dB) |
200 Hz to 850 kHz, steps by 200Hz-1-3-10-30-100-300-600-850KHz |
|
|
DANL (input attenuation @ 0 dB, RBW = VBW = 100Hz, 20℃ to 30℃, input impedance = 50Ω) |
<-120dBm (10MHz to 1.5GHz) |
<-120dBm (10MHz to 2GHz) |
|
- |
<-115dBm (2GHz to 3GHz) |
|
「Multimeter」Specification
|
Display |
4 1/2 digits |
Testing Modes |
Voltage, Current, Resistance, Capacitance, Diode, Continuity |
|
Input Resistance |
10MΩ |
Diode |
0-2V |
|
DC Voltage |
20.000mV - 1000.0V |
AC Voltage |
20.000mV - 750.00V |
|
DC Voltage |
20.000mA-10.000A |
AC Current |
20.000mA -10.000A |
|
Resistance |
200.00Ω - 100.00MΩ |
Capacitance |
2.000nF - 2.00mF |
「Other」Specification
|
Display |
3.5 inch LCD |
|
Interface |
USB TYPE-C |
|
Power |
Power adapter or Battery |
|
Dimension (W x H x D) |
96 × 198 ×38 mm |
|
Device Weight |
0.6 kg |
General Accessories
| Name | Order Number |
|---|---|
| Quick Guide | ———— |
| Power Cord | ———— |
| USB Type-C Cable | ———— |
| Oscilloscope Probe | ———— |
| Multimeter Leads | ———— |
| Soft Bag | ———— |
