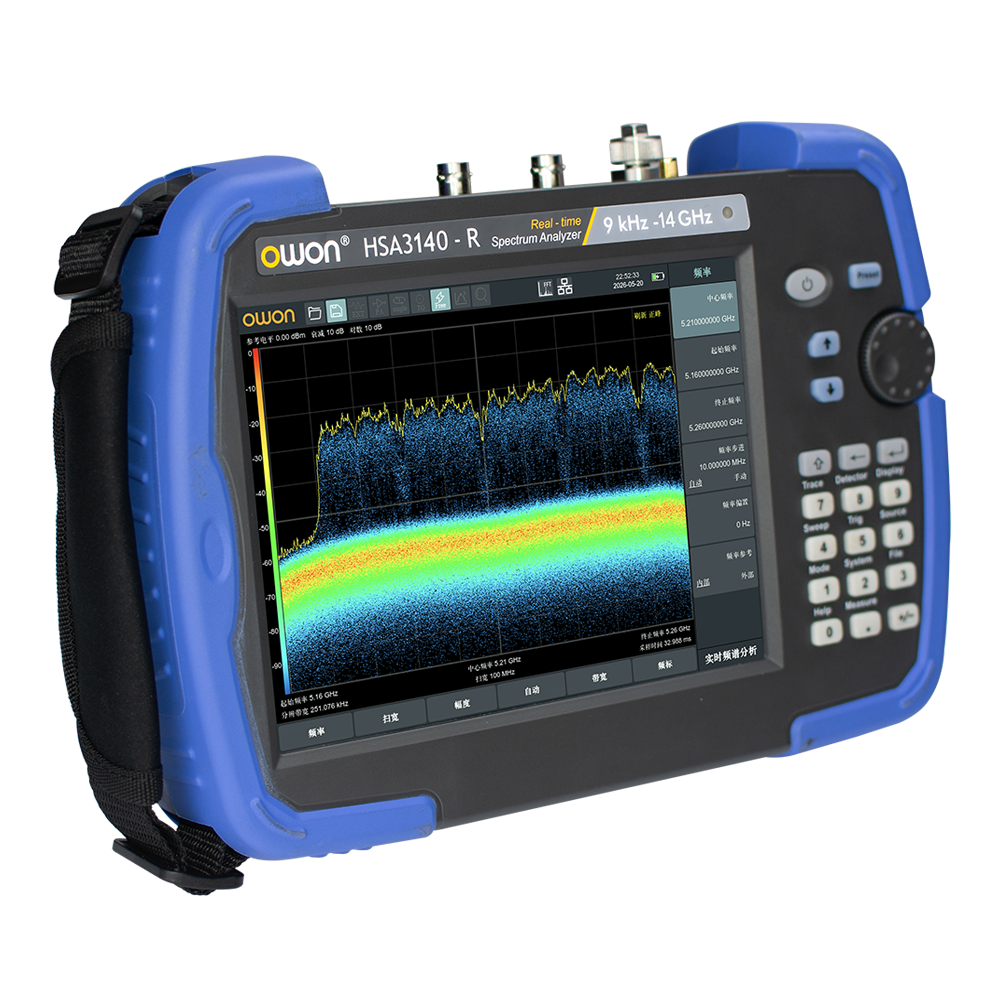

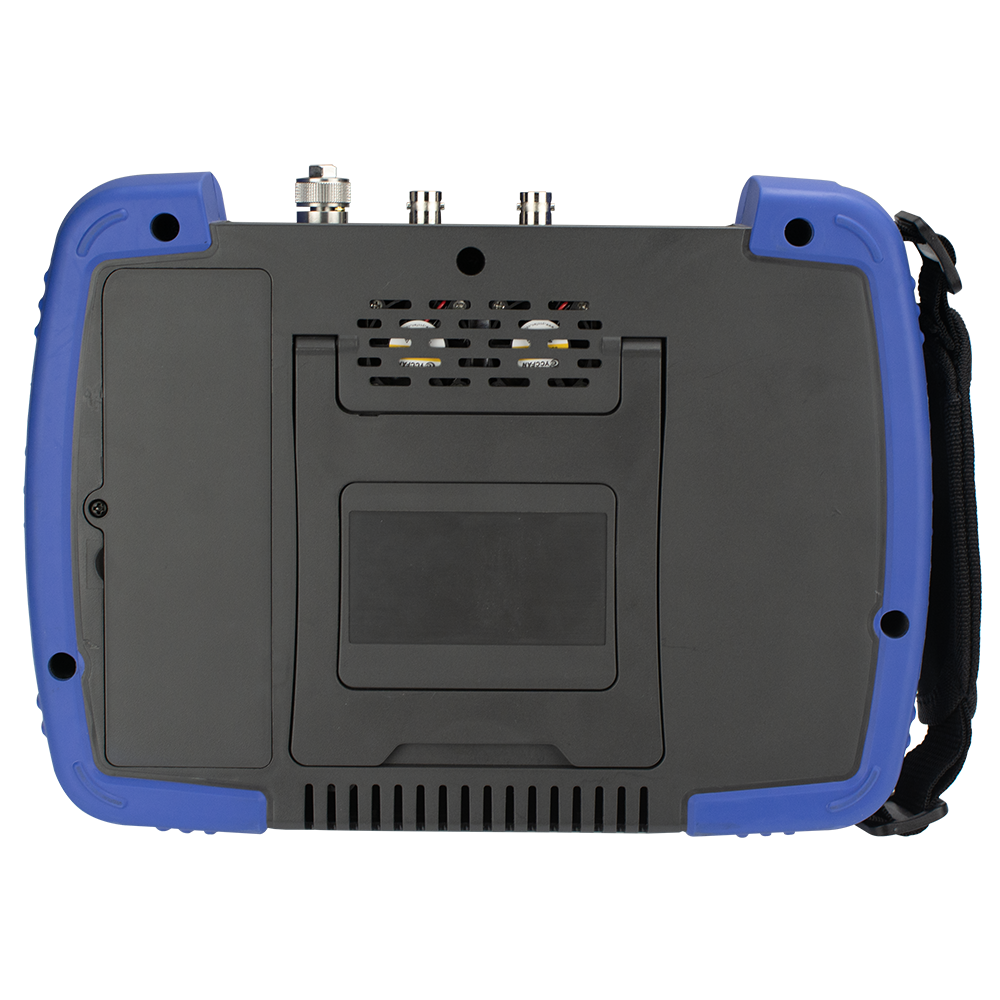

OWON HSA3000 Series 20GHz Handheld Spectrum Analyzer

+ Spectrum analysis (SA) mode: 9 kHz to 20 GHz frequency range, DANL down to -165 dBm/Hz,
1 Hz minimum RBW, and 0.7 dB amplitude accuracy.

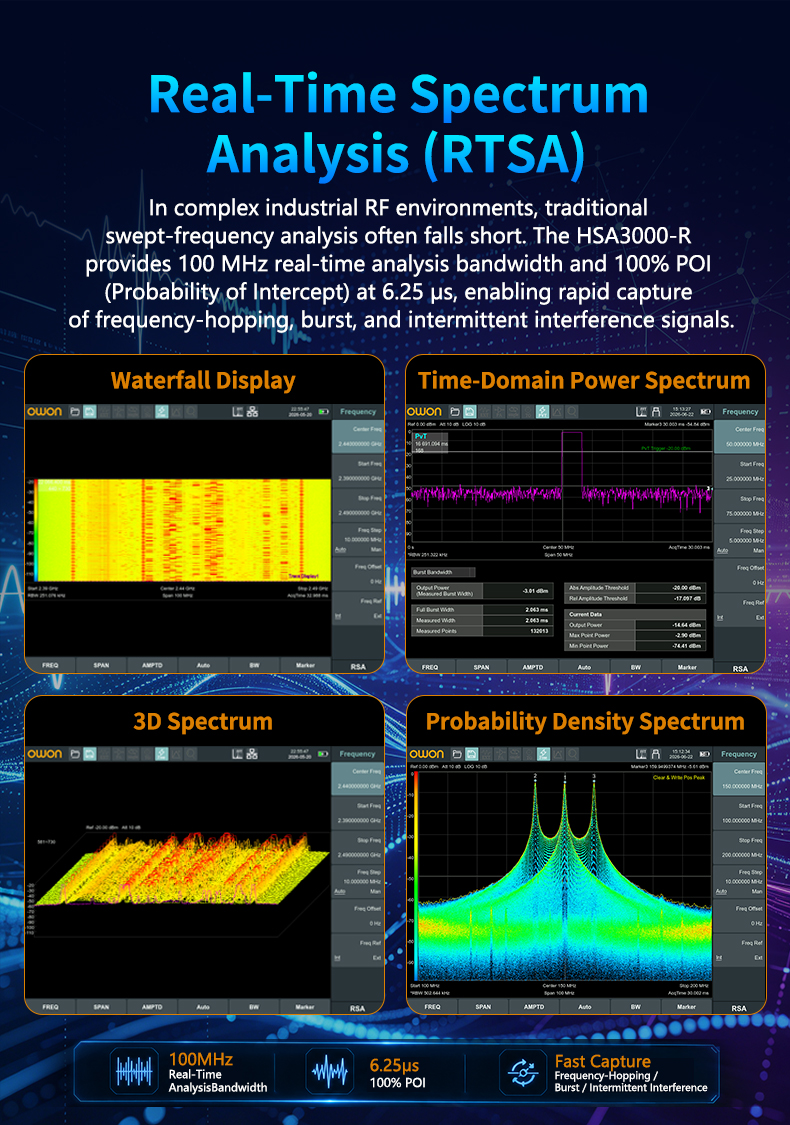

+ Real-time spectrum analysis: 100 MHz real-time bandwidth and 100% POI of 6.25μs for fast capture of transient and intermittent interference.

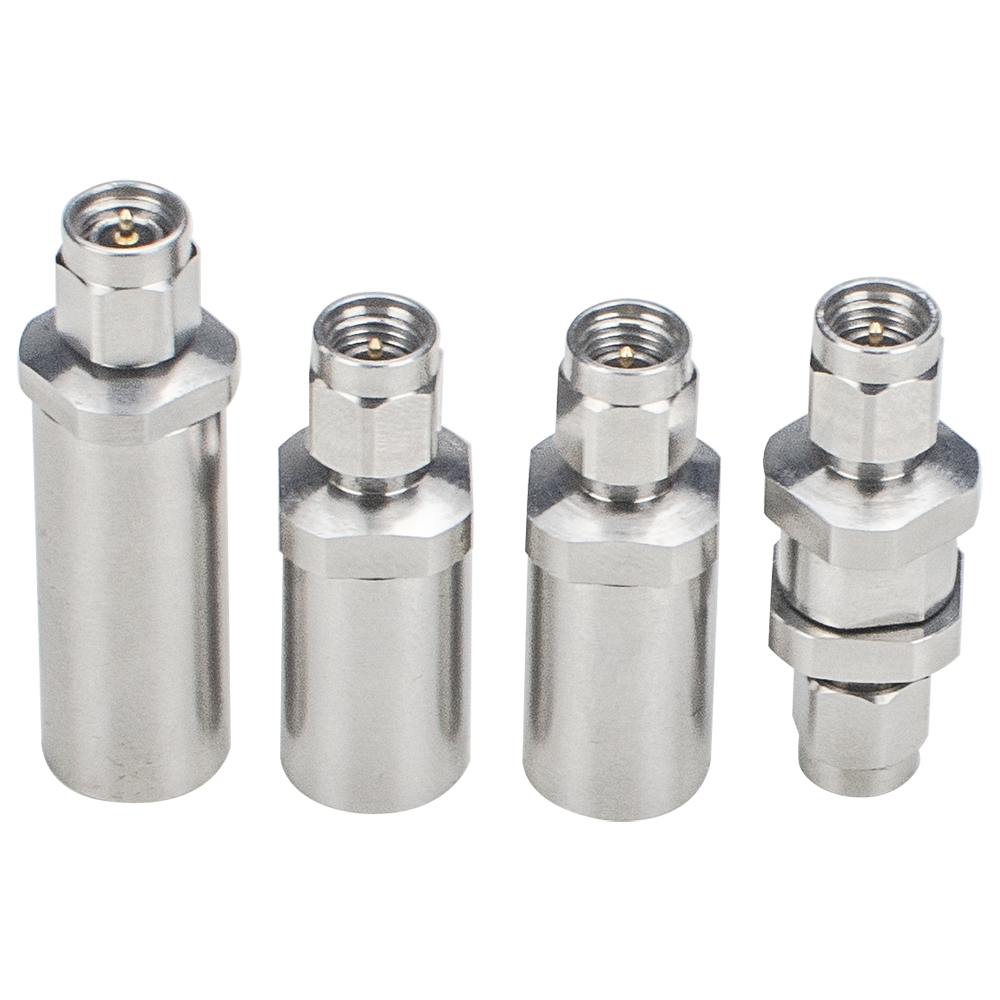

+ Optional Vector Network Analyzer: 100 kHz to 7.5 GHz frequency range, with 90 dB dynamic range.
Measures S11/S21 parameters, including return/insertion loss, phase, group delay, and VSWR. Displays
results on Smith charts and polar plots.

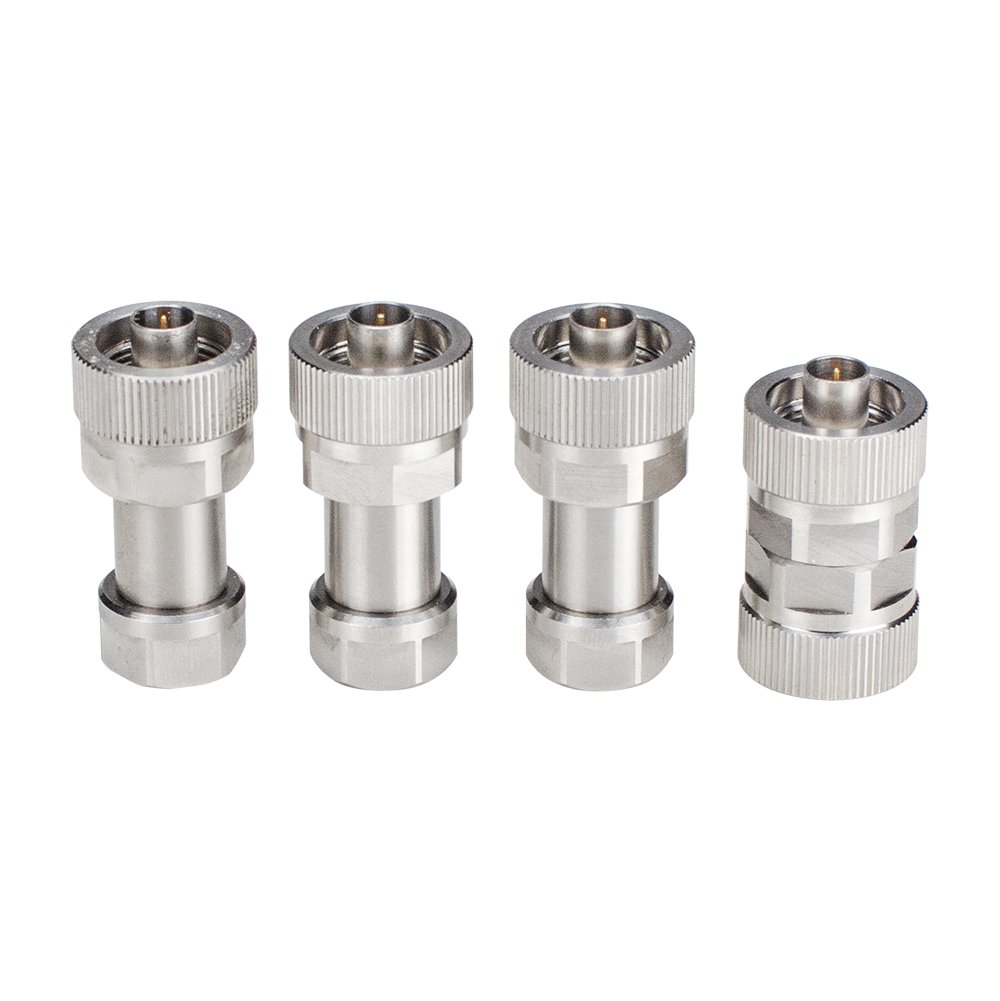

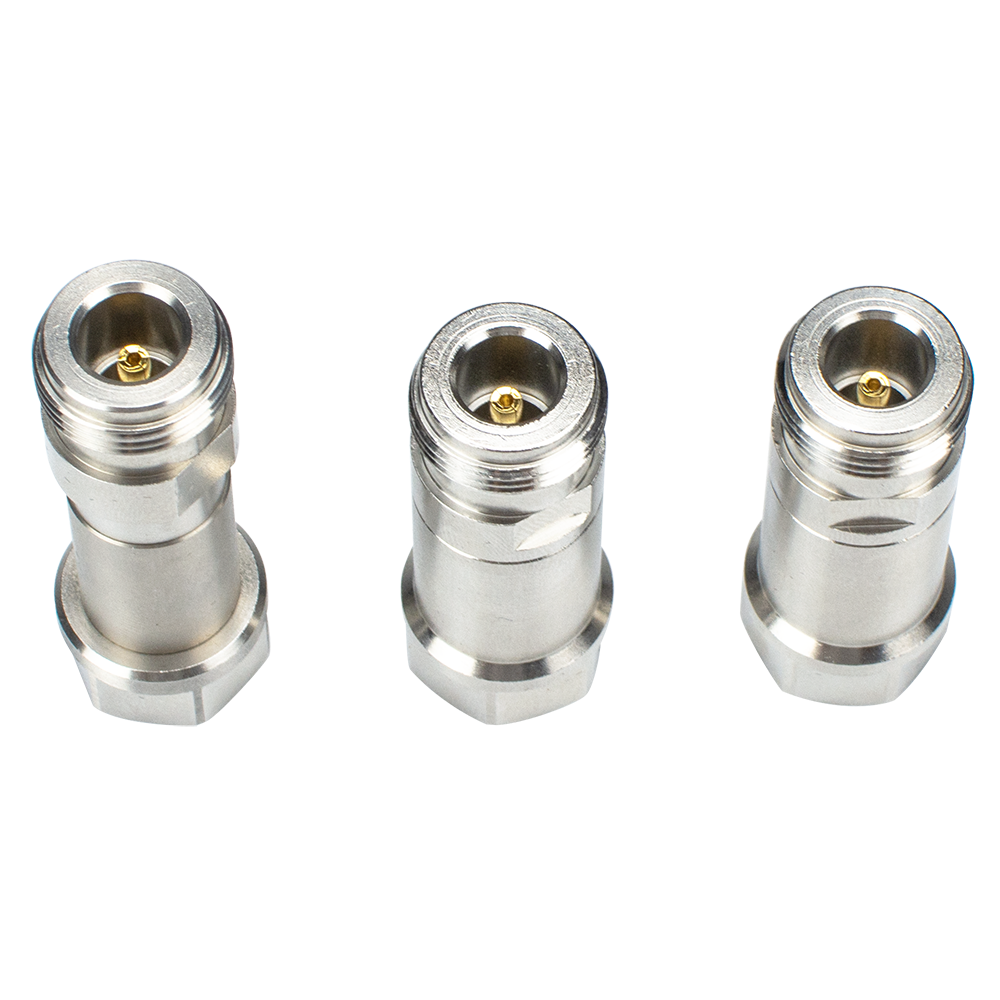

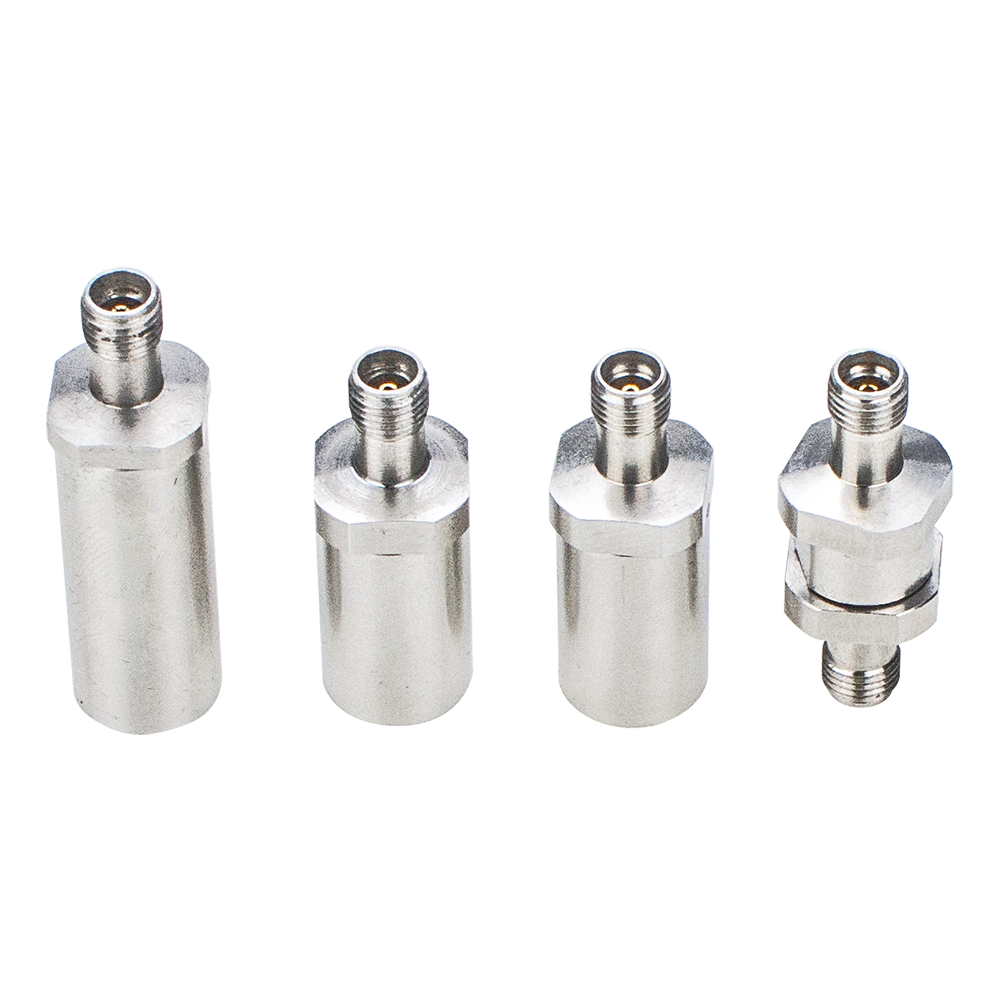

+ Optional cable and antenna measurement :supports DTF,1-port cable loss, 2-port insertion loss,
return loss, and VSWR measurements for cable fault location, tower amplifier debugging, port matching.

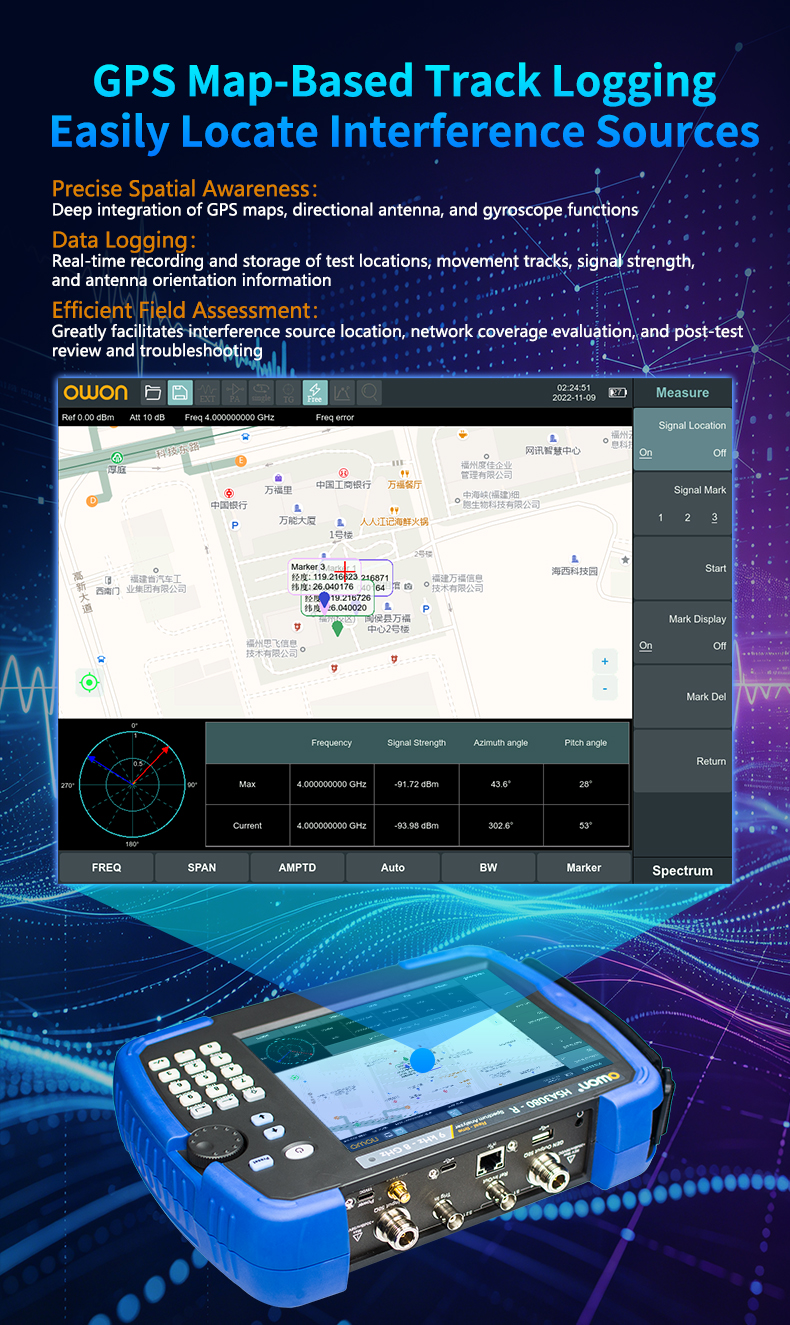

+ Supports GPS map, directional antenna, and gyroscope functions to record test location, route, signal
strength, and antenna direction for interference location, coverage evaluation, and test review.
+ Optional EMI pre-compliance test: built-in 200+ standard templates and custom templates for automatic
setup, recording, and comparison with regulatory limits.
+ Optional tracking generator and standard preamplifier.
+ Supports USB Type-C power input and power banks for longer outdoor testing.

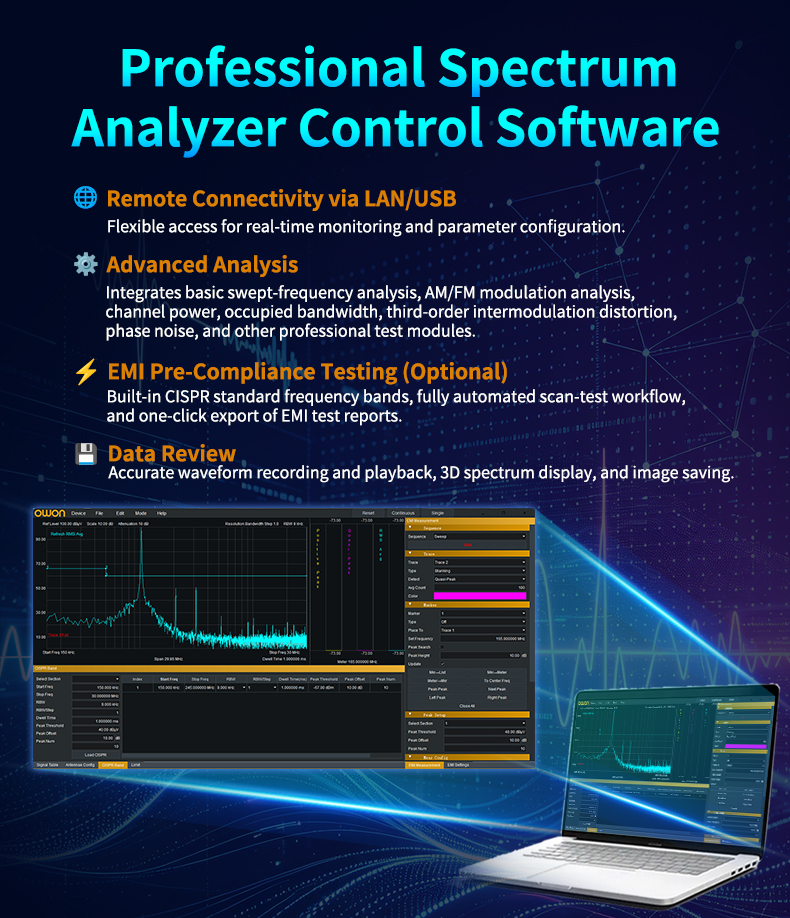

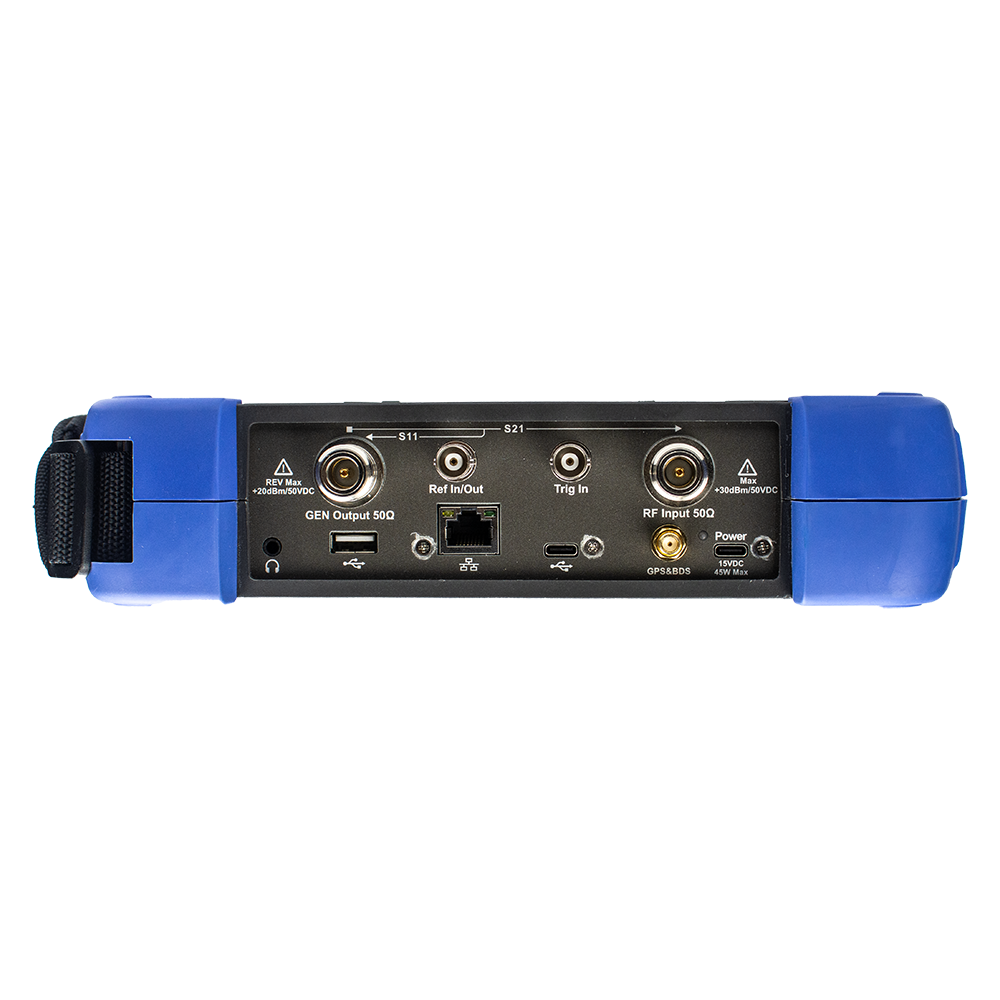

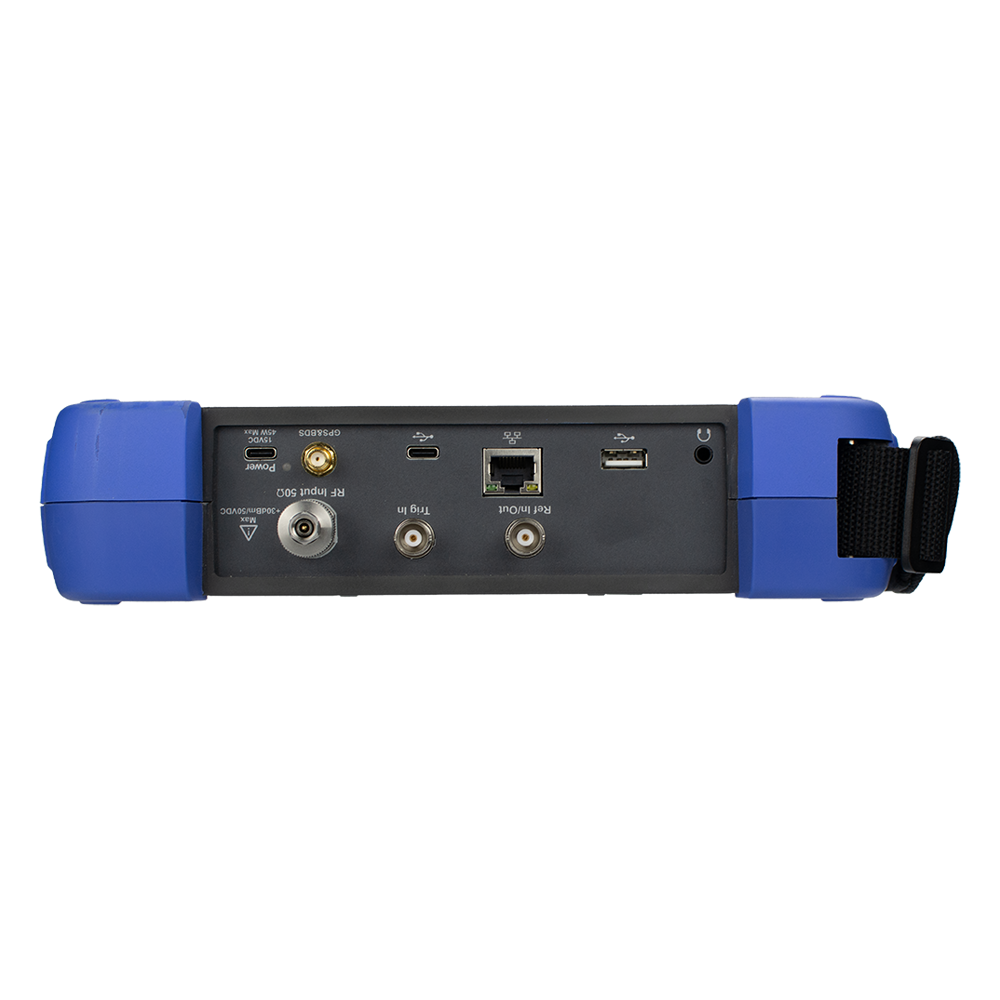

+ 8-inch multi-touch screen, with mouse, keyboard, PC software, LAN, USB Device, and USB Host
support for field use, remote control, and automated integration.

Send Inquiry

Product Details

Specifications

The specifications apply under the following conditions:

The instrument has been warmed up for at least 30 minutes prior to use.
The instrument is within the calibration cycle and has undergone self-calibration.

Model	HSA3036-R	HSA3075-R	HSA3140-R	HSA3200-R
Spectrum analysis range	9 kHz ~ 3.6 GHz	9 kHz ~ 7.5GHz	9 kHz ~ 14.0 GHz	9 kHz ~ 20.0 GHz
VNA frequency range	100 kHz ~ 3.6 GHz	100 kHz ~ 7.5 GHz	-	-
Cable and antenna test frequency range	100 kHz ~ 3.6 GHz	100 kHz ~ 7.5 GHz	-	-
Tracking generator	100 kHz ~ 3.6GHz	100 kHz ~ 7.5 GHz	-	-
Resolution bandwidth (RBW)	1 Hz ~ 5 MHz	1 Hz ~ 5 MHz	1 Hz ~ 5 MHz	1 Hz ~ 5 MHz
Displayed Average Noise Level	-165 dBm/Hz	-165 dBm/Hz	-165 dBm/Hz	-165 dBm/Hz
SSB phase noise	<-106 dBc/Hz	<-106 dBc/Hz	<-106 dBc/Hz	<-100 dBc/Hz
Third-order intercept (TOI)	+14 dbm	+14 dbm	+14 dbm	+14 dbm
Frequency span range	0 Hz，100 Hz to the maximum frequency of the instrument
Frequency span accuracy	± span / (number of sweep points - 1)
Marker frequency resolution	span / (number of display points - 1)
Marker frequency uncertainty	±[marker readingreference frequency accuracy+1%span + 0.5*marker frequency resolution + 1 Hz]
Marker functions	noise marker, N dB bandwidth, frequency counter
Amplitude accuracy	< 0.7 dB	< 0.7 dB	< 0.7 dB	< 0.7 dB
Real-time analysis bandwidth	100MHz
Dynamic range	60 dB
Minimum signal duration for 100% response	6.25 μs
Real-time spectrum views	probability density spectrum, waterfall, 3D spectrum, power vs. time
VNA measurement parameters	vector S11, vector S21
Network analysis dynamic rang	90 dB
Display modes	reflection/transmission coefficient, return/insertion loss, phase, group delay, log magnitude, fault location, linear magnitude, real part, imaginary part, VSWR, Smith chart, polar plot
Advanced measurements	CHP，ACPR，OBW，CNR，Harmonic，Monitor，CCDF，SEM，TOI
Vector signal modulation analysis	AM，FM，PM
EMI filters (-6 dB)	200 Hz，9 kHz，120 kHz，1 MHz
Detectors	positive peak, RMS average, quasi-peak
EMI measurement	built-in 200+ standard templates and custom templates
Communication interfaces	LAN，USB Device，USB Host
Remote control	SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket
Remote controllers	NI-MAX，Web Browser，Spectrum Vision software
Dimensions (WHD)	270 mm190 mm60 mm
Display	8-inch IPS multi-touch screen, supports mouse and keyboard
