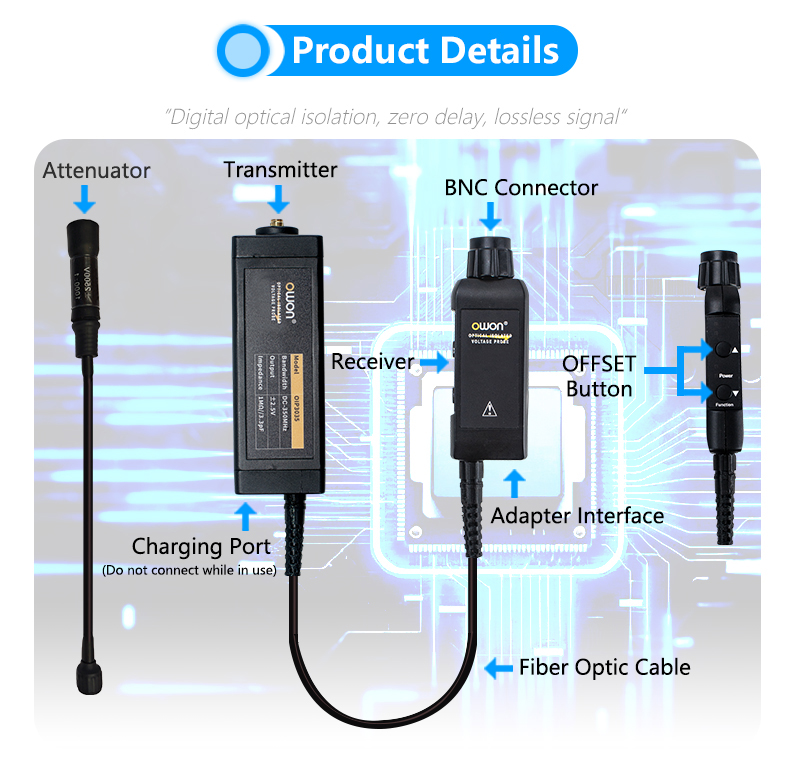

OIP3000 Series Optical Isolation Probes

Model

OIP3015

OIP3035

OIP3050

OIP3080

OIP3100

Bandwidth

DC-150MHz

DC-350MHz

DC-500MHz

DC-800MHz

DC-1GHz

Rise Time

2.3ns

1ns

0.7ns

0.43ns

0.35ns

Output Voltage

±2.5V

Isolation Voltage

60kV

Accuracy

1%（typical）

Measurement Voltage

Range

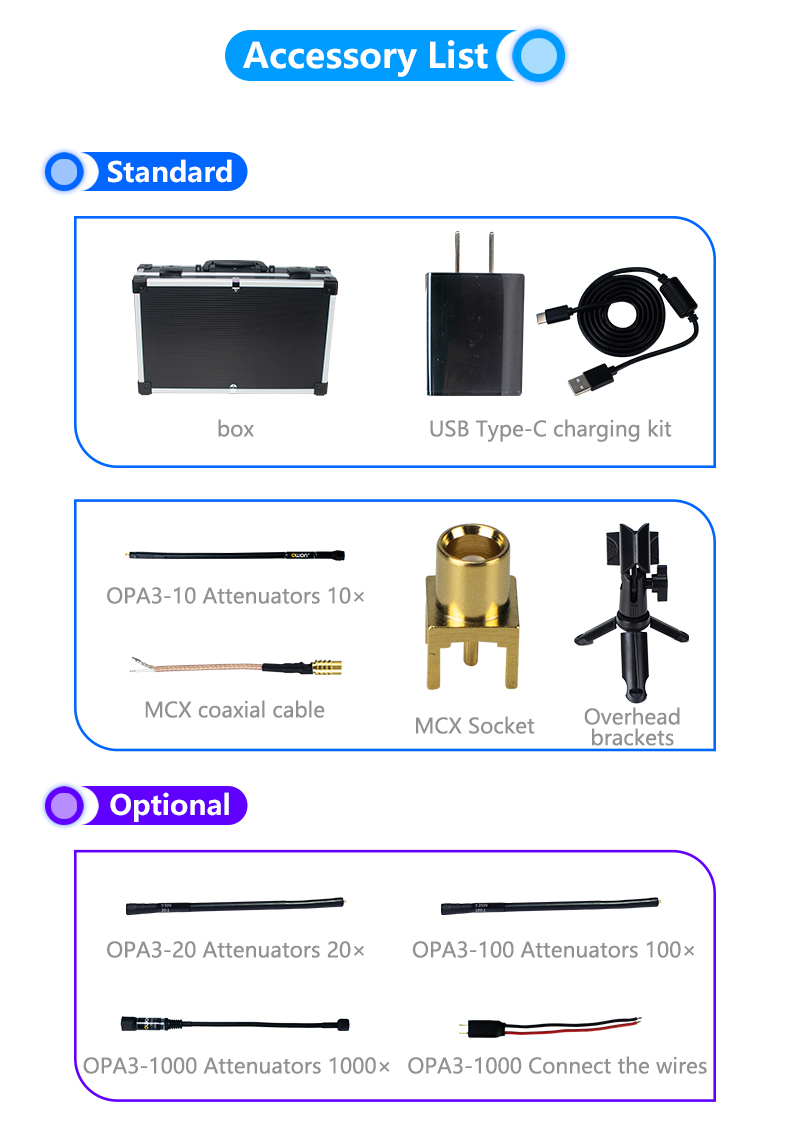

OPA3-10 attenuator 10X（standard）:±25V

OPA3-20 attenuator 20X（optional）:±50V

OPA3-100 attenuator 100X（optional）:±250V

OPA3-1000 attenuator 1000X（optional）:±2500V

Noise

40mV

Terminating Impedance

1MΩ

Operating Temperature

0~40℃

Operating Humidity

≤85% RH

Fiber Optic Cable Length

≈2m

Power

Transmitter battery-powered with approx. 8 hours operating time and 30 days standby time；Receiver USB 5V/2A or adapter-powered
