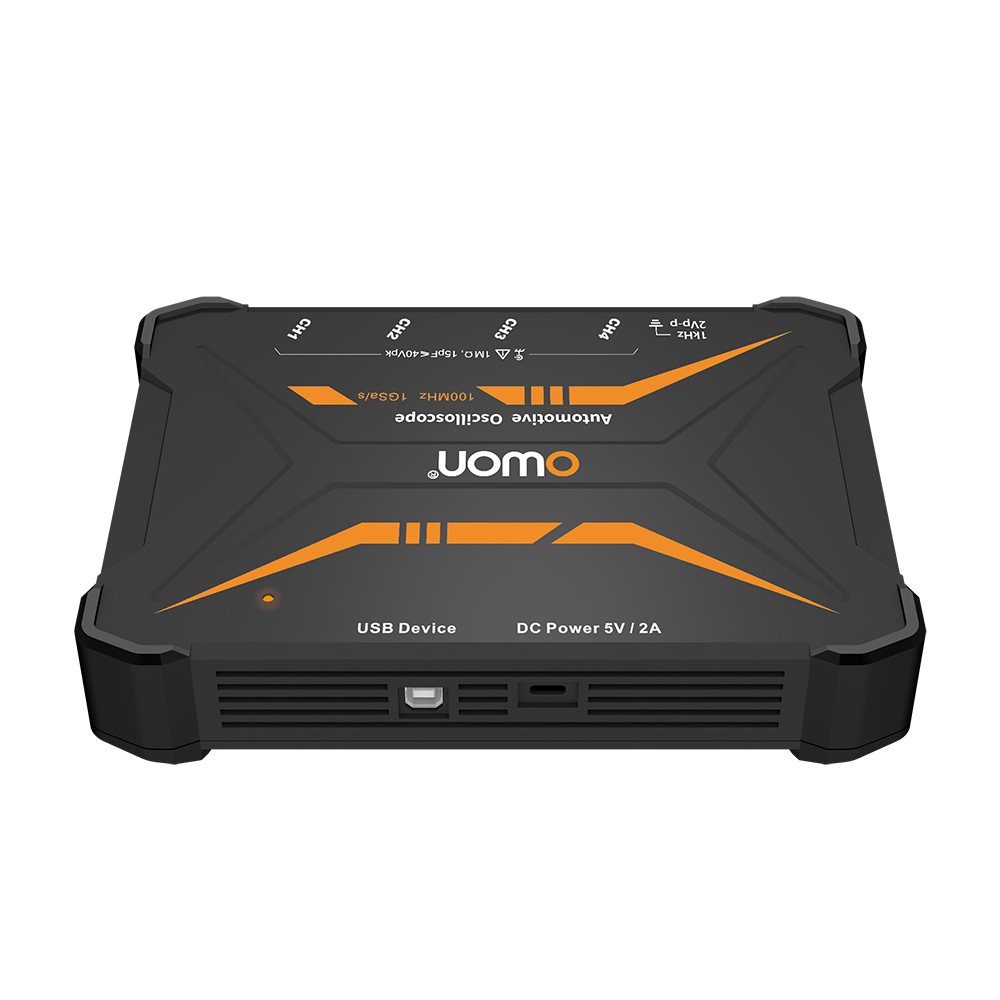

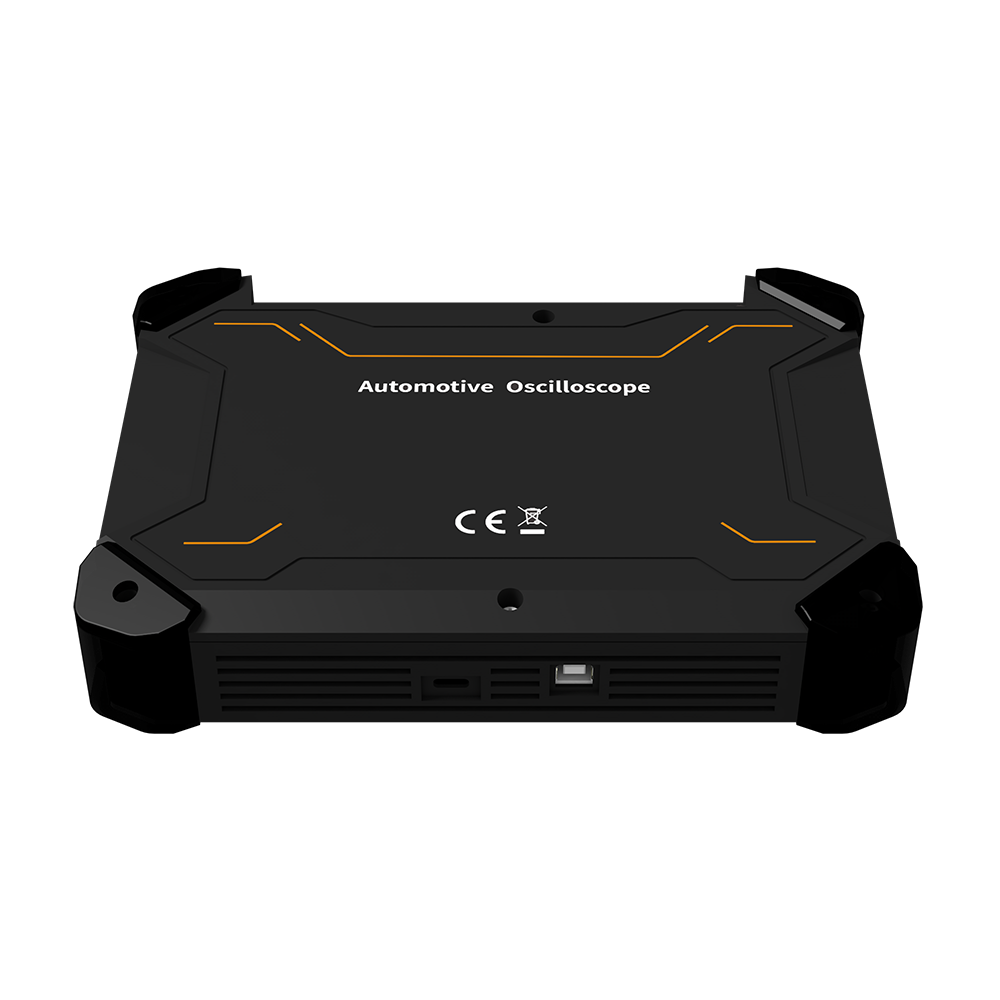

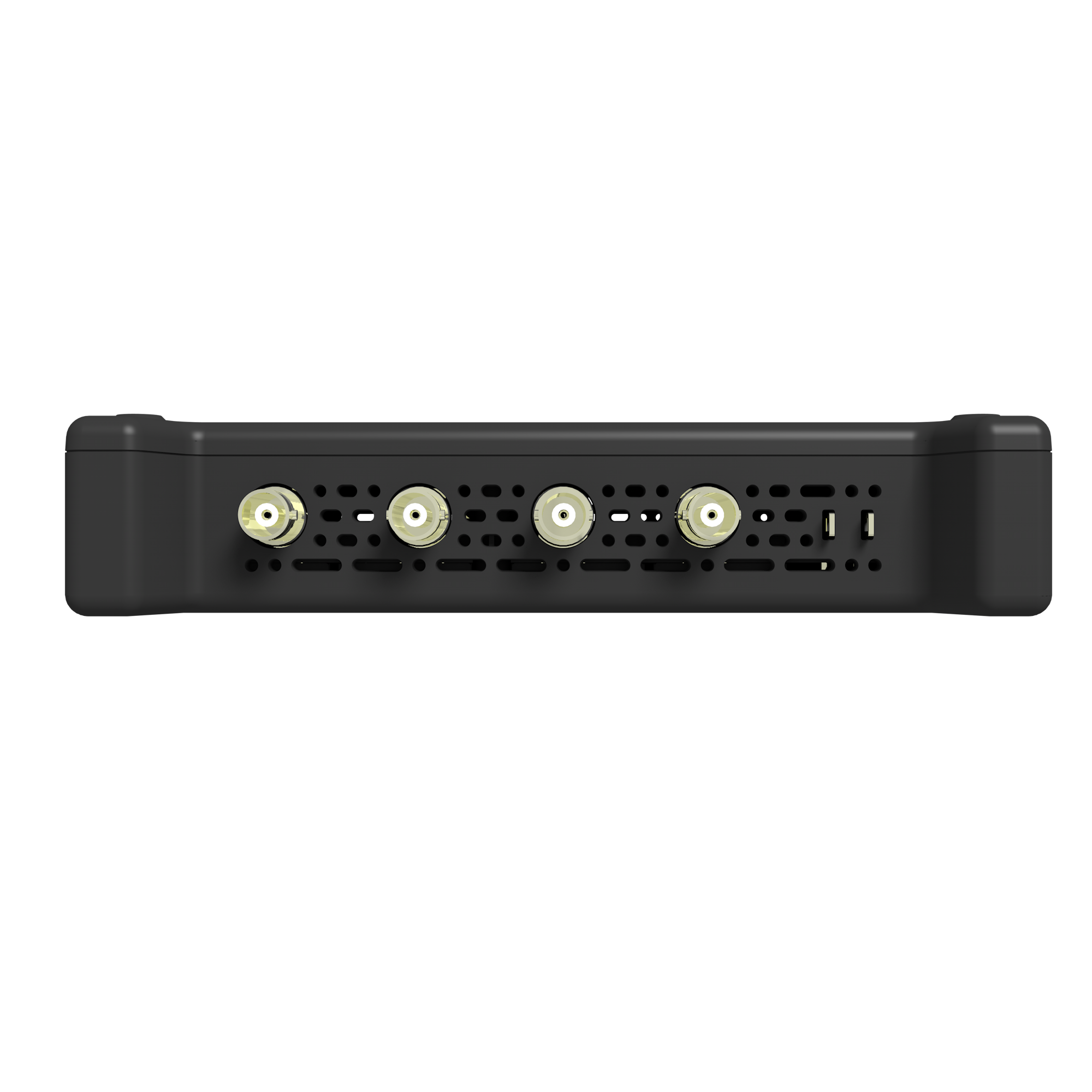

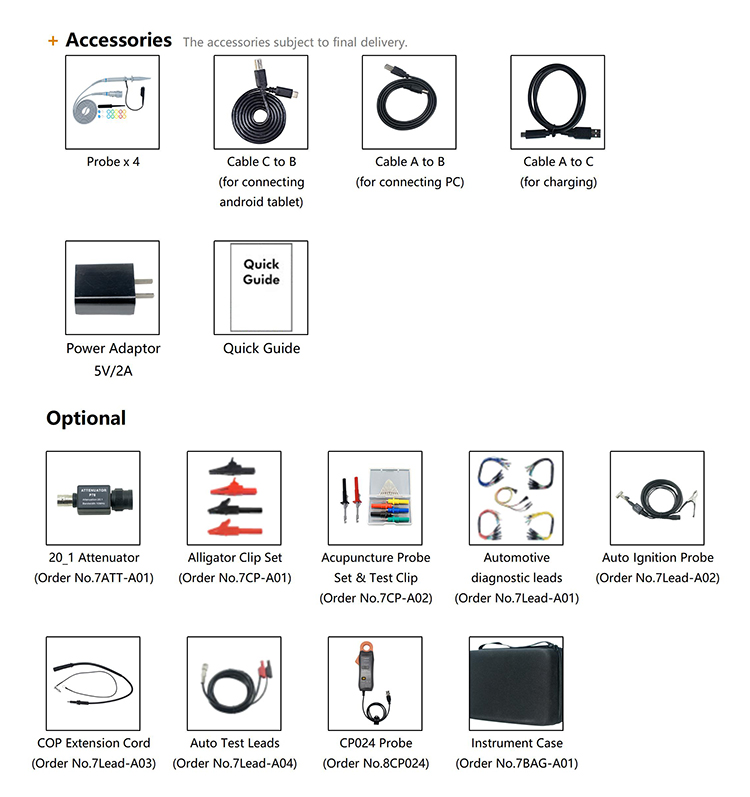

VDS8000 Series PC Automotive Oscilloscope
+ Support Android & Windows Dual Platform Compatible with both tablets and PCs for flexible operation.
+ Built-in 78 Standard Automotive Waveforms Includes reference waveforms for various
sensors including speed sensors, position sensors, temperature sensors, pressure sensors, etc.
+ CAN/LIN Hardware Decoding Enables rapid communication system analysis for quick fault localization
with enhanced accuracy.
+ Automotive-Specific Interface Engineered for repair professionals: No calculations or zero-point
calibration needed. Waveform values can be directly read via the vertical axis.
+ One-Click Oscilloscope Setup Users can select the sensor type to automatically configure the oscilloscope
and instantly acquire relevant waveform data.
+ Waveform Recording & Playback Supports 1000-frame waveform loop recording for diagnosing
intermittent faults.
+ USB Device Data Transfer Provides standard commands and programming examples to facilitate
secondary customization and system integration.
PDF Export
E-mail Us|
Model |
VDS8104 |
|
Bandwidth (-3 dB) |
100MHz 4CH |
|
Sample Rate（Max） |
1GSa/s（single channel）；500MSa/s（dual channel）；250MSa/s（full channel） |
|
Scanning Speed(s/div) |
1ns/div~1ks/div，step by 1-2-5 |
|
Acquire mode |
Sample |
|
Time Base |
±20ppm（typical） |
|
Record Length |
Auto, 10K, 100K, 1M, 10M |
|
Input Coupling |
DC, AC |
|
Input Impedance |
1MΩ±1.5％，parallel with 15pF ± 5pF |
|
Waveform inverted |
Support |
|
Vertical Resolution (A/D) |
8-bit |
|
DC Gain Accuracy |
±3％ |
|
Scanning speed ( S/div ) |
5mV/div~10Vdiv, step by 1-2-5 |
|
Bandwidth limit |
20MHz，Full bandwidth |
|
Probe attenuation coefficient |
1X，10X，20X，50X，100X，200X，500X，1kX，2kX，5kX，10kX |
|
Channel-channel isolation |
50Hz: 100 : 1; 10MHz: 40 : 1 |
|
Waveform Interpolation |
Sin(x)/x |
|
Single bandwidth |
Full bandwidth |
|
Trigger type |
Edge Trigger / Pulse Trigger / CAN Trigger / LIN Trigger |
|
Trigger mode |
Auto, Normal, Single |
|
Cursor Measurement |
Horizontal cursor, Vertical cursor, Phase scale |
|
Auto measurement |
23 types of measurements |
|
Decode Type |
CAN, LIN |
|
Auto setting |
supported |
|
Storage |
Wavefrom, Configuration |
|
Display |
YT、Zoom、Roll |
|
Roll |
200ms/div～1ks/div |
|
Manth |
Dual waveform，FFT |
|
Car Configuration |
Start,ignition,sensors,actuators,comprehensive,etc |
|
Recovery Recall |
Waveform，Configuration |
|
Power Supply |
USB typeC, DC Power 5V/2A; USB typeB（≥4.8V/2A） |
|
Power Consumption |
≤10W |
|
Working / Storage temperature |
0℃～60℃ / -20℃～70℃ |
|
APP Support |
The APP supports both Windows and Android respectively |
