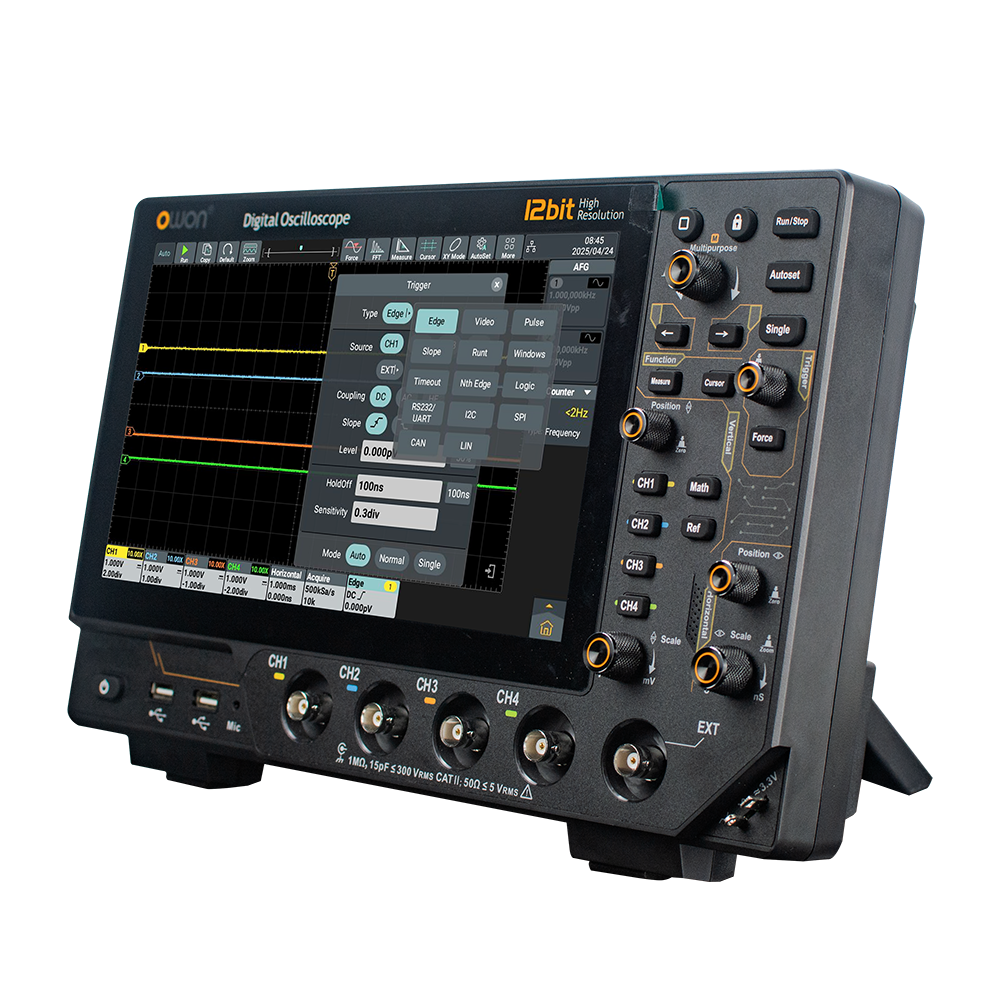

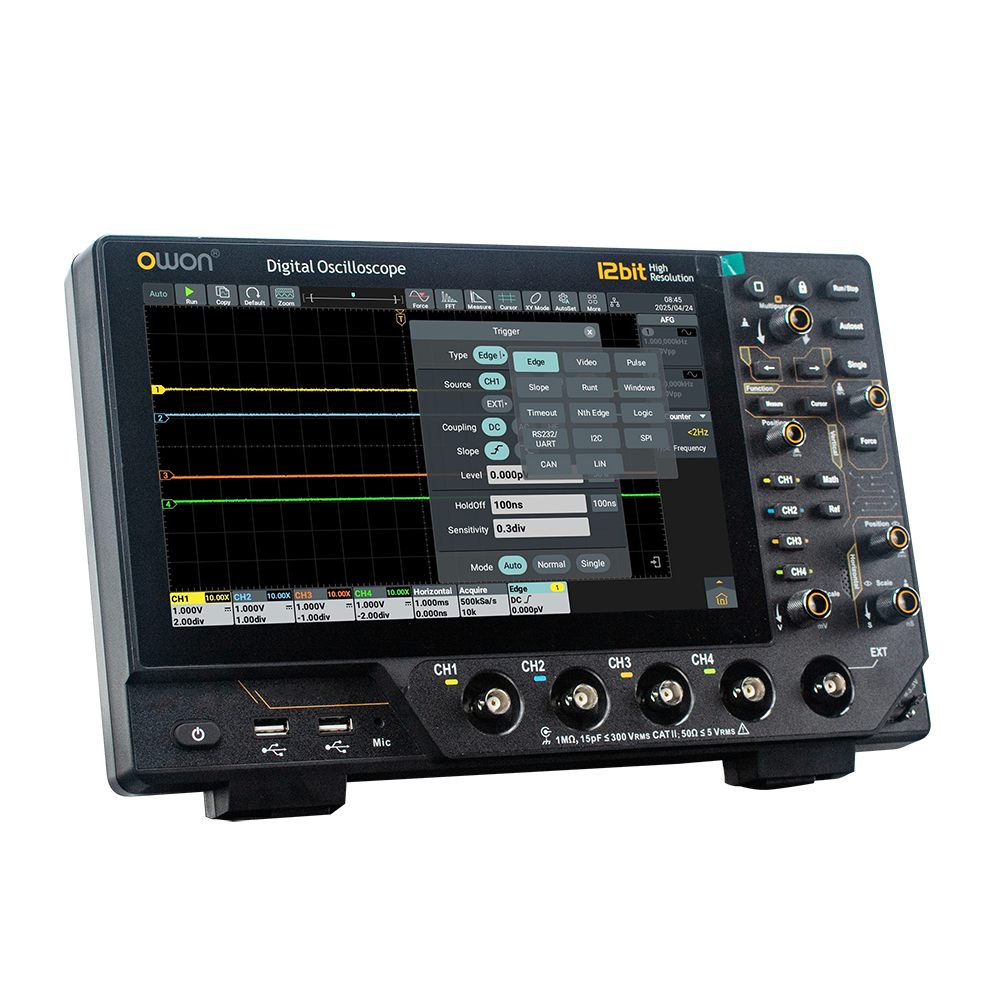

ADS4000A Series Multifunction Digital Oscilloscope

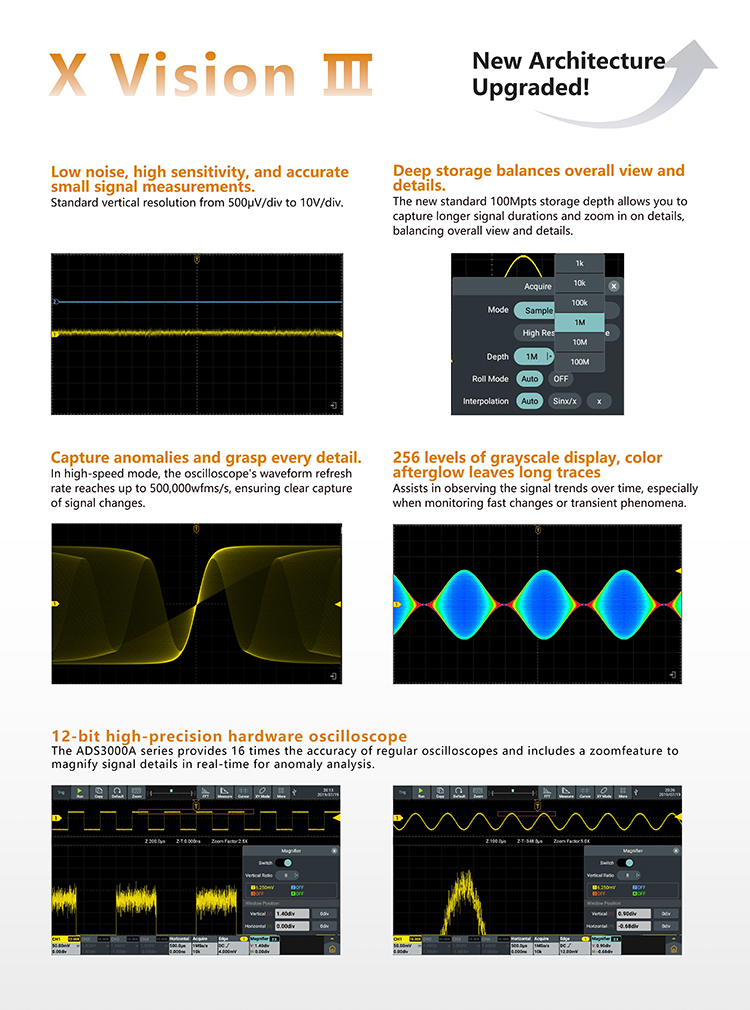

+ Integrated oscilloscope, dual-channel 50MHz Arbitrary Function Generator (AFG, optional), frequency counter, voltmeter, FFT spectrum analyzer, protocol analysis, and multiple other functions.
+ Bandwidth ranging from 125MHz to 250MHz, with a maximum real-time sampling rate of 2.5GSa/s.
+ Memory depth of 100M points, waveform capture rate up to 500,000 frames per second.
+ 12-bit vertical resolution hardware, with measurement accuracy 16 times higher than ordinary oscilloscopes.
+ Vertical sensitivity from 500μV/div to 10V/div, time base range from 500ps/div to 1000s/div.
+ Rich trigger options: edge, video, pulse width, slope, dropout, runt, timeout, Nth edge, logic, as well as RS232/UART, I2C, SPI, CAN, LIN protocol triggers.
+ Two hardware decode channels supporting RS232/UART, I2C, SPI, CAN, LIN protocols to meet various complex application needs.
+ Waveform cloning and Bode plot functions (AFG models).
+ Convenient measurement parameter statistics, supporting measurement indication, cursor gating measurement, and various measurement prompts.
+ Built-in microphone and speaker, supporting external multimedia devices such as mouse and keyboard, greatly enhancing operational interaction efficiency.
+ Equipped with multiple communication interfaces including HDMI, 1x USB device, 3x USB hosts, Trig Out (P/F), LAN; supports Web Control remote instrument operation and SCPI command sending/receiving.
+ Optional wireless module (WiFi/Bluetooth) supporting FTP, network printer, mobile hotspot, and other advanced features.
+ Supports Type-C power supply and floating ground measurement, suitable for outdoor and variable application scenarios.
+ 10.1-inch multi-touch display, supporting user-defined shortcut operations.

Send Inquiry

Product Details

Specifications

Model	ADS4122A	ADS4252A	ADS4124A	ADS4254A
Bandwidth (-3 dB)	125MHz	250MHz	125MHz	250MHz
Channel	2+EXT		4+EXT
Sample Rate	2CH model: 2.5GSa/s ( single channel ) 1.25GSa/s ( dual channel ) 4CH model: 2.5GSa/s ( single channel ) 2.5GSa/s ( dual channel ) 1.25GSa/s ( full channel )
Acquire mode	Sample, Peak, High Res, Average，Segmentation
Vertical Resolution	12-bit
DC Gain Accuracy	3% (≤1mV) ；2% (2mV) ；1.5% (≥5mV)
Record Length	100M
Waveform Refresh Rate	Max 500,000wfms/s
Scanning speed ( S/div )	500μV/div～10V/div
Sampling rate range	500ps/div - 1000s/div, step by 1-2-5
Input Impedance	1MΩ ± 2%, parallel with 15pF ± 5pF, 50Ω ± 2%
Probe attenuation coefficient	1μX-1MX, step by 1-2-5, support custom
Trigger type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I2C, SPI, CAN, LIN
Bus Decoding ( optional )	RS232/UART，I2C, SPI, CAN, LIN
Auto measurement	Period, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty,-Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(A↑-B↑), Delay(A↑-B↓), Delay(A↓-B↑), Delay(A↓-B↓), Phase(A↑-B↑), Phase(A↑-B↓), Phase(A↓-B↑), Phase(A↓-B↓),FRR(A↑-B↑), FRF(A↑-B↓), FFR(A↓-B↑), FFF(A↓-B↓), LRR(A↑-B↑), LRF(A↑-B↓), LFR(A↓-B↑),LFF(A↓-B↓)
Waveform Math	+, -, *, /, &&, \|\|, ^, ！, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT rms, User Defined, digital filter (low pass, high pass, band pass, band reject)
Frequency counter	6-digit frequency counter, Maximum frequency: maximum analog bandwidth of oscilloscope
Voltmeter	Support DC, AC+DCrms, ACrms; Resolution: 4 digits ( ACV/DCV )
Arb Waveform Generator ( optional) Specification
Max frequency output	50MHz (Dual)
Sample rate	160MSa/s
Vertical resolution	14 bits
Standard waveform	Sine, Square, Ramp, Pulse, Noise
Arbitrary waveform	1μHz - 10 MHz
Arbitrary waveform length	2-16K points
Arbitrary waveform	Exponential Rise/Fall, Sin(x)/x, Step Wave, and others total 28 built-in waveform
Amplitude	2mVpp - 10Vpp ( high impedance ), 1mVpp - 5Vpp (50Ω)
Modulation	AM, FM, PM, FSK, Sweep and Burst
Bode Plot ( need AFG function )
Start / End frequency	10 Hz ~ 25 MHz
Amplitude	2mV ~ 6V
Other

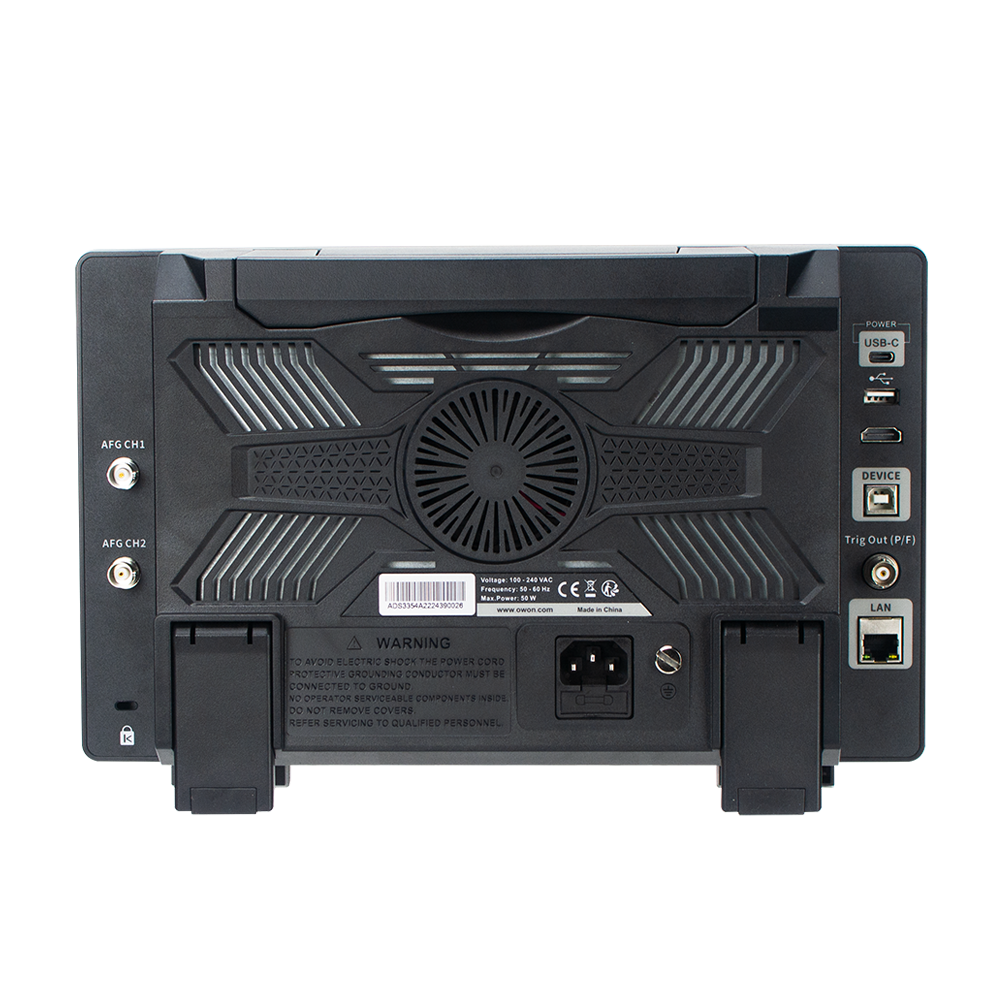

Communication Interface	HDMI, USB device x 1, USB Host x 3 , Trig Out( P/F ), Type-C power supply*, LAN
Display	10.1 inch (1024×600), LCD
Power	100V – 240 VACRMS, 50/60 Hz, CAT Ⅱ
Dimension ( W x H x D )	325mm x 209mm x 111.5mm
Device Weight	≈3.2kg

* Without generator: the adapter is required to support a handshake protocol of 12V/≥3A.
With generator: the adapter is required to support a handshake protocol of 12V/≥4A.
