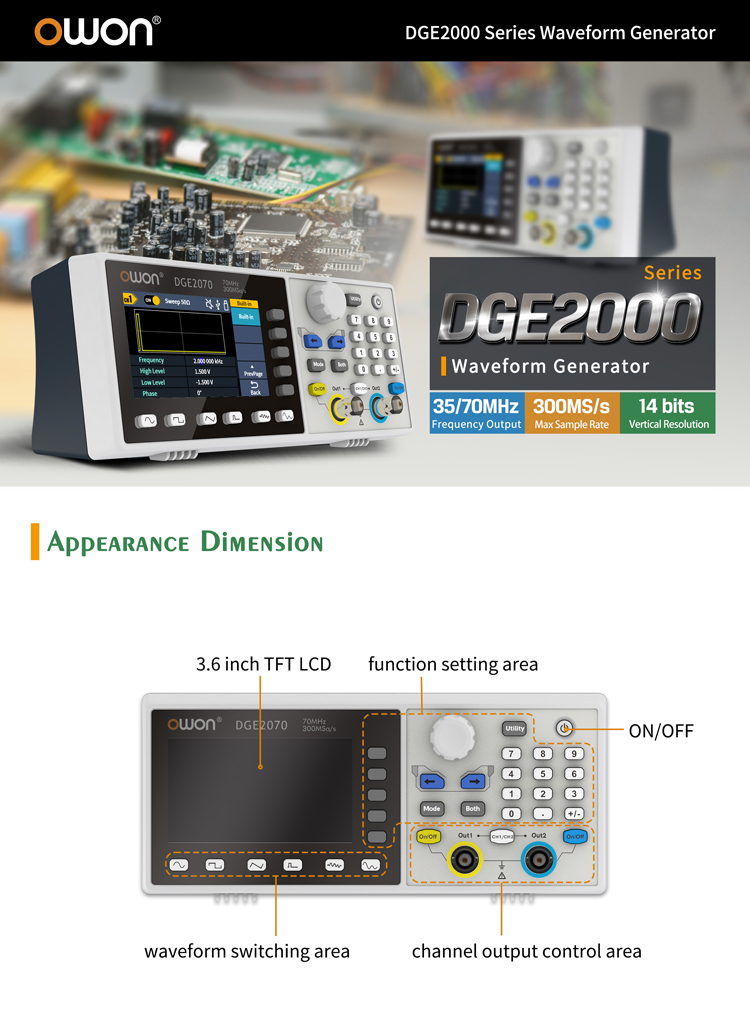

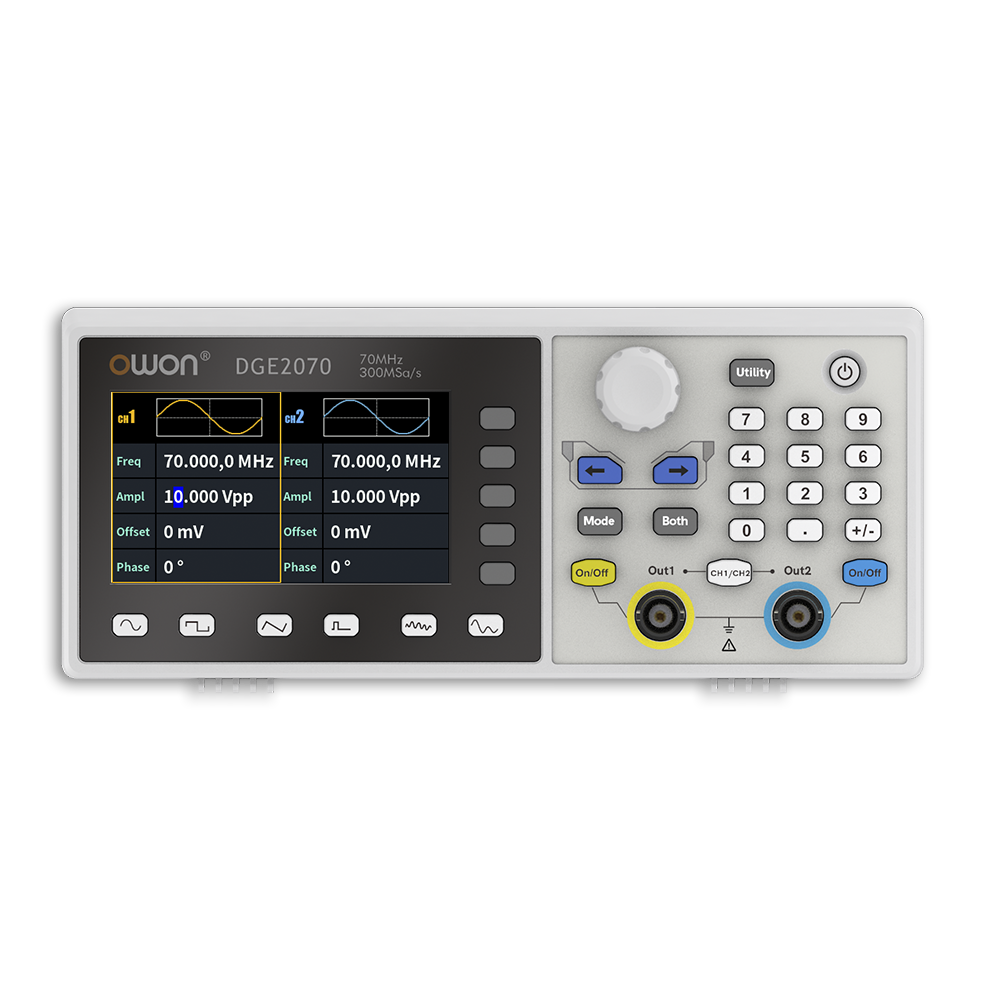

OWON DGE2000 series Arbitrary Waveform Generator
+ 35MHz/70MHz frequency output
+ Max 300MSa/s Sample rate，Vertical resolution 1μHz
+ 14 bits Vertical Resolution，8K Arb waveform length

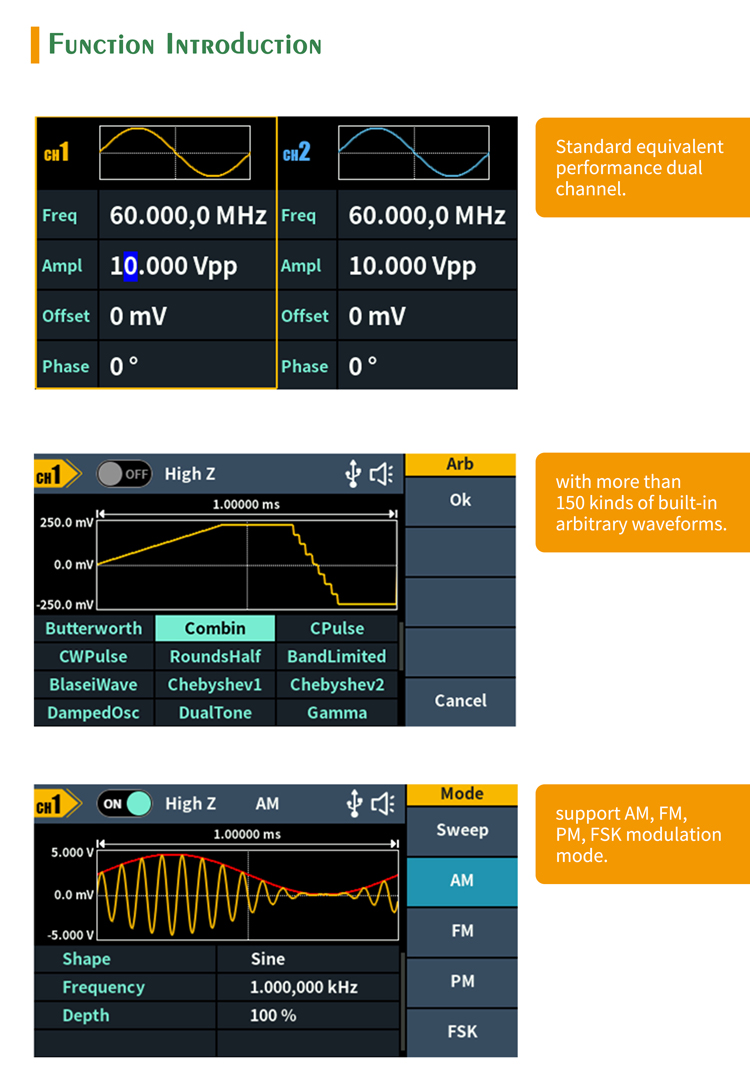

+ Comprehensive waveform output : 5 basic waveforms,
and 150 built-in arbitrary waveforms

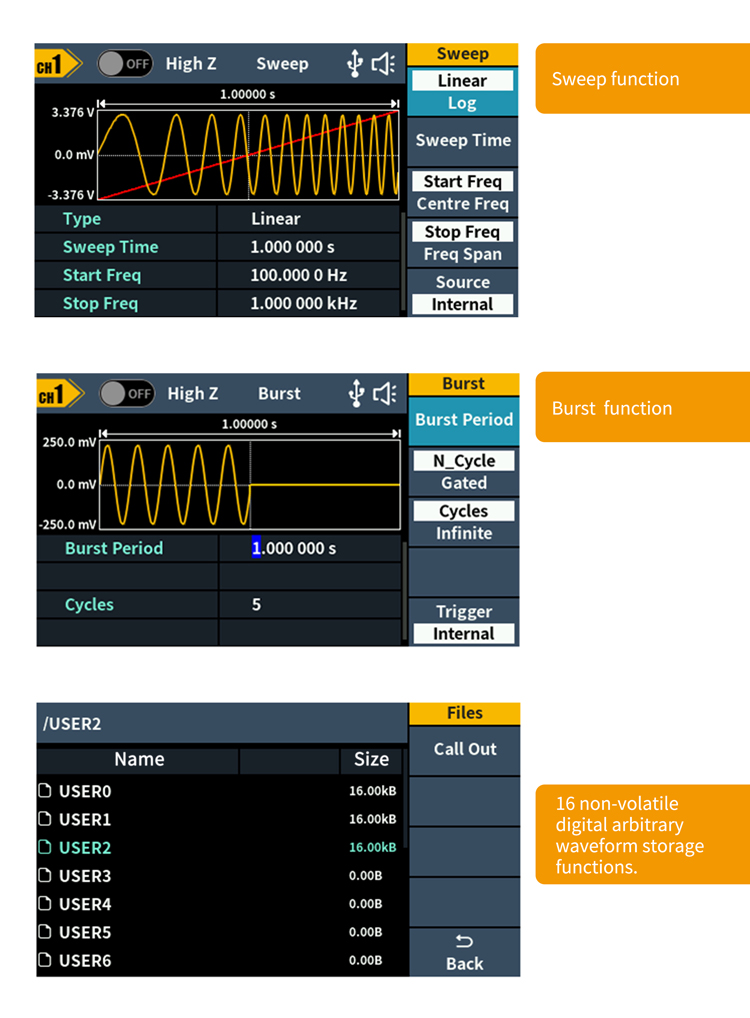

+ Comprehensive modulation functions : AM, FM, PM, FSK, Sweep, and Burst

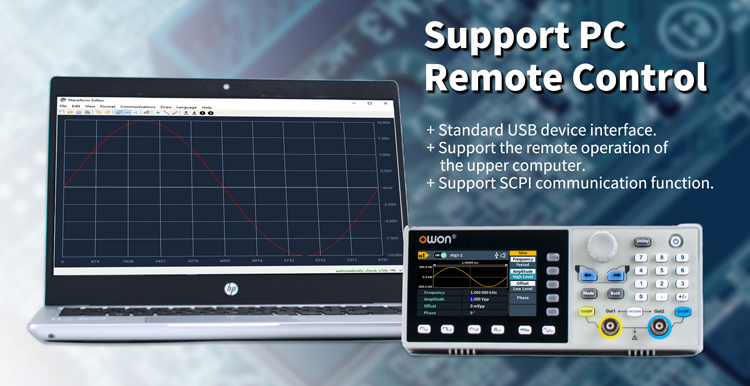

+ SCPI, and LabVIEW supported
+ 3.6 inch (480 × 260 pixels) LCD
E-mail UsProduct Details
Specifications
| Model | DGE2035 | DGE2070 |
|---|---|---|
| Channel | 2 | |
| Frequency Output | 35MHz | 70MHz |
| Sample Rate | 125MSa/s | 300MSa/s |
| Vertical Resolution | 14 bits | |
| Waveform | ||
| Standard Waveform | sine, square, pulse, ramp, and noise | |
| Arbitrary Waveform | exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform |
|
| Frequency | ||
| Sine | 1μHz - 35MHz | 1μHz - 70MHz |
| Square | 1μHz - 15MHz | 1μHz - 20MHz |
| Pulse | 1μHz - 15MHz | 1μHz - 20MHz |
| Ramp | 1μHz - 1MHz | 1μHz - 2MHz |
| Noise | 20MHz (-3dB，typical) | |
| Arbitrary Waveform | 1μHz -10MHz | |
| Frequency Resolution | 1 μHz or 7 significant figures | |
| Frequency Stability | ±30 ppm at 0±40℃ | |
| Frequency Aging Rate | ±30 ppm per year | |
| Arbitrary | ||
| Waveform Length | 2 - 8K points | |
| Sample Rate | 125Ma/s | 300Ma/s |
| Amplitude | ||
| into 50Ω Load | 1mVpp - 10Vpp（≤10MHz） 1mVpp - 4Vpp （≤70MHz） |
|
| DC Offset Range (AD+DC) |
±(10 Vpk – Amplitude Vpp/2) high resistance ±(5 Vpk – Amplitude Vpp/2) 50 Ω |
|
| DC offset Resolution | 1mV or 4digits | |
| Load Impedance | 50Ω (typical) | |
| DC offset Accuracy | ±(1 % of |setting| + 1 mV + amplitude Vpp x 0.5%) | |
| Modulation | ||
| Type | AM, FM, PM, FSK, sweep, Burst | |
| Internal Modulation Frequency | 2 mHz to 100 kHz | |
| Sweep | ||
| Carrier | Sine, rectangular wave, ramp wave, arbitrary wave(Except DC) | |
| Minimum/Maximum Starting Frequency |
2mHz（minimum）/ maximum frequency of corresponding carrier | |
| Minimum/Maximum Termination Frequency |
2mHz（minimum）/ maximum frequency of corresponding carrier | |
| Trigger Source | internal, manual | |
| Burst | ||
| Waveform | Sine wave, square wave, ramp wave, pulse wave and arbitrary wave (Except DC) |
|
| Types | N-Cycle | |
| Trigger source | Internal, manual | |
| Carrier frequency | 1μHz ≤ Offset ≤ Maximum frequency of corresponding carrier /2 | |
| Input / Output | ||

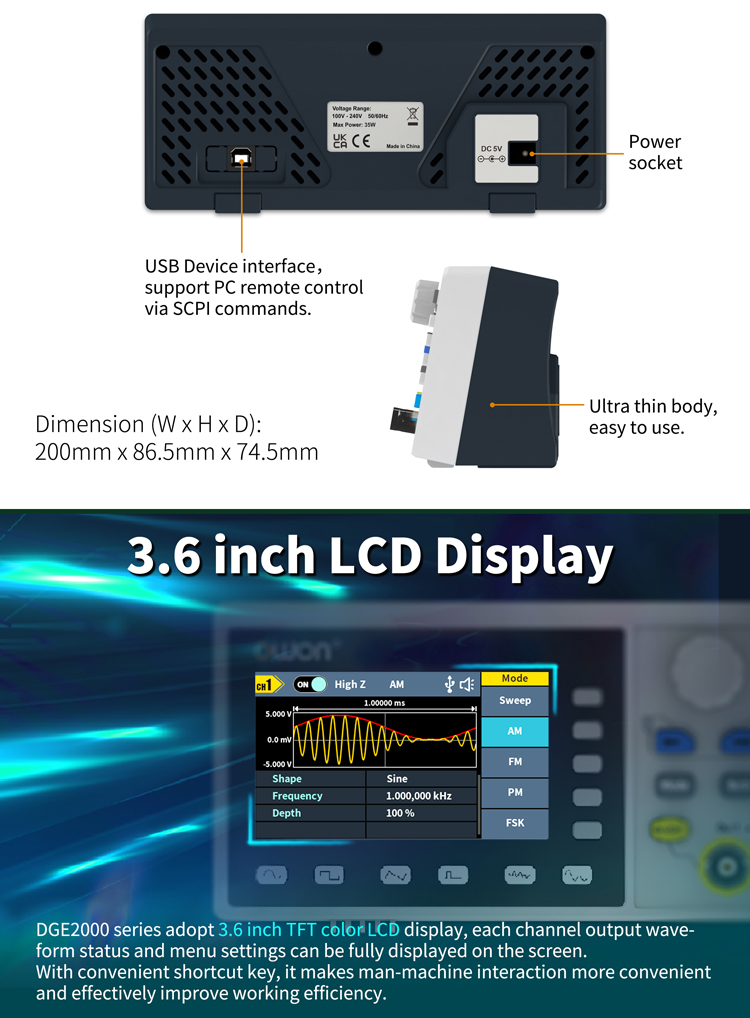

| Display | 3.6-inch TFT LCD with resolution 480 x 272 | |

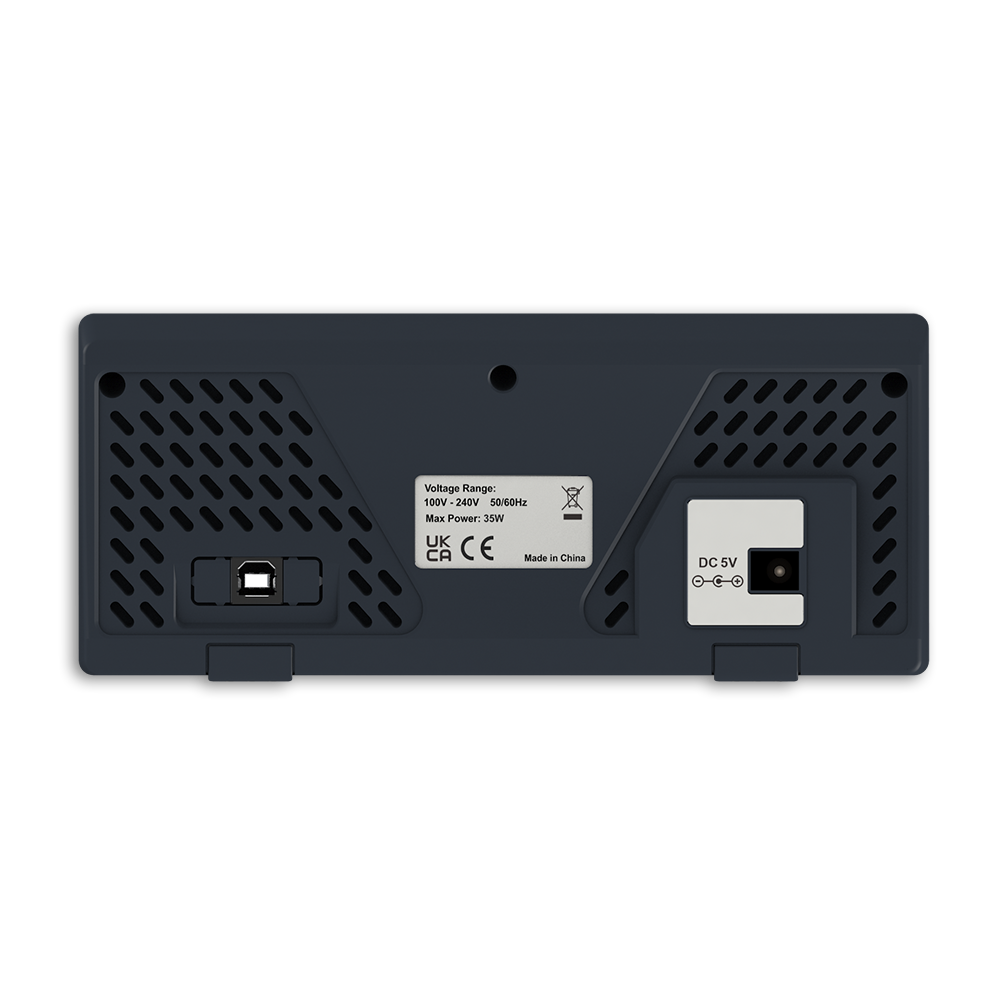

| Communication Interface | USB Device | |
| Mechanical specifications | ||

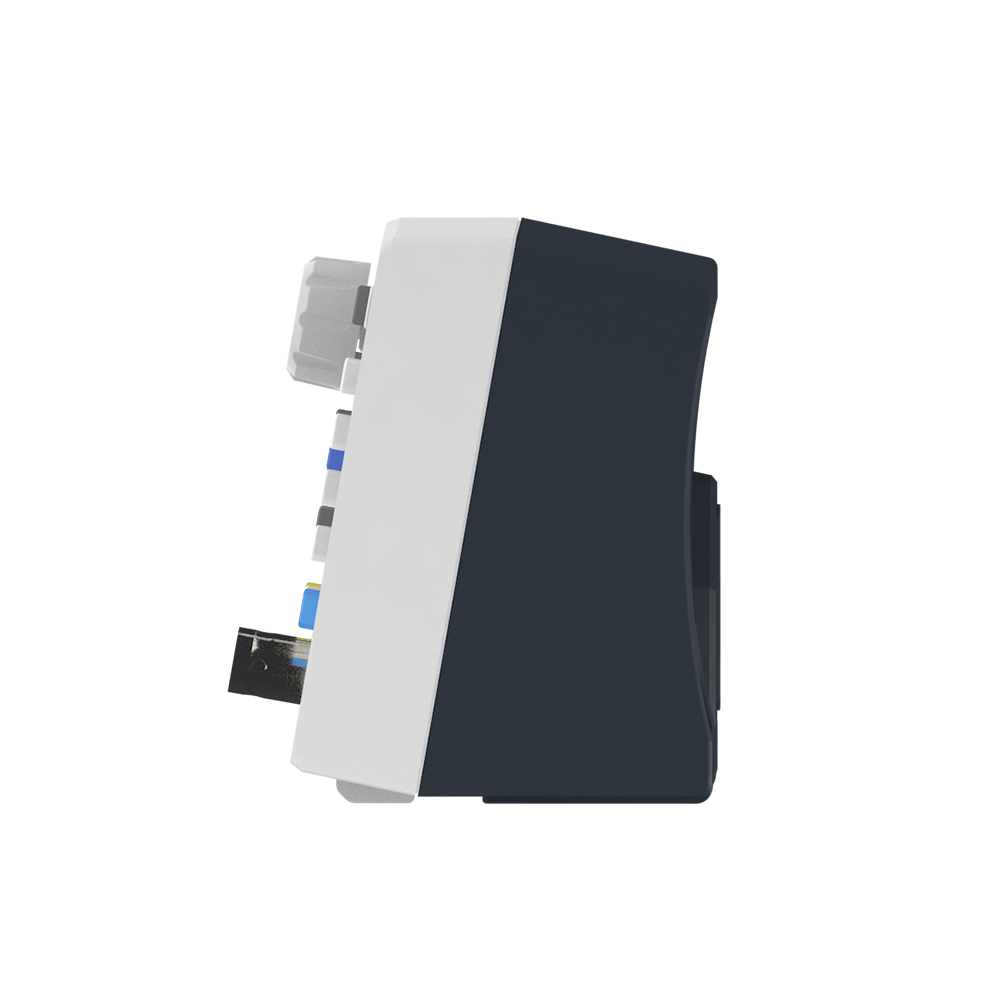

| Dimension (W×H×D) | 200mm x 68.5mm x 74.5mm | |
| Weight (without package) | 0.5kg | |
Accessories
The accessories subject to final delivery.
-
Quick Guide -
Q9 Cable -
Power Adpter -
BNC to Alligator Clip -
USB to DC Cord
