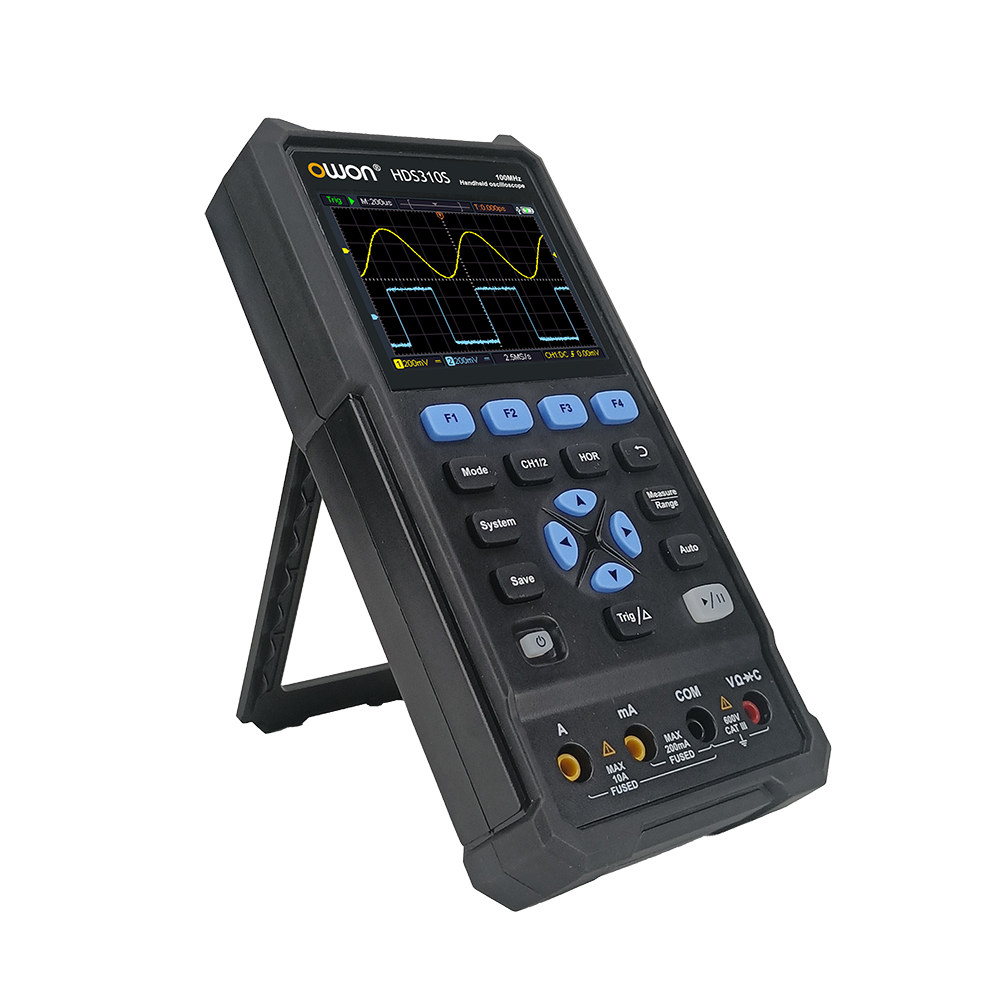

    OWON HDS300 Series Digital Oscilloscope

    + Oscilloscope + multimeter + waveform generator, multifunction in one
    + 3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use
    + 18650 lithium battery
    + USB Type-C interface, support power bank, support PC software connection
    + Self-calibration function
    + SCPI supported, facilitate secondary development
      Share to
    • E-mail Us
    Send Inquiry
    Specifications

    「Oscilloscope」Specifications

    Model

    HDS307S

    HDS310S

    HDS310S

    Bandwidth

    70MHz

    100MHz

    100MHz

    Sample rate

    250MSa/s

    500MSa/s

    1GSa/s

    Channel

    2+1(signal generator)

    Acquisition model

    Sample, Peak detect

    Record length

    8K

    Display

    3.5-inch LCD

    Waveform refresh rate

    10,000 wfms/s

    Input coupling

    DC, AC, Ground

    Input impedance

    1 MΩ±2%, in parallel with 16 pF±10 pF

    Probe attenuation

    1X,10X,100X,1000X,10000X

    Max. input voltage

    400V (DC+AC, PK - PK, 1MΩ input impedance) (10:1 probe attenuation)

    Sampling rate range

    5ns/div - 1000s/div, step by 1 – 2 - 5

    2ns/div - 1000s/div, step by 1 – 2 - 5

    Sensitivity Resolution

    10mV/div - 10V/div

    Trigger type

    Edge

    Trigger model

    Auto, Normal, Single

    Automatic measurement

    Period, Frequency, Mean, PK-PK, Max, Min, RMS, Rise Time, Fall Time, +Pulse Width,-Pulse Width

    Cursor measurement

    ΔV, ΔT, ΔT&ΔV between cursors

    Communication interface

    USB Type-C
