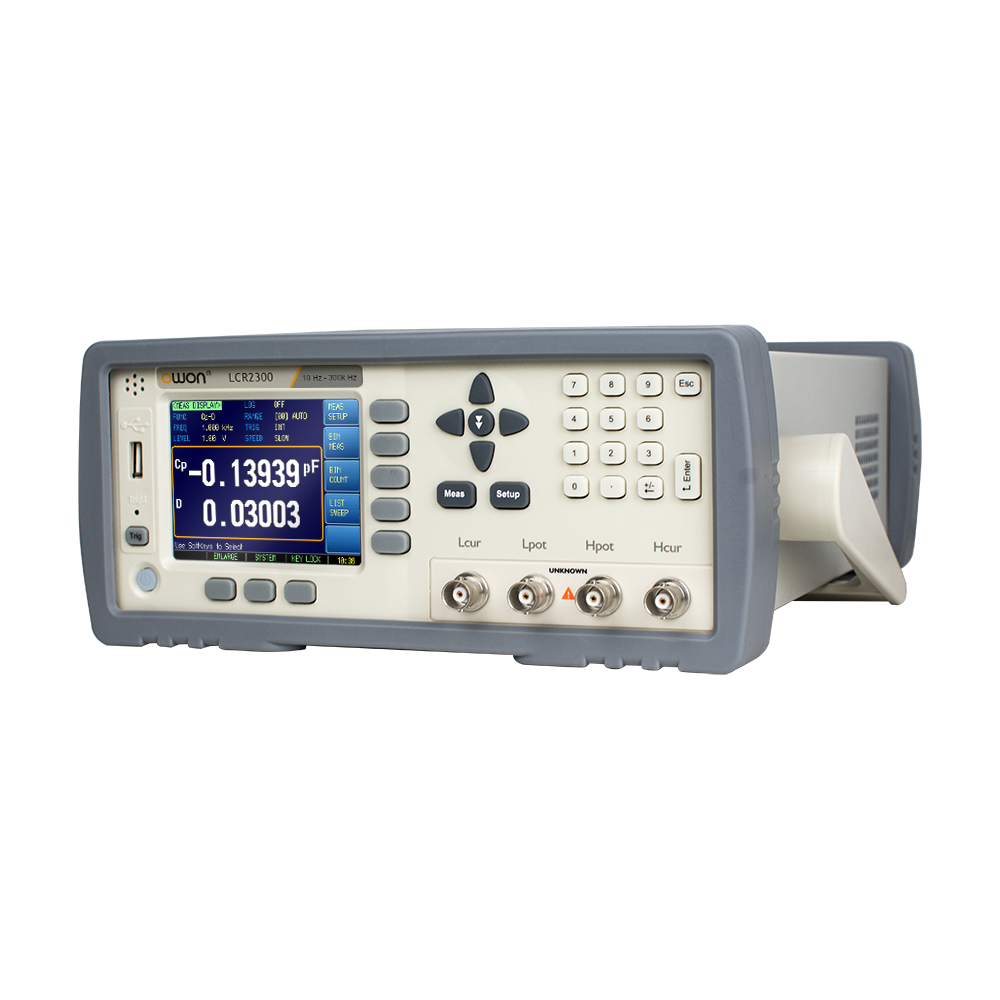

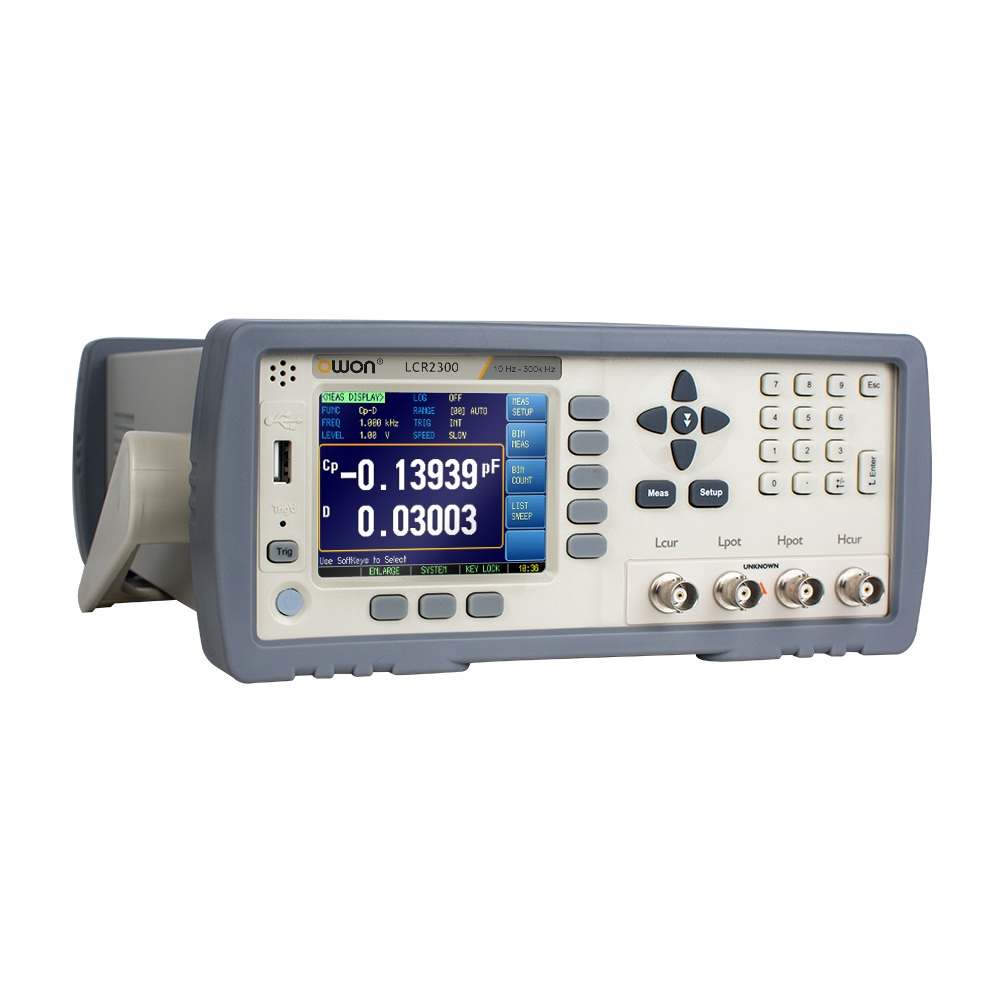

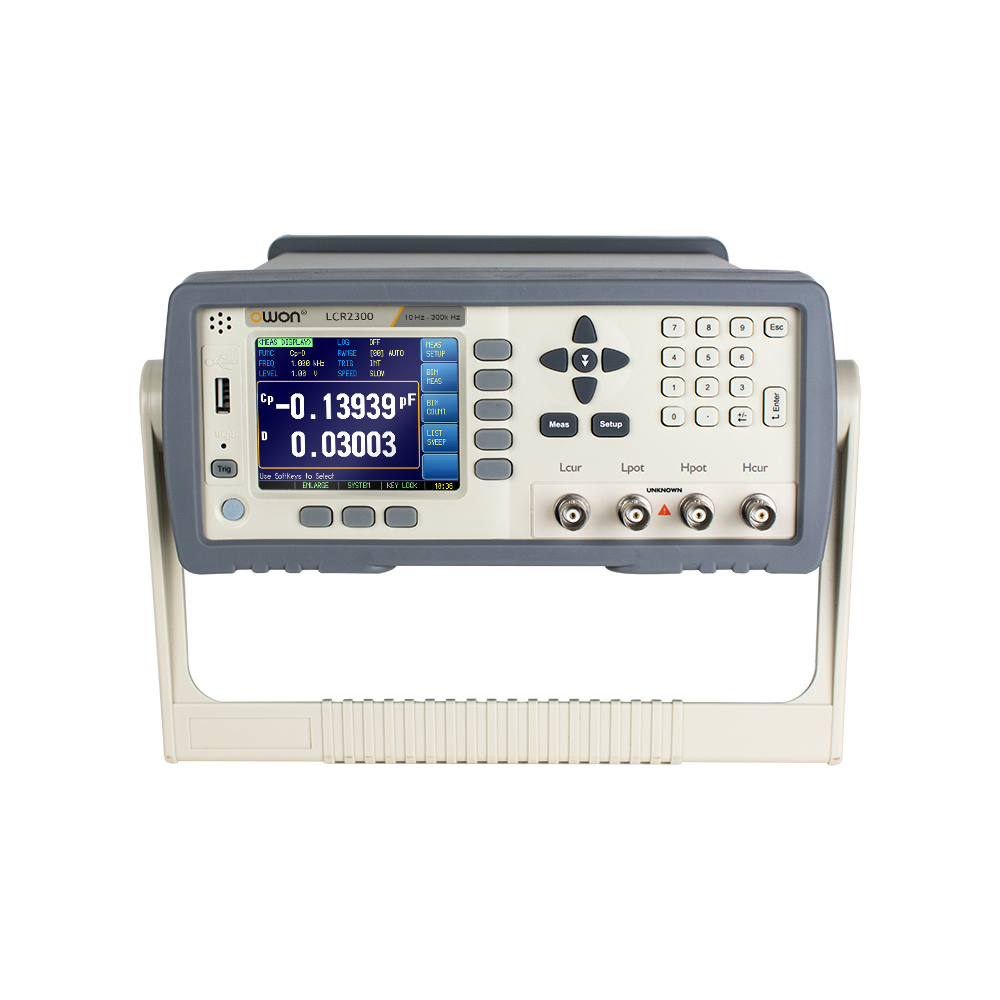

- LCR2000 Series LCR Meter
+ Basic accuracy : 0.05%
+ Measuring speed up to 40 times per second
+ Use 9-range test, auto, lock and nominal
( the instrument automatically selects the best range based on nominal value)
+ DCR measurement and internal D.C. bias voltage (±2.5V)
+ 3.5”color LCD

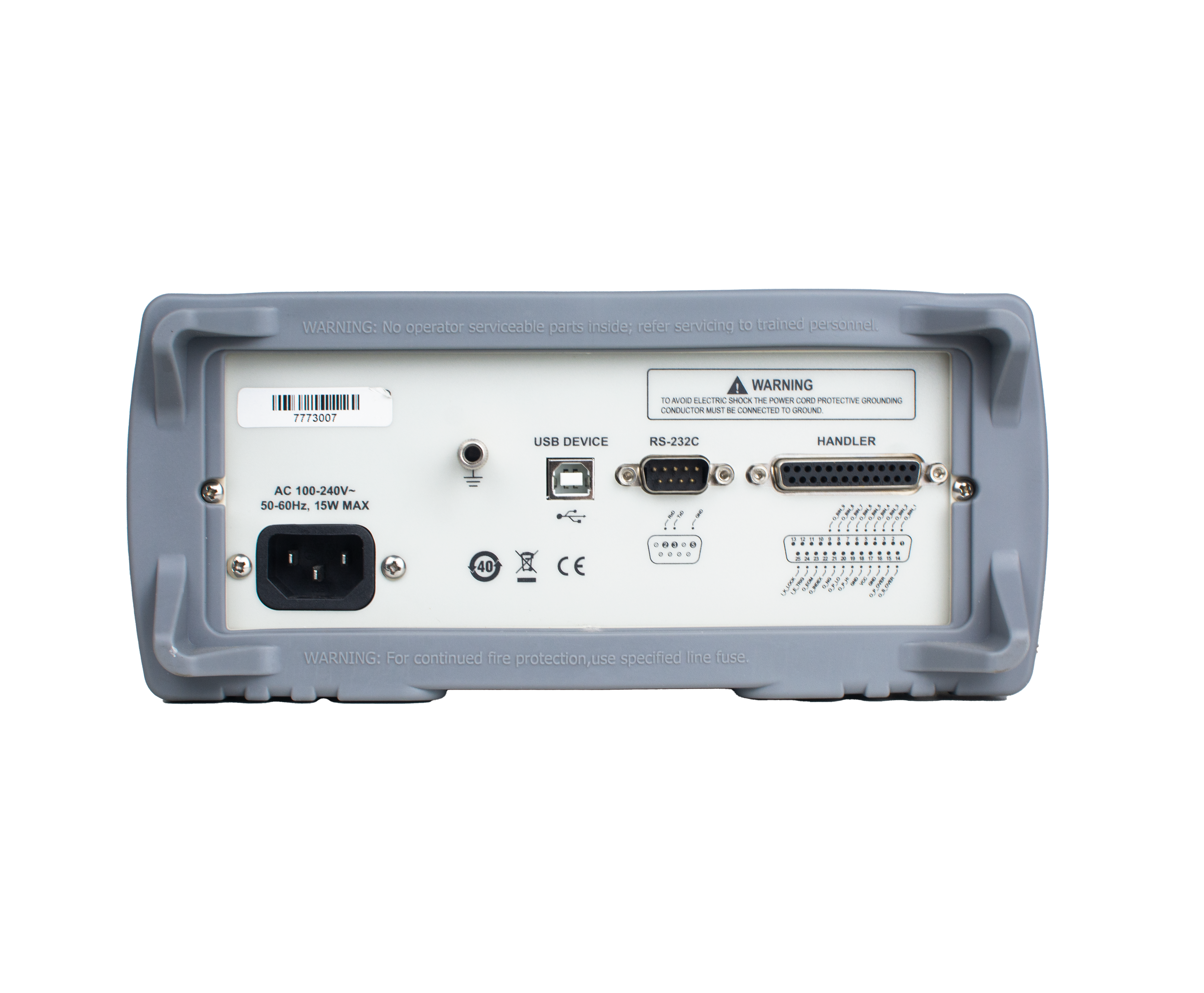

+ Interface : RS-232C, Handler, USB Host / Device
+ Support SCPI and ModbusRTU communication protocol

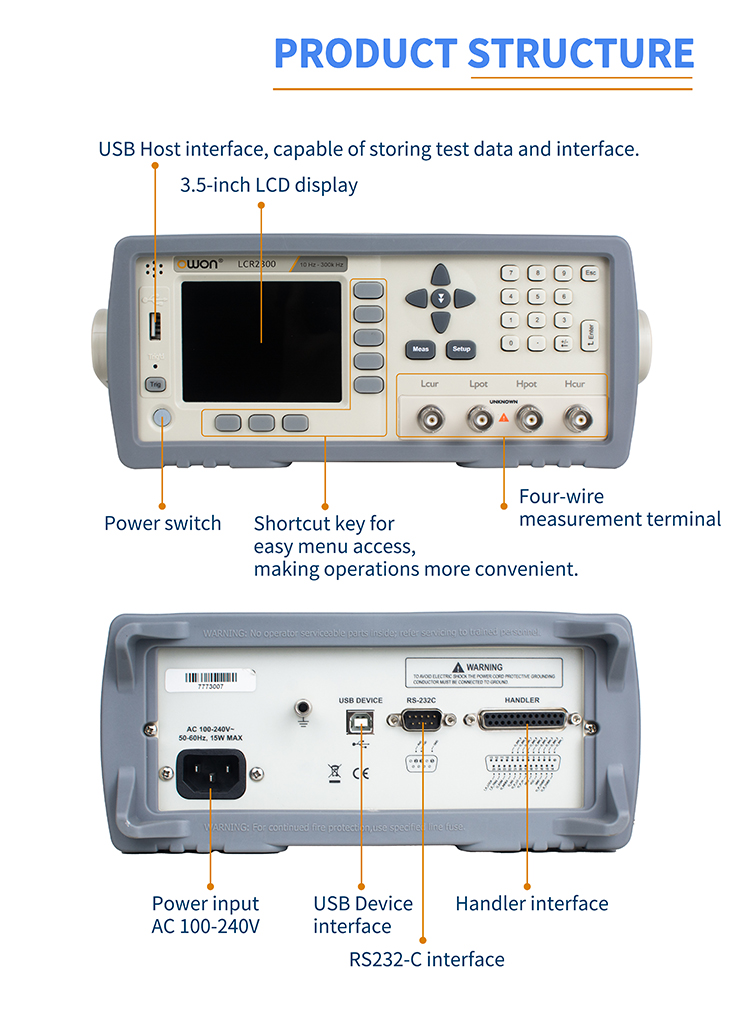

![](../Upload/image/LCR2000/2.jpg)

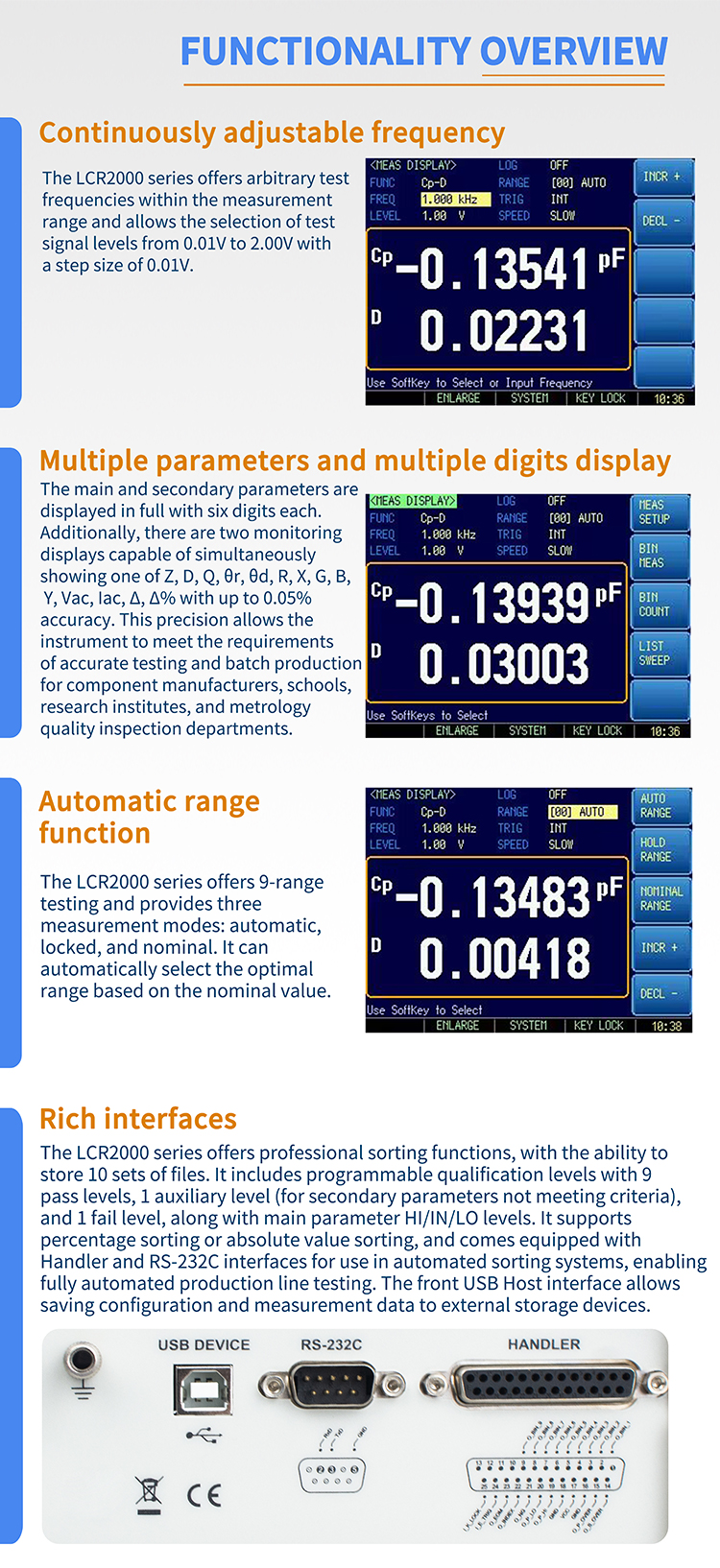

![](../Upload/image/LCR2000/3.jpg)
Model NO. |
LCR2300 |
LCR2200 |
LCR2100 |
LCR2020 |
Test Function |
Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, G-B, R-X, Z-θr, Z-θd, DCR |
|||
Monitor Parameter |
Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Lac, △, △% |
|||
Test Frequency |
10Hz~300kHz |
10Hz~200kHz |
10Hz~100kHz |
10Hz~20kHz |
Basic Accuracy |
0.05%(Slow/Med), 0.1%(Fast) |
|||
Measurement Speed |
40 times/s, 10 times/s, 3 times/s |
|||
Display Rang |
L:0.00001uH ~ 9999.99H |
|||
Output impedance |
30Ω、50Ω、100Ω |
|||
Auto, Hold and Nominal range. Total 9 Ranges. |
||||
DC Bias ( Internal ) |
-2.50V ~ +2.50V |
|||
Correction Function |
OPEN/SHORT |
|||
Beep Feature |
OFF/PASS/FAIL and HIGH/LOW tone |
|||
Memory |
built-in 10 files |
|||
Trigger Mode |
Internal, Manual, External and Remote Trigger. |
|||
Interface |
USB Host / Device, RS232, Handler |
|||
Display |
3.5 inch LCD |
The accessories subject to final delivery.
-
Power Cord
-
Quick Guide
-

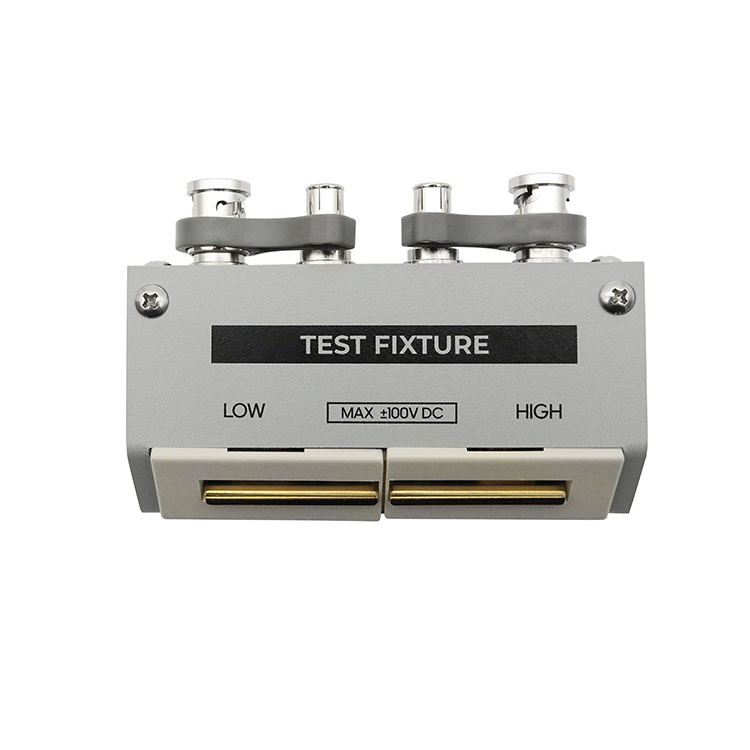

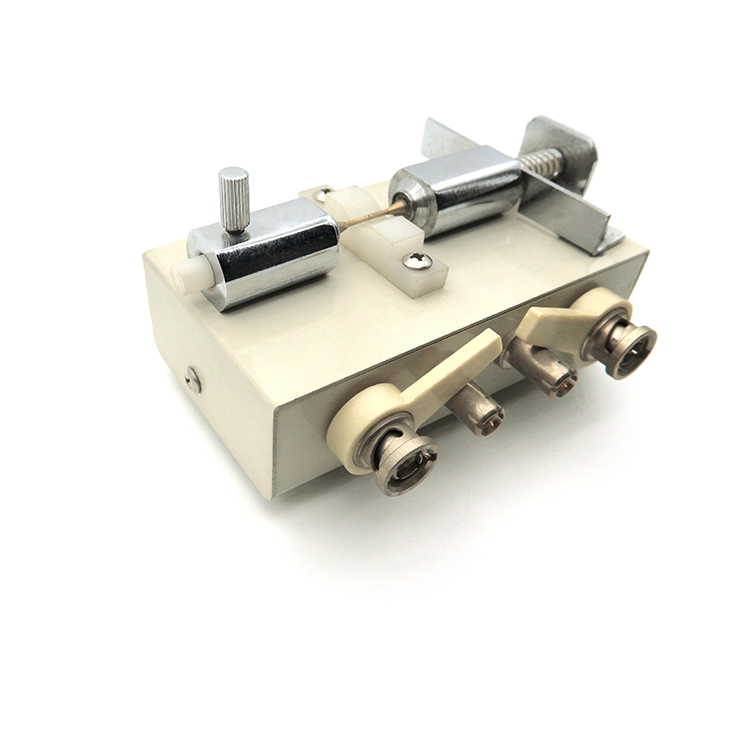

T10 Test Fixture
-

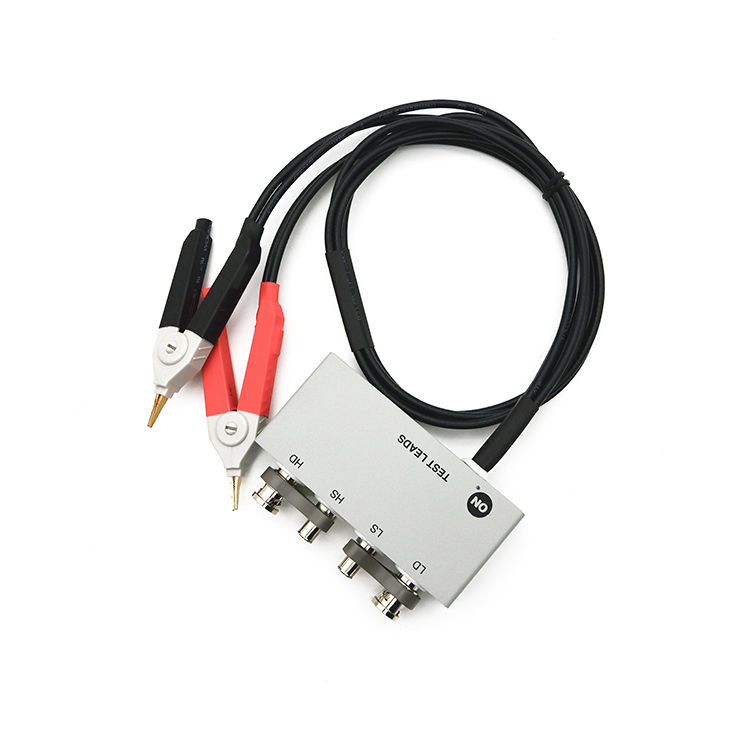

Test Leads
-

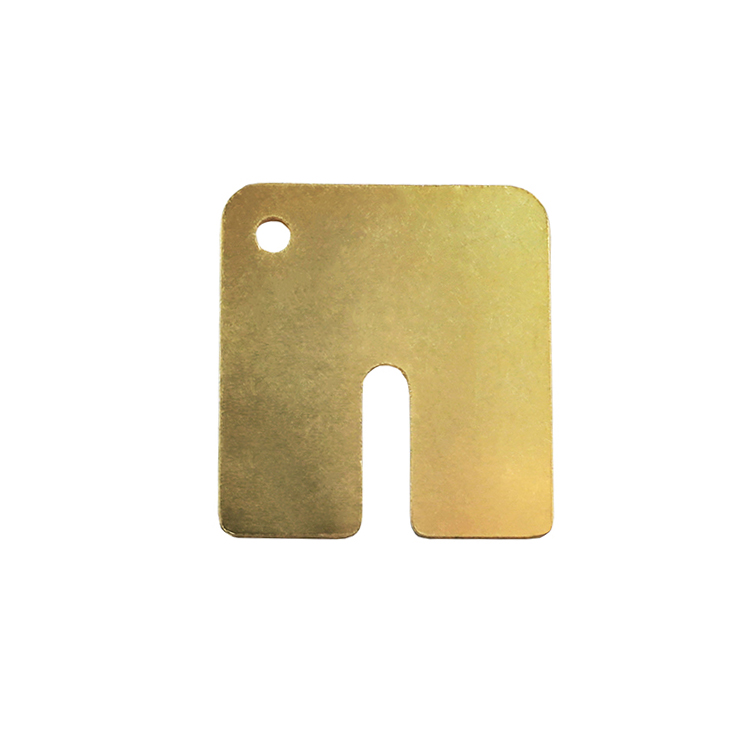

Short-circuit foil
-
F10 SMD Test Clips
-

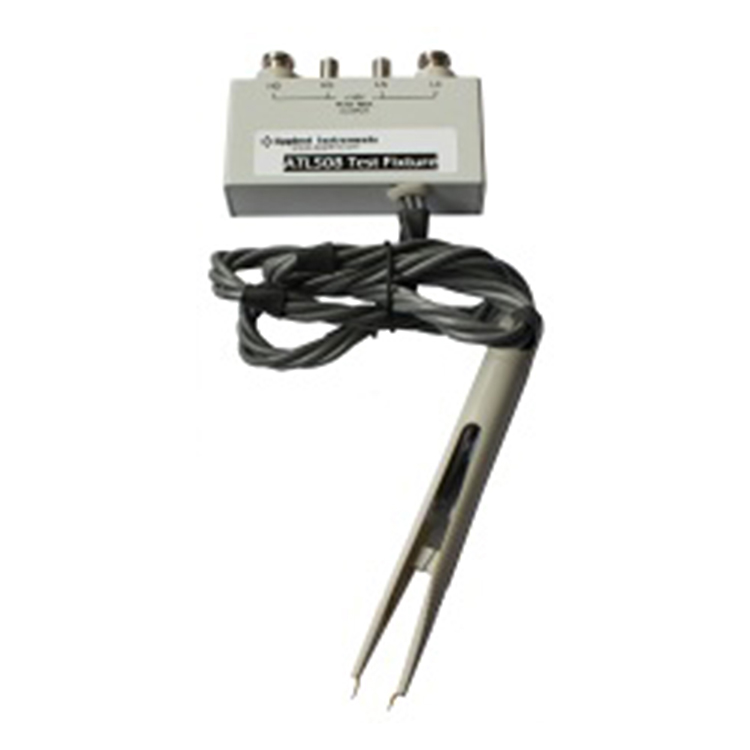

F11 SMD Test Clips (optional)
-

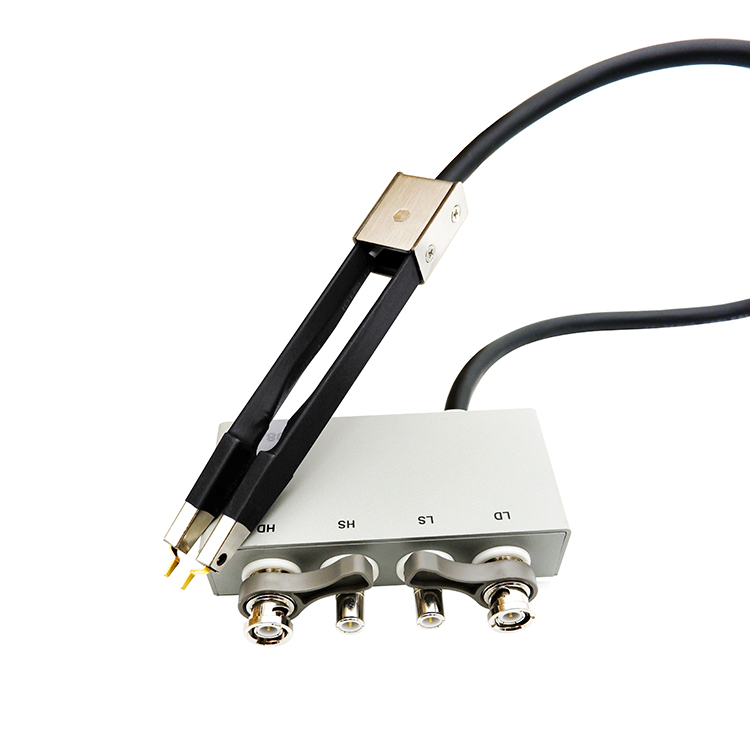

F12 SMD Test Clips(optional)
