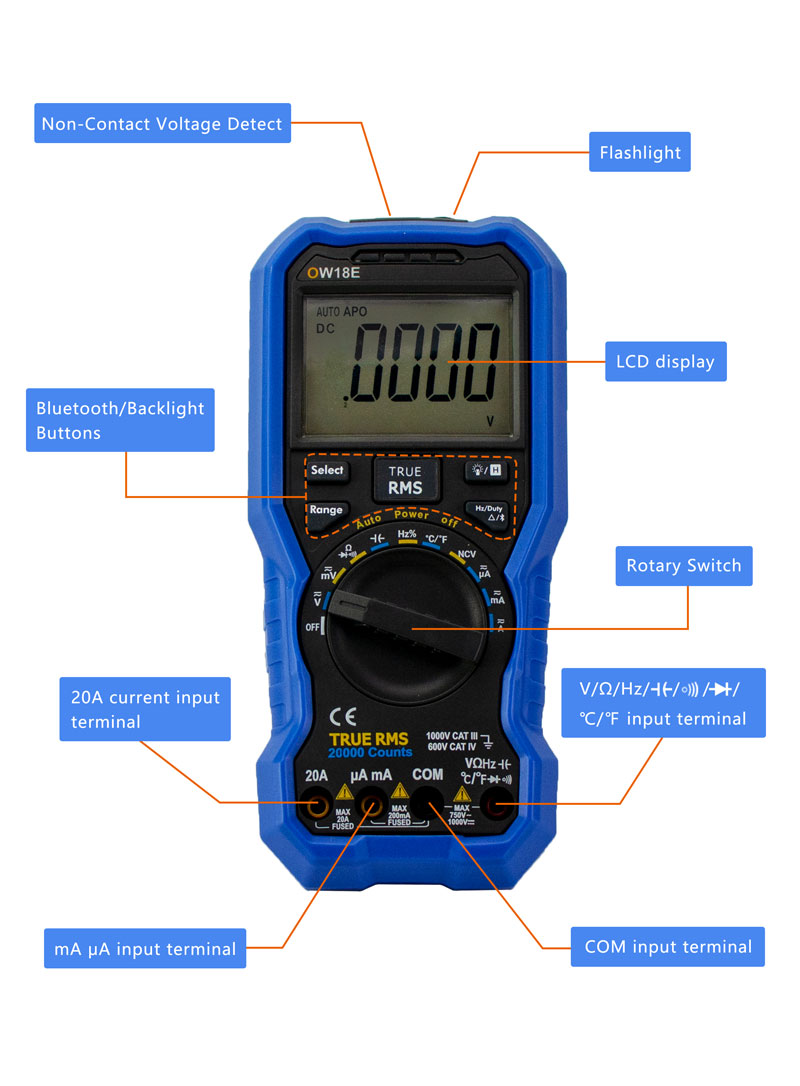

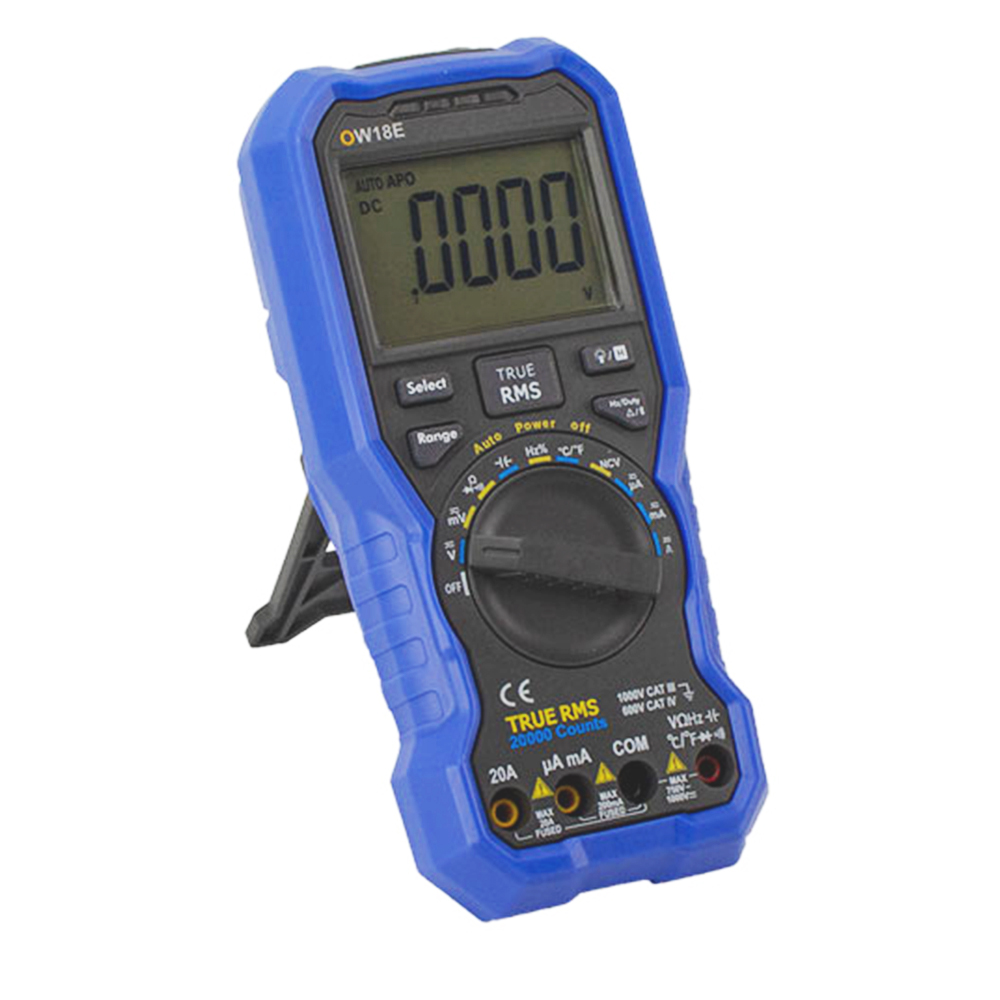

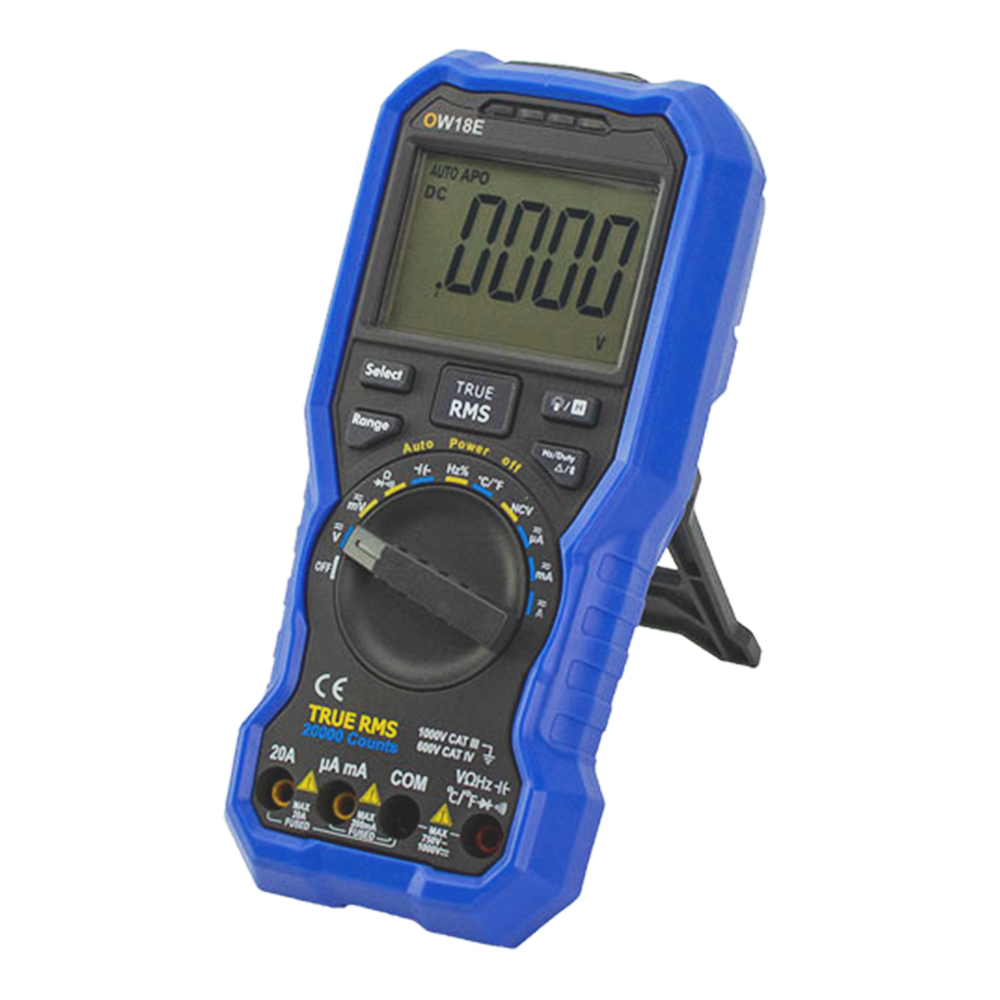

OWON OW18D/E 4 1/2 digits Handheld Digital Multimeter

+ 4 1/2 bit resolution (20000counts)

+ Data Logger + Multimeter + Thermometer (only for OW18E)

+ True RMS test supported

+ BLE 4.0 wireless transmission, more stable,less power consumption (only for OW18E)

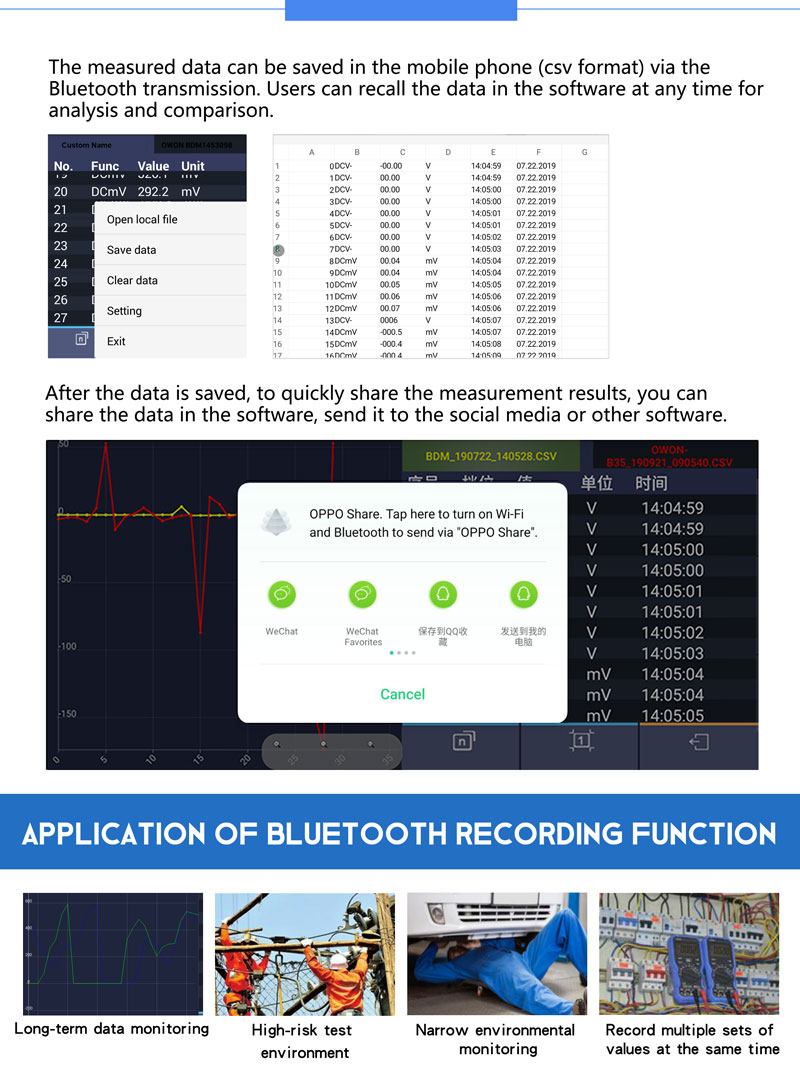

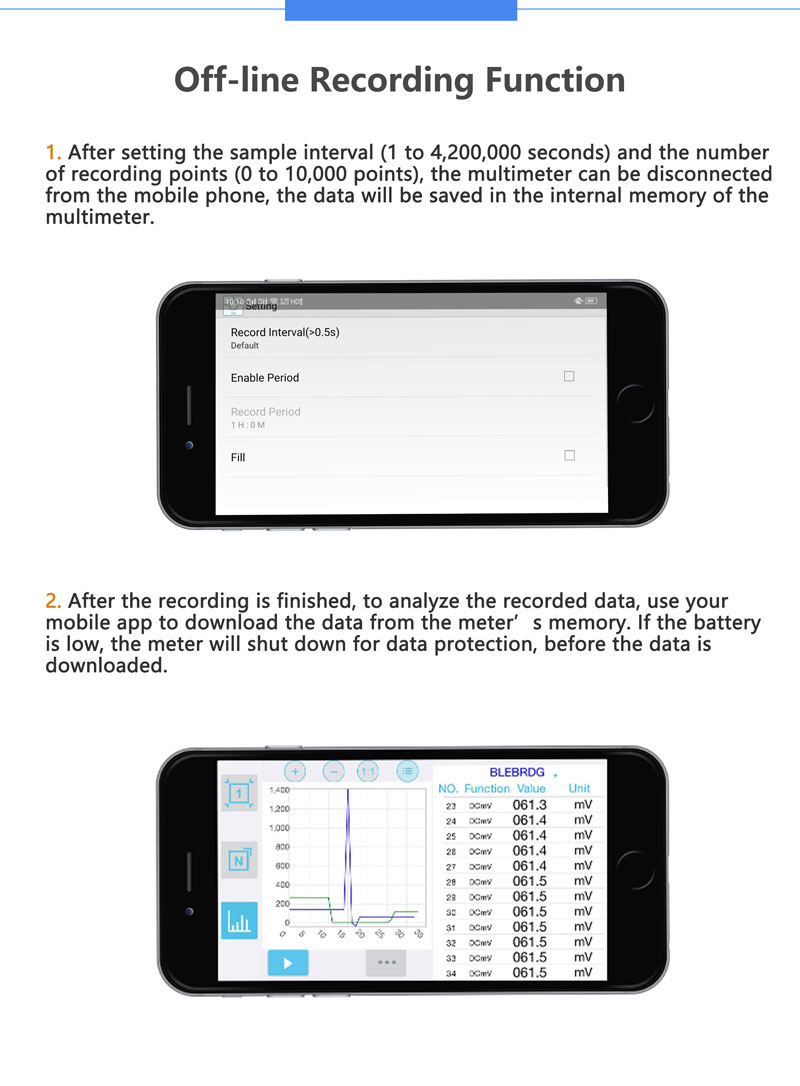

+ Build-in offline record function (only for OW18E)

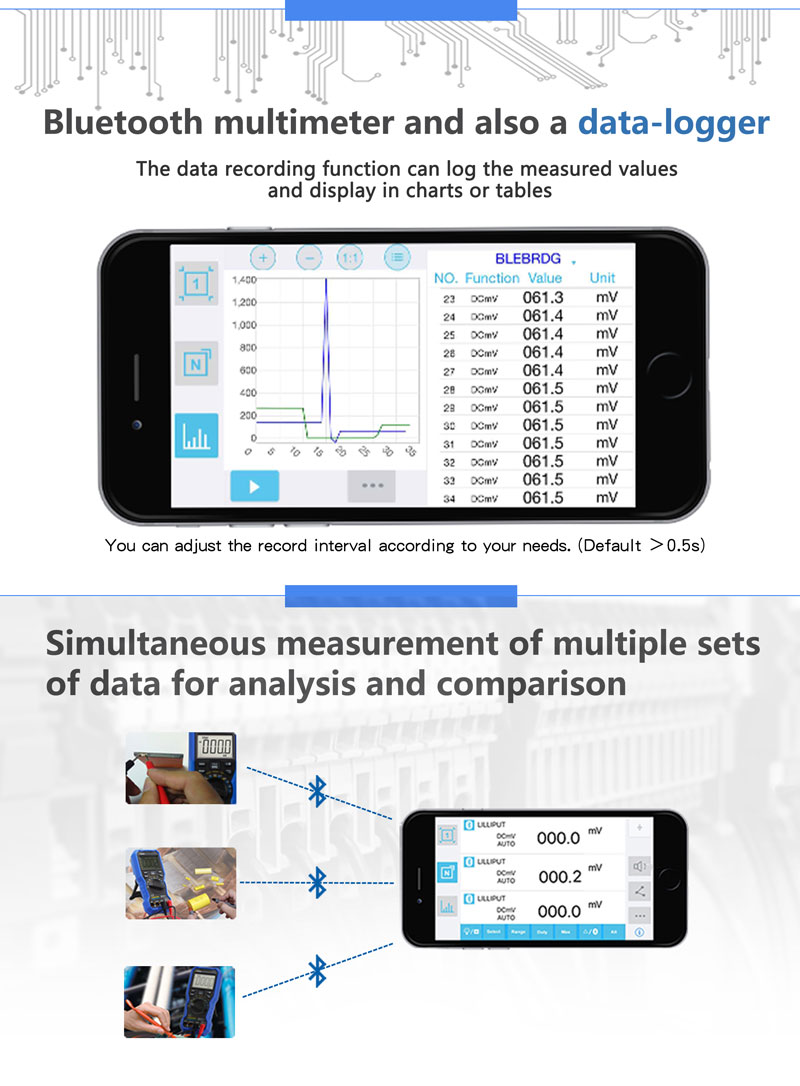

+ Chart and Diagram mode helps to analyze the data tendency (only for OW18E)

+ Flashlight function lightens the darkness

+ Support NCV non-contact voltage sense

+ Widely supported on Android, iOS,windows (only for OW18E)



Send Inquiry
Product Details











Specifications



Measurement Range

Accruacy

DC Voltage

20.000mV/200.00mV

±(0.05%+10 dig)

2.0000V/20.000V/200.00V

±(0.1%+2 dig)

1000.0V

±(0.15%+5 dig)

AC Voltage

20.000mV/200.00mV

±(0.5%+10dig)

2.0000V/20.000V/200.00V

750.00V

±(0.8%+10dig)

DC Current

200.00uA

±(0.5%+10dig)

2.0000mA/20.000mA/200.00mA

20.000A

±(2.0%+10dig)

AC Current

200.00uA

±(0.8%+10dig)

2.0000mA/20.000mA/200.00mA

20.000A

±(2.5%+10dig)

Resistance (Ω)

200.00Ω

±(0.5%+10dig)

2.0000kΩ/

±(0.3%+3dig)

20.000kΩ/200.00kΩ/2.0000MΩ

±(0.3%+1dig)

20.000MΩ

±(0.5%+1dig)

200.00MΩ

±(5.0%+10dig)

Capacitance (F)

2.0000nF/20.000nF/200.00nF/2.0000μF/20.000μF
200.00μF/2.0000mF/20.000mF

±(3.0%+10dig)

Frequency (Hz)

20.000Hz/200.00Hz/2.0000kHz
20.000kHz/200.00kHz/2.0000MHz/20.000MHz

±(0.1%+4dig)

Duty Ratio

0.1%~99.9%(typical value:Vrms=1V,f=1kHz)

±(1.2%+3dig)

0.1%~99.9%(≥1kHz)

±(2.5%+3dig)

Temperature (°C/°F)

- 50 ℃~400℃(0.1℃)

±(1.0%+3℃)

-58 ℉ ~ 752 ℉(0.1℉)

±(1.2%+6℉)

Display

19999

Frequency Response

(40 - 1000) Hz

Sample rate for digital data

3 times/second

Support

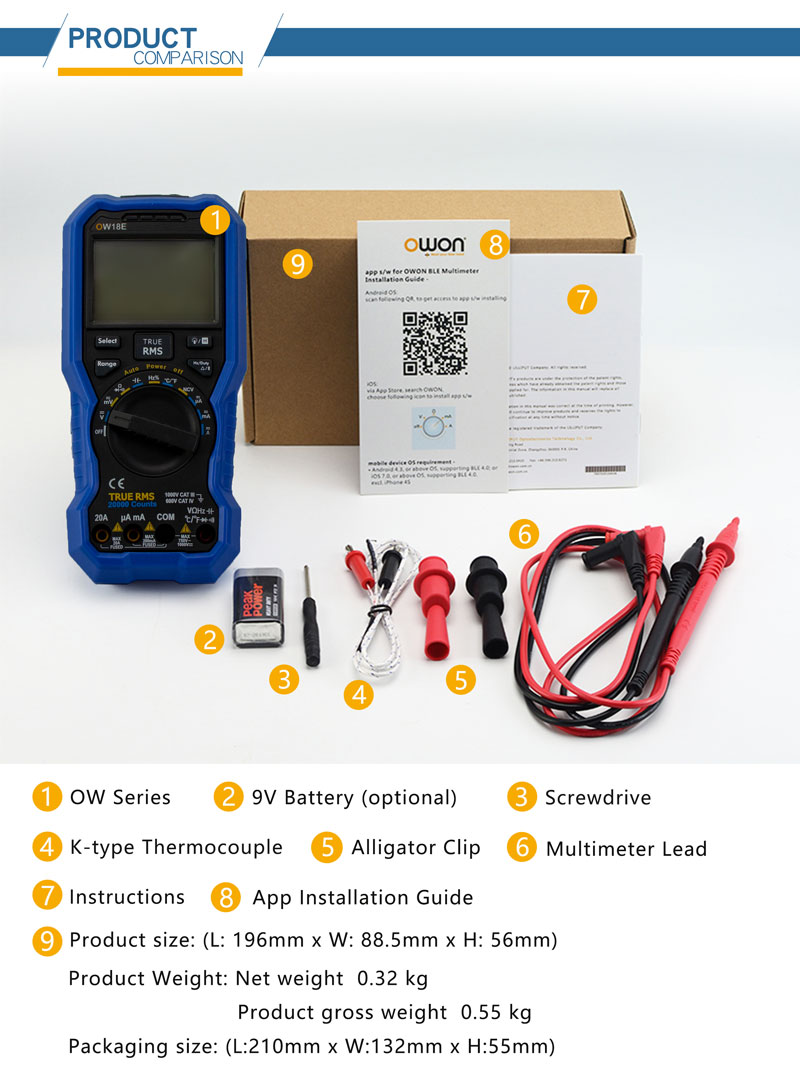

Accessories

The accessories subject to final delivery.

  • Quick Guide
  • Probe Adjust
  • Multimeter Lead
  • Alligator Clip (optional)
  • K-type Thermocouple
  • 9V battery (optional)
