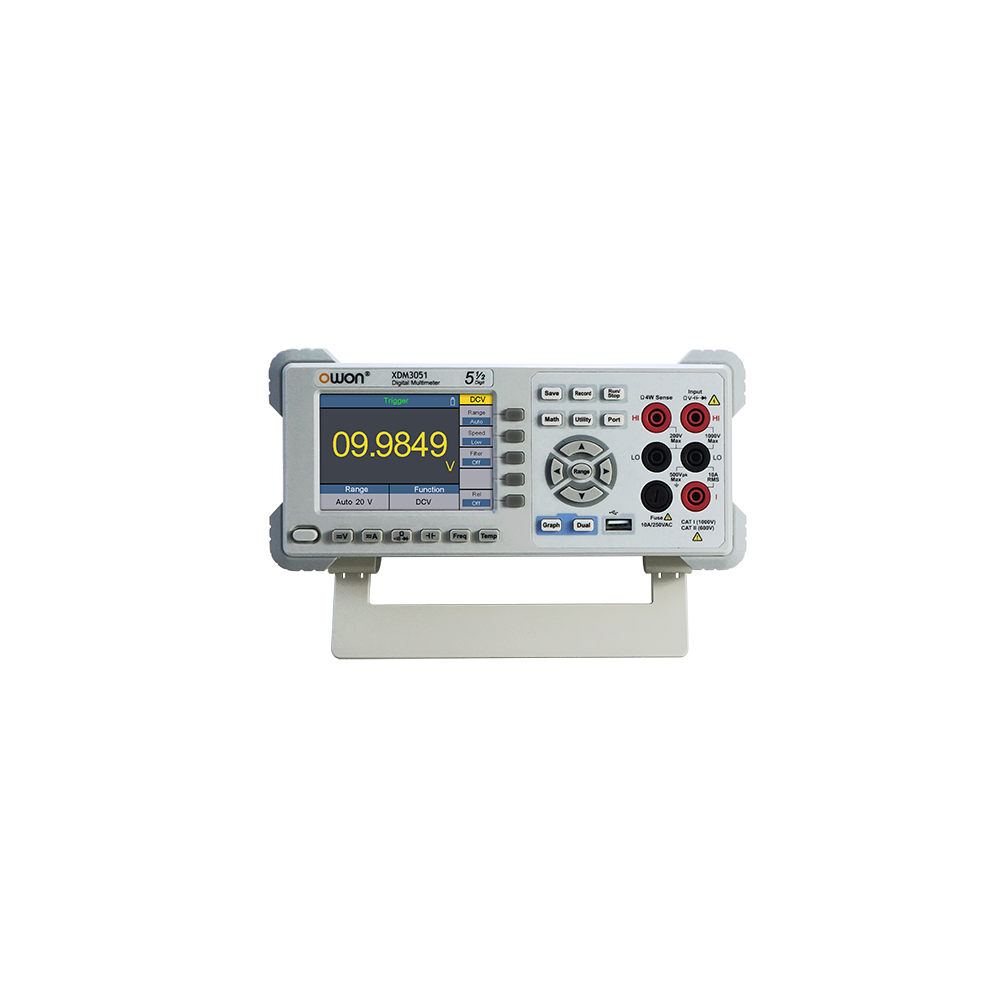

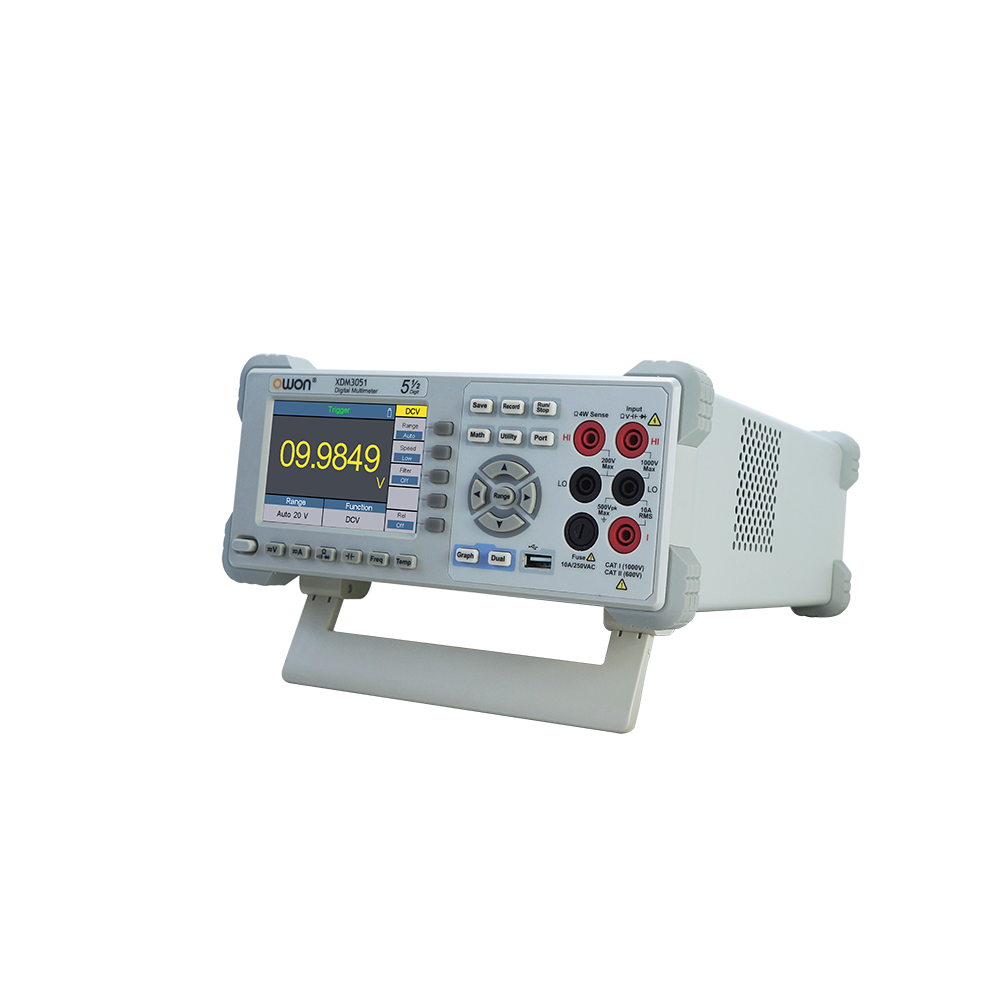

OWON 5 1/2 Bench-type XDM3051 Digital Multimeter

+ 4 inch 480 x 320 pixels high resolution LCD
+ resolutions up to 5 1/2 digits
+ reading rates up to 150 readings/s
+ true RMS AC voltage / current measurement
+ dual line display supported
+ the change trend analysis accessible via special chart mode
+ SCPI supported - remote control, and data-sharing
possible via LAN, USB, RS232 port, and WiFi*
* WiFi module is optional

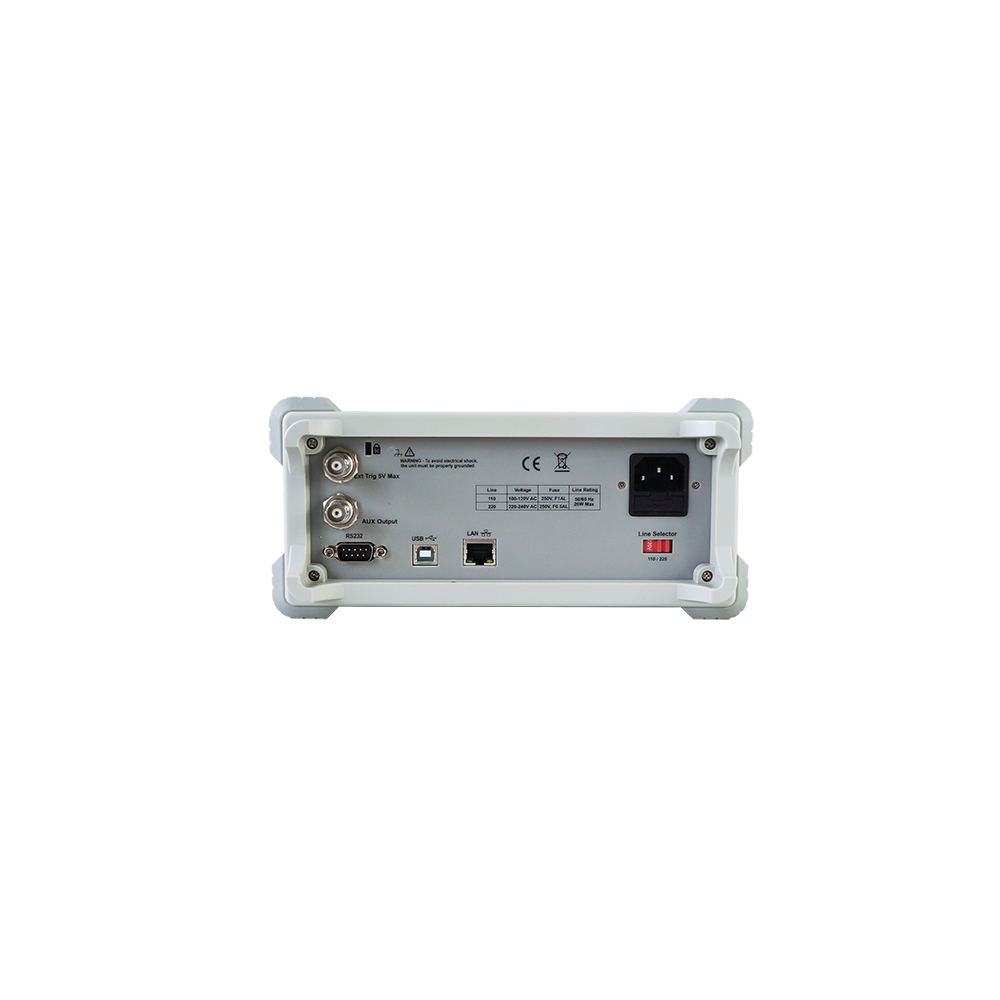

+ multi- IO interface: USB Device / Host, RS232, LAN, and ext.
trigger input

Send Inquiry

Product Details

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON 5 1/2 bench-type digital multimeter, auto ranging digital multimeter, rms multimeter, multimeter price, 512 digit multimeter with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.

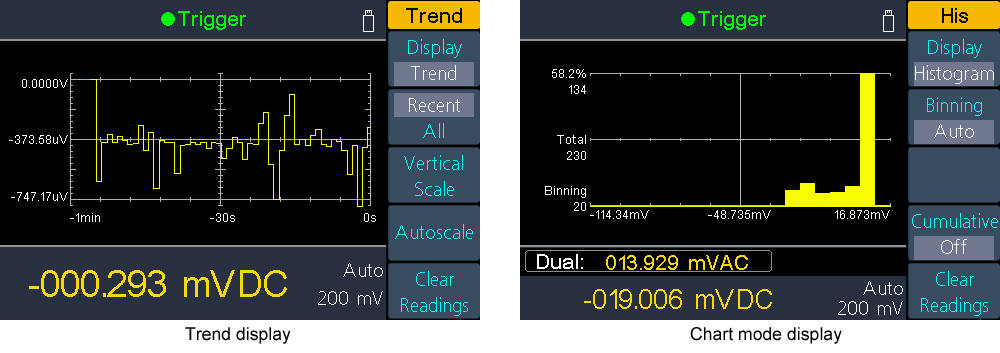

1. 4 inches LCD display, more vision to check the data, support dual display. Trends and chart mode display.

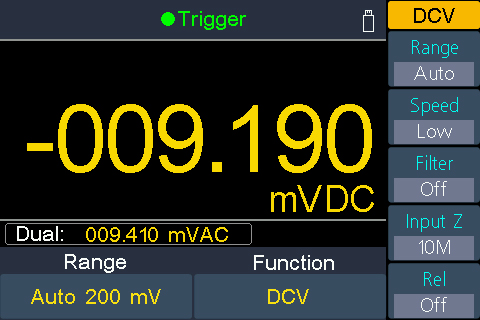

2. Dual display

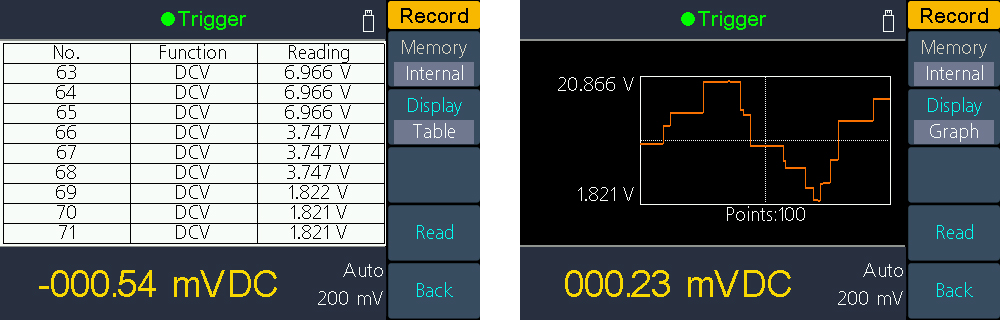

3. Data-logger Mode

During recording the measurement value, possible to set the logging duration (min. 5ms), and length,then get access to chart or table result.

Video

XDM Record Function Introduction

Specifications

XDM3051	Measurement Range	Frequency Range	Accuracy: 1 Year ±(% of reading +% of range)
DC Voltage	200mV, 2V, 20V, 200V, 1000V	/	0.015±0.004
True RMS AC Voltage	200mV, 2V, 20V, 200V, 750V	20 Hz - 45 Hz	1.5 + 0.10
		45 Hz - 10 kHz	0.2 + 0.05
		10 kHz - 50 kHz	1.0 + 0.05
		50 kHz - 100 kHz	3.0 + 0.05
DC Current	200.000 μA	/	0.055 + 0.005
	2.00000 mA		0.055 + 0.005
	20.0000 mA		0.095 + 0.020
	200.000 mA		0.070 + 0.008
	2.00000 A		0.170 + 0.020
	10.0000 A		0.250 + 0.010
True RMS AC Current	20.0000 mA, 200.000 mA, 2.00000 A, 10.0000 A	20 Hz - 45 Hz	1.5 + 0.10
		45 Hz - 2 kHz	0.50 + 0.10
		2 kHz - 10 kHz	2.50 + 0.20
Resistance	200.000 Ω	/	0.030 + 0.005
	2.00000 kΩ		0.020 + 0.003
	20.0000 kΩ		0.020 + 0.003
	200.000 kΩ		0.020 + 0.003
	2.00000 MΩ		0.040 + 0.004
	10.0000 MΩ		0.250 + 0.003
	100.000 MΩ		1.75 + 0.004
Diode Test	2.0000 V	/	0.05 + 0.01
Continuity	2000 Ω	/	0.05 + 0.01
Frequency Period	200 mV - 750 V	20 Hz - 2 kHz	0.01 + 0.003
		2 kHz - 10 kHz	0.01 + 0.003
		10 kHz - 200 kHz	0.01 + 0.003
		200 kHz - 1 MHz	0.01 + 0.006
	20 mA - 10 A	20 Hz - 2 kHz	0.01 + 0.003
	20 mA - 10 A	2 kHz - 10 kHz	0.01 + 0.003
Capacitance	2.000 nF	200 nA	3 + 1.0
	20.00 nF	200 nA	1 + 0.5
	200.0 nF	2 μA	1 + 0.5
	2.000 μF	10 μA	1 + 0.5
	200 μF	100 μA	1 + 0.5
	10000 μF	1 mA	2 + 0.5
Temperature	temperature sensors under 2 categories supported - thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type), and thermal resistance (RTD sensor conversion between Pt100 and Pt385 type)
Data-logger Function
Logging Duration	5ms
Logging Length	1M points
